9704230 Blender Drive Coupler with Spanner Kit - For KitchenAid KSB5WH, KSB5, KSB3
0.00
Regular price
$16.79
Regular price
Save 11%
$18.80
Sale price
$16.79
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

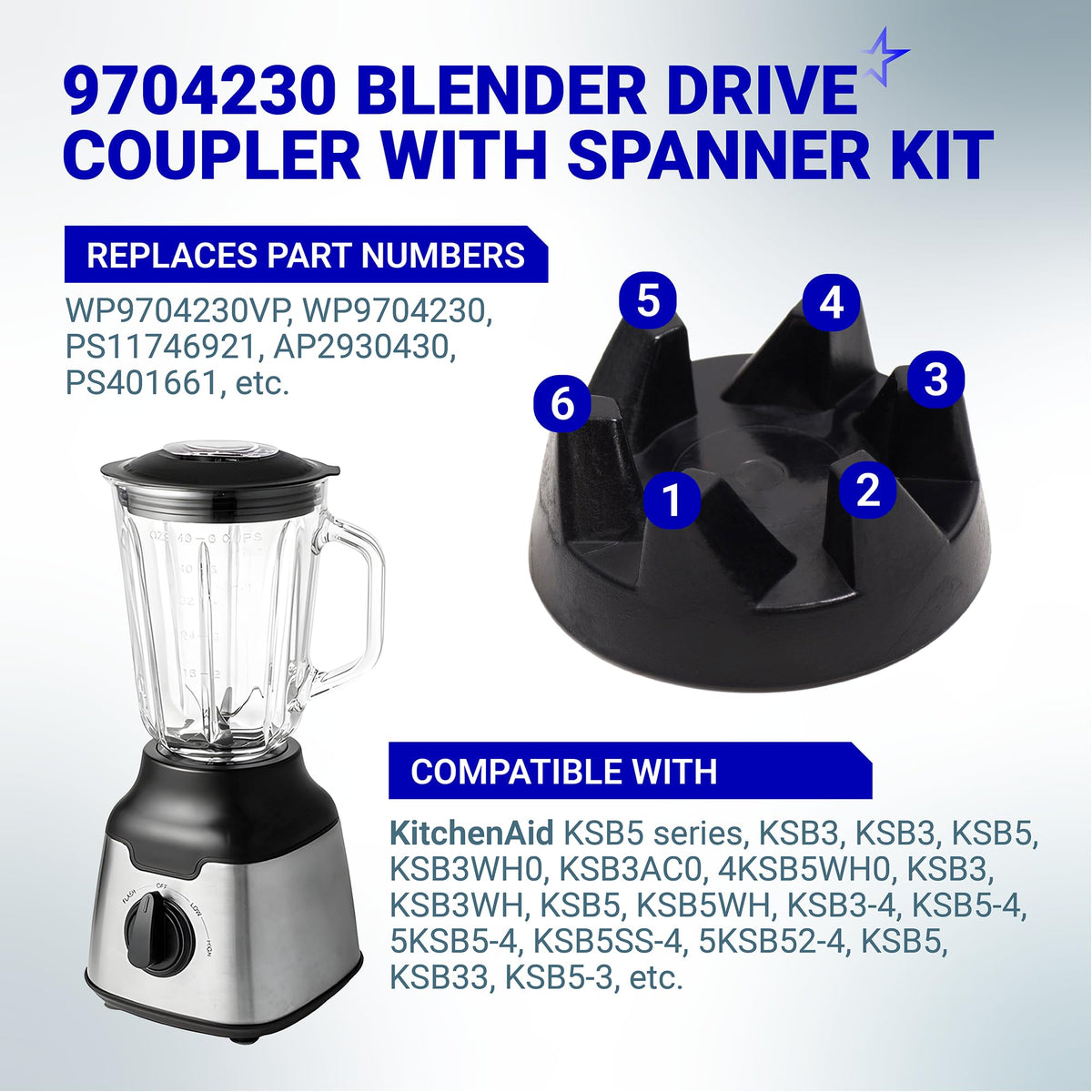

Replaces Part Numbers

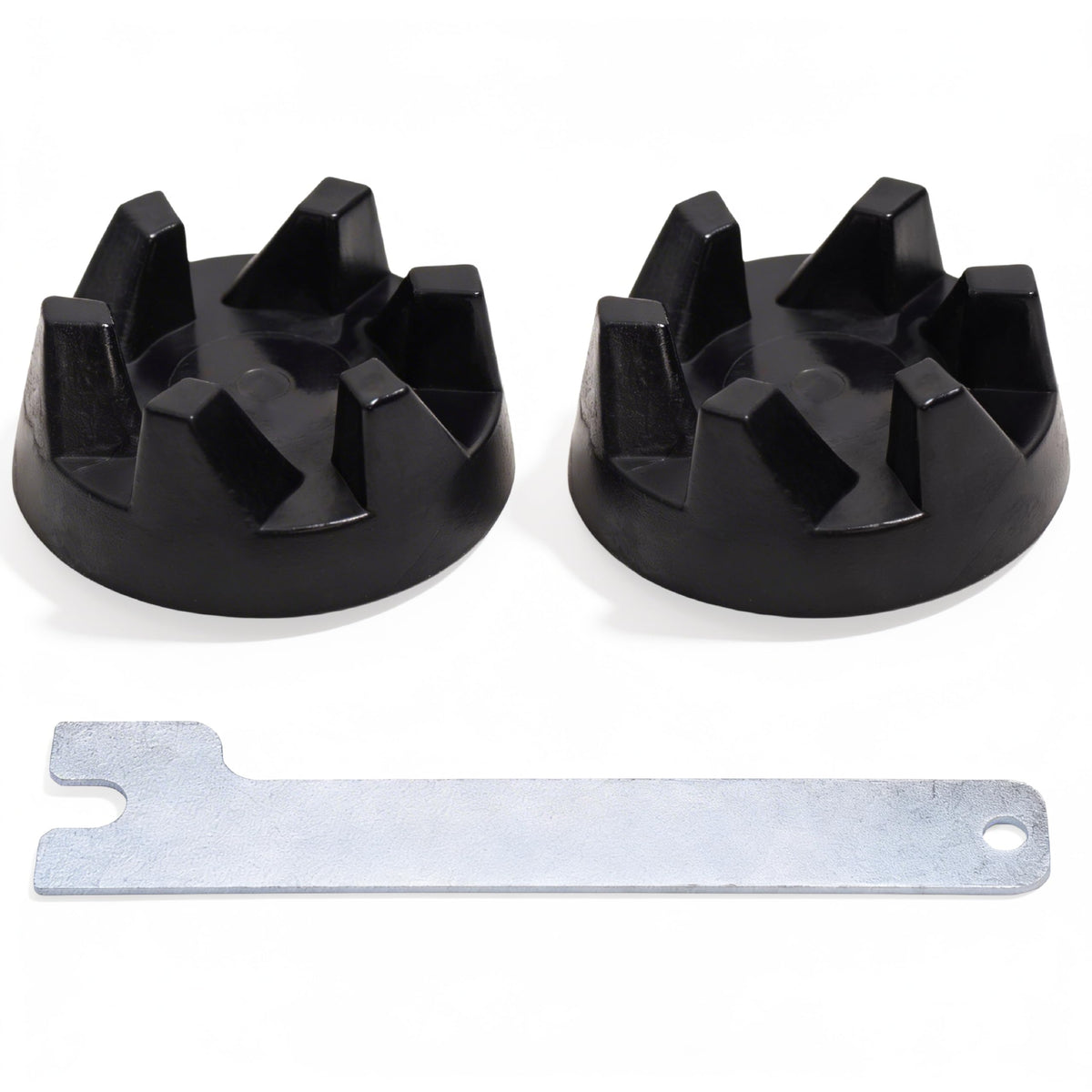

9704230 Blender Drive Coupler with Spanner Kit
Key Features

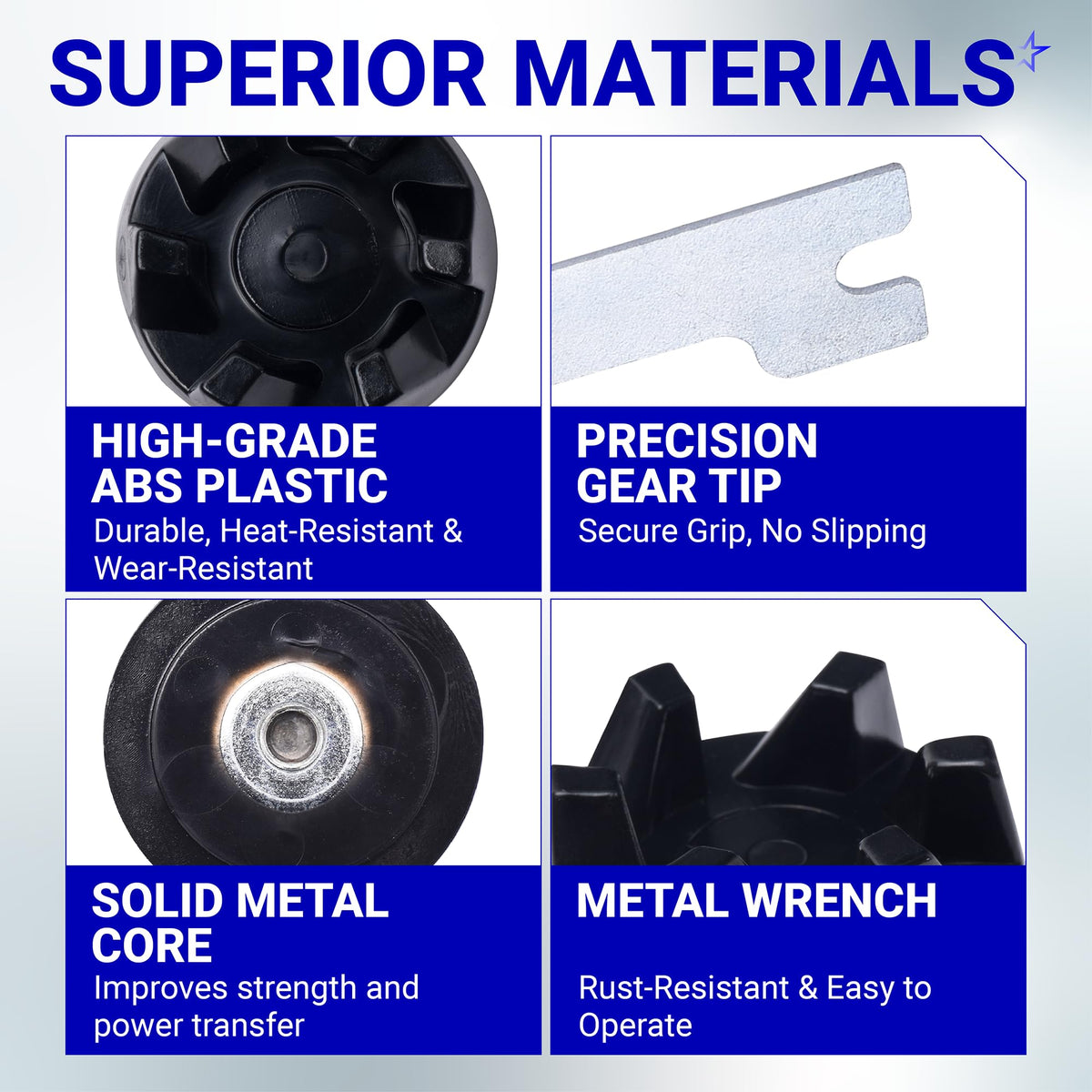

- Reinforced Rubber Composition: Manufactured from a high-density, impact-resistant rubber compound designed to provide maximum grip for the blender jar while protecting the motor from torque spikes.
- Precision Threaded Metal Core: Features a high-strength zinc or steel internal thread that ensures a secure, wobble-free connection to the blender's motor drive shaft.
- Sacrificial Safety Design: Specifically engineered to "shear" or strip if the blender blades become jammed (e.g., by ice or frozen fruit), acting as a mechanical fuse to prevent expensive motor burnout.
- Included Spanner Wrench: Comes with a specialized thin-profile wrench designed to fit the narrow gap between the coupler and the blender base, allowing for easy removal without disassembling the entire unit.
- 6-Prong Engagement: Features the standard 6-tab design that ensures 360-degree power transfer to the blender blade assembly for smooth, consistent blending performance.
Replaces / Cross-Reference Part Numbers
- 9704230
- WP9704230
- WP9704230VP
- AP6013694
- AP2930430
- 831718
- PS11746921
- PS401661
Compatibility & Fitment
This drive coupler is the primary replacement part for KitchenAid's classic 5-speed and 3-speed blender lines. Key compatible models include:
- KitchenAid KSB5 Series: KSB5, KSB5WH, KSB5AC, KSB5BK, KSB5ER, KSB5GN, KSB5GR.
- KitchenAid KSB3 Series: KSB3, KSB3WH, KSB3AC.
- Other Models: Fits many 4KSB5 series and Ultra Power blender models.
- Note: Not compatible with the newer KitchenAid "Diamond" or "K400" blender series which use a different coupling system.
When to Replace
- Rounded or Stripped Prongs: The 6 rubber tabs are visibly worn down or smooth, causing the motor to spin while the blades remain stationary.
- Burning Rubber Smell: A distinct odor during blending, indicating the coupler is slipping against the jar base and generating excessive friction heat.
- Black Rubber Dust: You notice small black flecks or shavings appearing on the blender base beneath the jar.
- Loud Grinding Noise: A harsh mechanical sound during operation, suggesting the metal threads are loose or the rubber has separated from the core.
- Visible Cracks: The rubber head shows deep fractures or chunks missing, leading to an unbalanced and vibrating blender jar.
Installation Tips

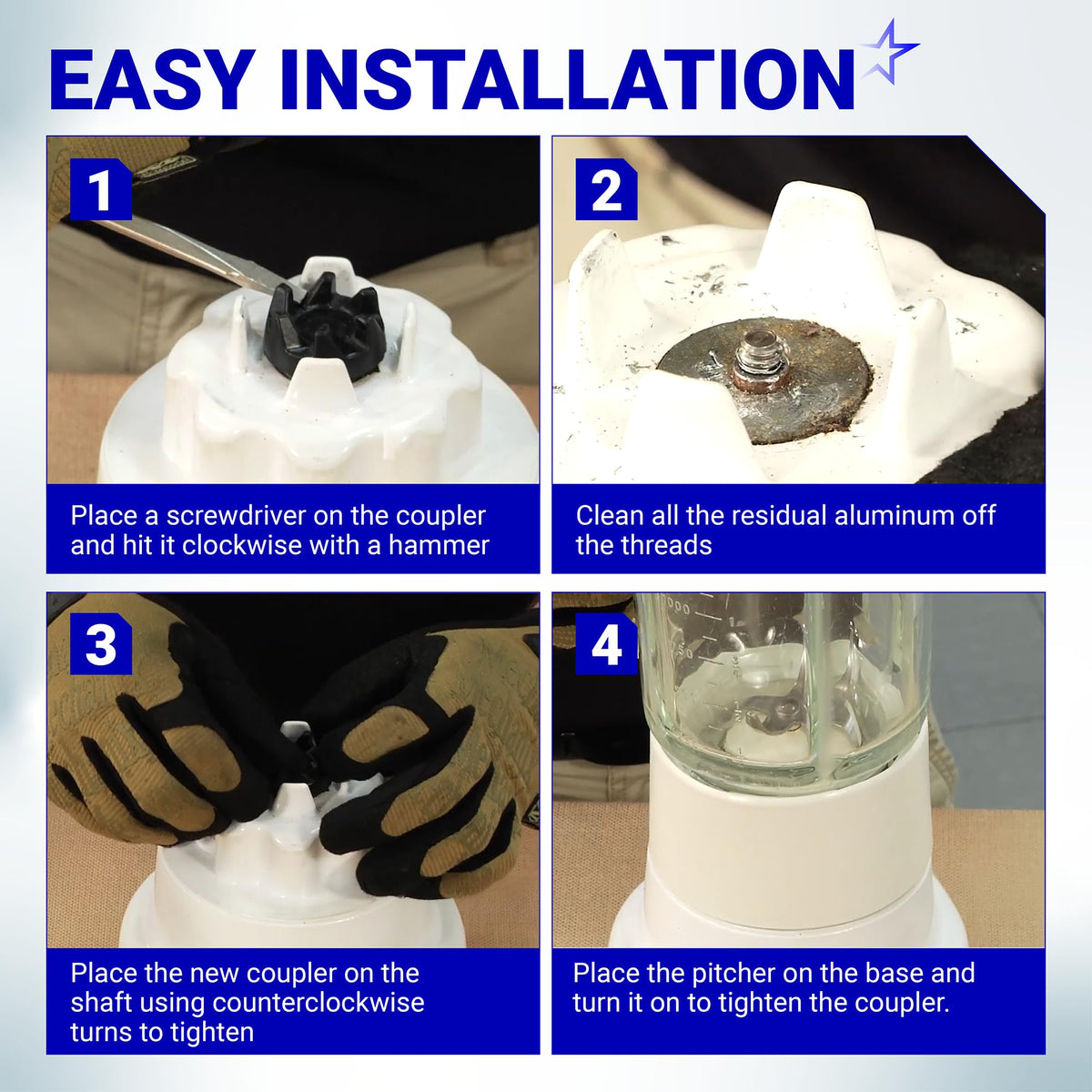

- Reverse Threads Warning: This part is Left-Hand Threaded. To loosen the old coupler, you must turn it Clockwise. To tighten the new one, turn it Counter-Clockwise.
- The Wrench Technique: Slide the included spanner wrench under the coupler to hold the motor shaft steady. If the old coupler is stuck, you may need to carefully use a flat-head screwdriver to pry up while turning.
- Cleaning the Shaft: Before installing the new coupler, wipe the motor shaft threads with a damp cloth to remove any old rubber debris or sticky food residue.
- Hand Tighten Only: Screw the new coupler on by hand. The natural rotation of the blender motor will further tighten the coupler during its first use.
- Check the Blade: While the jar is off, inspect the underside of your blender blade assembly. If the metal gear on the jar is also worn, it will rapidly destroy your brand-new rubber coupler.
