Kitchen Heating-Temperature 1183200 Round Hot Surface Igniter - Replaces 1177545 41-224 - For Southbend Range

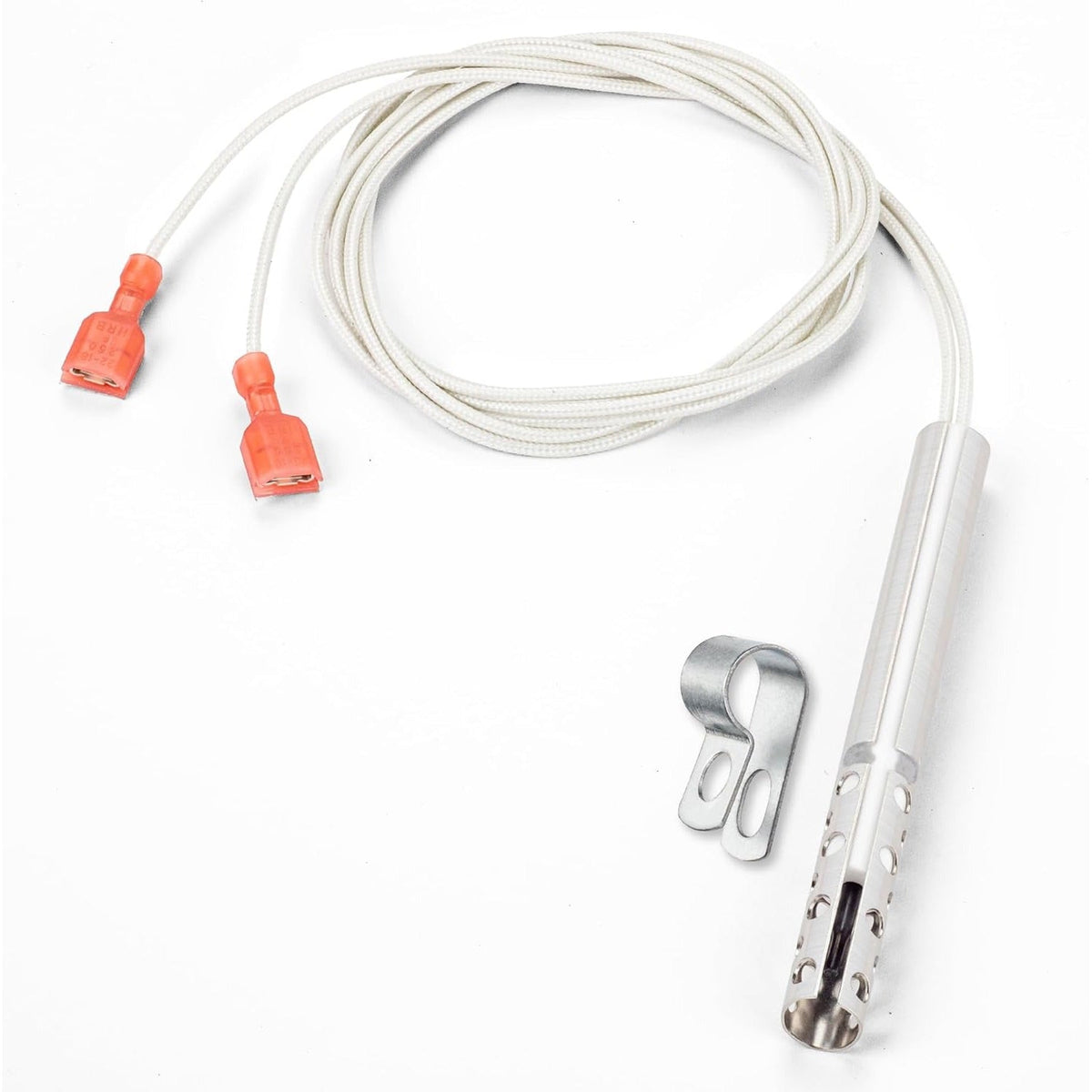

1183200 round hot surface igniter with wire leads, connectors, and mounting clip for Southbend ranges.

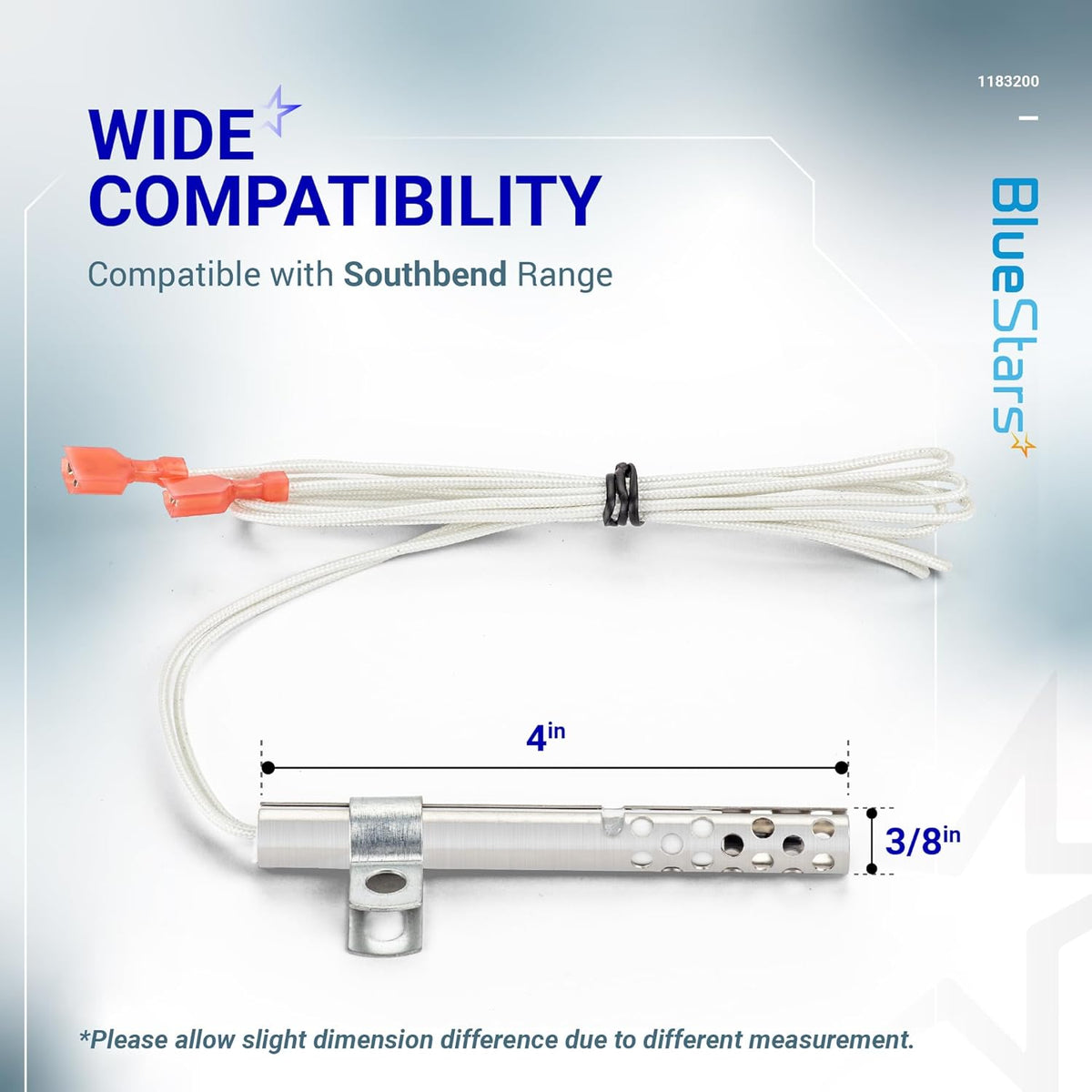

1183200 round hot surface igniter for Southbend ranges with 4-inch length and 3/8-inch diameter dimension labels.

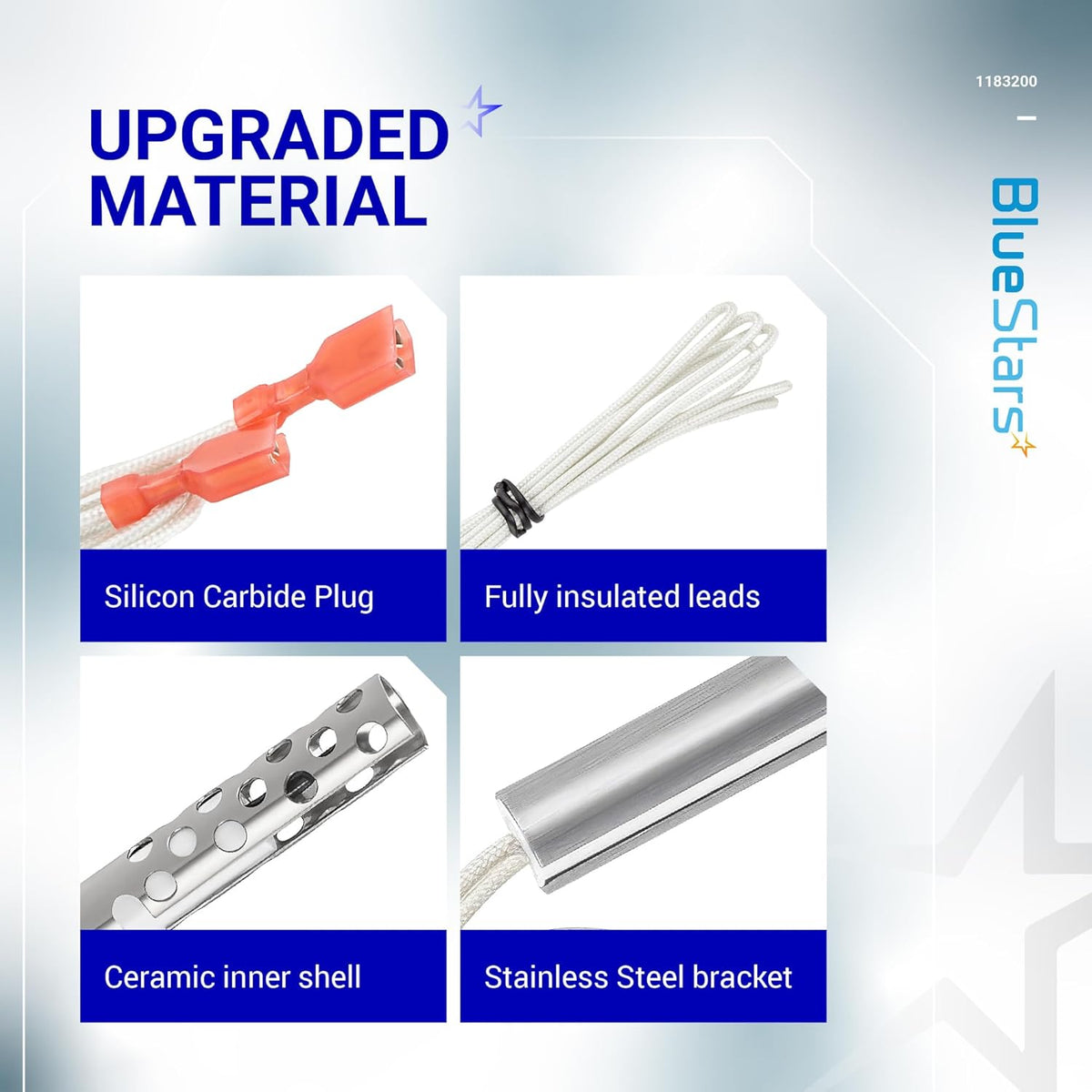

Infographic showing upgraded materials for 1183200 hot surface igniter including plug, insulated leads, and metal components.
1183200 round hot surface igniter for Southbend ranges shown with wiring and connectors in a lifestyle kitchen setting.

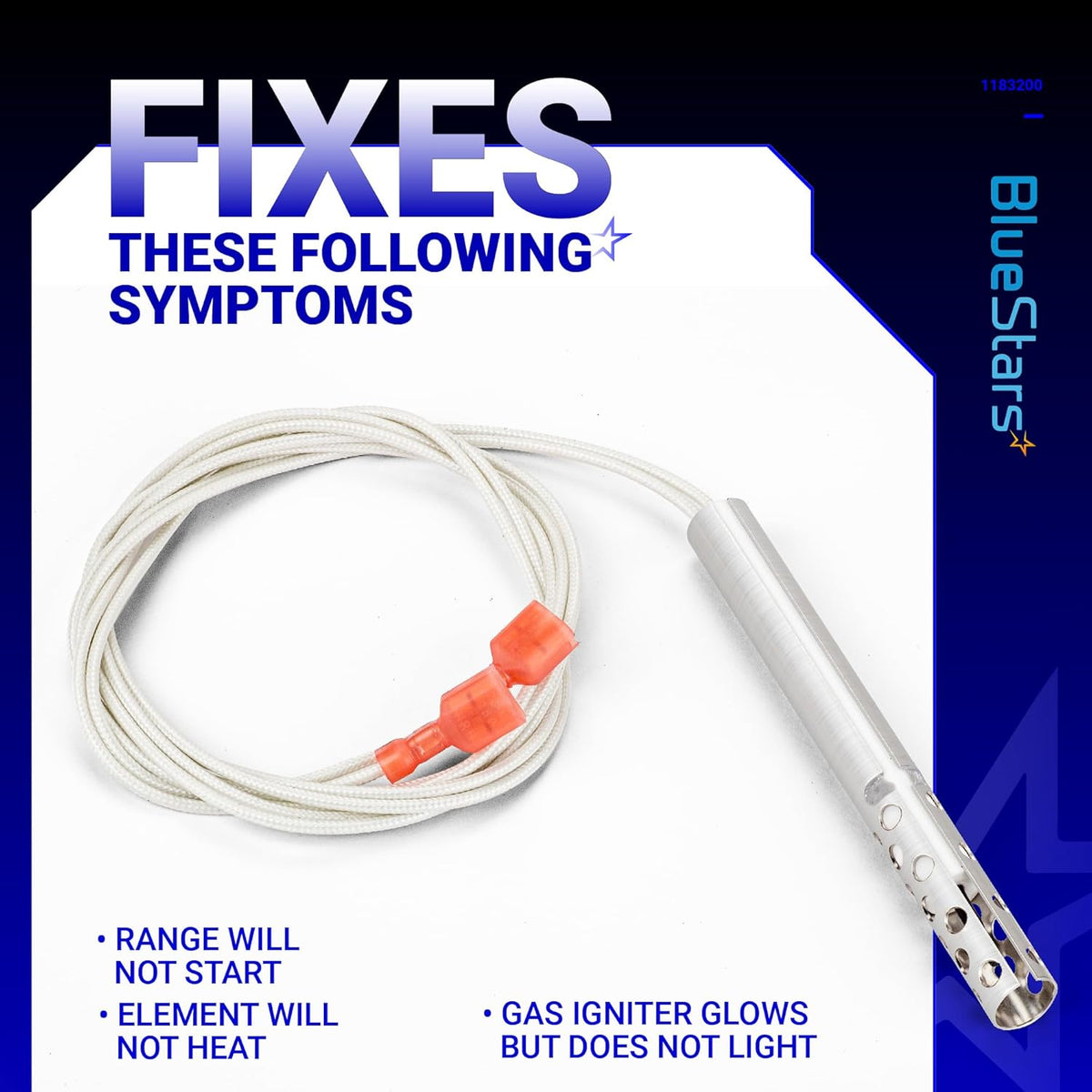

1183200 round hot surface igniter for Southbend ranges with wire leads and connectors, showing common repair symptoms.
1183200 round hot surface igniter with wire leads and connectors for Southbend range ovens.
1183200 round hot surface igniter with wire leads and connectors for Southbend range appliances.
1183200 round hot surface igniter with wire leads, connectors, and mounting clip for Southbend ranges.
1183200 round hot surface igniter for Southbend ranges with 4-inch length and 3/8-inch diameter dimension labels.
Infographic showing upgraded materials for 1183200 hot surface igniter including plug, insulated leads, and metal components.
1183200 round hot surface igniter for Southbend ranges shown with wiring and connectors in a lifestyle kitchen setting.
1183200 round hot surface igniter for Southbend ranges with wire leads and connectors, showing common repair symptoms.
1183200 round hot surface igniter with wire leads and connectors for Southbend range ovens.
1183200 round hot surface igniter with wire leads and connectors for Southbend range appliances.

1183200 Round Hot Surface Igniter - Replaces 1177545 41-224 - For Southbend Range

0.00
$47.29
Save 11% $52.96
$47.29
Out of stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

1183200 Round Hot Surface Igniter

Key Features

  • High-temperature silicon carbide heating element designed for rapid, reliable ignition in commercial oven environments.
  • Robust ceramic base provides electrical insulation and heat resistance during continuous operation.
  • Equipped with high-temperature fiberglass-insulated lead wires for protection against thermal degradation.
  • Precision-engineered round design ensures uniform heat distribution and consistent ignition timing.
  • Direct-fit replacement designed to meet or exceed commercial-grade performance standards.

Replaces / Cross-Reference Part Numbers

  • 1183200
  • 1177545
  • 41-224
  • 1177545-SB
  • F1183200

Compatibility & Fitment

  • Compatible with Southbend commercial gas ranges, convection ovens, and broiler units.
  • Fits Southbend model series: BGS/12SC, BGS/22SC, CG/12SC, and CG/22SC.
  • Designed for use in high-demand commercial kitchens and professional foodservice equipment.
  • Suitable for various Southbend Silverstar and Platinum series convection ovens utilizing hot surface ignition systems.

When to Replace

  • Oven fails to ignite or maintain a flame during the heating cycle.
  • The igniter element shows visible cracks, breaks, or localized white oxidation spots.
  • The igniter fails to glow when the oven is powered on and calling for heat.
  • Igniter amperage draw is below the threshold required to open the gas safety valve.
  • Error codes related to ignition failure or flame sensing are displayed on the control board.

Installation Tips

  • Disconnect the electrical power supply and shut off the main gas line before beginning the repair.
  • Allow the oven to cool completely to avoid burns from surrounding metal components.
  • Handle the new igniter only by the ceramic base; do not touch the black heating element, as skin oils can lead to hotspots and premature failure.
  • Carefully remove the mounting screws and old igniter, noting the original wiring path.
  • Secure the new igniter in the same orientation as the original to ensure the element is correctly positioned in the gas flow path.
  • Use high-temperature porcelain wire nuts if the original electrical connectors require modification.
  • Restore power and gas, then run a test cycle to confirm the element glows and the gas ignites promptly.
1183200 Round Hot Surface Igniter - Replaces 1177545 41-224 - For Southbend Range 1
1183200 Round Hot Surface Igniter - Replaces 1177545 41-224 - For Southbend Range 2
1183200 Round Hot Surface Igniter - Replaces 1177545 41-224 - For Southbend Range 3
  • 1183200 Round Hot Surface Igniter - Replaces 1177545 41-224 - For Southbend Range 1

    WIDE APPLICATION

    Our product is compatible with Southbend Range models SLGB-12CCH, SLGB-12SC, SLGB-12SCCH, SLGB-15CCH, SLGB-19SLGS and more.
  • 1183200 Round Hot Surface Igniter - Replaces 1177545 41-224 - For Southbend Range 2

    PREMIUM MATERIAL

    Our product features Inconel sheath for superior heat resistance and durability.
  • 1183200 Round Hot Surface Igniter - Replaces 1177545 41-224 - For Southbend Range 3

    BEST SOLUTION

    BlueStars brings DIY solutions to help you deal with any trouble
  • 1183200 Round Hot Surface Igniter - Replaces 1177545 41-224 - For Southbend Range 4

    SIMPLE INSTALLATION

    Just 15 minutes of replacing to make your equipment run like new!
HANDY CHOICES FOR HAPPY MOMENTS

HANDY CHOICES FOR HAPPY MOMENTS

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

Manufacturer
‎BlueStars
Part Number
‎1183200
Item Weight
‎0.16 ounces
Product Dimensions
‎1 x 1 x 1 inches
Included Components
‎1 x Ignitor Hot Surface
Batteries Included?
‎No
Batteries Required?
‎No
Warranty Description
‎2 year

FAQs

This igniter serves as a direct replacement for Southbend OEM part numbers 1183200 and 1177545. It also cross-references with part number 41-224 (also listed as 44-1224 or F10437).
This igniter is designed for use with various Southbend Range equipment, including the BGS, CG, GB, GS, SLGB, and STRG series. Specific compatible models include, but are not limited to, BGS/12SC, BGS/22SC, CG/12SC, and CG/22SC.
If your oven or range fails to light, or if you notice the burner cycles on and off without ignition, the igniter is a likely culprit. Because hot surface igniters are fragile components that degrade over time, a visual inspection showing cracks, white residue, or a lack of a bright orange glow during the ignition sequence typically confirms the part has failed.
Yes. The heating element is extremely fragile. Avoid touching the white ceramic heating surface with your bare fingers, as oils from your skin can cause hot spots and lead to premature failure. Handle the part only by the ceramic base or the wire leads.
Before installation, ensure the power to the unit is completely disconnected. It is also a good practice to inspect the wire connections for any signs of heat damage or corrosion. If the existing wire terminals are brittle or burnt, they should be replaced or cleaned to ensure a solid electrical connection, as poor contact can cause the new igniter to fail shortly after installation.
This is a 24-volt hot surface igniter specifically engineered for Southbend commercial cooking equipment.
