8544771 Dryer Heating Element 280148 Thermal Cut-Off (8557403 High Limit Thermostat 8318314 Thermal Fuse)
0.00
Regular price
$33.93
Regular price
Save 10%
$37.69
Sale price
$33.93
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number
8544771 Dryer Heating Element 280148 Thermal Cut-Off (8557403 High Limit Thermostat 8318314 Thermal Fuse)
Key Features
- Complete repair kit for non-heating electric dryers.
- Restores heat generation and provides critical thermal protection.

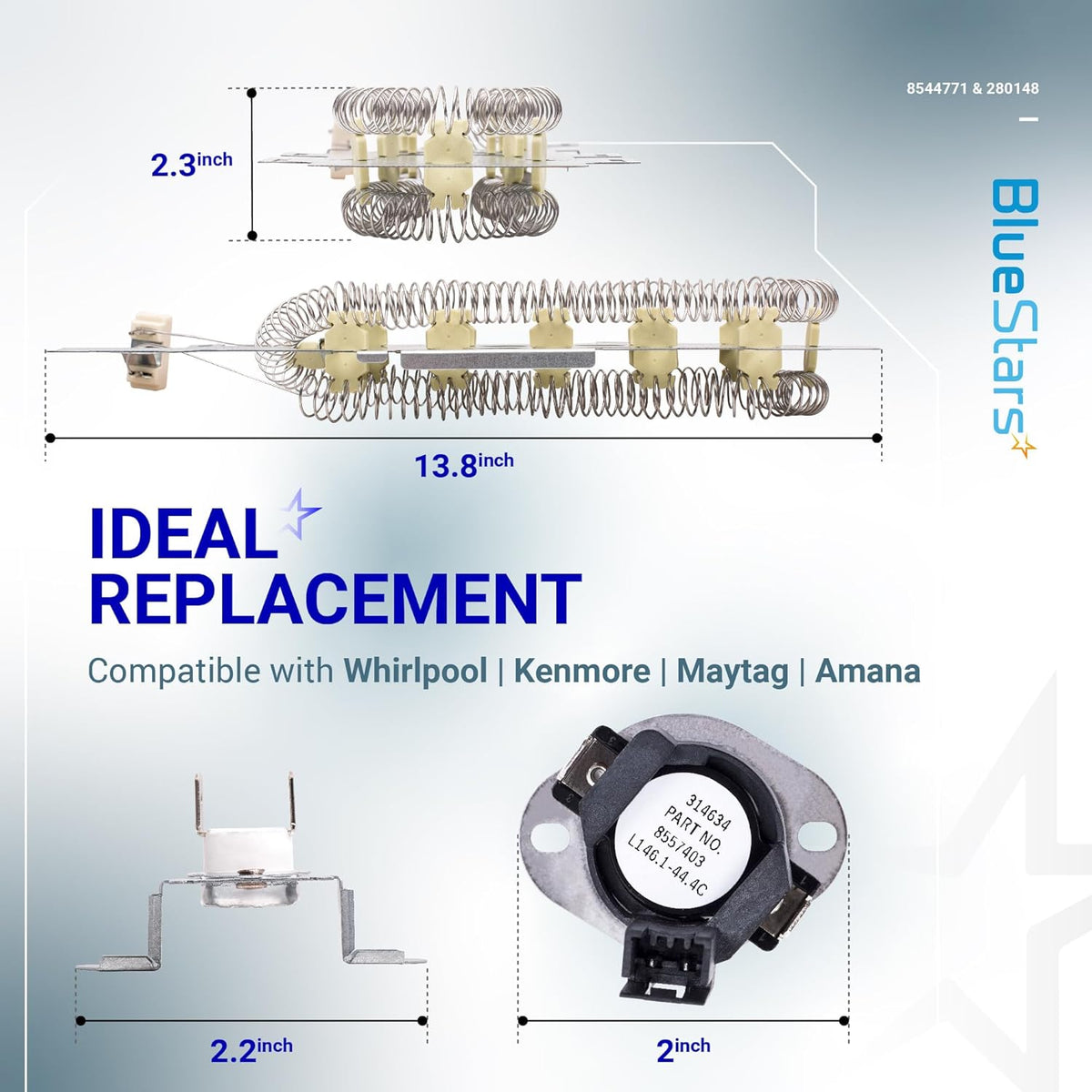

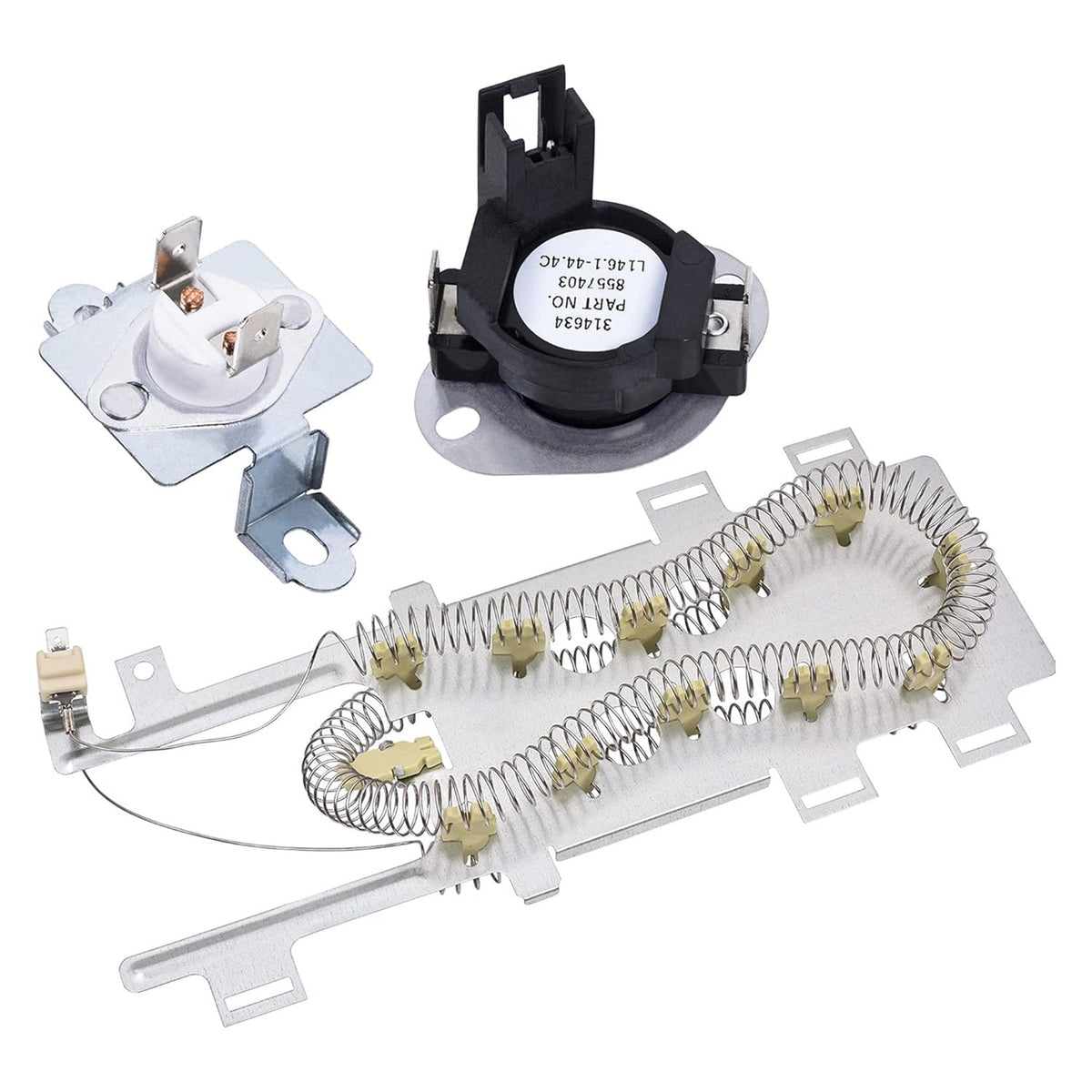

- Kit Contents:

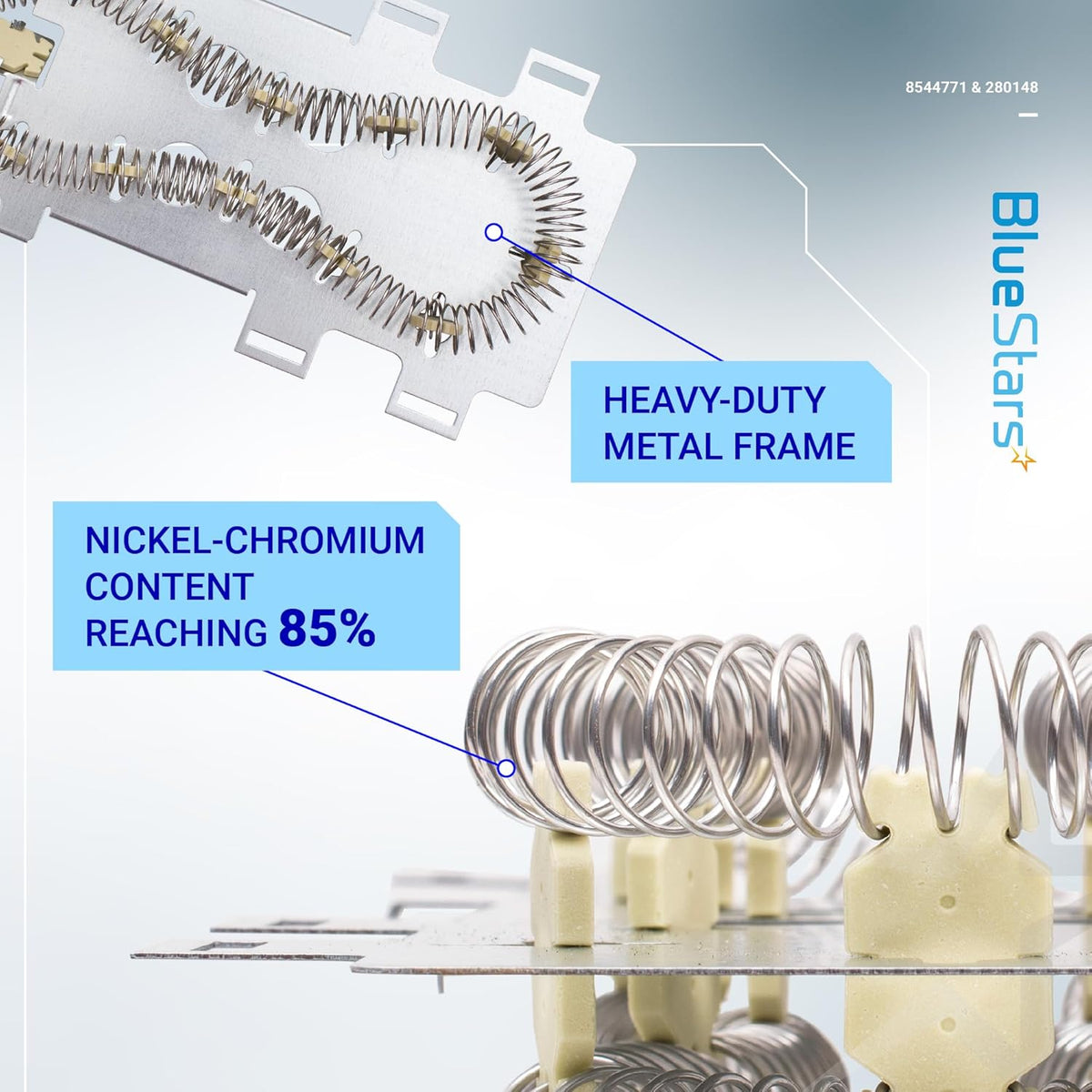

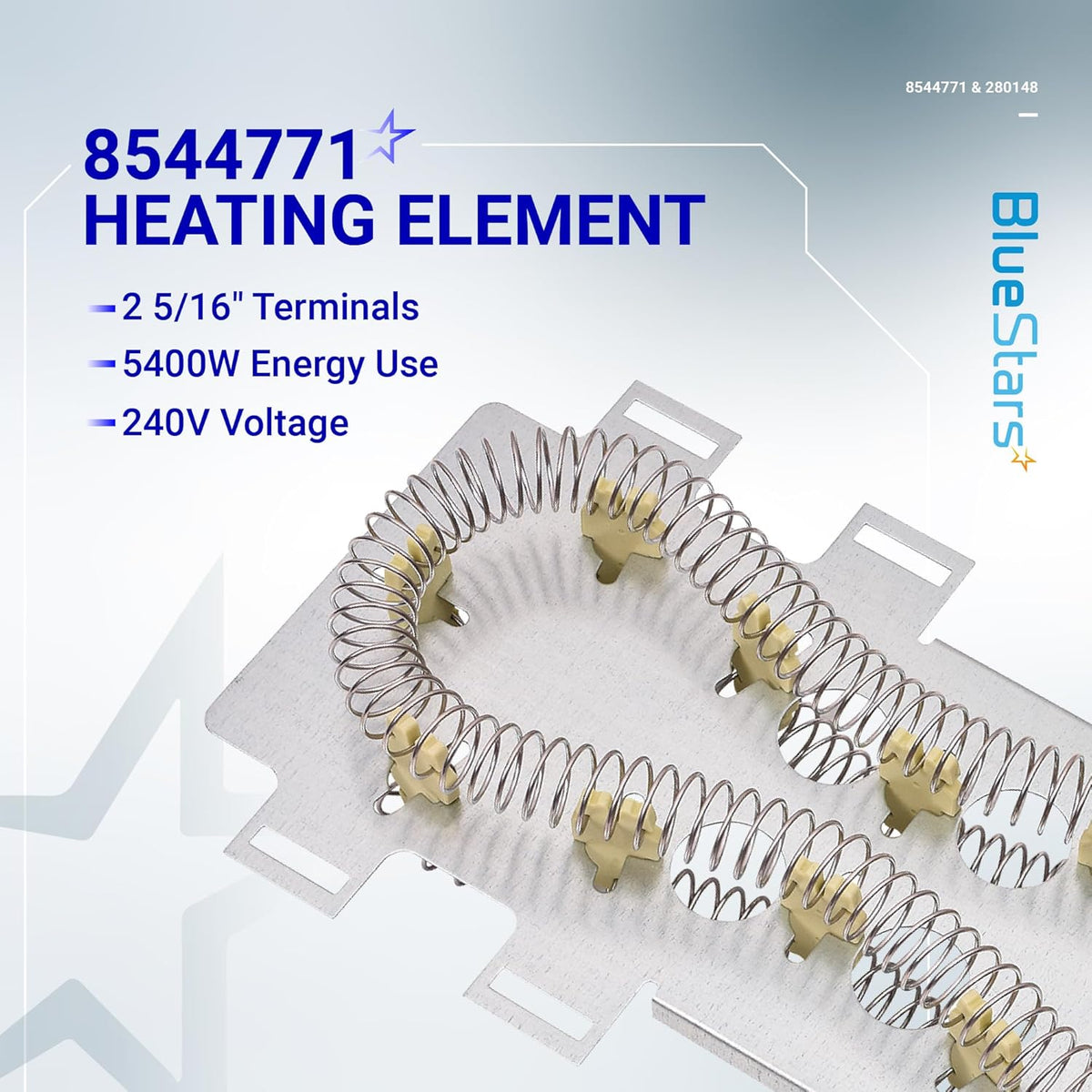

- 1 x 8544771 Heating Element
- 1 x 8557403 High-Limit Thermostat
- 1 x 8318314 Thermal Fuse
Replaces / Cross-Reference Part Numbers
- Heating Element: 8544771, WP8544771
- Thermal Cut-Off Kit (Thermostat & Fuse): 280148, 280148VP, 1175772
- High-Limit Thermostat: 8557403
- Thermal Fuse: 8318314
Compatibility & Fitment
- Designed for select electric dryer models.
- Compatible with major brands including:
- Amana
- Crosley
- Kenmore
- Maytag
- Whirlpool
- Verify fitment by checking your appliance's original part numbers.

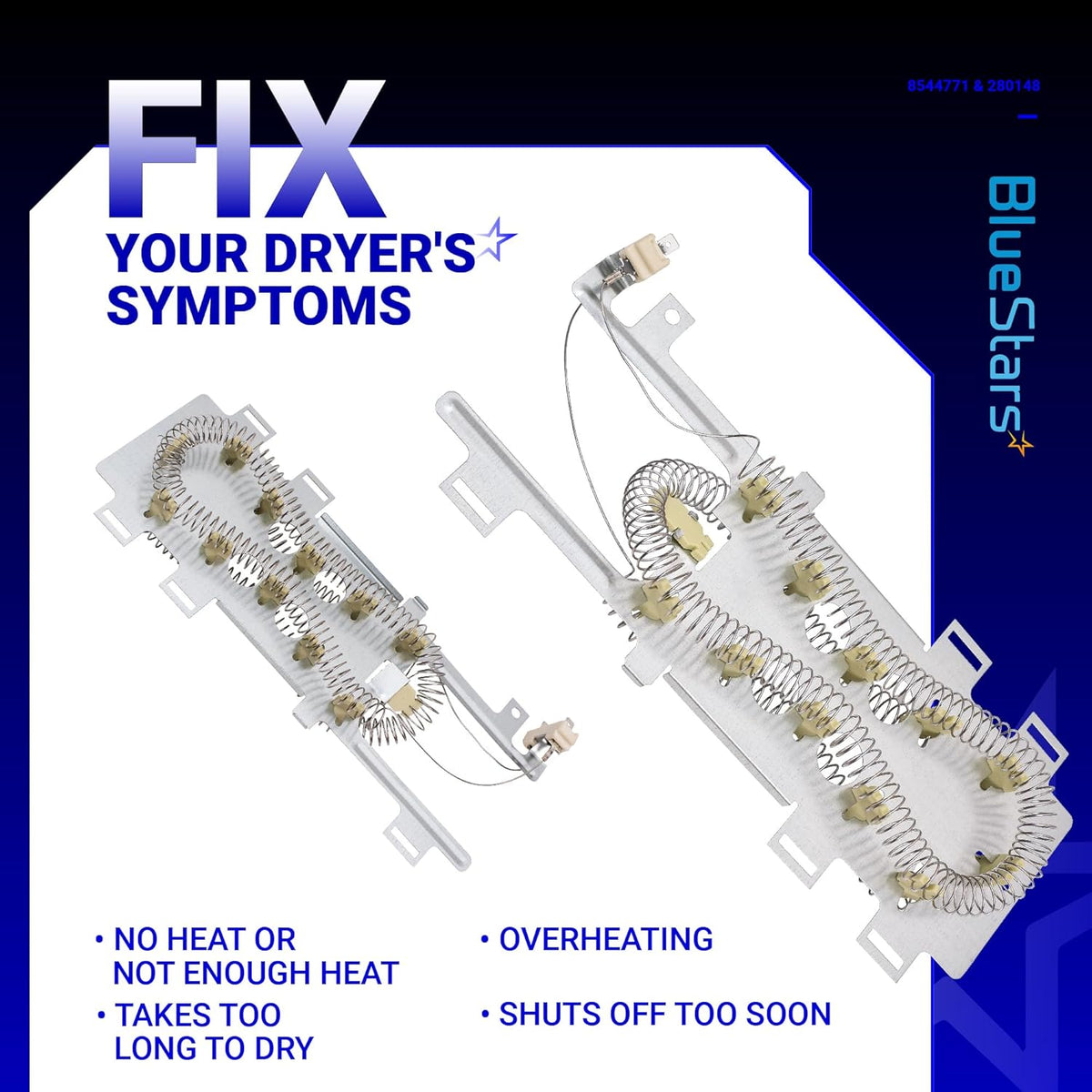

When to Replace
- Dryer runs but does not produce any heat.
- Drying cycles are excessively long.
- Dryer shuts off prematurely mid-cycle.
- Heating element coil is visibly broken or has lost continuity.
Installation Tips
- Disconnect the dryer from its power source before starting the installation.
- For safety and system reliability, it is recommended to replace the heating element, thermostat, and fuse at the same time.
- A multimeter can be used to test the continuity of the original components to confirm failure.
- Ensure the dryer's exhaust vent is completely clear of lint and obstructions to prevent future overheating.
8557403 High Limit Thermostat
- Shuts off the heating element when it overheats
8318314 Thermal Fuse
- Electrical Specs: 352°F, One-Time Fuse (must be replaced once blown)
4 SIMPLE STEPS
1. Remove the dryer main top, control panel, front panel & bulkhead, and drum to reach the heating element; 2. Release wires & mounting screws to remove the hi-limit thermostat, thermal fuse,... then pull out the heater housing; 3. Remove the top half of the heater housing to discard the old heating element; 4. Make sure to clean the dryer vent and blower housing. Reinstall with our new parts!
Manufacturer
BlueStars
Part Number
8544771 & 280148
Item Weight
1.08 pounds
Package Dimensions
14.29 x 13.94 x 2.64 inches
Color
As Pictured
Voltage
240 Volts
Wattage
5400 watts
Included Components
280148 Thermal Cut-Off with High Limit Thermostat
Batteries Included?
No
Batteries Required?
No
