Kenmore Brand [Lifetime Warranty] 316489403 5304508786 Range Oven Igniter for Kenmore Crosley Frigidaire Electrolux Oven - Replaces AP4433236, 1513415, 7316489403, AH2364063, EA2364063, PS2364063

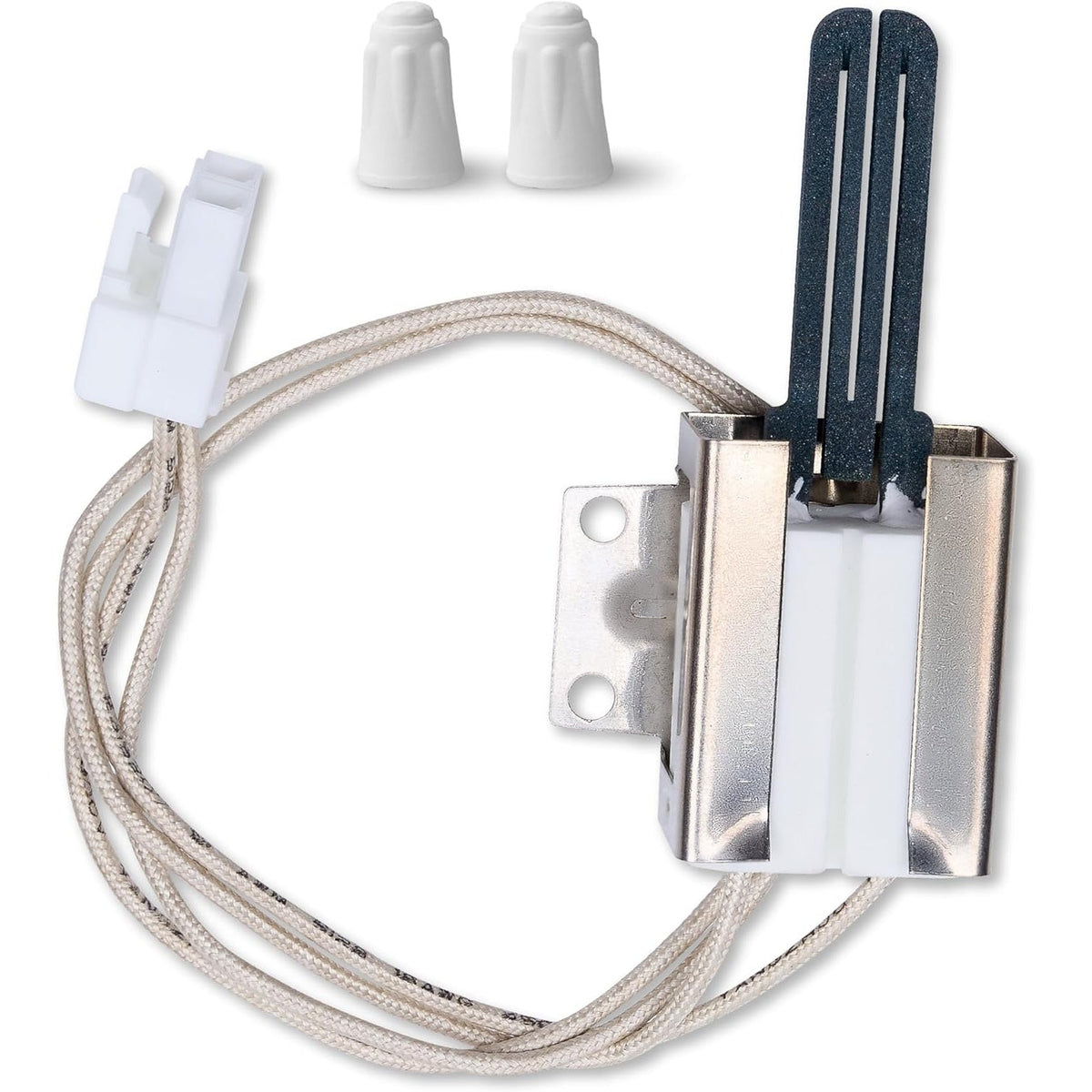

Range oven igniter with wire harness, connector, and two wire nuts for Kenmore and Frigidaire appliances.

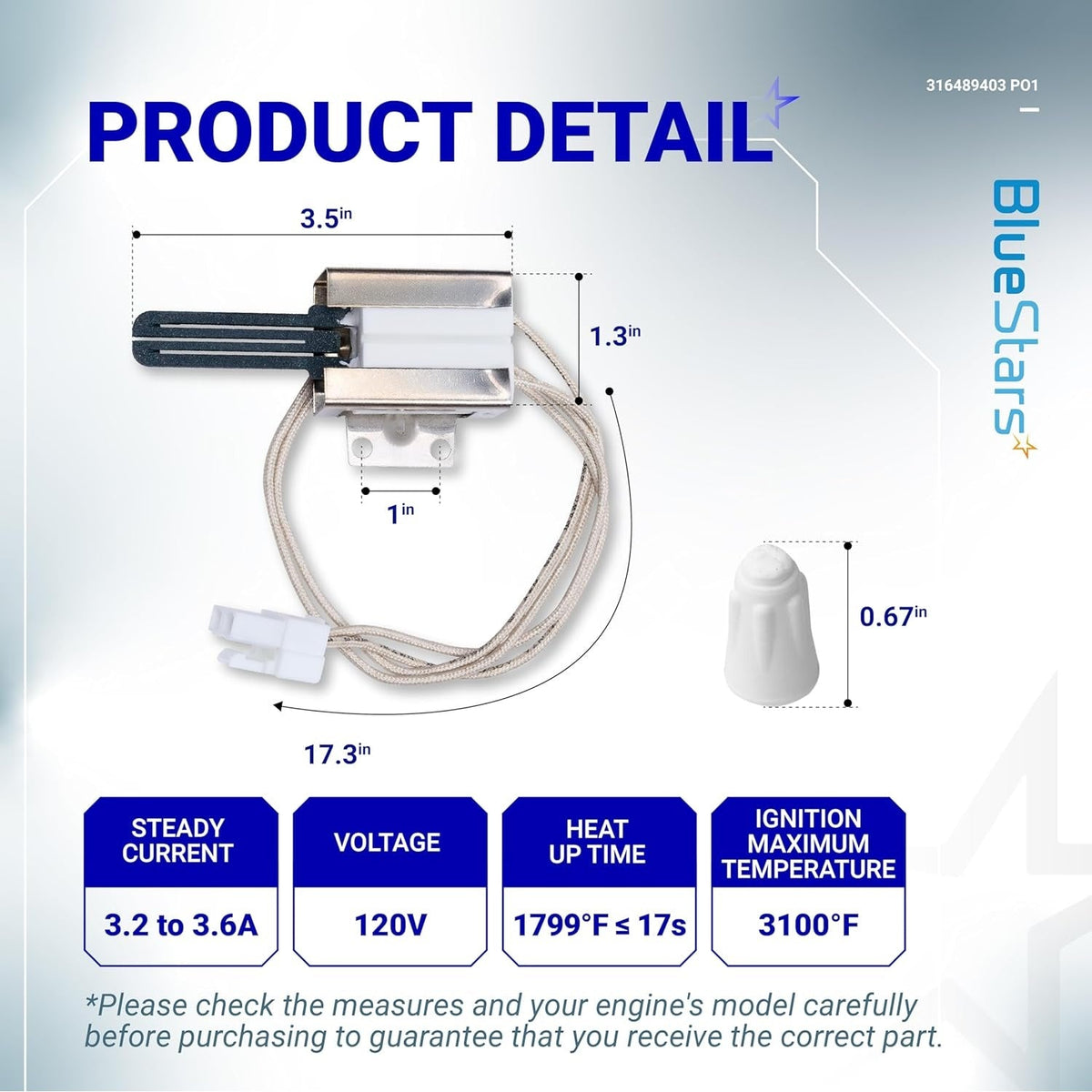

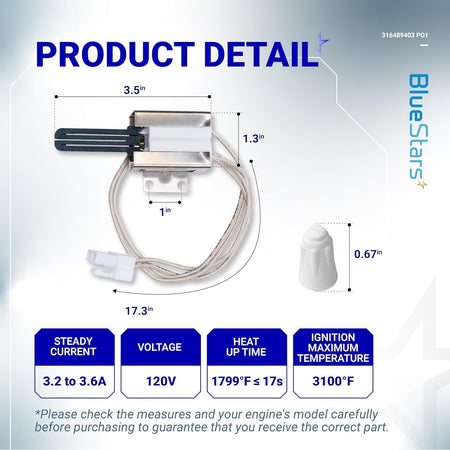

Dimensional diagram of 316489403 oven igniter showing measurements, technical specifications, and wire harness.
316489403 range oven igniter replacement part shown with lifestyle graphic for Kenmore and Frigidaire ovens.
Infographic showing construction details of 316489403 oven igniter including silicon carbide, bracket, plug, and connectors.

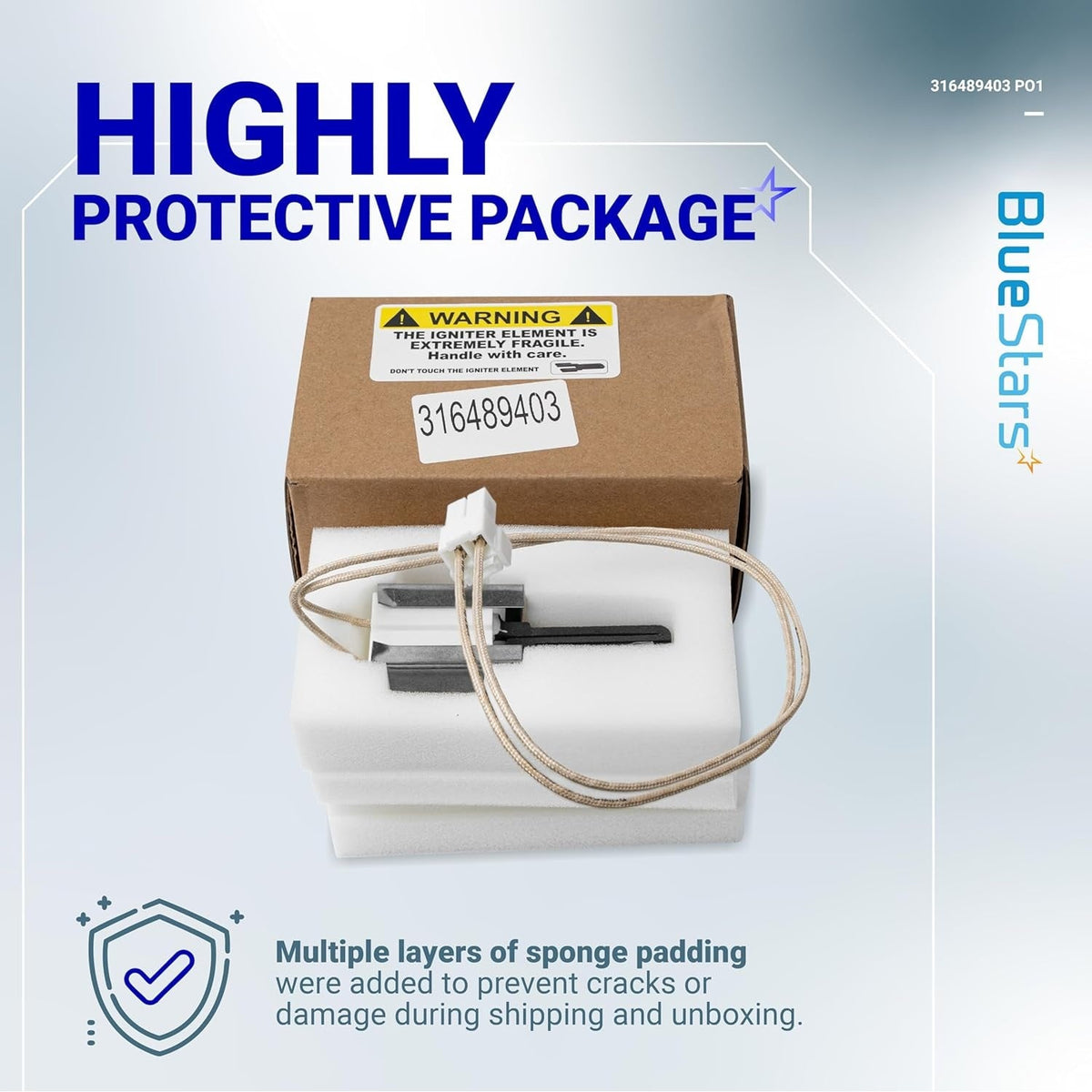

316489403 range oven igniter in protective foam packaging with warning label for safe shipping.

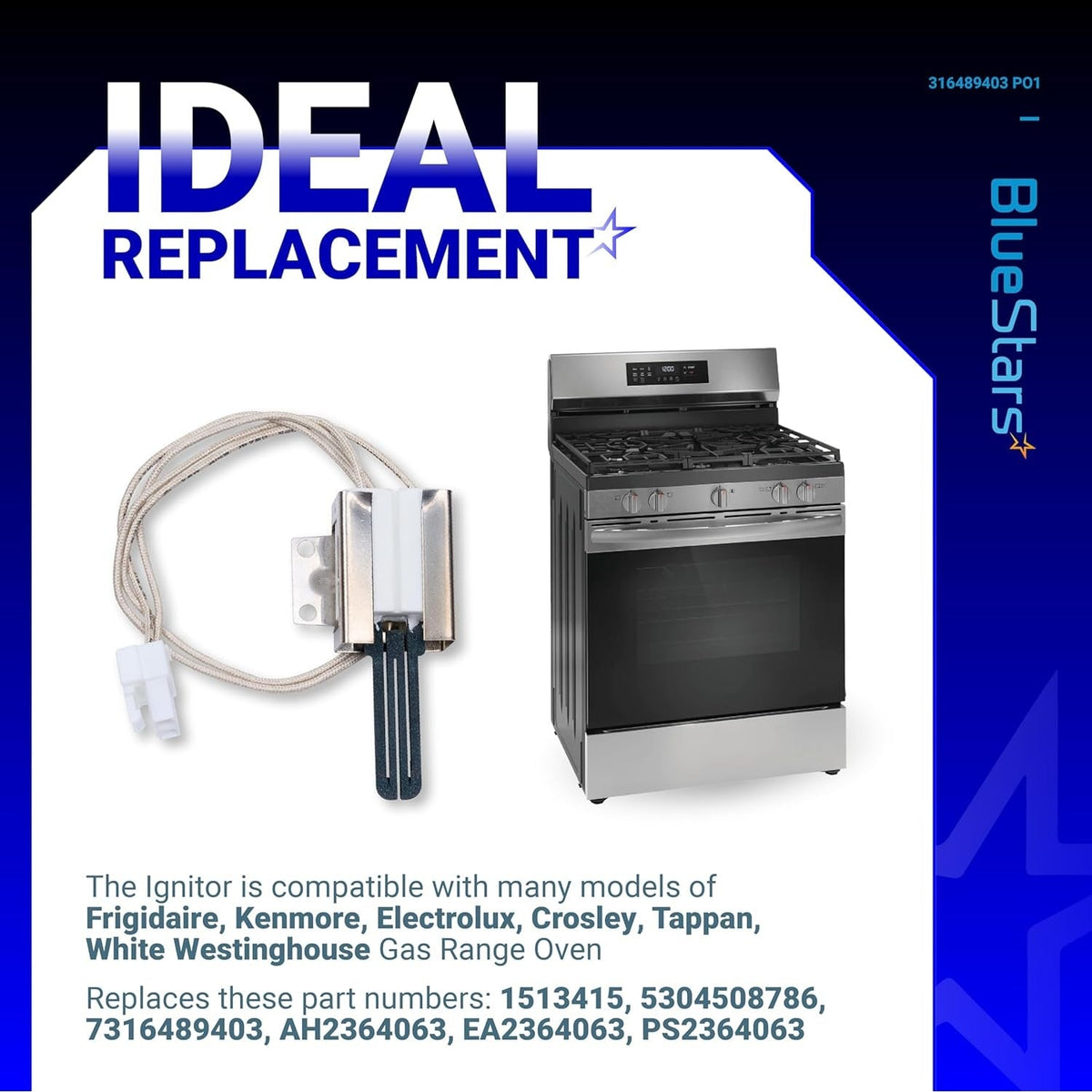

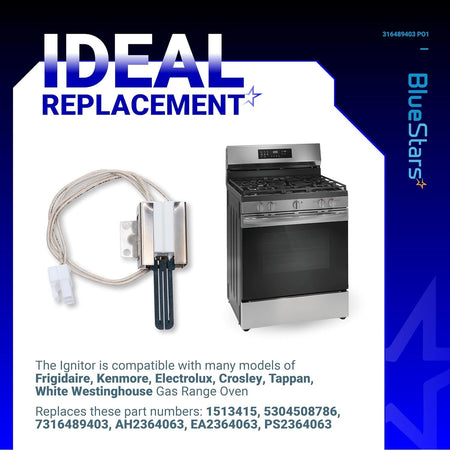

Replacement oven igniter for Frigidaire, Kenmore, and Electrolux gas ranges with compatible oven model shown.

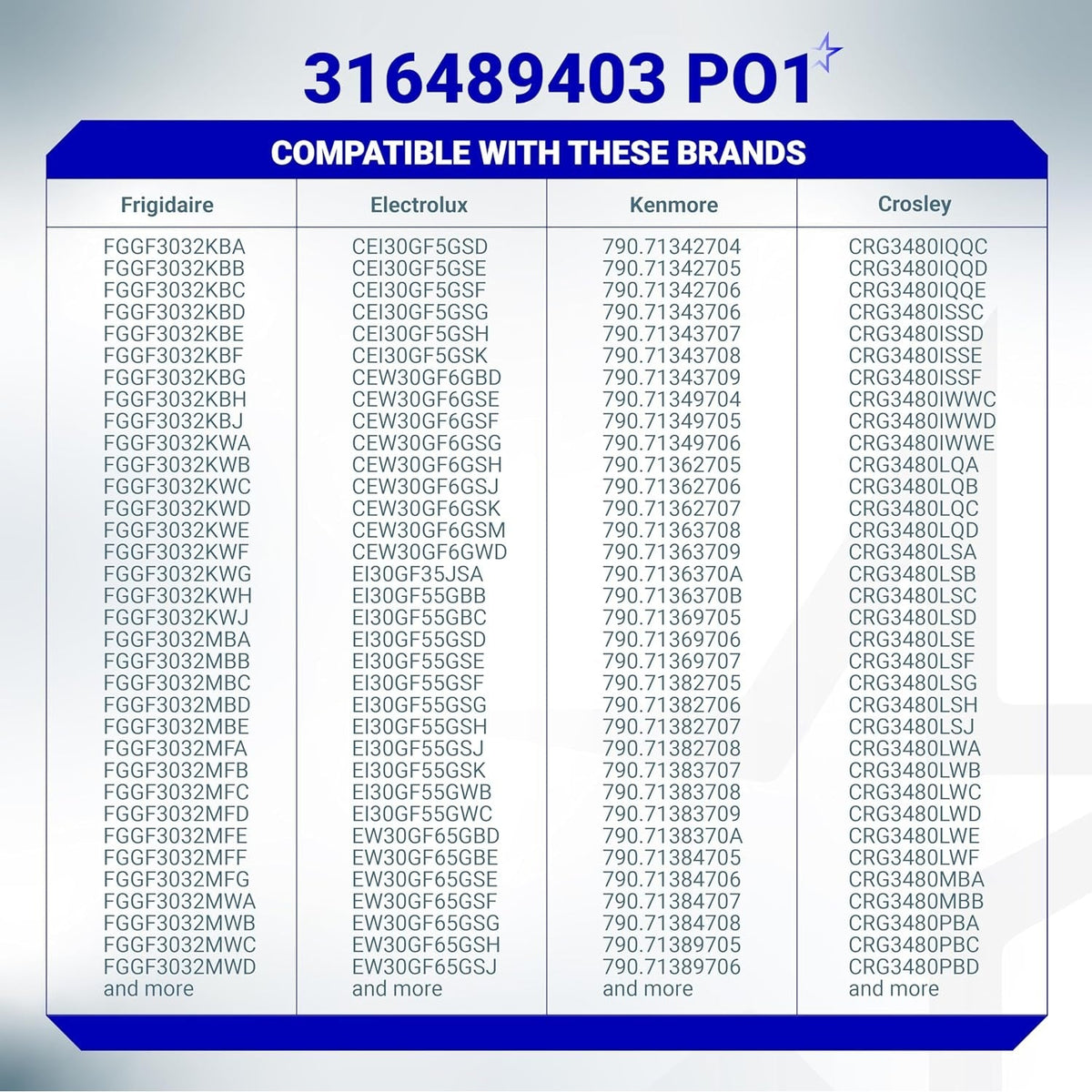

Compatibility chart for 316489403 range oven igniter listing compatible Frigidaire, Electrolux, Kenmore, and Crosley models.

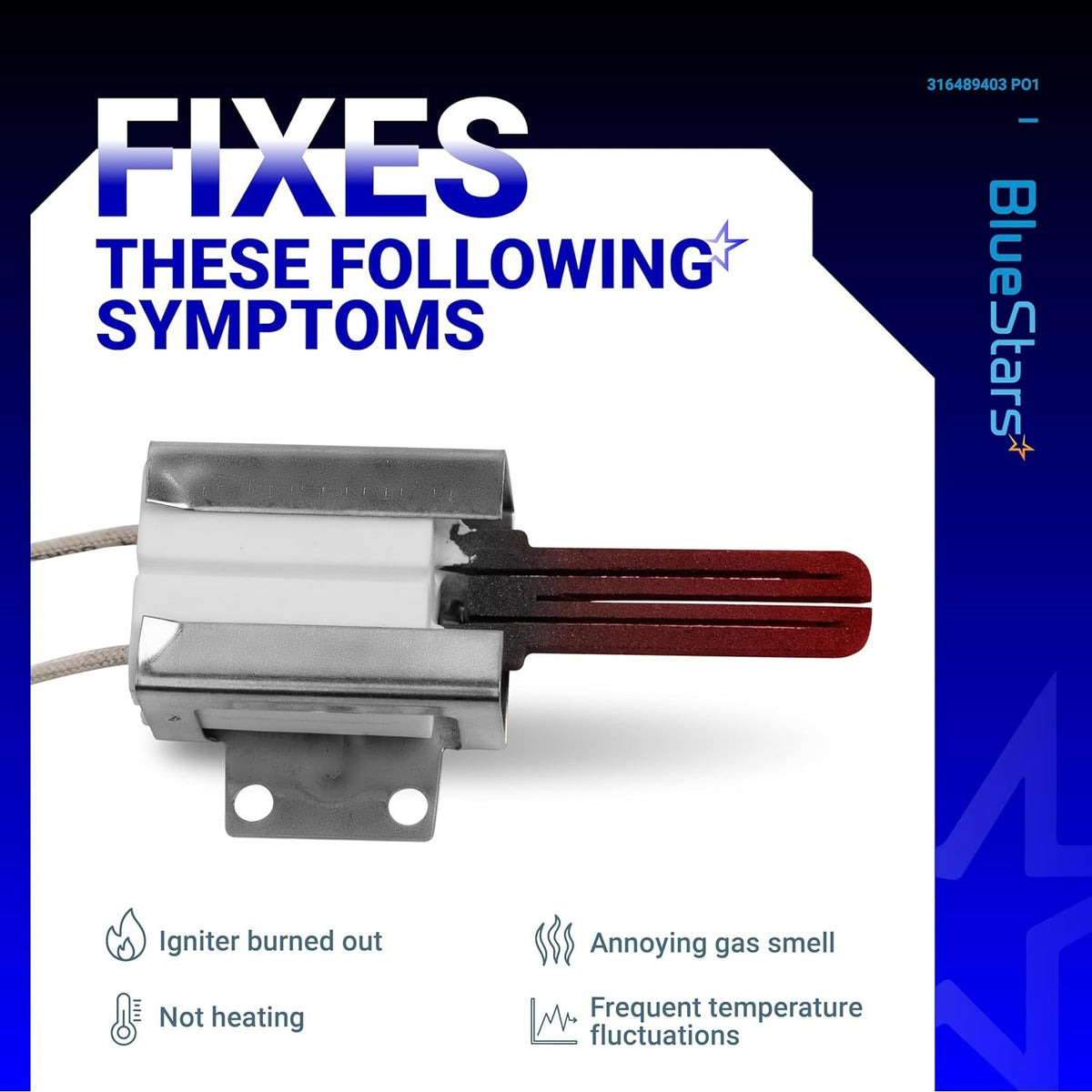

Range oven igniter 316489403 shown with an infographic listing common oven repair symptoms.
Four-step installation guide for replacing a range oven igniter in Kenmore, Frigidaire, and Electrolux ovens.
Range oven igniter with wire harness, connector, and two wire nuts for Kenmore and Frigidaire appliances.
Dimensional diagram of 316489403 oven igniter showing measurements, technical specifications, and wire harness.
316489403 range oven igniter replacement part shown with lifestyle graphic for Kenmore and Frigidaire ovens.
Infographic showing construction details of 316489403 oven igniter including silicon carbide, bracket, plug, and connectors.
316489403 range oven igniter in protective foam packaging with warning label for safe shipping.
Replacement oven igniter for Frigidaire, Kenmore, and Electrolux gas ranges with compatible oven model shown.
Compatibility chart for 316489403 range oven igniter listing compatible Frigidaire, Electrolux, Kenmore, and Crosley models.
Range oven igniter 316489403 shown with an infographic listing common oven repair symptoms.
Four-step installation guide for replacing a range oven igniter in Kenmore, Frigidaire, and Electrolux ovens.
Lifetime Warranty

[Lifetime Warranty] 316489403 5304508786 Range Oven Igniter for Kenmore Crosley Frigidaire Electrolux Oven - Replaces AP4433236, 1513415, 7316489403, AH2364063, EA2364063, PS2364063

Save 13%
0.00
$39.24
$45.13
$39.24
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

316489403 Range Oven Igniter

Key Features

  • Draws 3.2 to 3.6 amps of electrical current to open the gas safety valve
  • Functions as a direct replacement for bake and broil elements
  • Includes a long wire harness for flexible installation
  • Designed to meet original equipment manufacturer (OEM) specifications

Replaces / Cross-Reference Part Numbers

  • 316489403
  • 41-213

Compatibility & Fitment

  • Fits specific range oven models manufactured by Electrolux
  • Compatible with brands including Frigidaire, Kenmore, Crosley, Tappan, Gibson, Kelvinator, Ikea, and White-Westinghouse

When to Replace

  • Oven fails to heat or heats intermittently
  • Igniter glows for an extended period, but the burner does not light
  • Burner fails to ignite, and a gas odor is present
  • Visible crack or break in the igniter element
  • Oven takes longer than usual to preheat

Installation Tips

  • Disconnect the appliance from power and shut off the gas supply before installation
  • Handle the new igniter by its ceramic base; avoid touching the dark gray element
  • Skin oils can damage the element and cause premature failure; wear gloves
  • Ensure wire connections are secure before restoring power
  • Consult your appliance's service manual for model-specific instructions
Product image 1
Product image 2
Product image 1
Product image 2
Product image 1
Product image 2
  • FIXING SYMPTOMS

    FIXING SYMPTOMS

    Igniter burned out | Not heating | Annoying gas smell | Frequent temperature fluctuations
  • DURABLE MATERIAL

    DURABLE MATERIAL

    This Igniter is made of heat-resistant silicon carbide with aluminum alloy bracket housing for reliable performance.
  • BEST SOLUTION

    BEST SOLUTION

    Enjoy the great feeling when your range is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    The Igniter is designed to be easily removed and replaced, allowing for quick and convenient maintenance.
Brand Model Number
Frigidaire FGGF3032KBA, FGGF3032KBB, FGGF3032KBC, FGGF3032KBD, FGGF3032KBE, FGGF3032KBF, FGGF3032KBG, FGGF3032KBH, FGGF3032KBJ, FGGF3032KWA, FGGF3032KWB, FGGF3032KWC, FGGF3032KWD, FGGF3032KWE, FGGF3032KWF, FGGF3032KWG, FGGF3032KWH, FGGF3032KWJ, FGGF3032MBA, FGGF3032MBB, FGGF3032MBC, FGGF3032MBD, FGGF3032MBE, FGGF3032MFA, FGGF3032MFB, FGGF3032MFC, FGGF3032MFD, FGGF3032MFE, FGGF3032MFF, FGGF3032MFG, FGGF3032MWA, FGGF3032MWB, FGGF3032MWC, FGGF3032MWD, FGGF3035/FGGF3036, FGGF3035RBB, FGGF3035RFA, FGGF3035RFB, FGGF3035RFC, FGGF3035RFD, FGGF3035RWA, FGGF3035RWB, FGGF3035RWD, FGGF3036TBA, FGGF3036TBB, FGGF3036TBC, FGGF3036TBD, FGGF3036TDA, FGGF3036TDB, FGGF3036TDC, FGGF3036TDD, FGGF3036TDE, FGGF3036TFA, FGGF3036TFB, FGGF3036TFC, FGGF3036TFD, FGGF3036TFE, FGGF3036TWA, FGGF3036TWB, FGGF3036TWC, FGGF3036TWD, FGGF3036TWE, FGGF3041KFA, FGGF3041KFB, FGGF3041KFC, FGGF3041KFD, FGGF3041KFE, FGGF3041KFF, FGGF3041KFG, FGGF3041KFH, FGGF3041KFJ, FGGF3041KFK, FGGF3041KFM, FGGF3041KFN, FGGF3042KFA, FGGF3042KFB, FGGF3042KFC, FGGF3042KFD, FGGF3042KFE, FGGF3042KFF, FGGF3042KFG, FGGF3042KFH, FGGF3042KFJ, FGGF3042KFK, FGGF3045RFA, FGGF3045RFC, FGGF3045RFD, FGGF3047TDA, FGGF3047TFA, FGGF3047TFB, FGGF3047TFD, FGGF3047TFE, FGGF3054KBA, FGGF3054KBB, FGGF3054KBC, FGGF3054KBD, FGGF3054KBE, FGGF3054KBF, FGGF3054KBG, FGGF3054KBH, FGGF3054KBJ, FGGF3054KBK, FGGF3054KFA, FGGF3054KFB, FGGF3054KFC, FGGF3054KFD, FGGF3054KFE, FGGF3054KFF, FGGF3054KFG, FGGF3054KFH, FGGF3054KFJ, FGGF3054KFK, FGGF3054KWA, FGGF3054KWB, FGGF3054KWC, FGGF3054KWD, FGGF3054KWE, FGGF3054KWF, FGGF3054KWG, FGGF3054KWH, FGGF3054KWJ, FGGF3054KWK, FGGF3054MBA, FGGF3054MBB, FGGF3054MBC, FGGF3054MBD, FGGF3054MBE, FGGF3054MBF, FGGF3054MFA, FGGF3054MFB, FGGF3054MFC, FGGF3054MFD, FGGF3054MFE, FGGF3054MFF, FGGF3054MFG, FGGF3054MFH, FGGF3054MFJ, FGGF3054MWA, FGGF3054MWB, FGGF3054MWC, FGGF3054MWD, FGGF3054MWE, FGGF3054MWF, FGGF3056KFA, FGGF3056KFB, FGGF3056KFC, FGGF3056KFD, FGGF3056KFE, FGGF3056KFF, FGGF3056KFG, FGGF3056KFH, FGGF3056KFJ, FGGF3056KFK, FGGF3056KFM, FGGF3056KFN, FGGF3056KFP, FGGF3056KFR, FGGF3056KFS, FGGF3058RBA, FGGF3058RBB, FGGF3058RBC, FGGF3058RBD, FGGF3058RFA, FGGF3058RFB, FGGF3058RFC, FGGF3058RFD, FGGF3058RWA, FGGF3058RWB, FGGF3058RWC, FGGF3058RWD, FGGF305/FGGF306, FGGF3059TDA, FGGF3059TDB, FGGF3059TDC, FGGF3059TDD, FGGF3059TDE, FGGF3059TFA, FGGF3059TFB, FGGF3059TFC, FGGF3059TFD, FGGF3059TFE, FGGF305MKFA, FGGF305MKFB, FGGF305MKFC, FGGF305MKFD, FGGF305MKFE, FGGF305MKFF, FGGF305MKFG, FGGF305MKFH, FGGF305MKFJ, FGGF305MKFK, FGGF305MKFM, FGGF305MKFN, FGGF305MKFP, FGGF3060SFA, FGGF3060SFB, FGGF3076KBA, FGGF3076KBB, FGGF3076KBC, FGGF3076KBD, FGGF3076KBE, FGGF3076KBF, FGGF3076KBG, FGGF3076KBH, FGGF3076KBJ, FGGF3076KBK, FGGF3076KWA, FGGF3076KWB, FGGF3076KWC, FGGF3076KWD, FGGF3076KWE, FGGF3076KWF, FGGF3076KWH, FGGF3076KWJ, FGGF3076KWK, FGGH3047VDA, FGGH3047VDB, FGGH3047VFA, FGGH3047VFB, FPGF3077QFA, FPGF3077QFB, FPGF3077QFC, FPGF3077QFD, FPGF3077QFE, FPGF3077QFF, FPGF3077QFG, FPGF3077QFH, FPGF3077QFJ, FPGF3077QFK, FPGF3077QFM, FPGF3081KFA, FPGF3081KFB, FPGF3081KFC, FPGF3081KFD, FPGF3081KFE, FPGF3081KFF, FPGF3081KFG, FPGF3081KFH, FPGF3081KFJ, FPGF3081KFK, FPGF3081KFM, FPGF3081KFN, FPGF3081KFP, FPGF3081KFR, FPGF3081KFS, GCRG302LAFA, GCRG302LAFB, GCRG3038ADA, GCRG3038AFA, GCRG3048AFA, GCRG3060ADA, GCRG3060AFA, GCRG3060AFB, GLGF376DBN, GLGF376DBR, GLGF376DSN, GLGF376DSR, GLGF386DBM, GLGF386DQM, GLGF386DSM, GLGF389GBG, GLGF389GSG, GLGFZ386FCJ, LFGF3019NBA, LFGF3019NSA, LFGF3019NWA, LFGF3020MBA, LFGF3020MWA, LFGF3022LSA, LFGF3022LSB, LFGF3022LSC, LFGF3022LSD, LFGF3022LSE, LFGF3022LWA, LFGF3022LWC, LFGF3027LBA, LFGF3027LBB, LFGF3027LSA, LFGF3027LSB, LFGF3027LSC, LFGF3027LWA, LFGF3027LWB, LFGF3053QFA, LFGF3053QFB, LFGF3053QFD, LFGF3054TDA, LFGF3054TDC, LFGF3054TDD, LFGF3054TDE, LFGF3054TDF, LFGF3054TFA, LFGF3054TFC, LFGF3054TFD, LFGF3054TFE, LFGF3054TFF, LFGF3054TFG, LFGH3051VFA, LFGH3054UFA, LFGH3054UFB, LFGH3054UFC, LFGH3054UFD, LGGF3032KBA, LGGF3032KBB, LGGF3032KBC, LGGF3032KBD, LGGF3032KBE, LGGF3032KBF, LGGF3032KBG, LGGF3032KBH, LGGF3032KBJ, LGGF3032KMA, LGGF3032KMB, LGGF3032KMC, LGGF3032KQA, LGGF3032KQB, LGGF3032KQC, LGGF3032KQD, LGGF3032KQE, LGGF3032KQF, LGGF3032KQG, LGGF3032KQH, LGGF3032KQJ, LGGF3032KWA, LGGF3032KWB, LGGF3032KWC, LGGF3032KWD, LGGF3032KWE, LGGF3032KWF, LGGF3032KWG, LGGF3032KWH, LGGF3032KWJ, and more
Electrolux CEI30GF5GSD, CEI30GF5GSE, CEI30GF5GSF, CEI30GF5GSG, CEI30GF5GSH, CEI30GF5GSK, CEW30GF6GBD, CEW30GF6GSE, CEW30GF6GSF, CEW30GF6GSG, CEW30GF6GSH, CEW30GF6GSJ, CEW30GF6GSK, CEW30GF6GSM, CEW30GF6GWD, EI30GF35JSA, EI30GF55GBB, EI30GF55GBC, EI30GF55GSD, EI30GF55GSE, EI30GF55GSF, EI30GF55GSG, EI30GF55GSH, EI30GF55GSJ, EI30GF55GSK, EI30GF55GWB, EI30GF55GWC, EW30GF65GBD, EW30GF65GBE, EW30GF65GSE, EW30GF65GSF, EW30GF65GSG, EW30GF65GSH, EW30GF65GSJ, EW30GF65GSK, EW30GF65GSM, EW30GF65GWD, EW30GF65GWE, EW3LGF65GBD, EW3LGF65GSE, EW3LGF65GSF, EW3LGF65GSG, EW3LGF65GSH, EW3LGF65GSJ, EW3LGF65GSK, EW3LGF65GSM, EW3LGF65GWD
Kenmore 790.71342704, 790.71342705, 790.71342706, 790.71343706, 790.71343707, 790.71343708, 790.71343709, 790.71349704, 790.71349705, 790.71349706, 790.71362705, 790.71362706, 790.71362707, 790.71363708, 790.71363709, 790.7136370A, 790.7136370B, 790.71369705, 790.71369706, 790.71369707, 790.71382705, 790.71382706, 790.71382707, 790.71382708, 790.71383707, 790.71383708, 790.71383709, 790.7138370A, 790.71384705, 790.71384706, 790.71384707, 790.71384708, 790.71389705, 790.71389706, 790.71389707, 790.71389708, 790.7230101, 790.72301011, 790.7230201, 790.72302011, 790.7230301, 790.72303011, 790.7230901, 790.72309011, 790.7231111, 790.72311111, 790.72311112, 790.7231201, 790.72312011, 790.72312012, 790.72312013, 790.72312014, 790.72312015, 790.7231301, 790.72313011, 790.72313012, 790.72313013, 790.72313014, 790.72313015, 790.7231901, 790.72319011, 790.72319012, 790.72319013, 790.72319014, 790.72319015, 790.7233301, 790.72333011, 790.72333012, 790.72333013, 790.72333014, 790.72333015, 790.7240201, 790.72402012, 790.72402013, 790.72402014, 790.72403011, 790.72403012, 790.72403013, 790.7240401, 790.72404012, 790.72404013, 790.72404014, 790.7240801, 790.72408012, 790.72408013, 790.72408014, 790.7240901, 790.72409012, 790.72409013, 790.72409014, 790.7250201, 790.72502011, 790.7250301, 790.72503011, 790.7250901, 790.72509011, 790.7260201, 790.72602011, 790.72602012, 790.72602013, 790.7260301, 790.72603011, 790.72603012, 790.72603013, 790.7260901, 790.72609011, 790.72609012, 790.72609013, 790.7263321, 790.72633211, 790.72633212, 790.7270201, 790.72702011, 790.72702012, 790.7270301, 790.72703011, 790.72703012, 790.7270401, 790.72704011, 790.72704012, 790.7270901, 790.72709011, 790.72709012, 790.7271221, 790.72712211, 790.72712212, 790.7271321, 790.72713211, 790.72713212, 790.7271921, 790.72719211, 790.72719212, 790.7280201, 790.72802011, 790.72802012, 790.7280301, 790.72803011, 790.72803012, 790.7280901, 790.72809011, 790.72809012, 790.7290201, 790.72902011, 790.72902012, 790.72902013, 790.72902014, 790.72902015, 790.7290301, 790.72903011, 790.72903012, 790.72903013, 790.72903014, 790.72903015, 790.7290401, 790.72904011, 790.72904012, 790.72904013, 790.72904014, 790.72904015, 790.7290901, 790.72909011, 790.72909012, 790.72909013, 790.72909014, 790.72909015, 790.7403231, 790.74032311, 790.74032312, 790.74032313, 790.74032314, 790.7403331, 790.74033311, 790.74033312, 790.74033313, 790.74033314, 790.7403931, 790.74039311, 790.74039312, 790.74039313, 790.74039314, 790.7404331, 790.7413231, 790.74132311, 790.74132312, 790.74132313, 790.74132314, 790.7413331, 790.74133311, 790.74133312, 790.74133313, 790.74133314, 790.7413431, 790.74134311, 790.74134312, 790.74134313, 790.74134314, 790.7413931, 790.74139311, 790.74139312, 790.74139313, 790.74139314, 790.7414271, 790.74142711, 790.74142712, 790.7414371, 790.74143711, 790.74143712, 790.7414971, 790.74149711, 790.7423231, 790.74232311, 790.74232312, 790.74232313, 790.74232314, 790.74232315, 790.74232316, 790.7423331, 790.74233311, 790.74233312, 790.74233313, 790.74233314, 790.74233315, 790.74233316, 790.74233317, 790.7423771, 790.74237711, 790.74237712, 790.74237713, 790.7423931, 790.74239311, 790.74239312, 790.74239313, 790.74239314, 790.74239315, 790.7433231, 790.74332311, 790.74332312, 790.74332313, 790.74332314, 790.7433331, 790.74333311, 790.74333313, 790.74333314, 790.74333315, 790.7433431, 790.74334311, 790.74334312, 790.74334313, 790.74334314, 790.7433931, 790.74339311, 790.74339312, 790.74339313, 790.74339314, 790.74339315, 790.7434331, 790.74343311, 790.74343312, 790.74343313, 790.74343314, 790.7443281, 790.7443381, 790.7443981, 790.7445281, 790.7445381, 790.7445581, 790.7445781, 790.7445981, 790.7446281, 790.7446381, 790.7446781, 790.7446981, 790.7451291, 790.7451391, 790.7451991, 790.7452291, 790.7452391, 790.7452991, 790.7523231, 790.75232311, 790.75232312, 790.75232313, 790.7523331, 790.75233311, 790.75233312, 790.75233313, 790.75233314, 790.7523931, 790.75239312, 790.75239313, 790.7533231, 790.7533331, 790.75333311, 790.7533931, 790.7534331, 790.75343311, 790.75343313, 790.75343314, 790.75353313, 790.75353314, 790.774339, and more
Crosley CRG3480IQQC, CRG3480IQQD, CRG3480IQQE, CRG3480ISSC, CRG3480ISSD, CRG3480ISSE, CRG3480ISSF, CRG3480IWWC, CRG3480IWWD, CRG3480IWWE, CRG3480LQA, CRG3480LQB, CRG3480LQC, CRG3480LQD, CRG3480LSA, CRG3480LSB, CRG3480LSC, CRG3480LSD, CRG3480LSE, CRG3480LSF, CRG3480LSG, CRG3480LSH, CRG3480LSJ, CRG3480LWA, CRG3480LWB, CRG3480LWC, CRG3480LWD, CRG3480LWE, CRG3480LWF, CRG3480MBA, CRG3480MBB, CRG3480PBA, CRG3480PBC, CRG3480PBD, CRG3480PSA, CRG3480PSB, CRG3480PWA, CRG3480PWC, CRG3480PWD, CRG3480SSA, CRG3480SSB, CRG3480SSC, CRG3485QBA, CRG3485QSA, CRG3485QSB, CRG3485QSE, CRG3485QSF, CRG3485QSG, CRG3485QWA, CRG3485QWC, CRG3490GWWE, CRG3490GWWF, CRG3490GWWG, CRG3490LSA, CRG3490LSC, CRG3490LSD, CRG3490LSE, CRG3490LSF, CRG3490LWA, CRG3490LWB, CRG3490LWC, CRG3490LWD, CRG3490LWE, CRGE3481TBA, CRGE3481TDA, CRGE3481TSA, CRGE3481TWA

FAQ

This igniter is used on select gas ranges, wall ovens, and some cooktops that use part number 316489403 or 5304508786. Based on the title and search context, it is associated with models from Kenmore, Crosley, Frigidaire, Electrolux, Gibson, Kelvinator, Westinghouse, and Tappan. Always confirm fit by matching your original part number and appliance model number before ordering.
Known replacement and cross-reference numbers for this igniter include 316489403, 5304508786, 1513415, 7316489403, AP4433236, AH2364063, EA2364063, PS2364063, and EAP2364063.
Typical symptoms include the oven not lighting, delayed ignition, a weak or no glow from the igniter, gas smell before ignition, or long preheat times. A failing igniter can still glow but not draw enough current to open the oven safety valve properly, which can prevent the burner from lighting.
This style of igniter heats up and draws electrical current through the oven safety valve. Once the current reaches the needed level, the safety valve opens and gas flows to the burner, where it ignites. If the igniter is weak, the valve may stay closed or open too slowly, causing no-heat or slow-heat problems.
For many ranges, this is a moderate repair that takes about 20 to 45 minutes. Common tools are a screwdriver, nut driver, and possibly needle-nose pliers. You should disconnect power and shut off the gas supply first. Access is usually from inside the oven cavity or from the lower rear panel, depending on the model.
Verify that the old igniter's part number matches one of the listed replacements and inspect the wire connector style and harness length. Also check the burner tube for rust or blockage, make sure the safety valve wiring is intact, and look for cracked insulation or heat damage near the igniter leads. If the oven still will not light after replacement, the safety valve, control, or wiring may also need diagnosis.
Search results associate this igniter with several Frigidaire-family gas range series, including BGGF, DGGF, CGGF, CFGF, FFGF, FFGH, FGF, LGGF, and Kenmore 790-series models. Series references are useful starting points, but exact fitment should still be confirmed by your full model number and original part number.
