32 Amp DC Miniature Circuit Breaker, 500V DC 2-Pole DIN Rail Mount, Double Pole

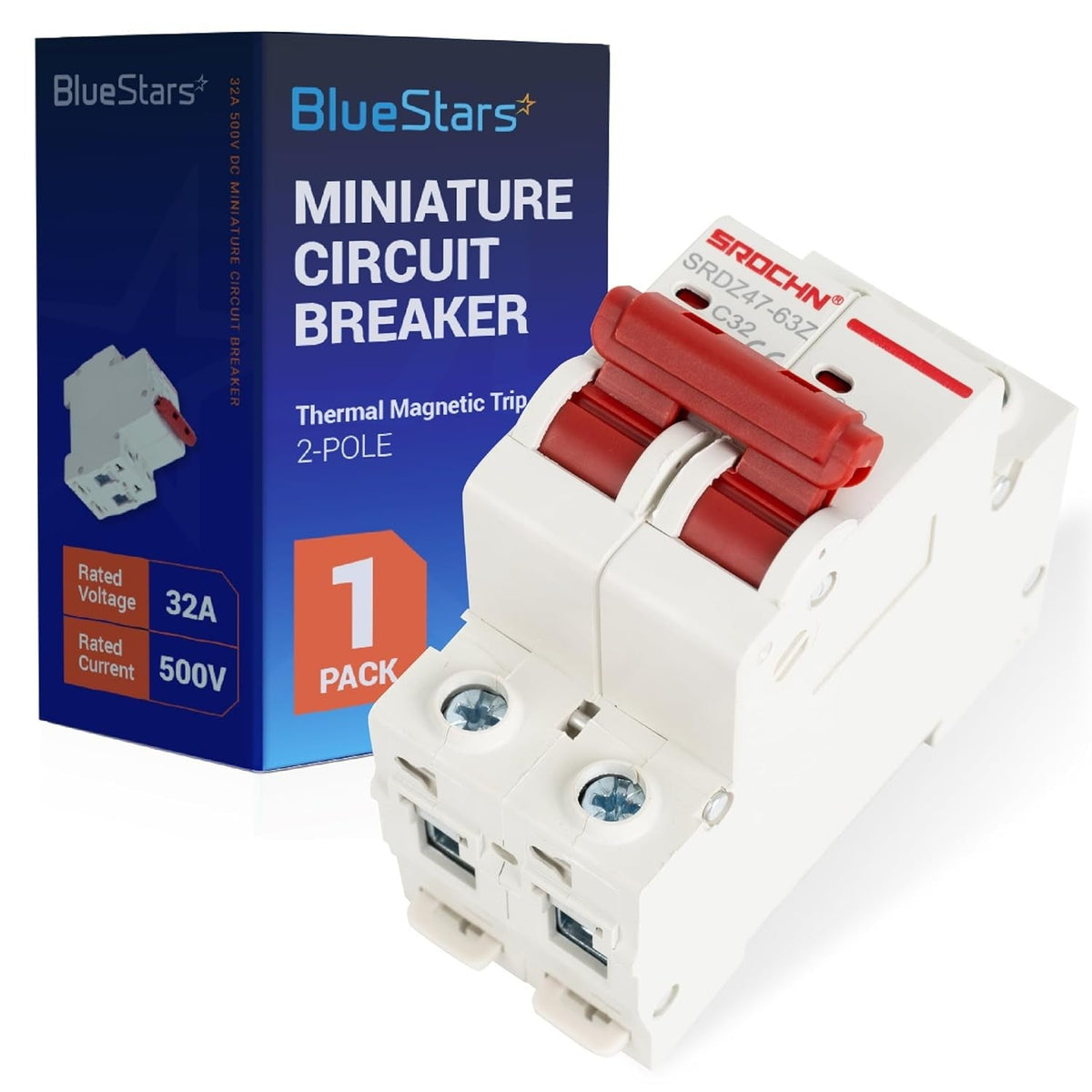

32 Amp DC Miniature Circuit Breaker

The 32 Amp DC Miniature Circuit Breaker (C32 SRDZ47-63Z) is a crucial safety component designed for DC applications, specifically within battery and solar panel (PV) systems. Its robust construction and advanced features make it ideal for protecting sensitive equipment and ensuring reliable system operation.

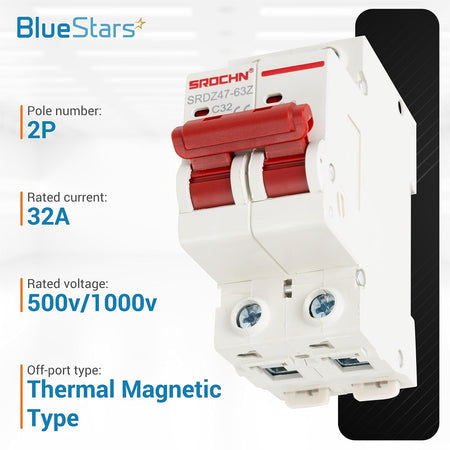

Key Features and Specifications

• Amperage Rating: 32 Amps (DC) - Provides protection against overcurrent situations.
• Voltage Rating: 500V DC - Suitable for high-voltage DC systems found in many solar and battery installations.
• Pole Configuration: 2-Pole (Double Pole) - Offers simultaneous protection for both positive and negative lines, enhancing safety and providing complete disconnect capability.
• Mounting Style: DIN Rail Mount - Enables easy and secure installation onto standard DIN rails, commonly used in electrical panels and distribution systems.

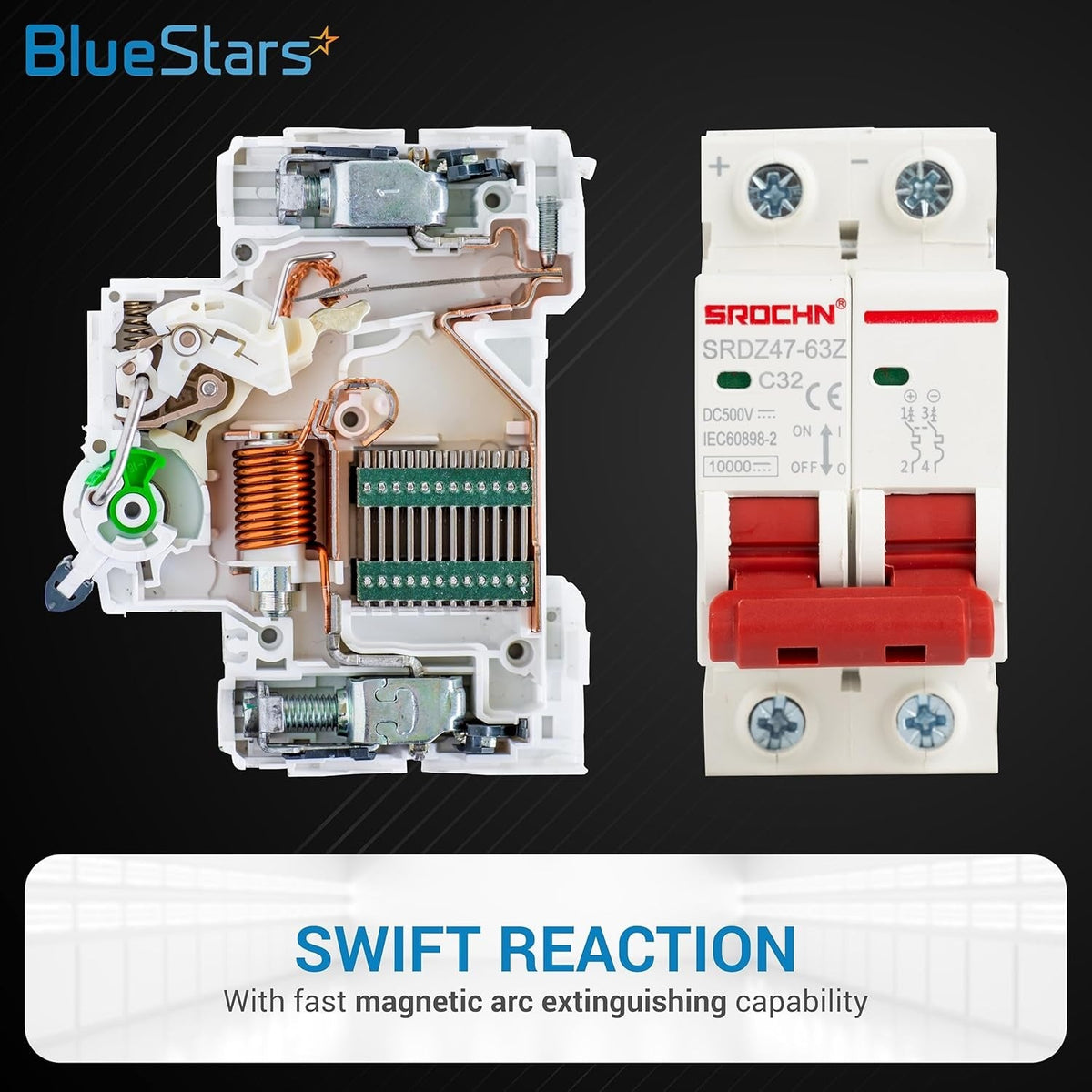

• Trip Mechanism: Thermal Magnetic Trip - Dual-acting mechanism provides both thermal (overheat) and magnetic (short-circuit) protection, ensuring comprehensive fault detection and rapid response to overload and short-circuit conditions.

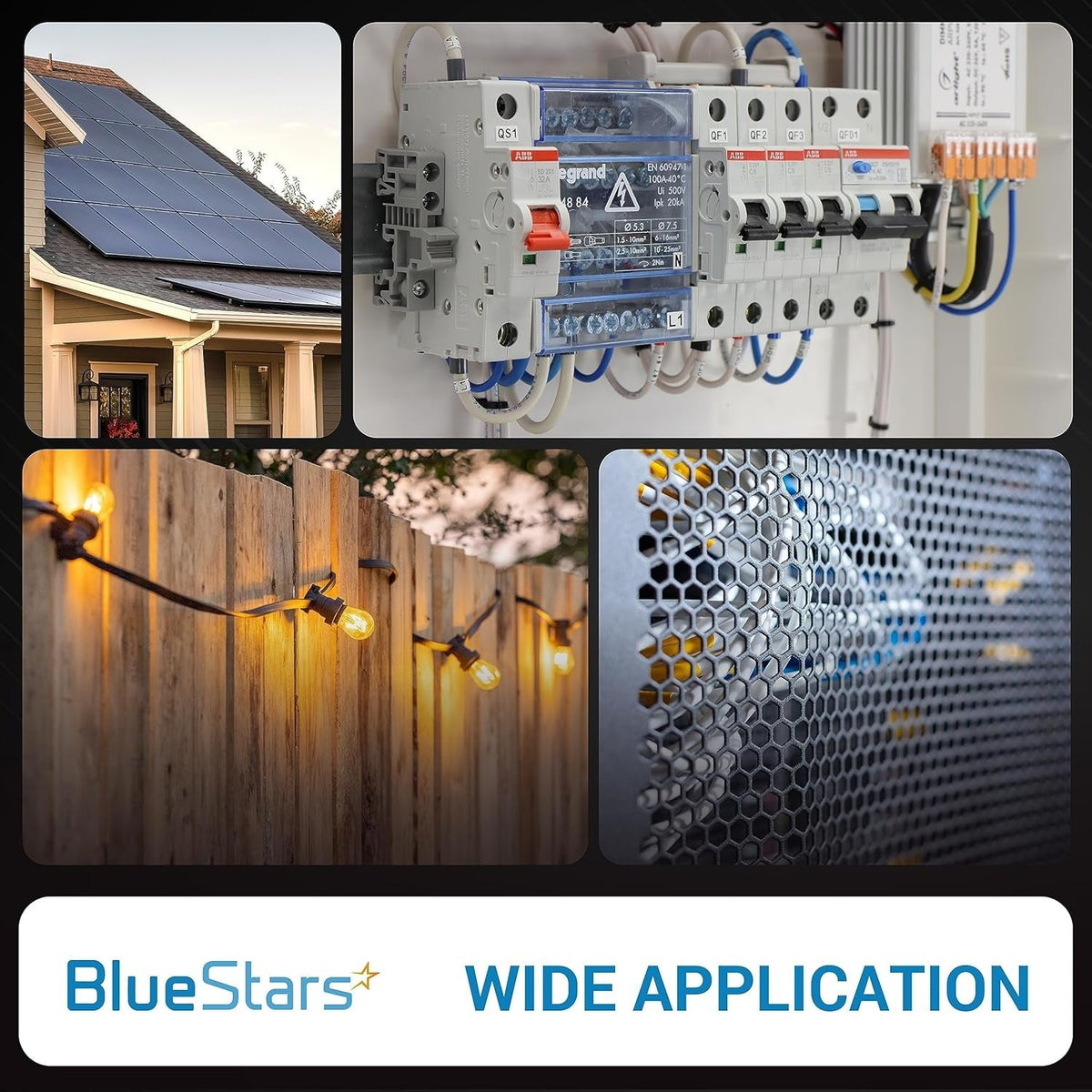

• Application: Specifically designed for use in battery and solar PV systems, offering reliable protection for these sensitive applications. Acts as both a protective circuit breaker and a disconnect switch.
• Type: DC Disconnect Switch - Functions both as a protective circuit breaker and as a disconnect switch for maintenance and safety purposes.
• Model Number: C32 SRDZ47-63Z - This unique identifier ensures compatibility and simplifies ordering.

Benefits

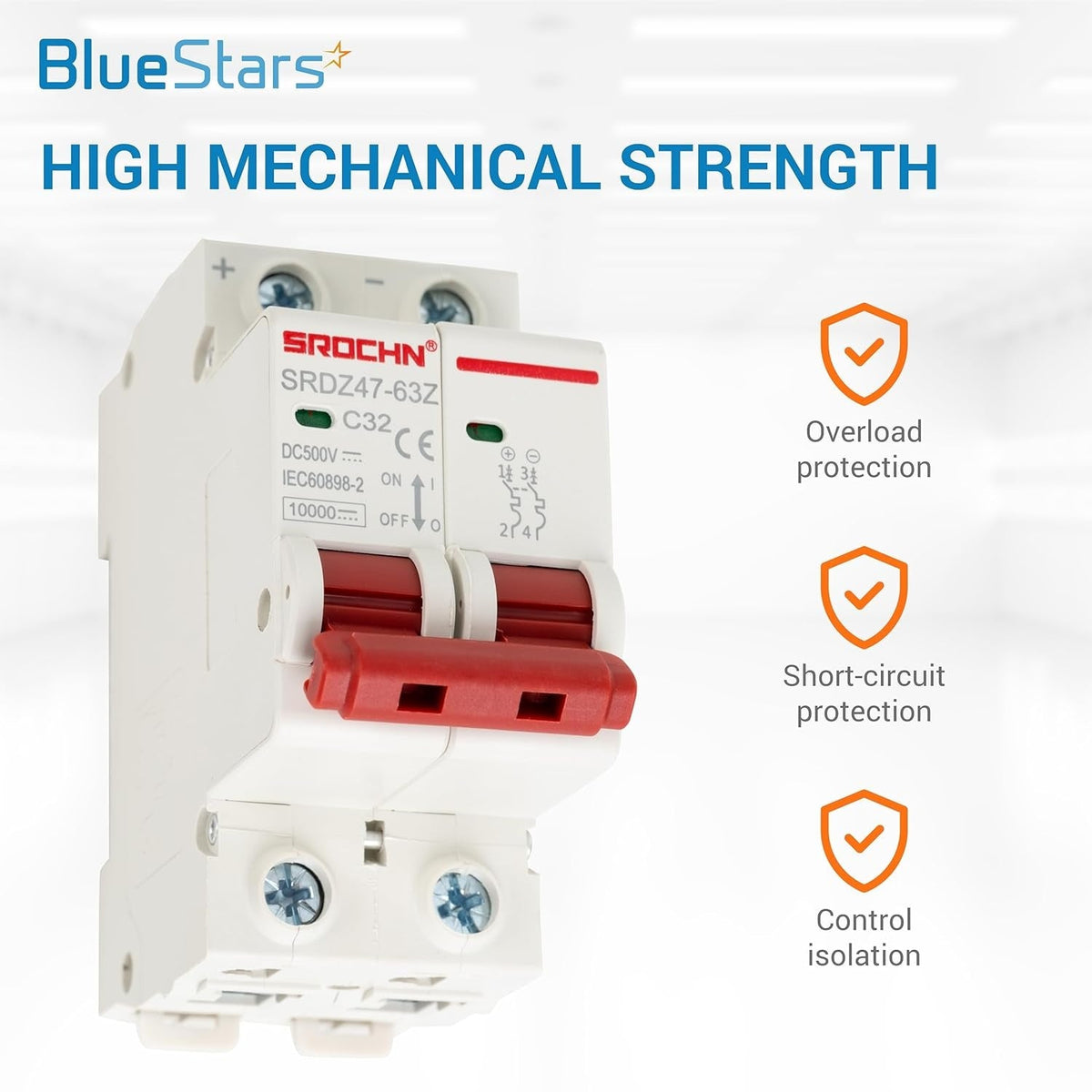

• Enhanced Safety: Protects equipment and personnel from overcurrent and short circuit events. The double-pole design ensures complete circuit isolation.
• Reliable Protection: Thermal-magnetic tripping ensures quick and accurate response to various fault conditions.
• Easy Installation: DIN rail mounting provides simple and secure installation.
• Space Saving: Compact miniature design saves valuable space in panels.

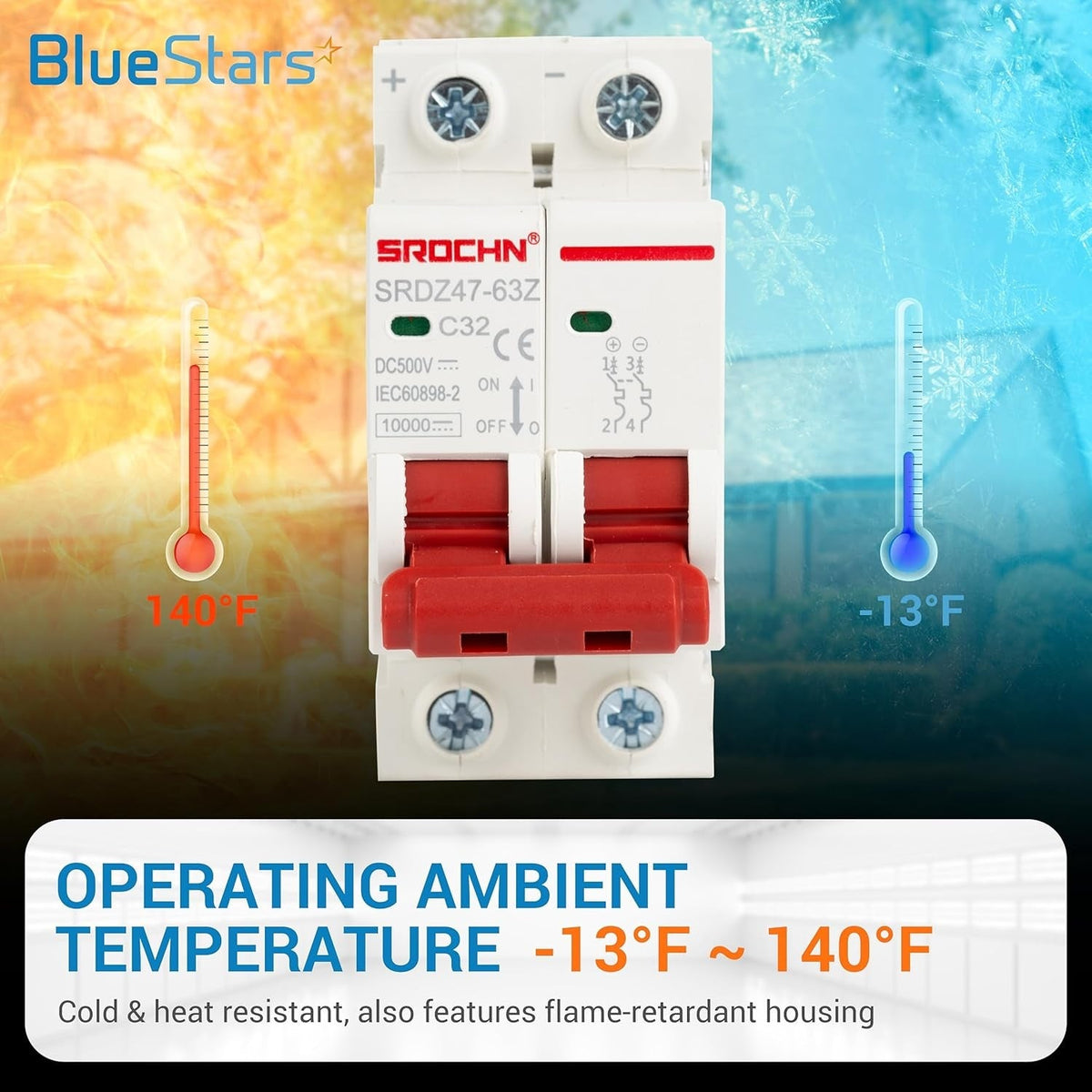

• Suitable for Harsh Environments: Built to withstand the rigors of outdoor and industrial applications.

This 32 Amp DC Miniature Circuit Breaker is a high-quality, reliable, and indispensable component for any battery or solar PV system requiring robust overcurrent protection and a convenient disconnect switch. The combination of thermal-magnetic tripping with its 2-pole design offers
