WB26X10038 Microwave Turntable Motor Replacement - For GE & Kenmore Microwaves

WB26X10038 Microwave Turntable Motor Replacement

Key Features

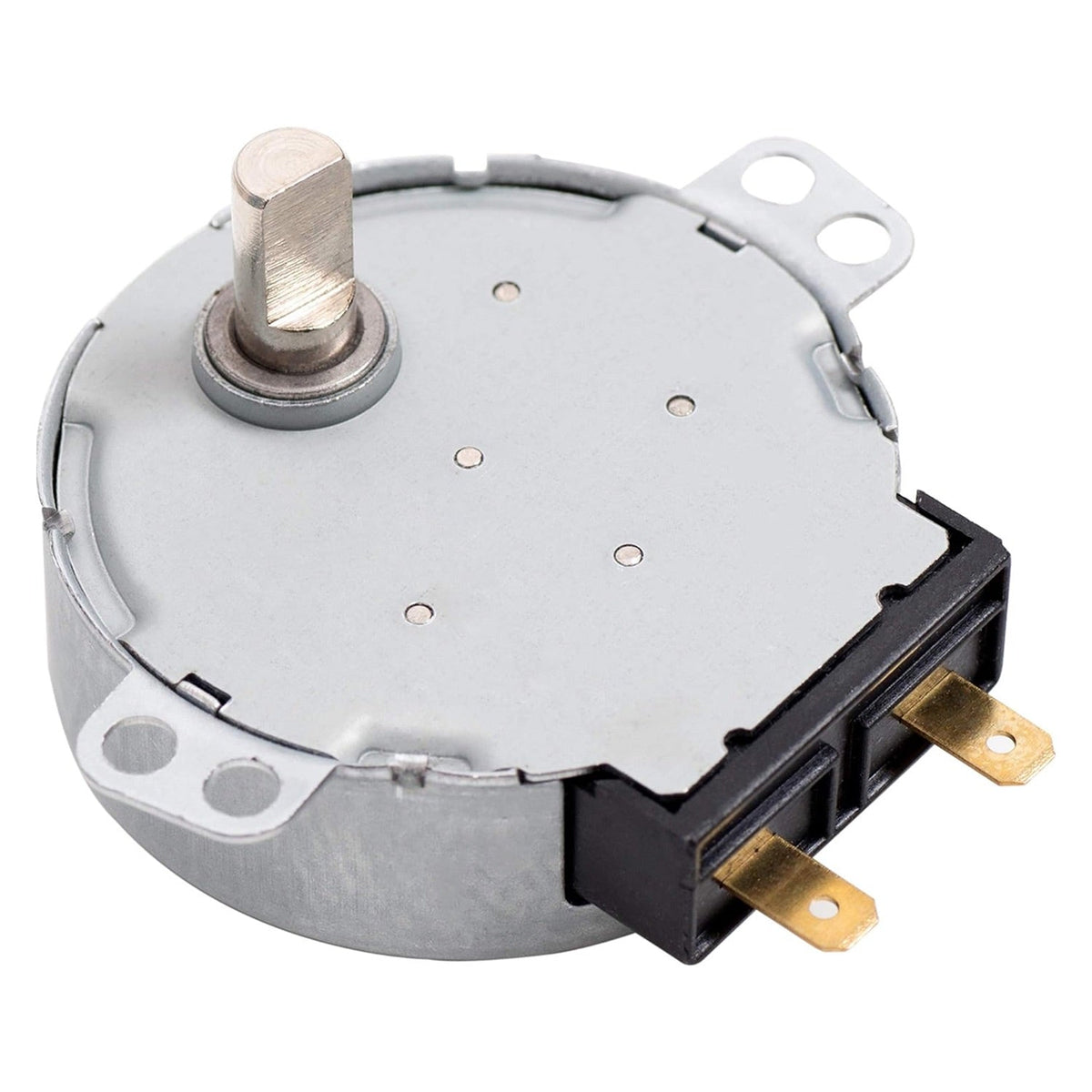

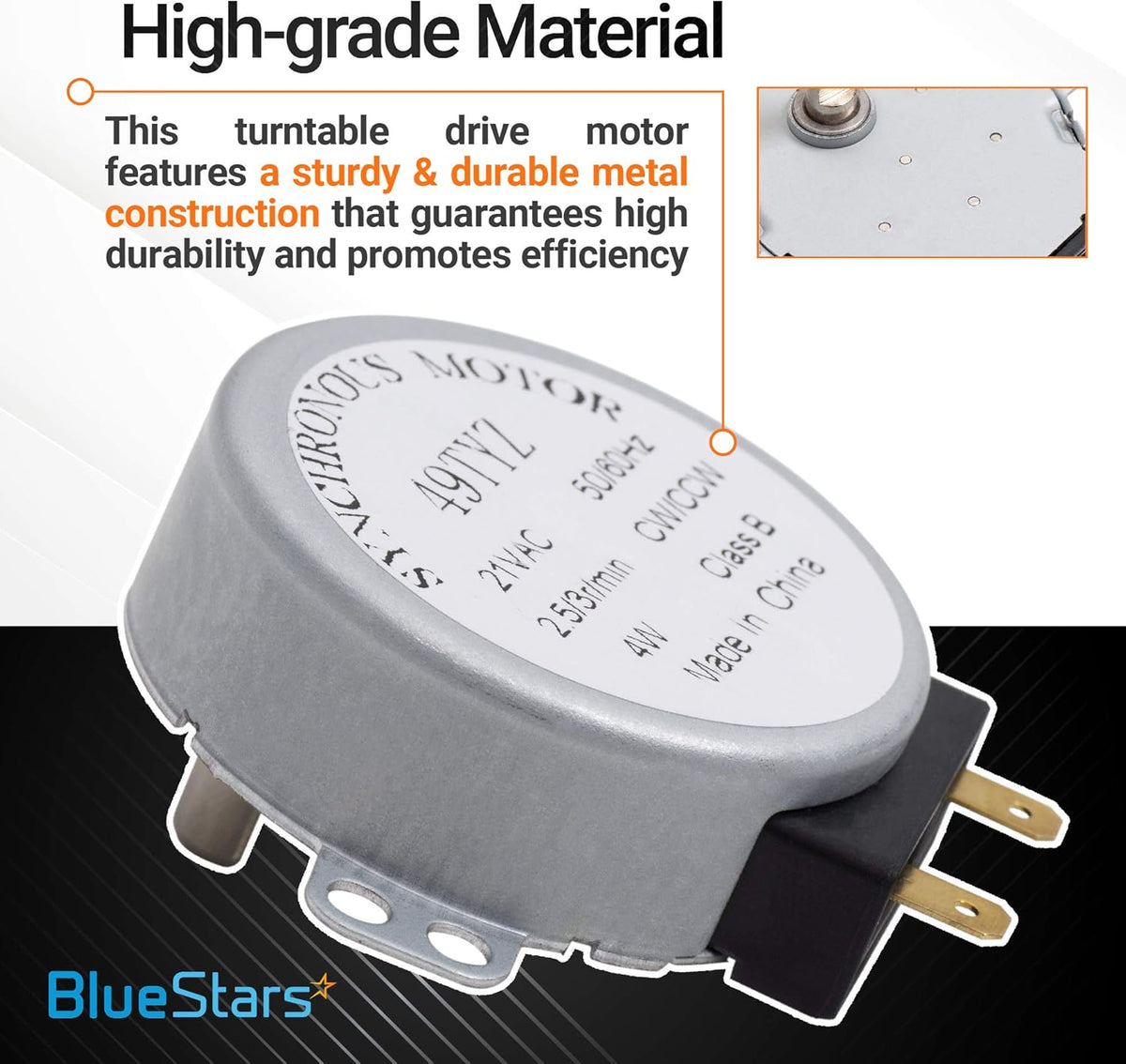

• Synchronous drive motor designed to rotate the microwave's glass tray for consistent heat distribution.

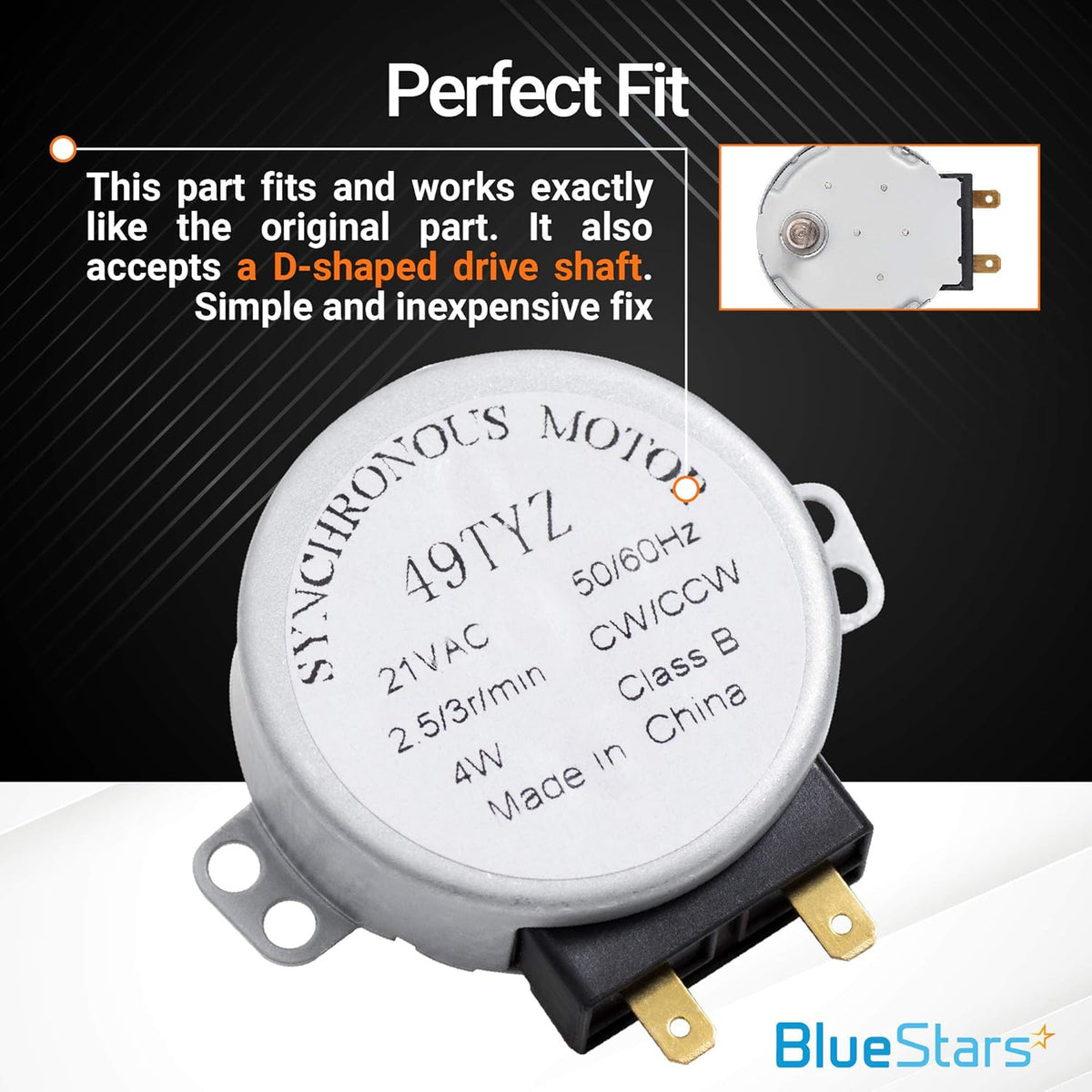

• Features a specialized 1/4-inch D-shaped metal shaft for a secure, non-slip connection to the turntable coupler.
• Operates at a standard speed of 2.5/3 RPM (revolutions per minute) to ensure optimal microwave exposure.
• Engineered with a low-noise internal gear set to eliminate grinding or clicking sounds during operation.
• Equipped with two 3/16-inch male spade terminals for a quick-disconnect electrical connection.

Replaces / Cross-Reference Part Numbers

• AP2024962
• PS237772
• 769741
• SSM-16H
• MDPJ030AF
• EAP237772
• AH237772
• EA237772
• ST16F
• 15QBP1017

Compatibility & Fitment

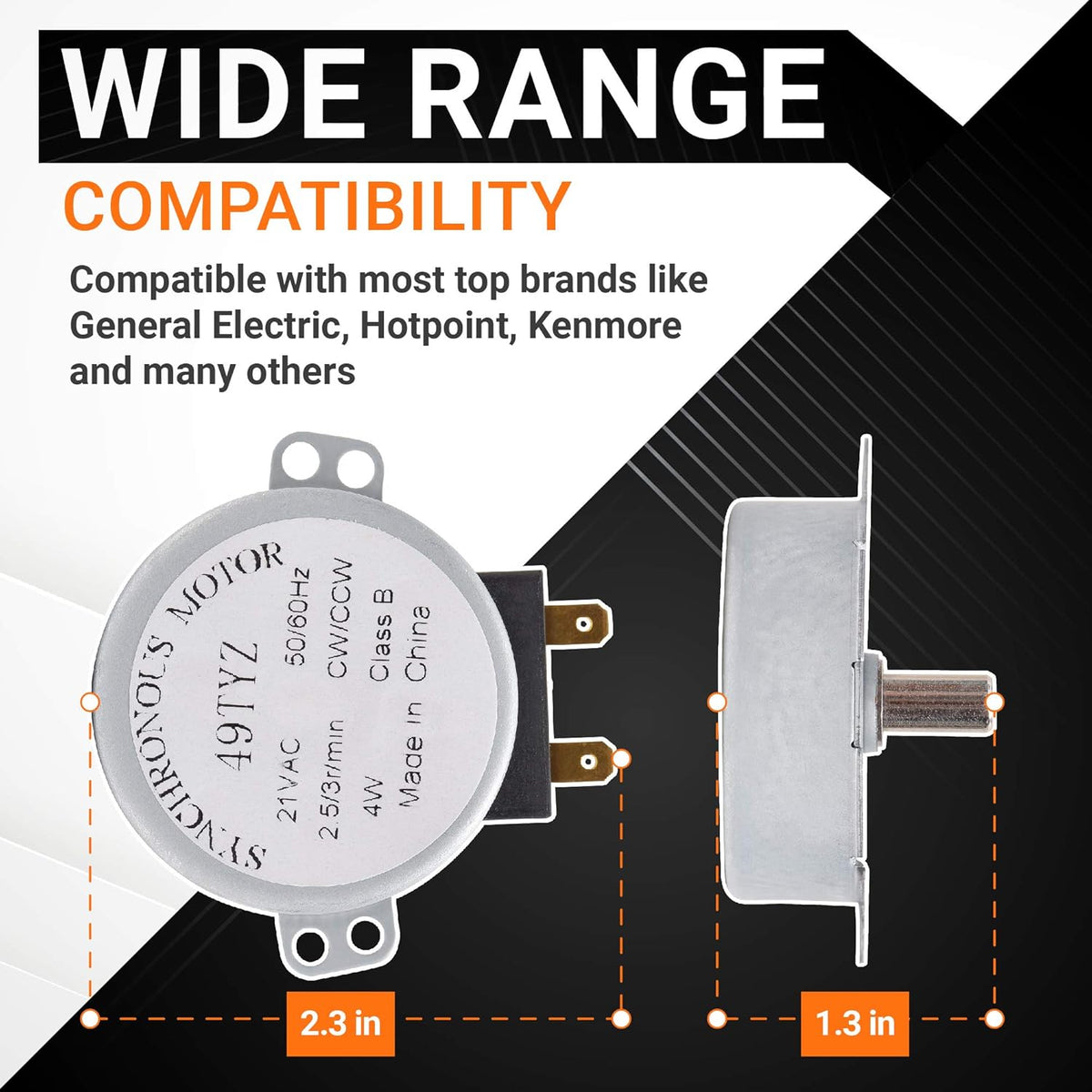

• General Electric (GE): Fits JVM, DVM, EMO, and CGLMV series (Over-the-Range and Countertop models).
• Kenmore / Sears: Specifically models starting with 363 and 721 prefixes.
• Hotpoint & RCA: Compatible with most mid-to-large capacity microwave platforms.
• Specifications: Must be used with 21V AC (50/60Hz) power systems; not compatible with 120V motor systems.

When to Replace

• No Rotation: The motor does not turn the glass tray, resulting in unevenly cooked food or cold spots.
• Loud Noises: A persistent grinding, clicking, or loud humming sound originates from the bottom of the unit.
• Intermittent Turning: The tray stutters, jerks, or stops and starts randomly during a cooking cycle.
• Mechanical Failure: The internal plastic gears are stripped, or the shaft no longer engages with the coupler.

Installation Tips

• Safety First: Unplug the microwave. High-voltage capacitors can hold a lethal charge; however, this repair is typically performed via the bottom access panel and does not require opening the main high-voltage cabinet.
• Access: Lay the microwave on its side or back and remove the security screws on the bottom cover plate to expose the motor.
• Orientation: Note the position of the wire terminals before disconnecting; the new motor should be installed in the same orientation to avoid straining the wires.
• Shaft Alignment: Ensure the D-shaped shaft is fully seated into the plastic turntable coupler inside the microwave cavity before tightening the mounting screws.
• Testing: After reassembly, place a cup of water on the tray and run a 30-second cycle to verify smooth, quiet rotation.
