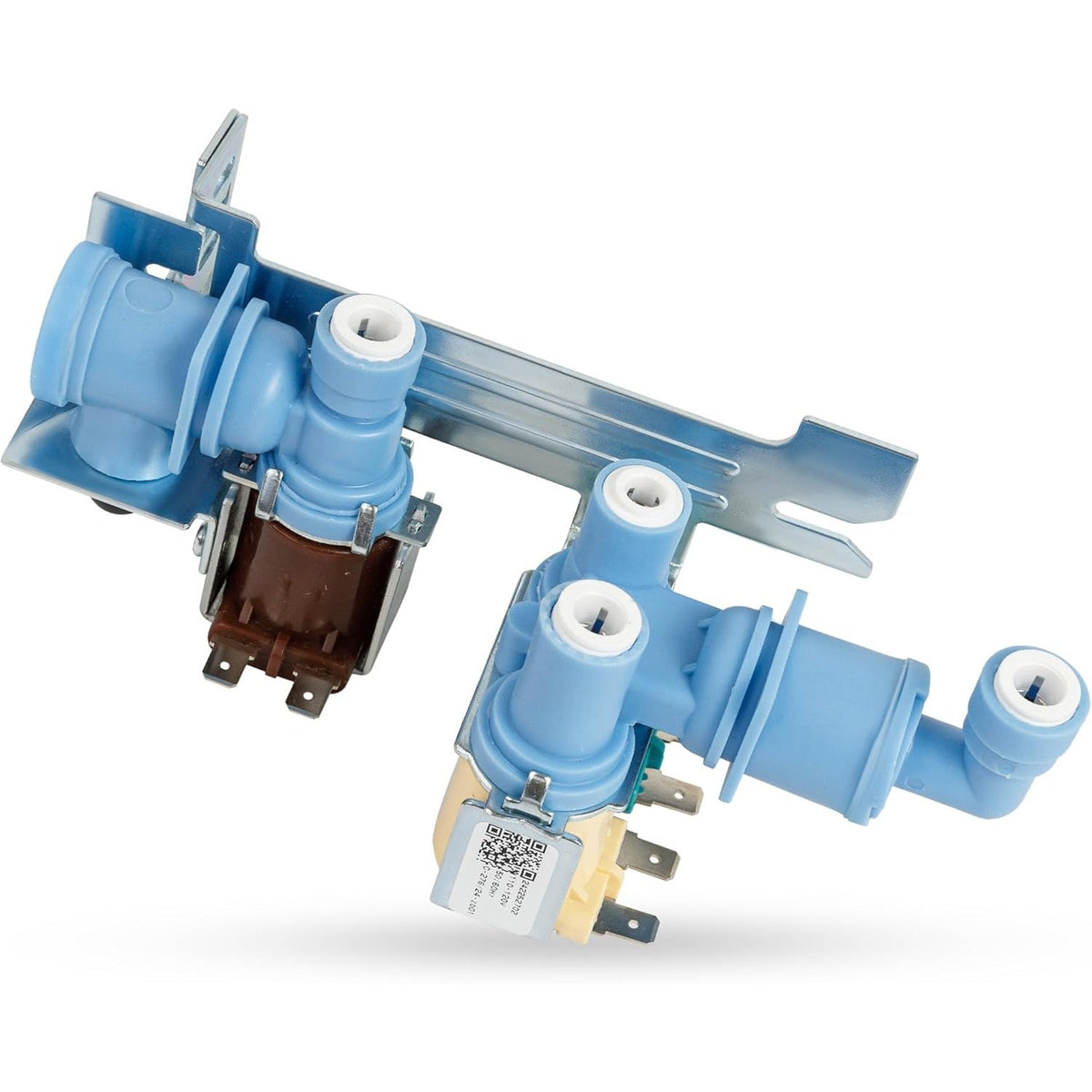

242252702 dual solenoid water inlet valve for Frigidaire, Kenmore, and Electrolux refrigerators.

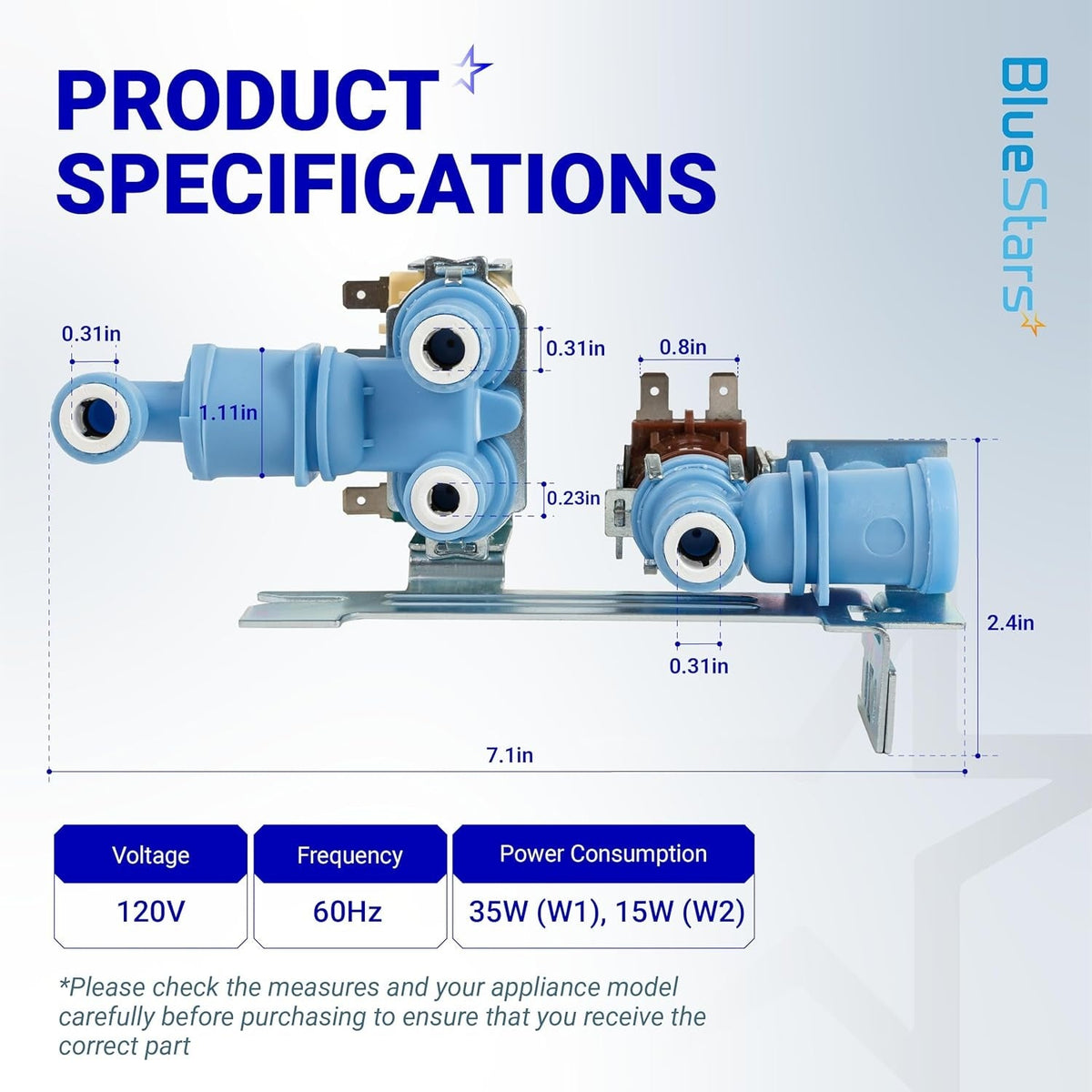

242252702 refrigerator water inlet valve with detailed dimensions and technical specifications diagram.

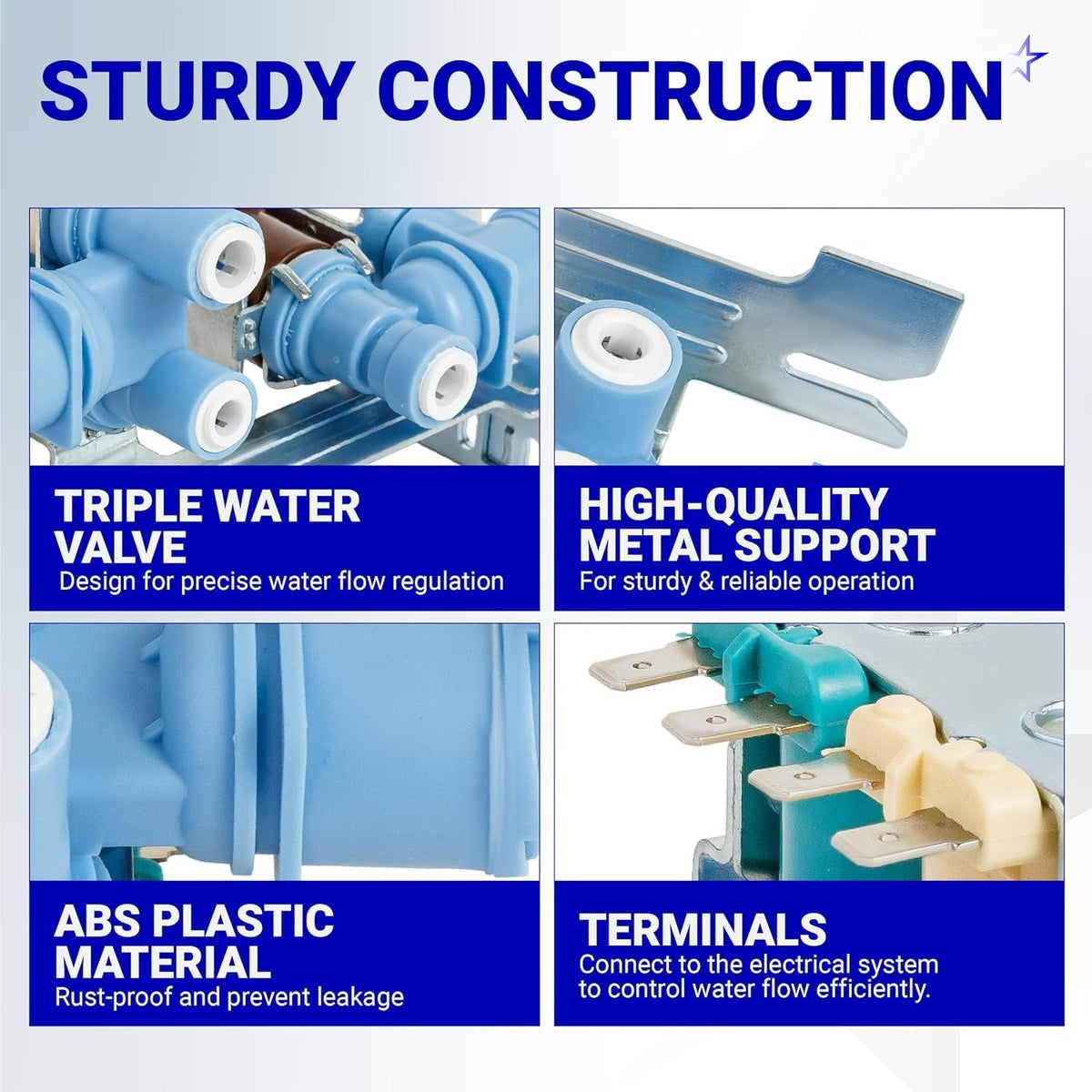

Infographic showing construction details of 242252702 refrigerator water inlet valve with metal support and terminals.
242252702 refrigerator water inlet valve replacement part shown with a woman using a fridge water dispenser.
242252702 refrigerator water inlet valve replacement part with compatibility list and part numbers graphic.
242252702 refrigerator water inlet valve showing symptoms fixed like leaking, no ice, and no water dispensing.

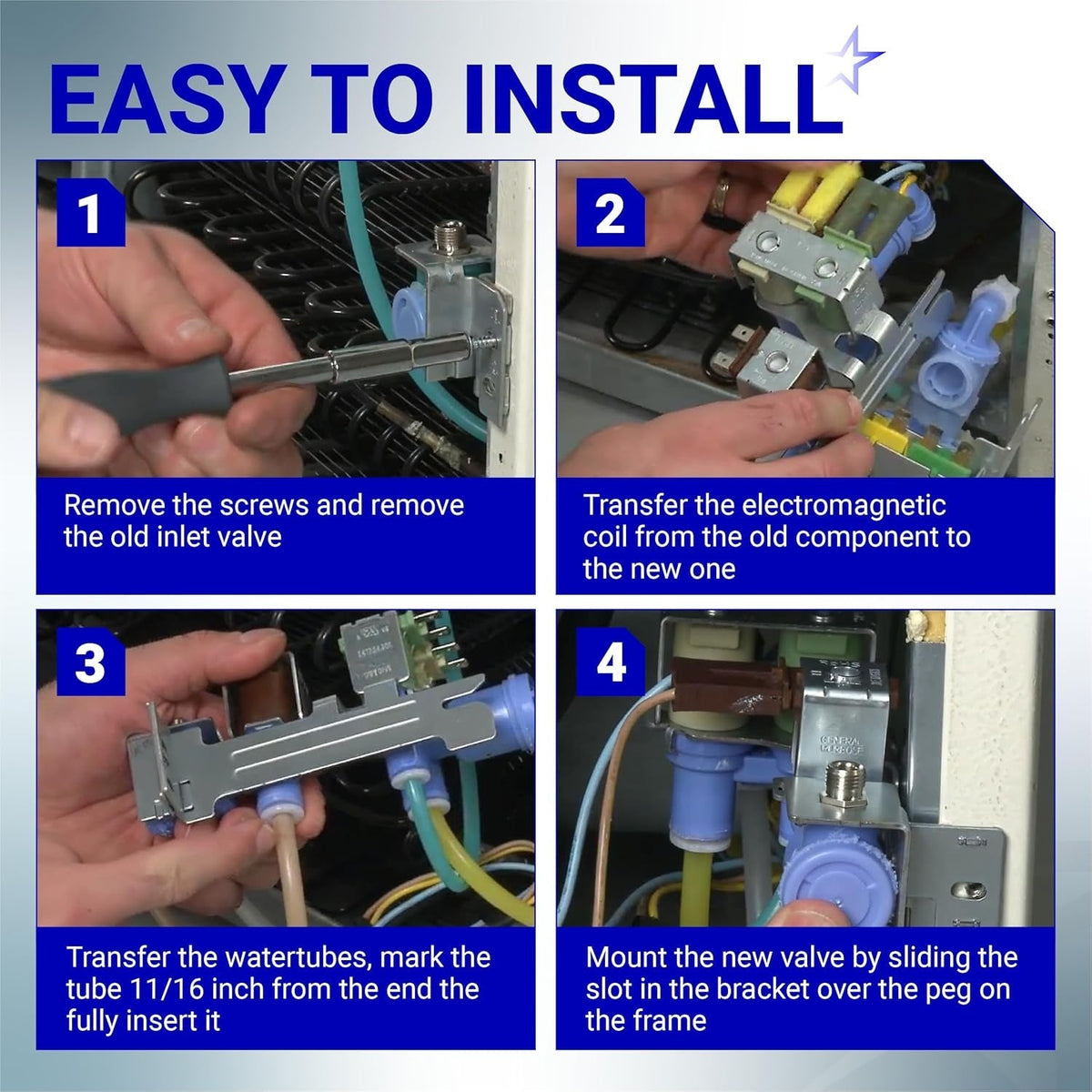

Four-step installation guide for 242252702 refrigerator water inlet valve showing removal and mounting process.
242252702 refrigerator water inlet valve replacement for Frigidaire, Kenmore, and Electrolux appliances.

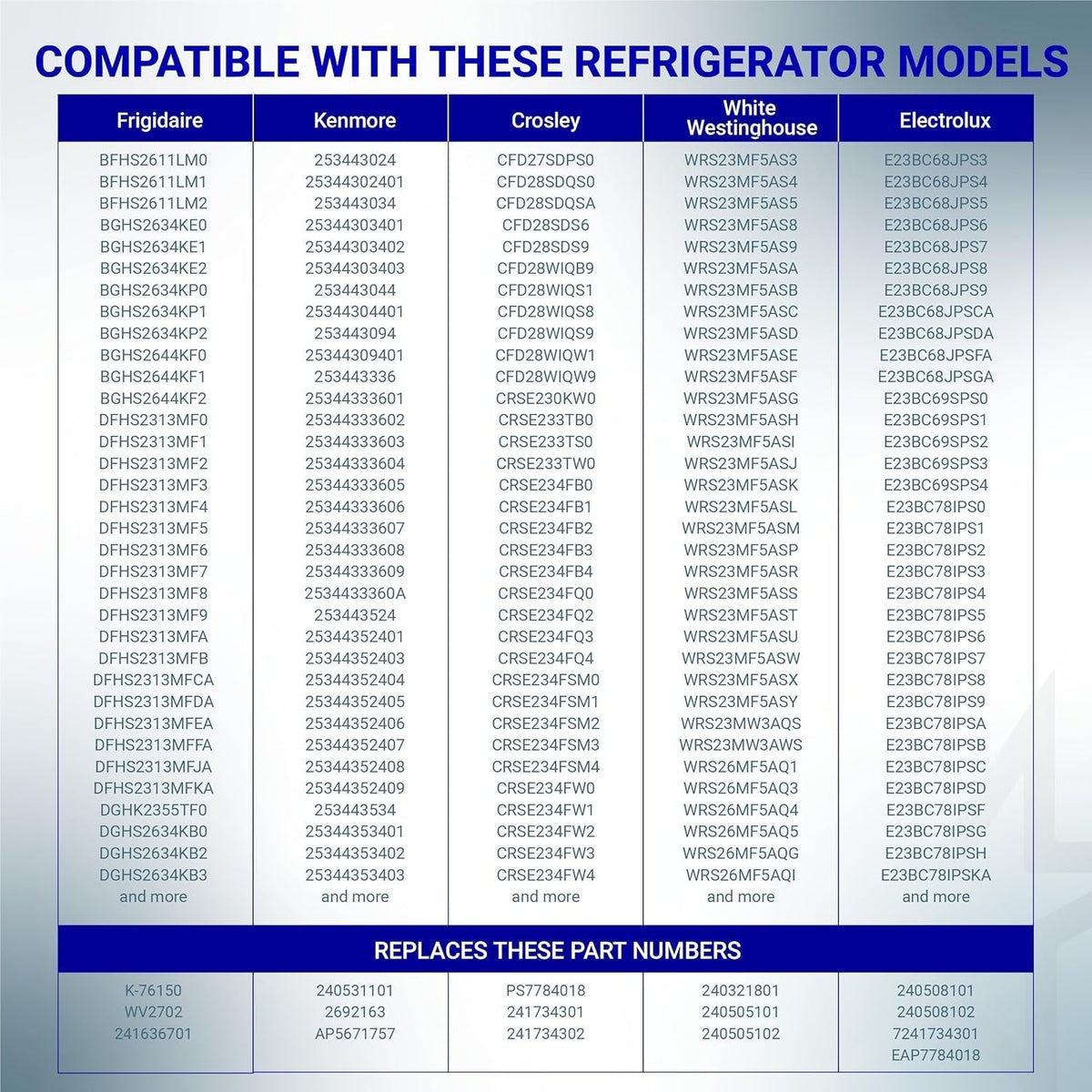

Compatibility chart for 242252702 refrigerator water inlet valve listing compatible models and part numbers.
242252702 dual solenoid water inlet valve for Frigidaire, Kenmore, and Electrolux refrigerators.
242252702 refrigerator water inlet valve with detailed dimensions and technical specifications diagram.
Infographic showing construction details of 242252702 refrigerator water inlet valve with metal support and terminals.
242252702 refrigerator water inlet valve replacement part shown with a woman using a fridge water dispenser.
242252702 refrigerator water inlet valve replacement part with compatibility list and part numbers graphic.
242252702 refrigerator water inlet valve showing symptoms fixed like leaking, no ice, and no water dispensing.
Four-step installation guide for 242252702 refrigerator water inlet valve showing removal and mounting process.
242252702 refrigerator water inlet valve replacement for Frigidaire, Kenmore, and Electrolux appliances.
Compatibility chart for 242252702 refrigerator water inlet valve listing compatible models and part numbers.

242252702 Refrigerator Water Inlet Valve for Frigidaire Kenmore Electrolux Crosley

0.00
$36.20
Save 13% $41.63
$36.20
Out of stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

242252702 Water Inlet Valve

Key Features

  • Controls water flow to the refrigerator's ice maker and water dispenser.
  • Features a three-solenoid coil design.
  • Electrical specifications: 120V AC; 20W and 35W coils.
  • Constructed from plastic and metal components.
  • Direct-fit replacement for specified models.

Replaces / Cross-Reference Part Numbers

  • AP5671757
  • PS7784018
  • 240531101
  • 240321801
  • 240505101
  • 240505102
  • 240508101
  • 240508102
  • 241734301
  • 241734302

Compatibility & Fitment

  • Designed for specific refrigerator models from brands including Frigidaire, Electrolux, Kenmore, Crosley, Gibson, and Kelvinator.
  • Confirm fitment with your refrigerator's model number before ordering.

When to Replace

  • Ice maker is not producing ice or is producing small/hollow cubes.
  • Water dispenser is not dispensing water or has low flow.
  • Refrigerator is leaking from the water line connection area.
  • Ice maker is overflowing.

Installation Tips

  • Disconnect the refrigerator from power and shut off the main water supply before beginning installation.
  • Place a towel under the valve to catch any residual water from the lines.
  • Ensure water line connections are tight to prevent leaks after installation.
  • After installation, turn the water supply back on and check for leaks before restoring power.

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

Color
Gray / Blue / Green / Yellow / Maroon
Material
Plastic / Metal
Includes
1× 3-Solenoid Water Valve with Bracket + Instructions
Solenoids
3 (Maroon 20W + Yellow 20W + Green 35W)
Outlets
4 (3× 5/16" tube + 1× 1/4" tube)
Inlet
1× 1/4" tube
Fitting Type
Quick Connect (replaces older screw-on style)
Voltage
120V, 50/60Hz (each solenoid)
Product Dimensions
7-1/8 x 3-3/4 x 3-1/4 inches

FAQs

This valve is compatible with refrigerators manufactured by Frigidaire, Kenmore, Electrolux, Crosley, Gibson, and White-Westinghouse. It is designed to fit a wide range of models that utilize the triple solenoid configuration.
This part replaces OEM numbers 242252702, 692163, 240321801, 240505101, 240505102, 240508101, 240508102, 240531101, 241734301, and 241734302.
You likely need a new valve if your refrigerator is experiencing water leaks at the back of the unit, if the ice maker has stopped producing ice, or if the water dispenser is slow, dripping, or not dispensing water at all.
When cutting the water tubing to fit the new valve, ensure you make a clean, square cut. An angled or crushed end will prevent a proper seal and lead to leaks. Ensure the tubing is pushed firmly into the quick-connect fittings until it is fully seated.
Yes. Always shut off the water supply to the refrigerator and unplug the power cord before beginning the repair. It is also helpful to have a towel and a small bucket ready to catch any residual water trapped in the lines when you disconnect them from the old valve.
The installation is generally straightforward and can typically be completed in 20 to 30 minutes. You will need a screwdriver to remove the lower rear access panel and to unfasten the mounting screws holding the valve to the refrigerator cabinet.
