2 Pole Contactor 40 Amp 24VAC Coil Exact Fit with Relays, Air Conditioner, Heat Pump, Refrigeration Systems
0.00
Regular price
$16.49
Regular price
Save 11%
$18.47
Sale price
$16.49
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
2-Pole Contactor (40 Amp, 24VAC Coil)
Key Features
- Heavy-Duty 40A Rating: Designed to handle the high inductive loads of large A/C compressors and heat pump motors, providing a significantly longer service life than standard 30A units.
- 2-Pole Configuration: Breaks both legs of a 240V circuit simultaneously, ensuring total power isolation to the equipment when the thermostat is not calling for cooling.
- 24V Low-Voltage Coil: Engineered for an "Exact Fit" with standard residential HVAC control systems, allowing the thermostat to trigger the high-voltage circuit safely.

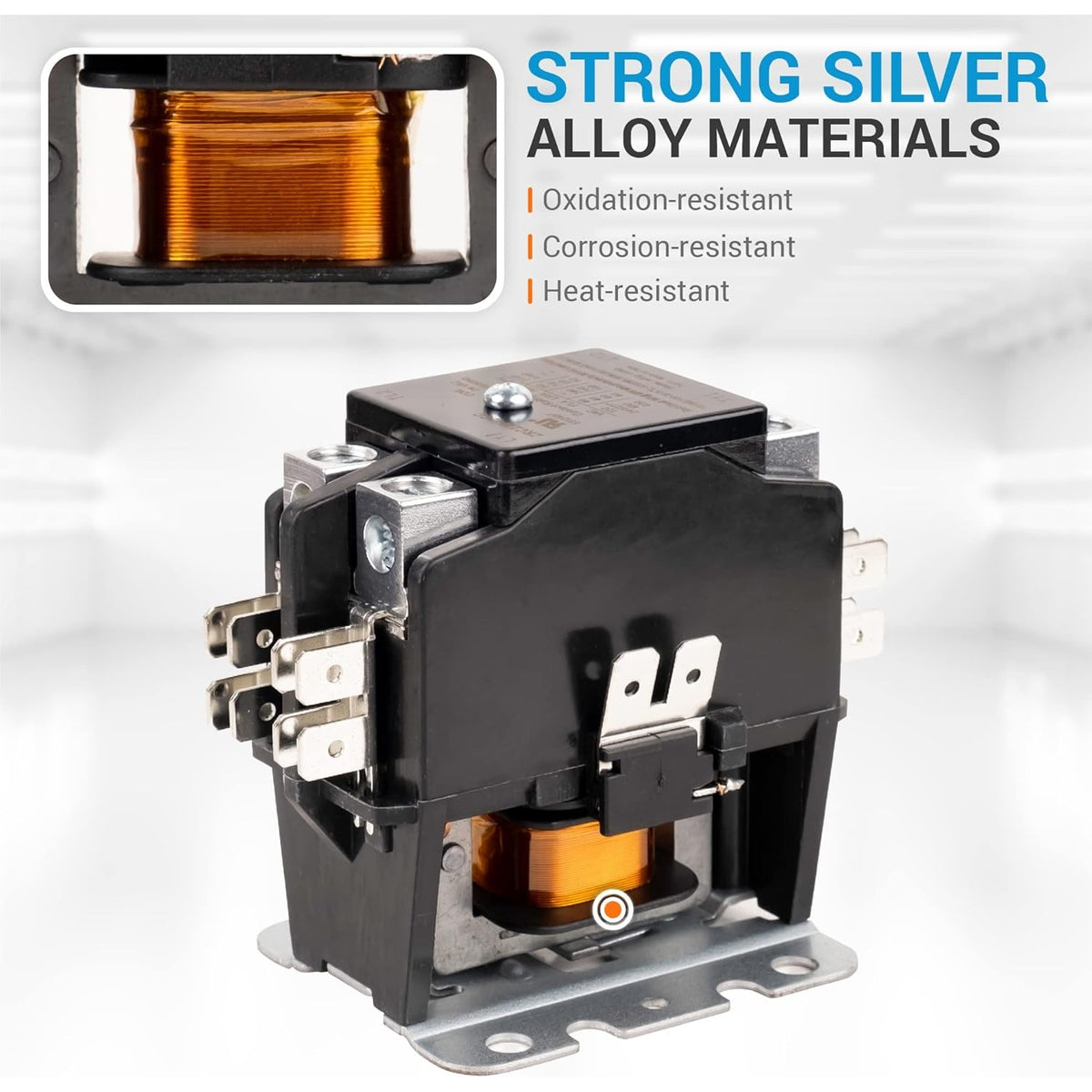

- Silver Alloy Contacts: Features premium oxide-resistant contact points to prevent welding and pitting, maintaining high conductivity through thousands of cycles.

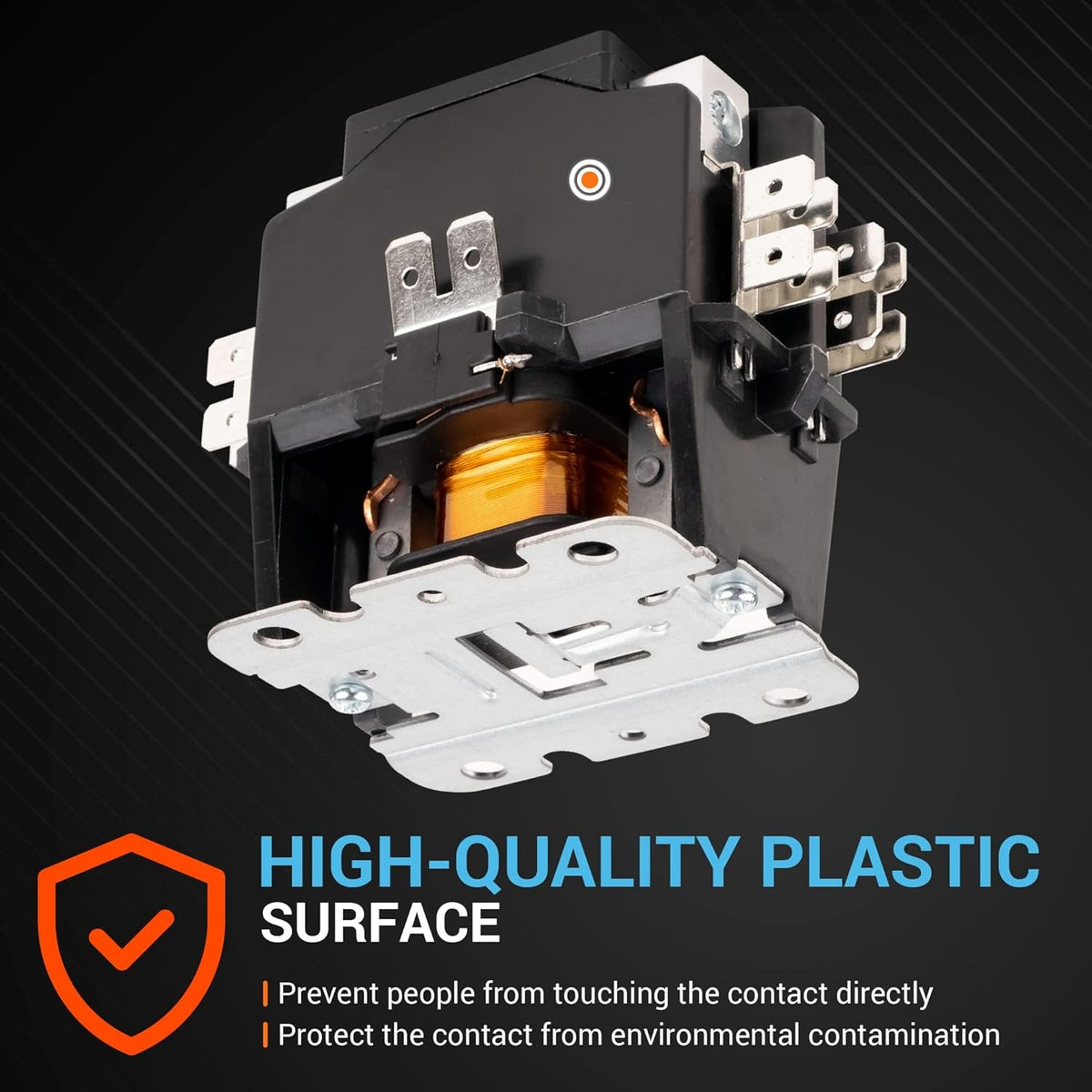

- Dust-Shielded Design: Built with a protective housing to prevent insects and debris from interfering with the mechanical plunger or the electrical contacts.
Replaces / Cross-Reference Part Numbers
- C240A
- DP40242
- CTR02574
- CONT2P040024V
- HCCY2XU04AA303
- Mars 17421
Compatibility & Fitment
This contactor is a universal replacement for most residential and light commercial HVAC units. Key compatible brands include:
- Air Conditioners & Heat Pumps: Fits units from Carrier, Bryant, Payne, Rheem, Ruud, Goodman, Amana, Lennox, Trane, and American Standard.
- Refrigeration Systems: Compatible with walk-in coolers and commercial refrigeration compressors requiring a 24V control signal.
- Voltage Compatibility: The coil requires 24VAC; the load terminals are rated for use with 120V, 208V, or 240V AC power.
When to Replace

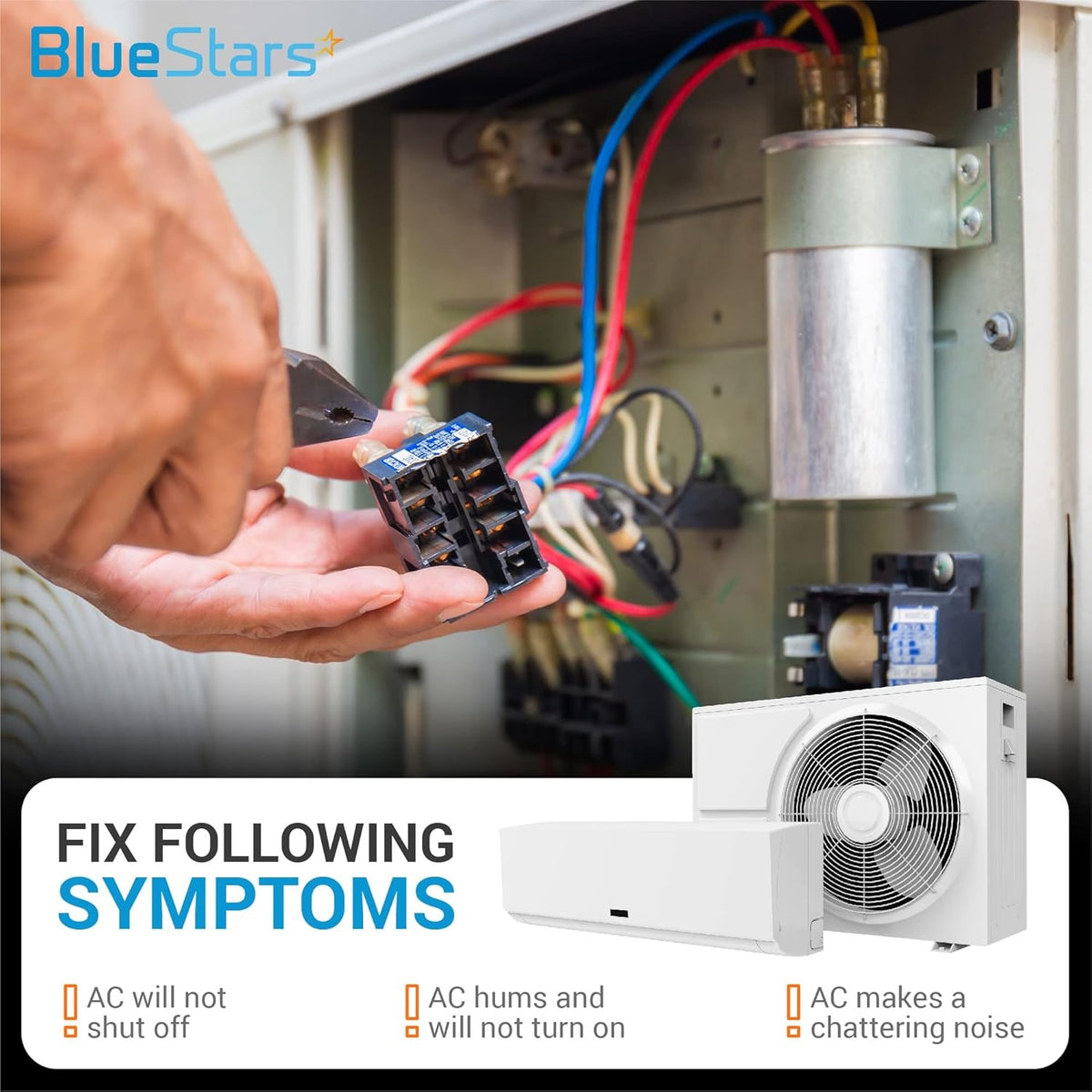

- Humming or Chattering: A loud buzzing noise often indicates that the 24V coil is weak or that the contacts are dirty and unable to pull in fully.
- Condenser Won't Start: The indoor fan is running and the thermostat is set to "Cool," but the outdoor unit is silent, suggesting a failed contactor coil.
- Burned or Pitted Contacts: Visible blackening or "soot" around the metal contact points, which can cause the compressor to overheat or fail to start.
- Welded Contacts: The outdoor fan and compressor continue to run even when the thermostat is turned off, indicating the contacts have melted together.
- Ant/Insect Infestation: Small insects (like "crazy ants") are attracted to the electrical field and can get crushed between the contacts, preventing a solid connection.
Installation Tips
- Safety First: Turn off the power at both the outdoor disconnect box and the main indoor breaker panel. Verify with a multimeter that no voltage is present before touching the wires.
- Label Your Wires: Take a photo of the old contactor before disconnecting. Mark the "Line" (power in), "Load" (to compressor), and "Control" (24V wires from the thermostat) clearly.
- Secure Terminals: Ensure all lug screws are tightened firmly. A loose connection on a 40A circuit will generate extreme heat and can melt the wiring.
- Orientation: While contactors can often be mounted in various positions, mounting it vertically (as originally designed) helps prevent dust and moisture from settling on the moving plunger.
- Verify the Coil: Ensure your system is 24V. If you install a 24V contactor into a system that uses a 120V or 240V control circuit, the coil will burn out instantly.
