Electrical 80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter

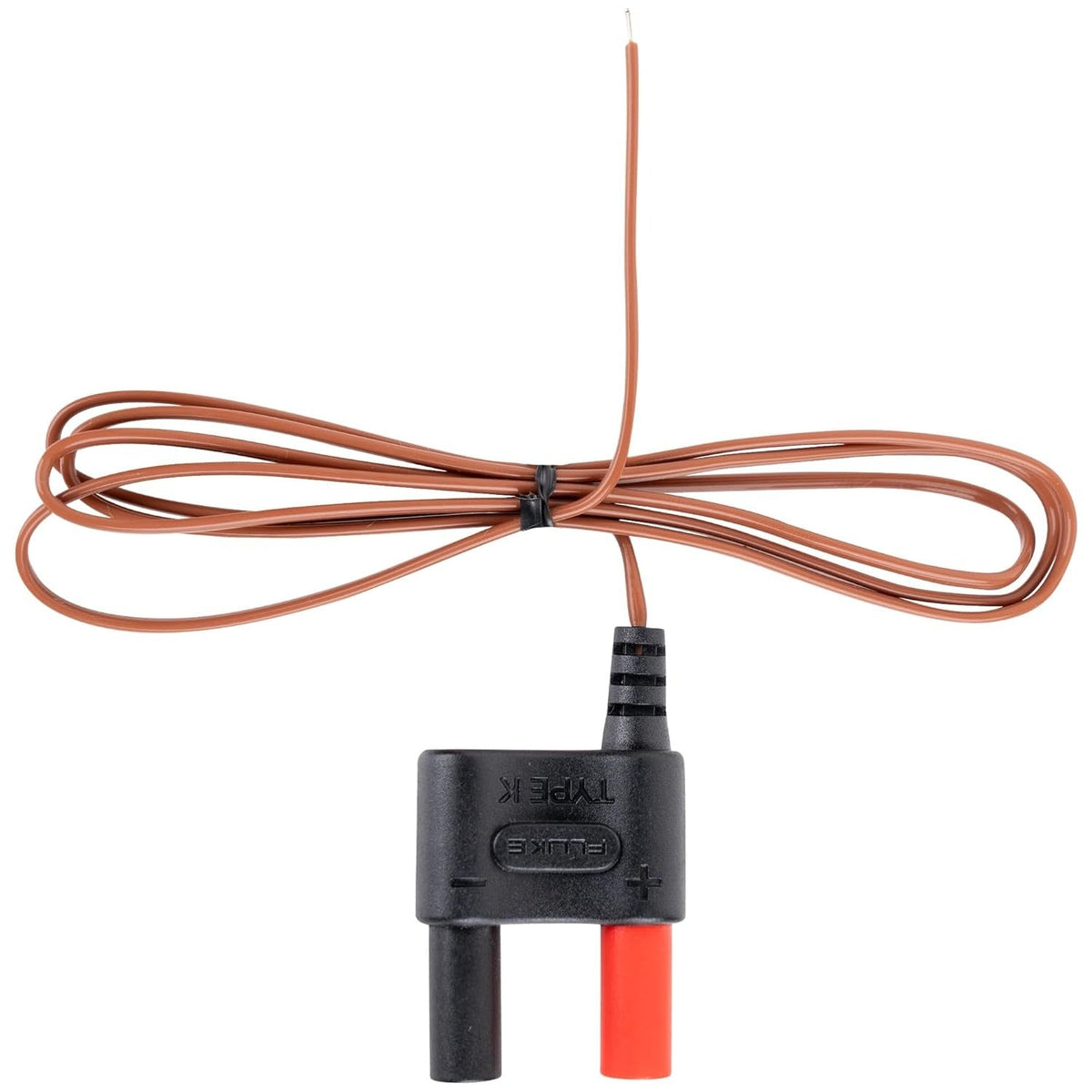

Fluke 80BK-A Type K thermocouple bead probe with black and red connector plugs and brown lead wire.

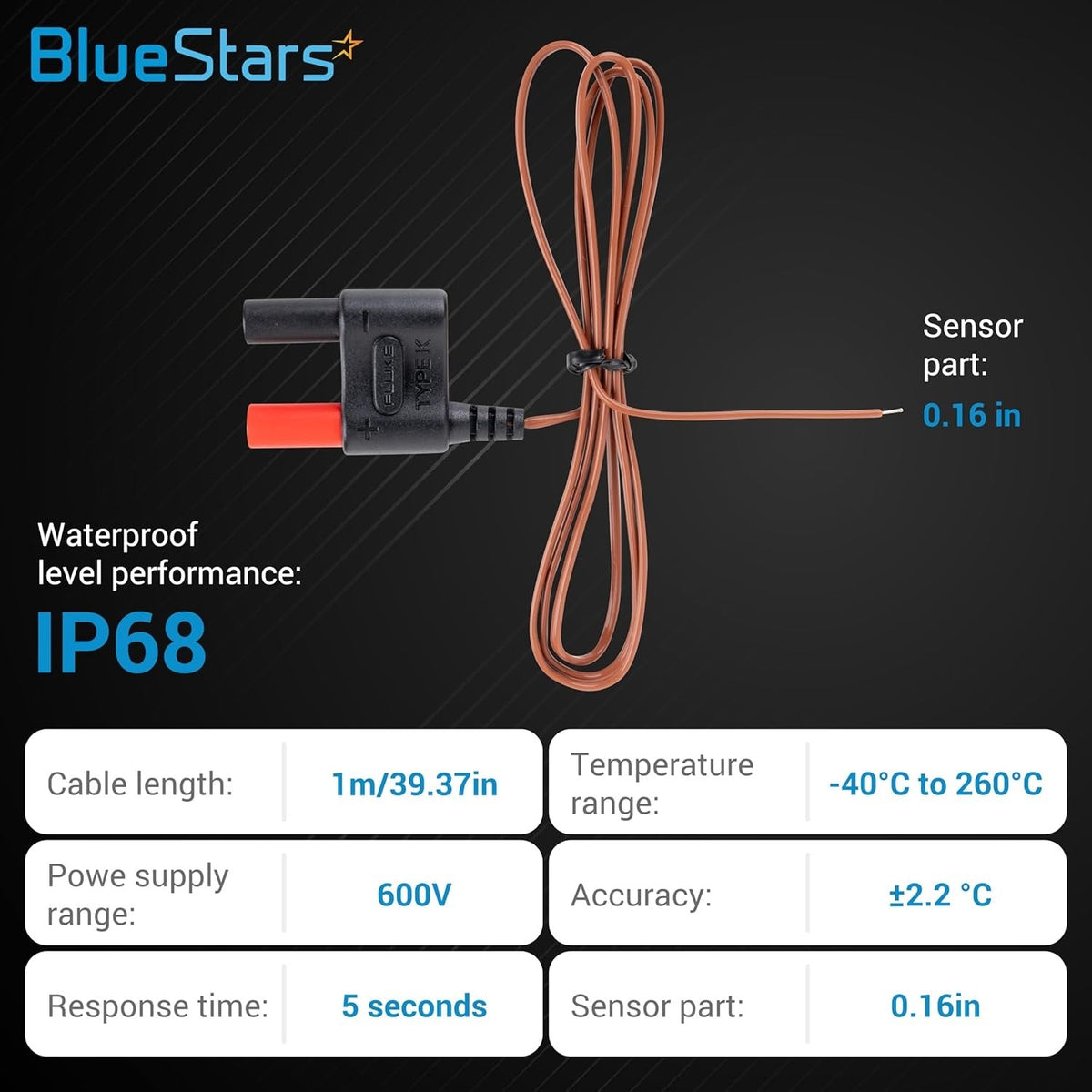

80BK-A Type K thermocouple bead probe with technical specifications chart showing IP68 waterproof rating and dimensions.

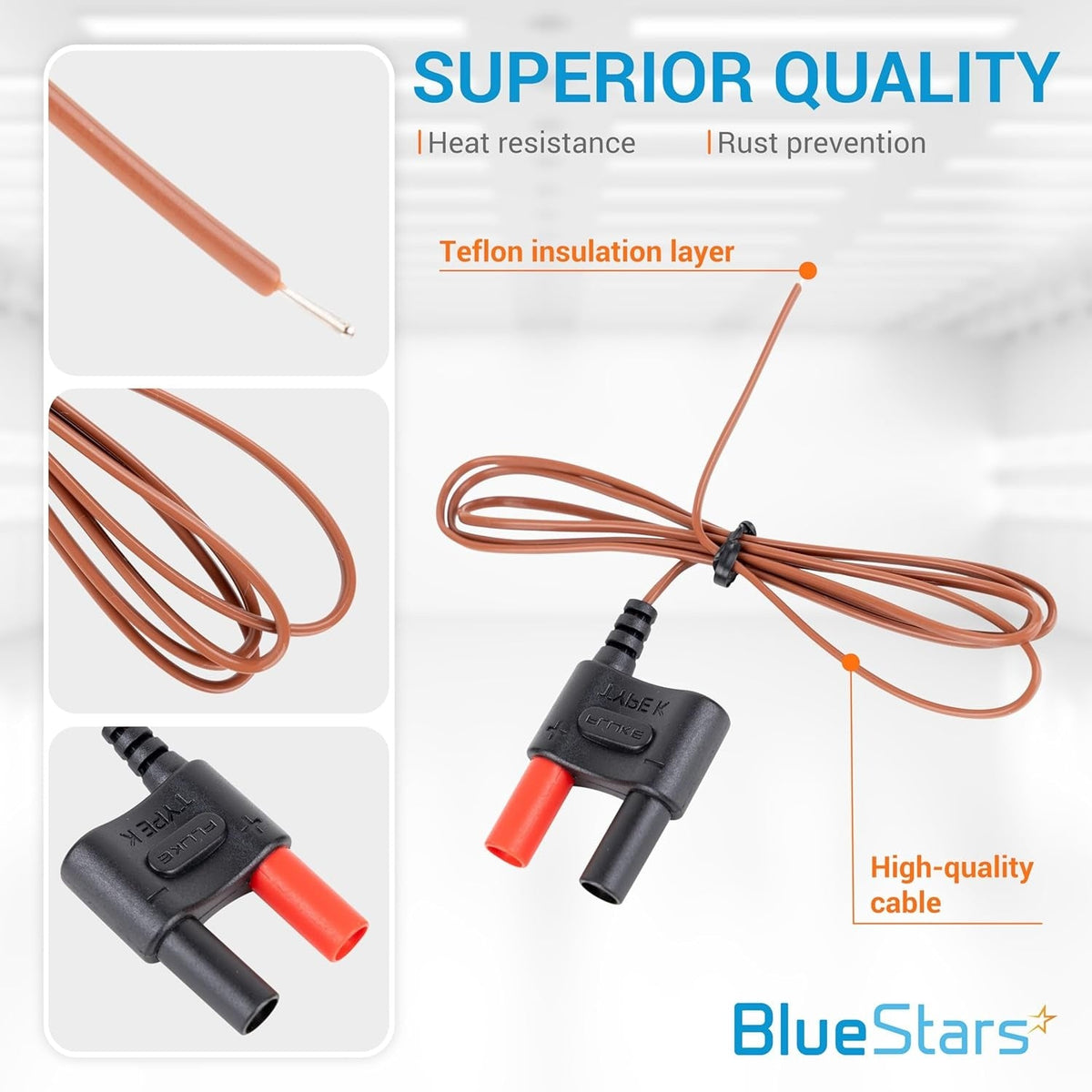

80BK-A Type K thermocouple temperature bead probe with Teflon insulated cable and connector details.

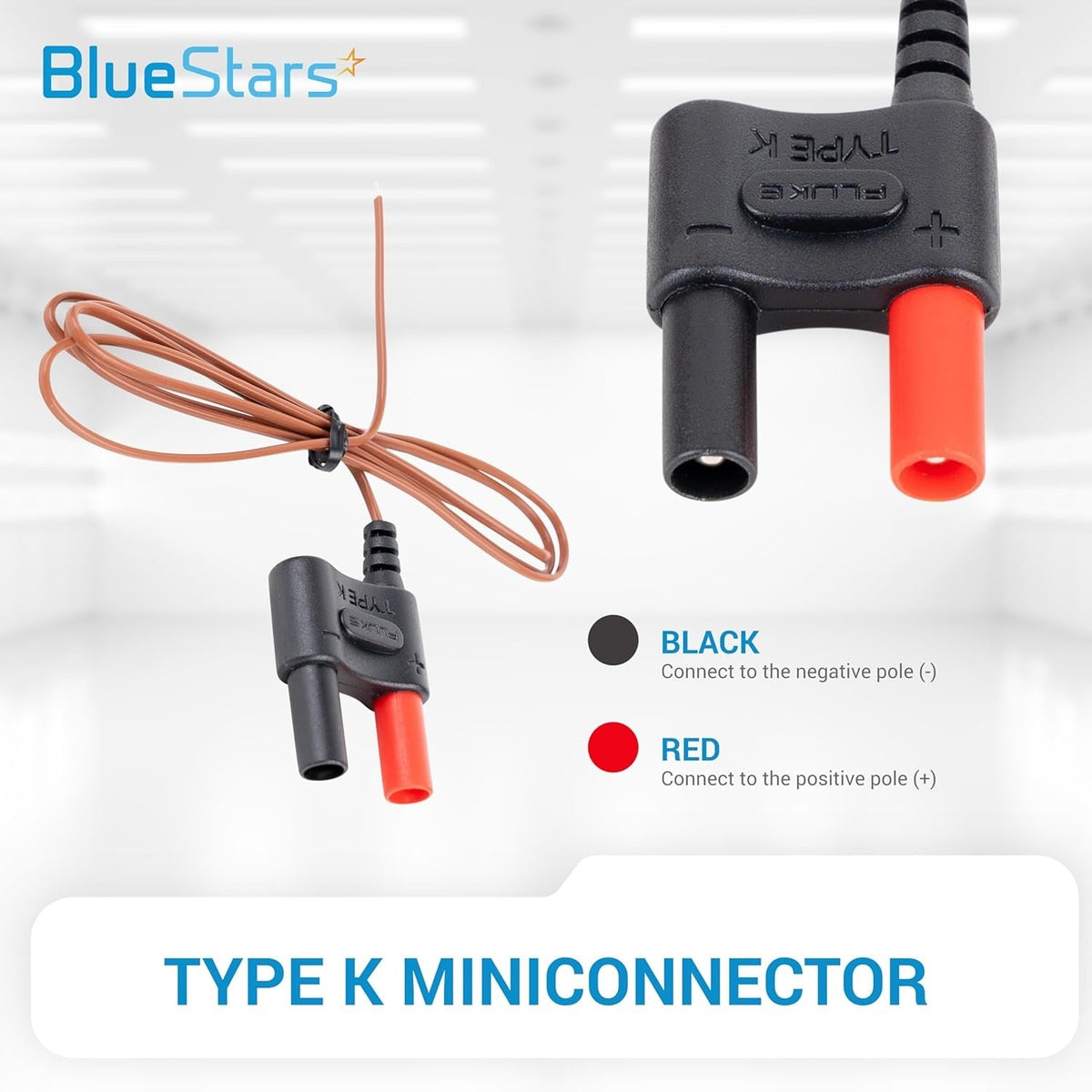

80BK-A Type K thermocouple bead probe with black and red miniconnector polarity labels.
Technician using a Type K thermocouple temperature bead probe with a digital multimeter for temperature measurement.
Collage showing industrial, warehouse, and refrigeration environments for 80BK-A Type K thermocouple bead probe usage.
Technician using a tablet to monitor industrial equipment with a Type K thermocouple temperature bead probe.
Fluke 80BK-A Type K thermocouple bead probe with black and red connector plugs and brown lead wire.
80BK-A Type K thermocouple bead probe with technical specifications chart showing IP68 waterproof rating and dimensions.
80BK-A Type K thermocouple temperature bead probe with Teflon insulated cable and connector details.
80BK-A Type K thermocouple bead probe with black and red miniconnector polarity labels.
Technician using a Type K thermocouple temperature bead probe with a digital multimeter for temperature measurement.
Collage showing industrial, warehouse, and refrigeration environments for 80BK-A Type K thermocouple bead probe usage.
Technician using a tablet to monitor industrial equipment with a Type K thermocouple temperature bead probe.

80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter

0.00
$24.69
Save 16% $29.38
$24.69
In stock
Fast Delivery Delivery options available at checkout
30 Day Returns Return Policy

Secure and trusted checkout with

  • Mastercard
  • Visa
  • American Express
  • Discover
  • JCB
  • Diners Club
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

80BK-A Type K Thermocouple Temperature Bead Probe

Key Features

  • Sensor Type: K-Type Thermocouple
  • Connector Type: Standard shrouded banana plugs
  • Measurement Range: -40°F to 500°F (-40°C to 260°C)
  • Lead Length: 39.4 in (1000 mm)
  • Probe Tip: Exposed bead for direct contact
  • Application: Measures temperature of air, non-corrosive gases, surfaces, and liquids

Replaces / Cross-Reference Part Numbers

  • 80PK-1
  • 80AK-A
  • TP80BKA
  • 80BKA
  • 5079037
  • 2091836
  • TP-1

Compatibility & Fitment

  • Designed for digital multimeters (DMMs) with a temperature measurement function
  • Compatible with instruments that accept K-Type thermocouples via standard banana jack inputs
  • Direct fit for many Fluke multimeters and other brands with compatible inputs

When to Replace

  • Temperature readings are inaccurate, erratic, or unstable
  • The multimeter displays an open-loop or "OL" error with the probe connected
  • Visible damage to the wire insulation, bead sensor, or banana plugs
  • Intermittent readings when the cable is moved

Installation Tips

  • Set the multimeter to the Type-K temperature setting before connecting the probe.
  • Insert the shrouded banana plugs fully into the correct input jacks on the multimeter, observing polarity markings.
  • Allow the thermocouple bead sufficient time to reach the temperature of the medium being measured for an accurate reading.
  • Do not exceed the probe's maximum rated temperature of 500°F (260°C).
80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter 1
80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter 2
80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter 3
80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter 4
80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter 5
  • 80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter 1

    Perfect fit

    Compatible with Fluke multimeters, DMMs and other Clamp meters
  • 80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter 2

    Premium quality

    The sensor is crafted from stainless steel and high-quality PVC, enhancing durability.
  • 80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter 3

    Saving solution

    Effortlessly temperature measuring with our Sensors - BlueStars brings DIY solutions to help you deal with any trouble
  • 80BK-A Type K Thermocouple, Temperature Bead Probe - For Clamp Meters, Fluke Multimeter 4

    Simple installation

    Our product is used in refrigerators, warehouses, storage tanks, power rooms, cable trunking,...
#1 SOURCE OF HIGH-QUALITY ELECTRICAL PARTS

#1 SOURCE OF HIGH-QUALITY ELECTRICAL PARTS

Unleash the power, embrace the ease

Compatible Models

Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering

Loading compatible models…

Thermocouple Type
Type K
Temperature Range
-40°C to 260°C (-40°F to 500°F)
Accuracy
±2.2°C or ±2% (whichever is greater)
Connector
Standard Shrouded Banana Jack (4mm)
Cable Length
~3 ft / 1 meter (39.4 inches)
Insulation
PTFE (Teflon)
Bead Probe Diameter
~0.16 inch (~4mm)
Response Time
~5 seconds
Item Weight
~0.06 lb (~27g)

FAQs

The 80BK-A is designed for use with any digital multimeter or clamp meter equipped with a standard banana jack input that supports Type K thermocouples. It is commonly used with models including the Fluke F17B+, F116C, F87-V, F28LL, F179, F287, F289, and F189.
This probe operates within a temperature range of -40°C to 260°C (-40°F to 500°F). It provides an accuracy of ±2.2°C and features a rapid response time of approximately 5 seconds.
The probe features a cable length of 1 meter (39.37 inches) and a probe diameter of 0.16 inches. It utilizes a standard caged banana jack connector for easy integration with your existing test equipment.
A failing thermocouple often manifests as erratic temperature readings, a 'OL' (open loop) error on your multimeter display, or no response at all when exposed to temperature changes. If the bead wire becomes frayed, kinked, or the insulation is compromised, the probe should be replaced to ensure accurate measurements.
To extend the life of the probe, avoid bending the bead wire at sharp angles or pulling on the cable near the connector. When not in use, store the probe loosely coiled to prevent internal wire fatigue or insulation cracking.
