25A Thermal Circuit Breaker 125/250V AC 32V DC - Overload Protector with Push Button Manual Reset, Quick Connect Terminals, Screws Kit - 2 Pack
0.00
Regular price
$7.69
Regular price
Save 11%
$8.61
Sale price
$7.69
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
25A Thermal Circuit Breaker - Pack of 2

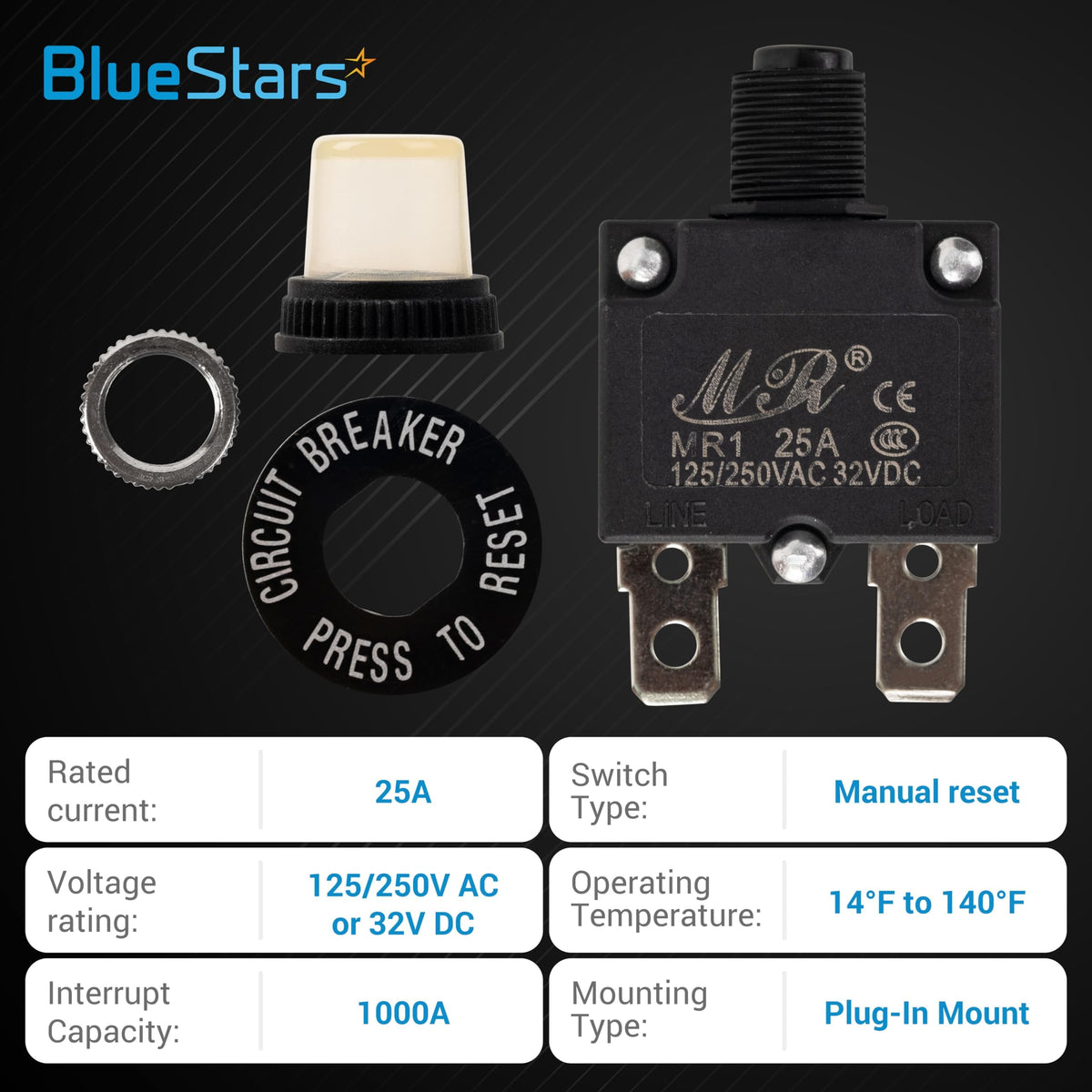

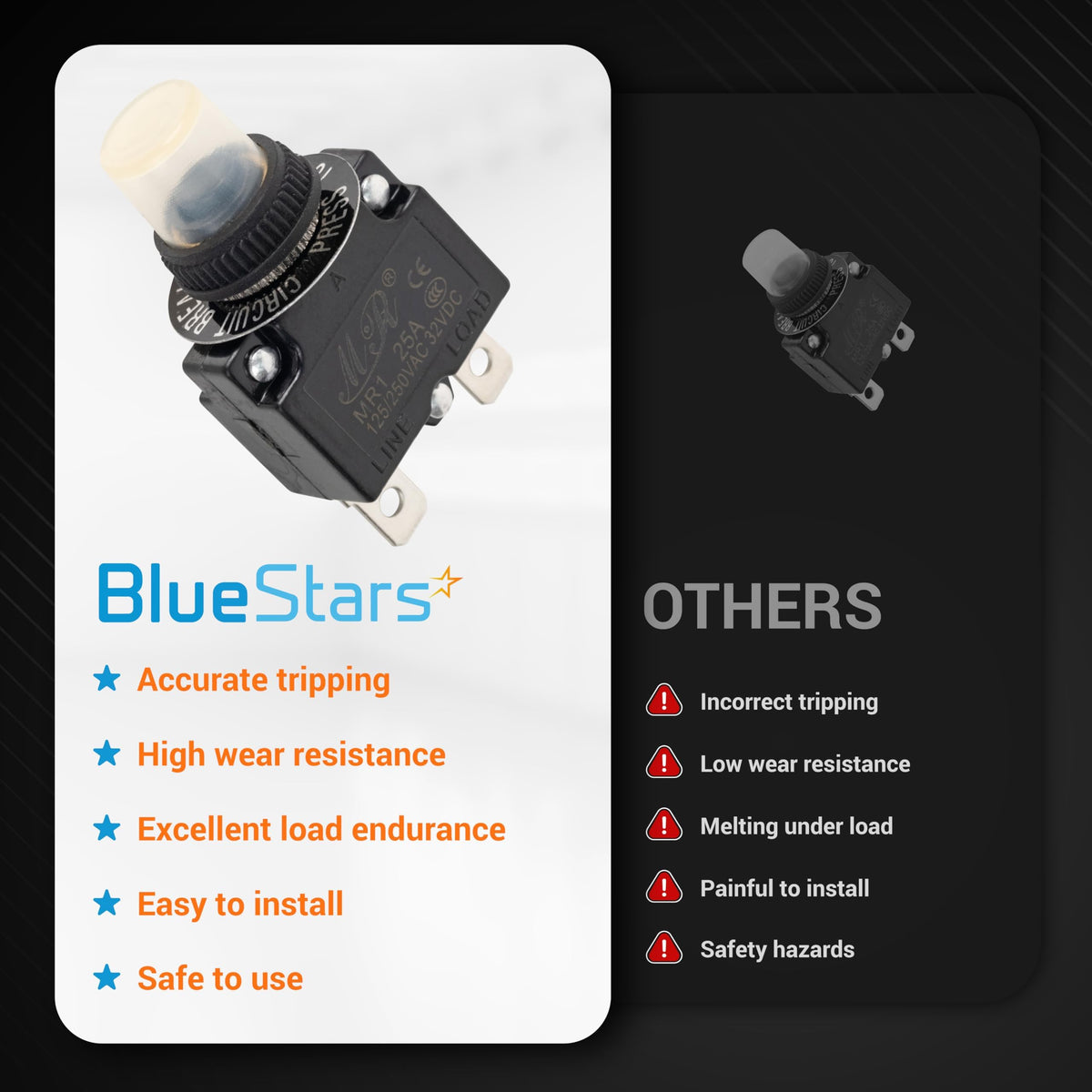

Key Features
- Automatic Overload Protection: Specifically designed to protect electrical circuits and sensitive equipment from damage caused by current overloads. The breaker will "trip" and pop out the button when the current exceeds 25 Amps.
- Dual AC/DC Versatility: Fully rated for both AC (125V/250V) and DC (32V) applications, making it a universal safety component for household appliances, marine vessels, and automotive electrical systems.

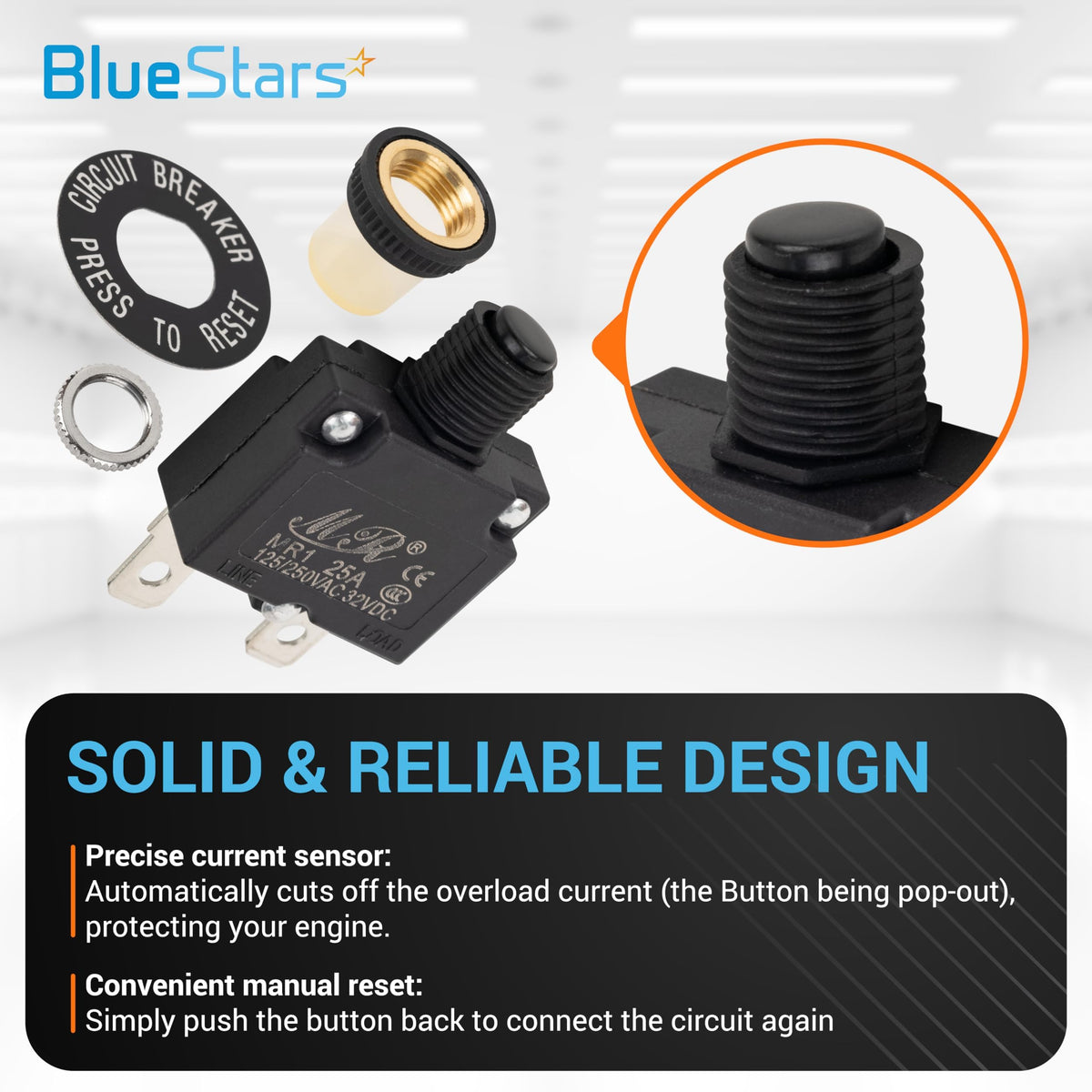

- Manual Push-to-Reset: Features a reliable "trip-free" design where the breaker cannot be held "ON" during an ongoing overload. Once the fault is cleared, a simple press of the manual button restores the circuit.
- Waterproof Protective Caps: Includes high-clarity silicone screw-on caps that provide an IP64-rated moisture and dust seal, protecting the reset button and internal mechanism in marine or outdoor environments.

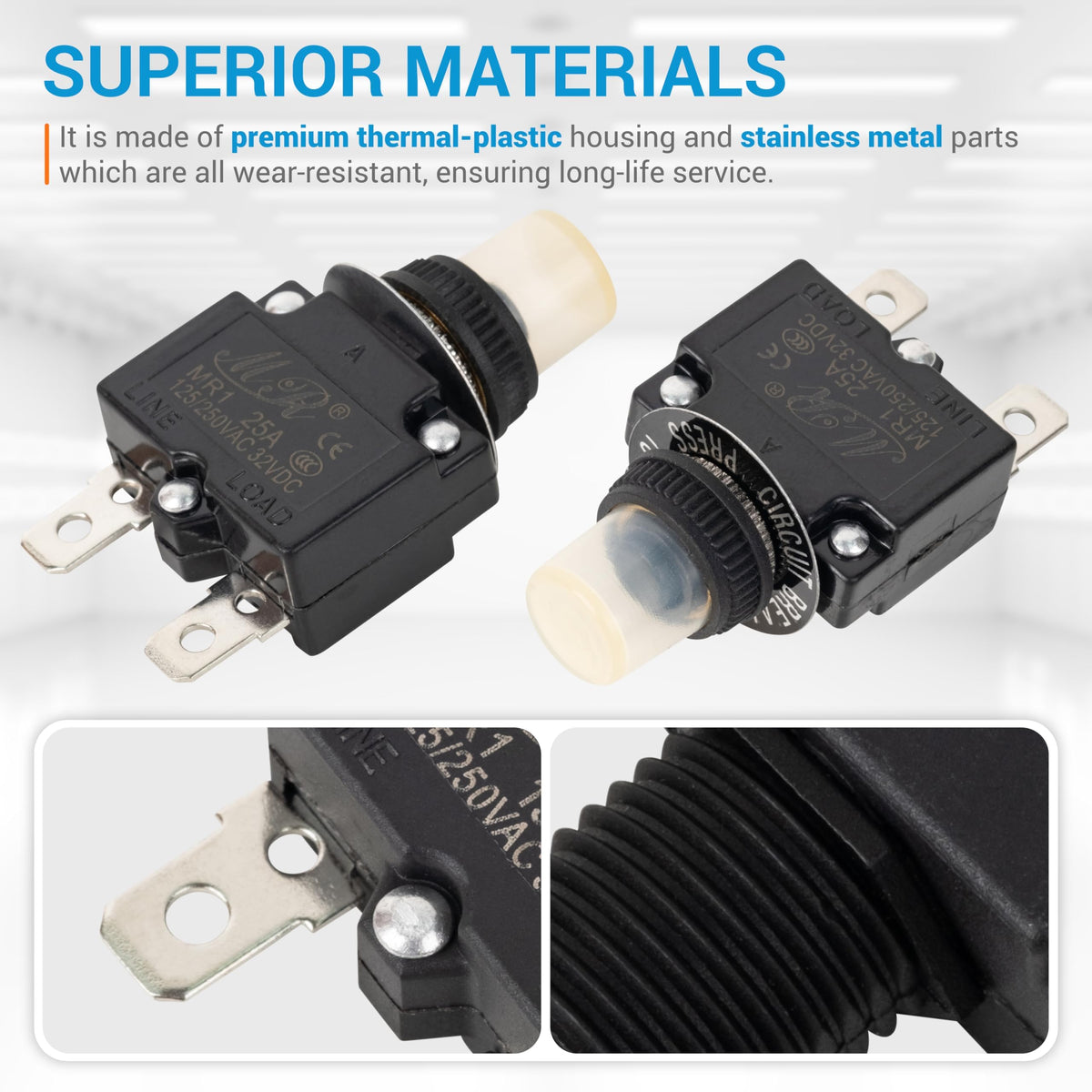

- Quick-Connect Terminals: Equipped with standard 0.250-inch (6.3mm) male spade terminals, allowing for fast, solderless wiring connections using standard female crimp connectors.
Replaces / Cross-Reference Part Numbers
- Industry Standards: Series 58, W58-Type, KUOYUH 88 Series.
- Marine/Automotive Codes: MRCB-25A, 11210-25, 42-25A.
- Manufacturer Equivalents: Joemex PE74, Tyco W58-XB1A4A-25, Potter & Brumfield W58 series.

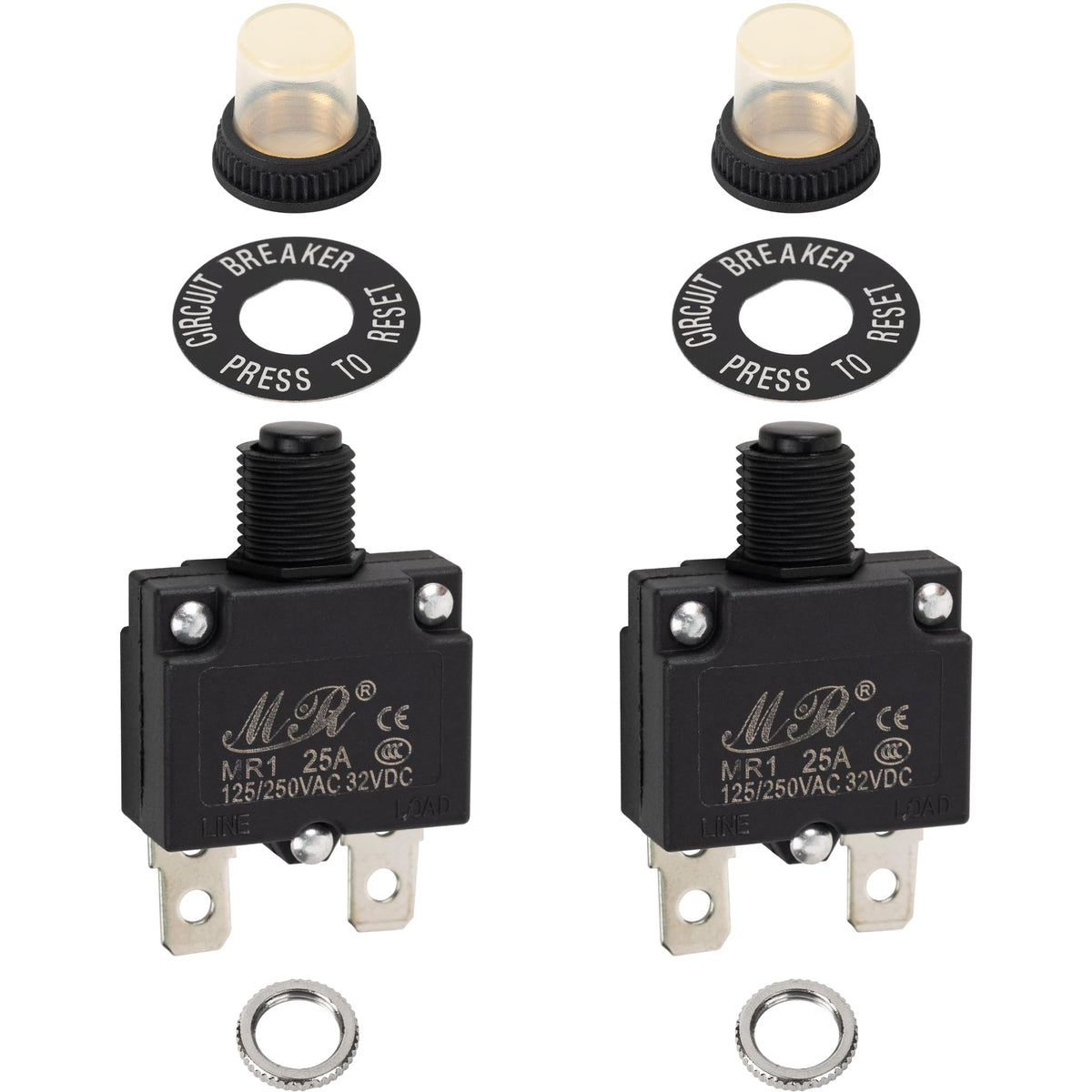

- Kit Components: Includes 2x 25A Breakers, 2x Waterproof Caps, 2x Mounting Nuts, and 2x Nameplate Screws.
Compatibility & Fitment
This 25-Amp protector is a standard safety component for a wide range of power distribution and appliance applications. Key compatible use cases include:
- Marine & RV: Fits DC fuse panels and switchboards for boats, yachts, motorhomes, and campers (e.g., SeaFlo, Blue Sea Systems style panels).
- Small Appliances: Used in air compressors, pressure washers, floor scrubbers, and high-draw kitchen appliances.
- Power Equipment: Common in portable generators, battery chargers, and power strips to prevent total circuit failure.
- Industrial Tools: Fits many bench grinders, drill presses, and woodworking machinery control boxes.
- Note: This is a Thermal breaker. It is designed to ignore short-duration "startup surges" but will trip during sustained overloads.
When to Replace
- Breaker Won't Reset: The button will not stay pushed in even after the appliance has cooled down and the load is removed, indicating internal mechanical failure.
- Nuisance Tripping: The breaker trips at currents well below 25 Amps, suggesting the internal bimetallic strip has become "weak" or calibrated incorrectly due to age.
- Visible Heat Damage: The black plastic housing is melted, discolored, or charred near the terminals, often caused by loose wiring connections creating localized resistance.
- Corroded Terminals: In marine environments, green or white oxidation on the metal spade lugs can prevent electrical flow or cause the breaker to overheat.
- Loose Reset Button: The button feels "mushy" or fails to provide a distinct clicking sound when reset, indicating a broken internal spring.
Installation Tips
- Safety First: **CRITICAL:** Ensure the power source (Battery or AC Mains) is completely disconnected before installation. Touching live terminals can result in severe shock or short circuits.
- Check Wire Gauge: For a 25-Amp circuit, ensure you are using at least 10 AWG or 12 AWG copper wire. Using thinner wire can cause the wiring to overheat before the breaker has a chance to trip.
- Mounting Hole: This breaker typically requires a 3/8-inch (10mm) round mounting hole. Ensure the panel thickness is within 0.03" to 0.10" for the mounting nut to thread securely.
- Terminal Tension: Ensure your female spade connectors are tight. If they slide on too easily, use pliers to gently crimp the connector for a firm, low-resistance "friction fit."
- Avoid Overtightening: When installing the waterproof cap, tighten it only until the silicone seal is snug against the panel. Overtightening can strip the plastic threads on the breaker body.
