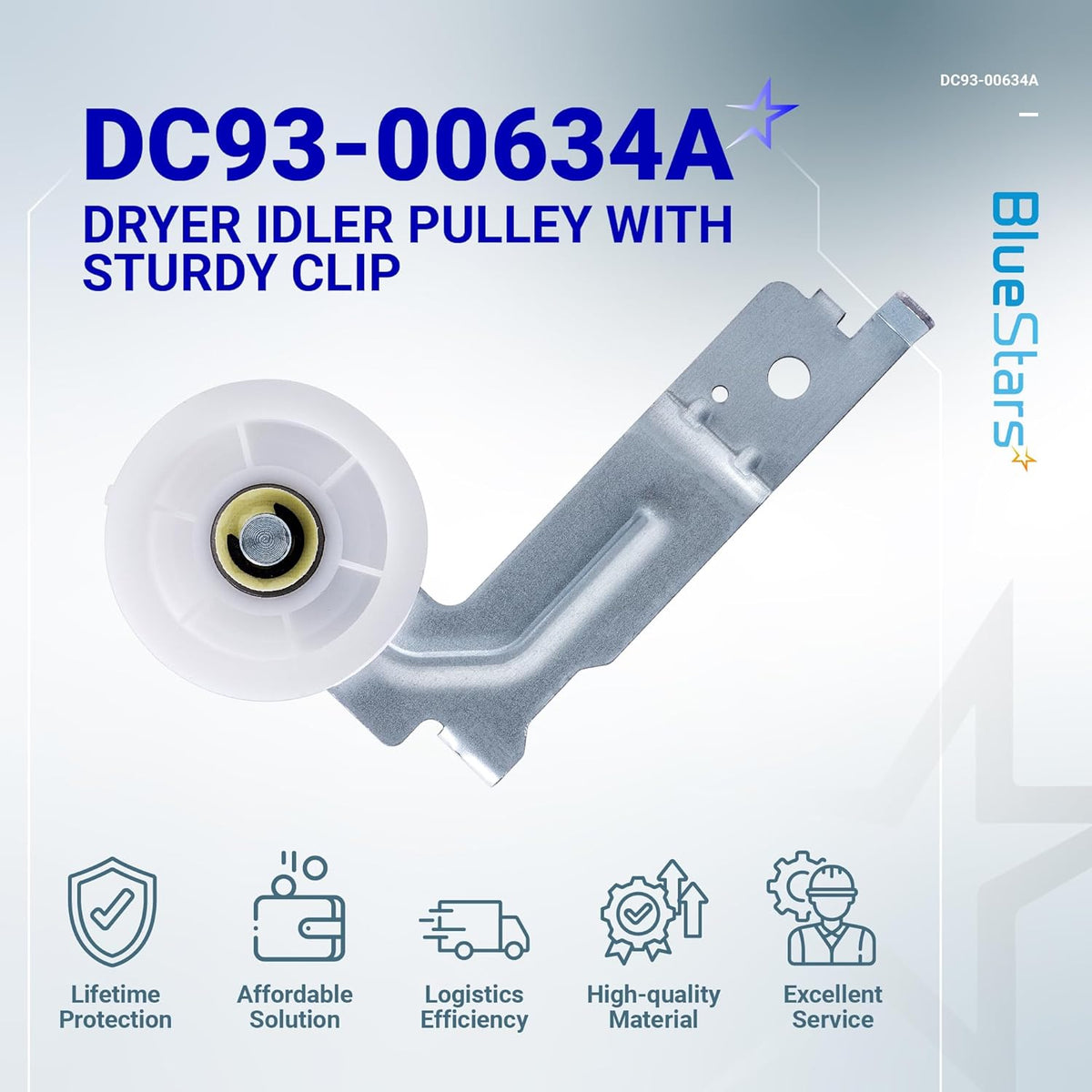

DC93-00634A dryer idler pulley assembly with white wheel, metal mounting bracket, and installation screw.

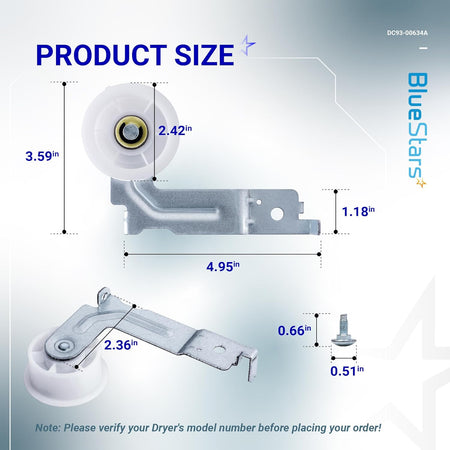

Dimensional diagram of DC93-00634A Samsung dryer idler pulley assembly showing component measurements and included screw.

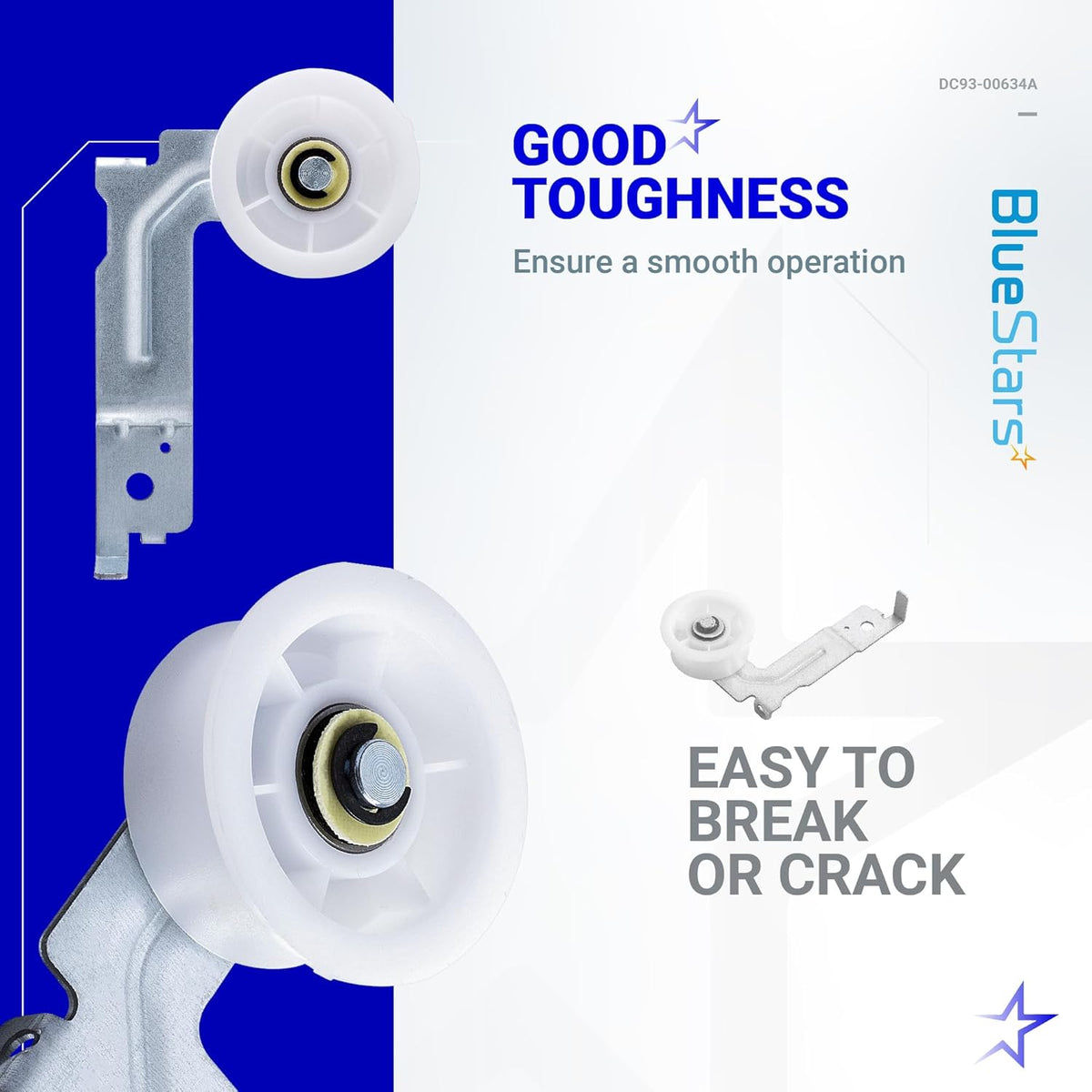

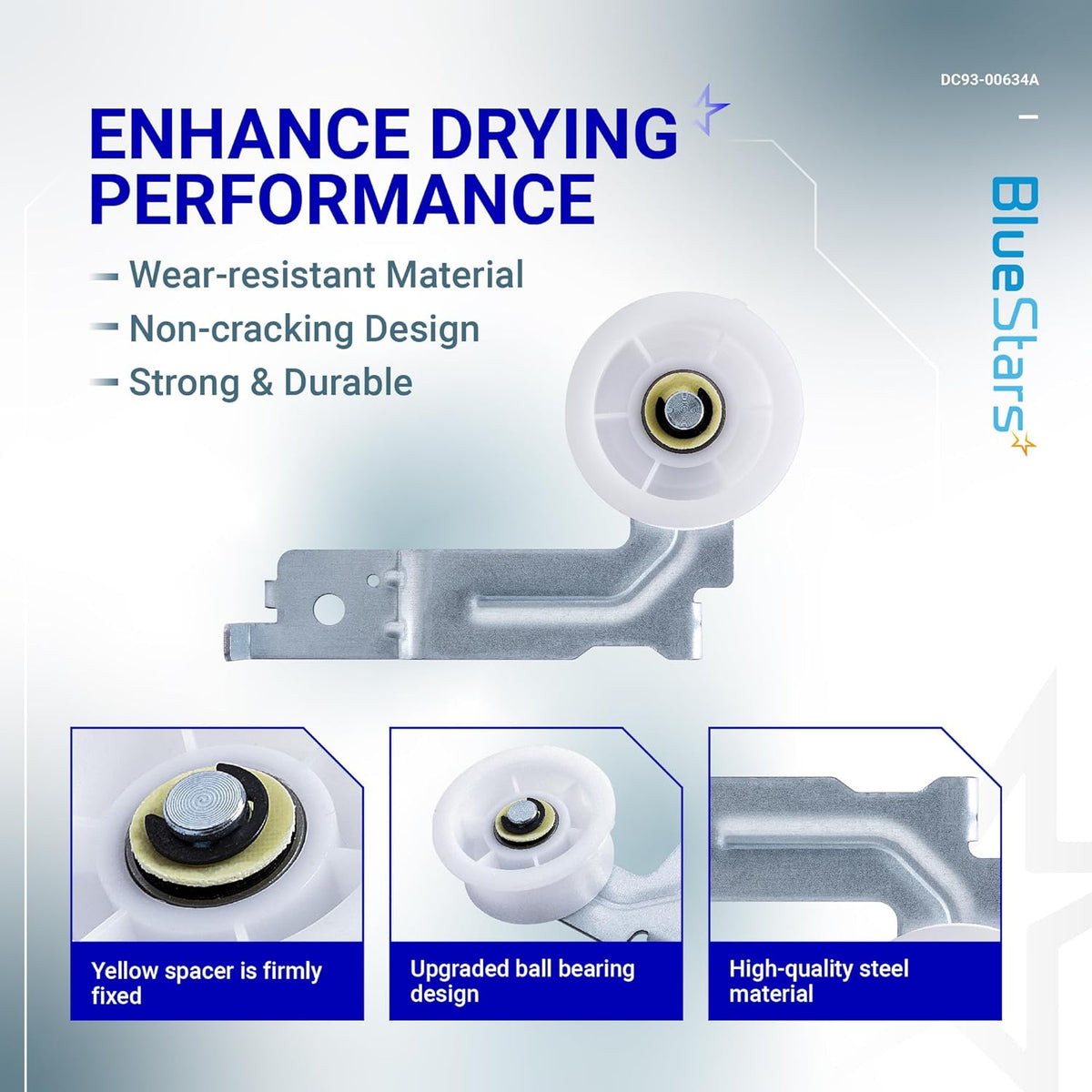

DC93-00634A dryer idler pulley assembly with close-up details of the ball bearing, yellow spacer, and steel bracket.

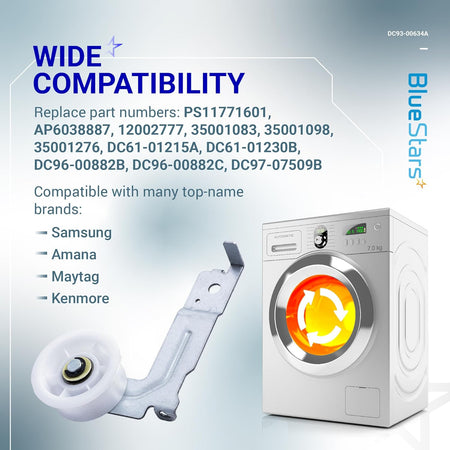

DC93-00634A dryer idler pulley assembly with compatibility list for Samsung, Amana, Maytag, and Kenmore dryers.
DC93-00634A dryer idler pulley assembly with white plastic wheel and metal mounting bracket for Samsung dryers.
DC93-00634A dryer idler pulley assembly for Samsung dryers showing durable construction and smooth operation design.

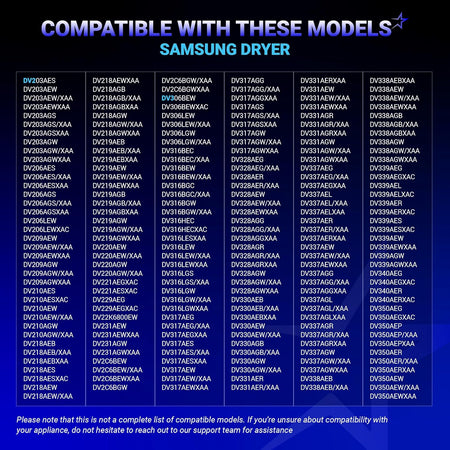

Compatibility chart listing Samsung dryer models for DC93-00634A idler pulley replacement.

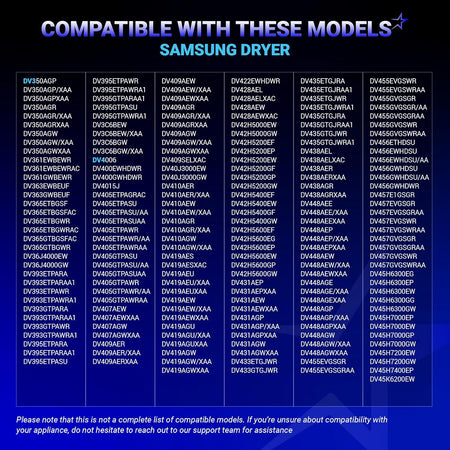

Compatibility chart for DC93-00634A dryer idler pulley listing various Samsung dryer model numbers.
DC93-00634A dryer idler pulley with metal mounting bracket for Samsung dryers.
DC93-00634A dryer idler pulley assembly with white wheel, metal mounting bracket, and installation screw.
Dimensional diagram of DC93-00634A Samsung dryer idler pulley assembly showing component measurements and included screw.
DC93-00634A dryer idler pulley assembly with close-up details of the ball bearing, yellow spacer, and steel bracket.
DC93-00634A dryer idler pulley assembly with compatibility list for Samsung, Amana, Maytag, and Kenmore dryers.
DC93-00634A dryer idler pulley assembly with white plastic wheel and metal mounting bracket for Samsung dryers.
DC93-00634A dryer idler pulley assembly for Samsung dryers showing durable construction and smooth operation design.
Compatibility chart listing Samsung dryer models for DC93-00634A idler pulley replacement.
Compatibility chart for DC93-00634A dryer idler pulley listing various Samsung dryer model numbers.
DC93-00634A dryer idler pulley with metal mounting bracket for Samsung dryers.
Lifetime Warranty

[Lifetime Warranty] DC93-00634A Dryer Idler Pulley with Sturdy Clip - Compatible with Samsung Dryers DV45H7000EW DV48H7400EW DV42H5000EW DV48J7700EW - Replaces DC96-00882B DC96-00882C

Save 13%
0.00
$15.70
$18.06
$15.70
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

DC93-00634A Dryer Idler Pulley

Key Features

  • Engineered with dual ball bearings for enhanced durability and quieter operation compared to standard bushings.
  • Complete assembly includes the idler pulley wheel, tension arm, and axle.
  • Maintains consistent tension on the dryer drum belt for efficient rotation.
  • Constructed from high-strength materials to meet or exceed original equipment specifications.

Replaces / Cross-Reference Part Numbers

  • AP6038887
  • PS11771601
  • DC96-00882B
  • DC96-00882C
  • DC61-01230B
  • 4455850
  • EAP11771601

Compatibility & Fitment

  • Fits a wide range of dryers from major brands including Samsung, Kenmore, Maytag, and Whirlpool.
  • Direct replacement for specific Samsung models such as: DV45H7000EW, DV48H7400EW, DV42H5000EW, and others.
  • Verify compatibility with your specific dryer model number before ordering.

When to Replace

  • Dryer produces a loud squealing, grinding, or thumping noise during operation.
  • The drum struggles to turn or does not turn at all, even when the motor is running.
  • Visible wear, damage, or seizure of the existing idler pulley wheel.
  • The drive belt repeatedly slips off the pulley.

Installation Tips

  • Disconnect the dryer from its power source before beginning any repairs.
  • Access the idler pulley assembly by removing the appropriate dryer panel.
  • Note the routing of the existing drive belt around the pulley and motor shaft before removal.
  • Ensure the new assembly is securely mounted and the belt is correctly tensioned.
Product image
Product image
Product image
Product image 1
Product image 2

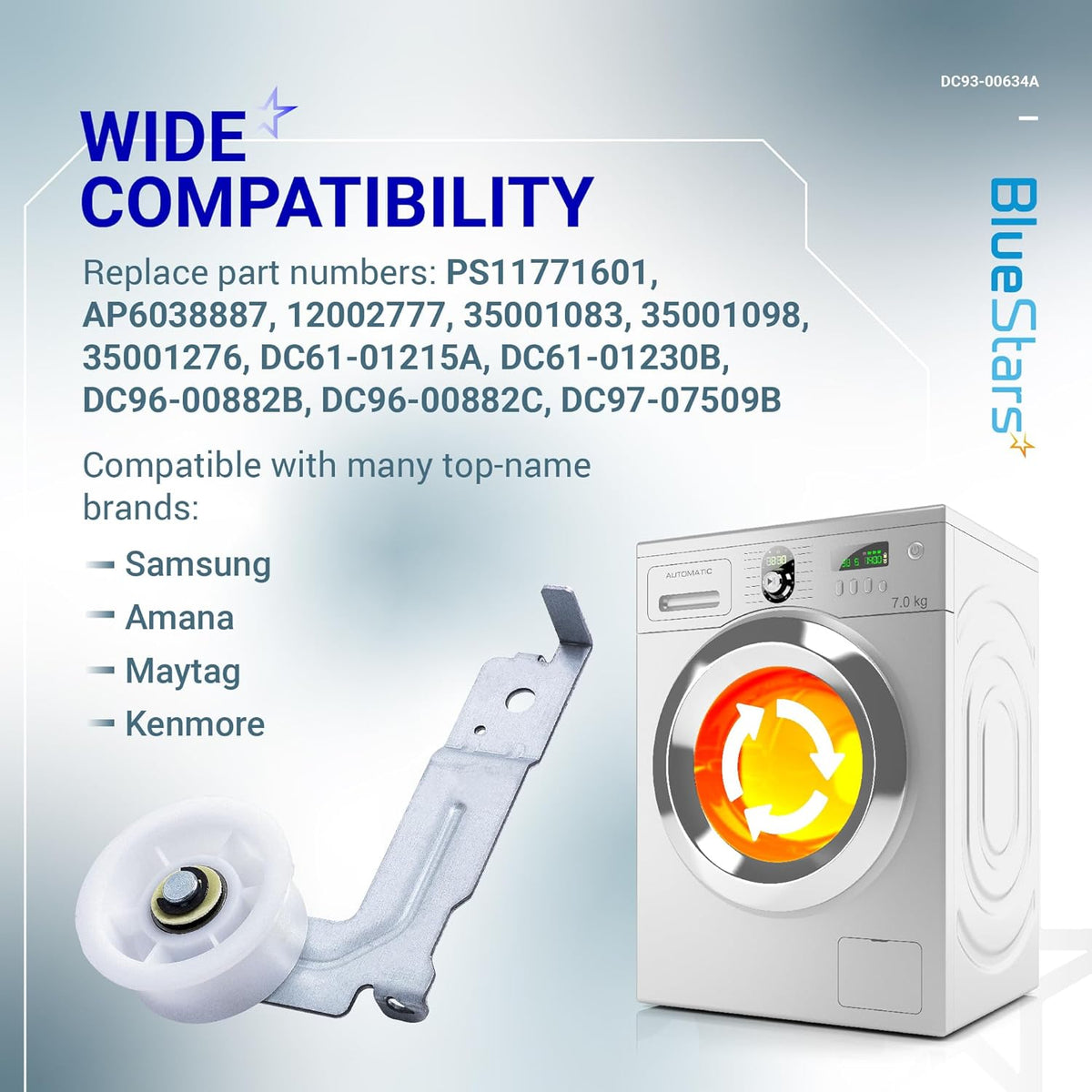

  • WIDE COMPATIBILITY

    WIDE COMPATIBILITY

    Our Idler Pulley Kit fits Samsung, Amana, Maytag, Kenmore Dryers
  • UPGRADED DESIGN

    UPGRADED DESIGN

    This part has a upgraded ball bearing design that provides long-lasting belt tension and less motor wear
  • BEST SOLUTION

    BEST SOLUTION

    BlueStars brings DIY solutions to help you deal with any trouble
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    Just 5 minutes of replacing to make your Dryer run like new!
Brand Model Number
Replaces 4455850, AP6038887, DC61-01230B, DC96-00882B, DC96-00882C, DC97-07509B, EAP11771601, PD00032419, PS11771601
Kenmore 40289032010, 40289032011, 40289032012, 40299032010, 40299032011, 40299032012, 592-89087, 592-891070, 592-891080
Samsung BED70B/XAC, BED70W/XAC, DV203AES/XAC, DV203AEW/XAA, DV203AEW/XAC, DV203AGS/XAX, DV203AGW/XAA, DV203AGW/XAP, DV203AGW/XAX, DV203AGW/YE, DV206AES/XAA, DV206AGS/XAA, DV206LEW/XAC, DV209AEW/XAA, DV209AEW/XAP, DV209AGW/XAA, DV210AEW/XAA, DV210AEW/XAC, DV210AGW/XAA, DV218AEB/XAA, DV218AEB/XAC, DV218AES/XAC, DV218AEW/XAA, DV218AEW/XAC, DV218AGB/XAA, DV218AGW/XAA, DV219AEB/XAA, DV219AEW/XAA, DV219AGB/XAA, DV219AGW/XAA, DV220AEW/XAA, DV220AEW/XAC, DV220AEW/XAP, DV220AGW/XAA, DV220AGW/XAP, DV221AEG/XAC, DV229AEG/XAC, DV231AEW/XAA, DV231AEW/XAC, DV231AGW/XAA, DV2C6BEW/XAC, DV2C6BGW/XAC
Samsung DV306LEW/XAA, DV306LGW/XAA, DV316BEC/XAA, DV316BEW/XAA, DV316BEW/XAP, DV316BGC/XAA, DV316BGW/XAA, DV316BGW/XAP, DV316BGW/XAX, DV316BGW/YE, DV316HEC/XAA, DV316LEW/XAA, DV316LGS/XAA, DV316LGW/XAA, DV317AEG/XAA, DV317AES/XAA, DV317AEW/XAA, DV317AGG/XAA, DV317AGS/XAA, DV317AGW/XAA
Samsung DV328AEG/XAA, DV328AER/XAA, DV328AEW/XAA, DV328AGG/XAA, DV328AGR/XAA, DV328AGW/XAA, DV330AEB/XAA, DV330AEW/XAA, DV330AGB/XAA, DV330AGW/XAA, DV331AER/XAA, DV331AEW/XAA, DV331AGR/XAA, DV331AGW/XAA, DV337AEG/XAA, DV337AEL/XAA, DV337AER/XAA, DV337AEW/XAA, DV337AGG/XAA, DV337AGL/XAA, DV337AGR/XAA, DV337AGW/XAA, DV338AEB/XAA, DV338AEW/XAA, DV338AGB/XAA, DV338AGW/XAA, DV339AES/XAC, DV339AER/XAC, DV340AEG/XAC, DV340AER/XAC, DV350AEP/XAA, DV350AER/XAA, DV350AEW/XAA, DV350AGP/XAA, DV350AGR/XAA, DV350AGW/XAA
Samsung DV361EWB/EWR, DV363EWB/EUF, DV365ETB/GWR, DV36J4000EW/A2, DV36J4000GW/A2, DV393ETP/ARA, DV393ETP/AWR, DV393GTP/ARA, DV393GTP/AWR, DV395ETP/ARA, DV395ETP/ASU, DV395ETP/AWR, DV3C6BEW/XAC, DV3C6BGW/XAC, DV400EWH/DWR, DV405ETP/ASU, DV405ETP/AWR, DV405GTP/ASU, DV405GTP/AWR, DV407AEW/XAA, DV407AGW/XAA, DV409AER/XAA, DV409AEW/XAA, DV409AGR/XAA, DV409AGW/XAA, DV40J3000EW/A2, DV40J3000GW/A2, DV410AER/XAA, DV410AEW/XAA, DV410AGR/XAA, DV410AGW/XAA
Samsung DV419AEU/XAA, DV419AGU/XAA, DV422EWH/DWR, DV428AEW/XAC, DV431AEW/XAA, DV433ETG/JWR, DV433GTG/JWR, DV435GTG/JRA, DV438AEL/XAA, DV448AEP/XAA, DV448AEW/XAA, DV448AGE/XAA, DV448AGW/XAA, DV455EVG/SGR, DV42H5000EW/A3, DV42H5000GW/A3, DV42H5200EP/A3, DV42H5200EW/A3, DV42H5400EW/A3, DV42H5400GF/A3, DV42H5600EG/A3, DV42H5600EW/A3, DV45H6300EG/A3, DV45H6300EW/A3, DV45H6300GG/A3, DV45H6300GW/A3, DV45H7000EW/A2, DV45K6500EV/A3, DV45K6500GW/A3
Samsung DV48H7400EW/A2, DV50F9A6EV/WA2, DV50F9A7EV/P, DV50F9A7EV/W, DV50K8600EV/A3, DV511AGR/XAA, DV5451AEW/XAA, DV5471AEW/XAA, DV52J8700EP/A2, DV52J8700EW/A2, DV52J8700GP/A2, DV52J8700GW/A2

FAQ

This idler pulley is used on select Samsung and Kenmore dryers. The title specifically lists Samsung models DV45H7000EW, DV48H7400EW, DV42H5000EW, and DV48J7700EW. Because dryer model revisions can vary by suffix, match your full model number and the original pulley part number before ordering.
This part is associated with DC93-00634A and commonly cross-referenced to DC96-00882C, DC96-00882B, DC61-01230B, AP4373659, AP6038887, PS4133825, 4455850, AP4213616, PS4216837, LB1655, and 5PH2337. The safest match is to confirm the number printed in your parts diagram or on the original service information for your dryer.

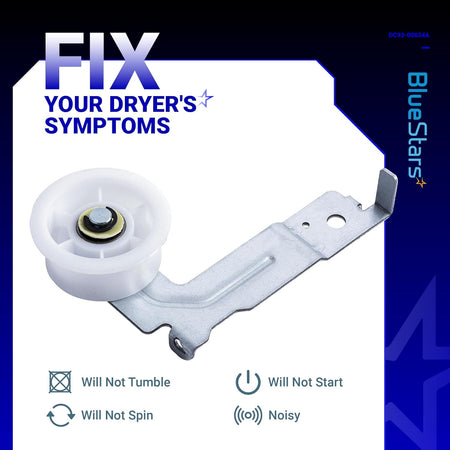

A worn idler pulley often causes squealing, chirping, scraping, or a high-pitched squeak while the drum is turning. It can also cause the drum belt to ride poorly, slip, or come off, which may lead to a drum that will not spin even though the motor runs. If the pulley binds or wobbles, the dryer may sound noisy from startup and get worse as it heats up.
This style is commonly sold as an idler pulley assembly that includes the pulley, axle, screw, and bracket. Verify the included hardware against your dryer before installation, especially if you are replacing an older pulley design.
For most Samsung-style front-load dryers, this is a moderate repair because the cabinet usually needs to be opened to release belt tension and access the idler arm. Common tools are a Phillips screwdriver, putty knife or small flat screwdriver for clips if applicable, and a nut driver or socket set. Typical repair time is about 30 to 90 minutes depending on model layout and how familiar you are with dryer disassembly.
Unplug the dryer first. Inspect the drum belt for glazing, fraying, cracks, or stretching, because a worn belt can quickly damage a new pulley. Also spin the drum support rollers by hand and check for flat spots, wobble, or noise. If the dryer has been squealing for a while, it is smart to inspect the pulley path for belt dust buildup and verify the tension spring and pulley bracket move freely.
The most common causes are bearing wear, heat, lint buildup, and long-term belt friction. As the pulley bearing dries out or wears, it begins to squeak and can eventually seize. A weak or worn belt, overloaded drum, or worn support rollers can also put extra side load on the idler pulley and shorten its service life.
