[Lifetime Warranty] 6931EL3003C Dryer High Limit Thermostat, 6931EL3004B Dryer Thermostat, 6931EL3003D Dryer Thermal Fuse - Compatible with LG and Kenmore Dryers

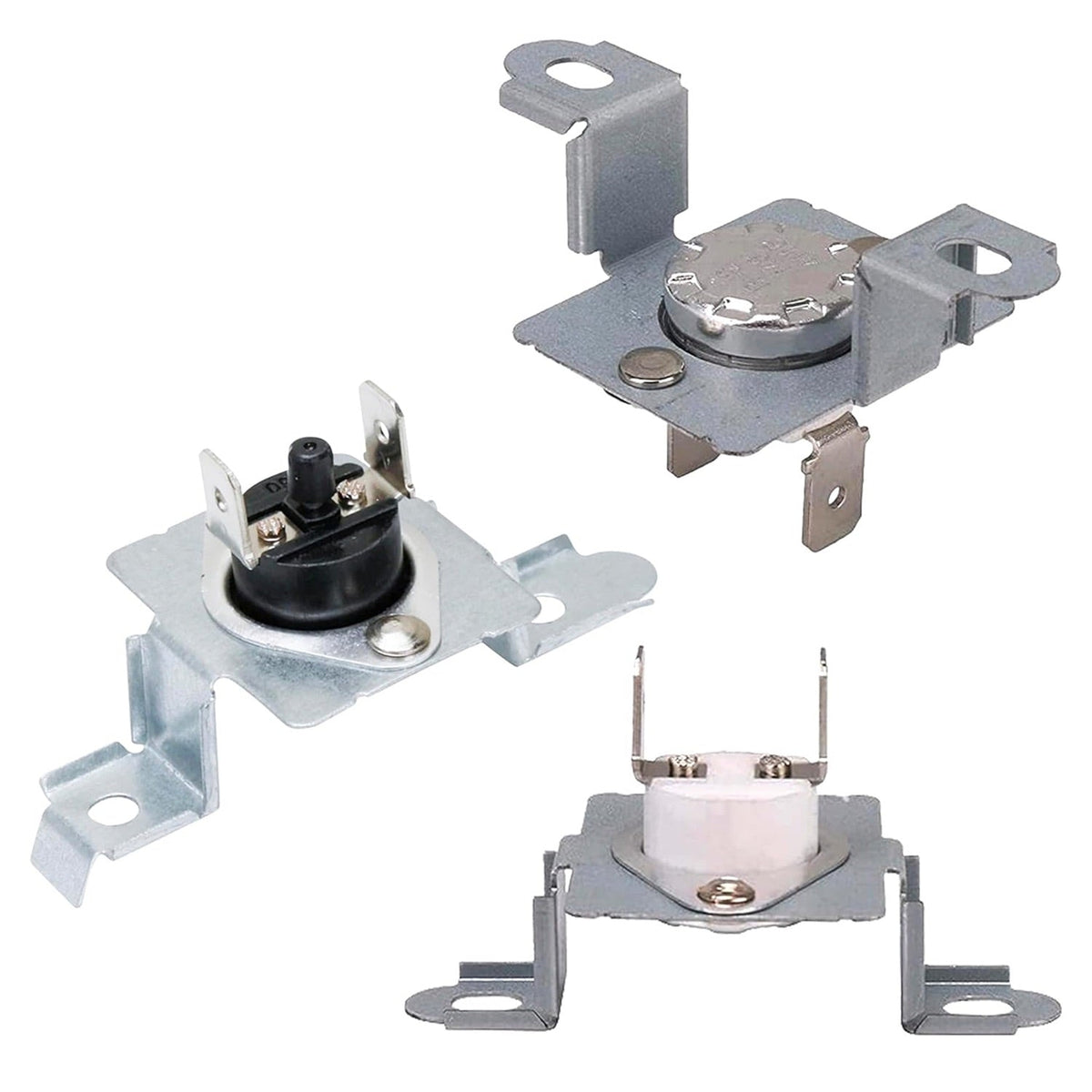

6931EL3003C Dryer High Limit Thermostat, 6931EL3004B Dryer Thermostat, 6931EL3003D Dryer Thermal Fuse Kit

Key Features

• Includes one high-limit thermostat and one thermal fuse.

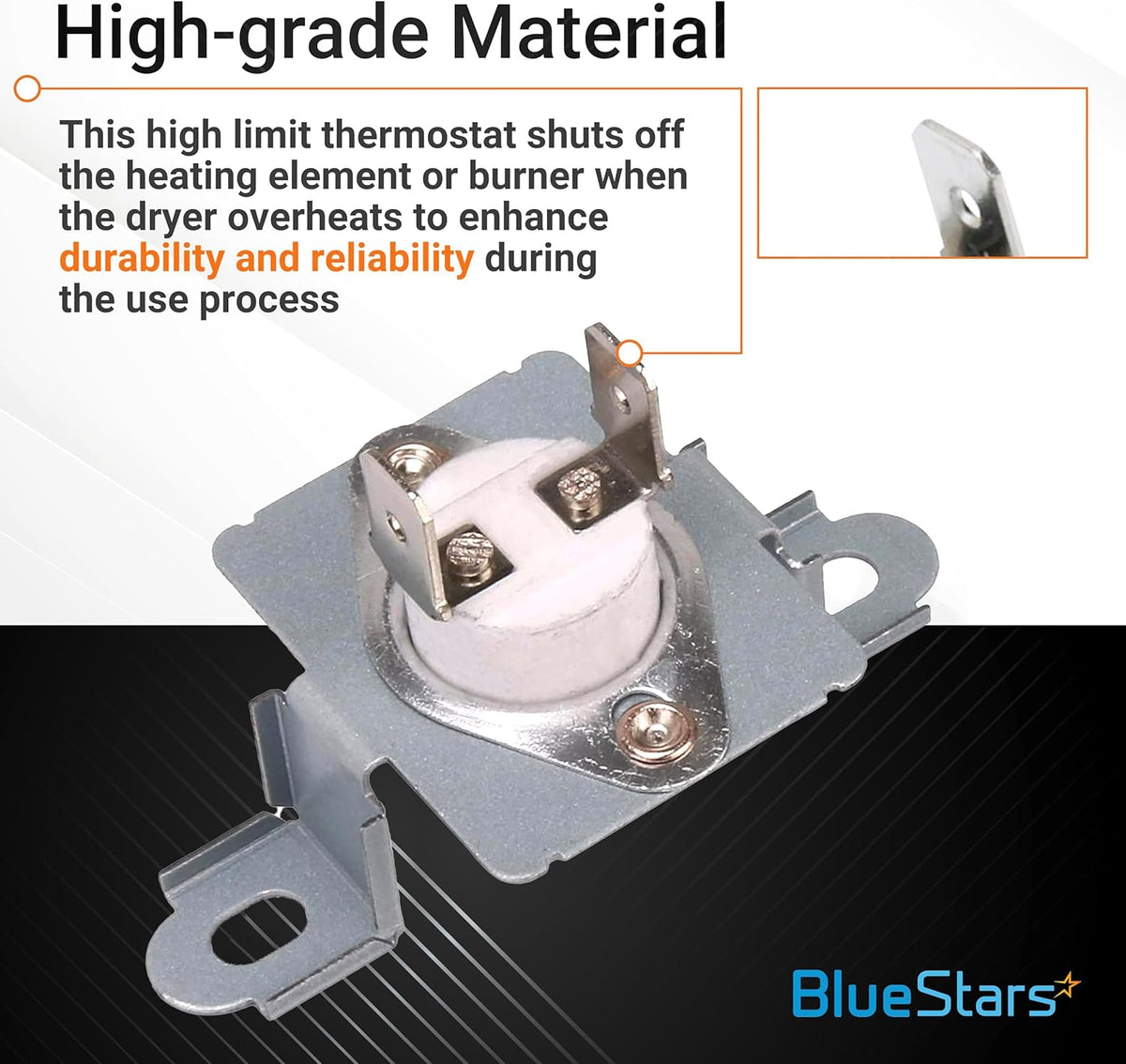

• Thermostat monitors and regulates temperature inside the dryer drum.
• Thermal fuse is a single-use safety component that cuts power during an overheat event.
• Addresses common symptoms such as no heat, insufficient drying, or failure to start.

Replaces / Cross-Reference Part Numbers

• 6931EL3003C (Dryer High Limit Thermostat): AP4457603, PS3530484, 6931EL3003G, 1268365, AH3530484, EA3530484, EAP3530484, L3003, AGM30045804
• 6931EL3004B (Dryer High Limit Thermostat): AP4445168, PS3530486, 6931EL3003F, 6931EL3002B, AH3530486, EA3530486, EAP3530486, 1268367, AGM30045804
• 6931EL3003D (Dryer Thermal Fuse): AP4440975, PS3530485, 6931EL3003E, AH3530485, EA3530485, EAP3530485, PD00001818, 1268366, L3003D

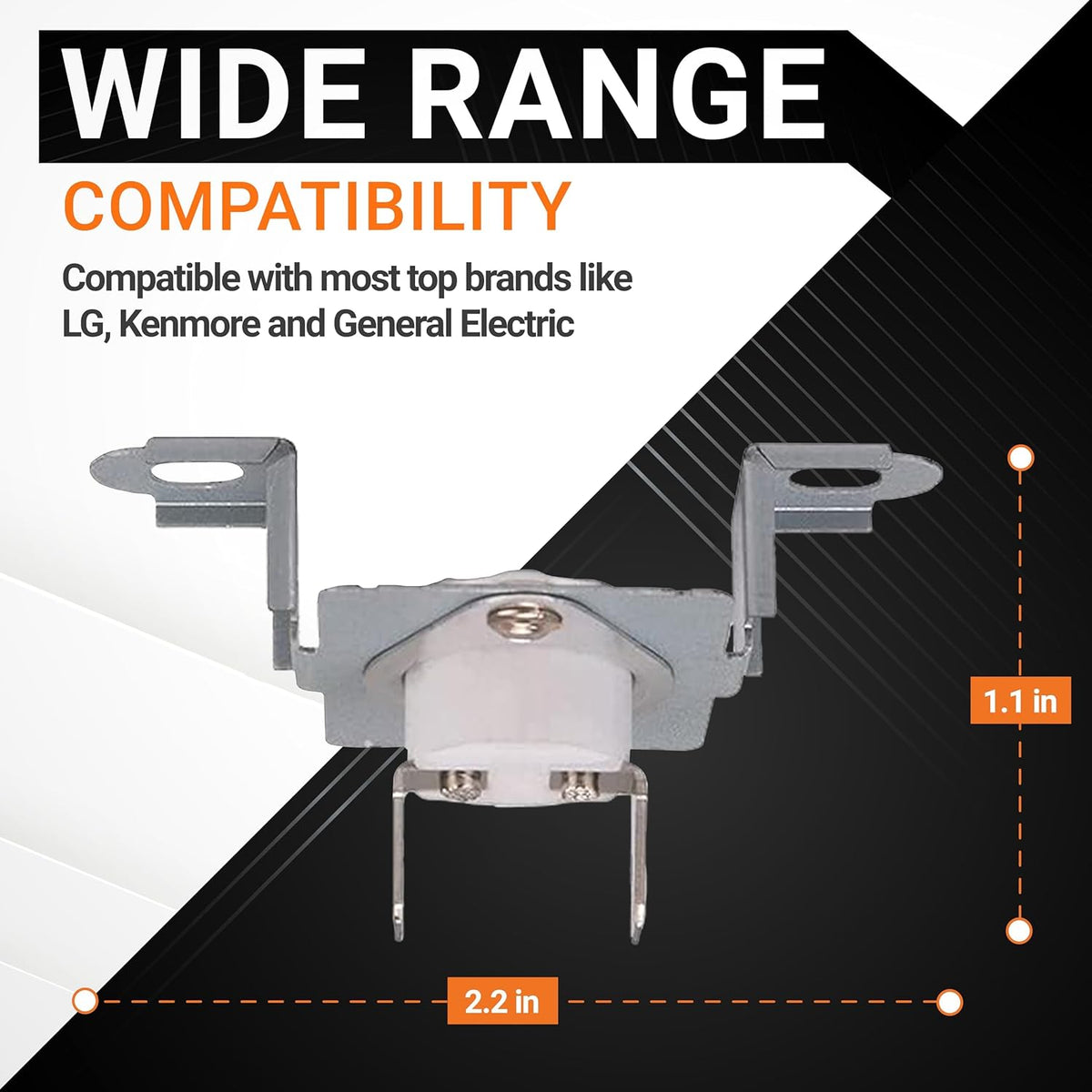

Compatibility & Fitment

• Brands: Fits select LG and Kenmore electric dryer models.
• Select Models Include: DLE2050W, DLE5955W, DLEX2501W
• Verify your dryer's model number to ensure compatibility before ordering.

When to Replace

• Dryer fails to start.
• Dryer tumbles but does not produce heat.
• Dryer overheats or shuts off mid-cycle.
• Drying times are significantly longer than usual.
• Existing fuse or thermostat fails a continuity test.

Installation Tips

• Disconnect the dryer from its power supply before starting the repair.
• For comprehensive repair, it is recommended to replace both components at the same time.
• If the thermal fuse has failed, inspect and clear the dryer's exhaust vent of any lint buildup or obstructions to resolve the underlying cause of overheating.
