DC97-14486A Dryer Heating Element Kit For DV42H5000EW/A3 DV45H7000EW/A2 DV40J3000EW/A2 DVE50R5400V/A3

DC97-14486A Complete Dryer Heating Element Assembly & Sensor Kit for Samsung

Key Features

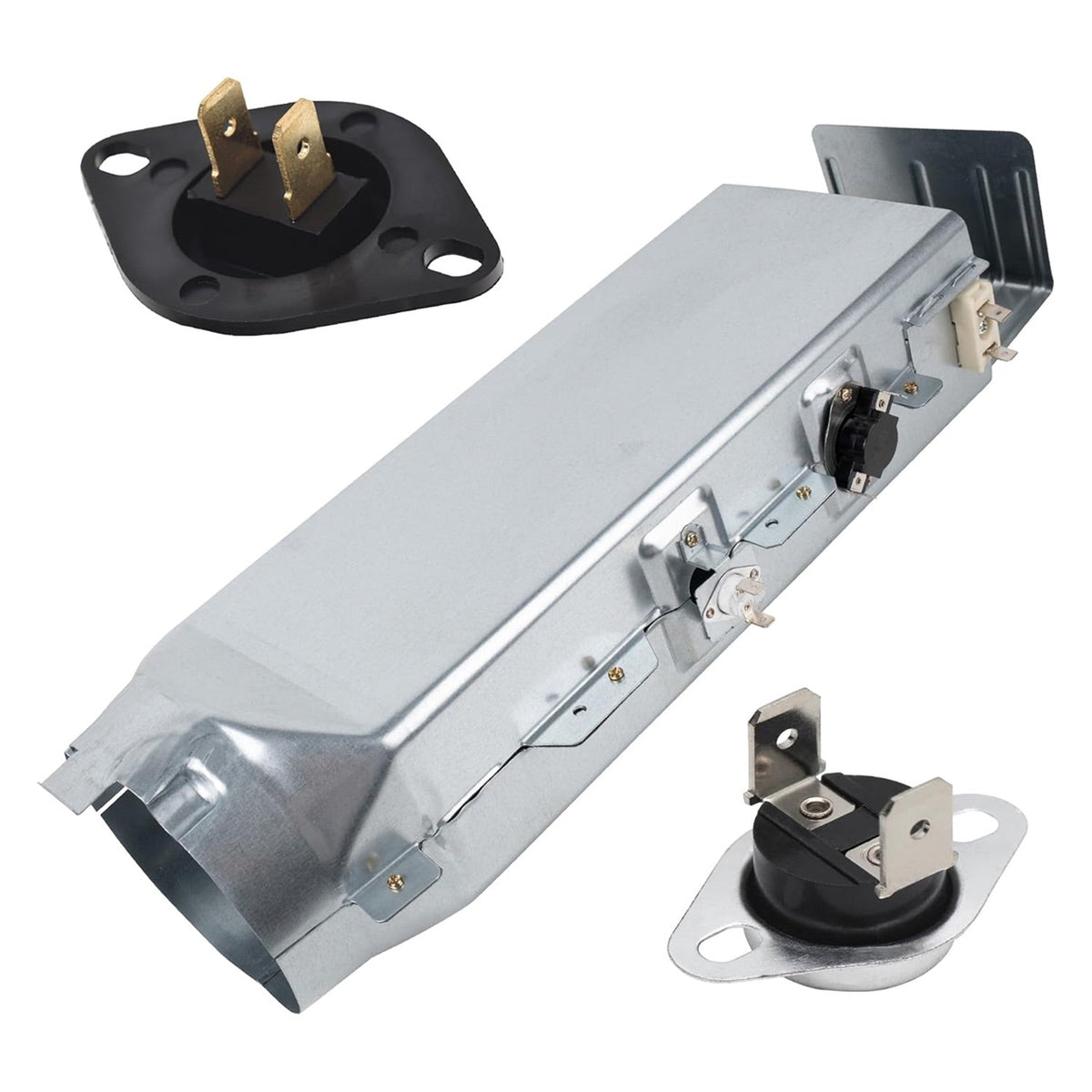

• Full Kit Set: 1 x DC97-14486A Dryer heating element assembly (including the DC47-00019A Heater element, Housing Duct, DC47-00018A Thermostats and DC96-00887A Thermal fuse), 1 x DC32-00007A Thermistor, 1 x DC47-00016A Thermal Fuse

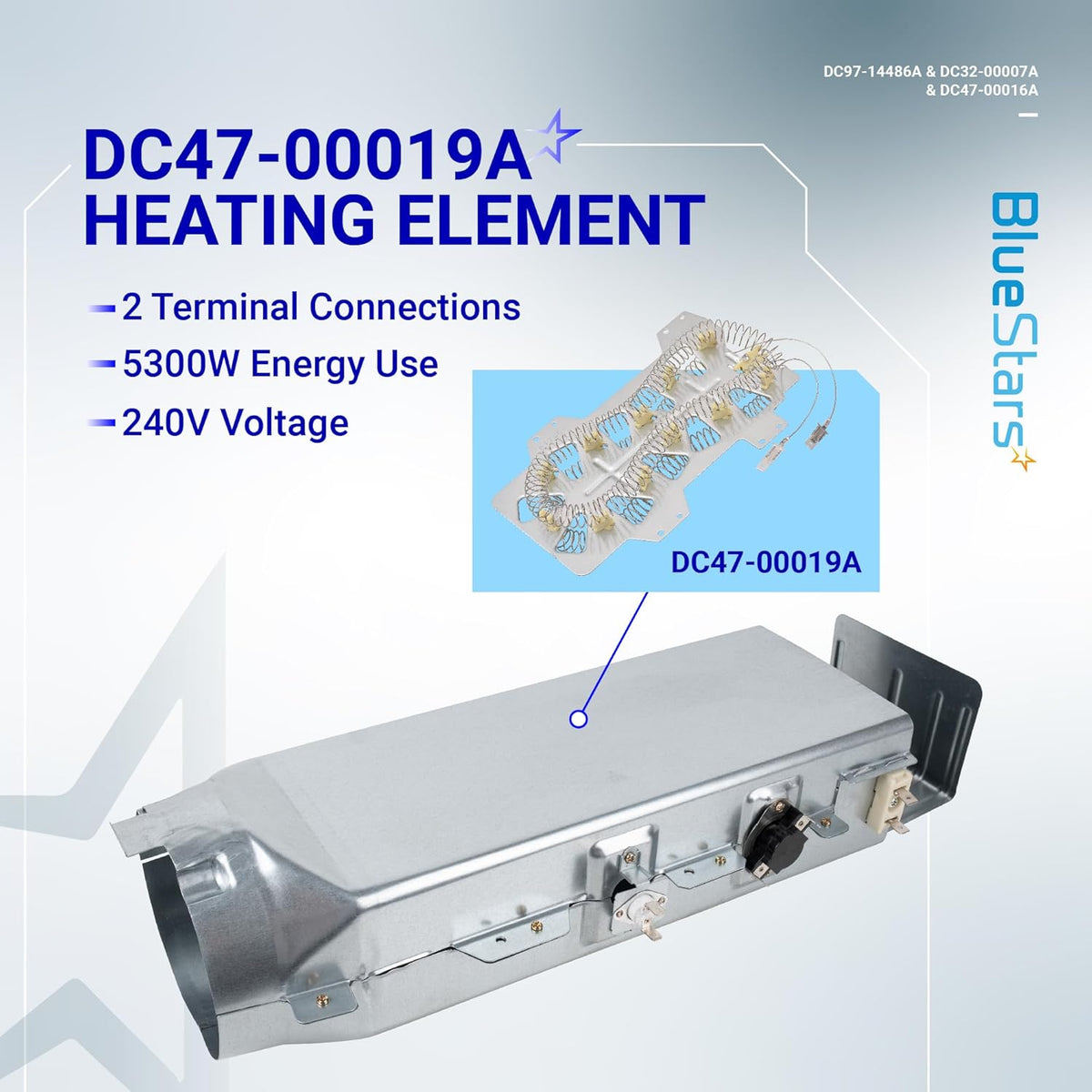

• Pre-Assembled Housing Duct: The DC97-14486A comes as a "drop-in" unit, featuring the DC47-00019A heating element factory-installed inside the galvanized steel duct for a faster, more reliable repair.
• Complete 6-Component Overhaul: This pro-grade kit includes the heater duct assembly, the DC47-00018A high-limit thermostat, the DC96-00887A thermal fuse, the DC32-00007A thermistor, and the DC47-00016A blower fuse.

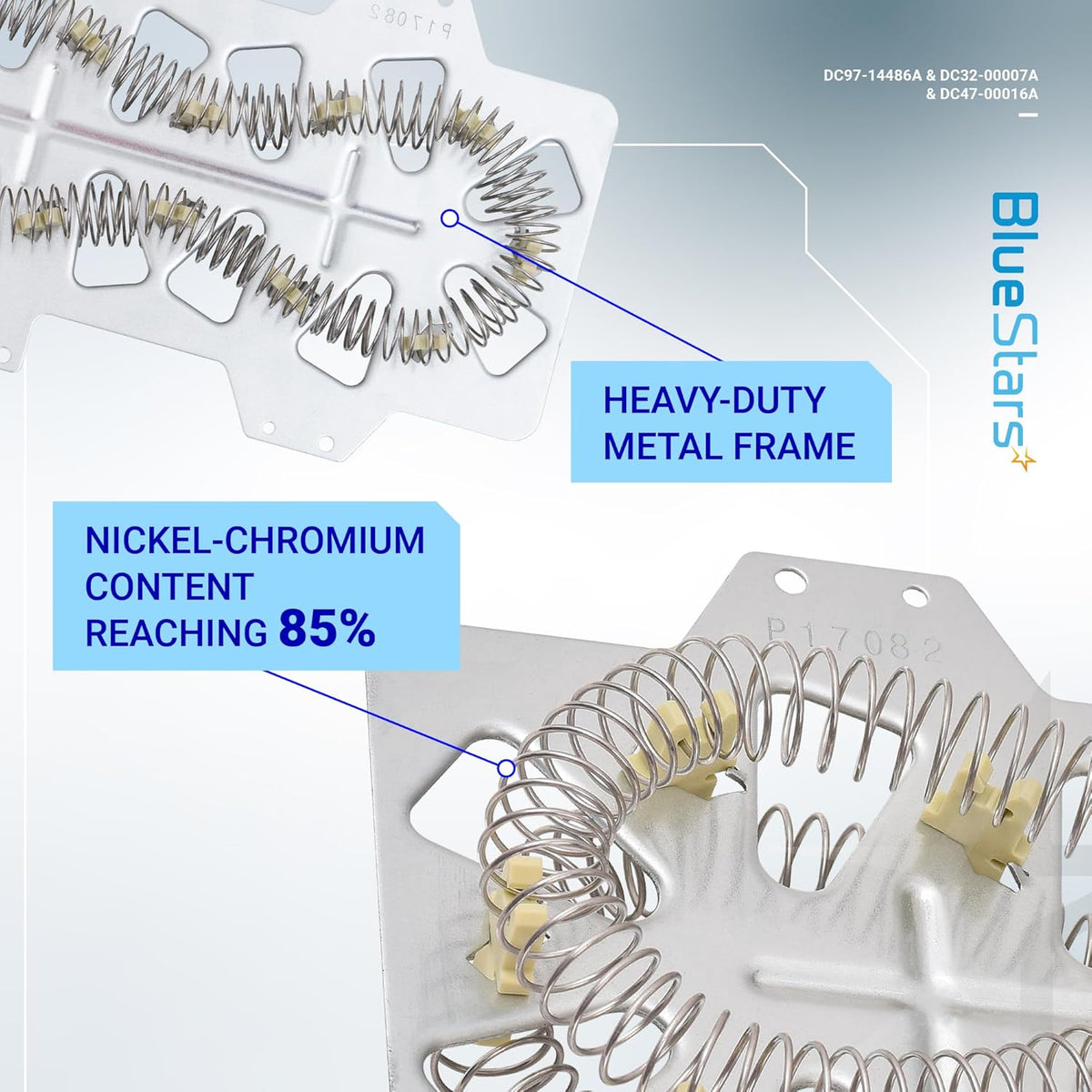

• High-Durability Ni-Cr Coil: Equipped with an upgraded Nickel-Chromium alloy heating coil designed to withstand the thermal stress of high-capacity drying cycles without sagging or snapping.
• Precision Thermal Sensing: Includes the DC32-00007A thermistor, which provides real-time temperature data to the control board to ensure accurate drying times and prevent fabric damage.
• Triple-Safety Fuse Protection: Features a multi-stage safety system with three distinct thermal cut-offs to protect your home against potential fire hazards caused by restricted airflow.

Replaces / Cross-Reference Part Numbers

• DC97-14486A ( Dryer Heating Element Assembly): AP4342351, PS2432265, DC97-14486D, DC97-08891A, 1795935, W10222771, PD00002003, EAP2432265, DE486A, AP4452178
• DC47-00016A (Thermal Fuse In-Line): AP4201894, PS4205213, WP35001087, 35001087, 2068545, 1122480, L0016A, EAP4205213, EAP11741821, PD00005341
• DC32-00007A (Thermistor): AP4201716, PS4204984, 35001191, DE0007A, N3S1-K41, 2068429, AH2038482, EAP2461163, PS2461163, AP6008688

Compatibility & Fitment

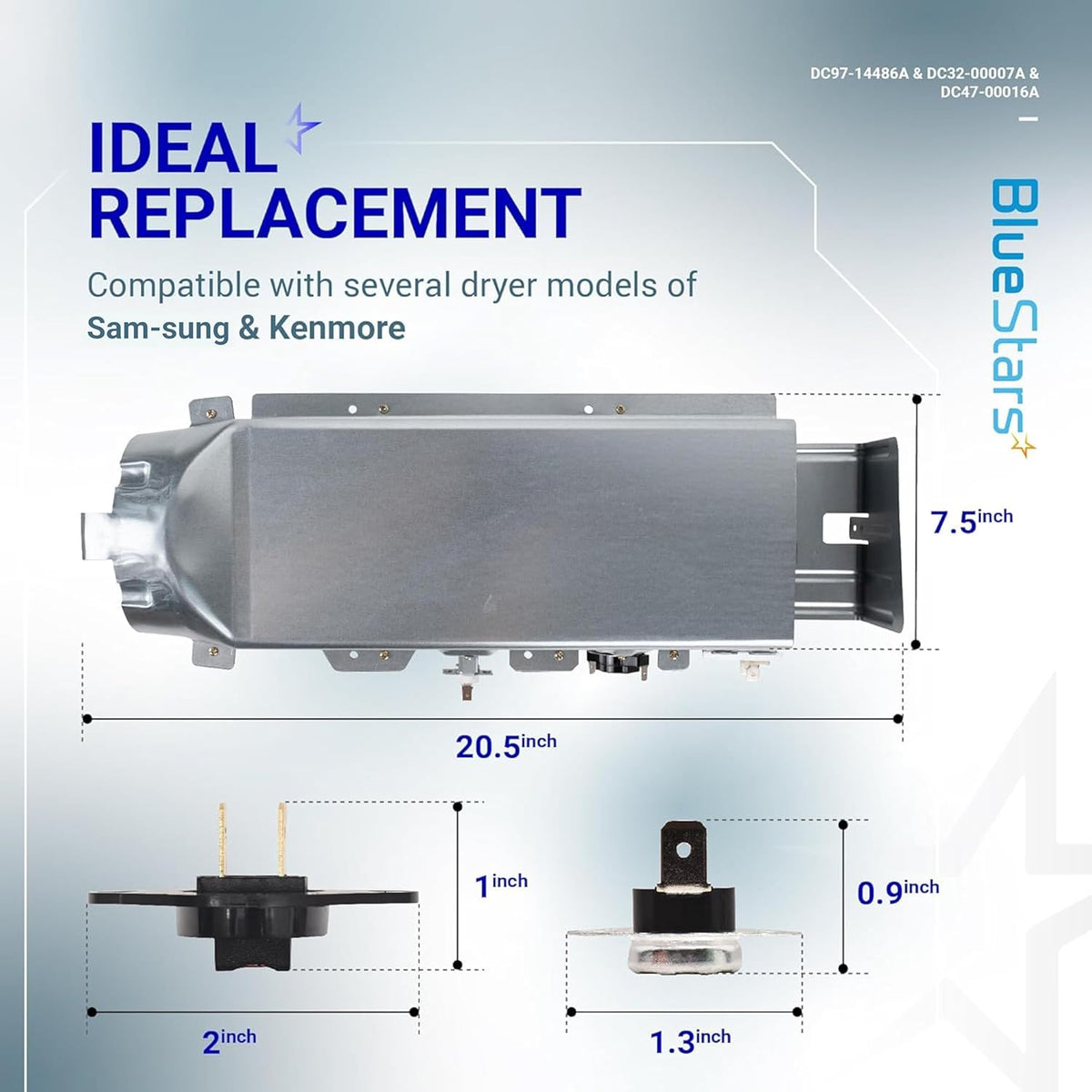

This assembly is the standard heating solution for Samsung 27-inch high-efficiency electric dryers. Key compatible models include:

• Samsung DVE Series: DVE50R5200W, DVE50R5400V, DVE45R6100W, DVE45N5300W, DVE45R6300V.
• Samsung DV42/DV45 Series: DV42H5200EP, DV42H5000EW, DV42H5200EW, DV45H7000EW.
• Samsung DV48/DV50 Series: DV48H7400EW, DV50F9A6EVW, DV50K8600EV.
• Note: This is an Electric Dryer part. It is not compatible with gas-powered (DLG) models.

When to Replace

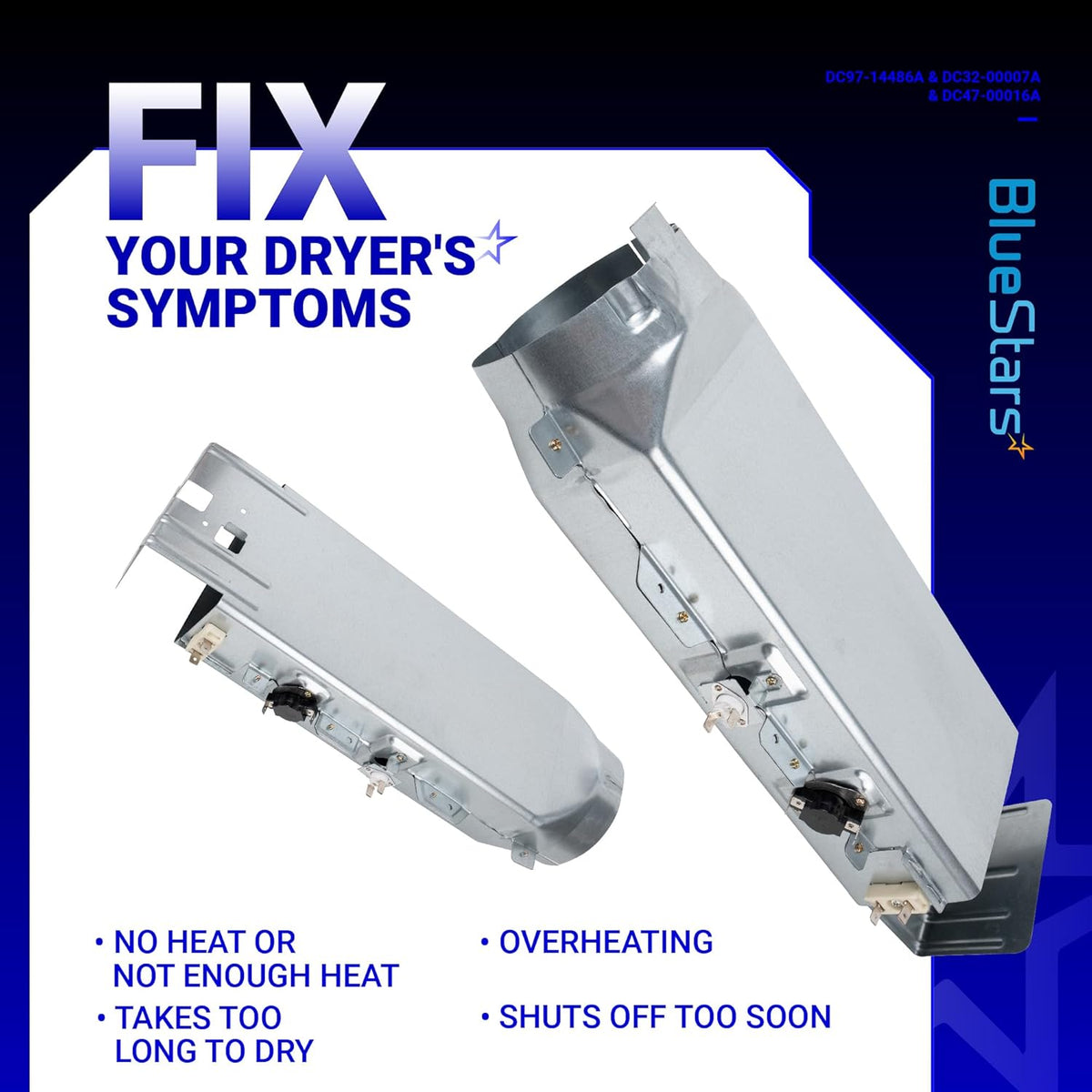

• "No Heat" Condition: The dryer drum spins and the display works, but the air never gets warm, usually due to a broken heating coil or a blown thermal fuse.
• HE / HC Error Codes: Samsung dryers will trigger these codes when they detect a failure in the heating circuit or the DC32-00007A thermistor.
• Dryer Shuts Off Early: If the thermistor is out of calibration, it may signal the dryer to stop before the clothes are actually dry.
• Burning Smell: A sign that lint has bypassed the filter and is scorching against the heating element or that a wire terminal has overheated.
• Takes Multiple Cycles to Dry: A partially failed element or restricted airflow through the duct housing will significantly decrease heating efficiency.

Installation Tips

• Unplug the Power: Always disconnect the 240V power cord before opening the dryer cabinet. High-voltage components can cause severe injury.
• Accessing the Heater: On most Samsung models, the heater assembly is located in the front-right corner. You will need to remove the top panel, control console, and front bulkhead.
• Clean the Blower Housing: When replacing the DC32-00007A thermistor and the DC47-00016A fuse, thoroughly clean the blower wheel and housing of all lint.
• Inspect the Terminals: Look for burnt or discolored wire connectors. If a connector is damaged, it must be cut off and replaced with a new high-temperature spade terminal.
• Ventilation Check: After installation, verify that the outdoor vent is blowing strong, hot air. A clogged vent is the #1 cause of heating element and thermal fuse failure.
