[Lifetime Warranty] 6931EL3003D & 6931EL3001B Dryer Thermostat Kit - Compatible with LG & Kenmore Dryers - Replaces PS3530485 1268366 6931EL3003F PS3530486 DLE5955W DLE2050W DLE2301R
Save 13%
0.00
Regular price
$14.20
Regular price
$16.33
Sale price
$14.20
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number
6931EL3003D & 6931EL3004B Dryer Thermal Fuse Kit
Key Features

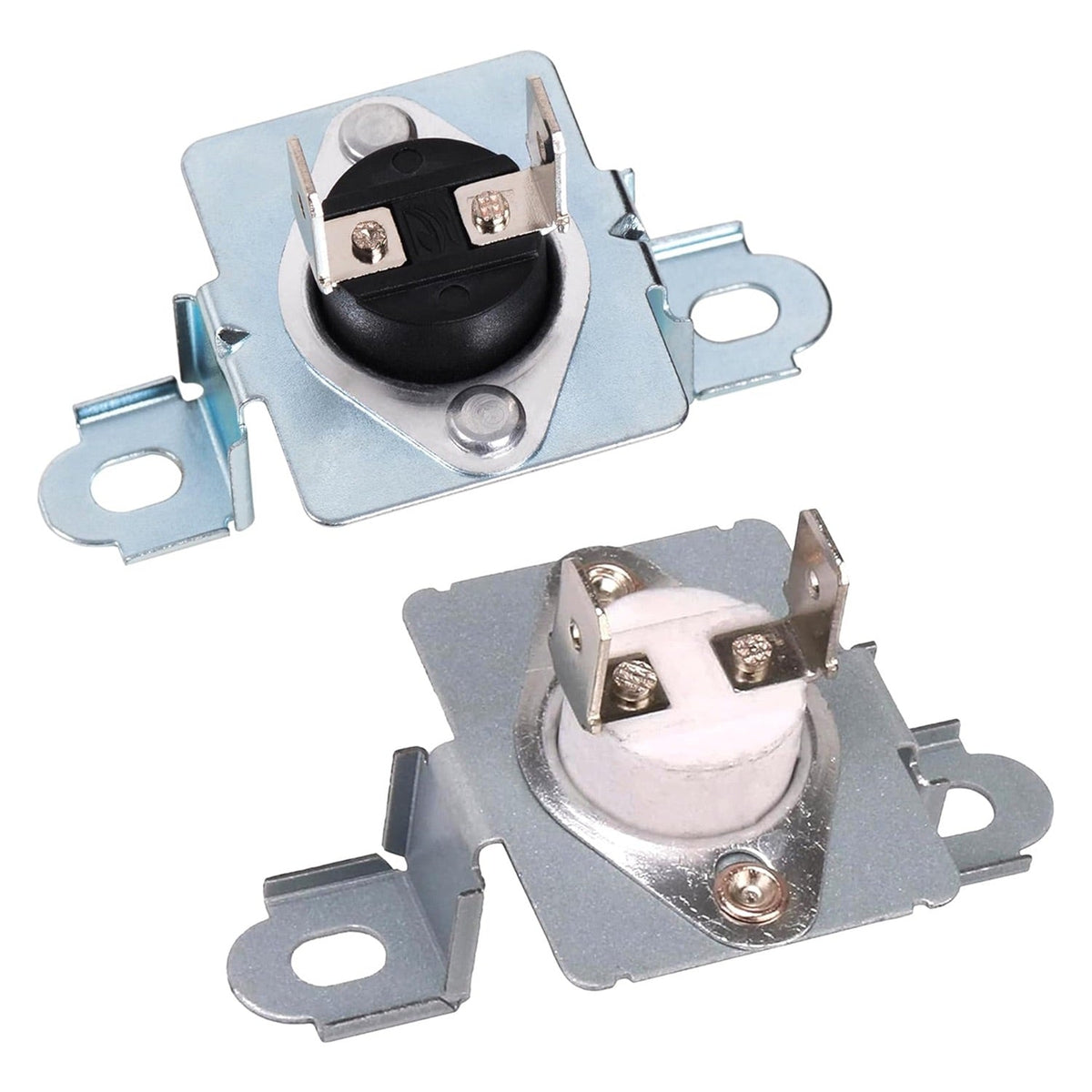

- Kit includes two components: 1 x 6931EL3003D high-limit thermal fuse and 1 x 6931EL3004B thermostat assembly.

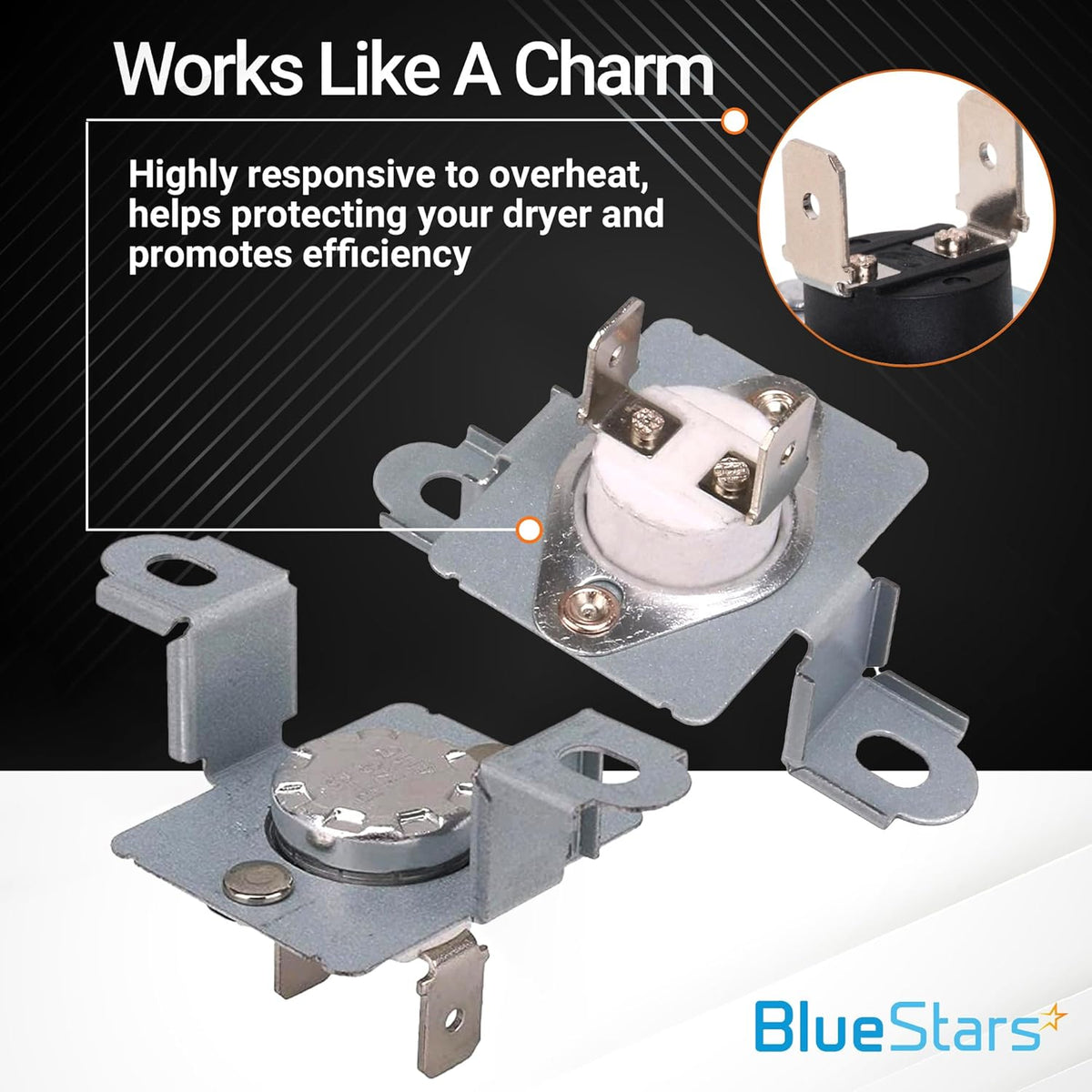

- The thermal fuse shuts off the heating element or burner when the dryer overheats, acting as a safety device.
- Fuse 6931EL3003D is rated at 140 degrees Celsius.
- Features a flush-mounted design with two 1/4-inch male terminals.
Replaces / Cross-Reference Part Numbers
- 6931EL3003D - Dryer Thermal Fuse: AP4440975, PS3530485, 6931EL3003E, AH3530485, EA3530485, EAP3530485, PD00001818, 1268366, L3003D
- 6931EL3001B - Dryer Hi-Limit Thermostat: AP5072172, PS3530482, 6931EL3001F, AH3530482, EA3530482, EAP3530482, PD00023316, 1377779, AP4440977

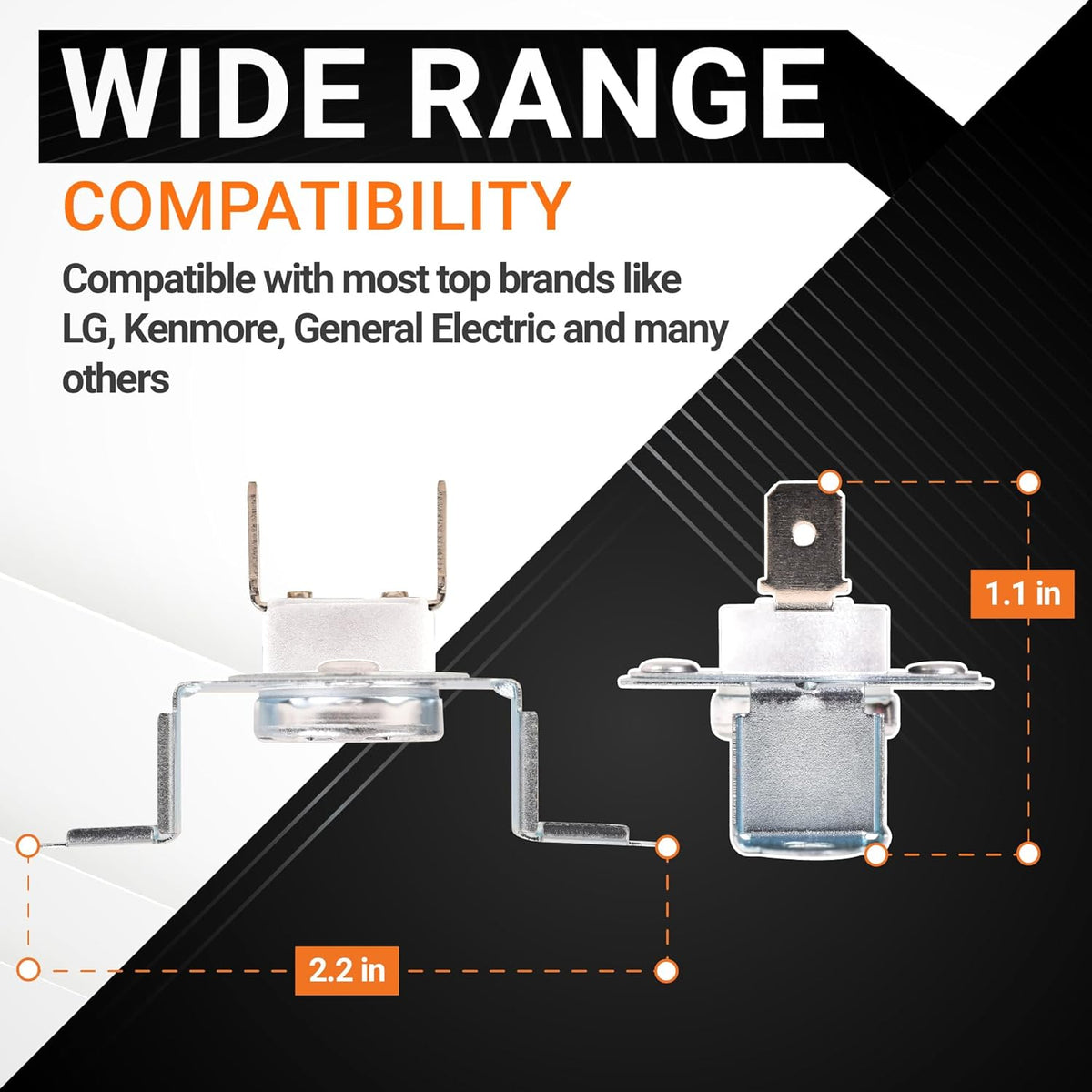

Compatibility & Fitment
- Designed for direct replacement on select dryer models.
- Compatible with specific LG and Kenmore brand dryers.
- Verify compatibility by checking your appliance's original part numbers.
When to Replace
- Dryer drum tumbles but produces no heat.
- Dryer takes too long to dry clothes.
- Dryer overheats and shuts down prematurely.
- Existing thermal fuse shows no continuity when tested with a multimeter.
Installation Tips
- Disconnect the dryer from the power supply before beginning any repair.
- The thermal fuse is a single-use safety component and cannot be reset.
- Before replacing a blown fuse, inspect and clean the dryer's venting system to resolve the root cause of overheating.
6931EL3003D Dryer Thermal Fuse
This thermal fuse functions as a high-limit safety device. It cuts power to the dryer’s heating element if the unit overheats. Once the fuse blows, it cannot be reset and must be replaced. A common cause of fuse failure is a restricted or blocked exhaust vent, which traps hot air and causes the fuse to open, stopping current flow to the gas valve or heating element. Replaces part numbers: PS3530485, AP4440975, 1268366, AH3530485, EA3530485.
6931EL3004B Dryer Thermostat Assembly
This thermostat is manufactured from high-grade materials that meet OEM standards. It fits and works exactly like the original part. Replaces part numbers: 6931EL3003F, PS3530486, 1268367, AH3530486, EA3530486.
| Brand | Model Number |
|---|---|
| Replaces 6931EL3003D | 1268366, 6931EL3003E, AH3530485, AP4440975, EA3530485, EAP3530485, L3003D, PD00001818, PS3530485 |
| Replaces 6931EL3001B | 1268363, 503475, 6931EL3001C, 6931EL3001E, AH3530481, AP4440977, EA3530481, L125-31C, PS3530481 |
| Kenmore | 79661412310, 79661412410, 79661422410, 79661423410, 79661512210, 79661513310, 79661522210, 79661523210, 79661622310, 79661623310, 79669002000, 79669002010, 79669272000, 79669272010, 79669272012, 79669272900 |
| LG | CDE3379WD, CDE3379WN, DLE0332W, DLE0442G, DLE0442W, DLE1001W, DLE1101W, DLE1310W, DLE1501W, DLE2020W, DLE2050W, DLE2101W, DLE2140W, DLE2150R, DLE2150S, DLE2150U, DLE2150W, DLE2240S, DLE2240W, DLE2250W, DLE2301R, DLE2301S, DLE2301W, DLE2350R, DLE2350S, DLE2350W, DLE2512W, DLE2514W, DLE2515S, DLE2516W, DLE2532W, DLE2544W, DLE2601R, DLE2601W, DLE2701V, DLE3050W, DLE3075W, DLE3095W, DLE3170W, DLE3180W, DLE3300W, DLE3400W, DLE3460V, DLE3460W, DLE3470M, DLE3470W, DLE3500W, DLE3600V, DLE3600W, DLE3733D, DLE3733S, DLE3733U, DLE3733W, DLE3777W |
| LG | DLE4801W, DLE4870W, DLE4901W, DLE4970W, DLE4970WE, DLE5001W, DLE5002W, DLE5070W, DLE5270V, DLE5932S, DLE5932W, DLE5955G, DLE5955W, DLE5977B, DLE5977S, DLE5977SM, DLE5977W, DLE6942W, DLE7177WM, DLE8377NM, DLE8377WM, DLE9577SM, DLE9577WM, DLEX0001TM, DLEX3470W, DLEX3875V, DLEX3875W, DLEX5101W, DLEX5170V, DLEX5170W, DLEX5680V, DLEX5680W, DLEX5780VE, DLEX5780WE, DLEX7177RM, DLEX7177WM, DLEX8377WM, DLG2524W |
| LG | RV1304A, RV1304B, RV1306AT, RV1306BT, RV1307B, RV1308AS, RV1308BS, RV1308CS, RV1310A, RV1310B, RV1316A, RV1316AS, RV1316B, RV1316VS, RV1317AS, RV1319E, RV1319VS, RV1321AS, RV1321VS, RV1327AY |
| LG | TDV10030E, TDV10031E, TDV10032E, TDV10035E, TDV10051E, TDV10052E, TDV10053E, TDV10055E, TDV10090E, TDV10092E, TDV10092EK, TDV10135E, TDV10177EM, TDV10240E, TDV10241E, TDV10244E, TDV10245E, TDV10246E, TDV10248E, TDV10249E |
Kit Includes
1× 6931EL3003D Thermal Fuse + 1× 6931EL3001B Hi-Limit Thermostat
6931EL3003D (Thermal Fuse)
Material
Porcelain / Metal
Product Dimensions
1-1/4 x 1-1/8 x 2-1/4 inches
Trip Temperature
Opens at 257°F / Closes at 221°F (±9°F)
6931EL3001B (Hi-Limit Thermostat)
Material
Metal / Plastic
Voltage
250V, 25A
Product Dimensions
2 x 1-3/4 x 1-1/4 inches
