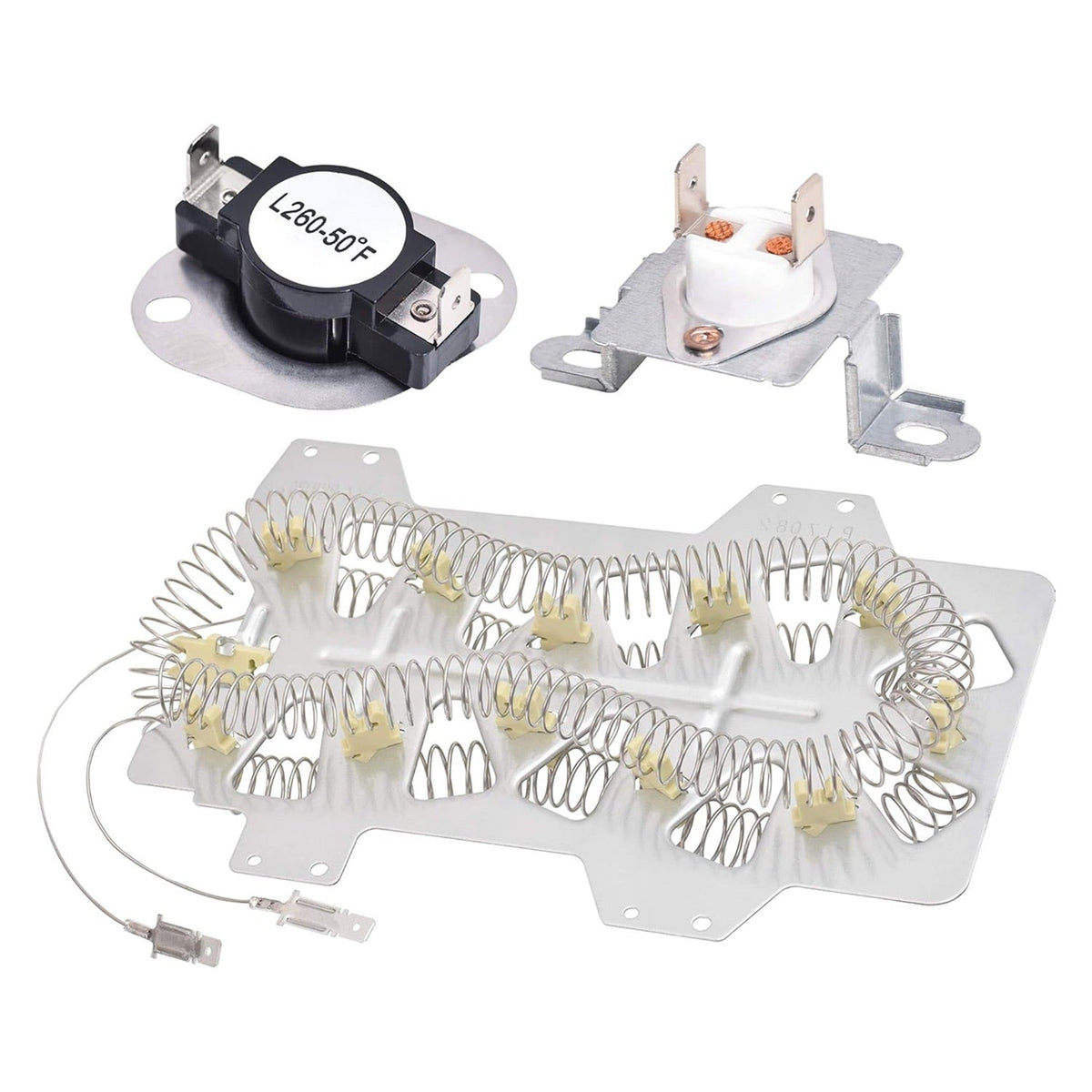

DC47-00019A Dryer Heating Element DC47-00018A Thermostat DC96-00887A Thermal Fuse For Samsung Dryers
0.00
Regular price
$41.12
Regular price
Save 11%
$46.05
Sale price
$41.12
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
DC47-00019A Dryer Heating Element & Thermal Safety Kit For Samsung
Key Features

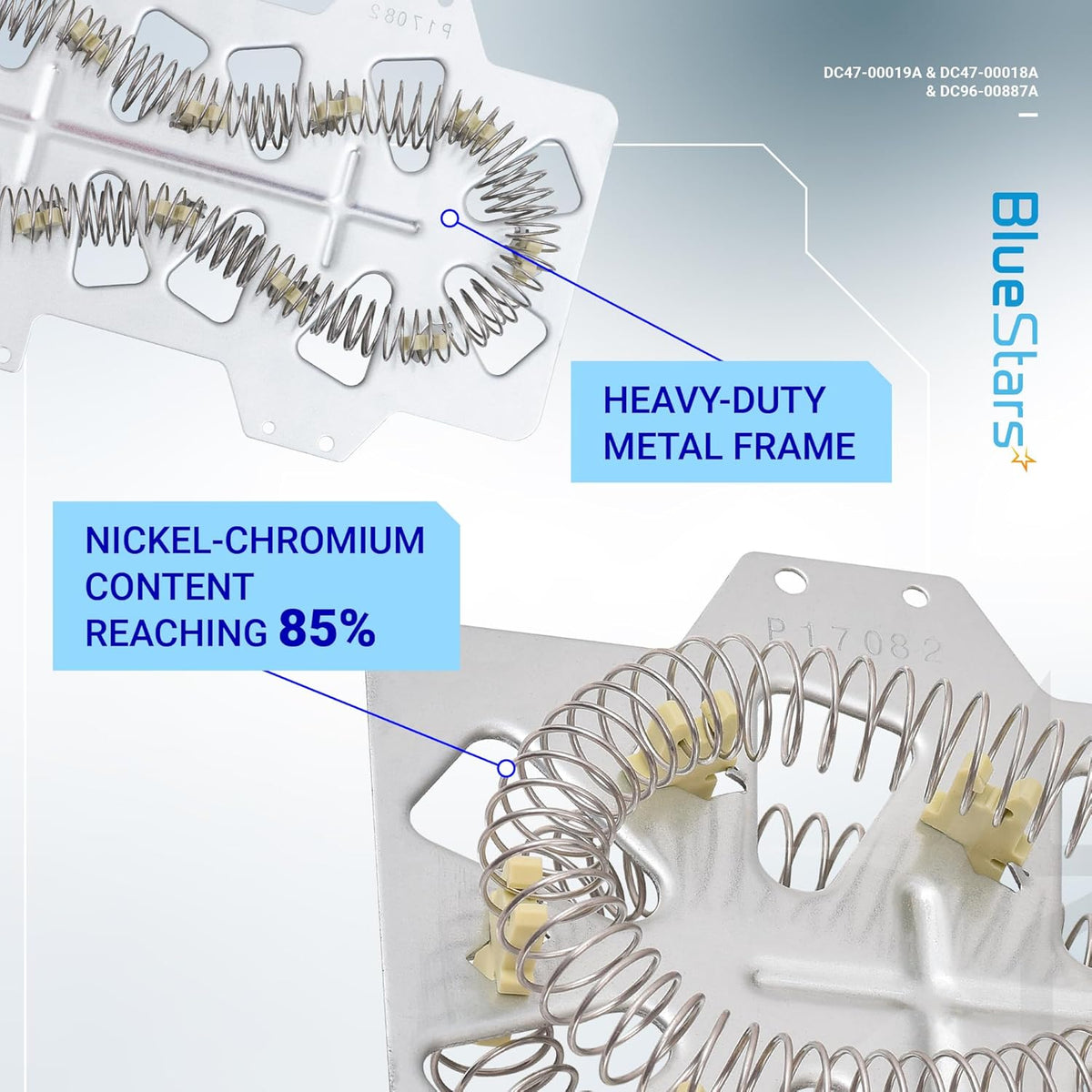

- High-Efficiency Ni-Cr Coil: The DC47-00019A element utilizes an upgraded Nickel-Chromium alloy coil that is 25% longer than standard budget versions, providing more even heat distribution and a longer service life.
- Triple-Safety Protection: This comprehensive kit includes the high-limit thermostat (DC47-00018A) and thermal fuse (DC96-00887A) to provide multi-layered defense against overheating and potential fire hazards.
- Reinforced Ceramic Insulators: Features high-temperature ceramic standoffs that securely hold the heating coil in place, preventing "coil sag" and electrical shorts against the metal housing.
- Precision Thermal Calibration: The included thermostats are factory-calibrated to Samsung’s exact specifications, ensuring the dryer maintains the optimal temperature for both delicate fabrics and heavy towels.
Replaces / Cross-Reference Part Numbers
- Heating Element: DC47-00019A, 35001247, 35001119, AP4201899.
- Thermostat: DC47-00018A, 35001092, AP4201898.
- Thermal Fuse: DC96-00887A, AP4207213, PS2430930.
Compatibility & Fitment
This kit is the primary heating repair solution for Samsung high-capacity electric dryers. Key compatible models include:
- Samsung DVE Series: DVE50R5200W/A3, DVE50R5400V/A3, DVE45R6100W, DVE45R6100C.
- Samsung DV42/DV45 Series: DV42H5200EP/A3, DV42H5000EW/A3, DV42H5200EW/A3, DV42H5200EF/A3, DV45H7000EW/A2.
- Samsung DV40 Series: DV40J3000EW/A2, DV400EWHDWR/AA.
- Note: Specifically for Electric dryers. If you have a gas dryer (DLG models), this heating element will not be compatible.

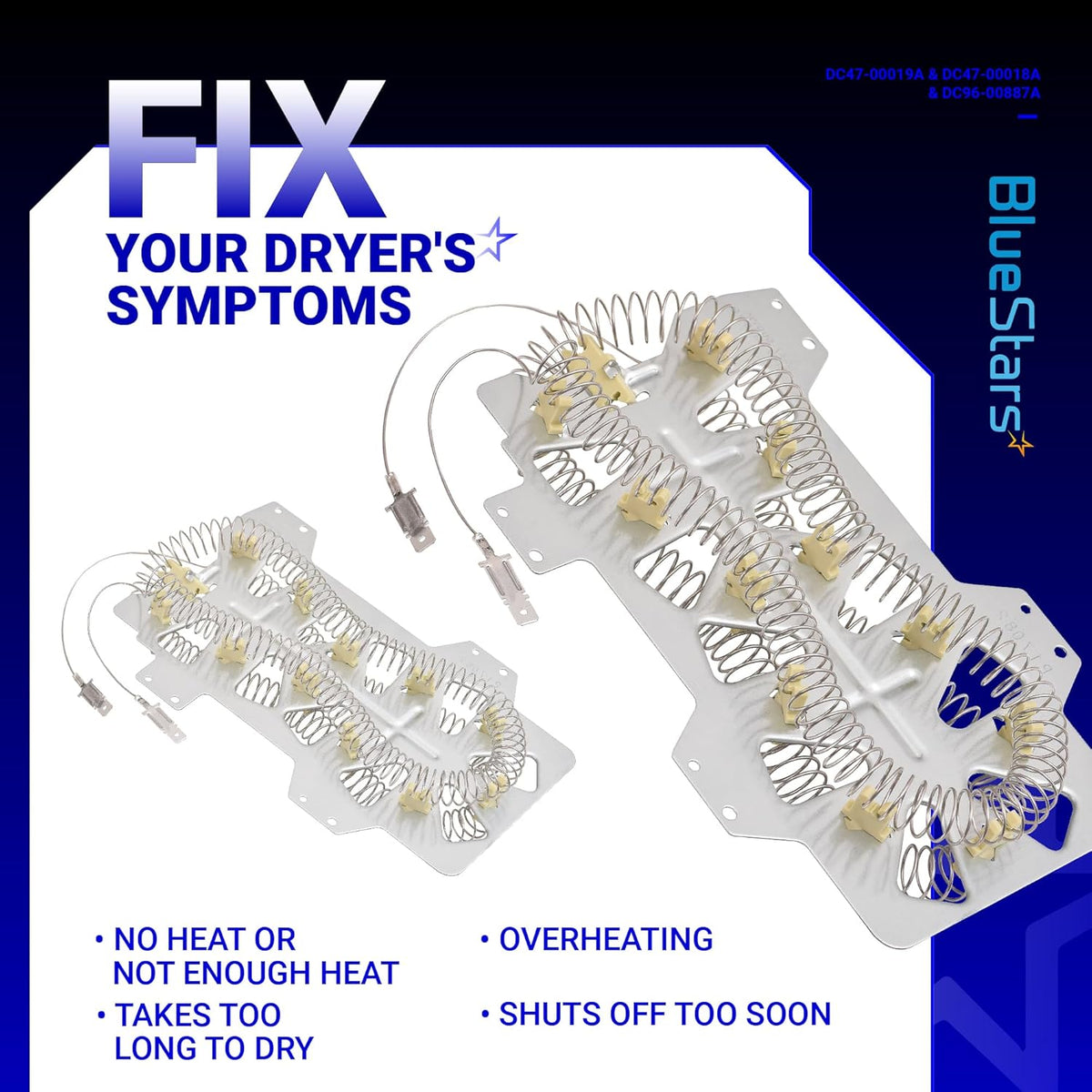

When to Replace
- No Heat / Cold Drum: The dryer spins and the timer counts down, but the air remains cold, usually indicating a snapped heating coil or a blown thermal fuse.
- Takes Too Long to Dry: A partially grounded or sagged element can produce reduced heat, significantly increasing drying times and energy bills.
- Dryer Shuts Off Mid-Cycle: The thermal fuse (DC96-00887A) has tripped due to excessive internal heat, often caused by a clogged exhaust vent.
- Visible Coil Break: Upon inspection, the heating wire inside the metal housing is visibly broken, burnt, or touching the side of the heater box.
- Tripped Circuit Breaker: A grounded heating element can cause the dryer to trip your home’s 240V circuit breaker as soon as the heat cycle starts.
Installation Tips
- Safety First: You MUST unplug the dryer from the 240V power outlet before beginning. Testing a live heating element is extremely dangerous.
- Clean the Vent Line: Before installing the new element, professionally clean your dryer's exhaust duct. 90% of heating element failures are caused by lint buildup restricting airflow.
- Vacuum the Cabinet: While the dryer is open, vacuum out all accumulated lint from the bottom of the cabinet and the blower wheel to prevent a fire hazard for your new part.
- Check the Terminals: Ensure the wire connectors are tight. Loose or corroded spade connectors create high resistance, which can melt the new thermostat or thermal fuse.
- Continuity Test: If the dryer still won't heat after installation, check the Thermal Cut-Off on the blower housing. Often, when the heating element fails, it takes out both the heater-mounted fuse and the blower-mounted fuse.
-
PERFECT FIT
BlueStars DC47-00019A & DC47-00018A & DC96-00887A Dryer Repair Kit replaces part numbers: 35001247, 35001119, 1185561, AP4201898, 35001092, etc. -
PREMIUM QUALITY
DC47-00019A & DC47-00018A & DC96-00887A Dryer Repair Kit is made from durable high-quality materials and well-tested by the manufacturer. -
SAVING SOLUTION
Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble. -
SIMPLE INSTALLATION
The DC47-00019A & DC47-00018A & DC96-00887A Dryer Repair Kit Dryer Repair Kit is easy to install that anyone with basic hand tools can do.
PREMIUM QUALITY
The product is made of strong & durable materials that prevents cracking and failing during the installation and use process
PERFECT FIT
It perfectly meets OEM standards and even better with 25% longer coils that enhance heat resistance and efficiency up to 50% than the common ones
ECONOMICAL DIY REPAIR
Enjoy the comfort that our repair kit brings into your dryer - BlueStars provides DIY solutions to help you deal with any trouble
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Manufacturer
BlueStars
Part Number
DC47-00019A & DC47-00018A & DC96-00887A
Item Weight
1.08 pounds

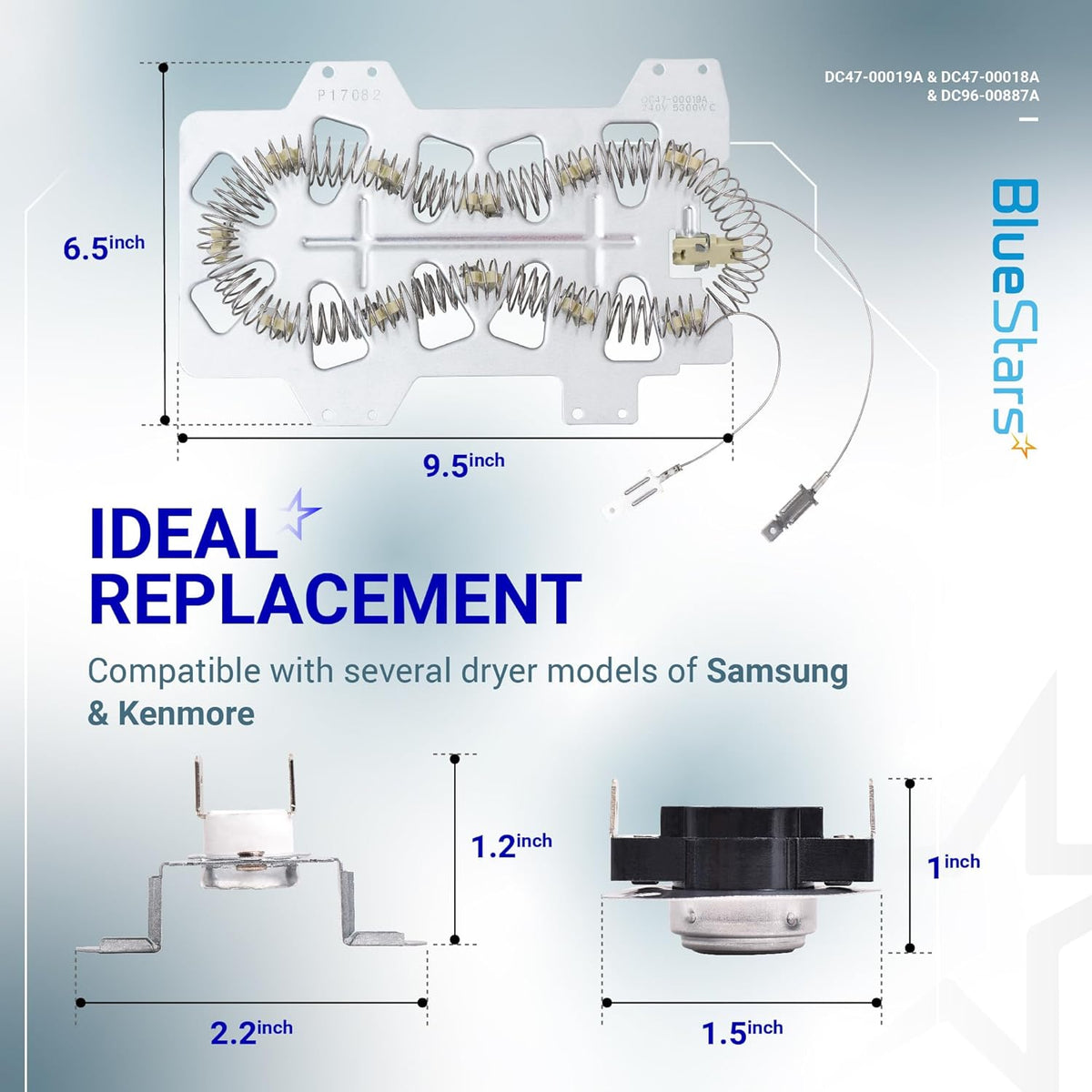

Product Dimensions
11.5 x 7 x 2.8 inches
Color
As Pictured

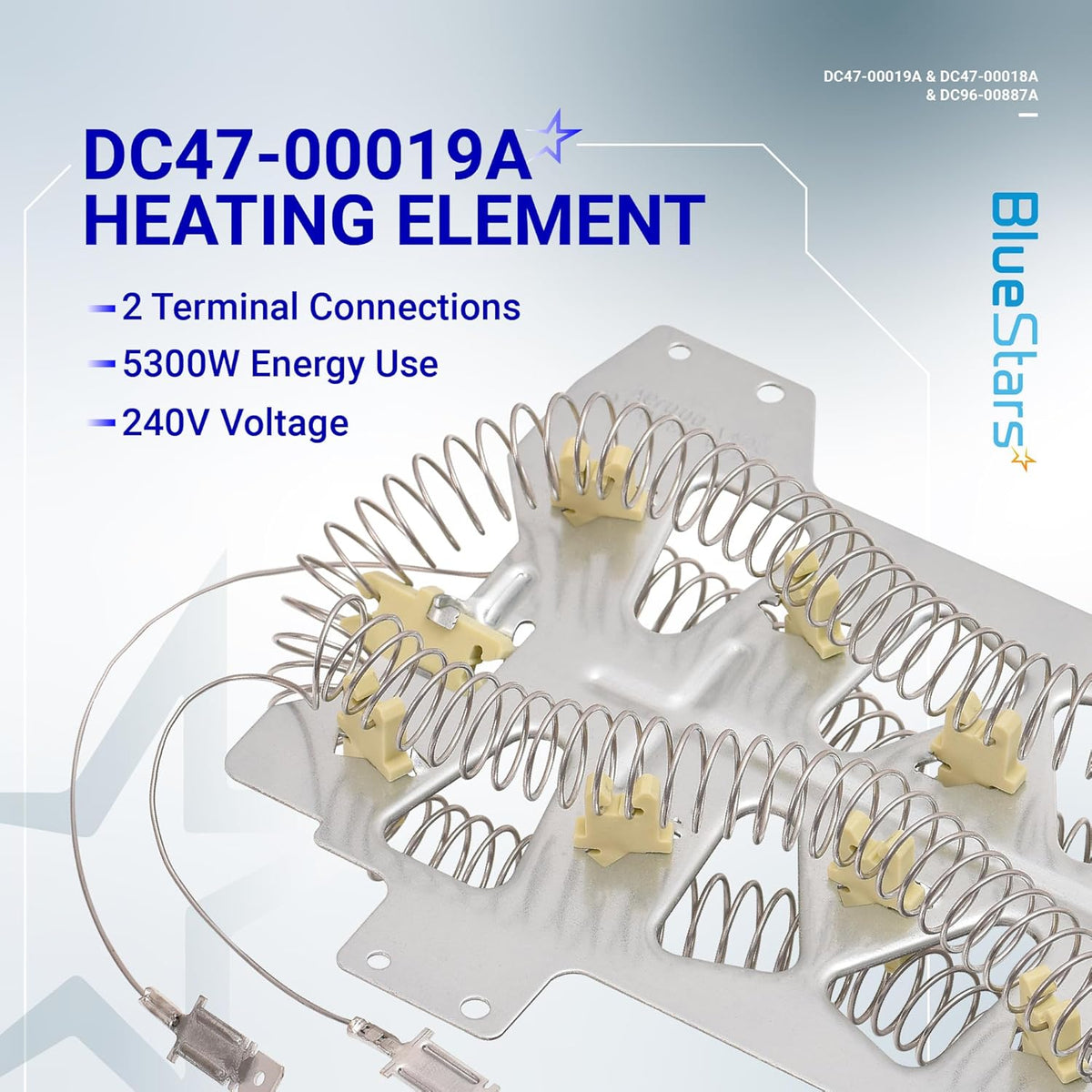

Voltage
240 Volts
Wattage
5300 watts
Item Package Quantity
1
Included Components
DC47-00018A Dryer Thermostat, DC47-00019A Dryer Heating Element, DC96-00887A Dryer Assembly Bracket Thermostat
