DC96-00887A & DC47-00016A & DC47-00018A Dryer Thermal Fuse & Thermostat Kit for Samsung Kenmore Dryers

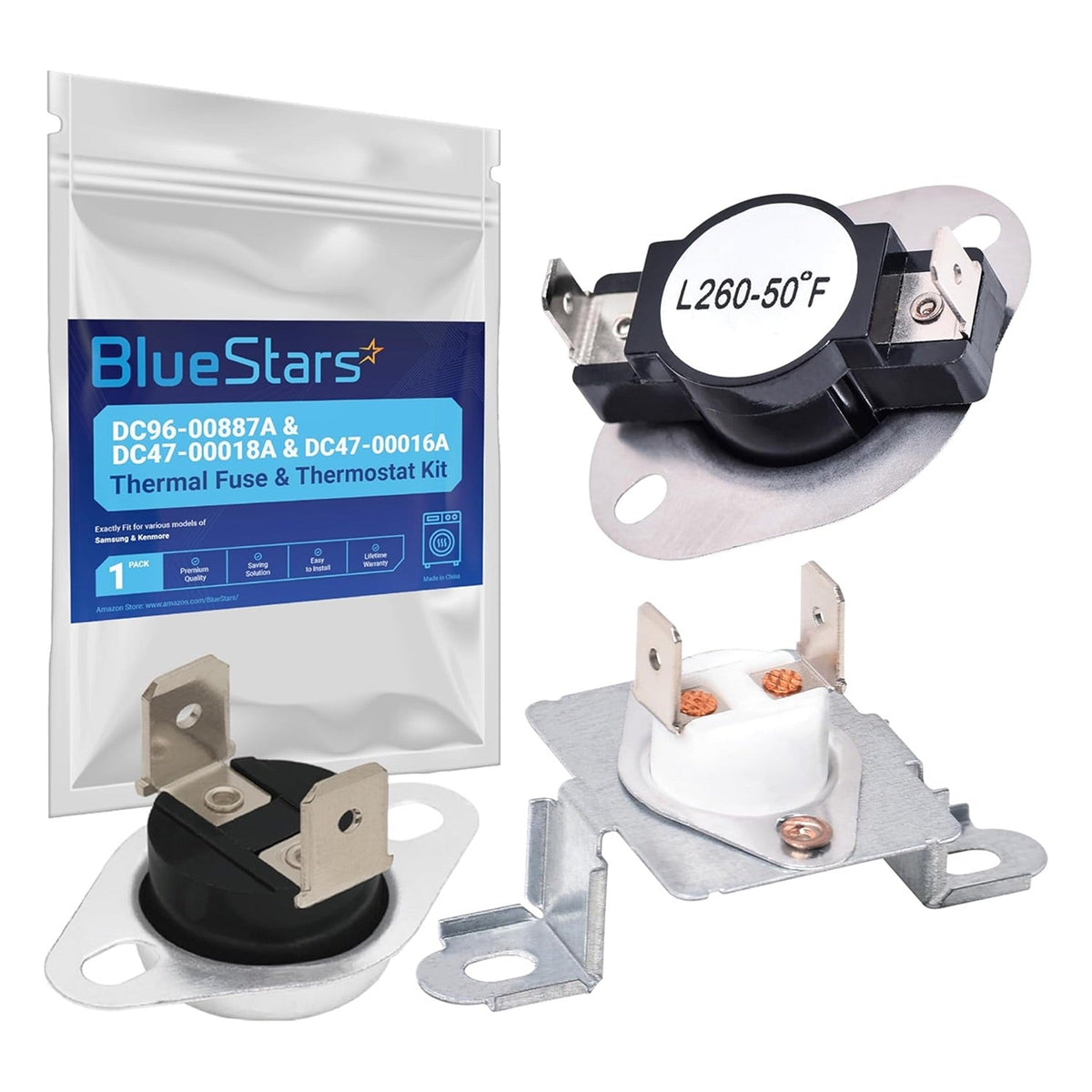

Dryer Thermal Fuse and Thermostat Kit (DC96-00887A, DC47-00016A, DC47-00018A)

Key Features

• Complete Thermal Protection: This comprehensive 3-piece safety kit includes the primary thermal fuse, thermal cut-off, and thermostat to completely rebuild the temperature regulation system of your electric dryer.
• High-Precision Calibration: Each component is manufactured to strict factory standards, ensuring they trip at the exact temperature required to prevent dangerous overheating and potential fire hazards.
• Heavy-Duty Construction: Built with premium heat-resistant materials and robust internal contacts designed to handle the continuous high-temperature cycles of heavy laundry loads.

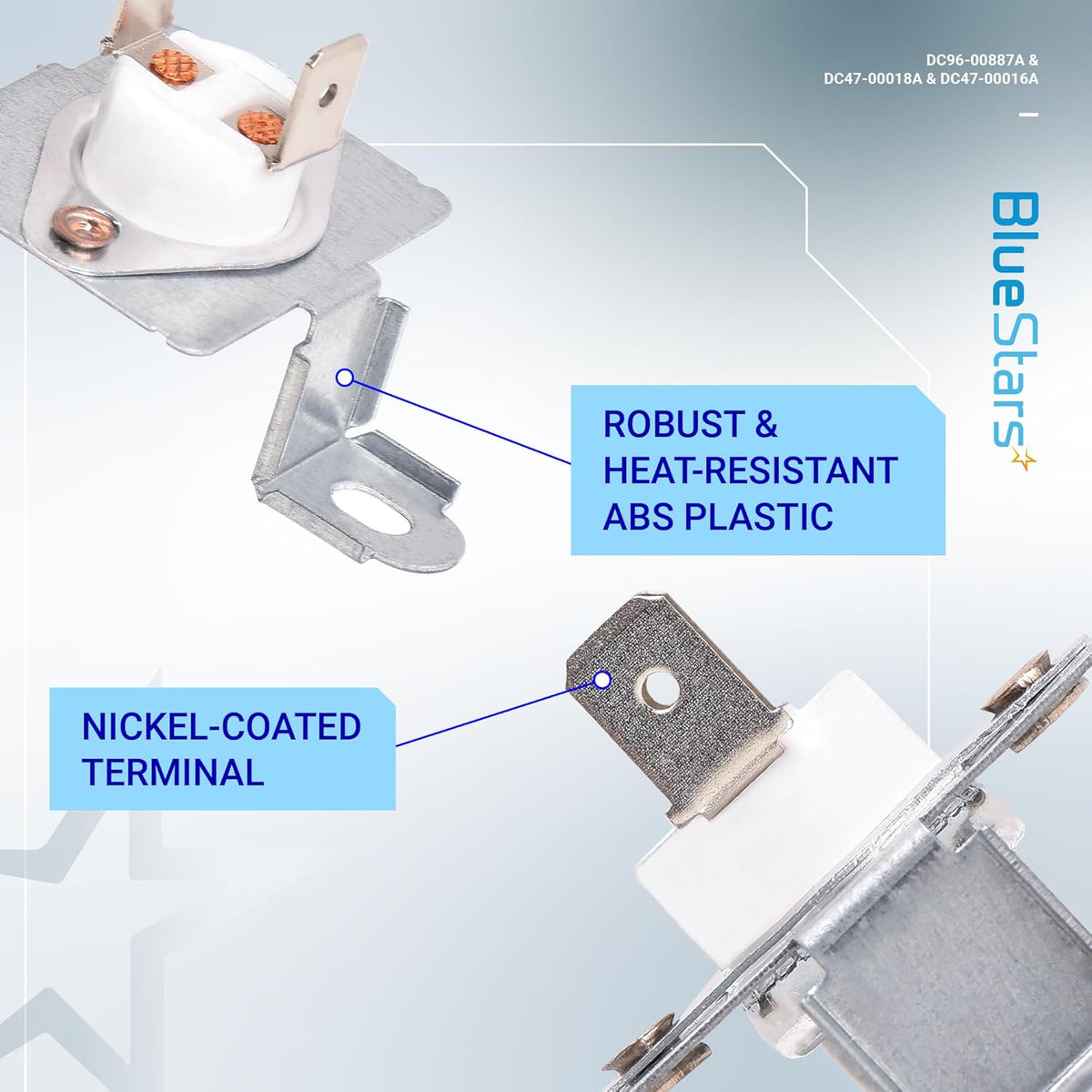

• Direct Drop-In Replacement: Features standard male spade terminals and exact-fit mounting brackets for a seamless, plug-and-play installation without any wire splicing or modifications.
• Restores Heating Performance: Replaces aging sensors that may be "short-cycling" your dryer, instantly resolving issues where clothes take too long to dry or remain cold.

Replaces / Cross-Reference Part Numbers

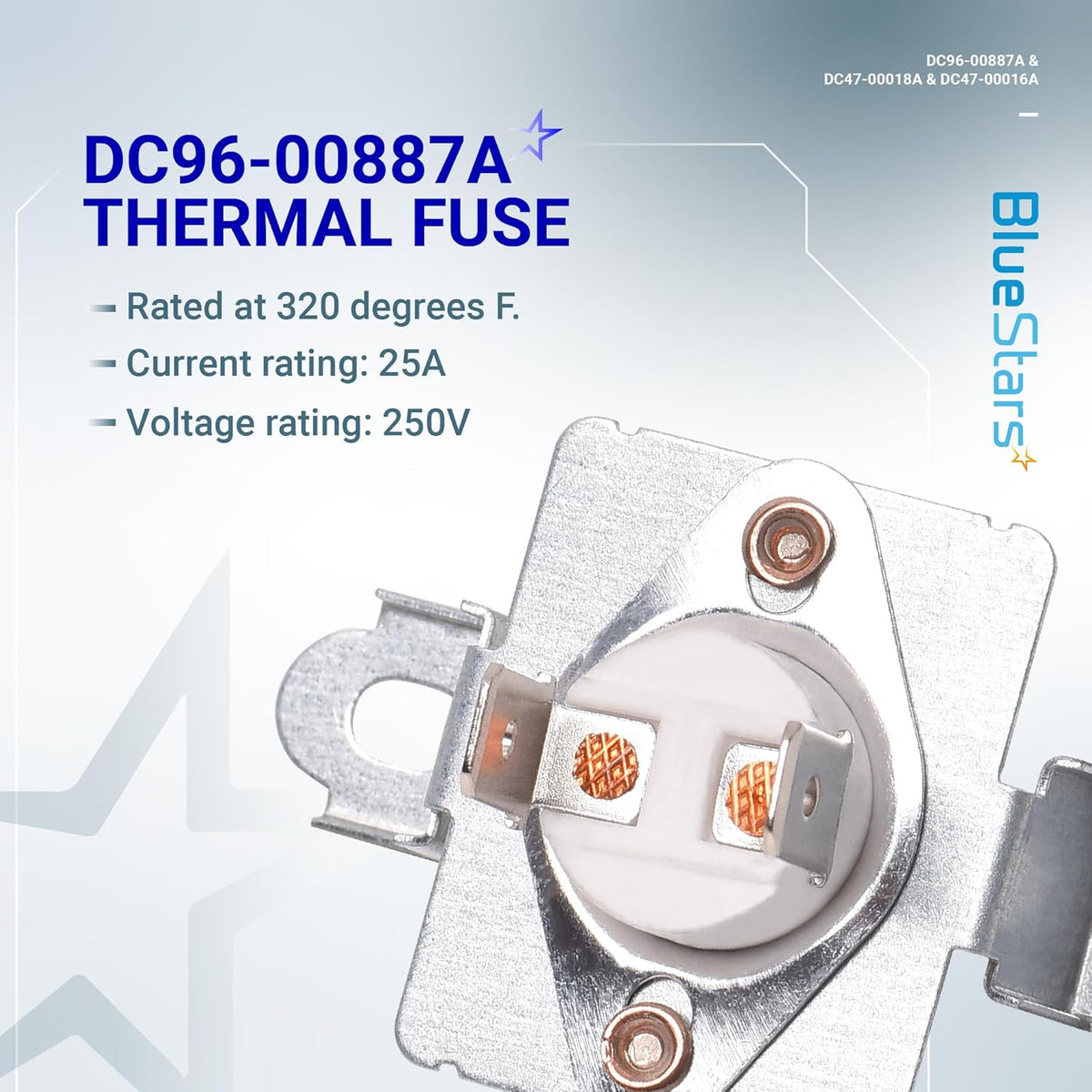

• Thermal Fuse (DC96-00887A): AP4207819, PS2038484, DC96-00887C, AP5966894, EAP2038484, 2068546, 1122481, PD00027514, L0887A, ERDC96-00887A

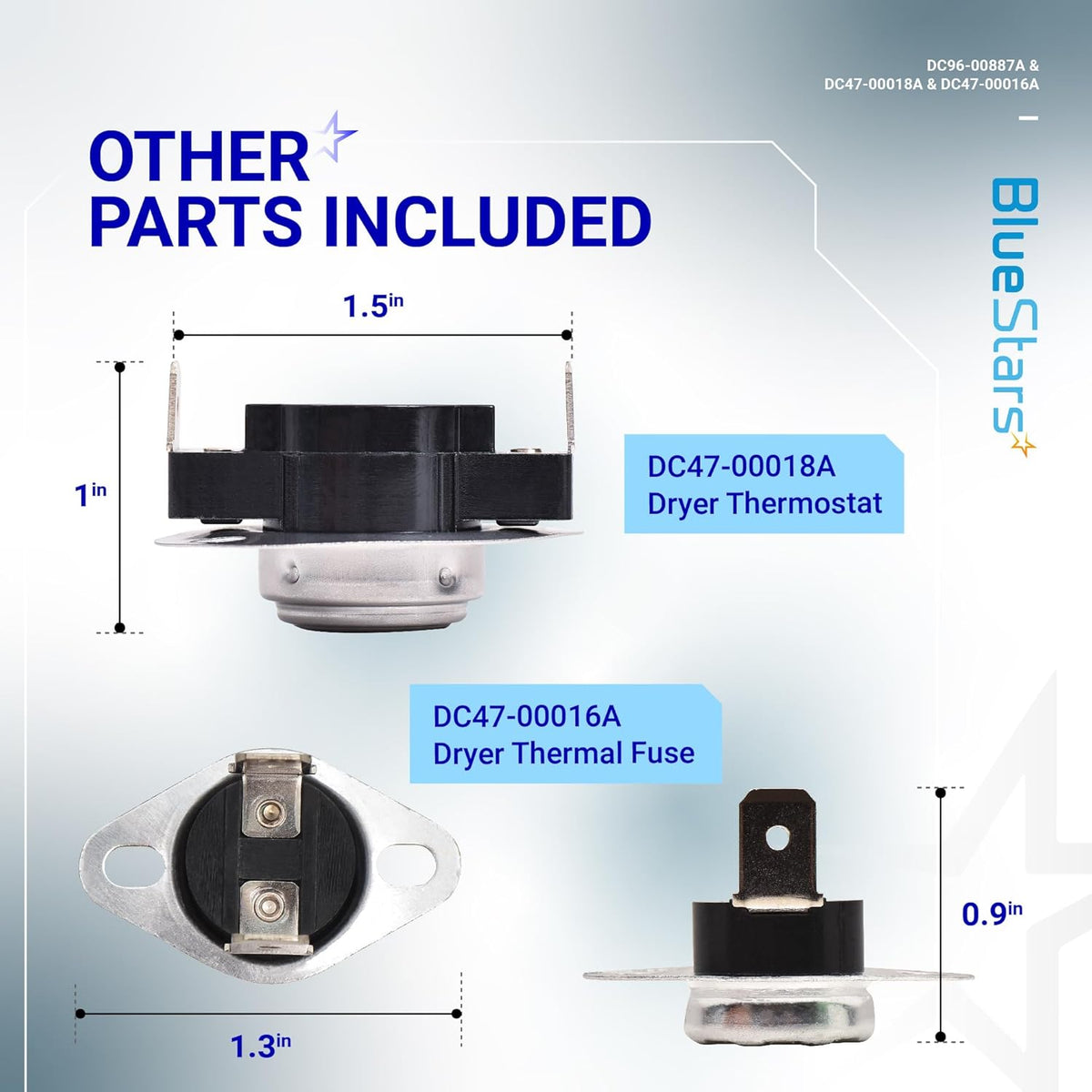

• Thermal Cut-Off (DC47-00016A): AP4201894, PS4205213, WP35001087, 35001087, 2068545, 1122480, L0016A, EAP4205213, EAP11741821, PD00005341
• Thermostat (DC47-00018A): AP4201898, PS4205217, WP35001092, 35001092, 1122485, AP4201899, PS2038383, EAP4205217, PD00002016, DE0018A

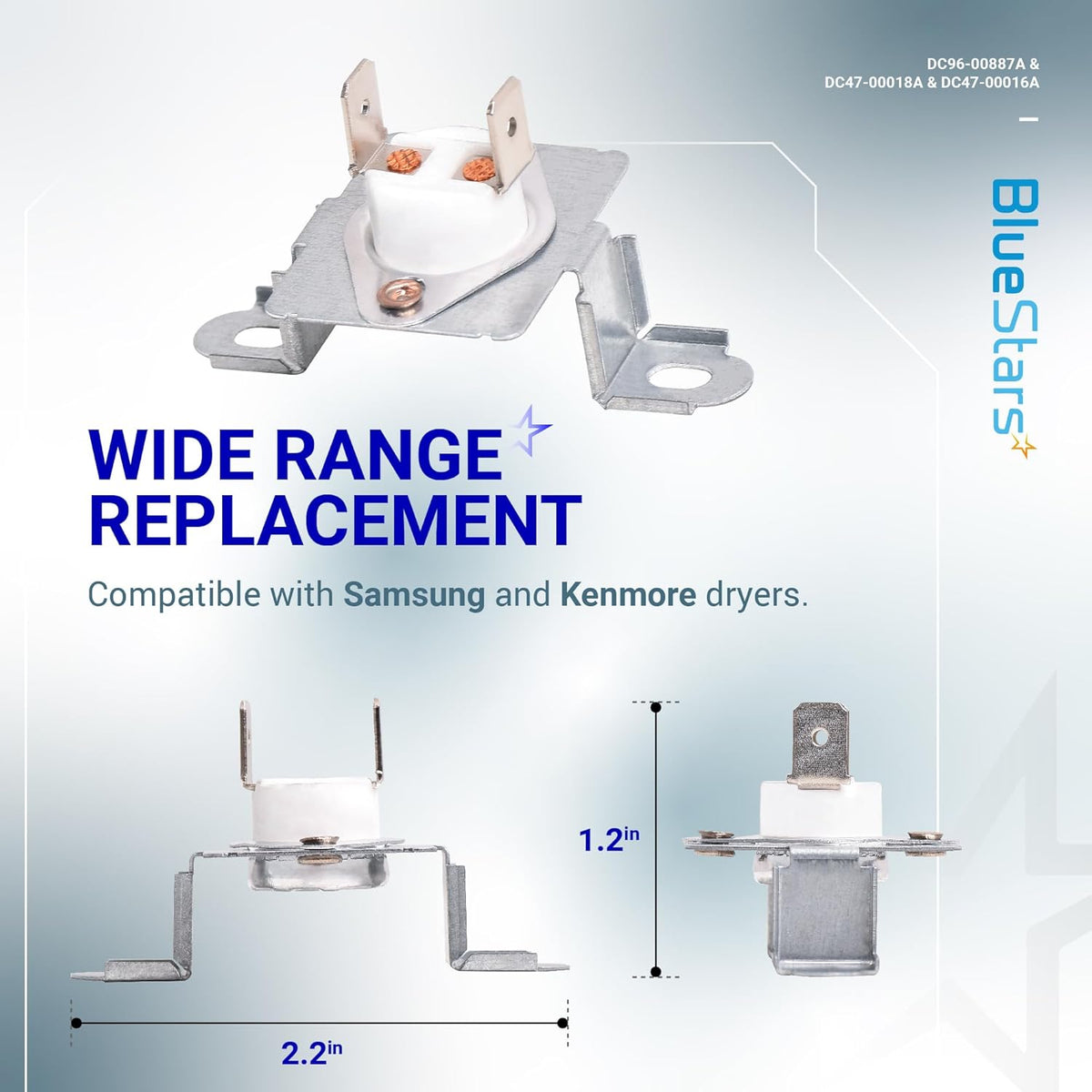

Compatibility & Fitment

This 3-piece thermal sensor kit is compatible with a wide range of electric dryers. Key compatible brands include:

• Samsung: Fits hundreds of DV series front-load and top-load matching electric dryers.
• Kenmore / Sears: Compatible with select 402-prefix electric dryers manufactured by Samsung.
• Amana & Maytag: Fits specific cross-compatible models utilizing these standard DC47/DC96-style thermal sensors.
• Note: Always verify your dryer runs on a standard 240V electrical connection. These thermal sensors are specifically rated for electric dryers and may not be compatible with gas models.

When to Replace

• No Heat Production: The dryer powers on and the drum spins normally, but the internal air remains completely cold throughout the entire cycle.
• Shuts Off Prematurely: The dryer starts but suddenly powers down after only a few minutes, indicating a tripped thermal fuse.
• Inconsistent Drying: Clothes require multiple cycles to fully dry, suggesting a failing thermostat is cutting power to the heating element too early.
• Preventative Maintenance: If you are replacing a burned-out heating element, it is highly recommended to replace these three sensors simultaneously to prevent the new element from failing.

Installation Tips

• Safety First: CRITICAL: Electric dryers in the United States operate on a high-voltage 240V circuit. You must completely unplug the machine from the wall outlet before removing the back panel to avoid severe electrical shock.
• Test for Continuity: PRO TIP: Before swapping the parts, use a digital multimeter to test each old sensor for continuity. A sensor with no continuity has "blown" and is the source of the heat failure.
• Document the Wiring: The heating assembly has multiple color-coded wires. Take a clear reference photo with your phone before disconnecting any spade terminals to ensure accurate reassembly.
• Clear the Exhaust Vent: A blown thermal fuse is almost always caused by restricted airflow. Thoroughly vacuum the internal dryer cabinet and clean your home's external exhaust duct to prevent the new fuses from blowing immediately upon your first test run.
