WE01X20419 Dryer Door Handle Replacement for GE & Hotpoint Dryers

WE01X20419 / WE1M463 Dryer Door Handle

Key Features

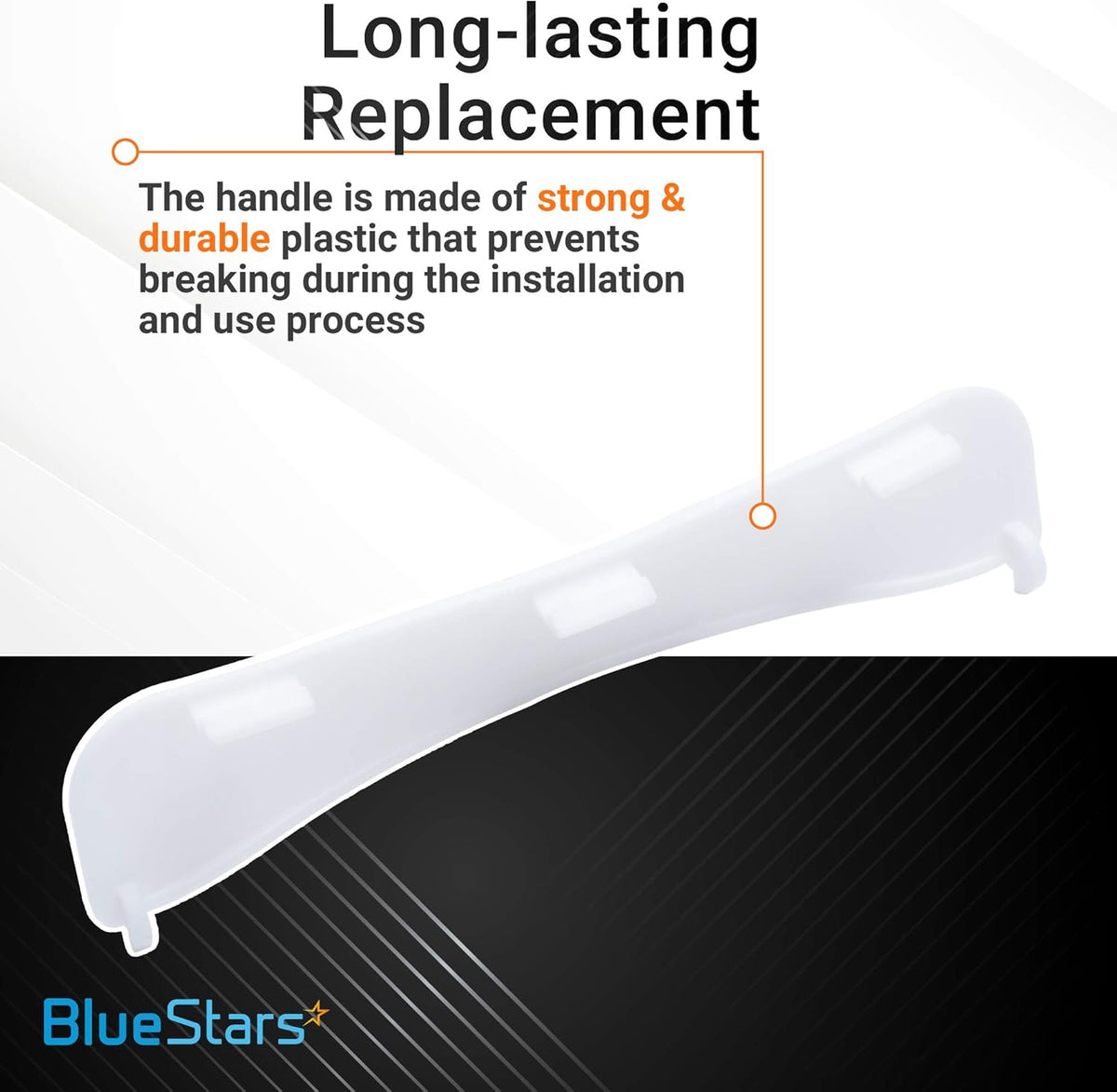

• Reinforced Structural Polymer: Manufactured from a high-density, heat-resistant plastic designed to withstand the daily mechanical stress of opening and closing the dryer door without snapping or cracking.
• Ergonomic Pull Design: Features a contoured, textured grip surface that provides a secure hold, ensuring the door can be operated smoothly even with damp hands or heavy laundry loads.
• UV-Stabilized Finish: Treated with a specialized coating to resist the "yellowing" and brittleness often caused by long-term exposure to laundry room heat and chemical cleaning agents.

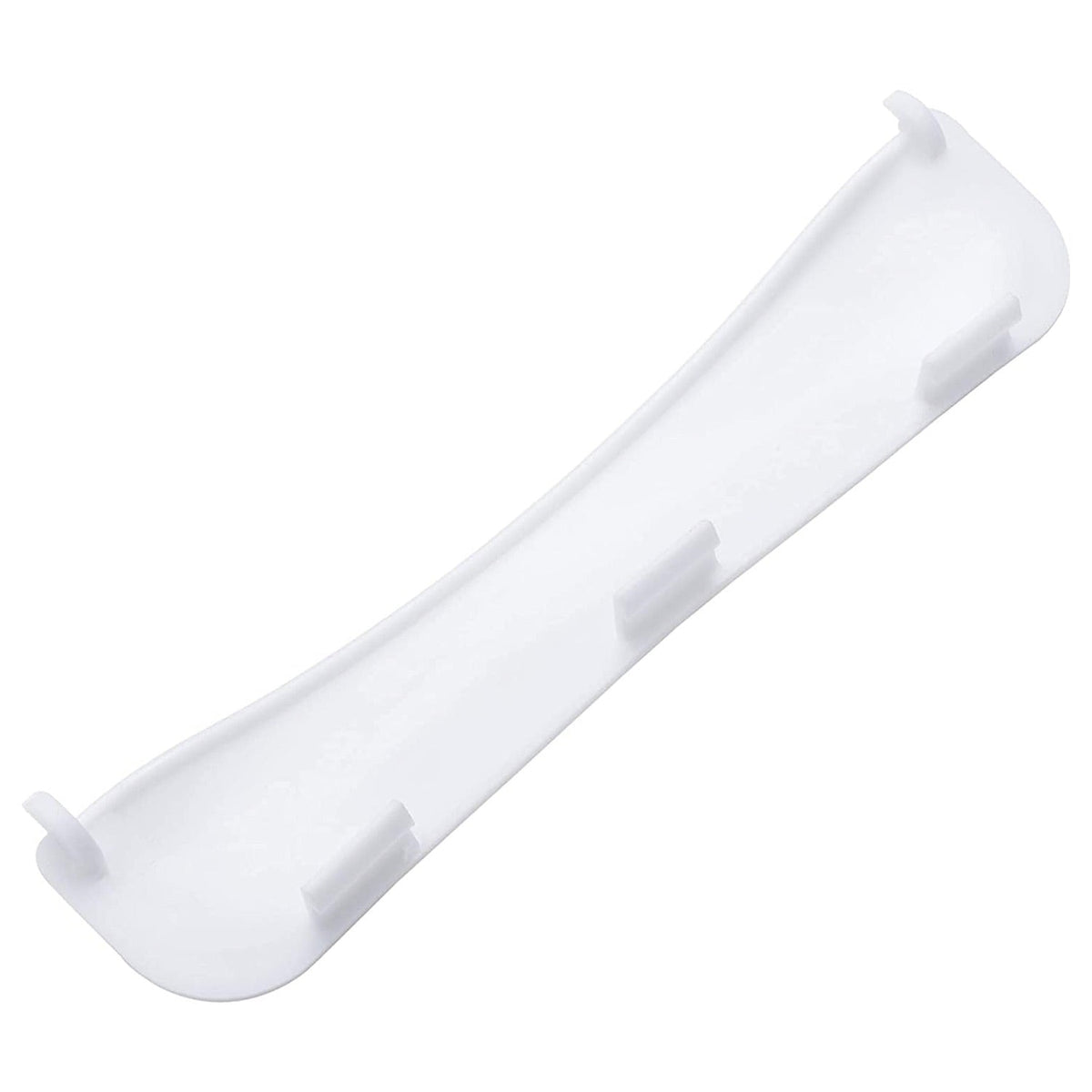

• Precision-Molded Mounting Tabs: Engineered with exact tolerances for the screw mounting points, ensuring a "zero-play" fit that prevents the handle from feeling loose or wobbly during operation.

Replaces / Cross-Reference Part Numbers

• AP5809959
• PS9494490
• WE1M1026
• 175D1372
• WE01M0463
• WE01X10140
• WE01X1188
• WE1M463
• WE1X10140
• WE1X1188

Compatibility & Fitment

This door handle is the standard replacement for modern and legacy GE-manufactured dryers. Key compatible series include:

• GE (General Electric): Fits hundreds of GTD, GFD, GFW, GTW, and GUD series models (e.g., GTD42EASJ1WW, GTD45EASJ0WS, GUD24ESSM0WW).
• Hotpoint: Compatible with various HTX and HTD series units produced by GE (e.g., HTX24EASK0WW, HTX21PASK0WW).
• Kenmore (362 Series): Fits many 362-prefix models produced by GE for Sears.
• Note: This handle is typically secured by two screws on the inner door panel. Please verify that your existing handle uses the two-hole vertical mounting configuration before ordering.

When to Replace

• Handle Snapped Off: The internal plastic mounting tabs have sheared off due to fatigue, leaving the handle detached from the door.
• Loose or Wobbly Feel: The handle moves independently of the door when pulled, indicating the screw holes have stripped or the plastic has cracked.
• Visible Stress Fractures: Fine white lines or cracks appearing near the mounting points, signaling that the plastic is reaching its failure point.
• Cosmetic Discoloration: The handle has turned yellow or grey due to age and heat, making the dryer look poorly maintained.
• Internal Latch Issues: While the handle itself is static, a broken handle often prevents you from applying the correct leverage to engage the internal door strike and latch.

Installation Tips

• Safety First: For your safety, ensure the dryer is not in the middle of a cycle. While this is a mechanical repair, it is best to unplug the unit if you are removing the inner door shell.
• Keep Your Screws: This replacement handle typically does not include new screws. You will need to reuse the two original 1/4-inch hex head or Phillips head screws from your old handle.
• Accessing the Mounts: Open the dryer door and locate the two screws on the inner panel directly behind the handle. Remove these while supporting the handle from the outside to prevent it from falling.
• Avoid Overtightening: When installing the new WE01X20419, tighten the screws until they are snug. Do not over-torque them, as this can crack the new plastic mounting tabs or strip the metal inner door shell.
• Inspect the Latch: While the door handle is off, check the **Door Strike** and **Door Catch**. If the door is hard to pull open, it may be putting extra stress on the handle; a small amount of silicone lubricant on the catch can prevent future handle breakage.
