134412860 Washer Door Handle Replacement for Frigidaire & Kenmore Washers

134412860 / 134412800 Washer Door Handle

Key Features

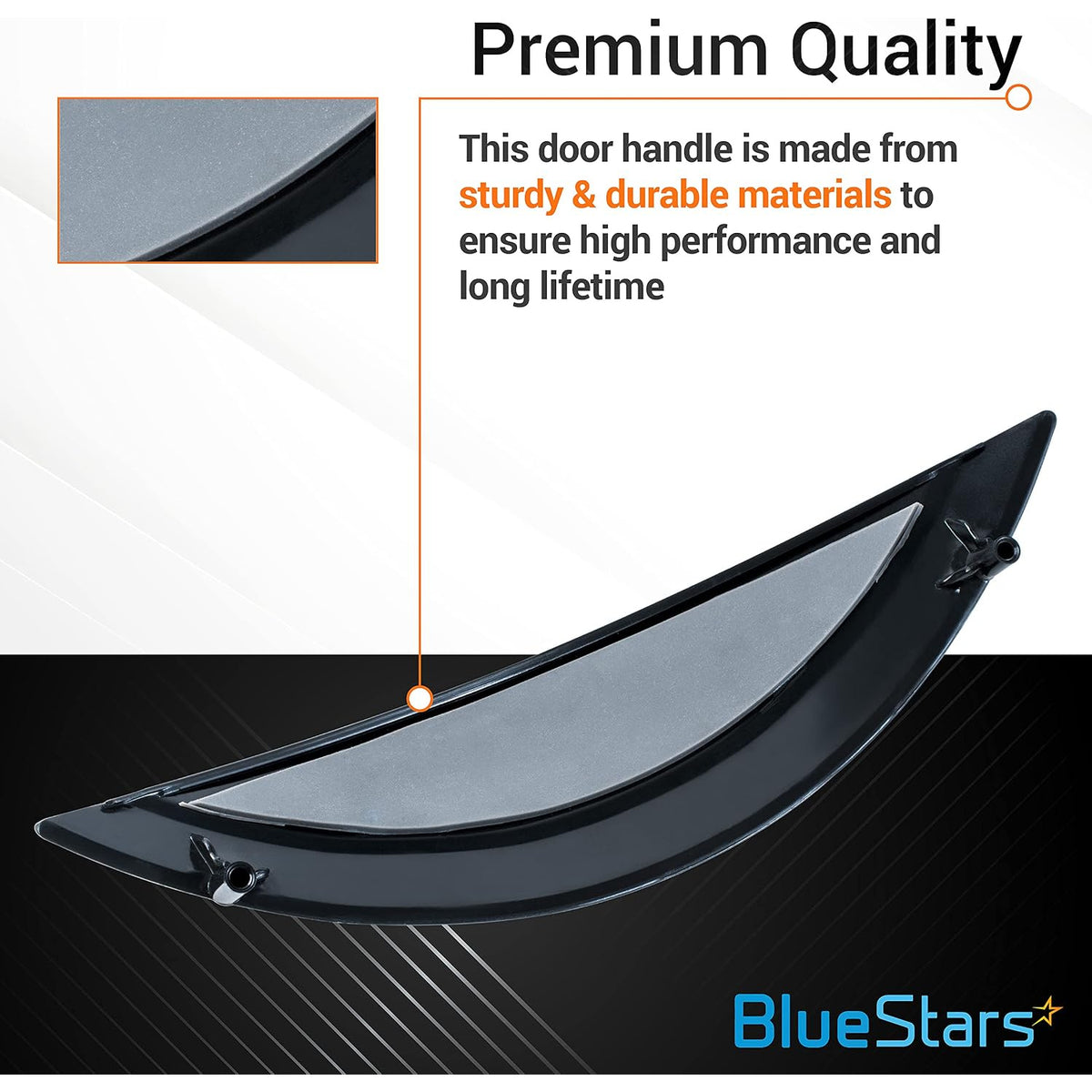

• Reinforced Structural Polymer: Manufactured from a high-density, impact-resistant plastic designed to withstand the repetitive mechanical leverage required to engage and disengage the door latch hundreds of times per year.
• Ergonomic Pull Design: Features a contoured grip surface that provides a comfortable and secure hold, ensuring the front-load door can be opened smoothly even when hands are wet from handling laundry.
• UV-Stabilized Finish: Treated with a specialized coating to resist "yellowing" and brittleness caused by long-term exposure to laundry room lighting and the chemical vapors of detergents and bleaches.

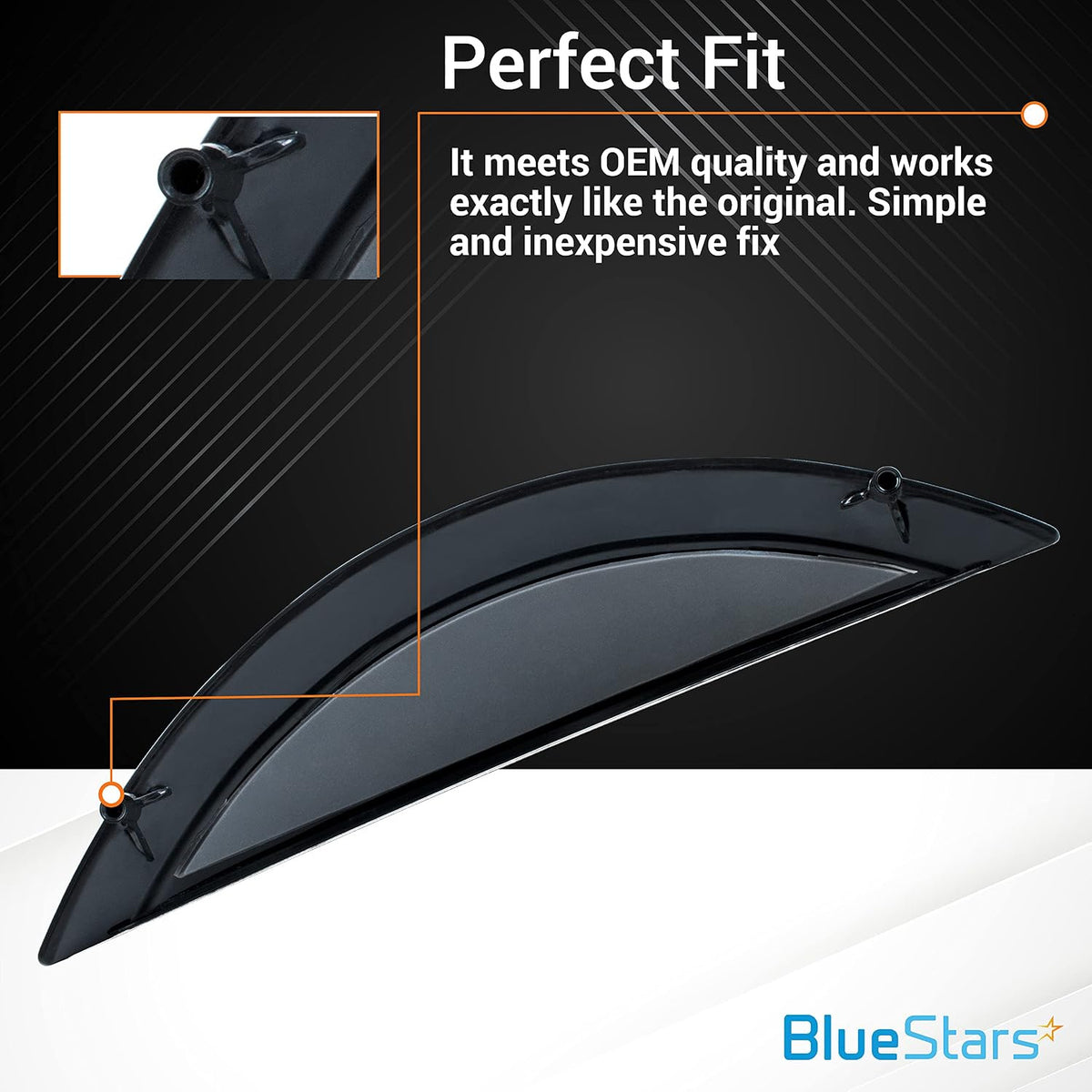

• Precision Pivot Alignment: Engineered with exact tolerances for the internal mounting pins, ensuring a "no-play" fit that prevents the handle from feeling loose or wobbly during operation.

Replaces / Cross-Reference Part Numbers

• 134412860
• 134412800
• 1378569
• AP4315875
• PS2330842
• AH2330842
• EA2330842

Compatibility & Fitment

This door handle is the standard replacement for most Frigidaire-manufactured front-load washers produced between 2005 and 2015. Key compatible brands include:

• Frigidaire / Frigidaire Affinity: Fits hundreds of ATF, FAFW, FAFN, FAEW, and GLTF series models (e.g., ATF6000ES, FAFW3511KW).
• Kenmore (417 Series): Compatible with many 417-prefix front-load washers produced by Frigidaire for Sears (e.g., 417.44052400, 417.41100000).
• Electrolux, Crosley, & White-Westinghouse: Direct fit for various CFW and WLT series units utilizing the 134412860 handle style.
• Note: This is the outer plastic handle. If the door still won't open after replacing the handle, you may need to inspect the internal metal latch or the 131763202 door strike.

When to Replace

• Handle Snapped Off: The most common failure—the plastic mounting tabs inside the handle have sheared off, leaving you with the handle in your hand and the door stuck shut.
• Door Won't Open: You pull the handle, but it doesn't "engage" the internal latch mechanism, often because the internal plastic leverage point has cracked.
• Visible Cracks: Hairline fractures appearing near the pivot points, indicating the plastic is reaching its fatigue limit and is about to fail.
• Cosmetic Discoloration: The handle has turned yellow or grey compared to the rest of the door, making the machine look aged.
• Loose/Floppy Feel: The handle doesn't spring back into place or feels "spongy" when pulled, suggesting the plastic housing is deformed.

Installation Tips

• Safety First: For your safety, unplug the washer before starting. While this is a mechanical repair, you will be working near the door lock wiring.
• Access the Screws: You will typically need to remove the several Torx or Phillips head screws located on the inner door panel. This allows the inner and outer door shells to separate.
• The "Glass" Precaution: Be extremely careful when separating the door panels; the heavy glass "bowl" is held in place by these panels. Have a second person hold the glass or lay the door flat on a towel-covered table.
• Transfer the Hardware: You may need to move the metal pivot pin and the small return spring from your old handle to the new 134412860. Note their orientation before removal.
• Snap and Screw: Once the new handle is seated, realign the door panels. Ensure the handle moves freely before tightening all the screws back into the inner panel.
