3920DD3005A Dishwasher Door Gasket Seal for LG Kenmore Dishwasher - Replaces 1267456 PD00001769 3920DD3003A
0.00
Regular price
$31.38
Regular price
Save 13%
$36.09
Sale price
$31.38
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

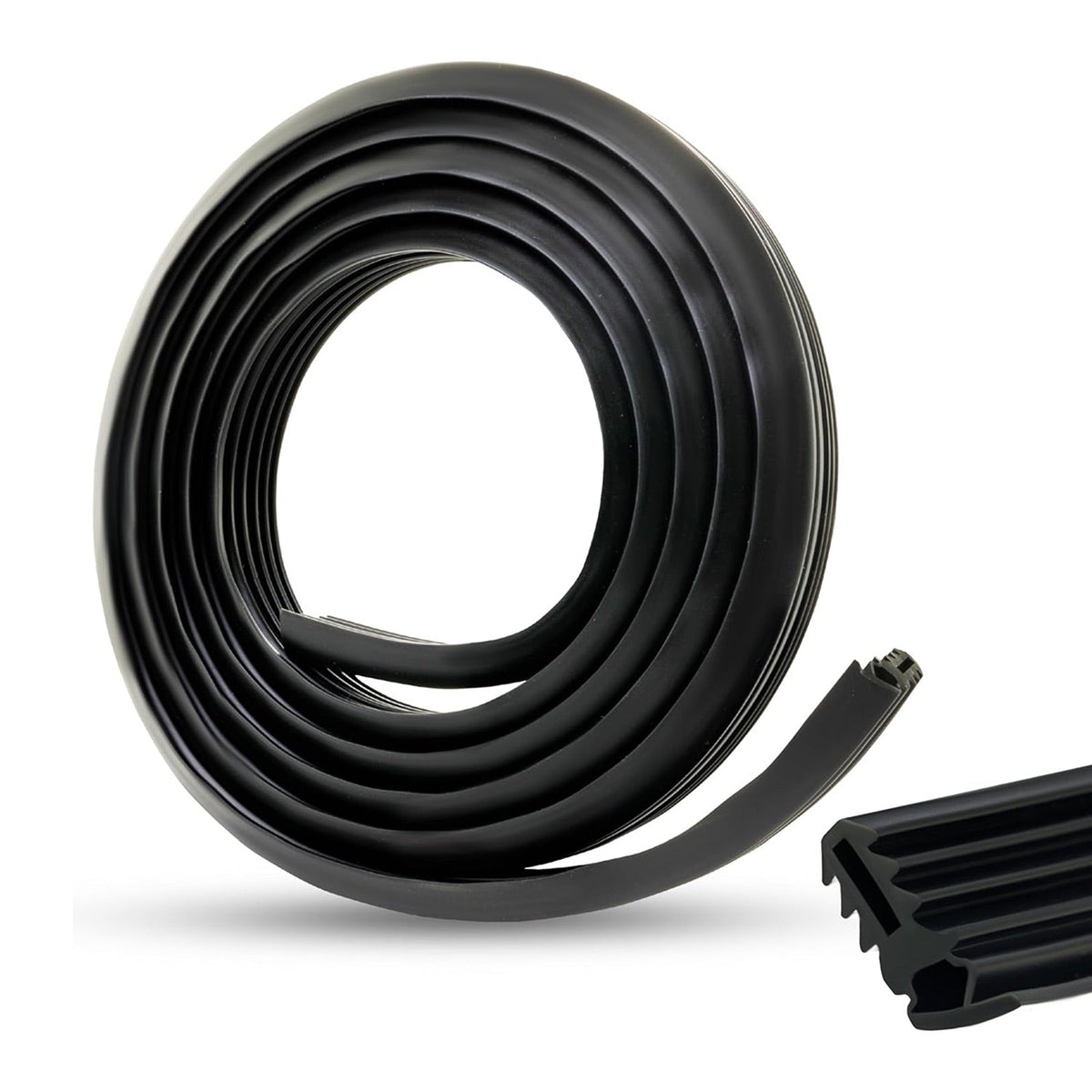

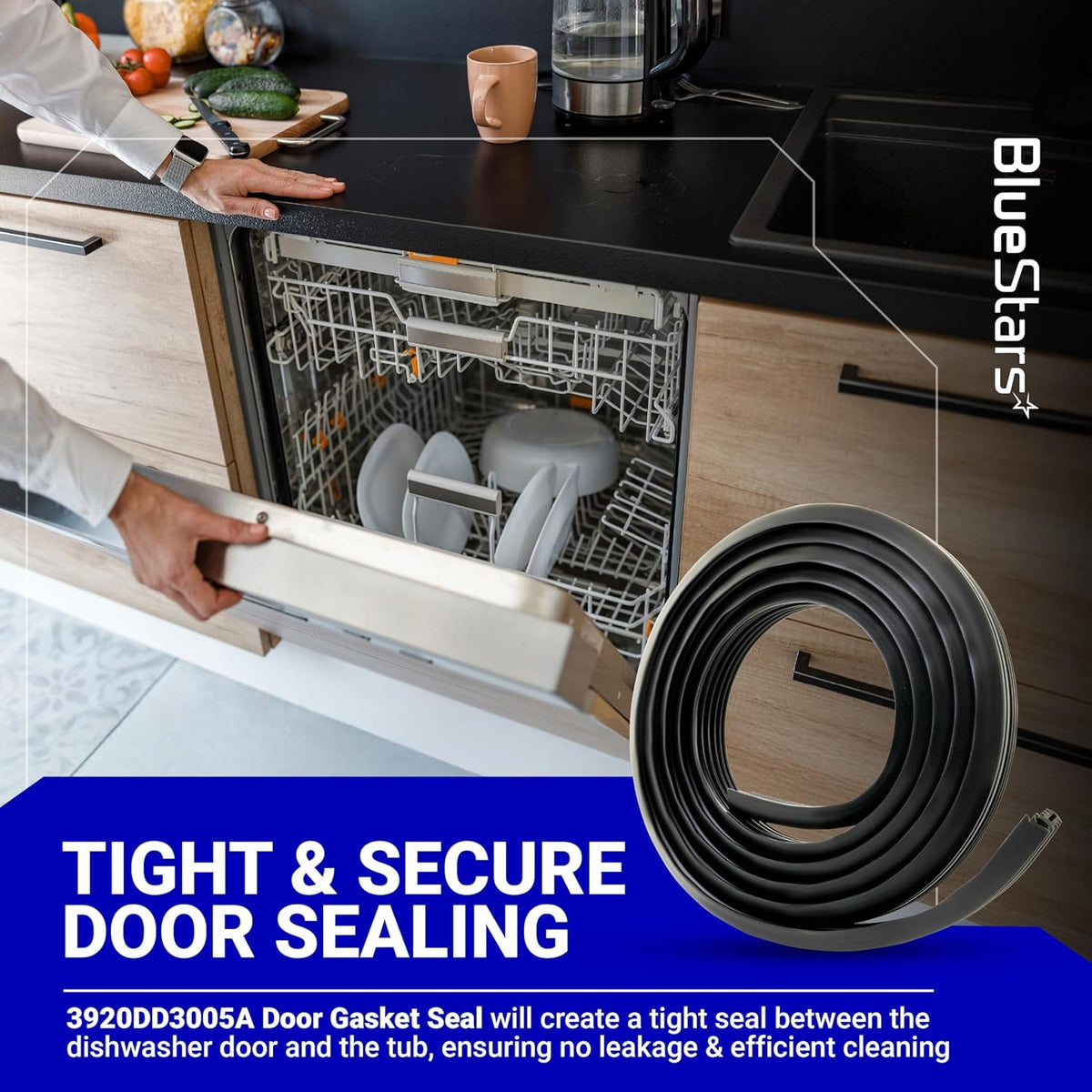

3920DD3005A Dishwasher Door Gasket Seal
Key Features
- Creates a watertight seal between the dishwasher door and tub
- Prevents water leaks during operation

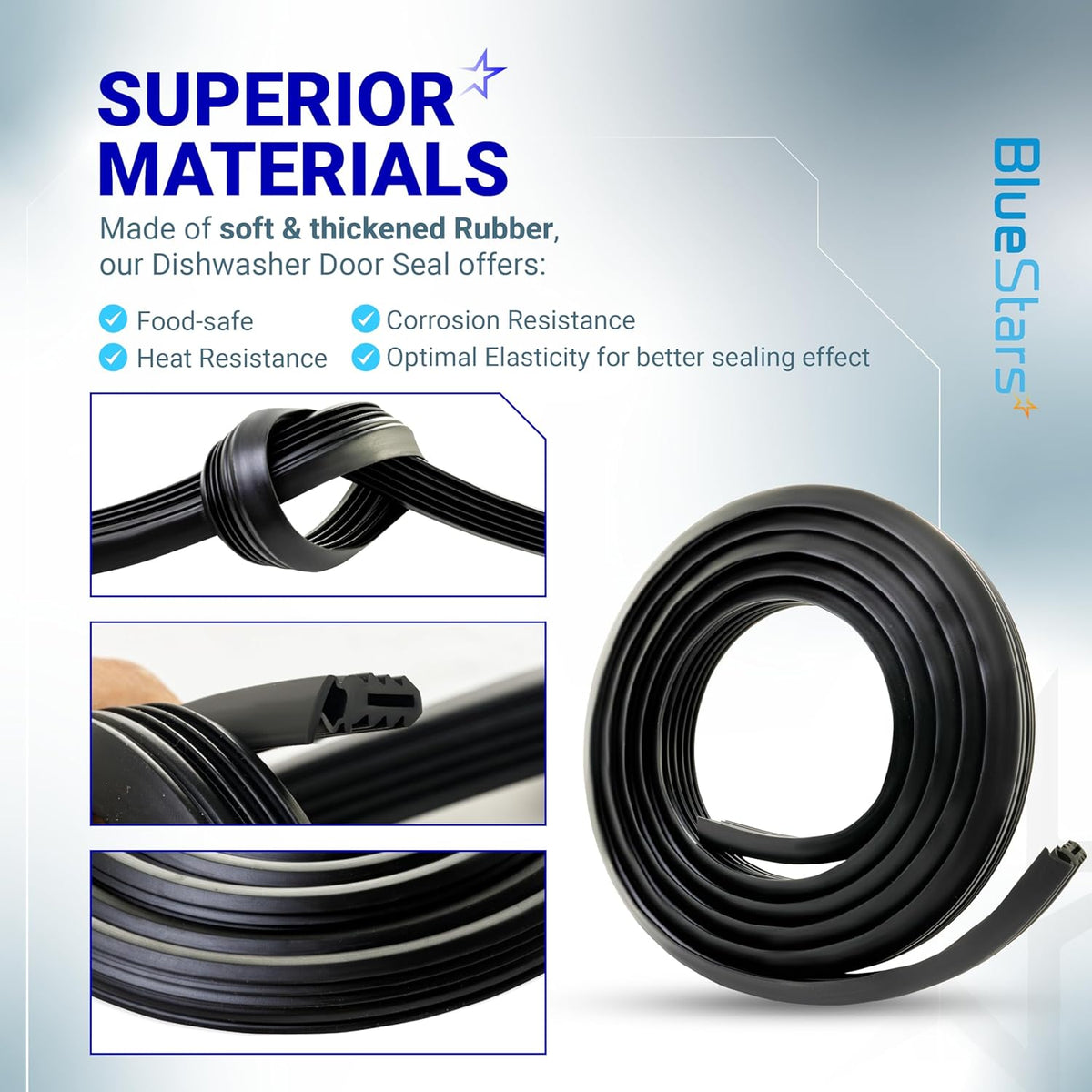

- Constructed from durable, flexible rubber
- Direct replacement for specified part numbers
Replaces / Cross-Reference Part Numbers
- 3920DD3005H
- AP4437203
- PS3522654
- 3920DD3003A
- AH3522654
- EA3522654
- 1267456

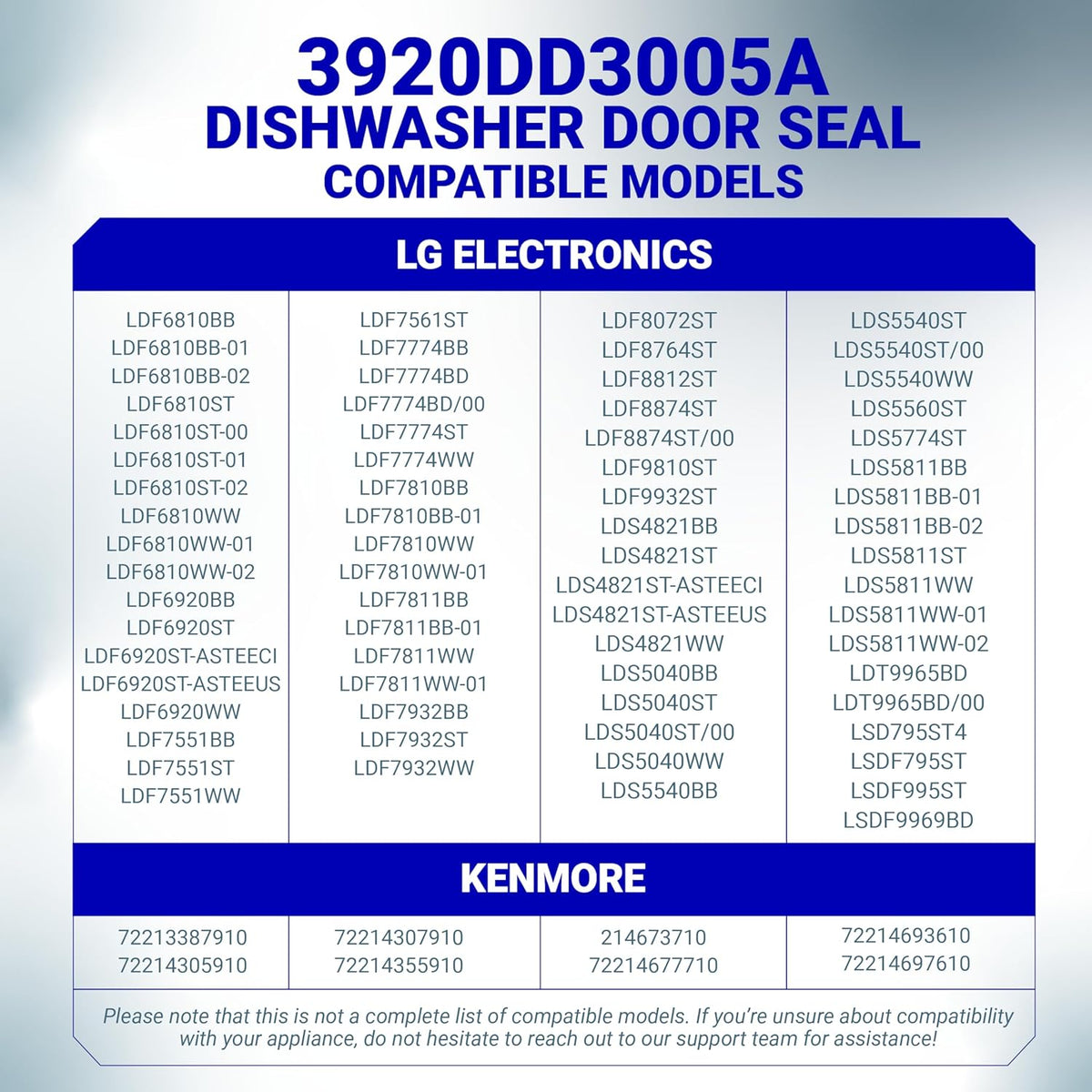

Compatibility & Fitment
- Designed for specific dishwasher models manufactured by LG and Kenmore
- Compatible with select models in the LDF, LDS, and LDT series
- Example compatible models include: D1401TB, LDF6920BB, LDF7811BB, LDF9932ST, LDS4821ST, LDS5811BB, LDS5811ST
- Confirm compatibility by checking your appliance's model number and service manual
When to Replace
- Water is leaking from the front or sides of the dishwasher door
- The existing gasket shows visible damage such as cracks, tears, or brittleness
- The seal is loose, deformed, or no longer seated correctly in its channel
Installation Tips
- Disconnect the dishwasher from power and water supplies before installation
- Remove the old gasket by pulling it out from the door channel
- Clean the channel thoroughly to remove any residue or debris
- Soaking the new gasket in warm water can make it more pliable for an easier installation
- Press the new gasket firmly into the channel, starting from the top center and working towards the bottom
-
WIDE COMPATIBILITY
Compatible with specific LG & Kenmore Dishwasher models (detailed list below) -

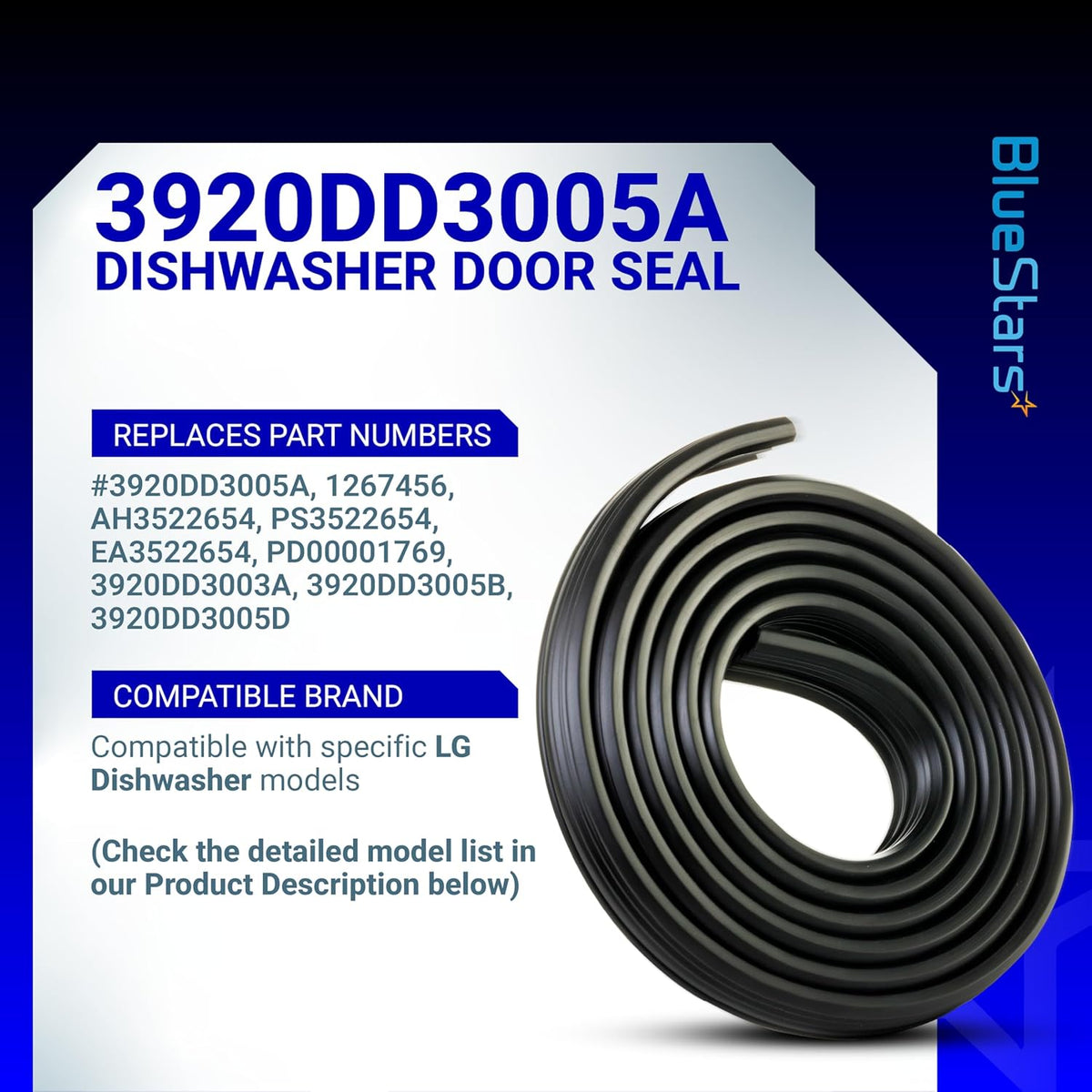

PART NUMBERS
This Door Gasket Seal replaces parts: #3920DD3005A, 1267456, AH3522654, PS3522654, EA3522654, PD00001769, 3920DD3003A, 3920DD3005B, 3920DD3005D -
SAVING SOLUTION
BlueStars brings DIY solutions to help deal with any trouble -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

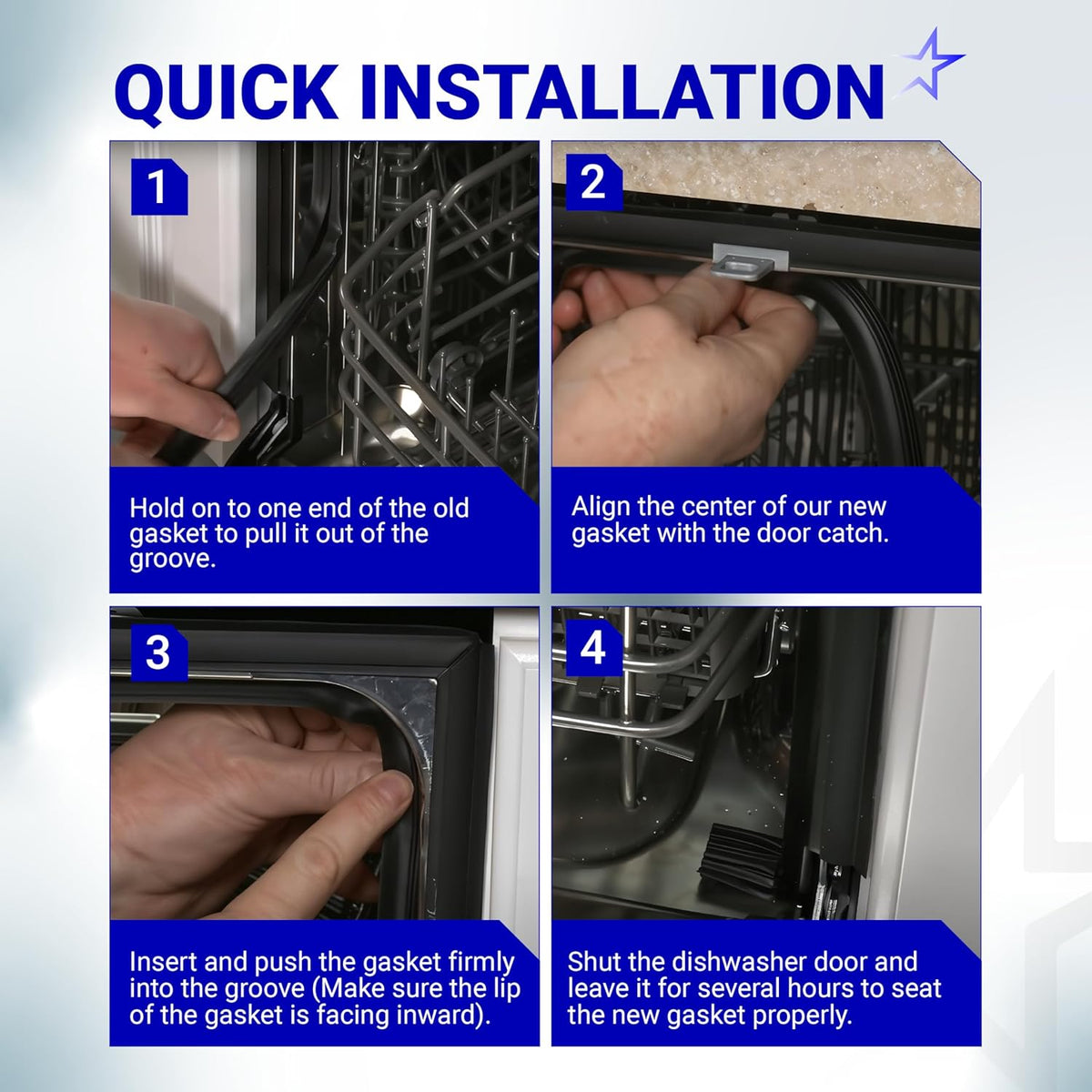

4 SIMPLE STEPS
1. Hold on to one end of the old gasket to pull it out of the groove; 2. Align the center of our new gasket with the door catch; 3. Insert and push the gasket firmly into the groove (Make sure the lip of the gasket is facing inward); 4. Check if the door can close and seal properly. Shut the dishwasher door and leave it for several hours to seat the new door seal properly.
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
