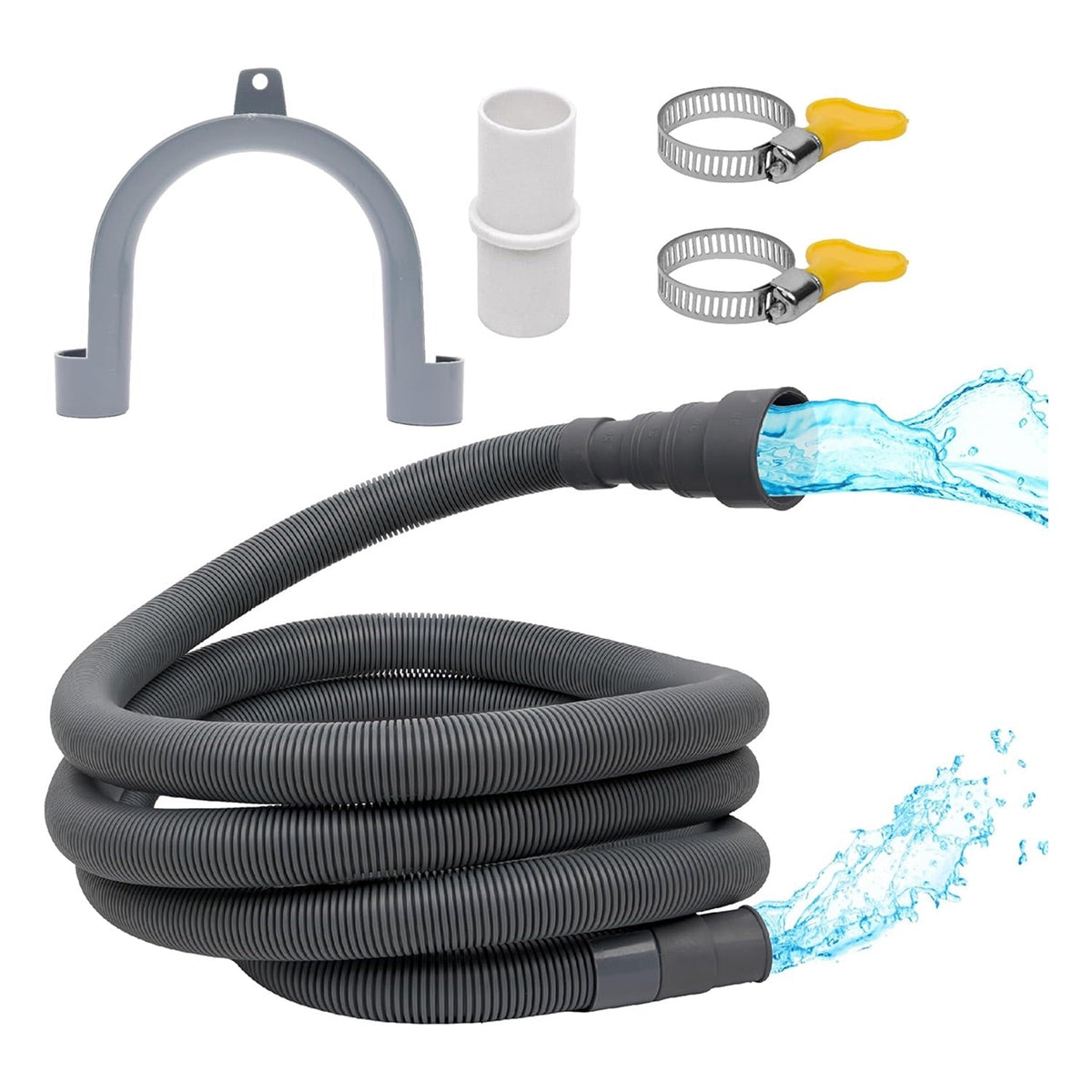

10 FT Dishwasher & Washing Machine Drain Hose - Extension Kit with 1 Extension Adapter, 2 Clamps, 1 U-Bend Hose Holder

10 Feet Universal Dishwasher & Washing Machine Drain Hose

Key Features

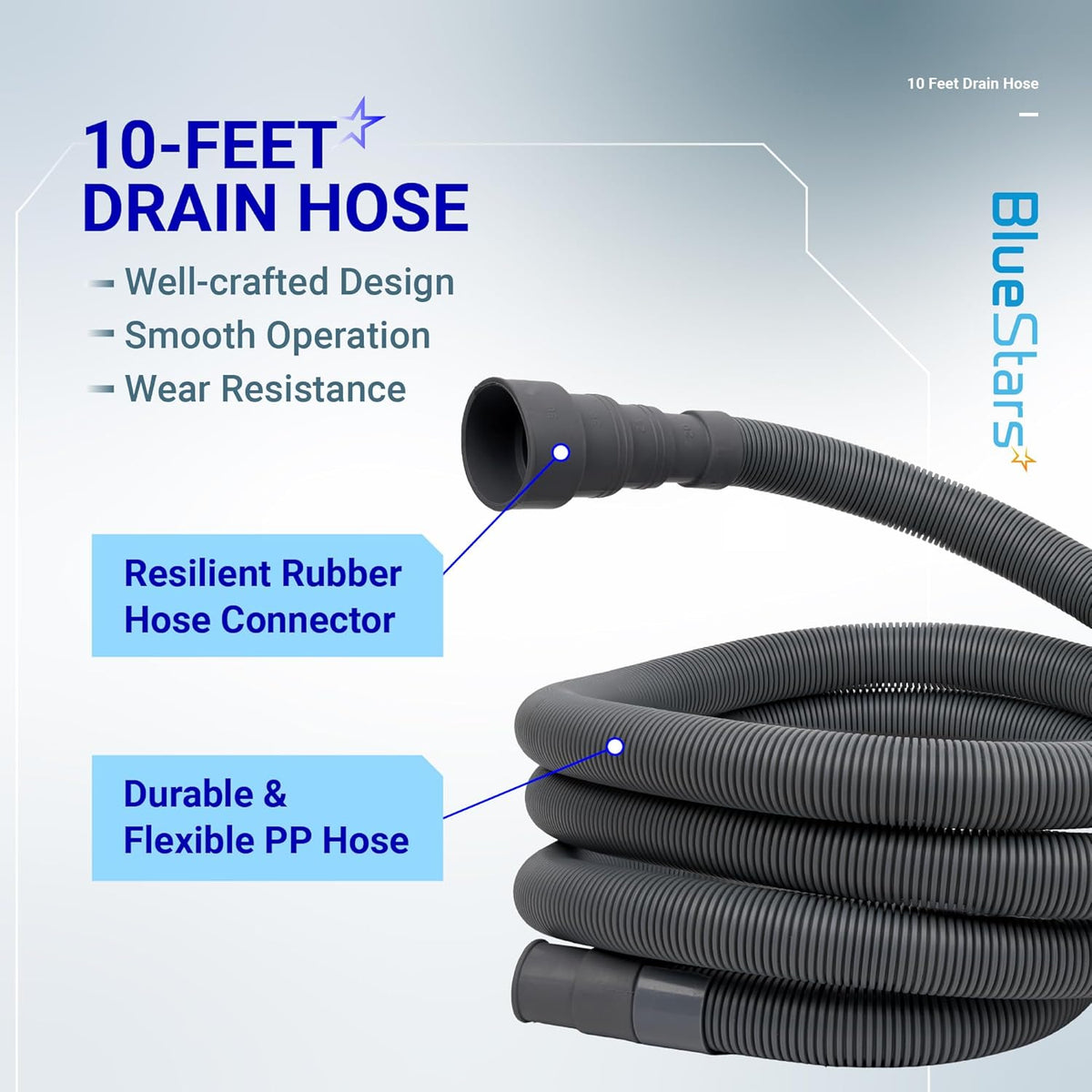

• Ultra-Flexible Corrugated Design: Manufactured from high-density, thickened polypropylene (PP) with a specialized corrugated structure that prevents kinking, crimping, and collapsing, even when routed through tight cabinetry or around sharp corners.

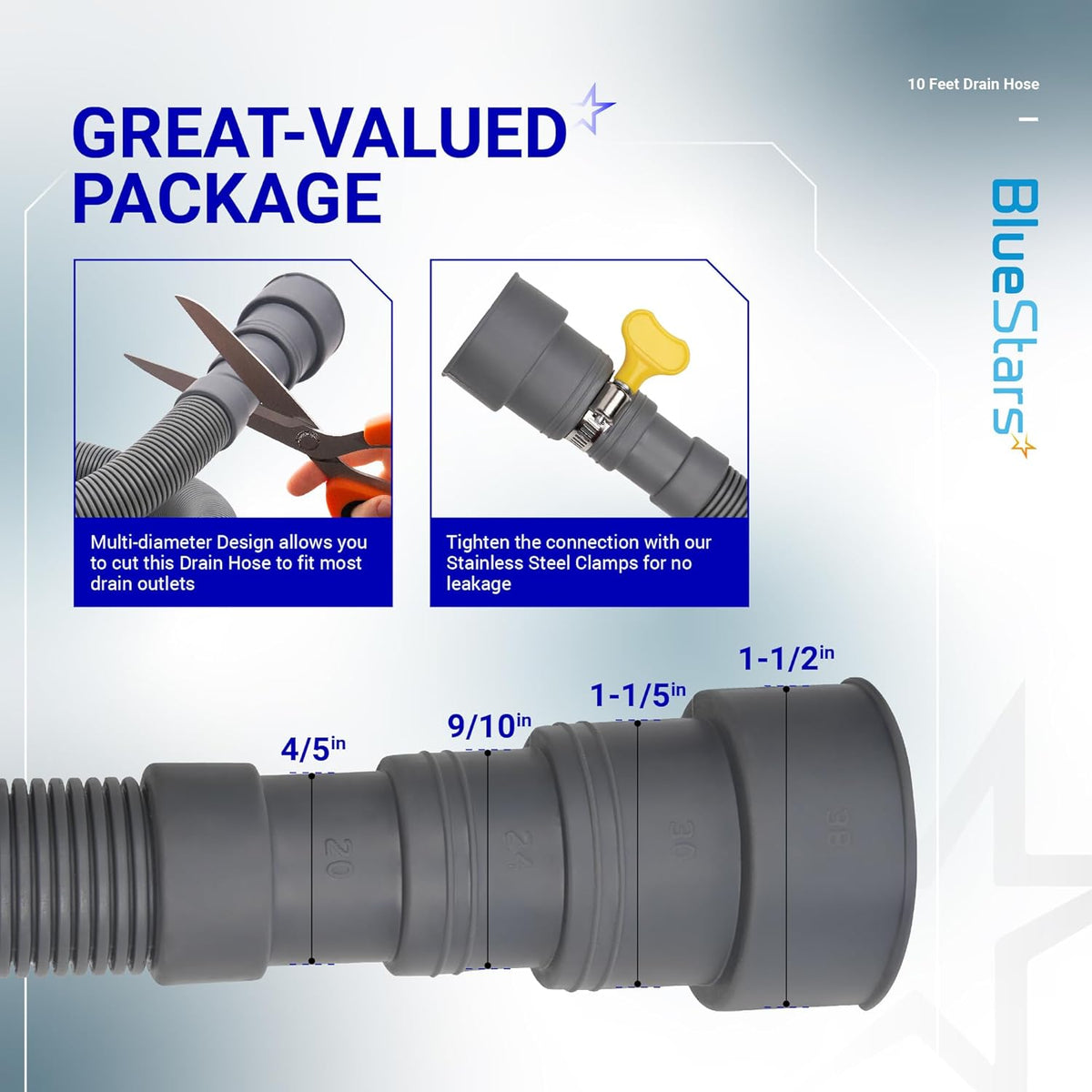

• Universal Multi-Fit Connectors: Features a trimmable, stepped-diameter inlet head designed to fit four common drainage sizes (3/4", 7/8", 1-1/8", and 1-1/4"), ensuring a snug, leak-proof seal with a wide variety of appliance pump outlets.
• Extended 10-Foot Reach: Provides an ample 120-inch length, making it the ideal solution for laundry rooms or kitchens where the appliance is located far from the utility sink, standpipe, or garbage disposal.
• Heavy-Duty Seal Kit: Includes two industrial-grade stainless steel worm-gear clamps that provide superior 360-degree compression, effectively eliminating drips and blow-offs during high-pressure pump-out cycles.

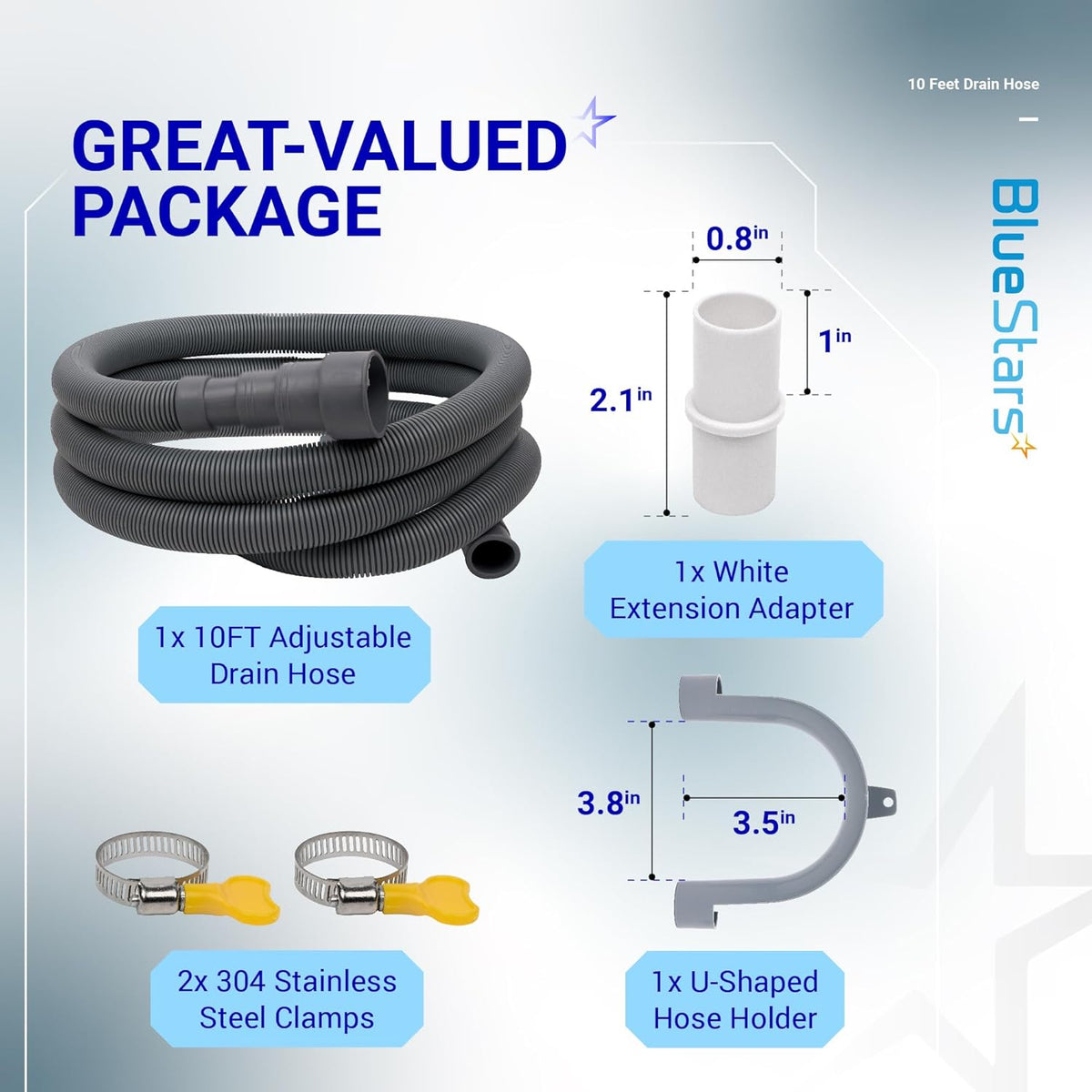

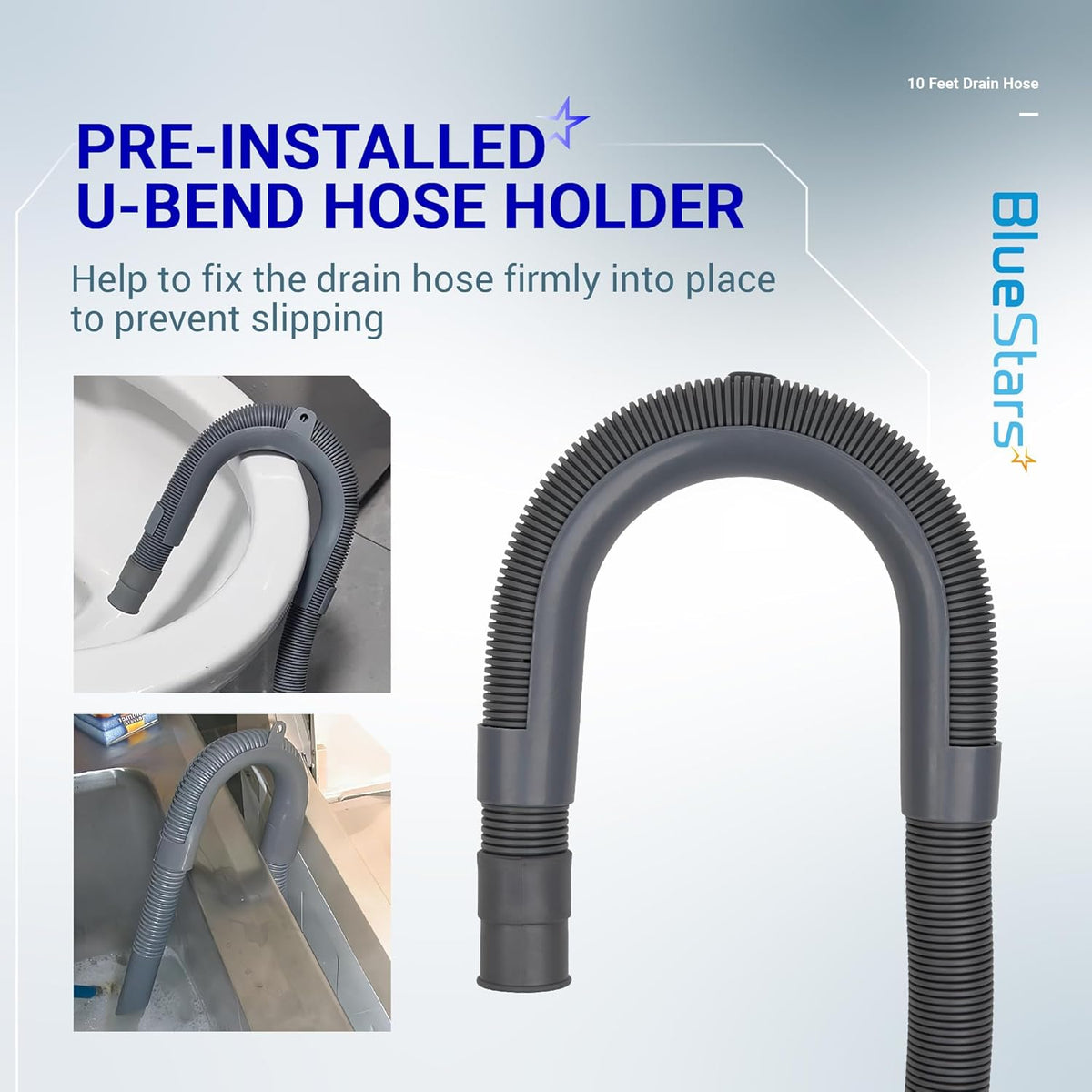

• Integrated Flow Management: Comes with a rigid U-bend hose holder and a straight extension adapter, allowing for secure "high loop" installations or the seamless joining of two hoses for even longer runs.

Replaces / Cross-Reference Part Numbers

• Universal Compatibility: Effectively replaces or extends standard drain hoses for thousands of appliance models.
• GE Equivalents: WX28X320, PM14X85, WD24X10062, WD24X10065.
• Whirlpool/Maytag Equivalents: W10545277, WPW10545277, 8212486RC, W11399437.
• Frigidaire/Electrolux Equivalents: 807117001, 154576101, 5304492211.
• Samsung/LG Equivalents: DD81-01525A, AEM73213001, 5215ED3001N.

Compatibility & Fitment

This universal kit is engineered to serve as either a primary replacement or a secondary extension for modern dishwashers and washing machines. Key compatible brands include:

• Washing Machines: Fits most front-load and top-load units from Samsung, LG, Whirlpool, Maytag, GE, Kenmore, and Haier.
• Dishwashers: Compatible with virtually all Bosch, KitchenAid, Frigidaire, and GE models utilizing a standard 5/8", 3/4", or 1" drain port.
• Portable Appliances: Ideal for portable washing machines and countertop dishwashers that require flexible, temporary drainage to a sink or bathtub.
• Note: To ensure a perfect fit, simply trim the stepped rubber end of the hose with a utility knife to match the outside diameter of your appliance's drain outlet.

When to Replace

• Standing Water in Tub: A clogged or kinked drain hose restricts water flow, leading to "F8 E1" or "i10" error codes and puddles at the bottom of the machine.
• Foul "Swampy" Odors: Over time, grease, food particles, and lint build up inside the corrugations, creating a breeding ground for bacteria and mold.
• Visible Leaks or Moisture: Small pinholes or cracks caused by aging plastic or friction against the cabinet floor can cause water damage to your subflooring.
• Slow Drainage/Gurgling: If the hose is partially blocked or improperly vented, you may hear loud gurgling noises from the sink during the drain cycle.
• Kinked or Flattened Sections: If the appliance has been pushed back too hard against the wall, the hose may be permanently deformed, preventing the pump from emptying the tub effectively.

Installation Tips

• The "High Loop" Essential: To prevent sink wastewater from siphoning back into your appliance, use the included U-bend holder to secure the hose at least 20 inches above the floor before it connects to the drain.
• Custom Trimming: Measure your appliance outlet carefully. Cut the hose's rubber head at the smallest diameter that fits snugly over the outlet; a tighter fit requires less clamp tension to stay waterproof.
• Double-Clamp Security: If using the extension adapter to join two hoses, place a clamp on both sides of the adapter and tighten until the rubber "bites" slightly into the adapter ribs.
• Avoid Sharp Bends: Route the 10-foot hose in large, sweeping curves. Tight 90-degree turns increase the likelihood of debris catching in the corrugations and forming a clog.
• Post-Install Test: Always run a full "Rinse & Spin" or "Express Wash" cycle after installation. Use a dry paper towel to check every connection point for moisture during the pump-out phase.
