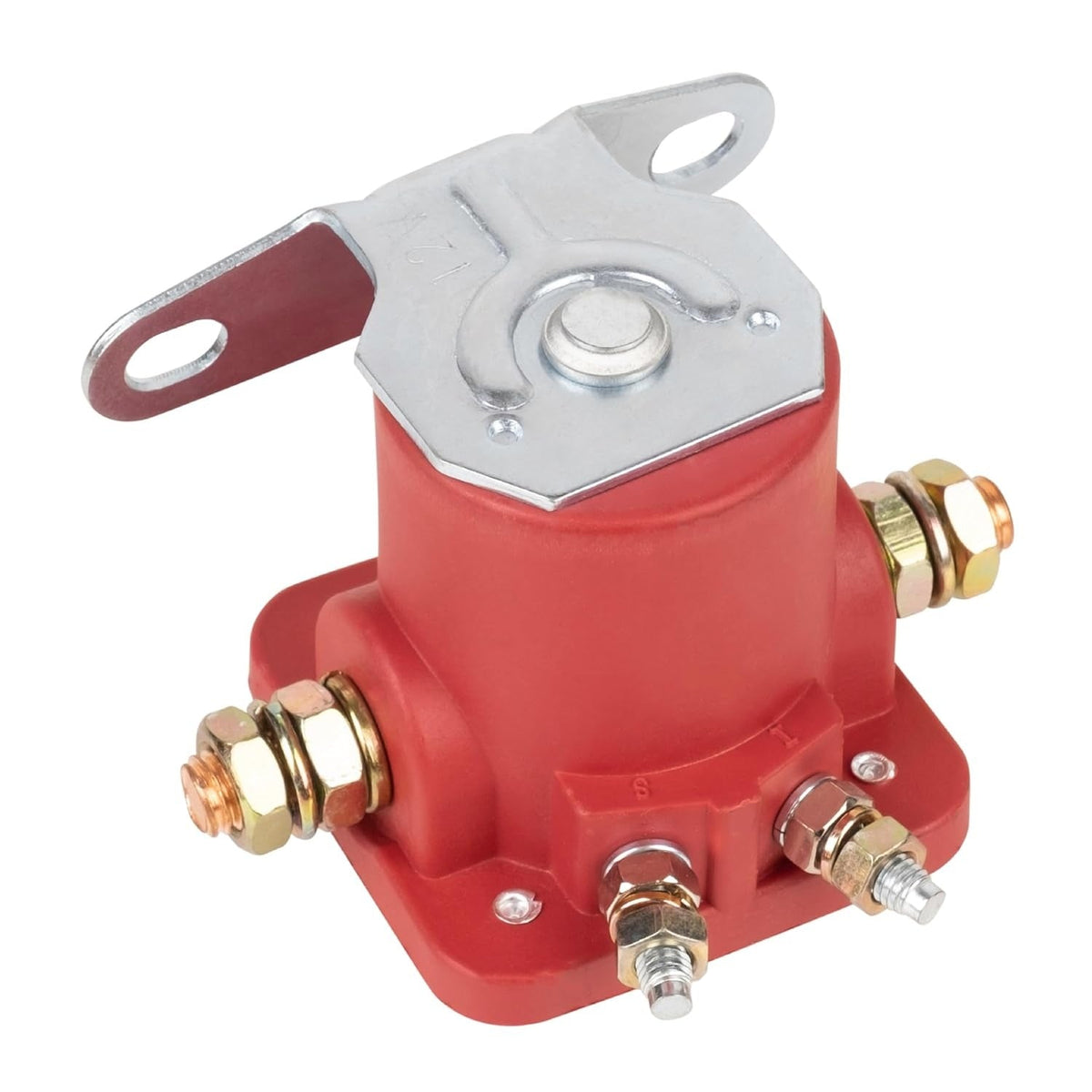

12V Heavy Duty SW3 Hot Rod Starter Solenoid SS581T/ ALL7620
0.00
Regular price
$13.19
Regular price
Save 11%
$14.77
Sale price
$13.19
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
12V Heavy Duty SW3 Hot Rod Starter Solenoid SS581T/ ALL7620
Key Features
- Operating Voltage: 12V DC
- Terminal Configuration: Standard SW3 style
- Function: Relays high-current electrical power from the battery to the starter motor

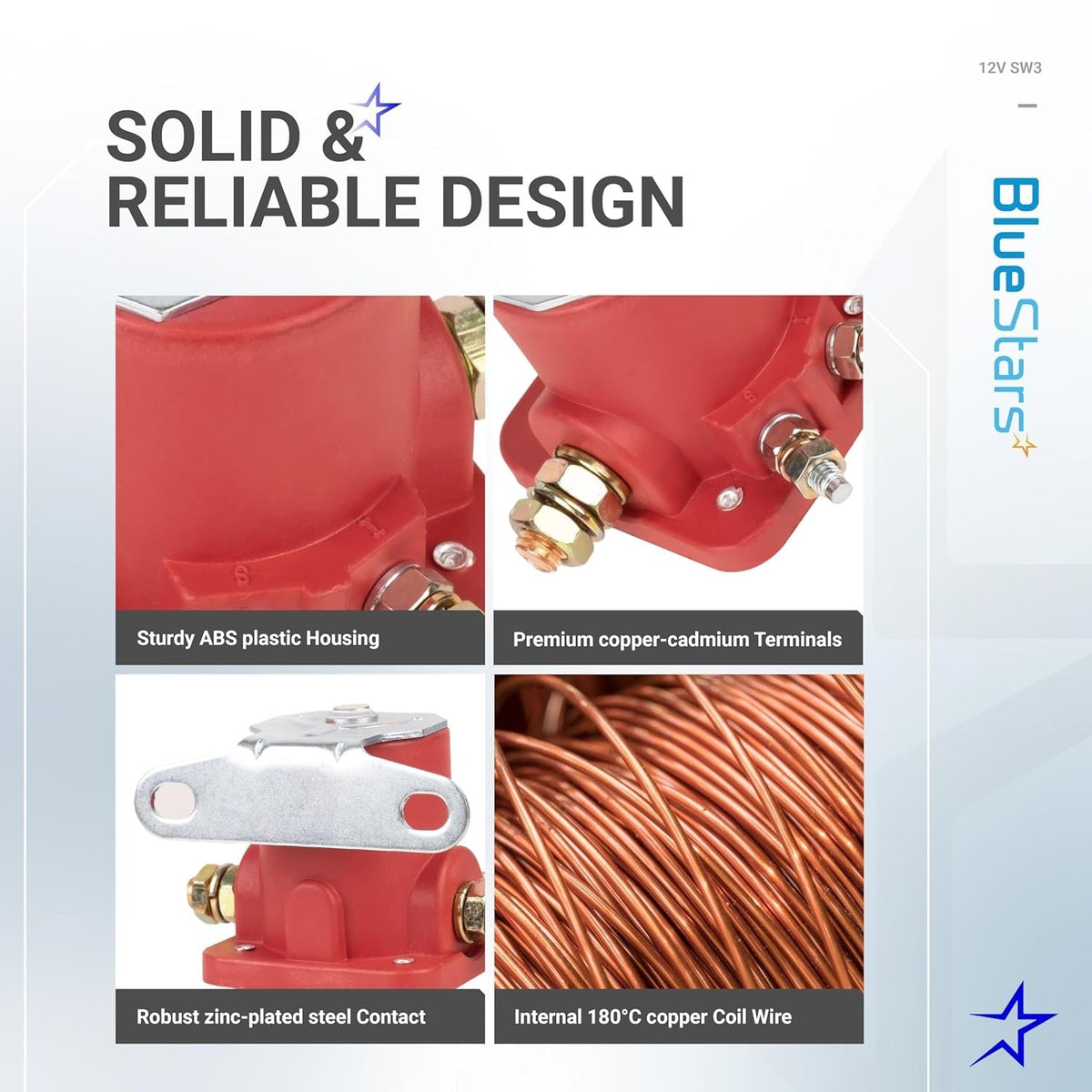

- Construction: Heavy-duty design for high-amperage applications and durability
- Application: Suitable for use with remote start switches and timing lights
Replaces / Cross-Reference Part Numbers
- SS581T
- ALL7620
- ALL76203
- 2700006
- 2900550
- B4TZ-11002-A
- B6A-11002A
- B-6A-11450A
- C6AF
- C7AF
- C9AF
- F496
- SS588
- 66-200
Compatibility & Fitment
- Commonly used in hot rods, custom vehicle builds, and heavy-duty applications.
- Fits various Ford models including 2000, 3000, and 4000 series tractors (1956 and newer).
- Compatible with select Ford Bronco, Mercury, and Evinrude applications.
- Note: Always verify fitment by cross-referencing your original part number.
When to Replace
- Engine fails to crank or makes a single, loud clicking sound when the ignition is turned.
- Intermittent starting issues where the vehicle sometimes starts and sometimes does not.
- The starter motor continues to run after the engine has started.
- No sound or action from the starter when the ignition key is in the start position.
Installation Tips
- Always disconnect the negative battery terminal before starting work.
- Take a photo or label the wires connected to the old solenoid to ensure correct placement on the new unit.
- Clean all wire terminals and connection points to ensure a solid electrical contact.
- Securely mount the new solenoid in the original location, away from excessive engine heat or direct moisture.
