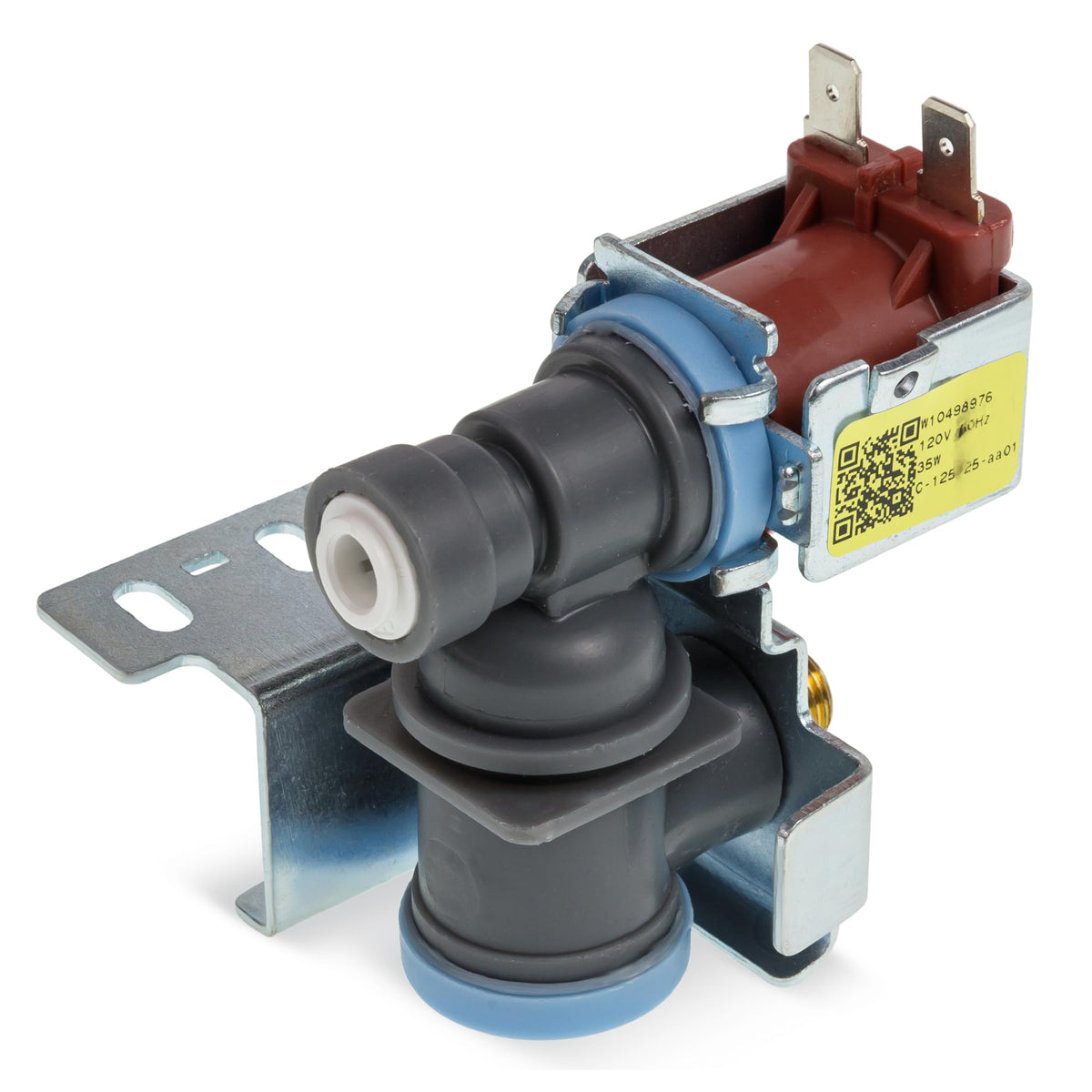

WPW10498976 refrigerator ice maker water inlet valve with mounting bracket and electrical terminals.
Dimensional diagram of WPW10498976 refrigerator water inlet valve showing connection sizes and terminal measurements.
WPW10498976 refrigerator water inlet valve with technical specifications chart showing 120V, 60Hz, and 35W power.

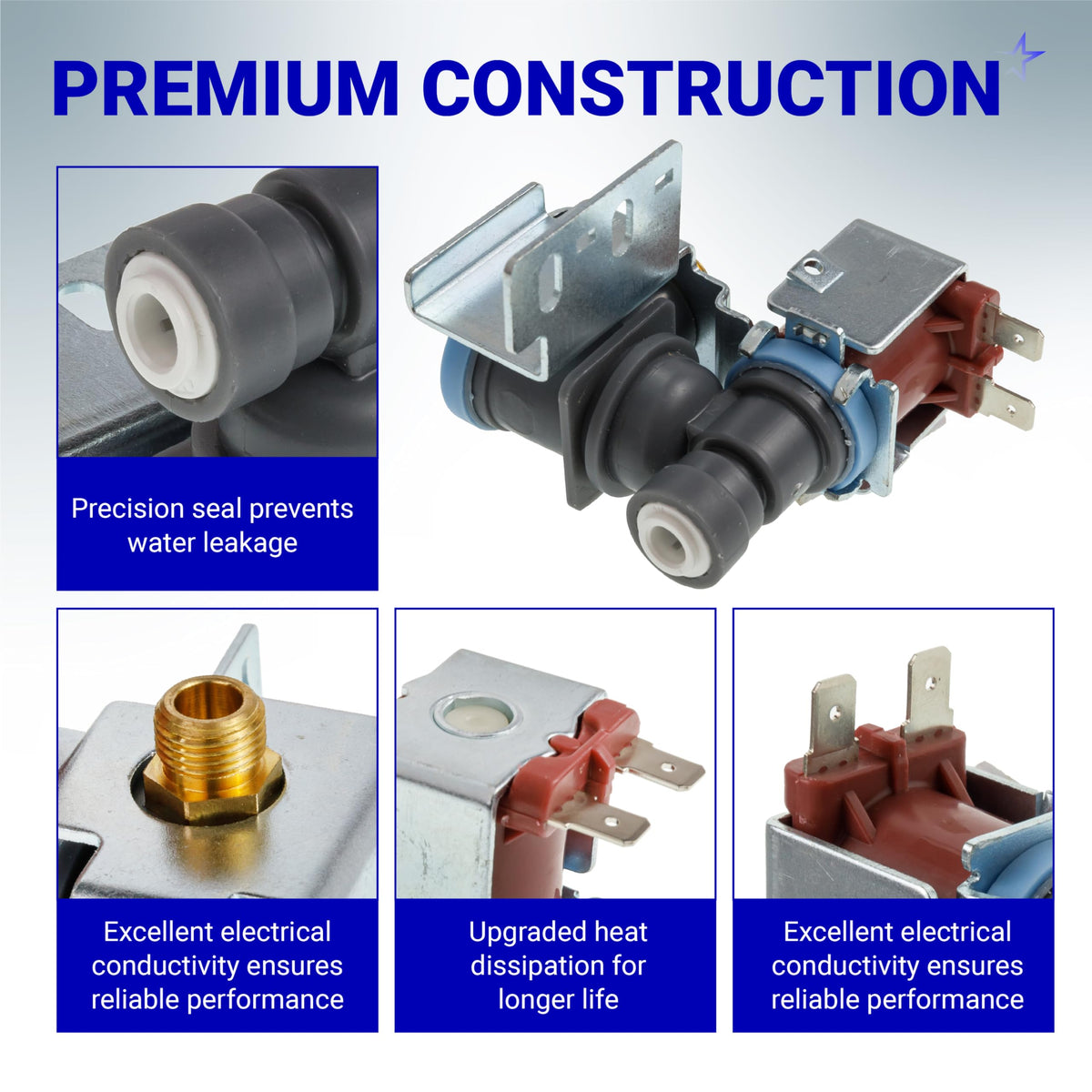

Collage showing construction details of WPW10498976 refrigerator ice maker water inlet valve with seals and terminals.
WPW10498976 refrigerator water inlet valve shown with symptoms of poor water flow and ice maker failure.

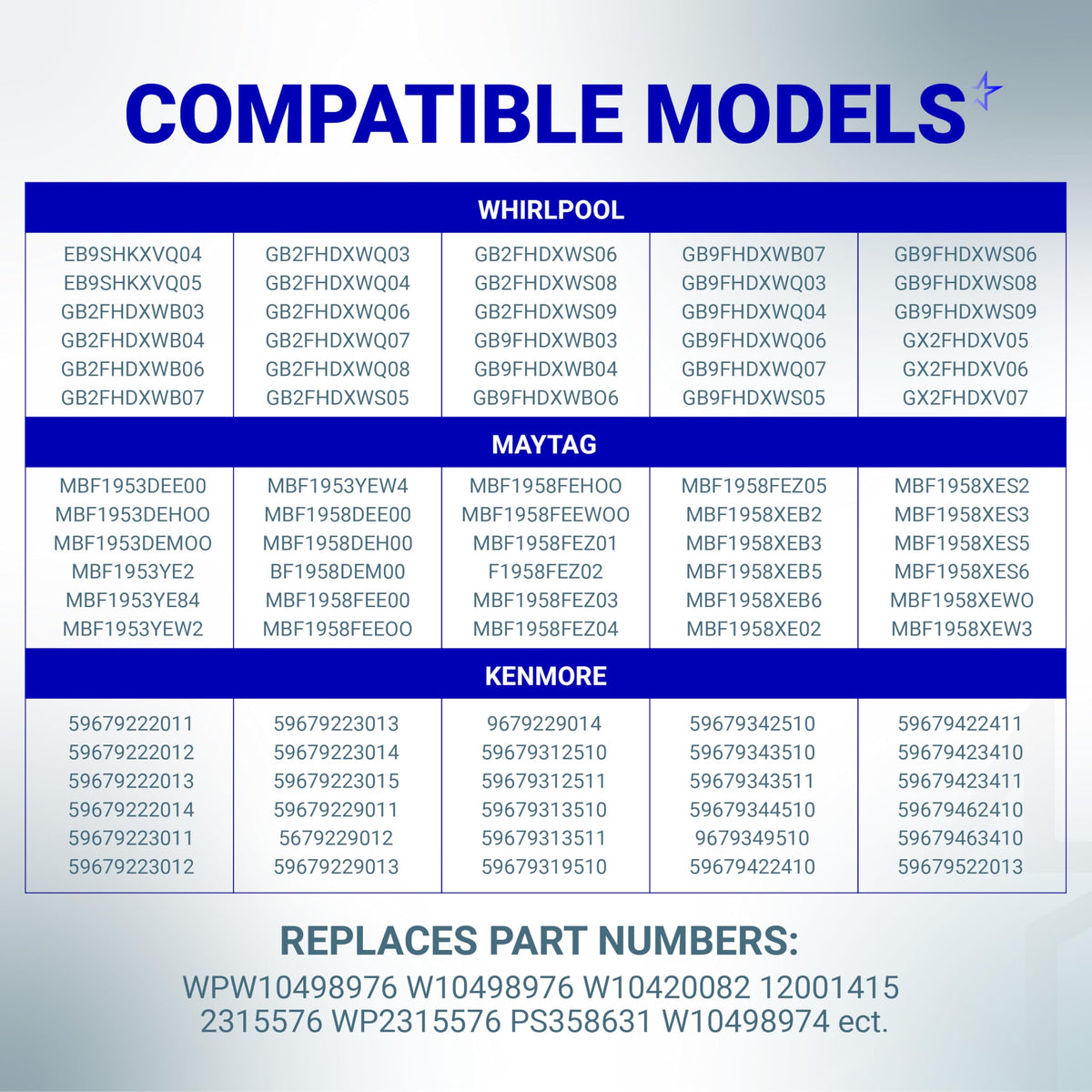

List of compatible refrigerator models and replacement part numbers for WPW10498976 water inlet valve.
Four-step installation guide for replacing a refrigerator ice maker water inlet valve.

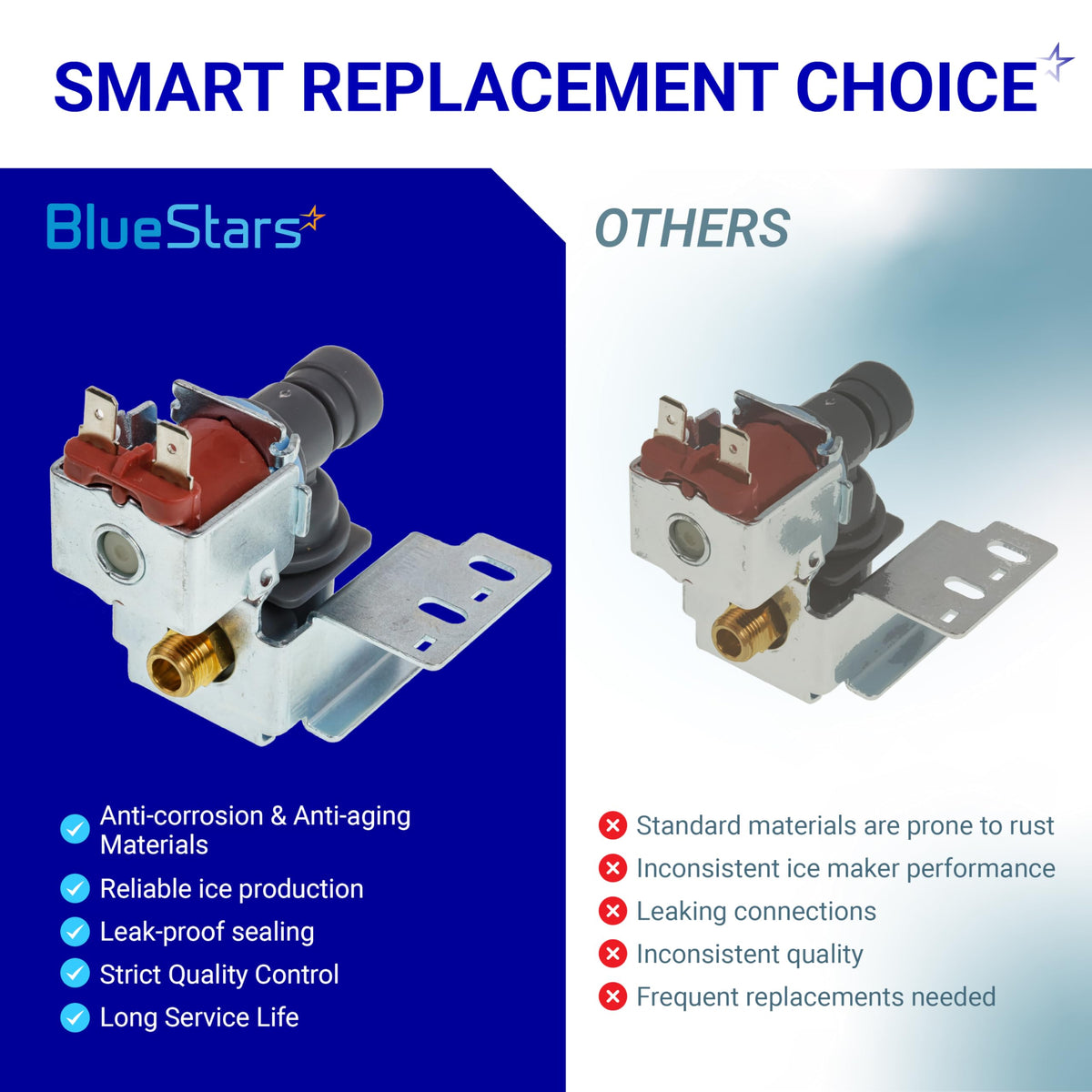

Comparison chart showing WPW10498976 refrigerator water inlet valve quality benefits versus standard alternatives.
WPW10498976 refrigerator ice maker water inlet valve replacement part with metal mounting bracket and electrical terminals.
WPW10498976 refrigerator ice maker water inlet valve with mounting bracket and electrical terminals.
Dimensional diagram of WPW10498976 refrigerator water inlet valve showing connection sizes and terminal measurements.
WPW10498976 refrigerator water inlet valve with technical specifications chart showing 120V, 60Hz, and 35W power.
Collage showing construction details of WPW10498976 refrigerator ice maker water inlet valve with seals and terminals.
WPW10498976 refrigerator water inlet valve shown with symptoms of poor water flow and ice maker failure.
List of compatible refrigerator models and replacement part numbers for WPW10498976 water inlet valve.
Four-step installation guide for replacing a refrigerator ice maker water inlet valve.
Comparison chart showing WPW10498976 refrigerator water inlet valve quality benefits versus standard alternatives.
WPW10498976 refrigerator ice maker water inlet valve replacement part with metal mounting bracket and electrical terminals.
Lifetime Warranty

WPW10498976 W10498976 Refrigerator Ice Maker Water Inlet Valve for Maytag Whirlpool Kenmore

Save 13%
0.00
$23.67
$27.22
$23.67
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

WPW10498976 Refrigerator Ice Maker Water Inlet Valve

Key Features

  • Dual-Solenoid Control: Features two independent electromagnetic coils—one dedicated to the ice maker and one for the water dispenser—ensuring precise flow for each function.
  • Optimized Pressure Regulation: Specifically calibrated to maintain the correct flow rate for Whirlpool-built refrigerators, preventing ice tray overfilling and splashing.
  • Quick-Connect Fittings: Equipped with push-to-connect ports for 1/4" and 5/16" plastic tubing, allowing for a tool-free and leak-resistant connection to the internal water lines.
  • Stainless Steel Mesh Screens: Integrated internal filters at the intake ports protect the valve diaphragms from sediment and pipe scale.

Replaces / Cross-Reference Part Numbers

  • W10498976
  • AP6022334
  • PS11755667
  • EAP11755667
  • W10420082
  • K-78200
  • K-78186
  • W10498974
  • 2684516
  • IMV-576

Compatibility & Fitment

This valve is a standard replacement for many side-by-side and bottom-freezer refrigerators. Key compatible brands include:

  • Whirlpool: Fits various WRF, WRS, and WRX models (e.g., WRF736SDAM, WRS325FDAM).
  • Maytag: Compatible with many MFI, MFF, and MSD series refrigerators (e.g., MFI2570WEM).
  • Kenmore / Sears: Fits various 106-series and 596-series models manufactured by Whirlpool.
  • Amana & KitchenAid: Compatible with select units utilizing the WPW10498976 dual-valve configuration.

When to Replace

  • No Ice or Water: The ice maker cycle triggers and you hear a click, but no water enters the tray, or the water dispenser fails to flow.
  • Leaking at the Rear: Visible water dripping from the back of the refrigerator where the main water line connects.
  • Ice Maker Overfilling: The valve fails to shut off completely, causing water to overflow the ice mold and freeze into a solid block in the bucket.
  • Loud Vibrating Noise: A loud humming or "jackhammer" sound when you attempt to dispense water, indicating a failing solenoid coil.
  • Small Ice Cubes: Low water pressure caused by a partially clogged or failing valve results in hollow or undersized ice cubes.

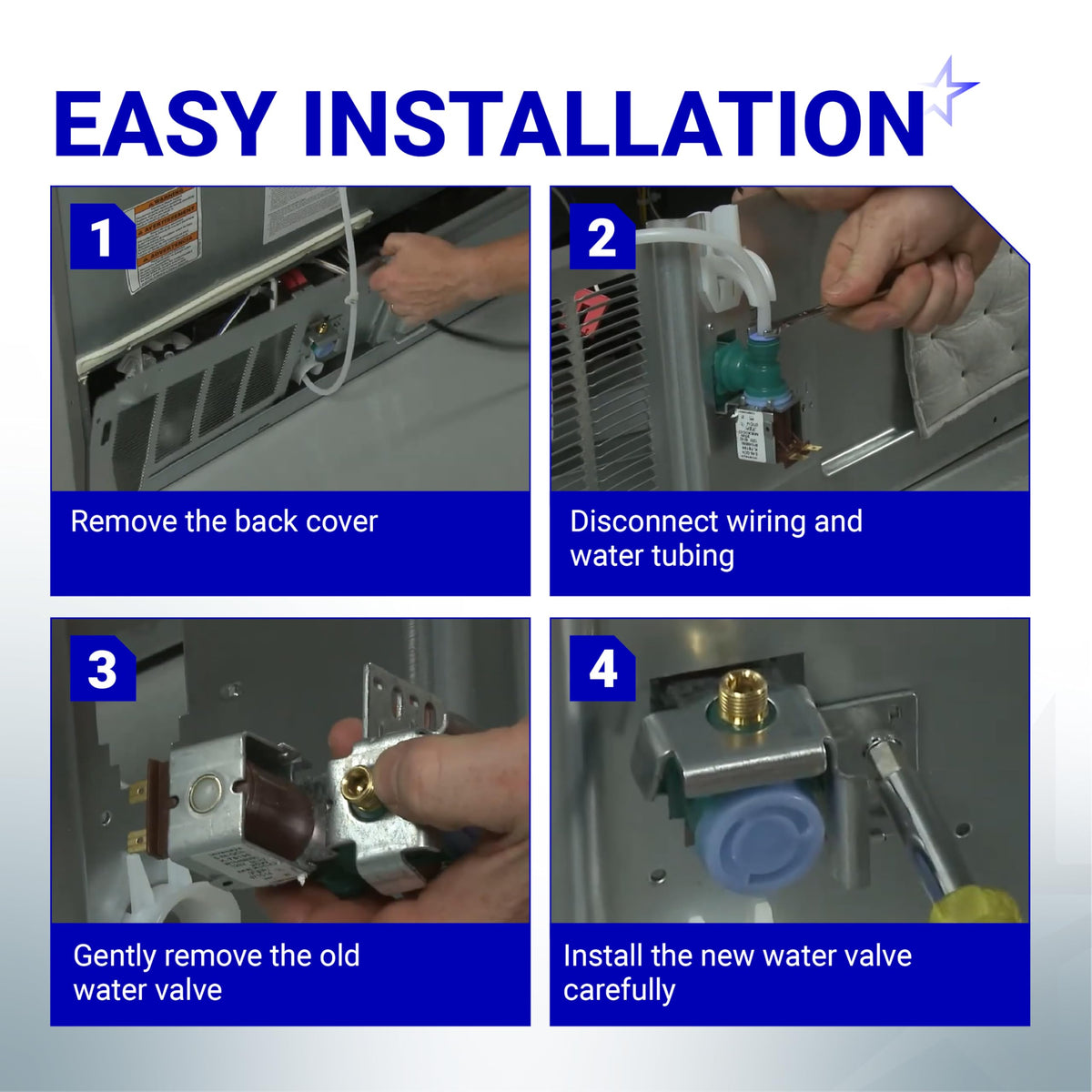

Installation Tips

  • Safety First: Unplug the refrigerator and shut off the main water supply line before starting the repair.
  • Drain the Lines: Dispense the remaining water from the door to relieve pressure in the system before disconnecting the tubing.
  • Tubing Removal: To release the water lines from the quick-connect fittings, push the outer ring (collet) inward toward the valve body while pulling the tube outward.
  • Wiring: The electrical connectors are usually color-coded to match the solenoid coils (often red and blue). Ensure they are firmly seated on the new terminals.
  • Leak Test: After installation, turn the water on and check for drips at the fittings. Dispense several gallons of water to flush air from the lines before letting the ice maker run.
Product image
Product image
Product image

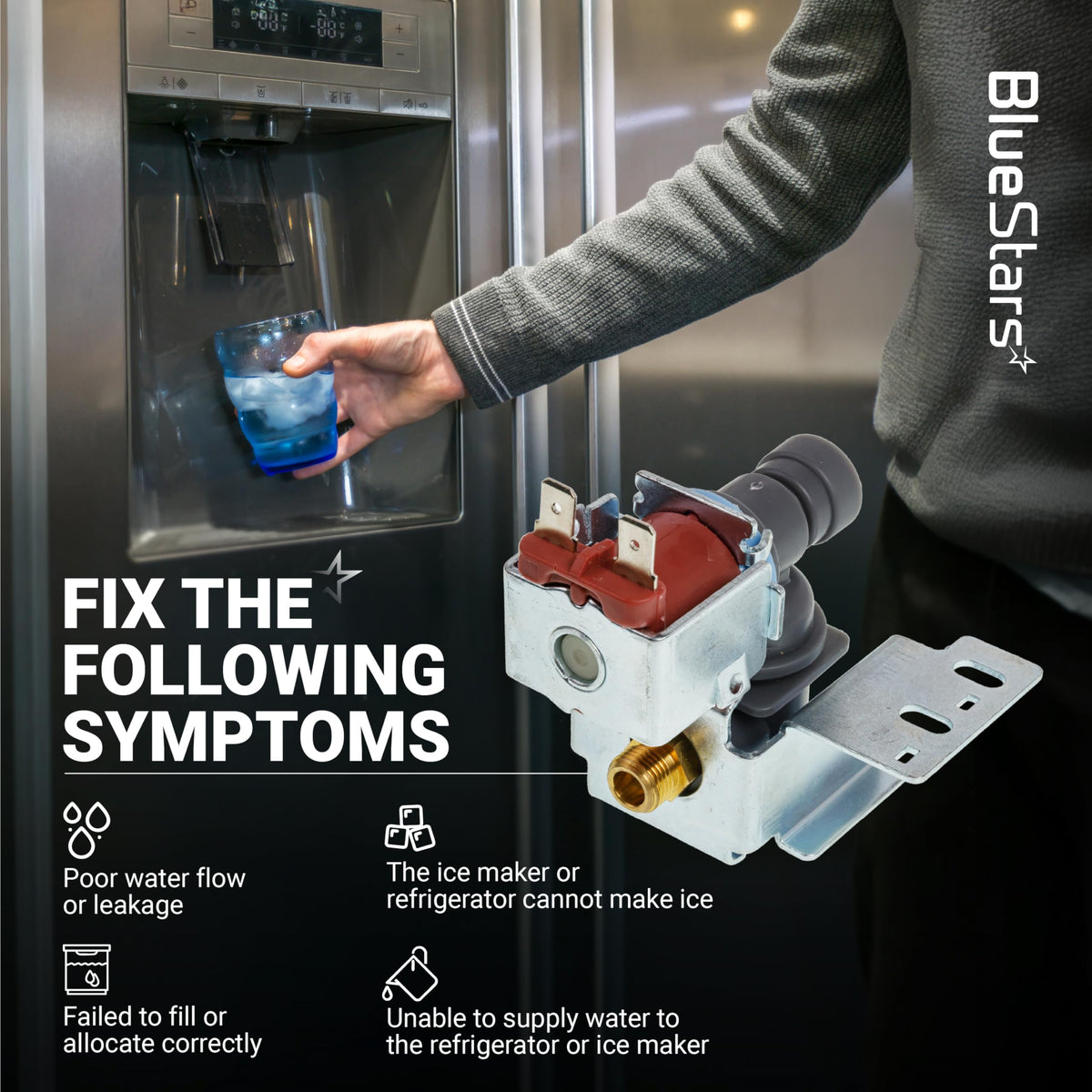

  • FIX REFRIGERATOR'S SYMPTOMS

    FIX REFRIGERATOR'S SYMPTOMS

    Poor water flow or leakage | Failed to fill or allocate correctly | The ice maker or refrigerator cannot make ice
  • REPLACES PART NUMBERS

    REPLACES PART NUMBERS

    WPW10498976, W10498976, W10420082, 12001415, 2315576, WP2315576, PS358631, W10498974, ect.
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your refrigerator is repaired and works properly like before - Brings DIY solutions to help you deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

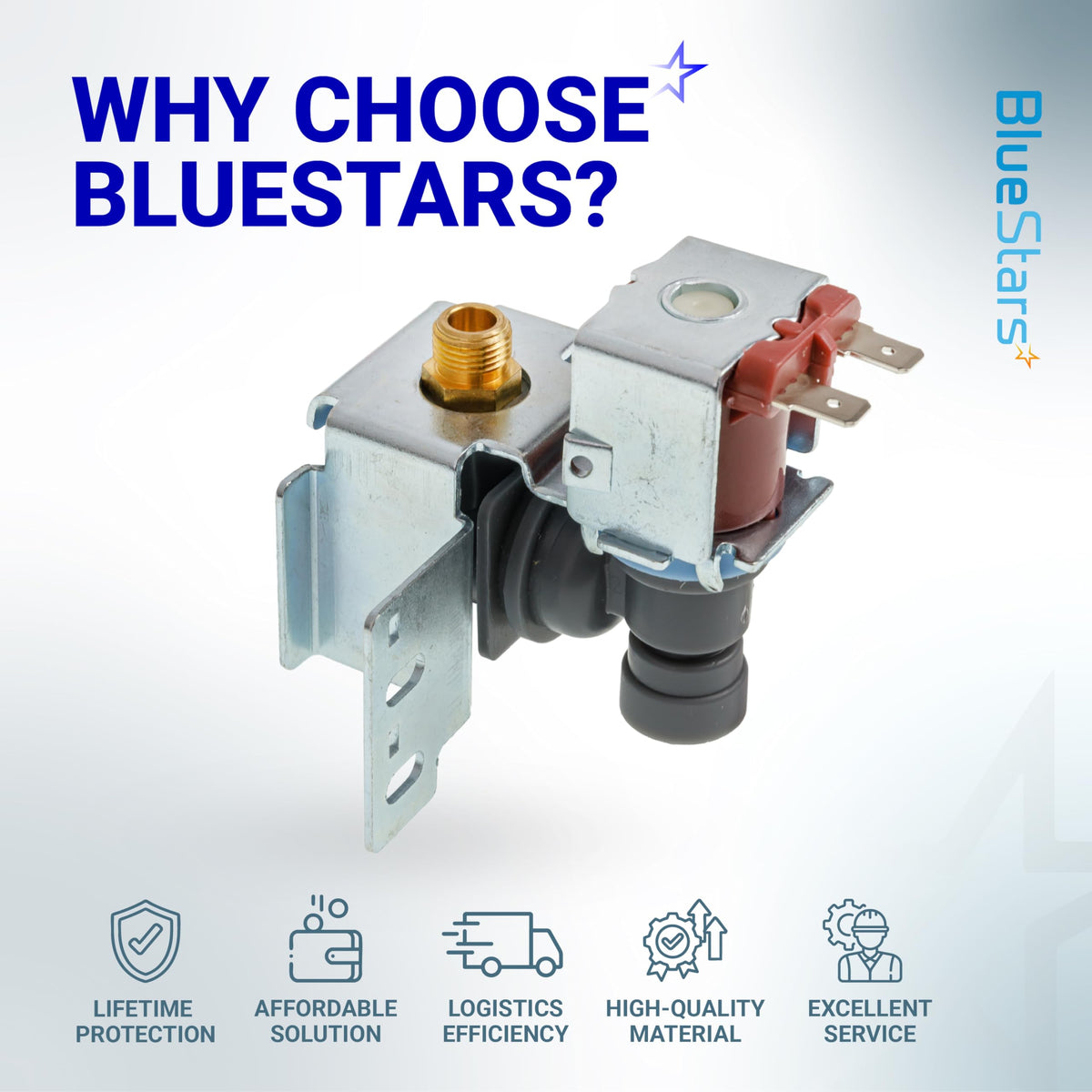

#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

Enjoy the comfort that our small yet mighty parts bring to your home

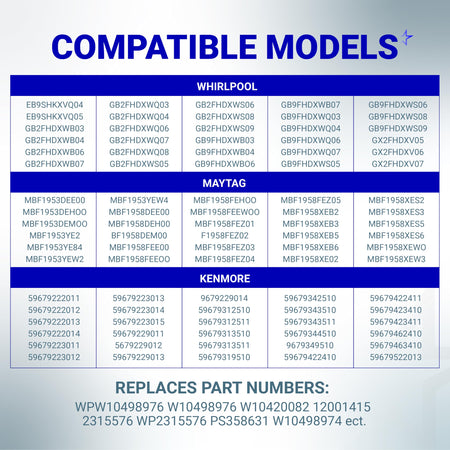

Brand Model Number
Replaces 2684516, AP6022334, EAP11755667, K-78200, PD00024636, PS11755667, W10420082, W10498974, W10498976
IKEA IX3HHEXDSM00, IX5HHEXWS08, IX5HHEXWS09, IX5HHEXWS10
Maytag MBF1953DEE00, MBF1953DEH00, MBF1953DEM00, MBF1953YEB2, MBF1953YEB4, MBF1953YEW2, MBF1953YEW4
Maytag MBF1958DEE00, MBF1958DEH00, MBF1958DEM00, MBF1958FEB00, MBF1958FEE00, MBF1958FEH00, MBF1958FEW00, MBF1958FEZ00, MBF1958FEZ01, MBF1958FEZ02, MBF1958FEZ03, MBF1958FEZ04, MBF1958FEZ05, MBF1958XEB2, MBF1958XEB3, MBF1958XEB5, MBF1958XEB6, MBF1958XEQ2, MBF1958XES2, MBF1958XES3, MBF1958XES5, MBF1958XES6, MBF1958XEW2, MBF1958XEW3, MBF1958XEW5, MBF1958XEW6
Maytag MBF2258DEE00, MBF2258DEH00, MBF2258DEM00, MBF2258FEB00, MBF2258FEE00, MBF2258FEH00, MBF2258FEW00, MBF2258FEZ00, MBF2258FEZ01, MBF2258FEZ02, MBF2258FEZ03, MBF2258FEZ04, MBF2258FEZ05, MBF2258XEB3, MBF2258XEB5, MBF2258XEB6, MBF2258XEW3, MBF2258XEW5, MBF2258XEW6, MBL2258XES3, MBL2258XES5, MBL2258XES6, MBR1953YES2, MBR1953YES4, MBR2258XES3, MBR2258XES5, MBR2258XES6
Maytag MFF2258DEE00, MFF2258DEE01, MFF2258DEH00, MFF2258DEH01, MFF2258DEM00, MFF2258DEM01, MFF2258FEZ01, MFF2258FEZ02, MFF2258FEZ03, MFF2258FEZ04, MFF2258FEZ05, MFF2258VEB5, MFF2258VEB6, MFF2258VEB7, MFF2258VEB8, MFF2258VEM7, MFF2258VEM8, MFF2258VEM9
Whirlpool EB9SHKXVQ04, EB9SHKXVQ05
Whirlpool GB2FHDXWB03, GB2FHDXWB04, GB2FHDXWB06, GB2FHDXWB07, GB2FHDXWQ03, GB2FHDXWQ04, GB2FHDXWQ06, GB2FHDXWQ07, GB2FHDXWQ08, GB2FHDXWS05, GB2FHDXWS06, GB2FHDXWS08, GB2FHDXWS09
Whirlpool GB9FHDXWB03, GB9FHDXWB04, GB9FHDXWB06, GB9FHDXWB07, GB9FHDXWQ03, GB9FHDXWQ04, GB9FHDXWQ06, GB9FHDXWQ07, GB9FHDXWS05, GB9FHDXWS06, GB9FHDXWS08, GB9FHDXWS09
Whirlpool GX2FHDXVB05, GX2FHDXVB06, GX2FHDXVB07, GX2FHDXVB08, GX2FHDXVQ04, GX2FHDXVQ05, GX2FHDXVQ06, GX2FHDXVQ07, GX2FHDXVY07, GX2FHDXVY08, GX2FHDXVY09, GX2FHDXVY010
Whirlpool GX5FHDXVB06, GX5FHDXVB07, GX5FHDXVB08, GX5FHDXVQ05, GX5FHDXVQ06, GX5FHDXVQ07, GX5FHDXVY08, GX5FHDXVY09, GX5FHDXVY010
Whirlpool WRB322DMBB00, WRB322DMBM00, WRB322DMBM01, WRB322DMBM02, WRB322DMBW00, WRB322DMBW01, WRB322DMBW02, WRB322DMHV00, WRB322DMHV01, WRB322DMHV02
Whirlpool WRB329DMBB00, WRB329DMBB01, WRB329DMBB02, WRB329DMBM00, WRB329DMBM01, WRB329DMBM02, WRB329DMBW00, WRB329DMBW01, WRB329DMBW02
Whirlpool WRB533CZJB00, WRB533CZJW00, WRB543CMJZ00
Whirlpool WRF532SMBB00, WRF532SMBB01, WRF532SMBM00, WRF532SMBM01, WRF532SMBW00, WRF532SMBW01, WRF532SMHB00, WRF532SMHB01, WRF532SMHB02, WRF532SMHV00, WRF532SMHV01, WRF532SMHV02, WRF532SMHW00, WRF532SMHW01, WRF532SMHW02, WRF532SMHZ00, WRF532SMHZ01, WRF532SMHZ02, WRF532SMHZ03, WRF532SMHZ04
Whirlpool WRF535SMBB00, WRF535SMBM00, WRF535SMBW00, WRF535SMHZ00, WRF535SMHZ05
Whirlpool WRFA32SMHN00, WRFA32SMHZ00, WRFA32SMHZ01, WRFA32SMHZ02, WRFA32SMHZ03, WRFA32SMHZ04
Whirlpool WRT112CZJB00, WRT312CZJV00, WRT312CZJW00
Kenmore 596000000000, 596467934251, 596467934351, 596467934451, 596467934951
Kenmore 59679222011, 59679222012, 59679222013, 59679222014, 59679223011, 59679223012, 59679223013, 59679223014, 59679223015, 59679229011, 59679229012, 59679229013, 59679229014, 59679312510, 59679312511, 59679313510, 59679313511, 59679319510, 59679342510, 59679343510, 59679343511, 59679344510, 59679349510, 59679422410, 59679422411, 59679423410, 59679423411, 59679462410, 59679523015, 59679523016, 59679529013, 59679529014
Color
Brown / Blue / Gray
Material
Plastic / Metal
Includes
1× Single Solenoid Water Valve with Bracket
Solenoids
1 (Single — Ice Maker only)

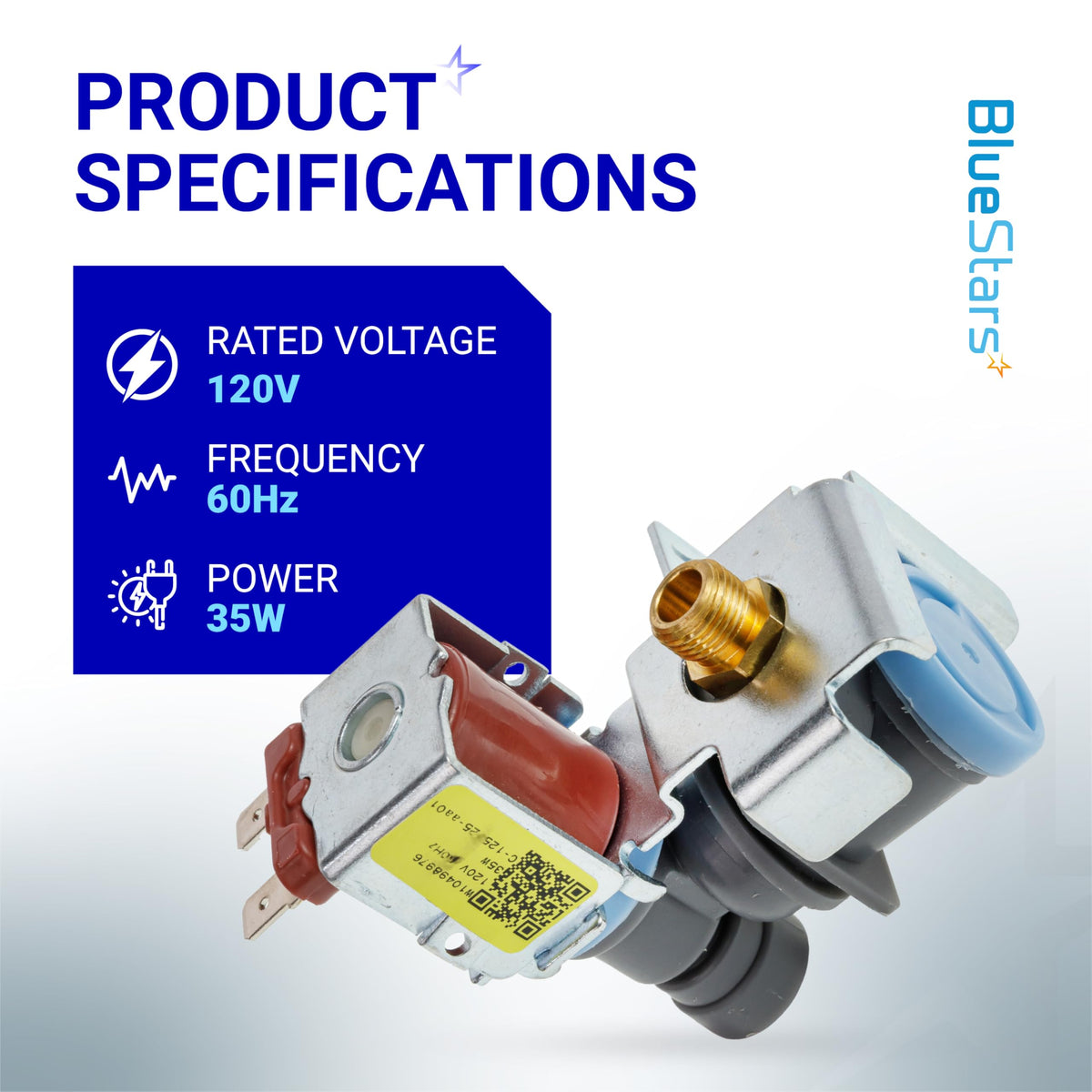

Voltage
120V, 50/60Hz
Wattage
35W
Solenoid Resistance
~185–200 Ohms

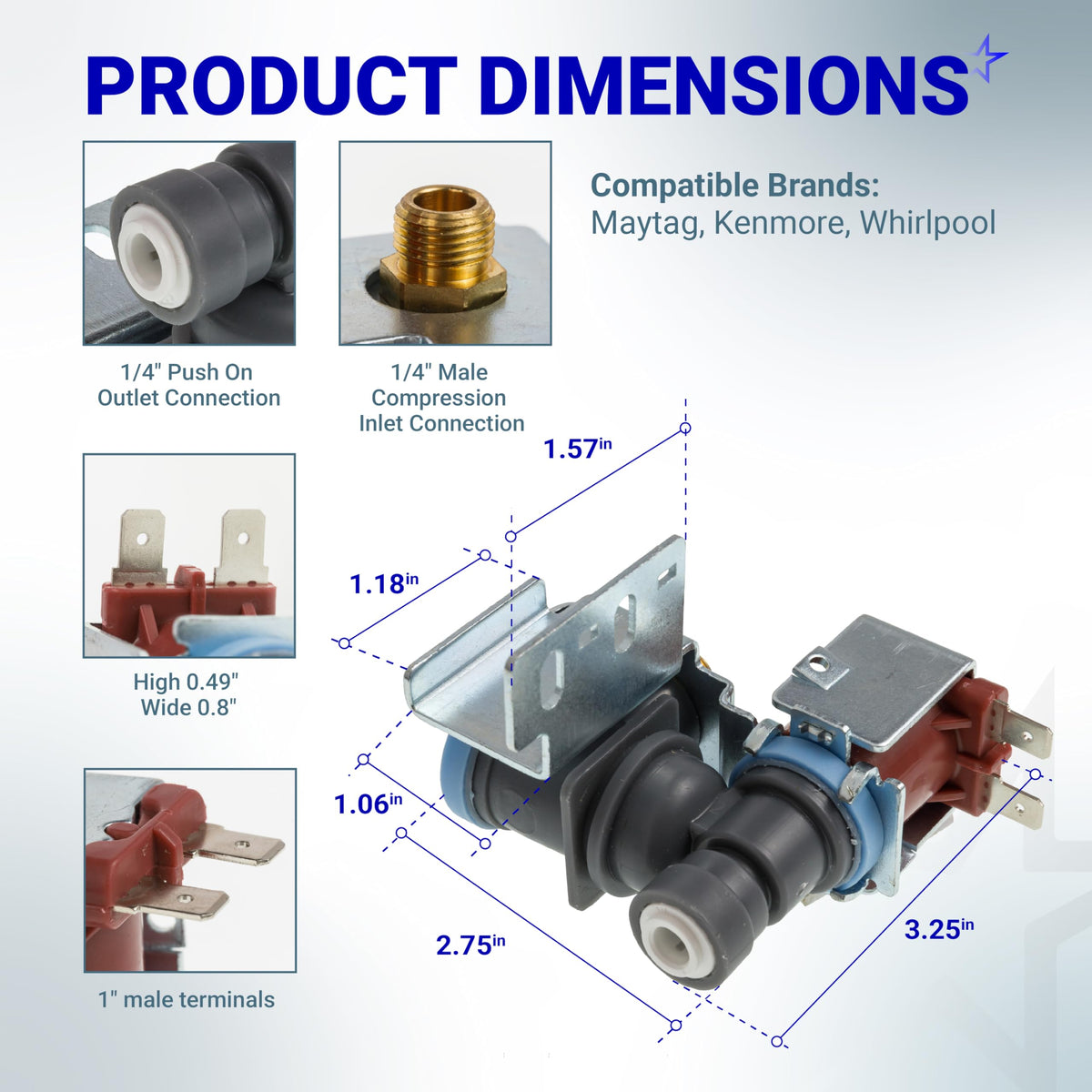

Inlet Connection
1/4" Male Compression
Outlet Connection
1/4" Push-On
Product Dimensions
3-1/2 x 2-3/4 x 3 inches

FAQ

This valve is commonly used on select Whirlpool, Maytag, Kenmore, and some KitchenAid refrigerators that use part number WPW10498976 or one of its matching replacements. Web references also associate it with several Whirlpool-built refrigerator series such as GB2, GB9, GX2, GX5, MBF, MBL, MBR, MFF, WRB, and WRF. Because fitment can vary within the same series, the safest check is to match your refrigerator model number and existing valve part number.
Known replacements and cross-references for this valve include WPW10498976, W10498976, 2315508, W10420082, W10498974, K-78186, PS11755667, WP2315576, 2315576, AP6022334, K-78200, WV8047, 4318047, IMV-494, 12001415, and PS358631. Matching one of these numbers is a good sign you have the correct replacement.
This valve controls the flow of household water into the refrigerator’s ice maker and, on applicable models, the water dispenser. It opens and closes electrically through solenoids to allow the correct amount of water into the appliance.
Typical symptoms include the ice maker not filling, slow or no water from the dispenser, very small or hollow ice cubes, water leaking near the valve area, or the ice maker overfilling. A failed solenoid can also cause one function to stop working while the other still works, depending on how your refrigerator is configured.
On many refrigerators, this is a moderate repair that takes about 20 to 45 minutes. You usually need a screwdriver, a small wrench or nut driver, and a towel to catch any residual water. Before starting, unplug the refrigerator and shut off the household water supply. The valve is commonly mounted at the back of the refrigerator near the lower access area.
Before replacing the valve, check that the home water supply is turned on, the supply line is not kinked, the inlet screen is not clogged with sediment, and the freezer temperature is cold enough for the ice maker to cycle properly. If your model has both dispenser and ice maker issues, the valve is a stronger suspect. If only the ice maker is affected, also inspect the ice maker assembly, fill tube, and any frozen blockage.
Common causes include mineral buildup from hard water, sediment clogging the inlet screen, coil or solenoid failure, pressure-related wear, and internal sticking after long use. In some cases, low water pressure or a partially blocked supply line can mimic a bad valve, so it is worth checking water flow before installation.
