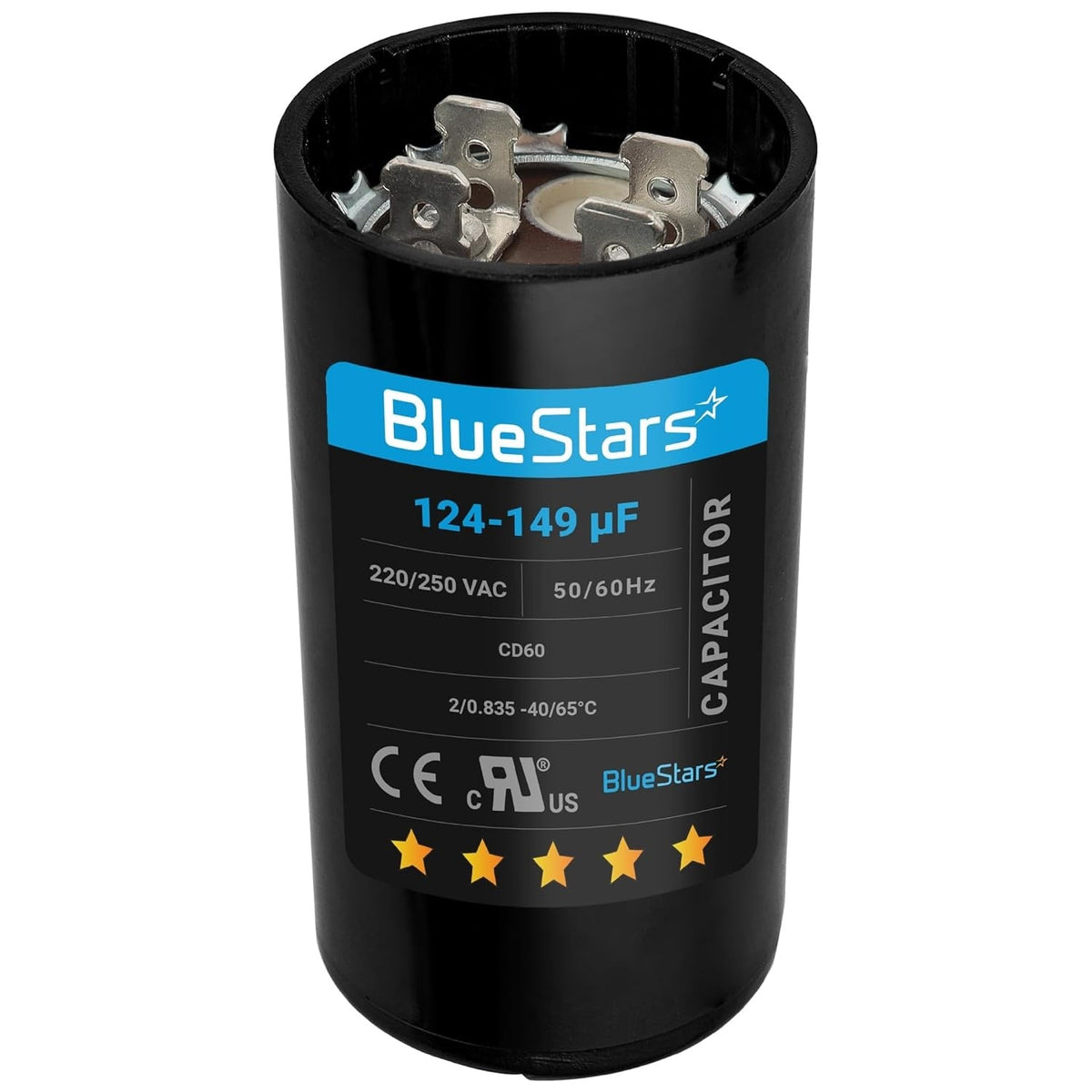

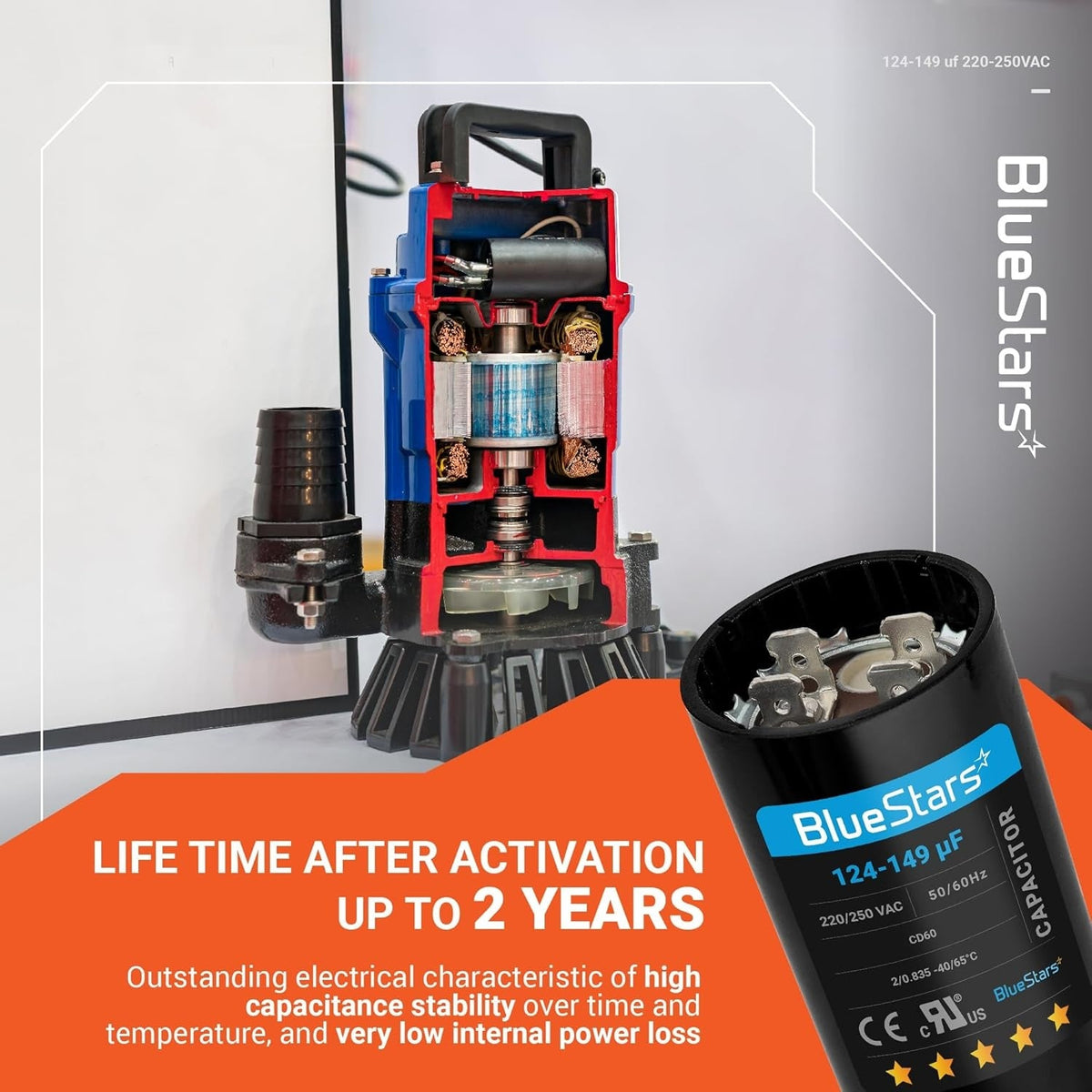

124-149 uF MFD 220-250 VAC Round Start Capacitor - Fits AC Motor Run, Fan Start, Heat Pump
0.00
Regular price
$16.64
Regular price
Save 11%
$18.64
Sale price
$16.64
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

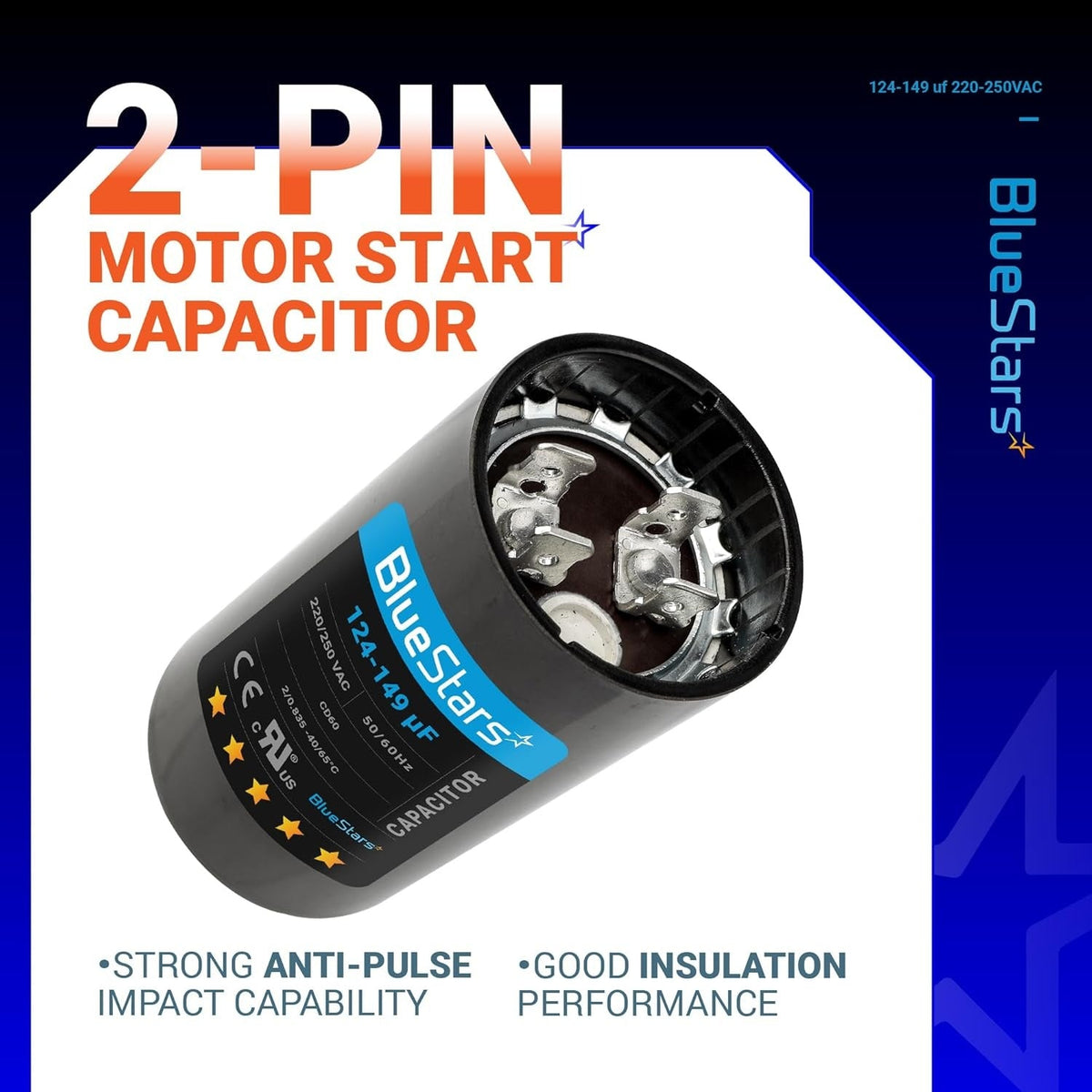

124-149 uf/MFD 220-250VAC Round Run Start Capacitor

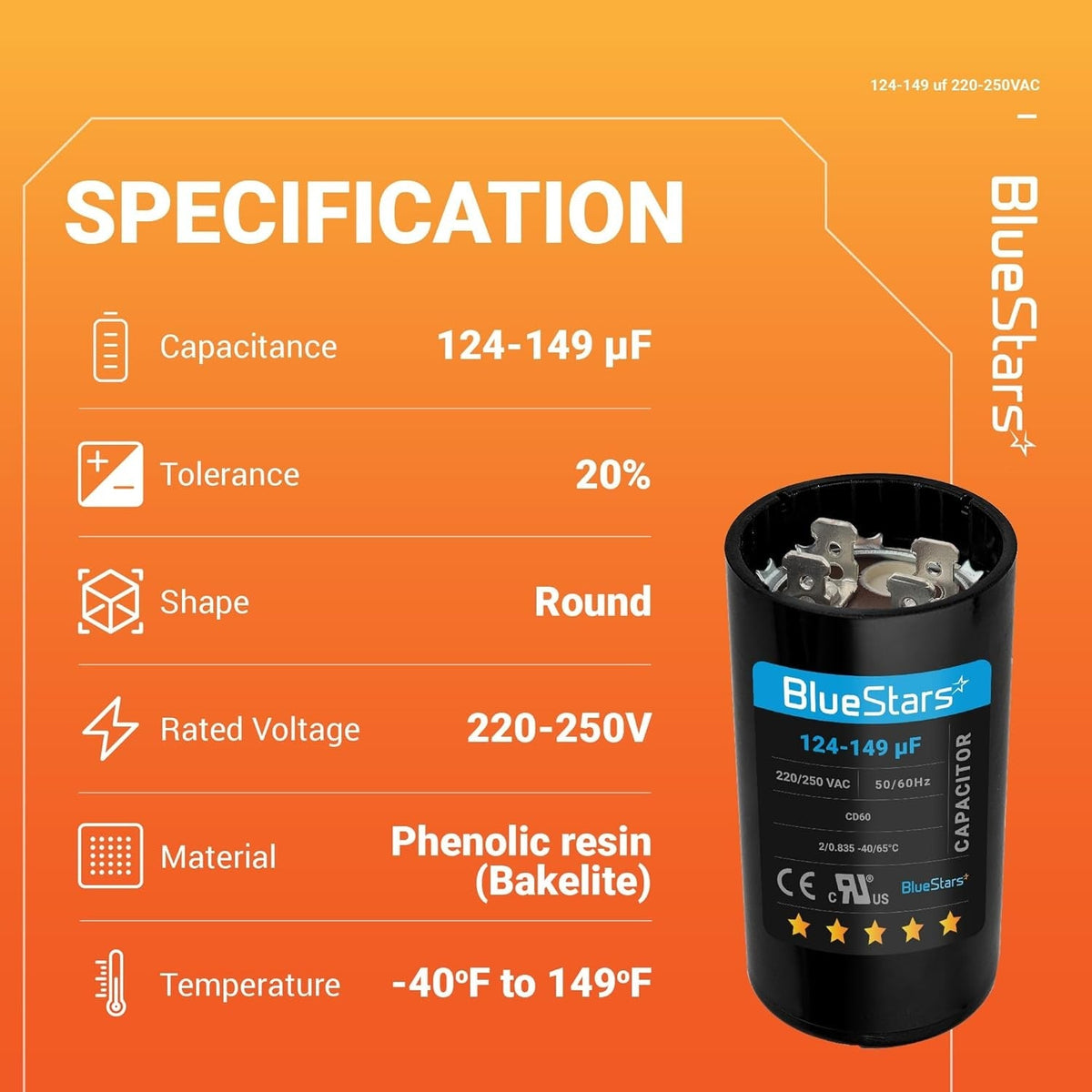

Key Features
- Capacitance: 124-149 µF/MFD
- Voltage Rating: 220-250 VAC
- Frequency: 50/60 Hz
- Tolerance: +/- 20%
- Shape: Round
- Case Material: Phenolic Resin

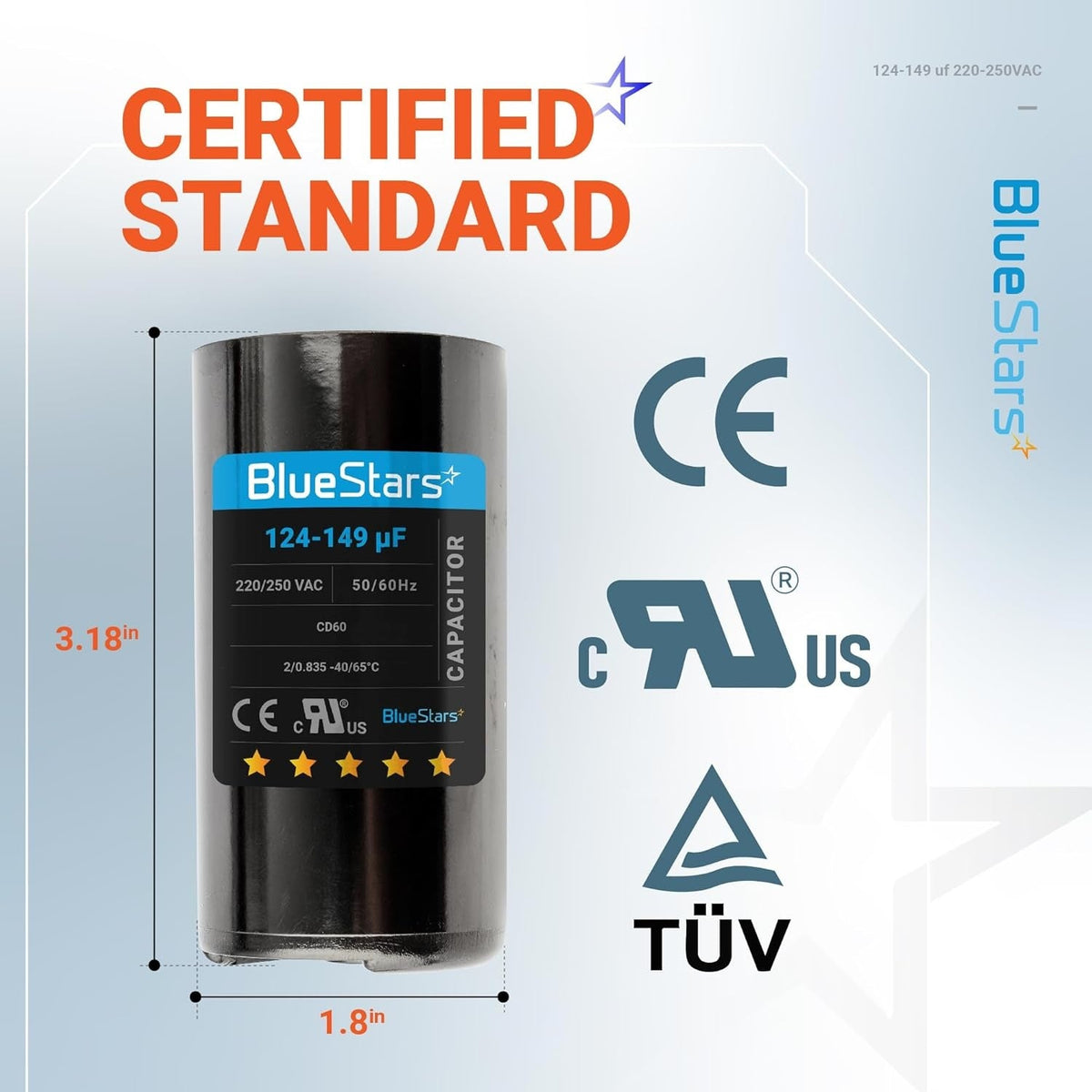

- Dimensions: 3.37 in. Height x 1.81 in. Diameter
- Terminals: 4 quarter-inch male spade terminals
Replaces / Cross-Reference Part Numbers
Replaces any round start capacitor with a matching capacitance range (124-149 µF) and voltage rating (220-250 VAC). It is a universal replacement part compatible with various brands and models that meet these specifications.
Compatibility & Fitment
For use in single-phase AC motor starting circuits. Applications include:
- HVAC compressors and fan motors
- Air compressors
- Well pumps and pool pumps
- Refrigeration units
- Other electric motors requiring a starting torque boost
When to Replace
A failing capacitor can prevent a motor from starting correctly. Replace the capacitor if you notice:
- The motor hums but does not start or turn
- The motor starts slowly or with difficulty
- The circuit breaker trips upon motor startup
- Visible damage to the capacitor, such as bulging, cracking, or leaking oil
Installation Tips
- Disconnect all electrical power to the equipment before beginning service.
- Safely discharge the old capacitor by shorting its terminals with an insulated tool.
- Confirm the µF (MFD) and VAC ratings of the replacement part match the original specifications.
- Note the placement of wires on the old capacitor terminals before disconnecting.
- Ensure all wire connections are secure on the new capacitor.
-
Perfect fit
Universal fit with any brands with the same ratings -
Premium quality

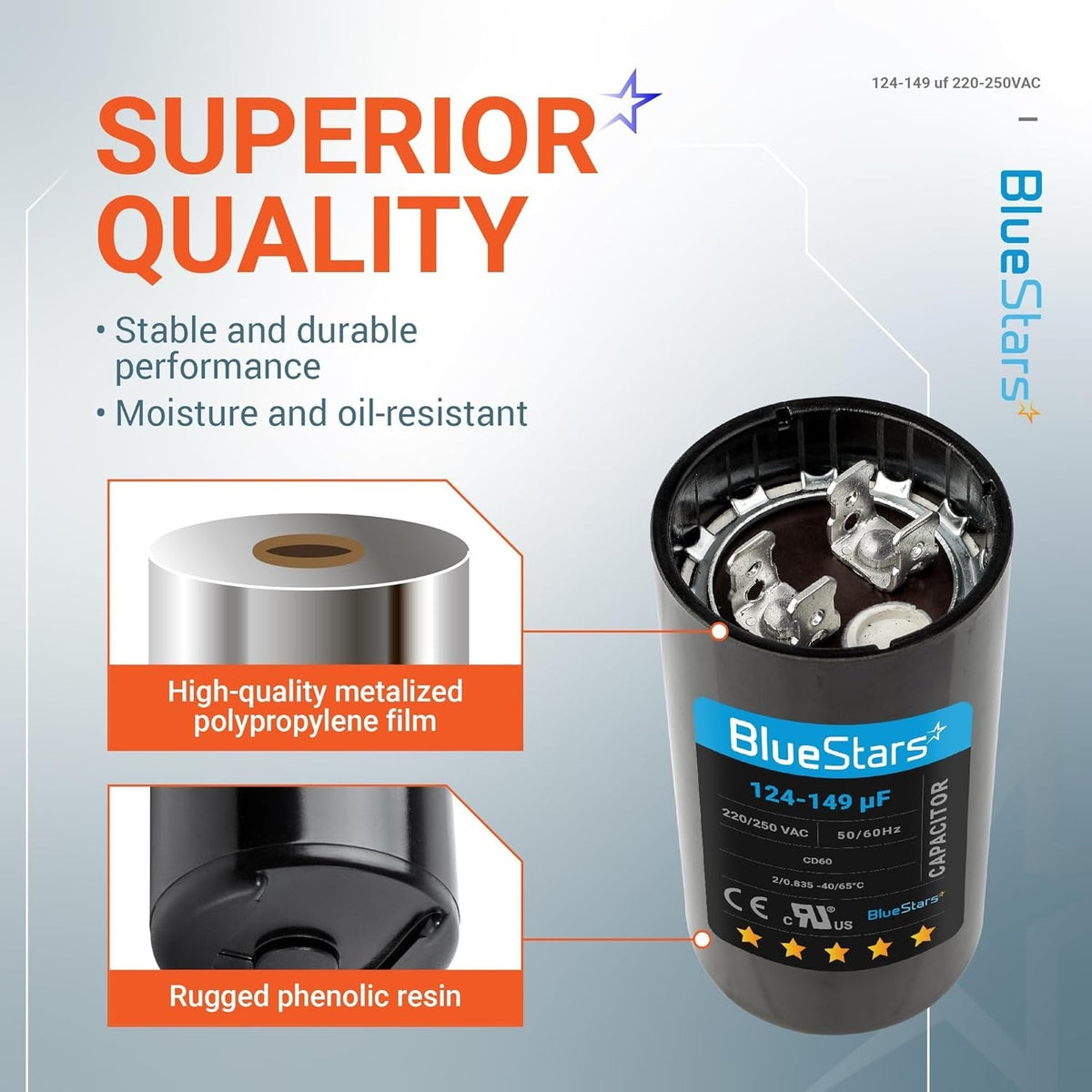

This product adopts a high-quality metalized polypropylene film that provides stable and durable performance -
Saving solution
Enjoy the great feeling when your engine is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble -
Simple installation
Because the capacitor is a relatively simple part, the installation just takes a few minutes and will save you at least a hundred bucks in labor
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
