If your dryer suddenly will not start, runs without heat, shuts off too soon, or leaves clothes damp after a full cycle, you may be dealing with common dryer thermal fuse symptoms. The thermal fuse is a safety part that shuts the dryer down when it overheats, but a blown fuse usually points to a deeper airflow or heating issue. In this guide, BlueStars Parts will help you identify the warning signs, understand the likely causes, and learn how to test or replace the fuse safely.
| Quick Answer |
|---|
|
The most common dryer thermal fuse symptoms usually appear when the dryer overheats and the thermal fuse cuts power to protect the appliance. Common signs include:
To confirm the problem, test the thermal fuse for continuity with a multimeter. If there is no continuity, replace the fuse with a compatible part and fix the overheating cause, such as a blocked vent, restricted airflow, or failing heating component, before using the dryer again. |
1. Common Dryer Thermal Fuse Symptoms
A malfunctioning safety fuse disrupts your laundry routine and indicates underlying airflow restrictions inside the appliance cabinet. Let's explore the most frequent indicators that point directly to a compromised thermal safety switch.
1.1. Dryer will not start at all
Symptom: You press start and nothing happens - no motor hum, no drum movement, no click.
This is the signature symptom when the fuse is on the motor circuit. Power reaches the control panel but never reaches the motor, so the machine is electrically dead from the start button onward.
Common Causes:
- Blocked exhaust vent: lint restricts airflow, exhaust temperature climbs, the fuse opens.
- Failed cycling thermostat: contacts stick closed and the heater never shuts off.
- Overheating drive motor: a motor drawing too much current generates heat that stresses the safety circuit.
Quick Fix: Test the fuse for continuity before replacing anything else, then inspect the entire exhaust run for lint. Never install a new fuse without finding out what overheated the old one.
A completely unresponsive machine is a primary sign of a blown safety thermal fuse. (Source: BlueStars Parts)
1.2. Dryer runs but does not heat
Symptom: The drum spins normally for the full cycle, but only cool air comes out and clothes stay wet.
This is what a blown fuse looks like when it sits on the heating circuit. The motor is untouched, so the machine behaves normally in every way except the one that matters.
Common Causes:
- Restricted airflow: a clogged lint screen or crushed vent duct traps heat inside the cabinet.
- Heating element shorted to ground: a damaged element can produce heat continuously instead of cycling off.
- Failed flame sensor (gas dryers): a faulty sensor can contribute to an overheating condition.
Quick Fix: Test the fuse, then check the vent system end to end. If the fuse has continuity, move on to the heating element and high-limit thermostat - see our guide on why a dryer is not heating for the full diagnostic order.
1.3. Dryer starts, then shuts off after a few minutes
Symptom: The cycle begins normally, then the dryer stops dead a few minutes in and will not restart.
A fast shutdown means the dryer reached its thermal limit almost immediately - a strong indicator of severe airflow restriction rather than a marginal one.
Common Causes:
- Heavily clogged duct: temperature spikes within minutes instead of gradually.
- Failing drive motor: an aging motor overheats under an ordinary load.
- Poor vent installation: a duct run that is too long, crushed, or has too many elbows.
Quick Fix: Clean the entire exhaust system from the dryer connection to the exterior vent hood. Let the dryer cool fully before testing again - a warm high-limit thermostat can mask the real result.
Rapid system shutdowns often indicate severe overheating caused by restricted airflow. (Source: BlueStars Parts)
1.4. Dryer control panel works, but the drum will not run
Symptom: Lights and buttons respond normally, the cycle appears to start, but the drum stays still.
This narrows things considerably. Control power is fine, so the break is downstream in the motor circuit - which is exactly where a thermal fuse sits on many models.
Common Causes:
- Seized drum roller: worn rollers create drag that overloads the motor.
- Broken drive belt: the motor runs but the drum has nothing driving it.
- Clogged blower wheel: debris in the blower loads the motor and generates heat.
Quick Fix: Turn the drum by hand. Free rotation with no motor sound points at the electrical circuit, including the fuse and the dryer door switch. Heavy resistance points at the belt or rollers instead. Our guide on why a dryer doesn't spin covers the mechanical side.
1.5. Clothes stay damp after a full drying cycle
Symptom: The cycle completes but clothes are still damp, or need two or three runs to dry.
This is more often a warning sign than a blown-fuse symptom - but it is the condition that blows fuses. Restricted airflow forces the dryer to run hotter and longer, and that is precisely the environment the fuse is designed to interrupt.
Common Causes:
- Lint-clogged filter screen: including a screen that looks clean but is coated in fabric softener residue.
- Overloaded drum: packed laundry leaves no room for air to move.
- Weakening heating element: reduced output stretches drying times.
Quick Fix: Clean the lint screen and the slot it sits in, reduce load size, and inspect the vent. If drying times are long but the dryer still gets hot, the fuse is probably intact and you have an airflow problem to solve before it blows.
1.6. Dryer overheats before the fuse blows
Symptom: The top or sides of the dryer are hot to the touch, or you feel excessive heat radiating from the machine during a cycle.
This is the pre-failure stage. The fuse has not opened yet, but the dryer is operating outside its intended temperature range and it is only a matter of time.
Common Causes:
- Stuck thermostat contacts: the heater runs continuously instead of cycling.
- Damaged drum seals: hot air escapes into the cabinet instead of going out the duct.
- Blocked exhaust vent: heat has nowhere to go.
Quick Fix: Stop using the dryer until the overheating source has been identified. Check the vent system, thermostat, and heating components before operating the appliance again.
An intensely hot dryer cabinet indicates the appliance is reaching dangerous temperature limits. (Source: BlueStars Parts)
2. How to Test and Replace a Dryer Thermal Fuse
A blown thermal fuse almost never looks blown. You may see slight discoloration or a faint bulge, but the overwhelming majority of failed fuses are visually identical to working ones. A continuity test is the only reliable way to confirm it. The test itself takes about 30 seconds.
Tools you will need:
- Digital multimeter with a continuity or ohms setting
- Phillips-head screwdriver or 1/4" nut driver
- Needle-nose pliers
- Flashlight or work light
- Phone camera (for photographing the wiring)
Step 1: Unplug the dryer and let it cool
Pull the power cord fully out of the wall outlet. On a gas dryer, also close the gas supply valve before you begin. Pull the machine far enough from the wall that you can work behind it comfortably. Let the dryer cool completely. A warm high-limit thermostat can produce a misleading result if you end up testing that too.
DIY tip: Take the vent hose off while the dryer is pulled out. You will want to inspect it anyway, and it gives you more room to work.
Disconnect the appliance from the electrical outlet before starting any inspection. (Source: BlueStars Parts)
Step 2: Find the thermal fuse near the blower housing or heating element area
Remove the dryer’s access panel to locate the thermal fuse. On many dryers, it is mounted near the blower housing, exhaust duct, or heating element area. The fuse is usually a small, narrow component with two wire terminals, but its exact shape and position can vary by brand and model.
DIY Tip: Take a quick digital photograph of the internal layout before removing anything to help you remember exactly how the panels fit back together.

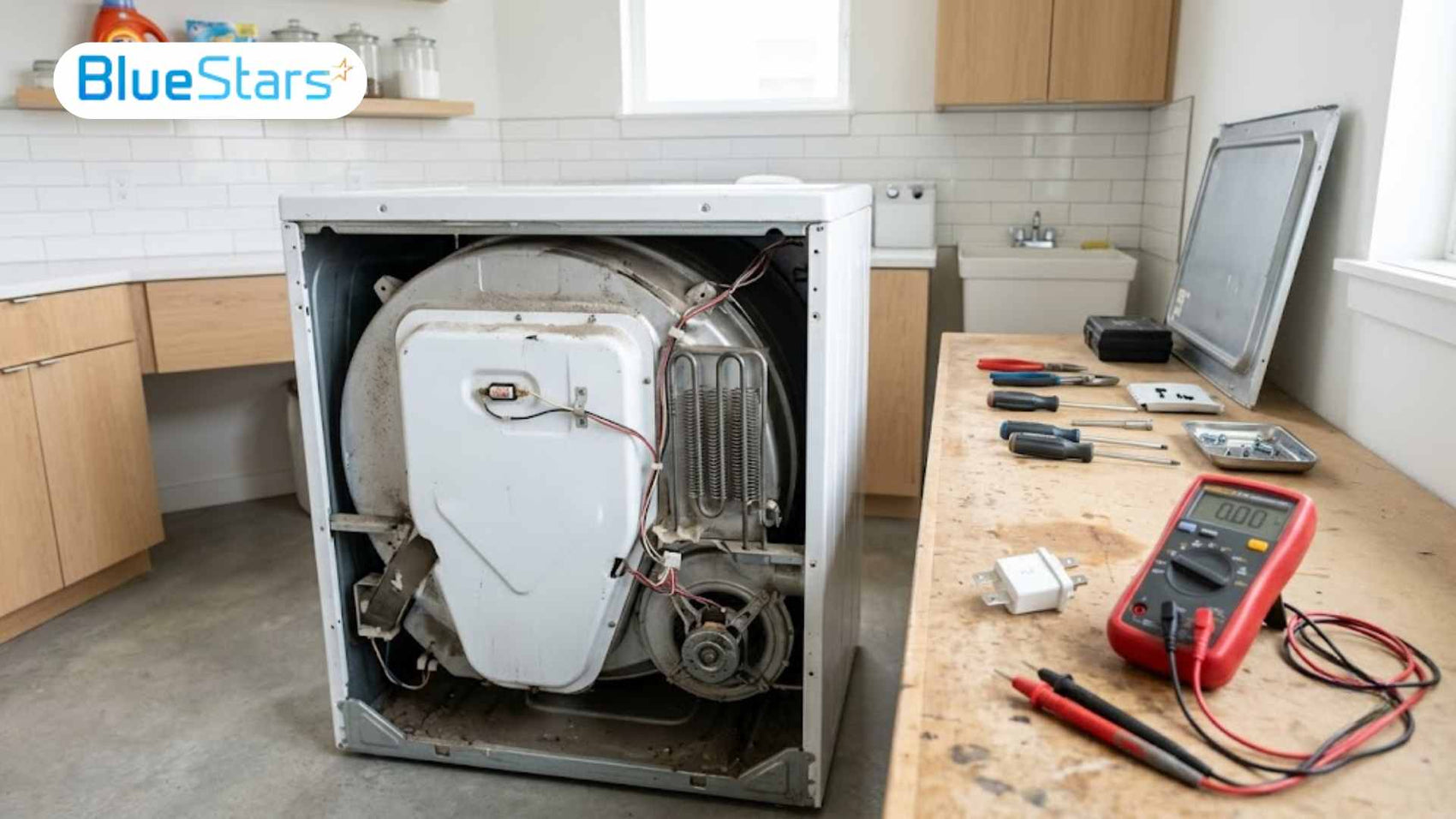

Accessing the interior cabinet to locate the thermal fuse on the blower wheel casing. (Source: BlueStars Parts)
Step 3: Disconnect at least one wire from the thermal fuse
Gently pull the slip-on wire terminal connectors off the metal contact prongs using a pair of needle-nose pliers. Avoid pulling directly on the insulated wires themselves, as this can weaken or tear the copper strands out of the crimp connector.
DIY Tip: Label the wires with small pieces of masking tape if your specific model uses matching wire colors for the safety circuit.
Carefully disconnect the wire terminals from the fuse prongs using needle-nose pliers. (Source: BlueStars Parts)
Step 4: Test the thermal fuse for continuity with a multimeter
Set the multimeter to the continuity setting (the sound-wave symbol). If your meter does not have one, use the lowest ohms resistance range instead. Touch the probes together first to confirm the meter reads near zero and beeps - that verifies the meter itself before you trust its result.
Now place one probe on each of the two fuse terminals.
|
Meter reading |
Meaning |
|
Beeps, or reads close to 0 ohms |
Circuit is closed - the fuse is good |
|
No beep, displays "OL", "1", or infinity |
Circuit is open - the fuse is blown and must be replaced |
DIY Tip: A functional fuse shows a zero reading or beeps loudly, while a completely blown fuse shows no response or "OL" on screen.
Testing for continuity with a digital multimeter confirms if the fuse has blown. (Source: BlueStars Parts)
Step 5: Replace the thermal fuse if there is no continuity
After testing the thermal fuse with a multimeter in the previous step, remove the failed component from the mounting bracket. Position the new fuse in the same location and tighten the retaining screw securely. Reconnect the wire terminals firmly before reassembling the dryer panel and restoring power.
If your continuity test confirms that the thermal fuse has failed, you will need a model-specific replacement part to restore safe dryer operation. For compatible Whirlpool dryers, the Pack of 6 3392519 Dryer Thermal Fuse and 3977394 Dryer Thermal Fuse Pack of 6 are designed to restore the heating circuit and provide reliable overheat protection. For applications requiring a single replacement, the 3390719 Dryer Thermal Fuse helps return the dryer to normal operation after the original fuse has blown.
DIY Tip: Reconnect the electrical slide terminals firmly onto the new prongs, ensuring a tight fit so the wires do not vibrate loose later.
Restoring internal heating circuits safely with the genuine BlueStars Parts fuse. (Source: BlueStars Parts)
3. Dryer Thermal Fuse Symptoms: When to Call a Technician
While many thermal component replacements are quick weekend DIY projects, certain persistent symptoms point to deeper mechanical or electrical malfunctions. The reference table below outlines complex problems that require advanced diagnostic equipment and expert repair techniques.
| Problem | Possible Cause | Risk Level | Best Action |
|---|---|---|---|
|
New thermal fuse blows again quickly |
Shorted internal wiring or permanently stuck cycling thermostat |
High |
Disconnect power and call a professional technician for a thorough electrical trace. |
|
Dryer overheats even after cleaning the vent |
Damaged drum seals or defective main control board relay |
High |
Inspect internal seals and have an expert check the control board circuitry. |
|
Dryer smells like burning or trips the breaker |
Shorted drive motor windings or failing heating element insulation |
Critical |
Keep the appliance unplugged immediately and schedule an emergency inspection. |
|
Thermal fuse has continuity but dryer will not start |
Failed door switch, broken start button, or dead timer module |
Medium |
Check the door switch assembly for continuity before replacing the main timer. |
|
Dryer runs but still has no heat after replacing the fuse |
Blown high-limit thermostat or cracked element coil wire |
Medium |
Test the high-limit thermostat and heating element coils for electrical continuity. |
|
Dryer needs internal heating, motor, or control board diagnosis |
Multi-system failure or corrupt control board software microprocessor |
Low |
Contact an authorized appliance technician to run a factory diagnostic test cycle. |
Persistent issues or complex electrical hazards require a professional diagnostic test. (Source: BlueStars Parts)
4. FAQs about dryer thermal fuse symptoms
Navigating appliance safety components can be confusing when your machine suddenly stops working in the middle of a busy week. To help you understand “what is a dryer thermal fuse” and how it keeps your home safe, we have answered the most common questions DIYers ask below.
4.1. What are the symptoms of a blown dryer thermal fuse?
The most common indicator is a dryer that has working control panel lights but will not turn on or spin when you hit the start button. On other appliance styles, the dryer drum tumbles and spins normally, but the air stays completely cold throughout the entire cycle.
4.2. Where is the thermal fuse on a dryer?
On the vast majority of standard models, you will find it mounted directly onto the white metal blower wheel housing accessible through the back panel. For specialized front-load models or specific brands like GE, the fuse is often positioned near the heating element assembly behind the front kickplate.
4.3. Can I reset a dryer thermal fuse?
No, a thermal safety fuse is engineered as a single-use safety device that breaks permanently once it senses dangerous temperatures. For your safety and to prevent home fires, a blown fuse can never be reset or bypassed and must be replaced with a brand-new part.
Ignoring early dryer thermal fuse symptoms can lead to permanent appliance damage and serious safety hazards in your laundry room. Fortunately, identifying a blown fuse and replacing it with a high-quality component is a simple, cost-effective DIY project that restores your routine quickly. Don't let a faulty safety switch disrupt your chores or put your home at risk. Explore how to safely inspect, test, and replace your appliance components with BlueStars Parts today!
