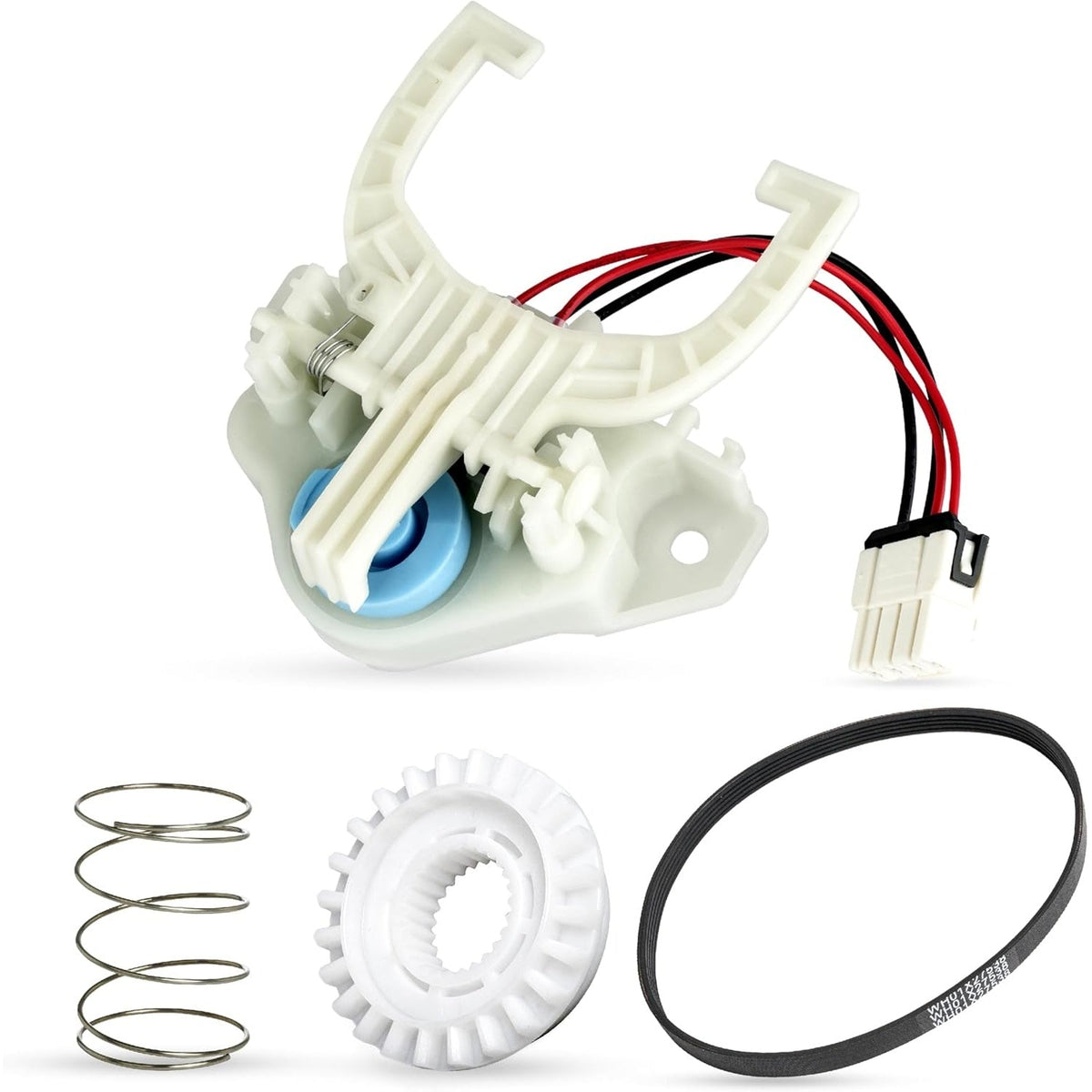

GE washing machine repair kit including shift actuator, clutch, drive belt, and spring for Hotpoint clothes washers.

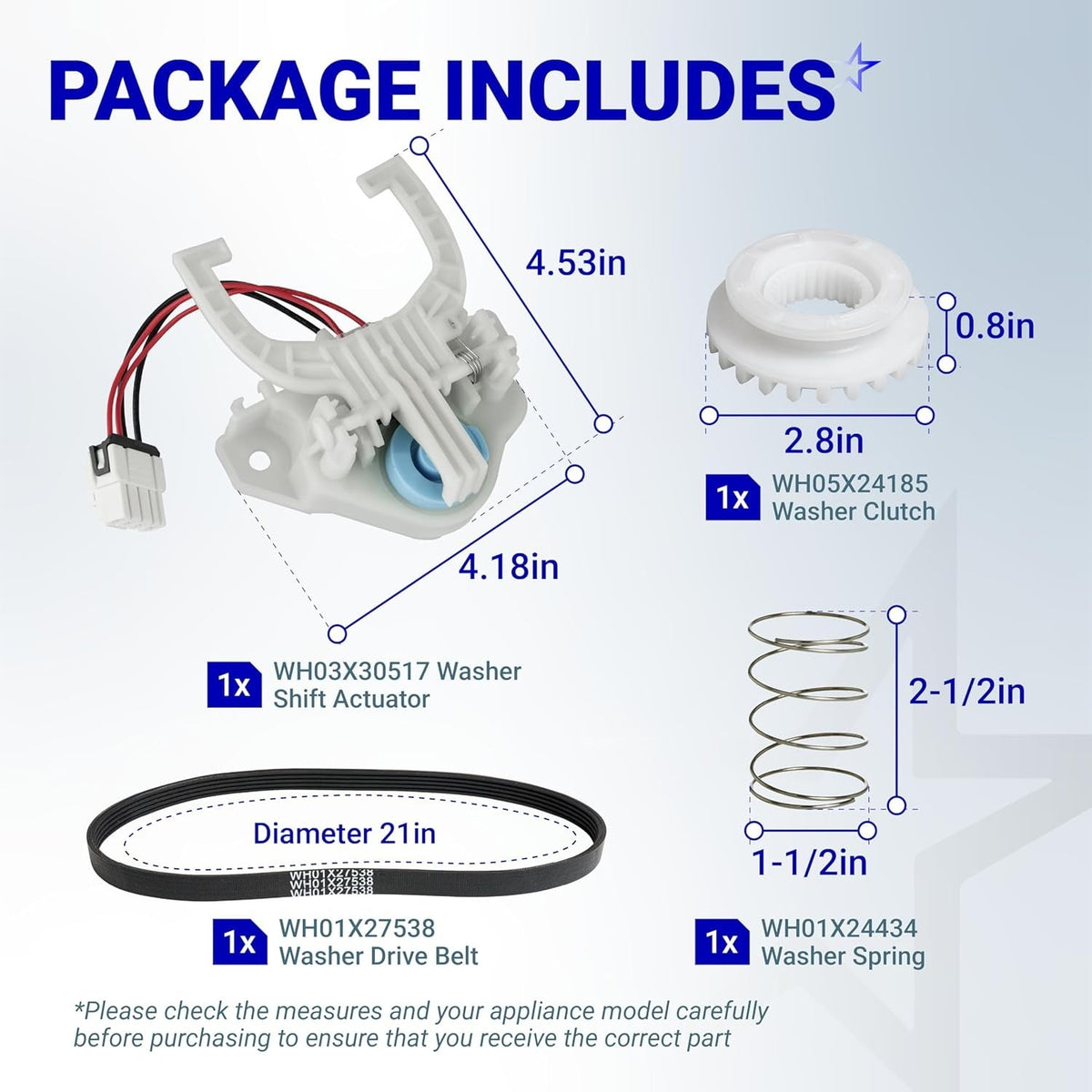

GE Hotpoint washer repair kit including shift actuator, drive belt, clutch, and spring with dimensions.

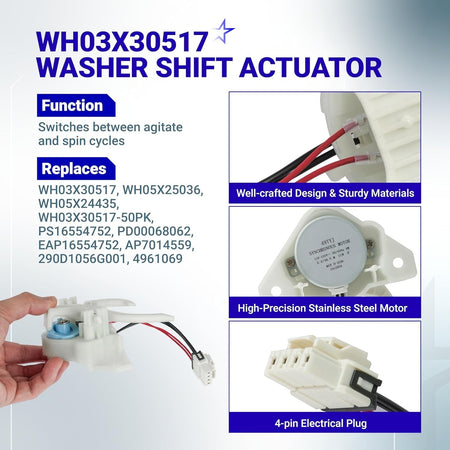

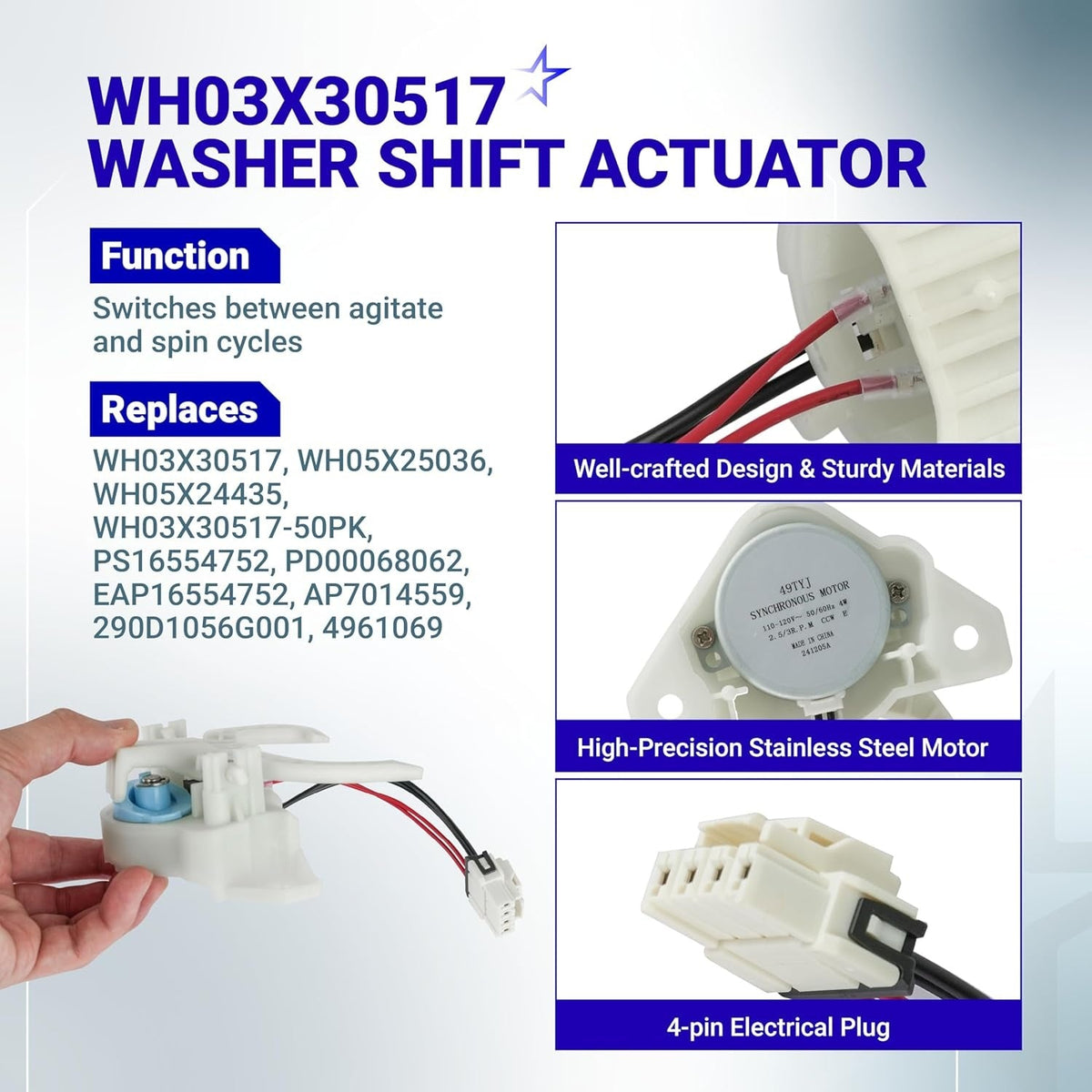

WH03X30517 washer shift actuator for GE Hotpoint clothes washers with motor and 4-pin electrical plug details.

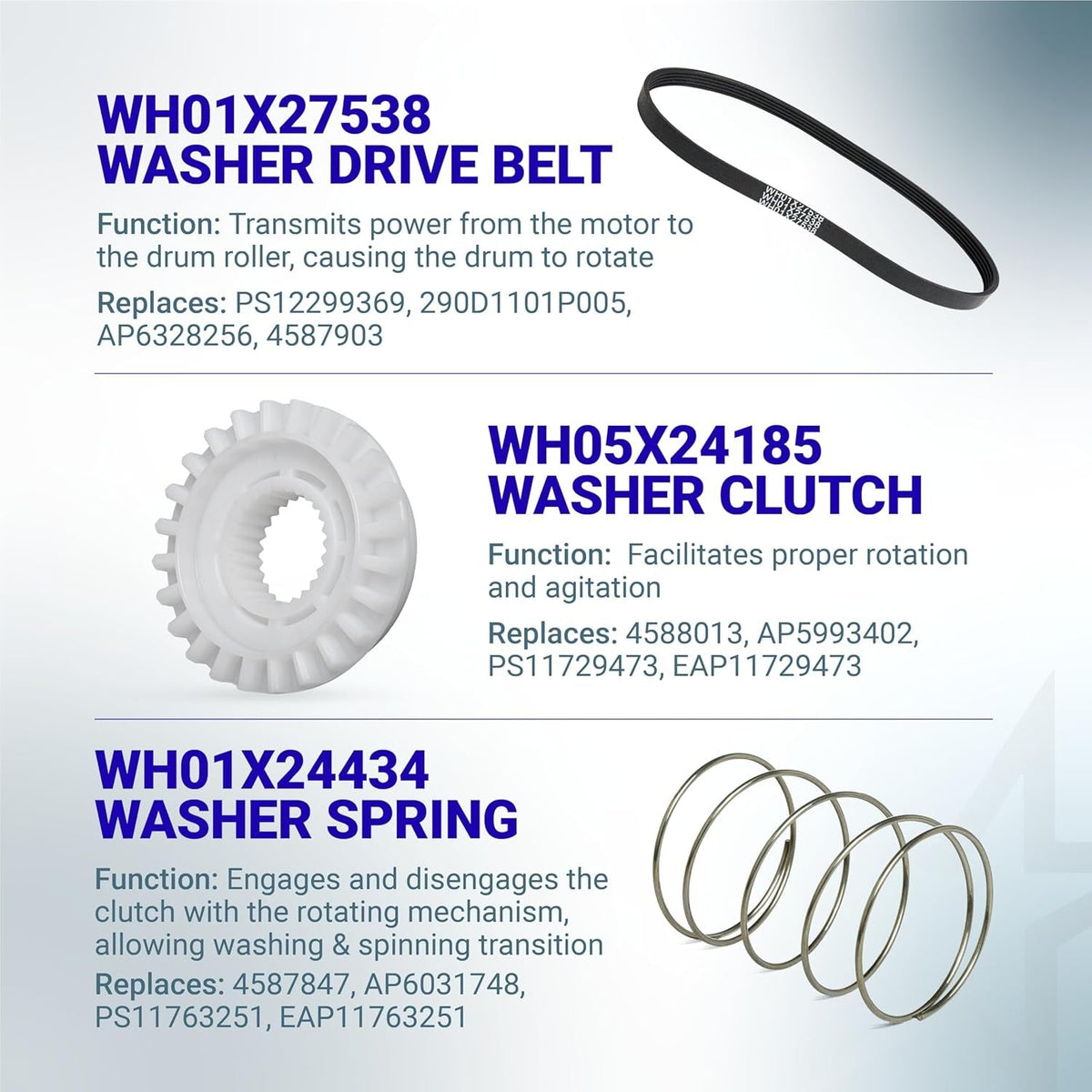

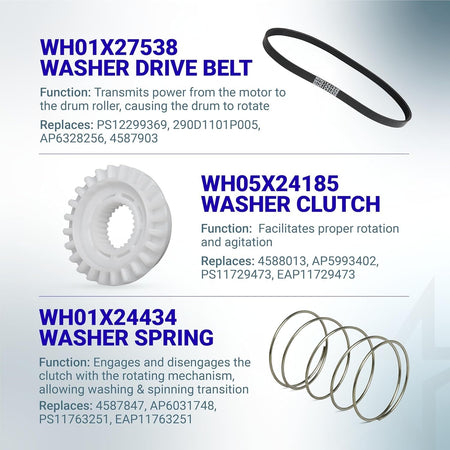

GE washing machine replacement parts kit including WH01X27538 drive belt, WH05X24185 clutch, and WH01X24434 spring.
Comparison chart showing WH03X30517 washer shift actuator durability for GE Hotpoint clothes washers.
GE Hotpoint washer repair kit featuring shift actuator, drive belt, clutch, and spring to fix spinning issues.

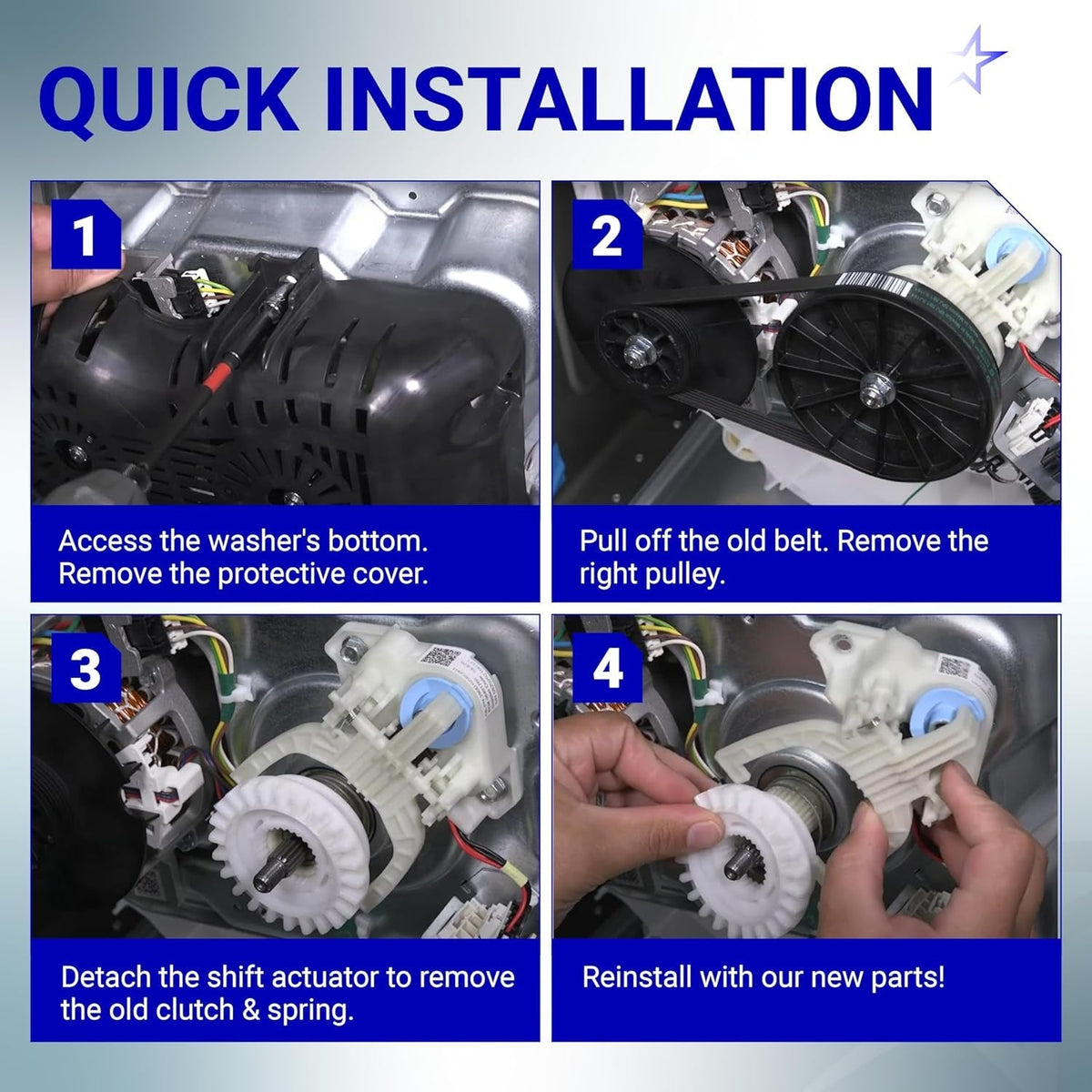

Four-step installation guide for GE Hotpoint washer shift actuator, drive belt, clutch, and spring replacement.

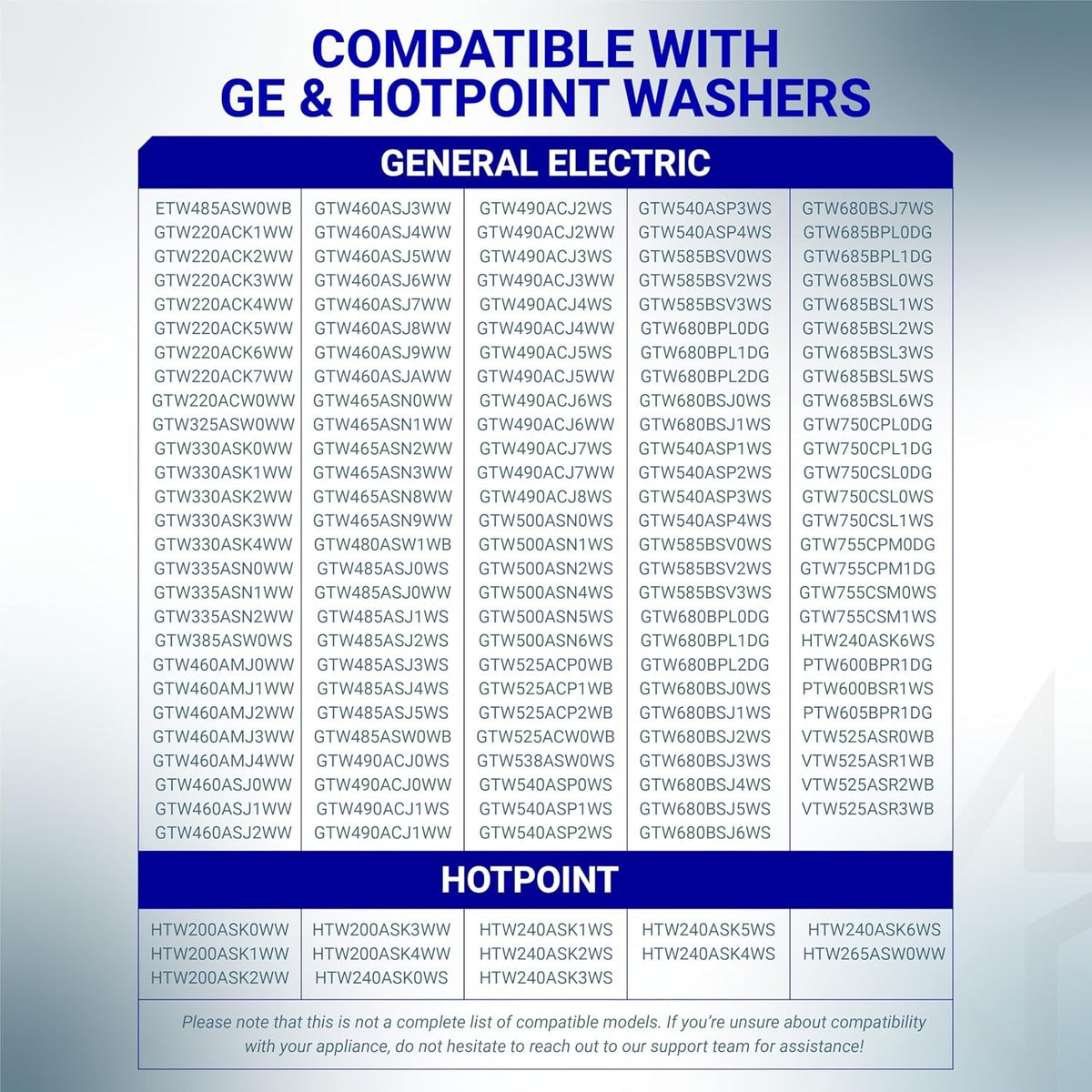

Compatibility chart for GE and Hotpoint washing machine replacement parts.
GE washing machine repair kit including shift actuator, clutch, drive belt, and spring for Hotpoint clothes washers.
GE Hotpoint washer repair kit including shift actuator, drive belt, clutch, and spring with dimensions.
WH03X30517 washer shift actuator for GE Hotpoint clothes washers with motor and 4-pin electrical plug details.
GE washing machine replacement parts kit including WH01X27538 drive belt, WH05X24185 clutch, and WH01X24434 spring.
Comparison chart showing WH03X30517 washer shift actuator durability for GE Hotpoint clothes washers.
GE Hotpoint washer repair kit featuring shift actuator, drive belt, clutch, and spring to fix spinning issues.
Four-step installation guide for GE Hotpoint washer shift actuator, drive belt, clutch, and spring replacement.
Compatibility chart for GE and Hotpoint washing machine replacement parts.
Lifetime Warranty

[Lifetime Warranty] WH03X30517 Washer Shift Actuator & WH01X27538 Washer Drive Belt & WH05X24185 Washing Machine Clutch & WH01X24434 Washer Spring - for GE Hotpoint Clothes Washer

Save 13%
0.00
$61.20
$70.38
$61.20
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

WH03X30517 Washer Shift Actuator & WH01X27538 Washer Drive Belt & WH05X24185 Washing Machine Clutch & WH01X24434 Washer Spring

Key Features

  • Complete four-piece repair kit for washing machine drive systems.
  • Includes (1) WH03X30517 Shift Actuator, (1) WH01X27538 Drive Belt, (1) WH05X24185 Clutch, and (1) WH01X24434 Spring.
  • The shift actuator controls motor functions, switching between agitate and spin cycles.
  • Components constructed from durable materials, including high-grade ABS plastic for the actuator and clutch.

Replaces / Cross-Reference Part Numbers

  • Shift Actuator (WH03X30517): AP7014559, PS16554752, WH05X25036, WH05X24435, EAP16554752, PD00068062, 4961069, 290D1056G001, WH03X30517CM, OEM21043682
  • Drive Belt (WH01X27538): AP6328256, PS12299369, EAP12299369, 4587903, PD00043350, WH01X27538-50PK, 290D1101P005
  • Clutch (WH05X24185): AP5993402, PS11729473, EAP11729473, 4588013, PD00043605
  • Spring (WH01X24434): AP6031748, PS11763251, EAP11763251, 4587847, PD00055310

Compatibility & Fitment

  • Designed for direct fitment on a wide range of top-load washing machine models.
  • Primary brands: GE, Hotpoint.
  • Confirm compatibility by matching your appliance's model number and the original part numbers.

When to Replace

  • Washer will not agitate or spin.
  • Loud grinding, whirring, or squealing noises during operation.
  • Washer stops mid-cycle.
  • Clothes remain soaking wet after the final spin cycle is complete.
  • Specific error codes related to the motor or mode shifter appear.

Installation Tips

  • Disconnect the washing machine from both power and water supplies before beginning repairs.
  • Wear safety gloves to protect your hands.
  • Take a picture of the existing part connections for reference during reassembly.
  • Refer to your washer's service manual for model-specific instructions.
Brand Model Number
Replaces WH03X30517 290D1056G001, 4961069, AP7014559, PD00068062, PS16554752, WH05X24435, WH05X25036
Replaces WH01X27538 290D1101P005, 4587903, AP6328256, PS12299369
Replaces WH05X24185 4588013, AP5993402, EAP11729473, PD00043605, PS11729473
Replaces WH01X24434 AP6031748, EAP11763251, PS11763251
GE ETW485ASW0WB, GTW220ACK1WW, GTW220ACK4WW, GTW220ACK5WW, GTW220ACK6WW, GTW220ACK7WW, GTW220ACW0WW, GTW325ASW0WW, GTW330ASK3WW, GTW330ASK4WW, GTW335ASN0WW, GTW335ASN1WW, GTW335ASN2WW, GTW385ASW0WS, GTW460AMJ0WW, GTW460AMJ1WW, GTW460AMJ2WW, GTW460AMJ3WW, GTW460AMJ4WW, GTW460ASJ2WW, GTW460ASJ3WW, GTW460ASJ4WW, GTW460ASJ5WW, GTW460ASJ6WW, GTW460ASJ8WW, GTW460ASJ9WW, GTW460ASJAWW, GTW465ASN1WW, GTW465ASN2WW, GTW465ASN3WW, GTW465ASN8WW, GTW465ASN9WW, GTW480ASW1WB, GTW485ASJ0WS, GTW485ASJ0WW, GTW485ASJ1WS, GTW485ASJ2WS, GTW485ASJ3WS, GTW485ASW0WB
GE GTW490ACJ0WS, GTW490ACJ0WW, GTW490ACJ1WS, GTW490ACJ1WW, GTW490ACJ2WS, GTW490ACJ2WW, GTW490ACJ3WS, GTW490ACJ3WW, GTW490ACJ6WS, GTW490ACJ6WW, GTW500ASN1WS, GTW540ASP0WS, GTW540ASP1WS, GTW585BSV0WS, GTW585BSV2WS, GTW680BSJ3WS, GTW685BPL2DG, GTW685BSL2WS
GE HTW200ASK0WW, HTW200ASK1WW, HTW200ASK2WW, HTW200ASK3WW, HTW200ASK4WW, HTW240ASK0WS, HTW240ASK1WS, HTW240ASK2WS, HTW240ASK3WS, HTW240ASK4WS, HTW240ASK5WS, HTW240ASK6WS, HTW265ASW0WW
GE NTW3811ST0WW, NTW4011SW0WW, PTW600BPR0DG, PTW600BPR1DG, PTW600BSR0WS, PTW600BSR1WS, PTW605BPR0DG, PTW605BPR1DG, PTW605BSR0WS, PTW605BSR1WS, VTW525ASR0WB, VTW525ASR1WB, XTW4214ST0WS, XTW4314SW0WW, YTW4514PN1DG, YTW4514SN1WS

FAQ

This kit is used on select GE and Hotpoint top-load clothes washers. The set includes shift actuator WH03X30517, drive belt WH01X27538, clutch WH05X24185, and spring WH01X24434. Compatibility is model-specific, so match your washer's full model number and the original part numbers before ordering.
This kit includes WH03X30517, WH01X27538, WH05X24185, and WH01X24434. For the shift actuator, known cross-reference numbers include WH05X24435 and WH05X25036. Always verify the part number on your original component or by model lookup, since washers can have mid-production changes.
These parts are commonly replaced when a GE or Hotpoint top-load washer has no spin, weak spin, no agitation, intermittent shifting between wash and spin, burning-rubber smell, squealing from underneath, or a belt that slips or comes off. The shift actuator controls whether the drive system goes into agitation or spin mode, while the belt, clutch, and spring affect how power is transferred through the drive system.
WH03X30517 is the mode shifter, also called the shift actuator. Its job is to move the washer drive system between agitation and spin modes. If it fails, the machine may agitate but not spin, spin but not agitate, or make repeated attempts to change modes during the cycle.
Installation is usually a moderate repair for someone comfortable working on appliances. On many GE and Hotpoint top-load models, access is from the bottom after disconnecting power and water. Common tools include a socket set, nut driver, Phillips screwdriver, pliers, and work gloves. If replacing all four parts together, expect roughly 45 to 90 minutes depending on model access and whether the old belt or clutch is stuck.
Often yes, especially if the washer has no-spin or poor-agitation symptoms and the underside already has to be opened. A worn belt can slip, a weak clutch can reduce spin performance, and a stretched or damaged spring can affect proper engagement. Replacing the related drive components together can help prevent repeat tear-down if more than one part is worn.
Unplug the washer and shut off the water supply first. Then inspect the belt for glazing, cracks, or stretching; check the clutch area for wear or debris; inspect the spring for distortion or breakage; and look for oil, rust, or signs of water leakage underneath the machine. It's also smart to verify the drive pulley area turns freely and that the washer's model number matches the intended GE or Hotpoint application.
