WB2X9154 XL44 Oven Igniter for GE Gas Range Oven Broiler XL44 Round Style Igniter Replacement 120V Model Not Universal - Replace WB13K10027 WB13K (3-1/2 Inches 120V 2.5-3.0 A)

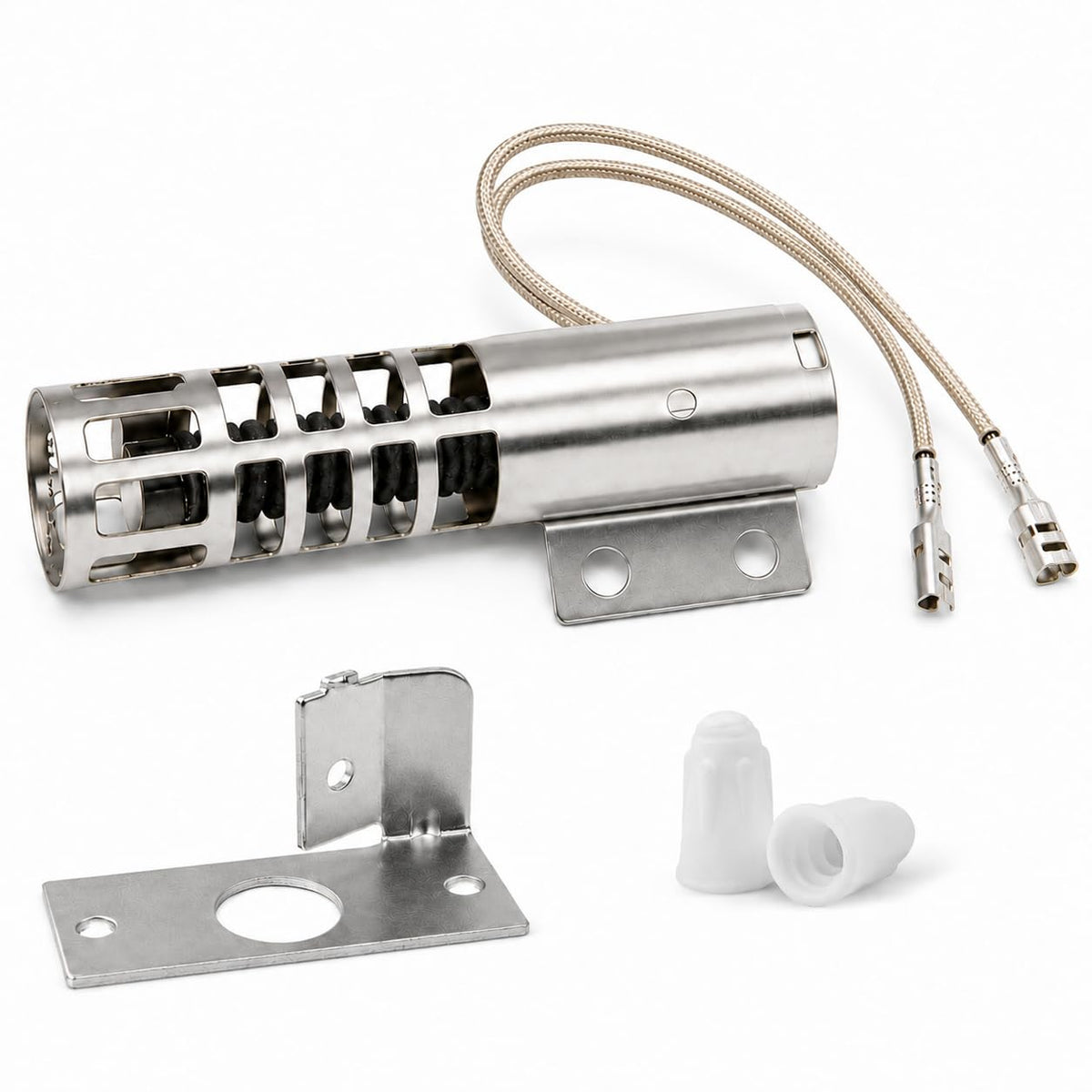

WB2X9154 XL44 Oven Igniter

Key Features

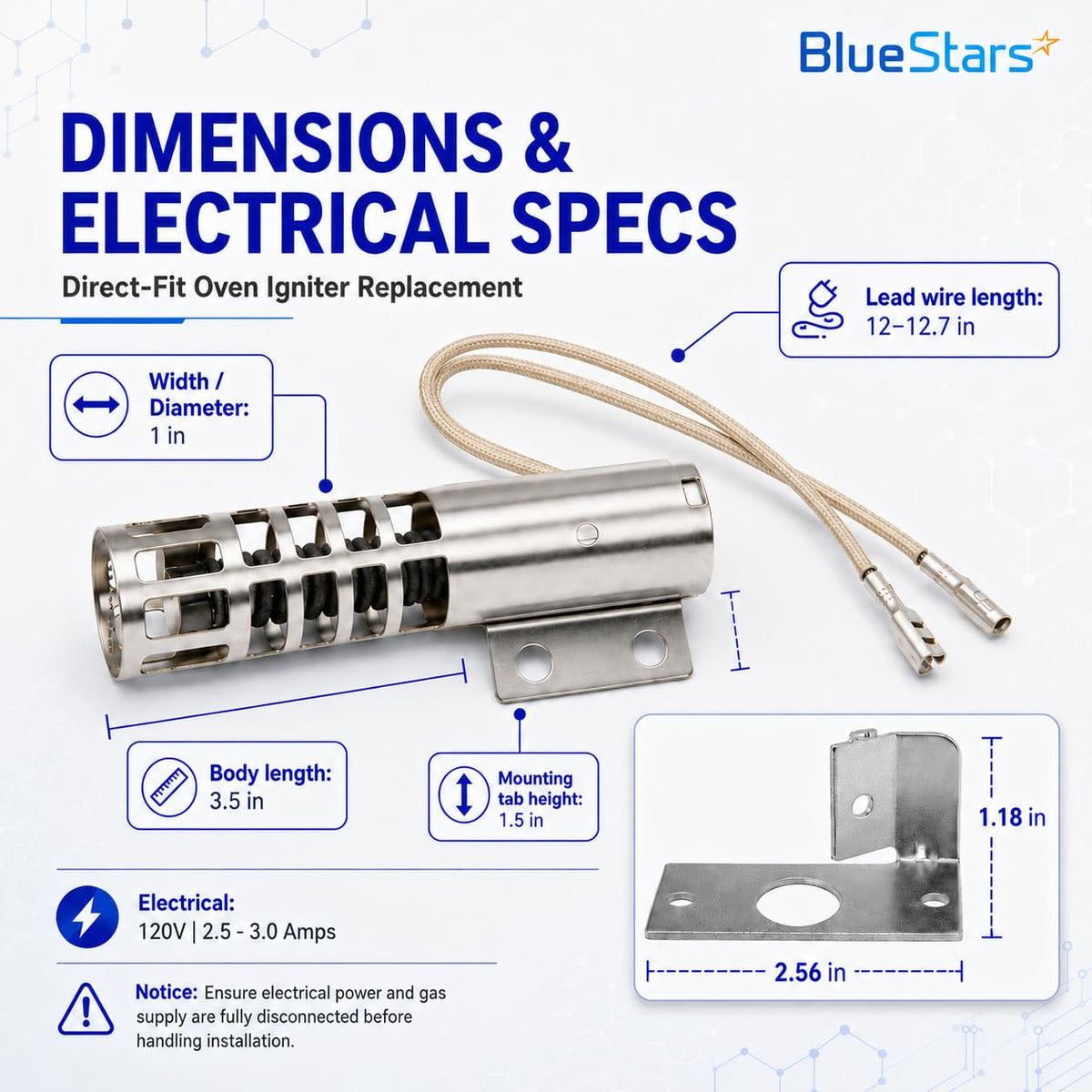

• Electrical specifications: 120V, 2.5-3.0 Amps.
• Element length: 3-1/2 inches.

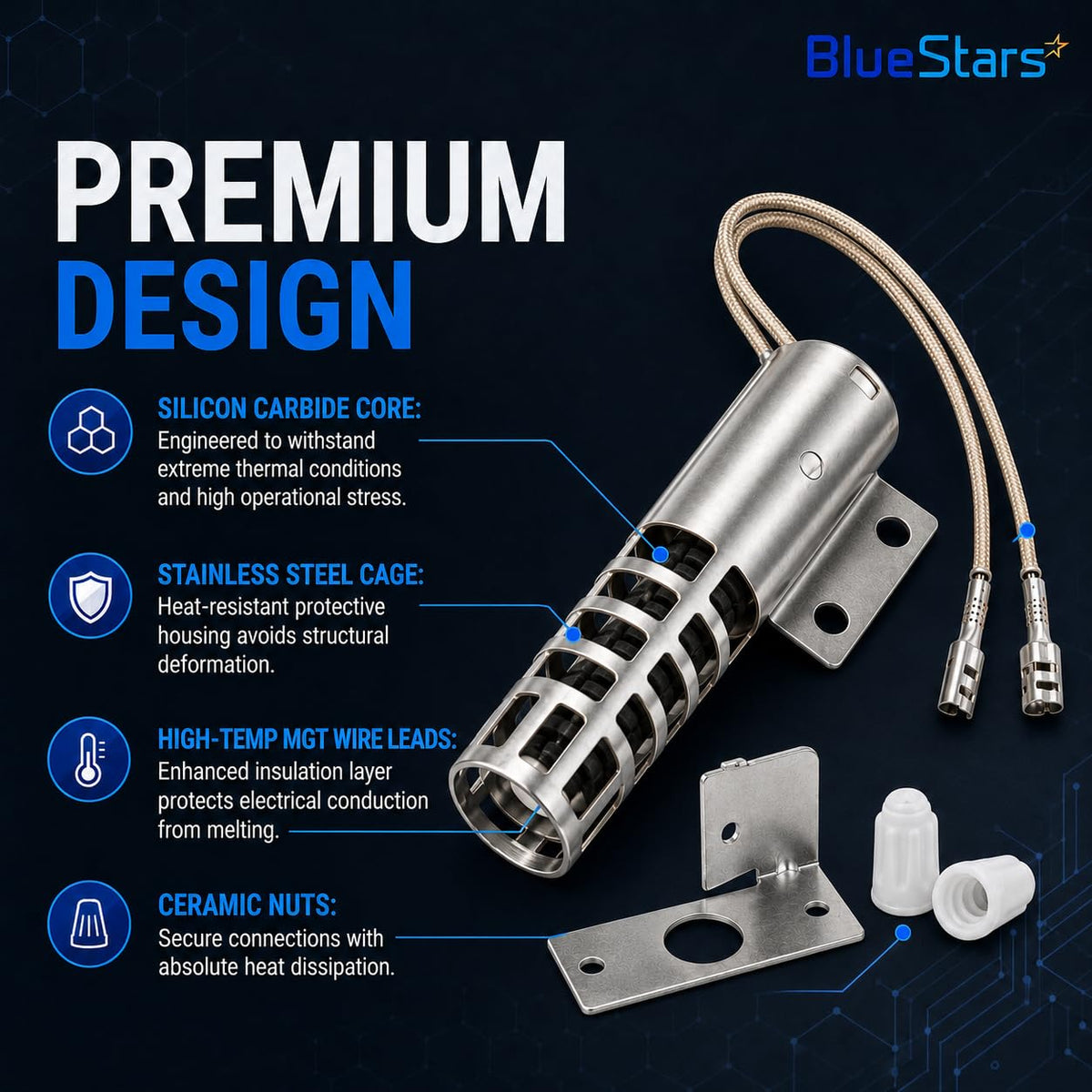

• Design: Round style ceramic igniter.

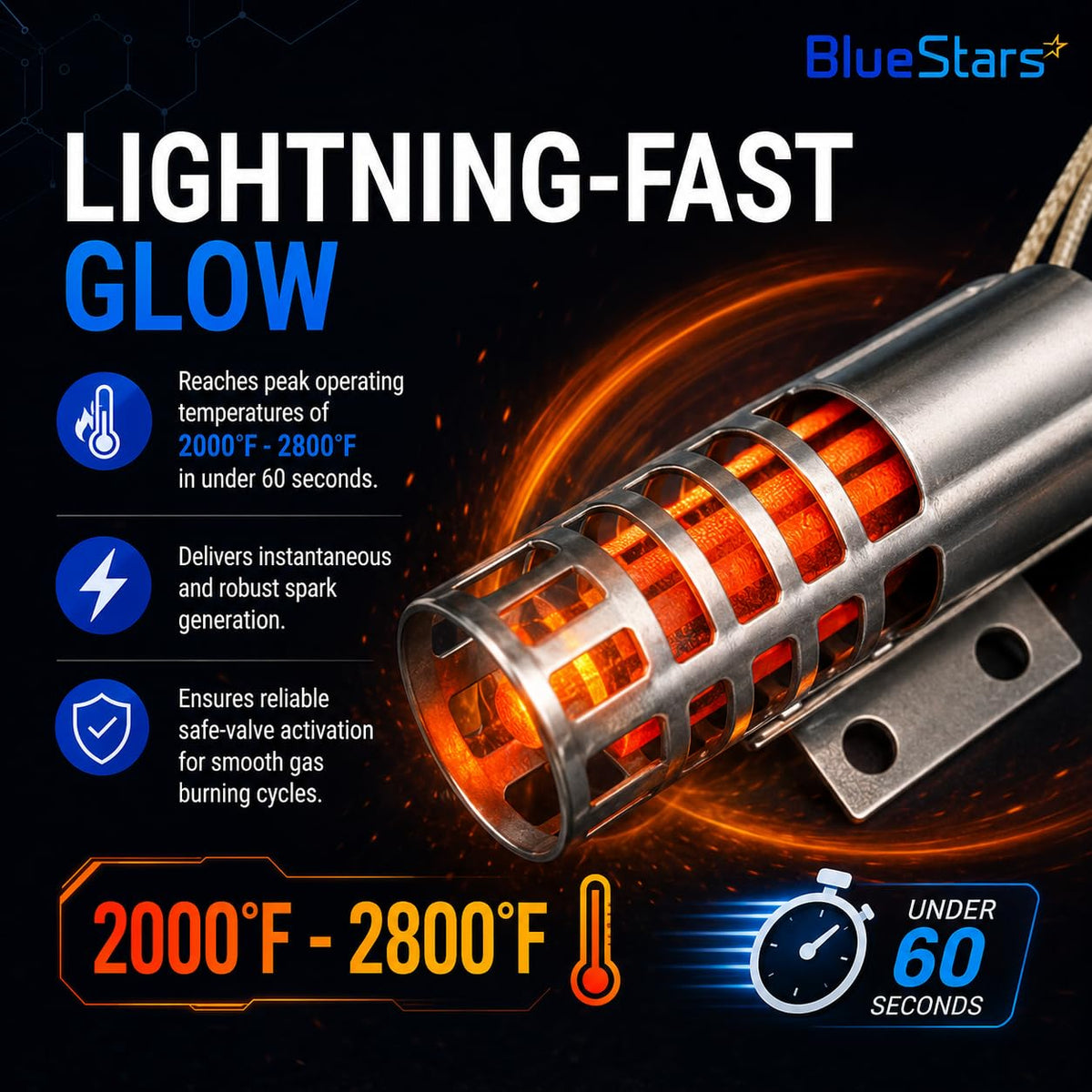

• Function: Heats to ignition temperature to open the gas safety valve for oven and broiler burners.

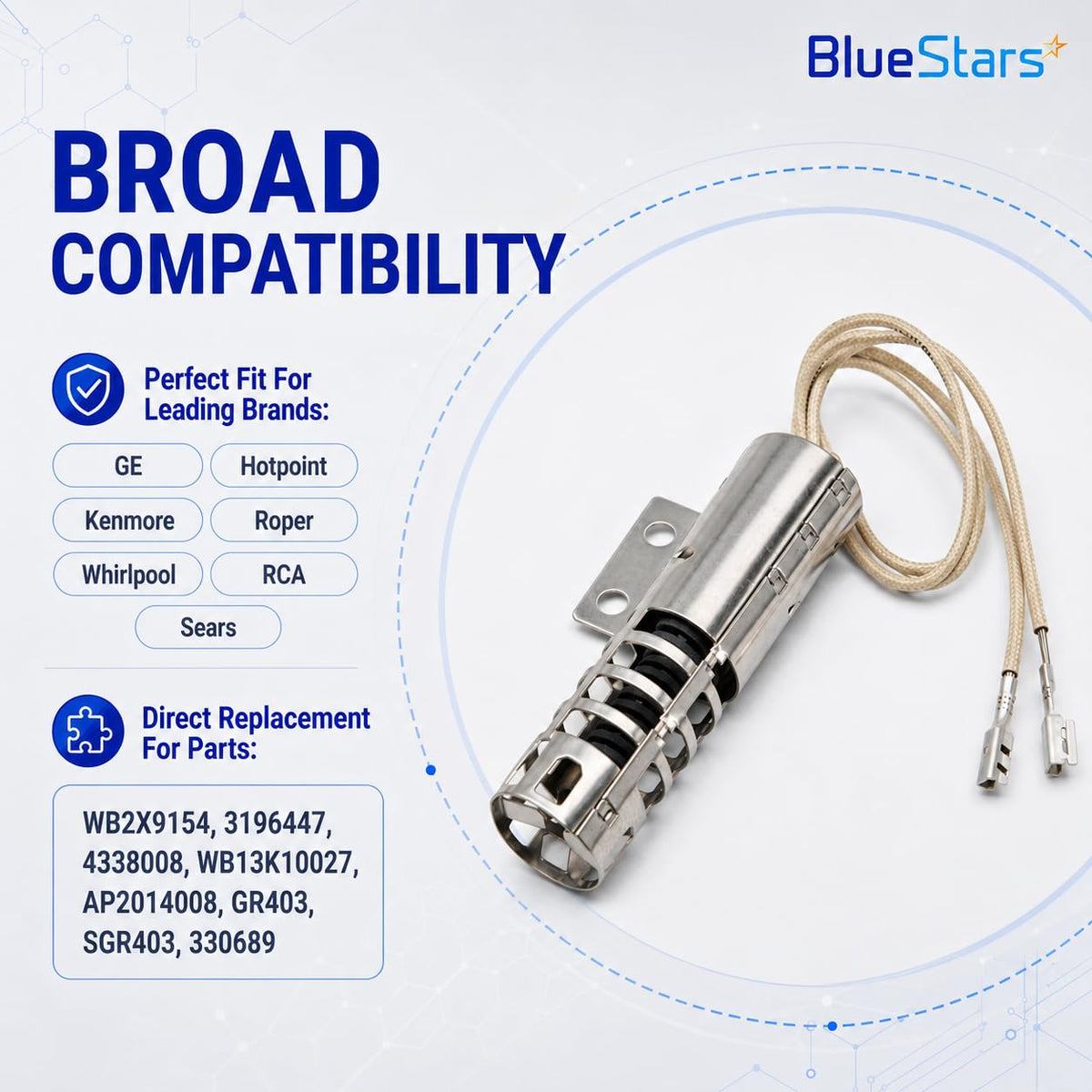

Replaces / Cross-Reference Part Numbers

• WB2X9154, WB02X9154
• WB13K10027, WB13K3, WB13K
• AP2014008, PS243425

Compatibility & Fitment

• Designed for GE, Kenmore, and Hotpoint gas ranges and ovens.
• Specifically compatible with XL44 series and other models utilizing the round-style igniter configuration.
• Note: This is not a universal part. Verify the shape and electrical requirements of your existing igniter before installation.

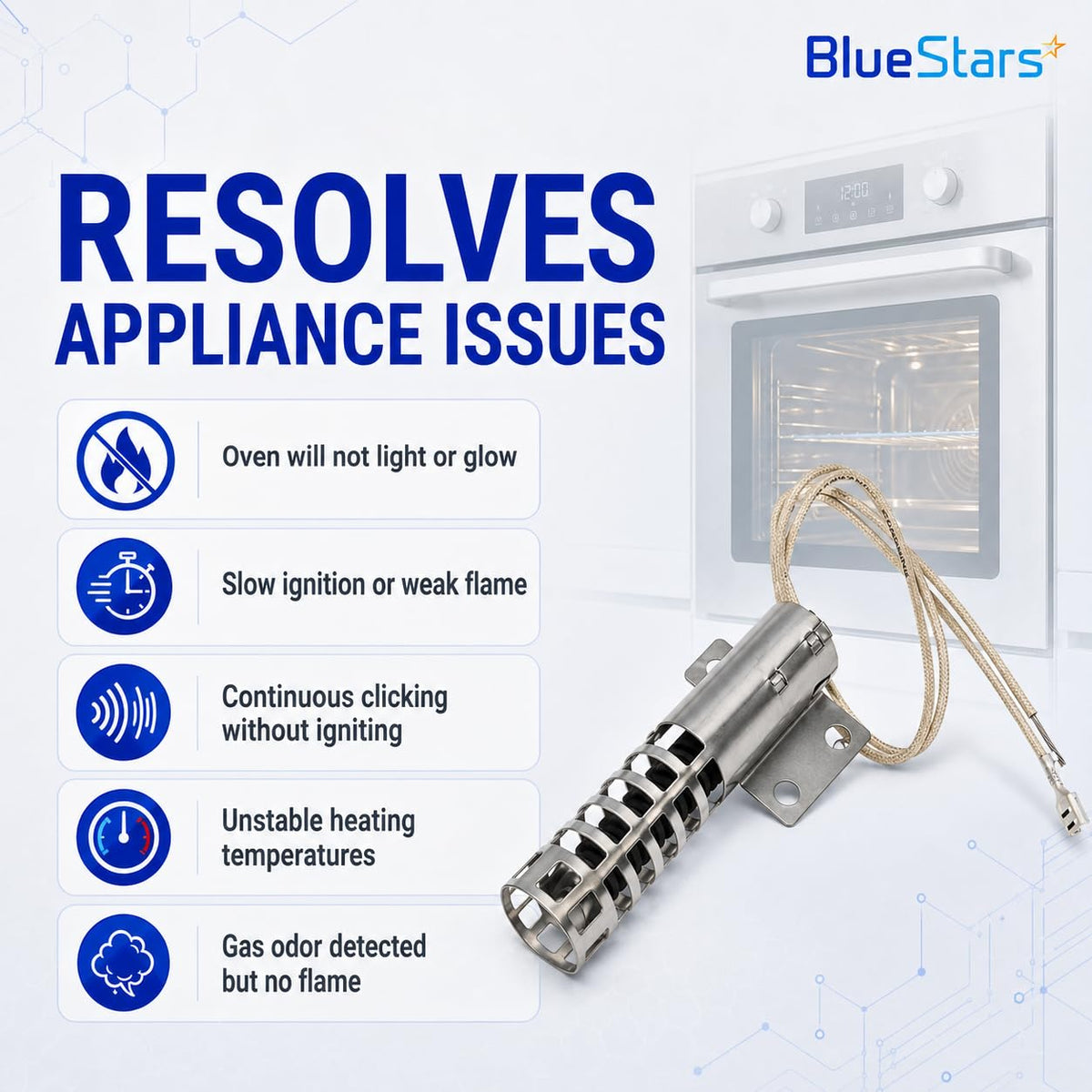

When to Replace

• Oven fails to heat or reach set temperature.
• Igniter element does not glow orange when the oven is turned on.
• Gas safety valve fails to open despite the igniter glowing (often caused by a weak igniter that cannot draw sufficient amperage).
• Visible damage, such as cracks or breaks, on the ceramic heating element.

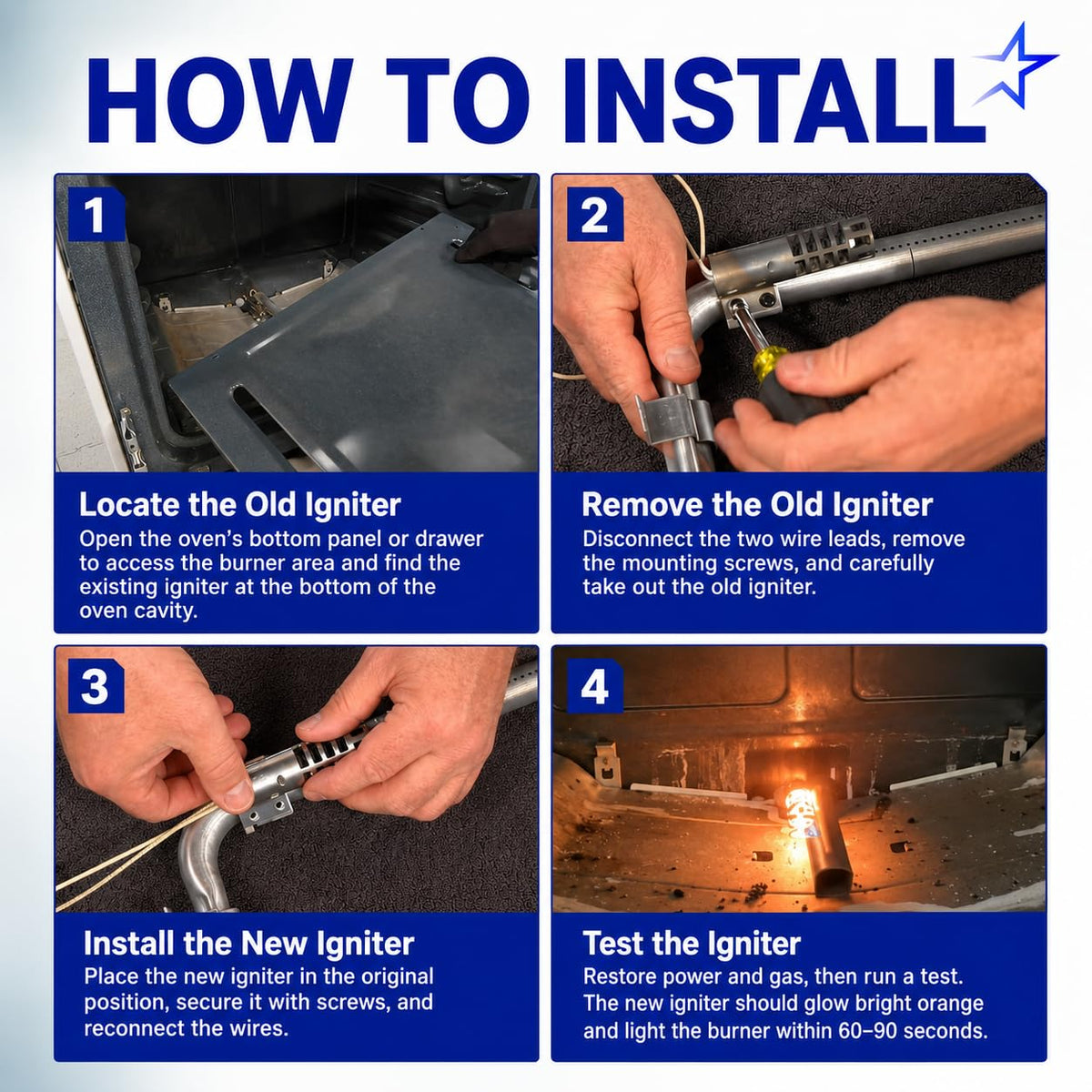

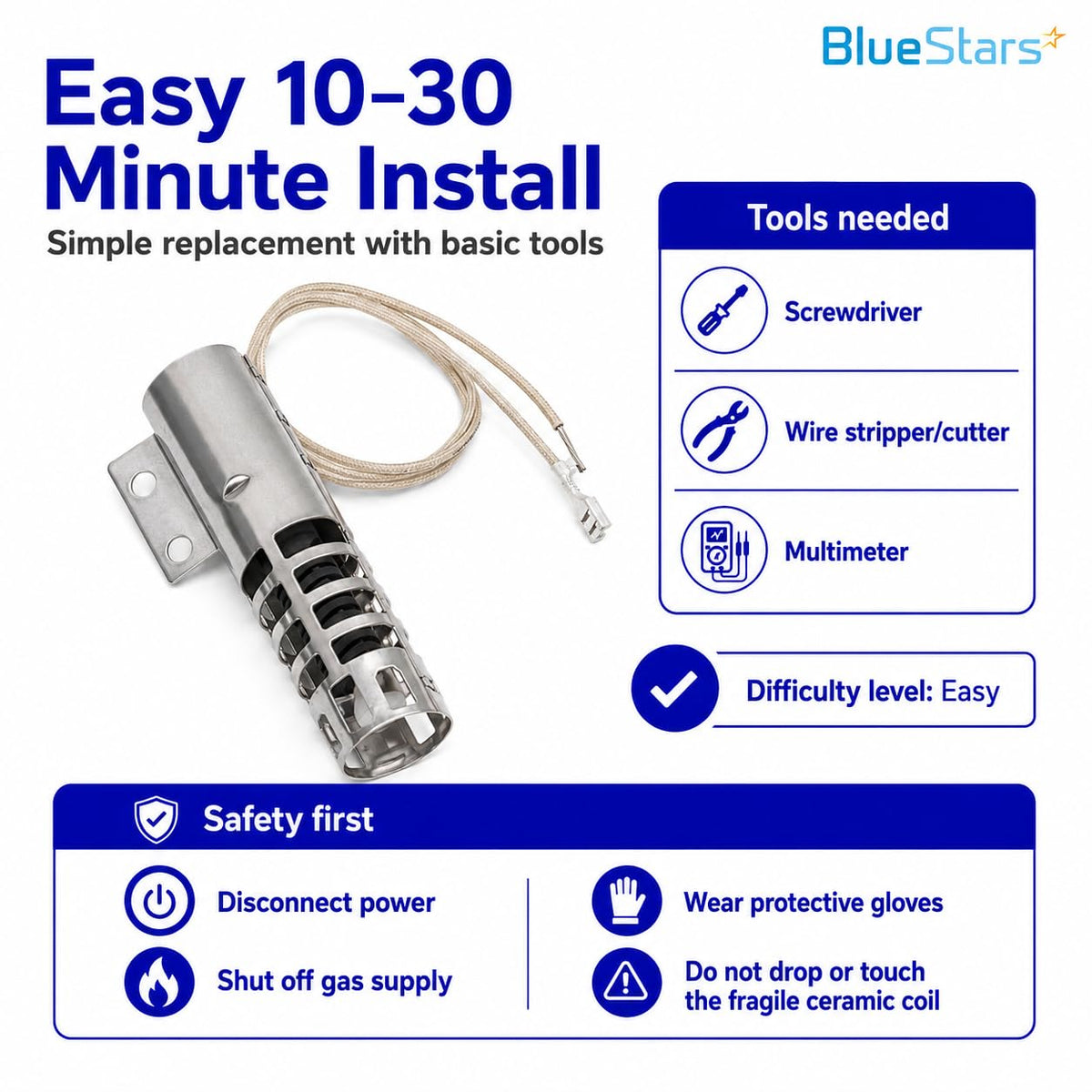

Installation Tips

• Disconnect power and gas supply to the appliance before beginning repairs.
• Avoid touching the ceramic element of the new igniter with bare hands; oils from skin can cause premature failure.

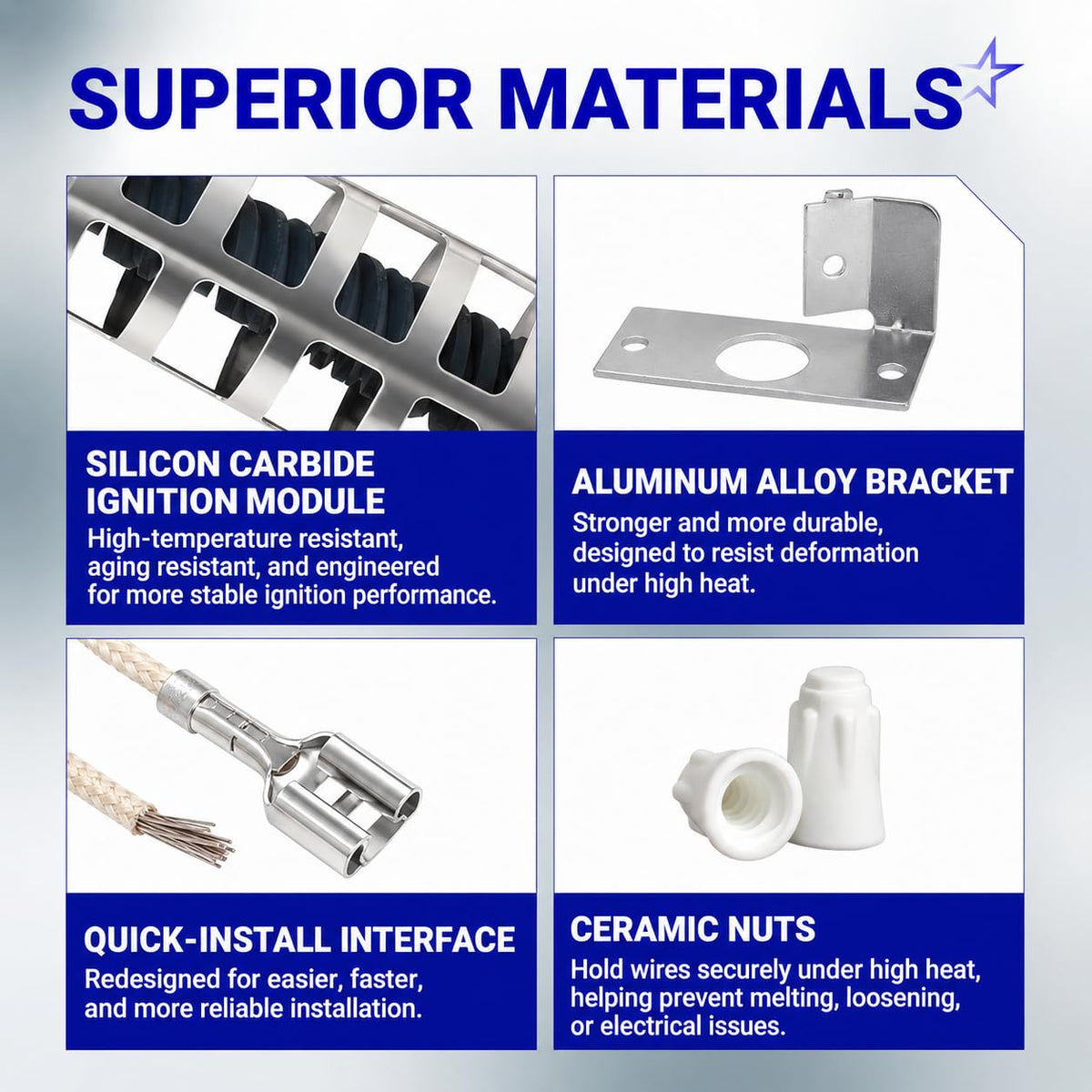

• Use ceramic wire nuts to ensure high-heat resistance for the electrical connections.
• Test the igniter cycle after installation to ensure the gas safety valve opens reliably.
