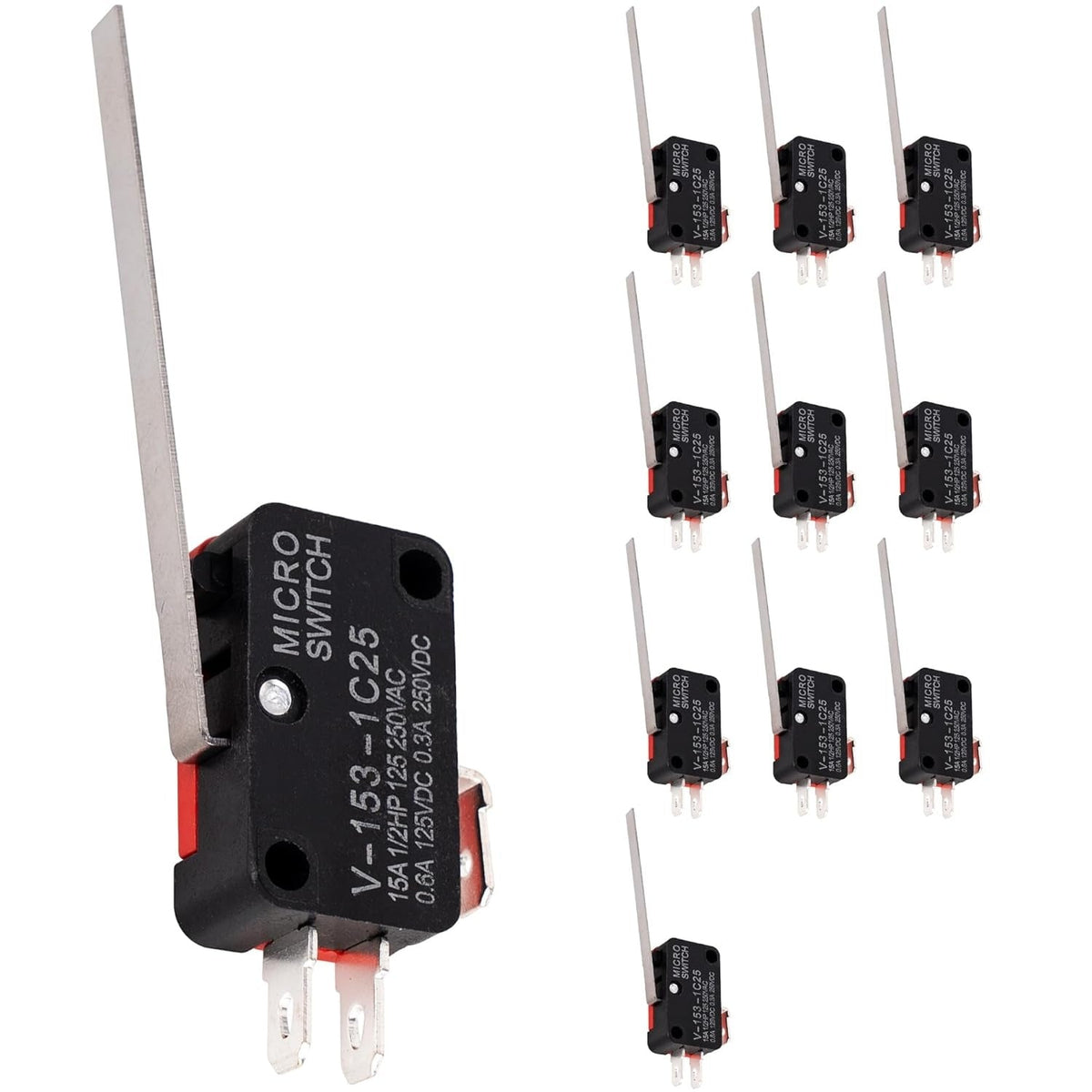

V-153-1C25 Micro Limit Switch Blade Momentary

V-153-1C25 Micro Limit Switch Blade Momentary

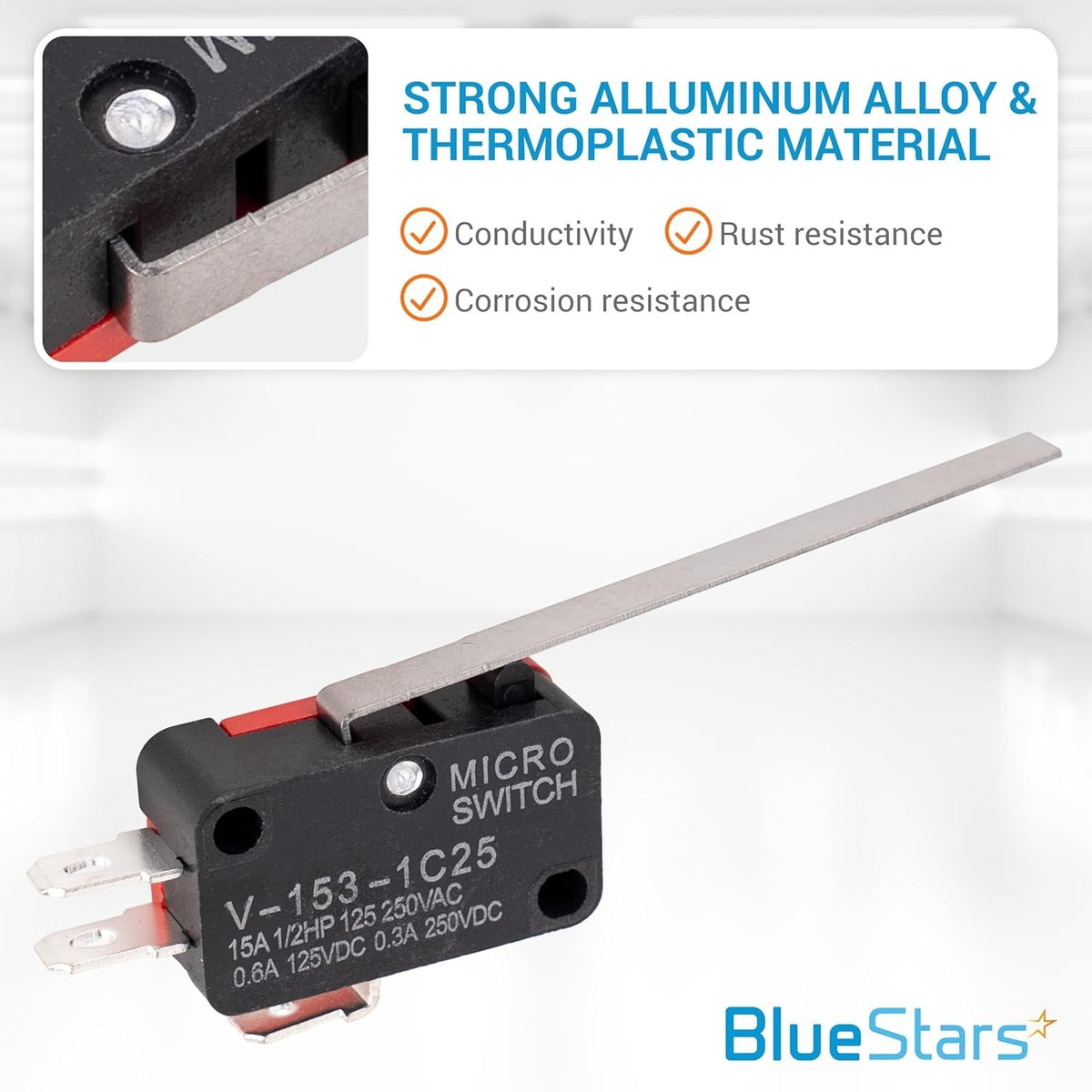

Key Features

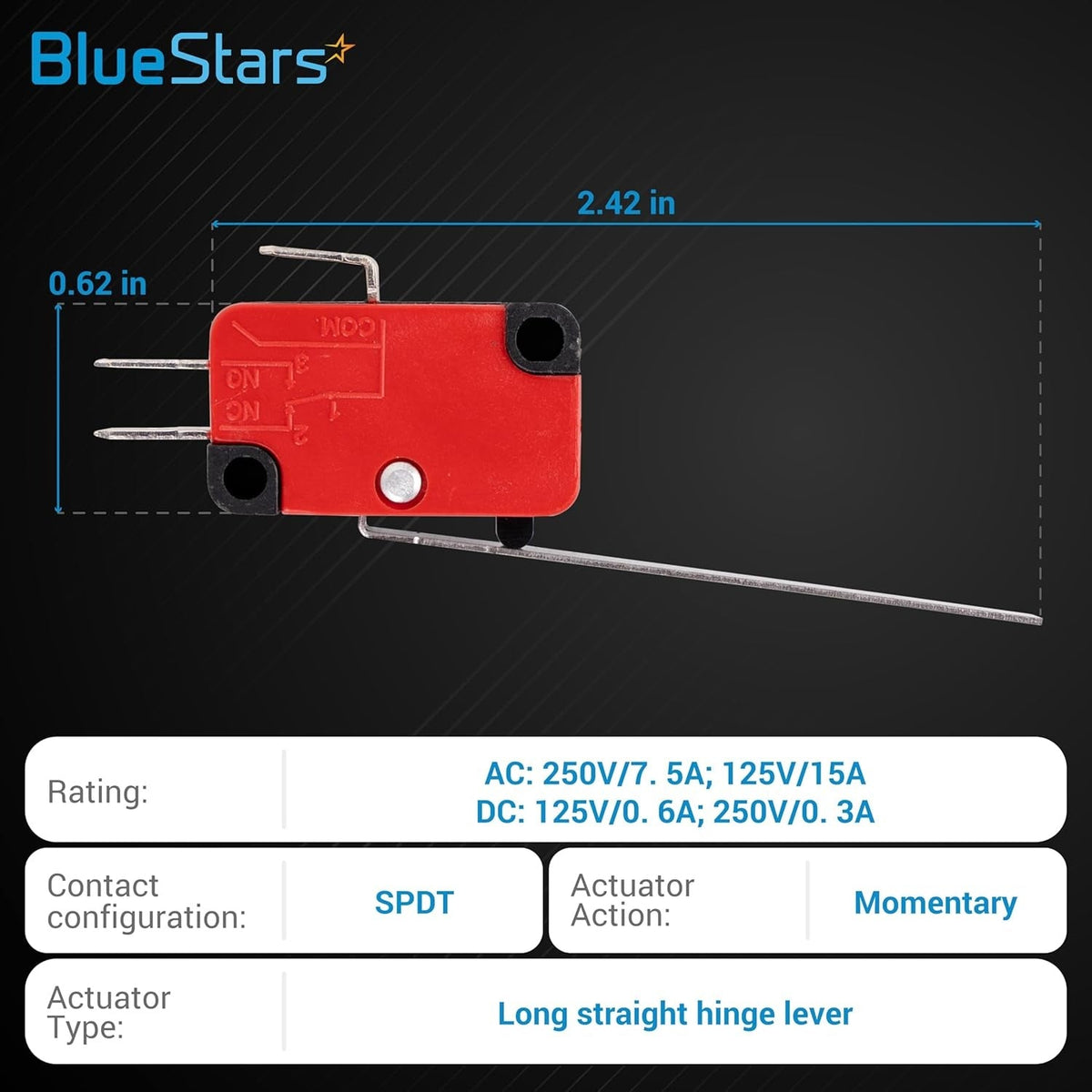

• Model: V-153-1C25
• Action Type: Momentary
• Actuator Type: Long Straight Hinge Lever
• Circuit: SPDT (Single Pole, Double Throw)
• Contact Configuration: 1NO 1NC (1 Normally Open, 1 Normally Closed)
• Terminals: 3-Pin Solder/Quick Connect
• Current Rating: 15A at 250VAC
• Voltage Rating: 250VAC / 125VDC

Replaces / Cross-Reference Part Numbers

• V-153-1C25
• V-15-1C25

Compatibility & Fitment

• General purpose snap-action switch for industrial controls, automation equipment, and appliances.
• Used as a limit switch in various mechanical and electronic systems.
• Fitment is determined by physical dimensions and electrical ratings. Verify specifications of the original component before ordering.

When to Replace

• Switch fails to actuate or release reliably.
• Intermittent or complete loss of electrical continuity in either the normally open or normally closed position.
• Physical damage to the switch body, lever arm, or terminals, such as cracking, melting, or corrosion.
• The connected device operates erratically or does not respond to the switch's state change.

Installation Tips

• Disconnect all power to the equipment before beginning installation.
• Confirm the voltage and amperage ratings of this switch meet or exceed the requirements of your application.

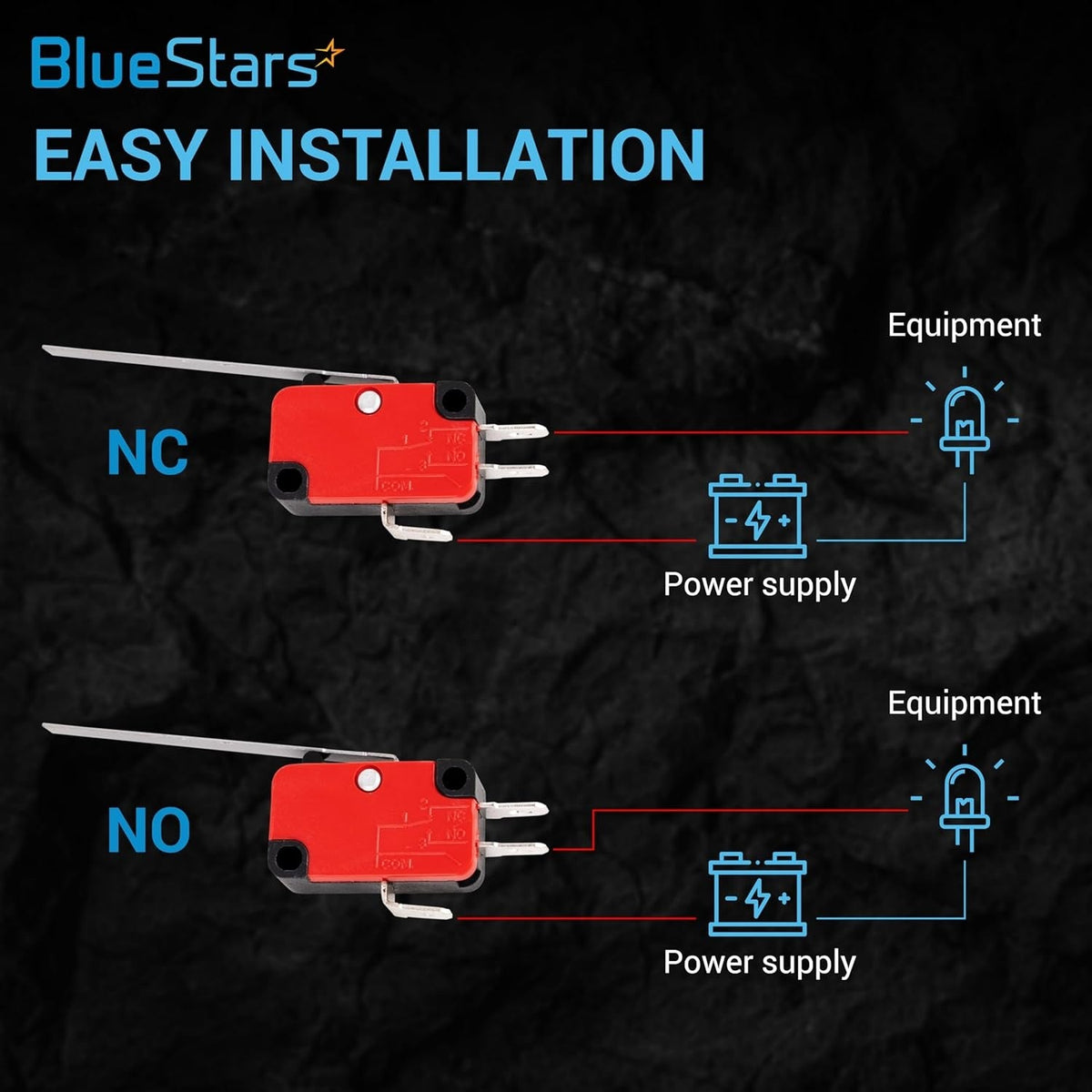

• Connect wiring to the appropriate C (Common), NO (Normally Open), and NC (Normally Closed) terminals based on your circuit diagram.
• Ensure the switch is mounted securely and the actuator arm has the correct range of motion without over-travel.
