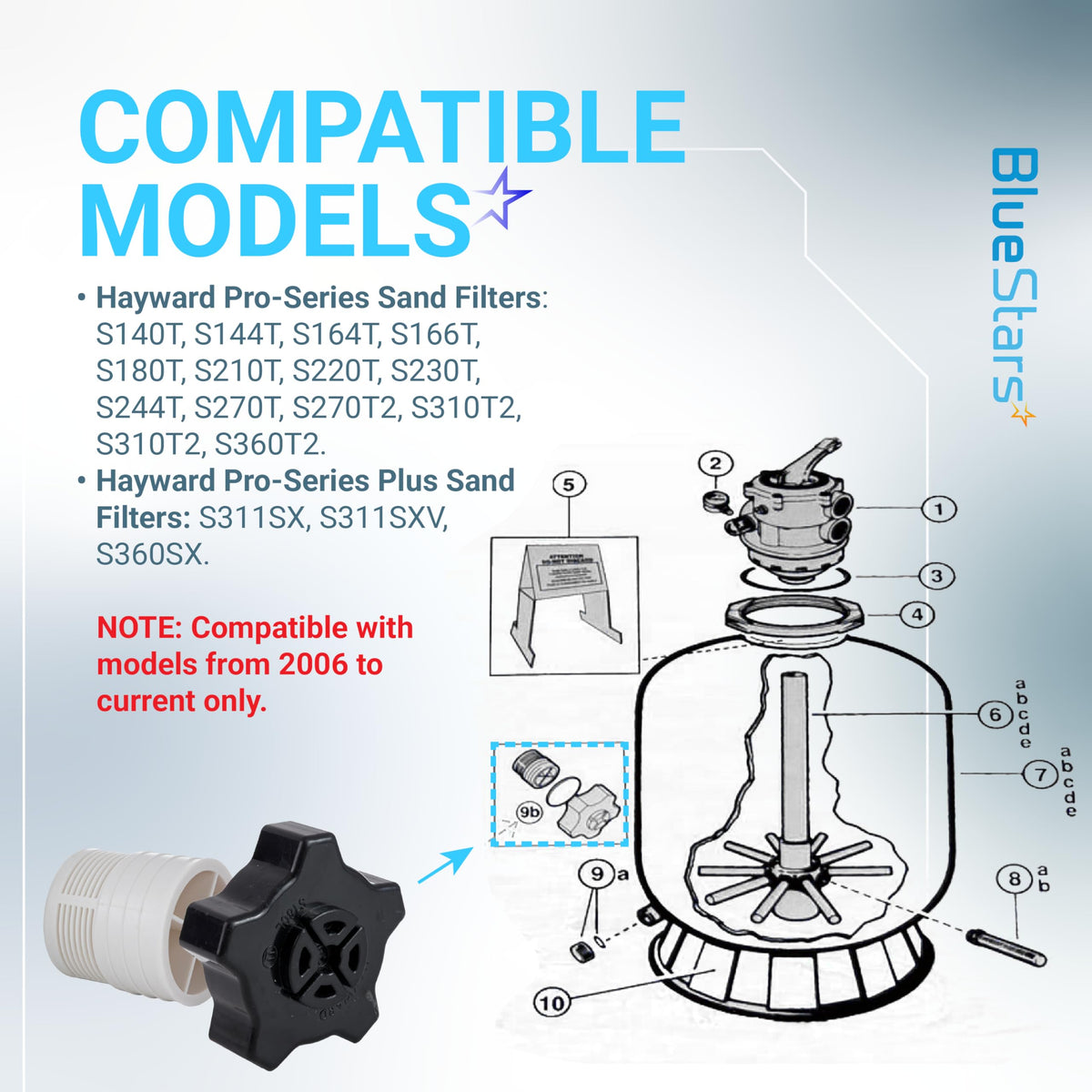

SX180LA pool sand filter drain cap assembly shown with a compatibility diagram for Hayward Pro-Series filter models.

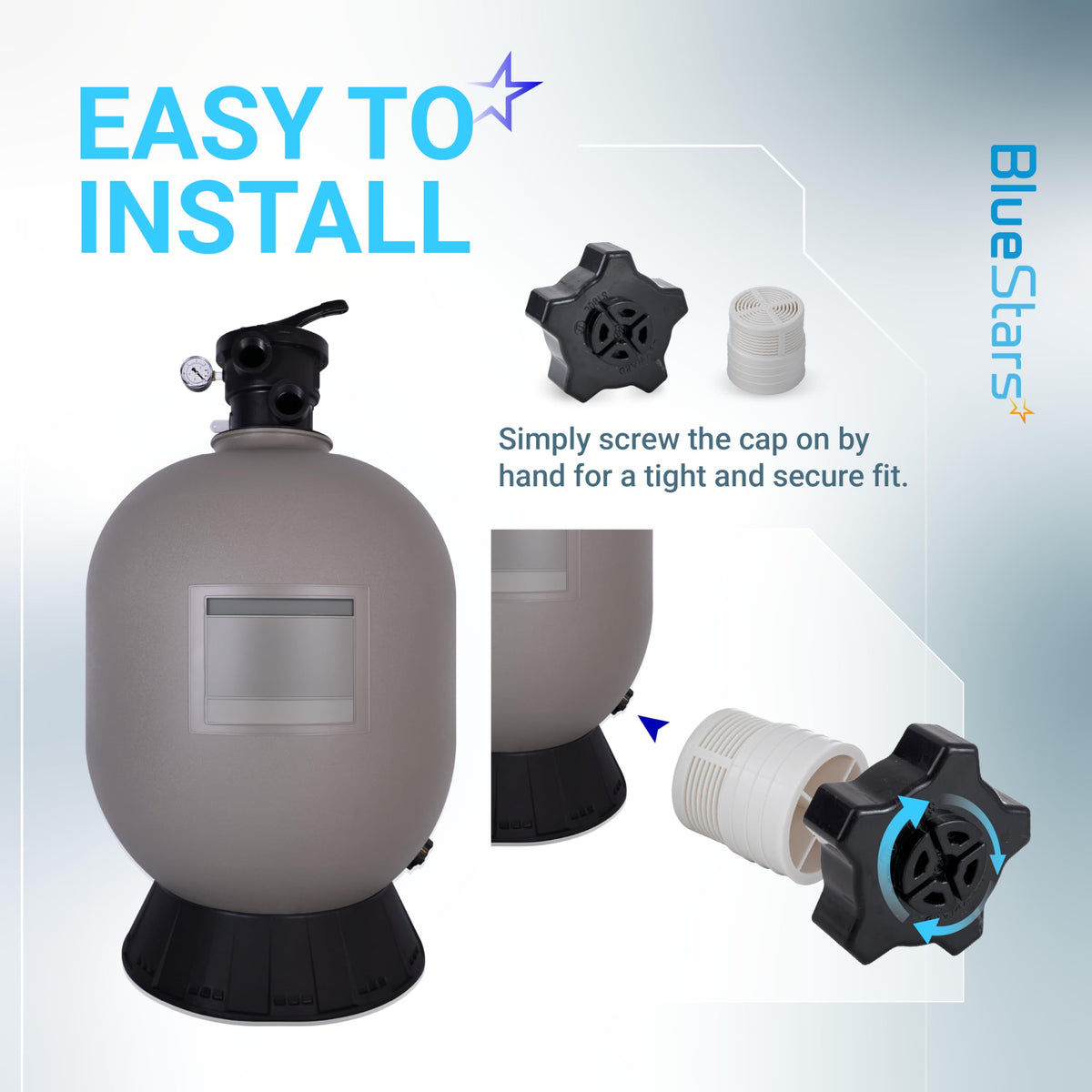

SX180LA pool sand filter drain cap assembly installation guide showing the cap and filter connection.
SX180LA pool sand filter drain cap assembly parts shown with symptom troubleshooting guide for Hayward Pro-Series filters.
SX180LA pool sand filter drain cap assembly comparison chart showing features and benefits for Hayward Pro-Series filters.
SX180LA pool sand filter drain cap and plug assembly for Hayward Pro-Series filters.
Hayward SX180LA pool sand filter drain cap and threaded plug assembly.

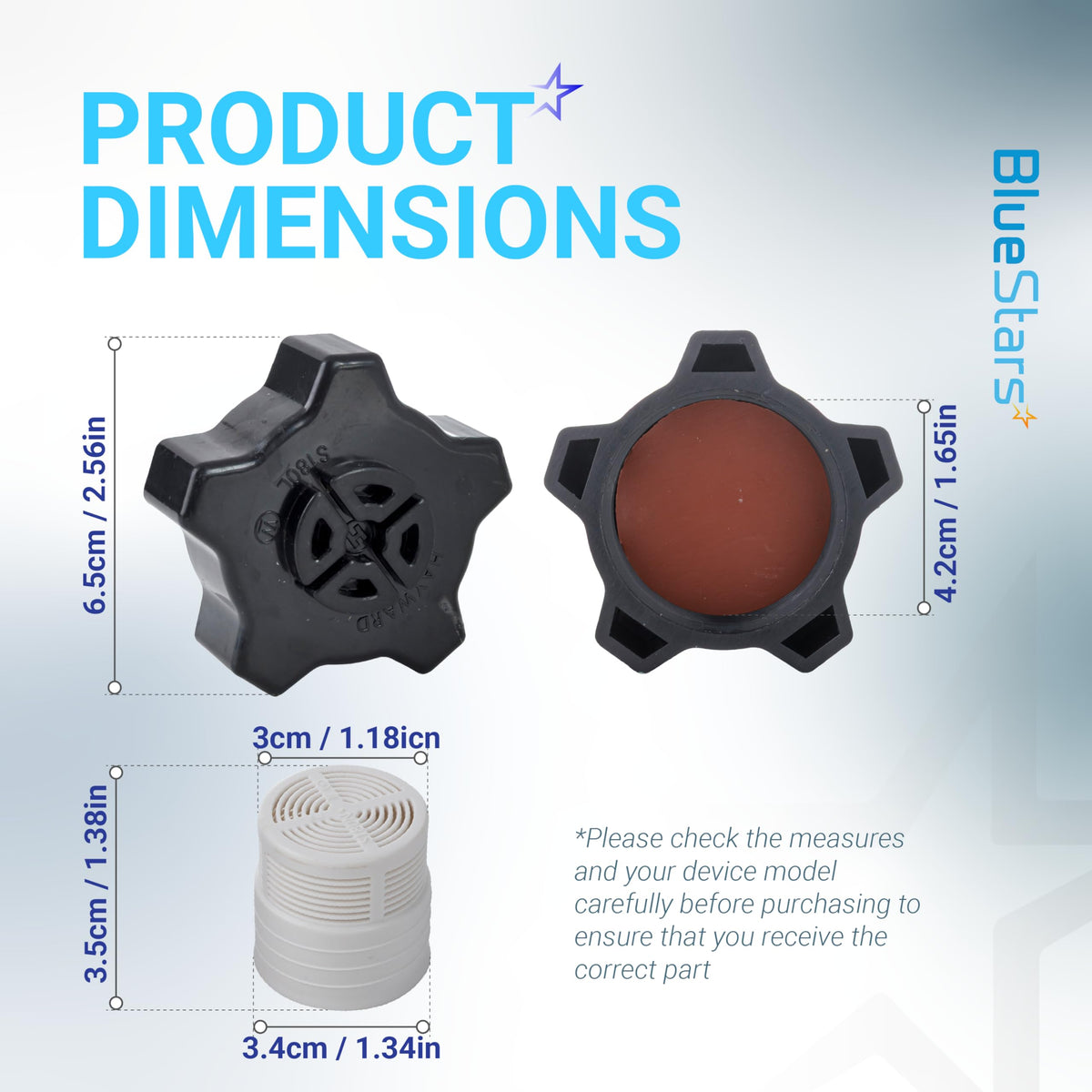

Dimension diagram of SX180LA pool sand filter drain cap assembly showing measurements for cap and drain plug components.
SX180LA pool sand filter drain cap assembly with black cap and white threaded plug for Hayward Pro-Series filters.
Close-up views of SX180LA pool sand filter drain cap assembly showing durable ABS plastic construction and threaded fit.
SX180LA pool sand filter drain cap assembly shown with a compatibility diagram for Hayward Pro-Series filter models.
SX180LA pool sand filter drain cap assembly installation guide showing the cap and filter connection.
SX180LA pool sand filter drain cap assembly parts shown with symptom troubleshooting guide for Hayward Pro-Series filters.
SX180LA pool sand filter drain cap assembly comparison chart showing features and benefits for Hayward Pro-Series filters.
SX180LA pool sand filter drain cap and plug assembly for Hayward Pro-Series filters.
Lifetime Warranty

[Lifetime Warranty] SX180LA Pool Sand Filter Drain Cap Assembly - Compatible with Hayward Pro-Series and Pro-Series Plus Sand Filters S180T S210T S220T S230T S244T S311SX S311SXV S360SX

Save 13%
0.00
$12.11
$13.93
$12.11
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

SX180LA Pool Sand Filter Drain Cap Assembly

Key Features

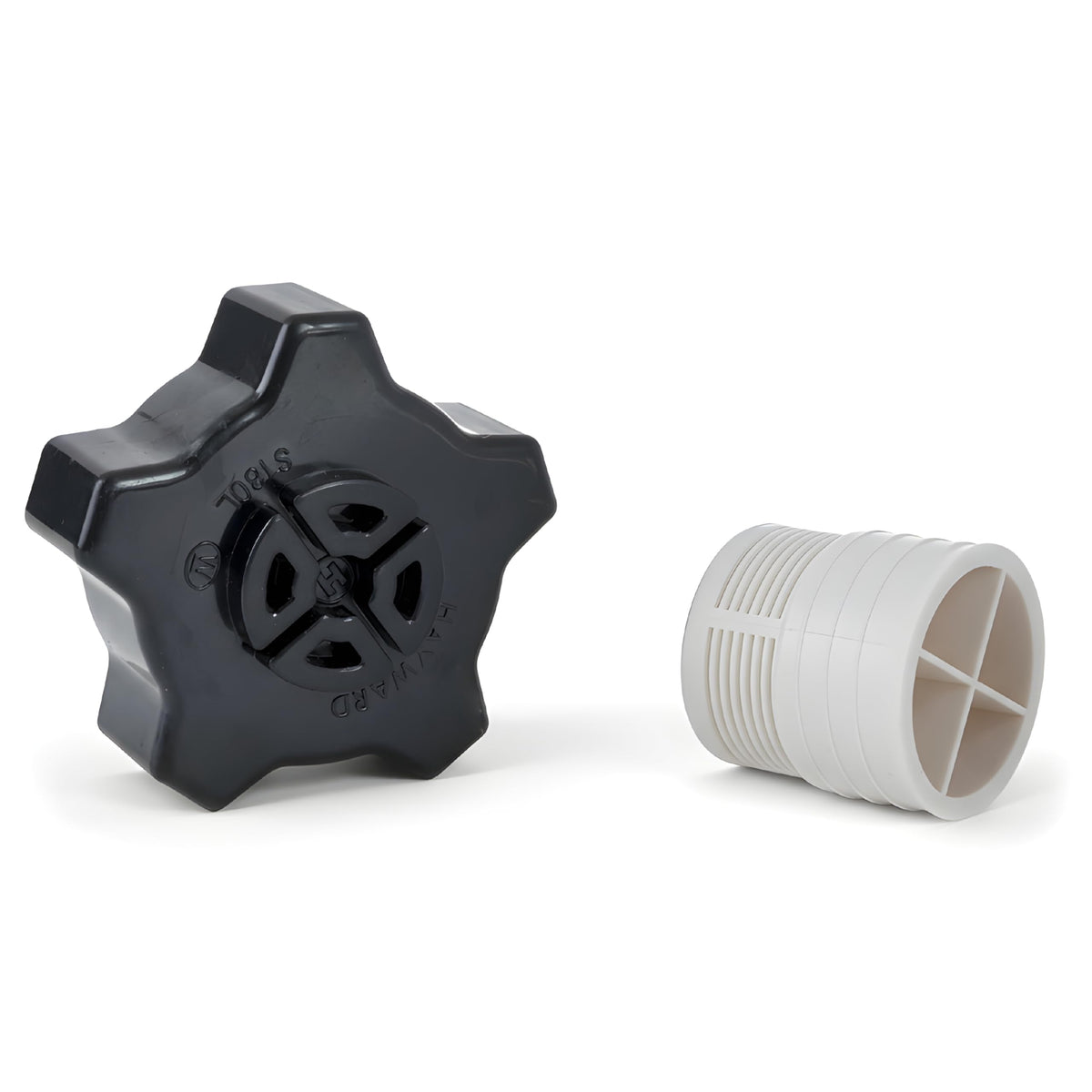

  • Complete assembly includes drain cap, gasket, and screen.
  • Constructed from durable, corrosion-resistant polymer for longevity.
  • Provides a secure, leak-free seal for the filter's drain port.
  • Allows for simple draining of the filter tank for service or winterization.

Replaces / Cross-Reference Part Numbers

  • Hayward: SX180LA

Compatibility & Fitment

  • Fits Hayward Pro-Series and Pro-Series Plus Sand Filters.
  • Compatible Models: S140T, S144T, S164T, S166T, S180T, S210T, S220T, S230T, S244T, S270T, S270T2, S310T, S310T2, S311SX, S311SXV, S360SX, S360T2.

When to Replace

  • Visible cracks or damage to the cap body.
  • Stripped threads on the cap that prevent a secure fit.
  • Persistent water leaks from the drain port due to a worn or compressed gasket.
  • Original cap is lost or missing.

Installation Tips

  • Turn off the pool pump and release all system pressure before removing the old cap.
  • Clean the drain port threads on the filter tank to ensure a clean sealing surface.
  • Confirm the gasket is properly seated inside the new cap before installation.
  • Hand-tighten only. Using tools can cause over-tightening and damage the cap or filter.
Product image
Product image
Product image
Product image
  • FIX THE FOLLOWING SYMPTOMS

    FIX THE FOLLOWING SYMPTOMS

    Water leaks at drain | Debris entering port | Loose or worn plug | Hard or unreliable draining
  • NO-LEAK TIP

    NO-LEAK TIP

    Wrap Teflon tape around the drain threads in the tightening direction before installing the cap to ensure a secure, leak-free seal

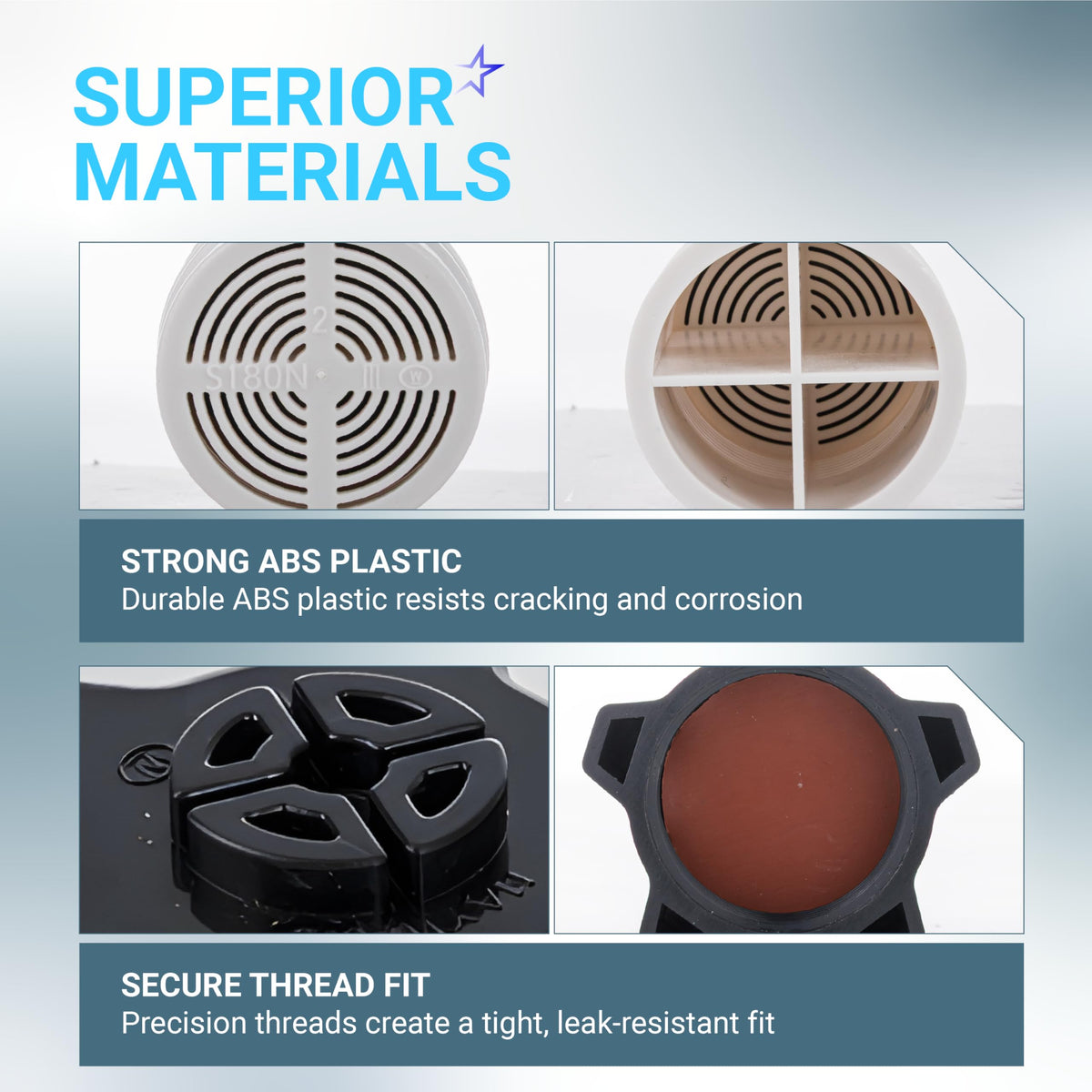

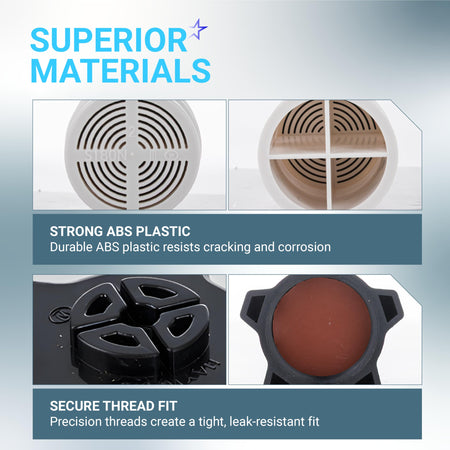

  • BUILT TO LAST

    BUILT TO LAST

    Built with tough, thick plastic to withstand daily wear in pool environments.
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
COMPATIBLE WITH

COMPATIBLE WITH

Hayward Pro-Series Sand Filters: S140T, S144T, S164T, S166T, S180T, S210T, S220T, S230T, S244T, S270T, S270T2, S310T2, S310T2, S360T2 | Hayward Pro-Series Plus Sand Filters: S311SX, S311SXV, S360SX (*NOTE: Compatible with models from 2006 to current only)

#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

Enjoy the comfort that our small yet mighty parts bring to your home

FAQ

This drain cap assembly is used on many Hayward Pro-Series and Pro-Series Plus sand filters. Confirmed compatible models include S140T, S144T, S164T, S166T, S180T, S210T, S210SV, S220T, S220T2, S230T, S244SV, S244T, S244T2, S270T, S270T2, S310T2, S311SX, S311SXV, S360SX, and S360T2. It is commonly listed for Hayward sand filters produced after 2005, so matching your exact model number is the safest way to verify fit.
SX180LA is a drain cap assembly that typically includes the drain cap, gasket, and screen. These pieces work together to seal the drain opening while helping keep debris from entering the drain area.
Common symptoms include water leaking from the drain port, a cap that will not tighten securely, a cracked or stripped cap, a flattened or damaged gasket, or a missing/broken screen. If your filter starts dripping specifically from the bottom drain area after reassembly or winterizing, the drain cap assembly is a common item to inspect.
Yes. The main replacement part number for this assembly is SX180LA. Some listings also reference HAY-051-2173 as a catalog or cross-reference number. When matching parts, SX180LA is the key number to verify against your filter model.
Installation is usually simple and takes only a few minutes. In most cases, no special tools are needed. Shut off the pump, relieve filter pressure, remove the old cap assembly, inspect and clean the drain opening and sealing surface, then install the replacement cap/gasket/screen assembly. Do not overtighten, since excessive force can damage the cap or sealing area.
Before installation, make sure the filter is off and fully depressurized. Check the drain port threads and sealing surface for cracks, chips, sand buildup, or cross-threading. Clean away debris so the gasket can seat properly. If a new cap still leaks after proper installation, inspect the filter tank's drain opening for damage rather than assuming the cap is the only problem.
They usually fail from age, overtightening, repeated removal during draining or winterizing, UV exposure, and gasket compression over time. In pool equipment, a small leak often starts when the gasket hardens or the plastic cap develops hairline cracks from stress.
