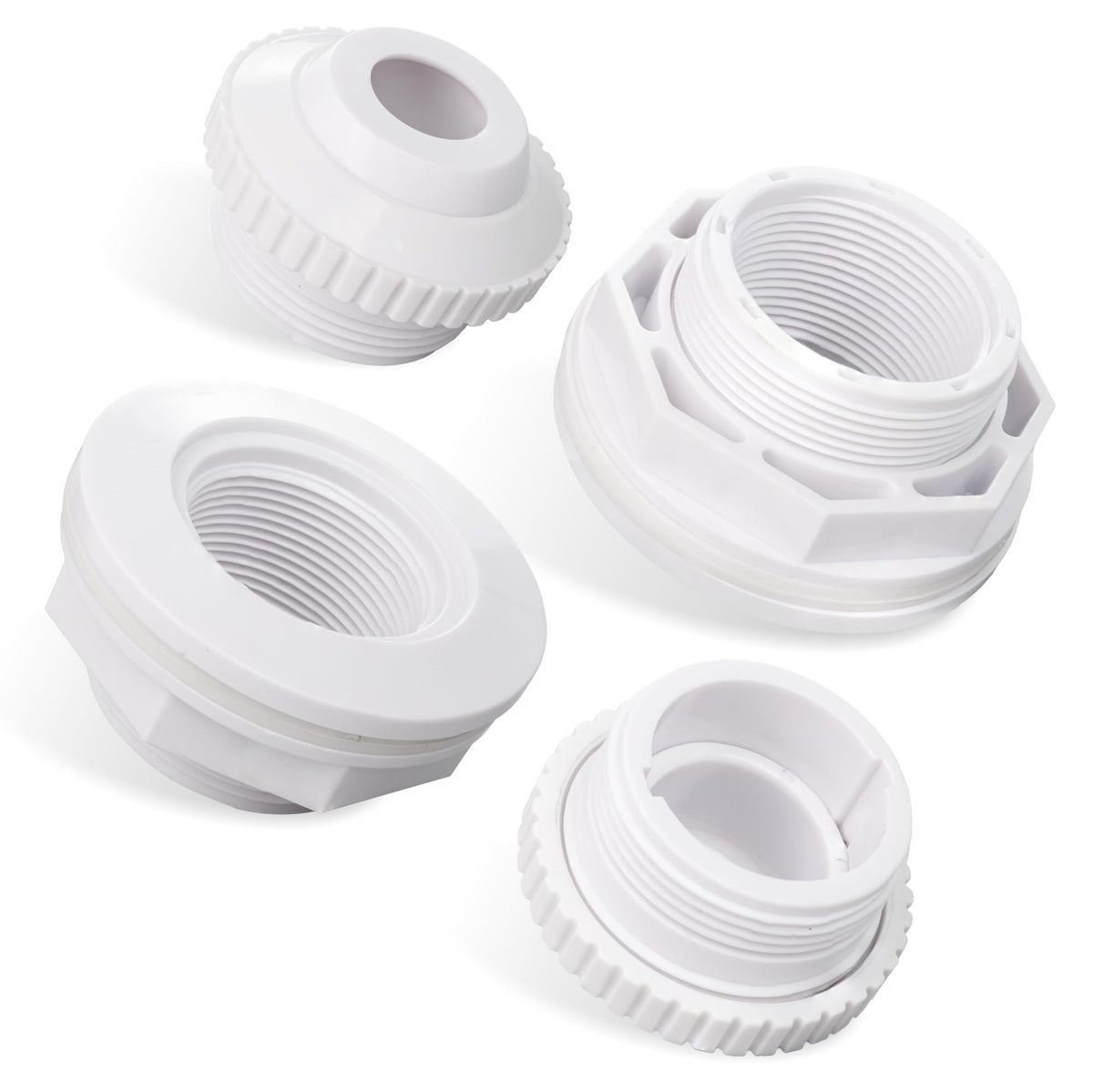

Set of two SP1023 pool return fittings and SP1419D directional flow eyeball jets for above ground pools.

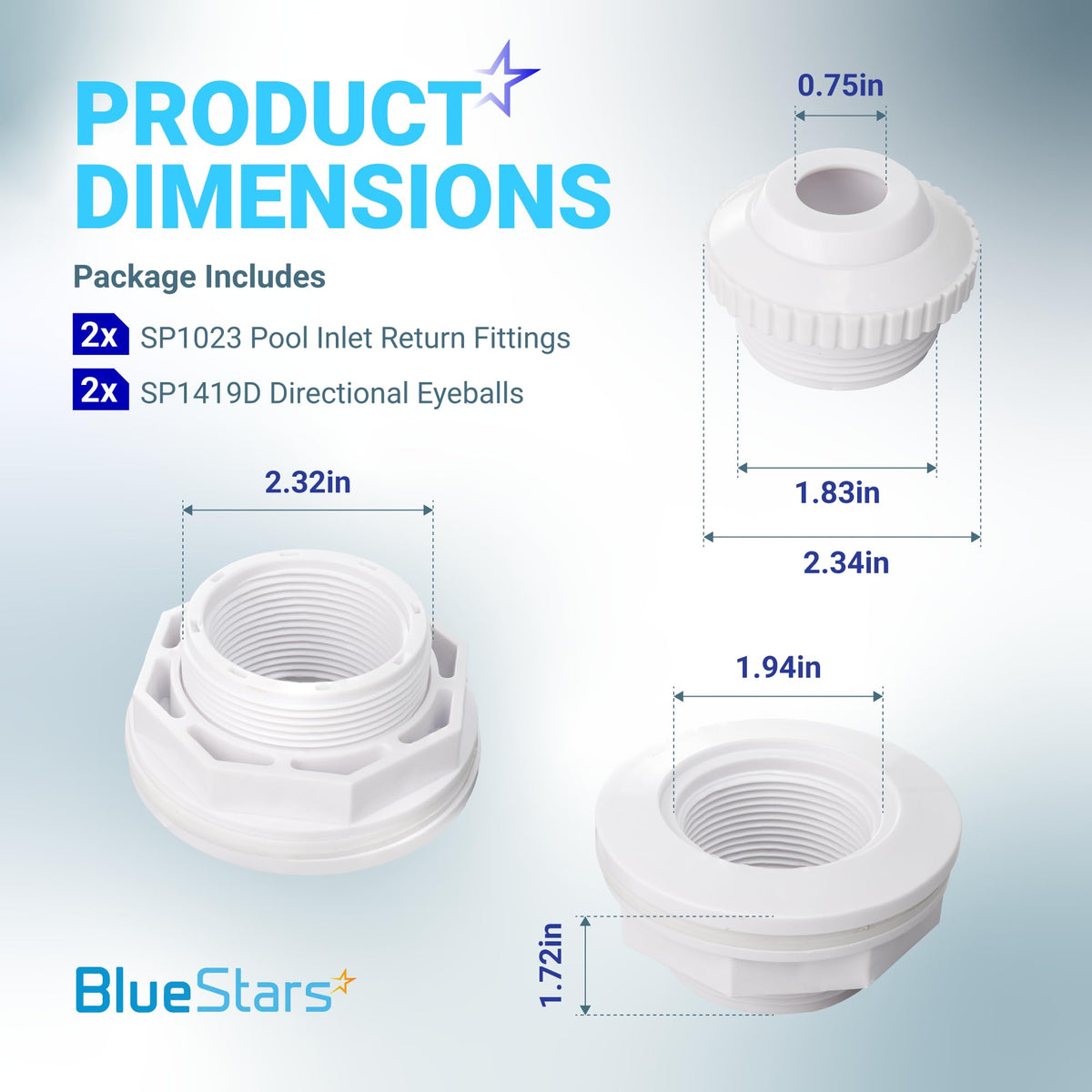

Dimensional diagram showing SP1023 pool inlet return fitting and SP1419D directional eyeball jet with measurements.

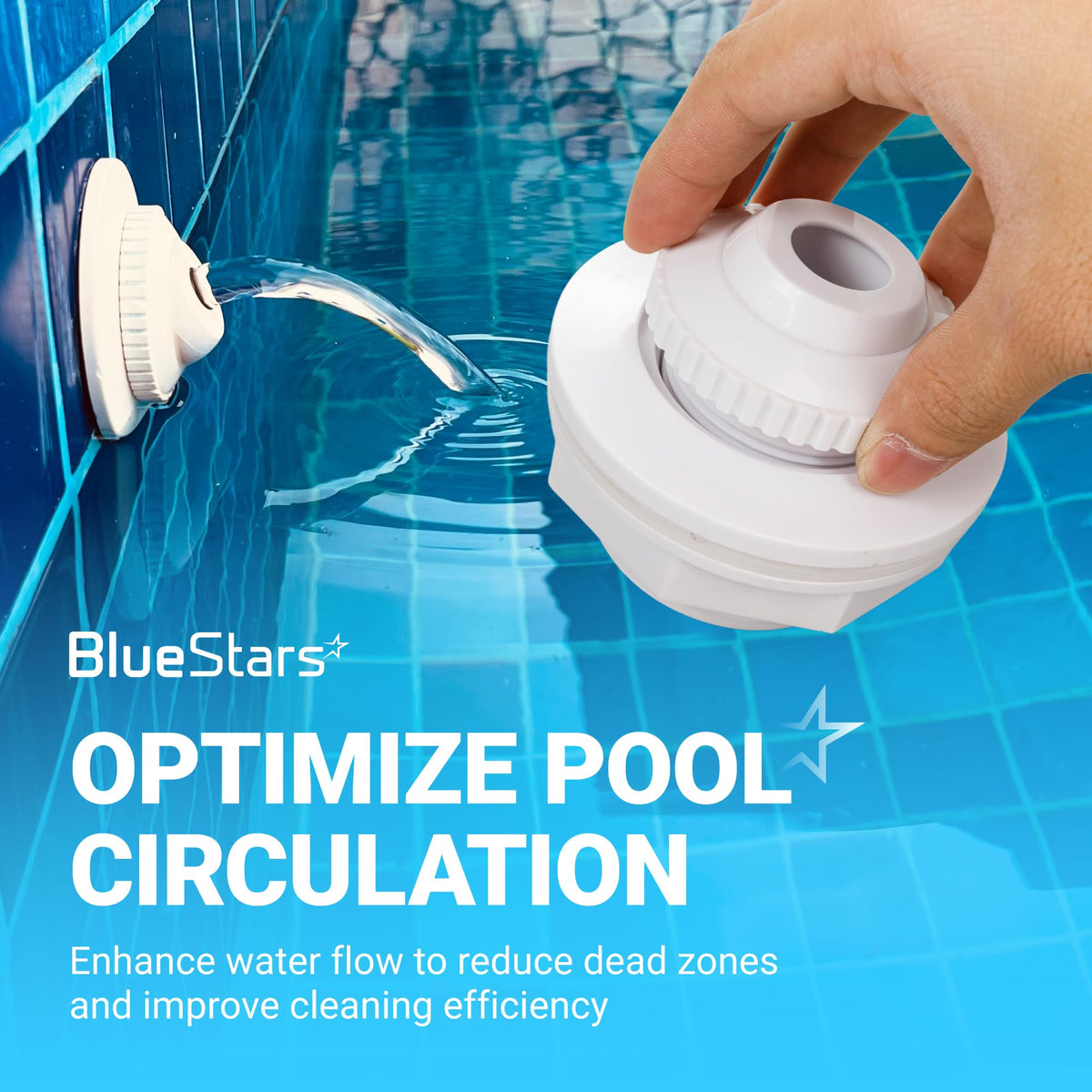

Hand holding a white SP1023 pool return fitting and SP1419D directional eyeball jet next to an installed pool inlet.

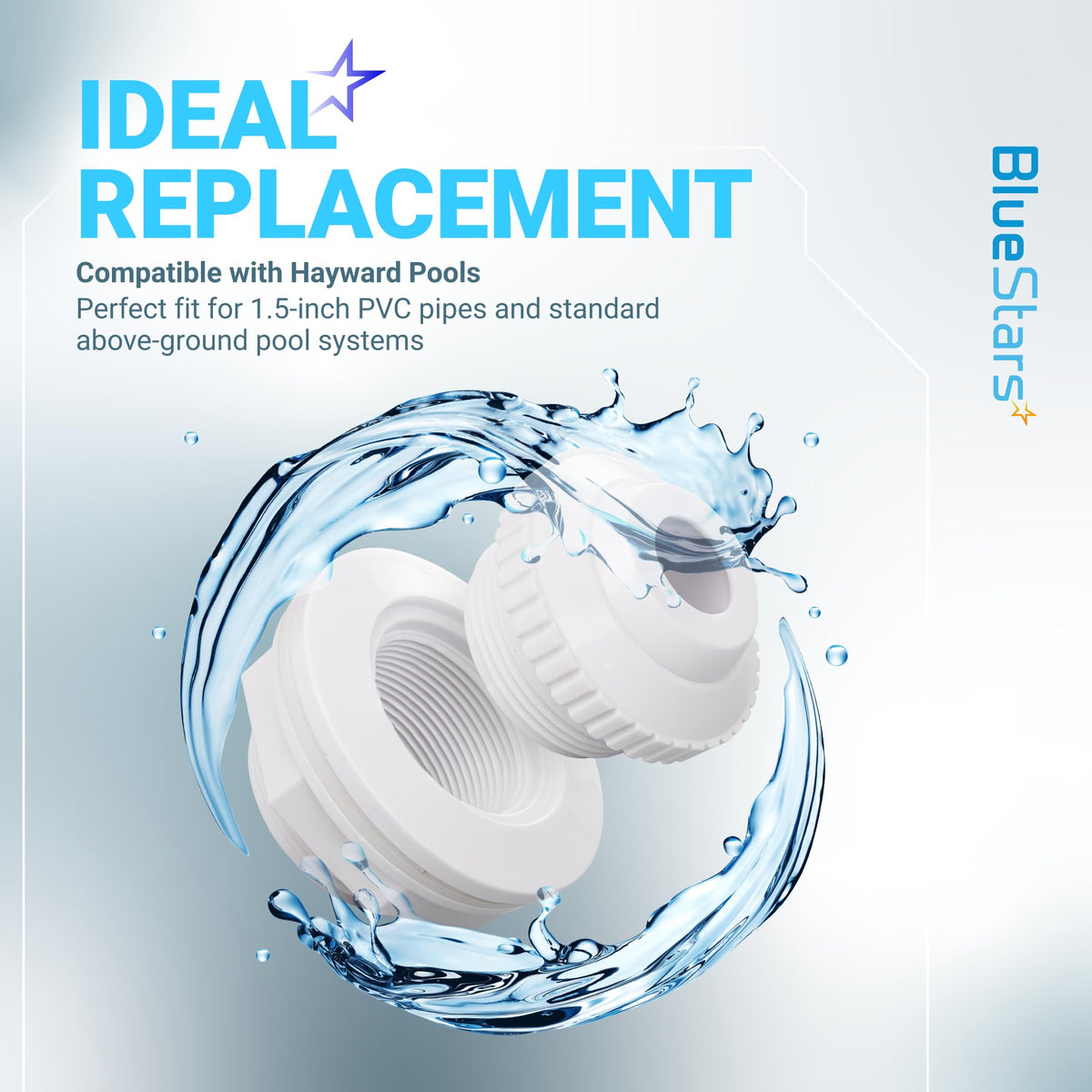

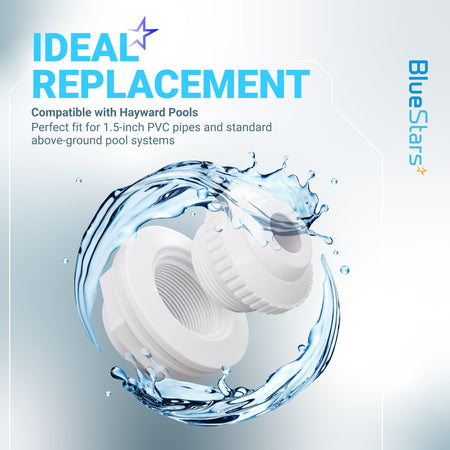

SP1023 pool inlet return fitting and SP1419D directional eyeball jet for Hayward above ground pools.

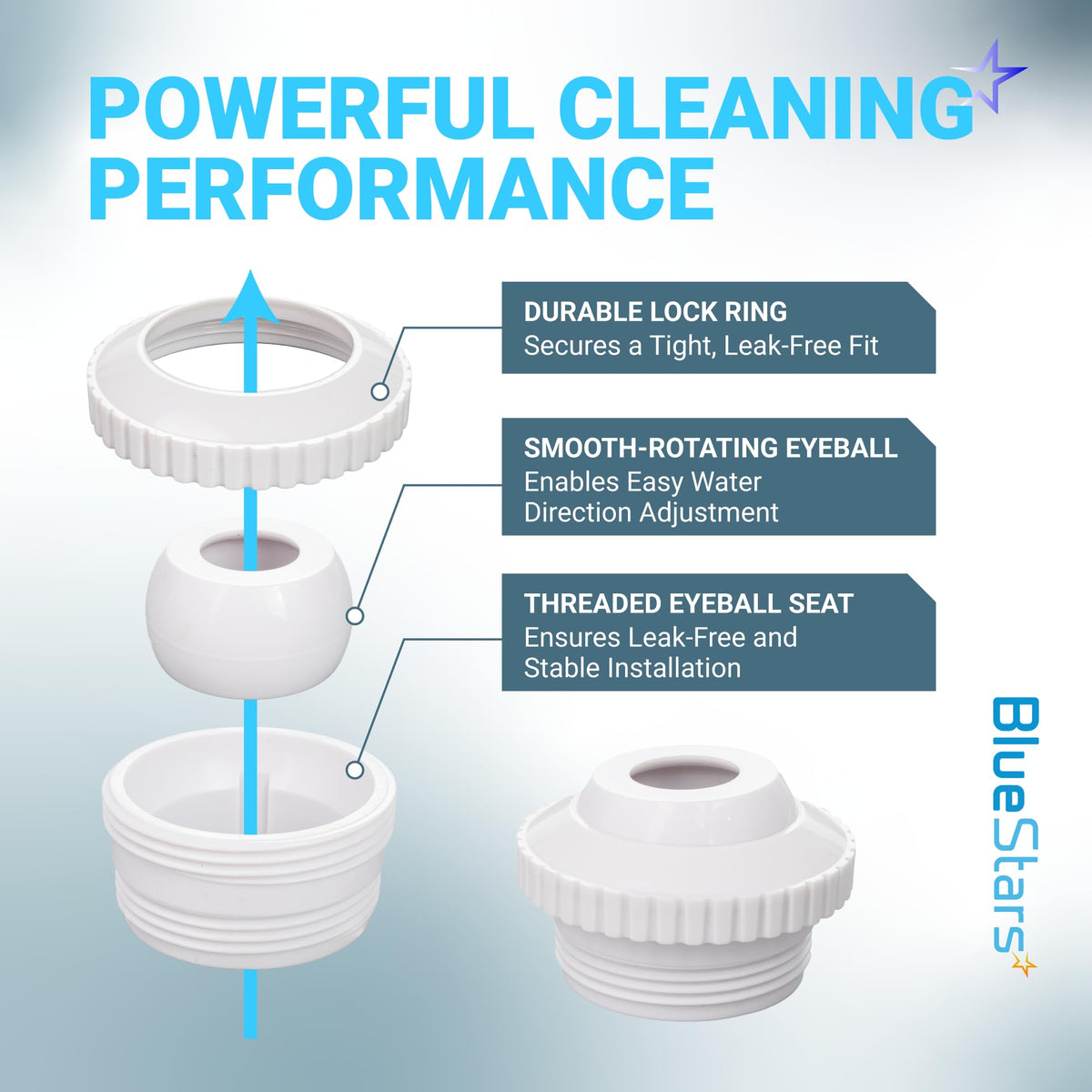

Exploded view diagram of SP1419D directional flow eyeball jet showing lock ring, eyeball, and threaded seat components.
SP1419D directional flow eyeball jet for pool inlet return fitting showing 360-degree adjustable water flow.

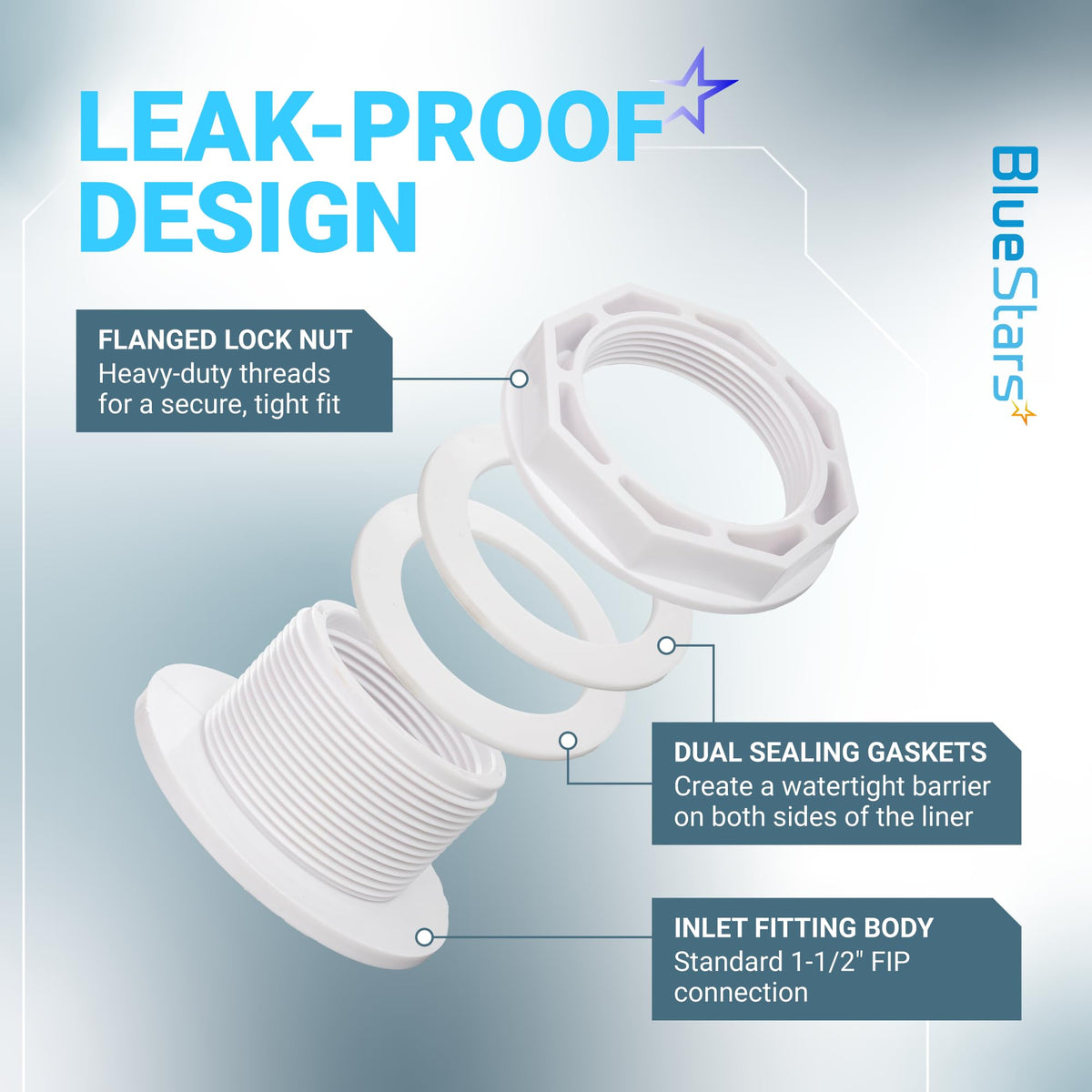

Exploded view of SP1023 pool inlet return fitting showing locknut, dual sealing gaskets, and 1-1/2 inch FIP body.

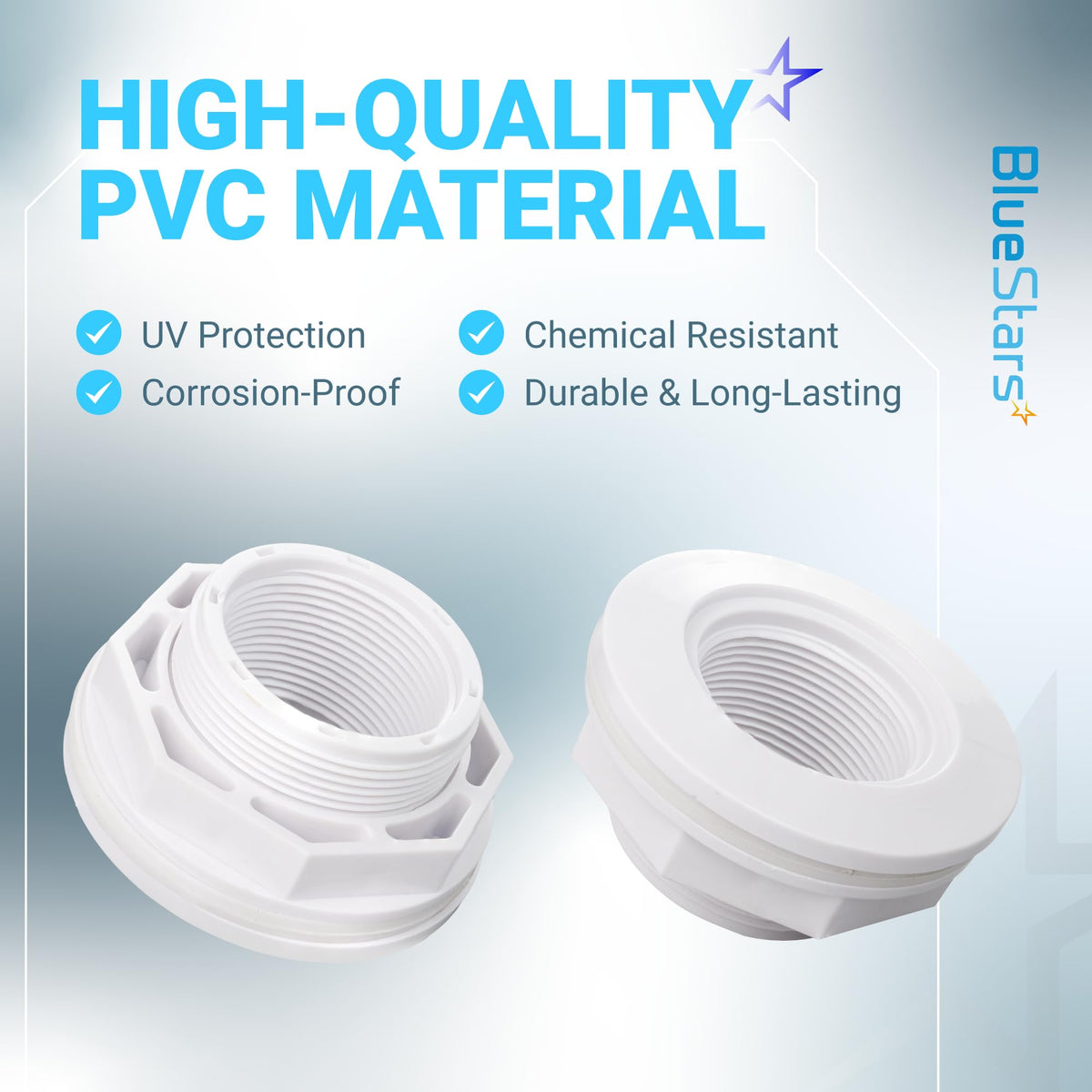

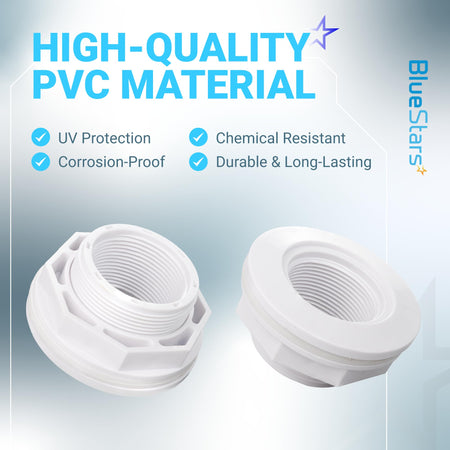

Two SP1023 pool inlet return fitting bodies made of durable, chemical-resistant PVC material.
SP1023 pool inlet return fitting and directional flow eyeball jet shown with examples of swimming pool applications.

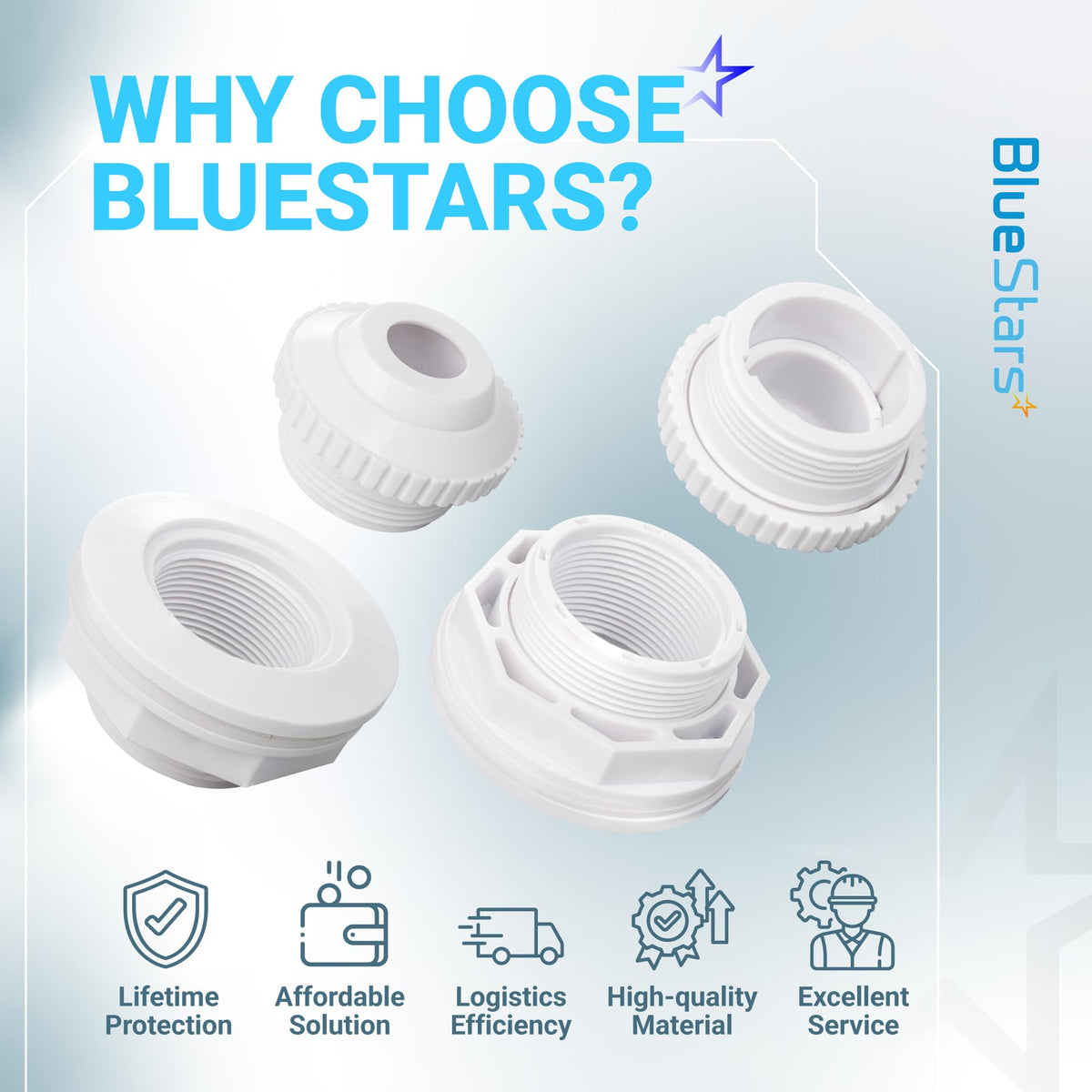

SP1023 pool inlet return fittings and SP1419D directional flow eyeball jets for Hayward above ground pools.
Set of two SP1023 pool return fittings and SP1419D directional flow eyeball jets for above ground pools.
Dimensional diagram showing SP1023 pool inlet return fitting and SP1419D directional eyeball jet with measurements.
Hand holding a white SP1023 pool return fitting and SP1419D directional eyeball jet next to an installed pool inlet.
SP1023 pool inlet return fitting and SP1419D directional eyeball jet for Hayward above ground pools.
Exploded view diagram of SP1419D directional flow eyeball jet showing lock ring, eyeball, and threaded seat components.
SP1419D directional flow eyeball jet for pool inlet return fitting showing 360-degree adjustable water flow.
Exploded view of SP1023 pool inlet return fitting showing locknut, dual sealing gaskets, and 1-1/2 inch FIP body.
Two SP1023 pool inlet return fitting bodies made of durable, chemical-resistant PVC material.
SP1023 pool inlet return fitting and directional flow eyeball jet shown with examples of swimming pool applications.
SP1023 pool inlet return fittings and SP1419D directional flow eyeball jets for Hayward above ground pools.
Lifetime Warranty

[Lifetime Warranty] SP1023 Pool Inlet Return Fitting for Hayward Above Ground Pool - 1-1/2" FIP Return Fitting with Locknut and Gasket & SP1419D Directional Flow Eyeball Jet | Pack of 2

Save 30%
0.00
$16.25
$23.21
$16.25
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

SP1023 Pool Inlet Return Fitting with Locknut and Gasket & SP1419D Directional Flow Eyeball Jet

Key Features

  • Package contains two complete return fitting assemblies.
  • Each assembly includes one wall fitting, one locknut, one gasket, and one directional eyeball jet.
  • Wall fitting features a 1-1/2 inch Female Iron Pipe (FIP) thread.
  • Directional eyeball jet (SP1419D) has a 3/4 inch opening and 1-1/2 inch Male Iron Pipe (MIP) thread.
  • Adjustable eyeball allows for control of water flow direction and velocity to improve circulation.
  • Constructed from durable, corrosion-resistant plastic.

Replaces / Cross-Reference Part Numbers

  • Wall Fitting Assembly: SP1023
  • Directional Flow Eyeball Jet: SP1419D

Compatibility & Fitment

  • Designed as a direct replacement for Hayward models SP1023 and SP1419D.
  • Fits most above-ground and in-ground pools with standard 1-1/2 inch return plumbing cutouts.
  • Installs through the pool wall and vinyl liner to create a secure, sealed return line connection.

When to Replace

  • Visible cracks, discoloration, or physical damage on the fitting body or eyeball jet.
  • Water leaking at the fitting's connection point on the pool wall.
  • Stripped threads on the locknut, wall fitting, or eyeball jet.
  • Brittle or compressed gasket causing an improper seal.
  • Eyeball jet is seized, broken, or no longer adjustable.

Installation Tips

  • Lower the pool water level below the return opening before removing the old fitting.
  • Ensure the pool wall surface is clean and smooth before placing the new gasket.
  • Position the gasket between the fitting flange and the interior pool liner.
  • Tighten the exterior locknut firmly by hand, then use a tool for a final quarter-turn to secure. Avoid over-tightening to prevent cracking.
  • Apply thread sealant tape to the eyeball jet threads before screwing it into the wall fitting for a watertight seal.
Product image 1
Product image 2
Product image
Product image
Product image
  • PACKAGE INCLUDES

    PACKAGE INCLUDES

    The kit includes 2x SP1023 Pool Inlet Return Fittings, and 2x SP1419D Directional Eyeballs
  • FIX POOL SYSTEM'S SYMPTOMS

    FIX POOL SYSTEM'S SYMPTOMS

    Water Leakage | Algae Buildup | Cracked Fittings | Poor Filtration
  • OPTIMIZE POOL CIRCULATION

    OPTIMIZE POOL CIRCULATION

    Enhance water flow to reduce dead zones and support cleaner, more efficient pool performance.
  • BEST SOLUTION

    BEST SOLUTION

    Enjoy the great feeling when your pool system works properly like before - BlueStars brings DIY solutions to help you deal with any trouble

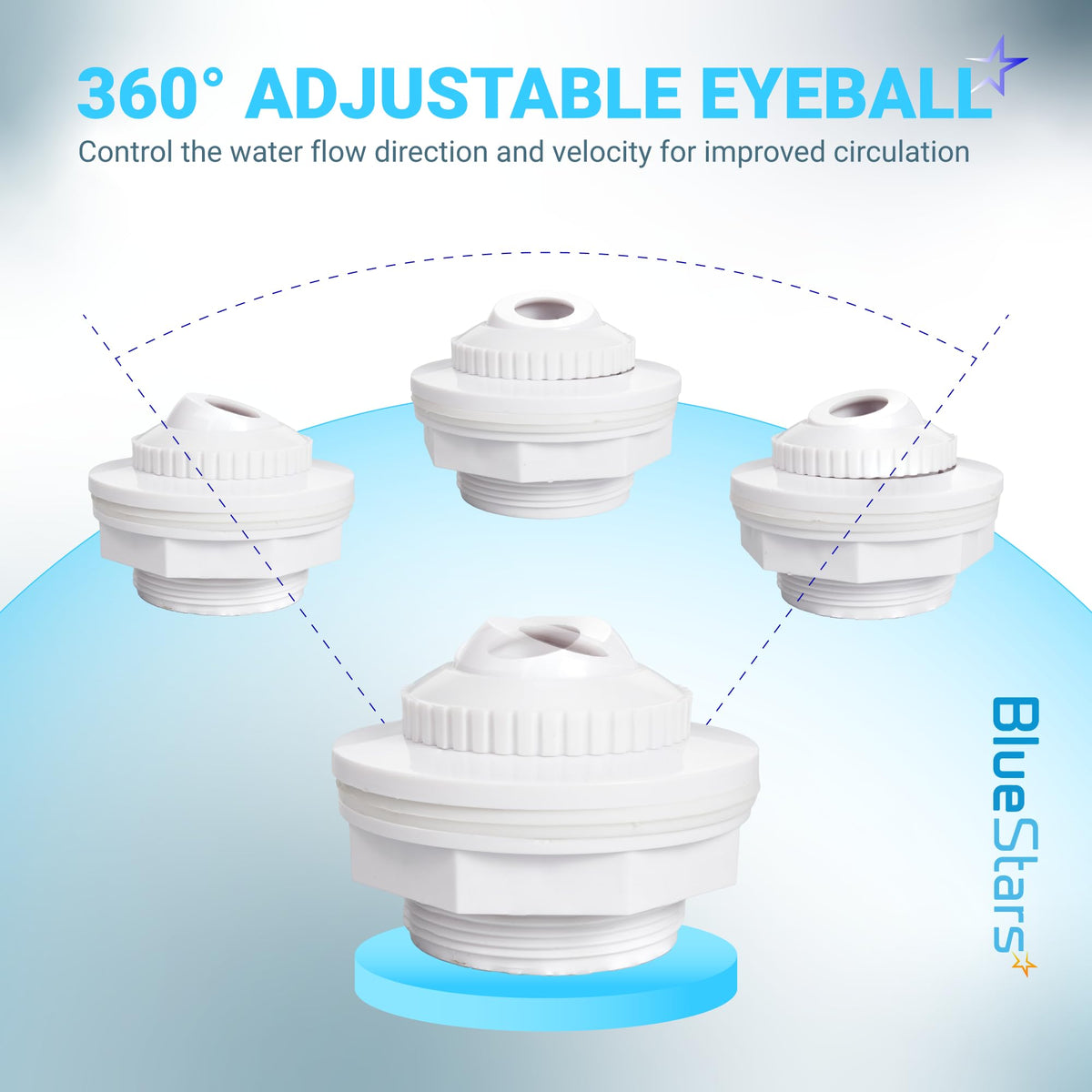

360° ADJUSTABLE EYEBALL

360° ADJUSTABLE EYEBALL

Control water flow direction and velocity for better circulation and targeted performance.
LEAK-PROOF DESIGN

LEAK-PROOF DESIGN

Built with a flanged lock nut and dual sealing gaskets to help create a secure, watertight fit.

FAQ

This set is designed for pools utilizing the Hayward-style SP1023 return fitting. It is compatible with above-ground and on-ground pool return setups that use a 1-1/2 inch FIP inlet return fitting. Please verify your existing return fitting style and part numbers prior to ordering, particularly if your pool wall fitting or eyeball assembly has been modified.
This set replaces OEM part numbers SP1023 and SP1419D. The SP1023 includes the 1-1/2 inch FIP inlet return fitting, locknut, and gasket, while the SP1419D is the directional flow eyeball jet.
Typical symptoms include water leaking at the pool wall around the return, cracked or brittle plastic, a stripped locknut or threads, a missing or flattened gasket, or poor directional control from a damaged eyeball jet. If the return stream will not hold its aim or the fitting seeps after tightening, the fitting body, gasket, or eyeball assembly may need replacement.
The SP1023 return fitting features 1-1/2 inch FIP internal threads. It is designed for use with return setups associated with 1-1/4 inch and 1-1/2 inch pool hose systems.
Installation is straightforward provided the old fitting is removed cleanly, typically taking 15 to 30 minutes per return fitting. Essential tools and supplies include adjustable or channel-lock pliers for the locknut, a clean rag, and optionally, silicone-based pool-safe lubricant for the gasket. Be careful to avoid overtightening, as pool return fittings can crack under excessive force.
Inspect the pool wall opening, liner area, and mating surfaces for cracks, warping, or debris. Ensure all old gasket material is completely removed and that the sealing surfaces are clean and smooth. Additionally, inspect the return hose connection and nearby threads for damage, as a new fitting may leak if the surrounding plumbing or wall opening is compromised.
Common causes of failure include UV exposure, chemical aging, freeze damage, overtightening, and thread wear from repeated removal. Gaskets may also flatten or harden over time, resulting in seepage around the wall fitting even if the plastic body remains intact.
