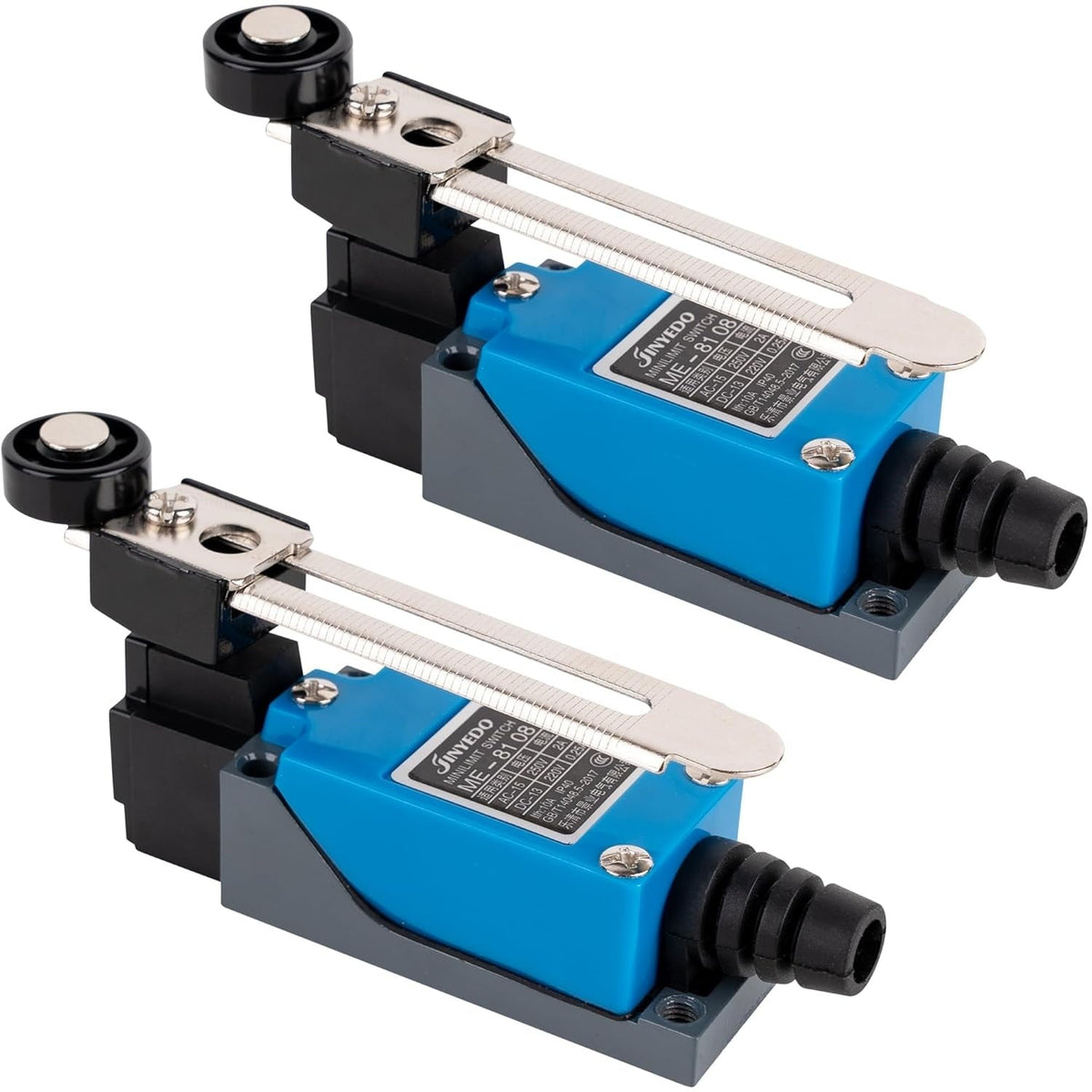

Two ME-8108 momentary roller lever arm limit switches for CNC machinery.

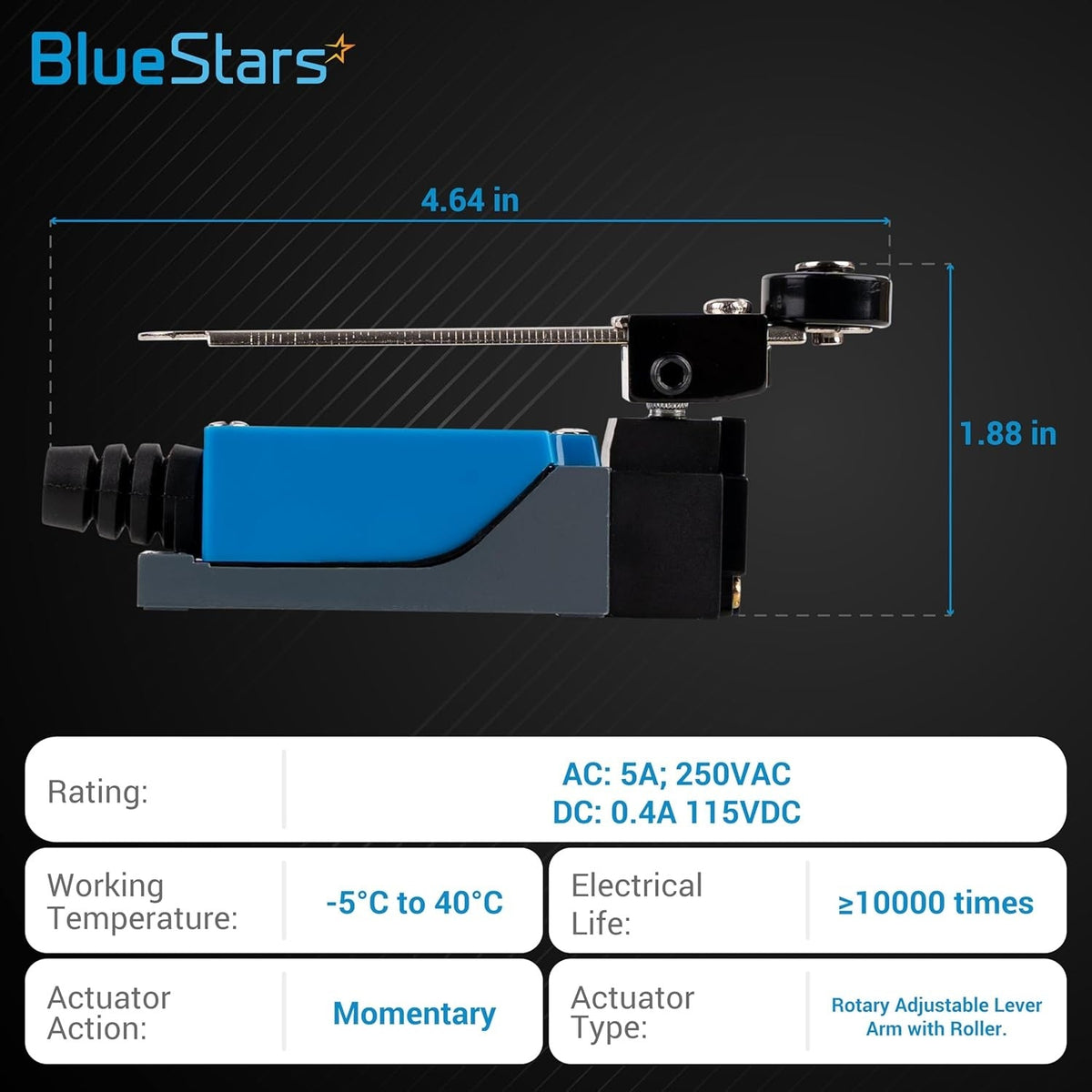

ME-8108 limit switch side view with dimensions and technical specifications chart.
ME-8108 momentary roller lever arm limit switch for CNC machinery shown in a promotional lifestyle graphic.

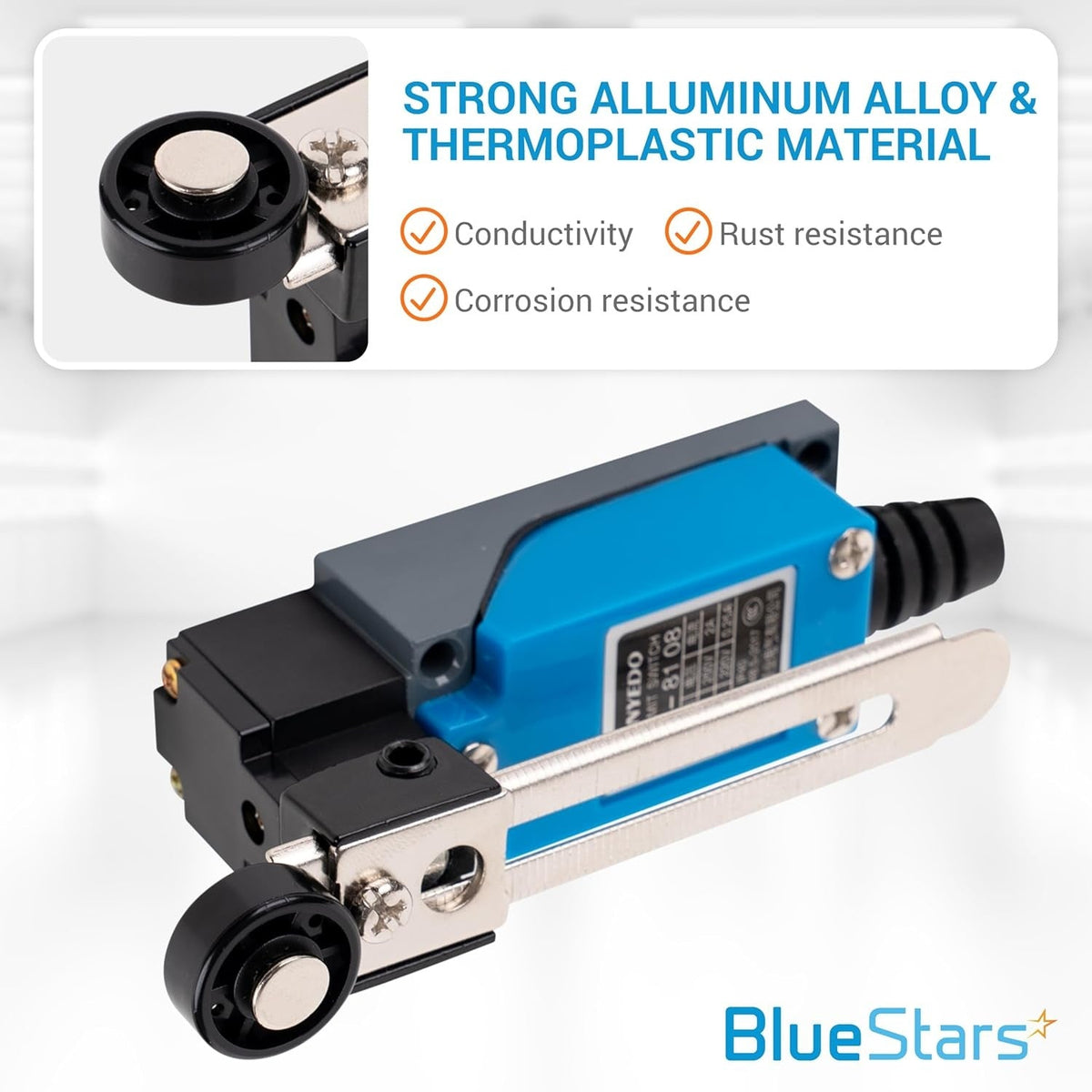

ME-8108 momentary roller lever arm limit switch with aluminum alloy and thermoplastic construction.

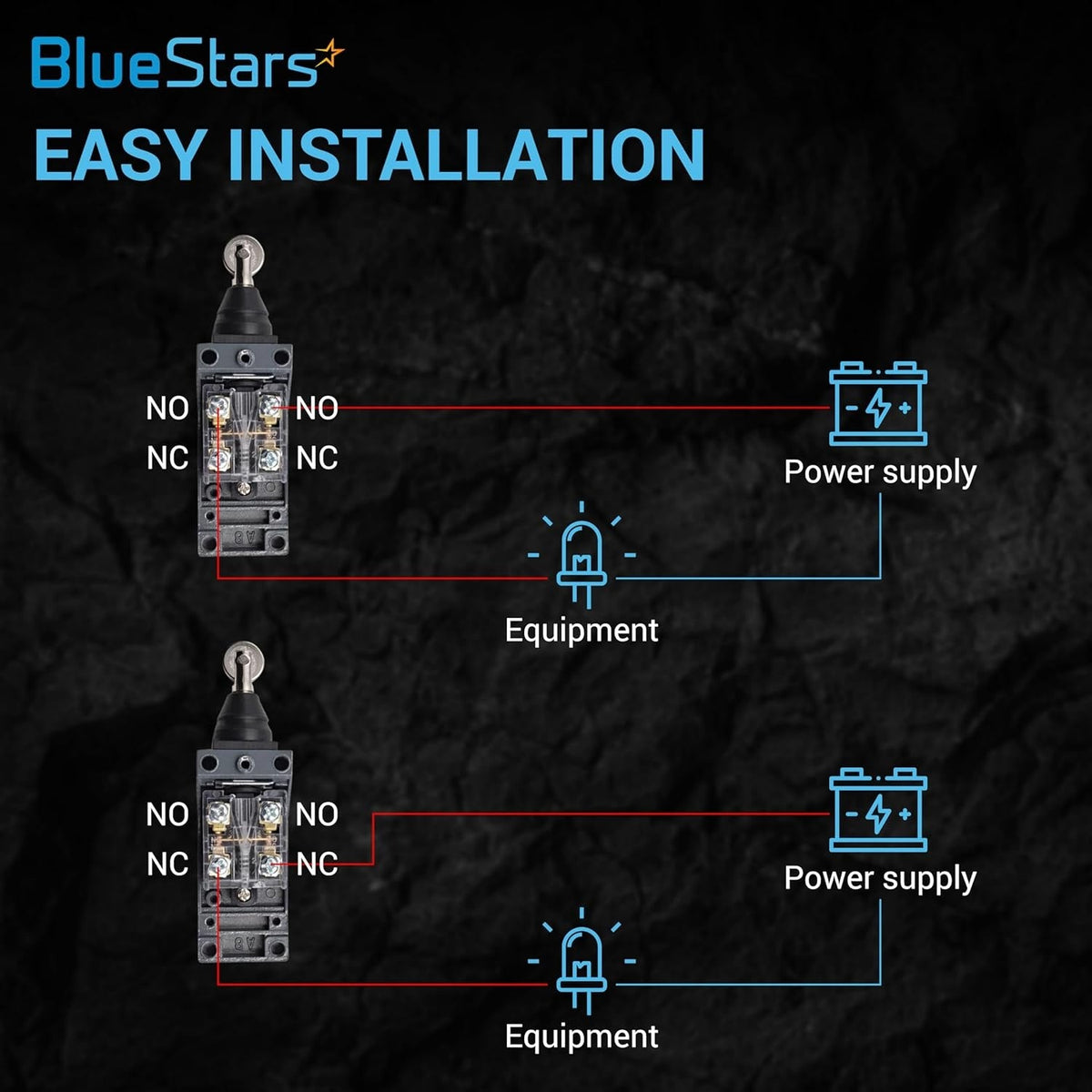

Wiring diagram showing installation of ME-8108 momentary roller lever arm limit switches for CNC equipment.
Collage showing household appliances and a car interior to demonstrate versatile compatibility for ME-8108 limit switches.
Family reading a book together in a cozy living room with text overlay about precision control and reliable performance.
Two ME-8108 momentary roller lever arm limit switches for CNC machinery.
ME-8108 limit switch side view with dimensions and technical specifications chart.
ME-8108 momentary roller lever arm limit switch for CNC machinery shown in a promotional lifestyle graphic.
ME-8108 momentary roller lever arm limit switch with aluminum alloy and thermoplastic construction.
Wiring diagram showing installation of ME-8108 momentary roller lever arm limit switches for CNC equipment.
Collage showing household appliances and a car interior to demonstrate versatile compatibility for ME-8108 limit switches.
Family reading a book together in a cozy living room with text overlay about precision control and reliable performance.
Lifetime Warranty

[Lifetime Warranty] ME-8108 Momentary Roller Lever Arm Limit Switch for CNC Mill Laser Plasma - 250VAC/5A | Pack of 2

Save 13%
0.00
$14.12
$16.24
$14.12
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

ME-8108 Momentary Roller Lever Arm Limit Switch

Key Features

  • Model: ME-8108
  • Actuator Type: Rotary adjustable lever arm with roller
  • Action Type: Momentary
  • Contact Configuration: 1NO, 1NC (DPST)
  • Voltage/Current Rating: AC 250V 5A
  • Housing Material: Zinc alloy and reinforced plastic
  • Features: Waterproof, oil-resistant, and dust-proof design

Replaces / Cross-Reference Part Numbers

  • TZ-8108
  • WLCA2
  • WLCA2-2
  • LSA1K2008E
  • ZCK-Y35H
  • D4B-1112N
  • WL-K12ME-QL
  • VL-G12-1A25

Compatibility & Fitment

  • CNC milling machines
  • CNC routers
  • Laser cutting and engraving machines
  • Plasma cutters
  • 3D printers
  • Automated control systems
  • Industrial machinery

When to Replace

  • Switch fails to actuate or send a signal when the lever is depressed.
  • Signal is intermittent or unreliable.
  • The switch does not reset to its original position after actuation.
  • Visible physical damage to the roller, lever arm, or switch housing.

Installation Tips

  • Always disconnect power to the machine before installation or maintenance.
  • Mount the switch securely to a stable, flat surface.
  • Adjust the lever arm for precise contact and actuation by the moving component.
  • Ensure correct wiring to the Normally Open (NO) or Normally Closed (NC) terminals based on your application's logic.
  • Protect wires from abrasion, pinch points, and moving parts.
Product image 1
Product image 2
Product image 1
Product image 2
  • PRECISION CONTROL

    PRECISION CONTROL

    BlueStars's Limit switches feature a Rotary Adjustable Level Arm which can rotate 180° with a Roller for flexible moving.
  • DURABLE BUILD

    DURABLE BUILD

    It is equipped with high-quality aluminum alloy and reinforced plastic shell for superior conductivity and high reliability.
  • EASY TO INSTALL

    EASY TO INSTALL

    Installing a Limit Switch is easy for any DIY handyman and takes only 30 seconds.
  • SAVING SOLUTION

    SAVING SOLUTION

    BlueStars brings DIY solutions to help you deal with any trouble.
CONNECTING LIVES, ENERGIZING MOMENTS

CONNECTING LIVES, ENERGIZING MOMENTS

BlueStars - #1 source of high-quality electrical parts
Color
Blue / Black / Silver
Material
Resin / Plastic / Metal
Contact Configuration
1NC + 1NO (SPDT)
Rated Voltage
AC 250V 5A / DC 115V 0.4A
Actuator Type
Rotary Adjustable Roller Lever (Momentary)
Lever Arm Length
~100mm / 3.9 inches (adjustable)
Roller Dimension
18 x 7mm (D x T)
Body Size (L x W x T)
64 x 28 x 25mm
Total Size with Lever (L x W x H)
~125 x 40 x 27mm (~4.9 x 1.6 x 1.1 inches)
Mounting Hole Distance
56 x 21mm | Screw: M5
Operating Force
Max 800g (7.84N) / Min Return 60g (0.59N)
IP Rating
IP66 (Waterproof / Dustproof)
Item Weight
~90g

FAQ

The ME-8108 is rated for 5A at 250V AC or 0.4A at 115V DC. It features a double-circuit limit switch mechanism with a 1NO (Normally Open) and 1NC (Normally Closed) contact configuration.
This switch is commonly used in CNC mills, laser cutters, plasma tables, and various industrial automation applications. It is designed for use in any machinery requiring precise position detection or end-of-travel limits.
The roller lever arm can be rotated 360 degrees around the axis of the switch head. You can loosen the screw on the lever arm to adjust the angle to your specific mounting requirements, then tighten it securely to lock it in place.
You should consider replacing the switch if you experience intermittent signal loss, the machine fails to stop at the designated end-of-travel, or if the mechanical lever arm becomes loose, stuck, or fails to 'click' when depressed.
Installation typically requires a small Phillips or flat-head screwdriver for the terminal screws, a set of mounting bolts (usually M5) to secure the switch body to your frame, and a multimeter to verify continuity across the NC/NO contacts before finalizing your wiring.
The ME-8108 features a sealed design that provides protection against dust and light moisture. However, for heavy-duty outdoor use or environments with direct coolant spray, we recommend adding an additional protective enclosure or shroud to extend the life of the internal contacts.
