[Lifetime Warranty] AEM73213001 Washer Drain Hose - Compatible with LG Washing Machines - Replaces 2134394 5251FA1699P AH3617213 EA3617213 PS3617213

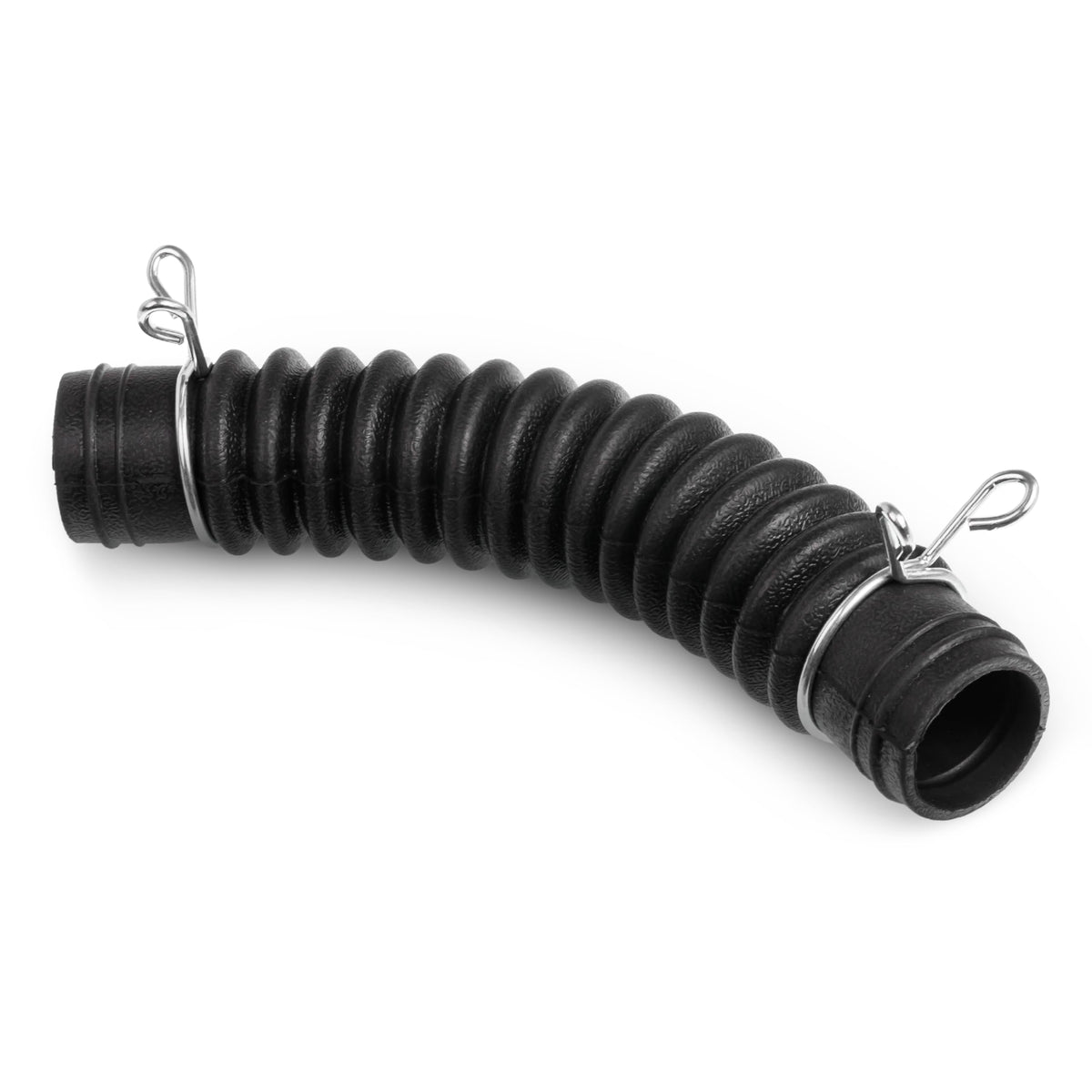

AEM73213001 Washer Tub-to-Pump Drain Hose Assembly

Key Features

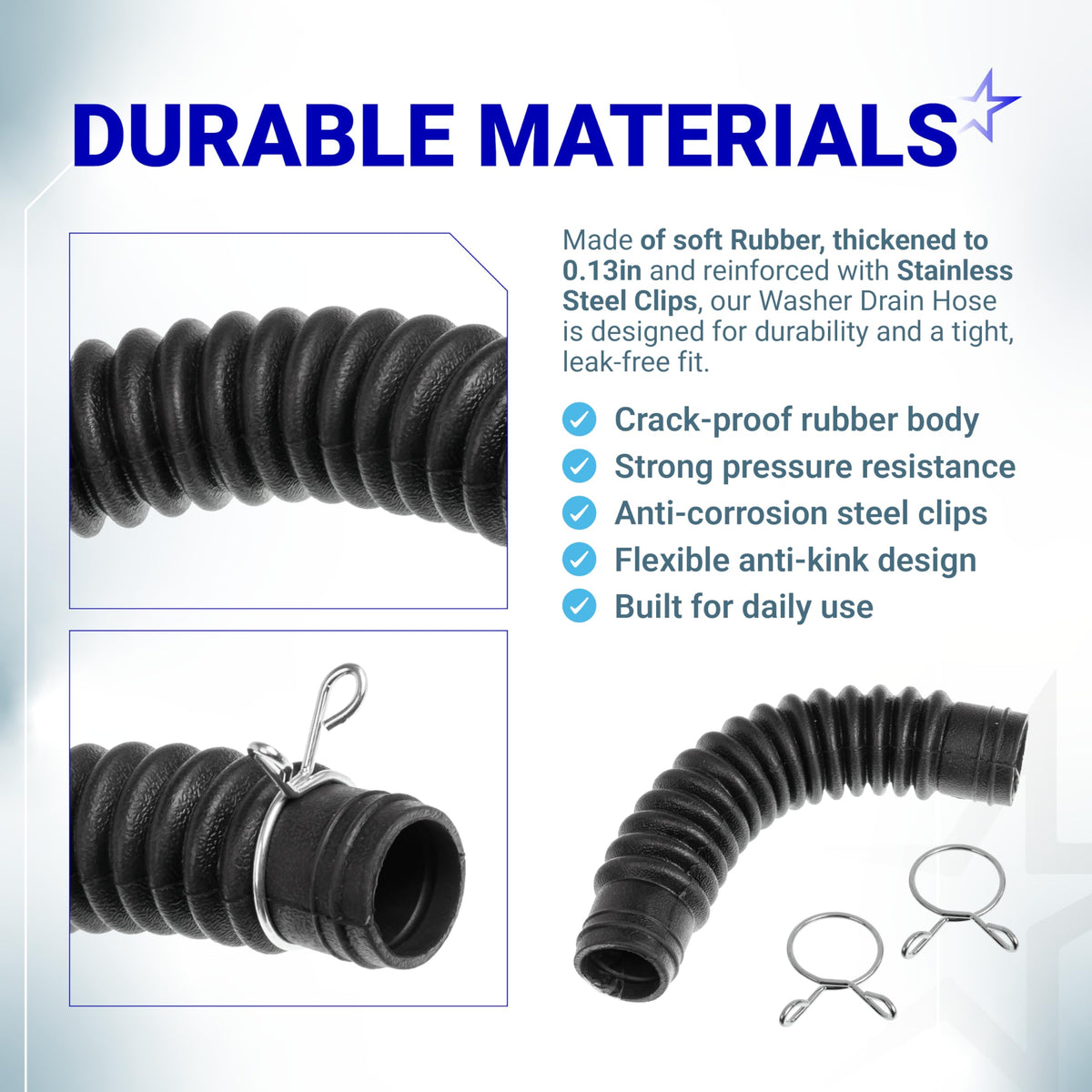

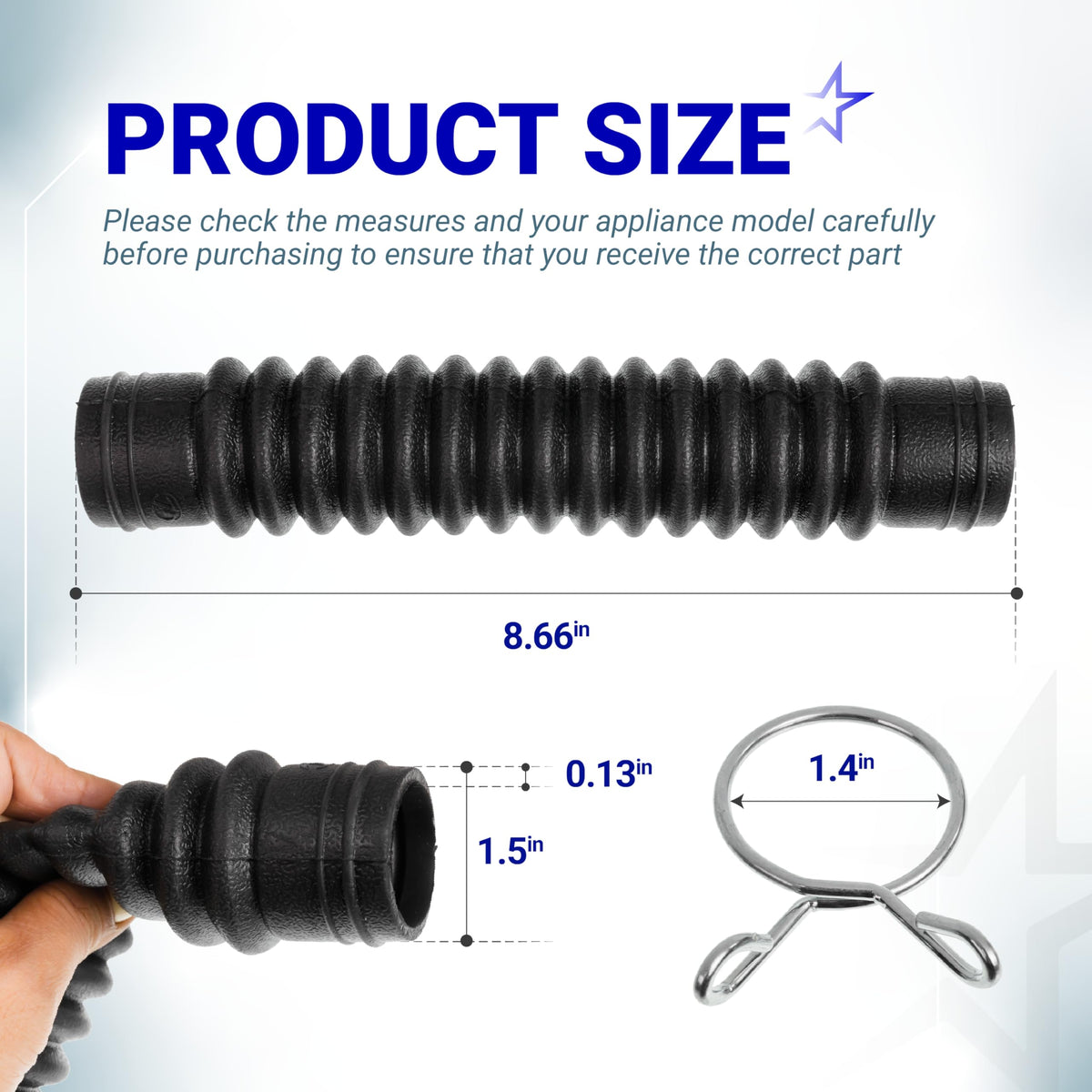

• Internal Heavy-Duty Construction: Specifically designed as the "Tub-to-Pump" connector, this hose is manufactured from thickened, high-grade rubber to withstand the heavy vibrations and high water pressure of the spin cycle.

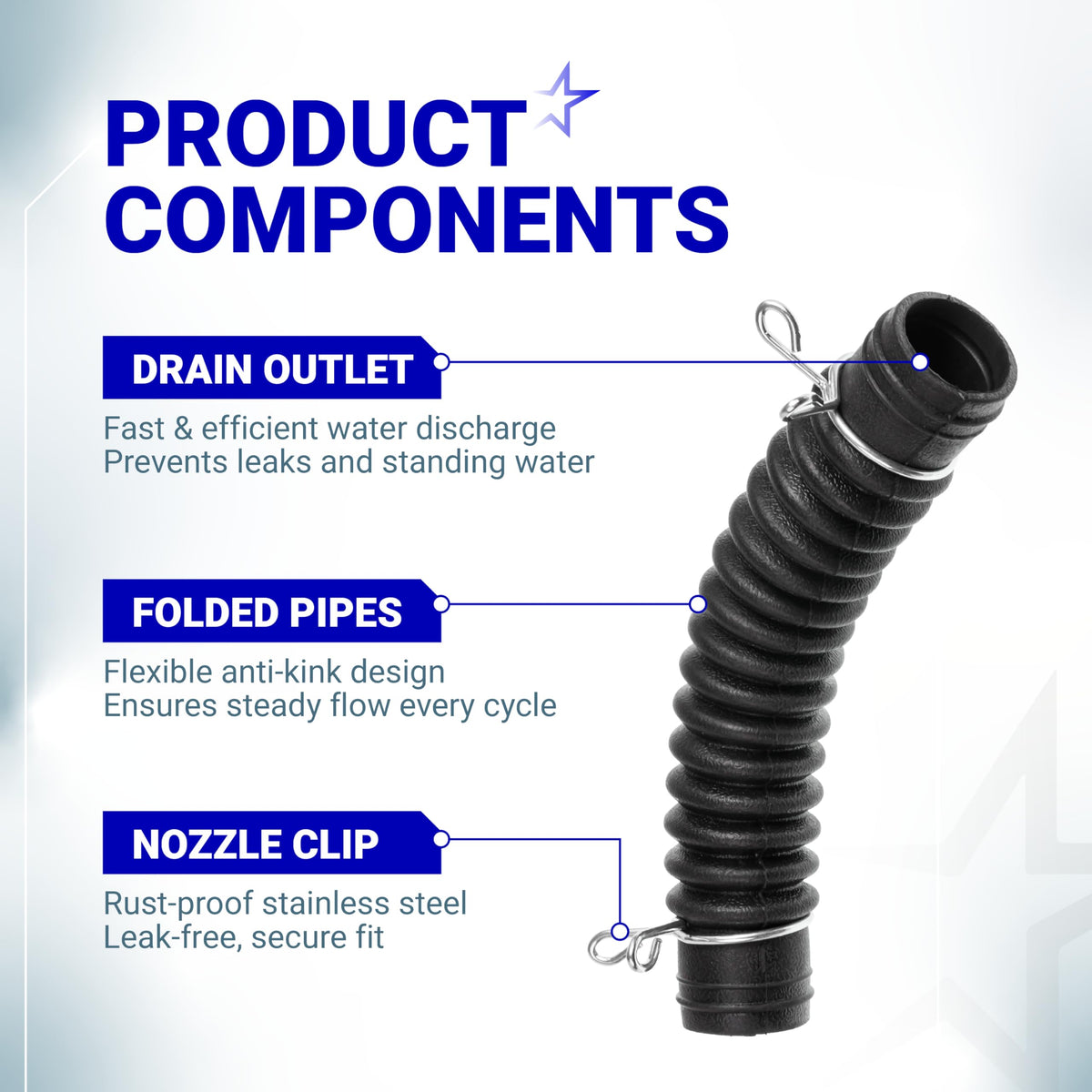

• Anti-Clog Bellows Design: Features a flexible, corrugated bellows section that allows the hose to expand and contract with the tub's movement, preventing kinking and helping to break up sediment or lint buildup.
• Dual Spring-Clamp Security: Comes pre-equipped with two heavy-duty 304 stainless steel spring-loaded clamps, ensuring a permanent, leak-proof seal at both the tub outlet and the pump intake.
• Heat & Chemical Resistance: The specialized rubber compound is engineered to resist the degrading effects of hot water, concentrated detergents, and fabric softeners over years of operation.

Replaces / Cross-Reference Part Numbers

• AP5244718
• PS3617213
• AEM73652901
• 5251FA1699P
• 2134394
• AH3617213
• EA3617213

Compatibility & Fitment

This internal drain hose is compatible with a wide range of LG and Kenmore/Sears top-load washing machines. Key models include:

• LG WT Series: WT1001CW, WT1101CW, WT1201CV, WT1201CW, WT1501CW, WT4801CW, WT4870CW, WT4901CW, WT5001CW, WT5070CW, WT5101HV, WT5101HW, WT5170HV, WT5170HW, WT5480CW, WT5680HVA, WT5680HWA.
• LG T Series: T1309ADFH, T1309ADFH6, T1309ADFN.
• Kenmore / Sears: Fits 796-prefix models including 796.29002, 796.29272, 796.29472, 796.31402, 796.31412, and 796.31512.

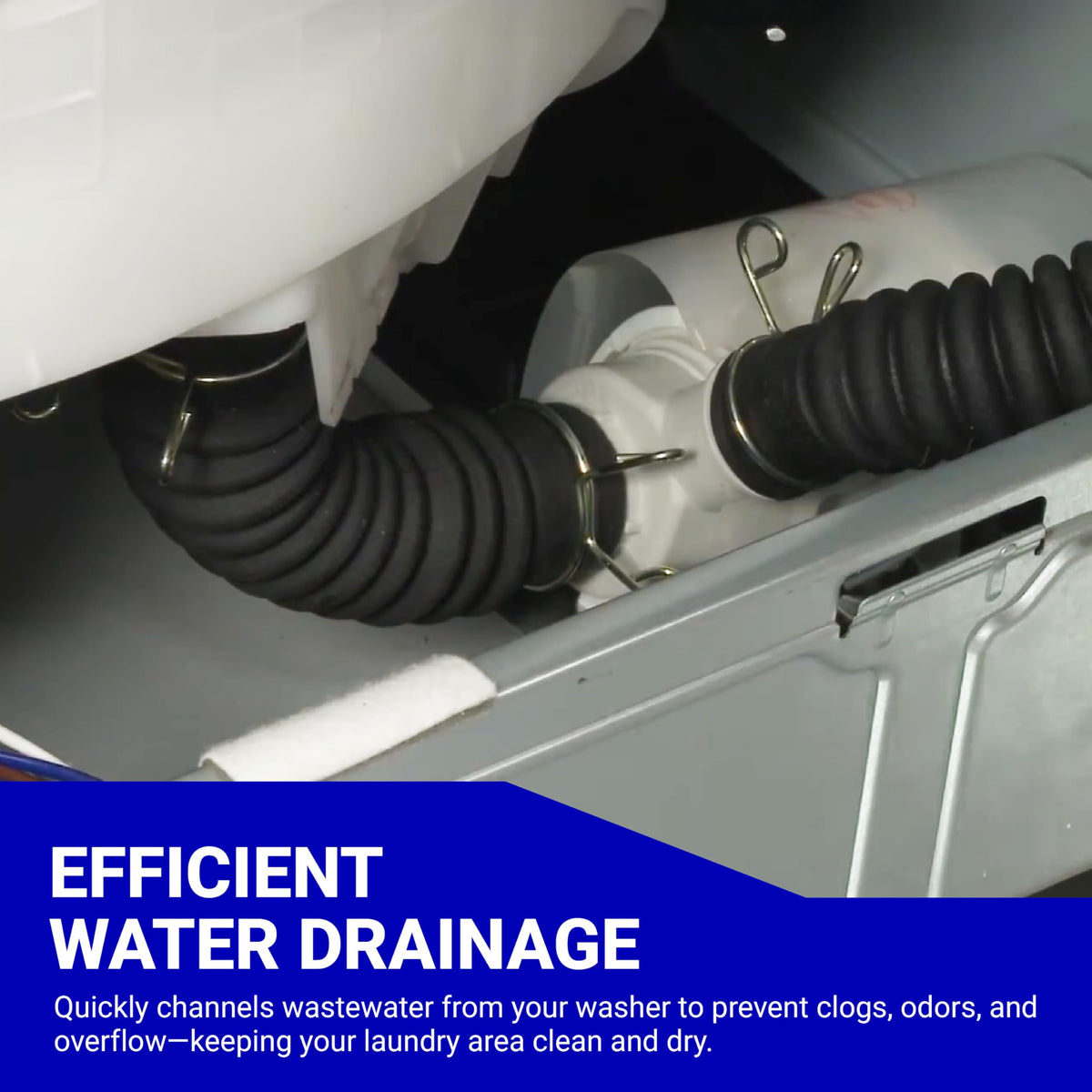

• Note: This is an internal part that connects the bottom of the wash tub to the drain pump. It is not the external hose that drains into your house's standpipe.

When to Replace

• Water Leaking Underneath: If you see a puddle forming directly under the center or front of the washer during the drain or spin cycle, this hose may have a puncture or a loose clamp.
• Washer Not Draining: A collapsed or heavily clogged internal hose will prevent the pump from pulling water out of the tub, causing the washer to stop with a drain error code (e.g., OE).
• Rubber Dry-Rot: If the hose feels stiff, brittle, or shows visible surface cracks, it is likely to burst soon and should be replaced as preventative maintenance.
• Pinhole Leaks: Small, high-pressure sprays during the spin cycle often indicate a tiny tear in the bellows section of the rubber.

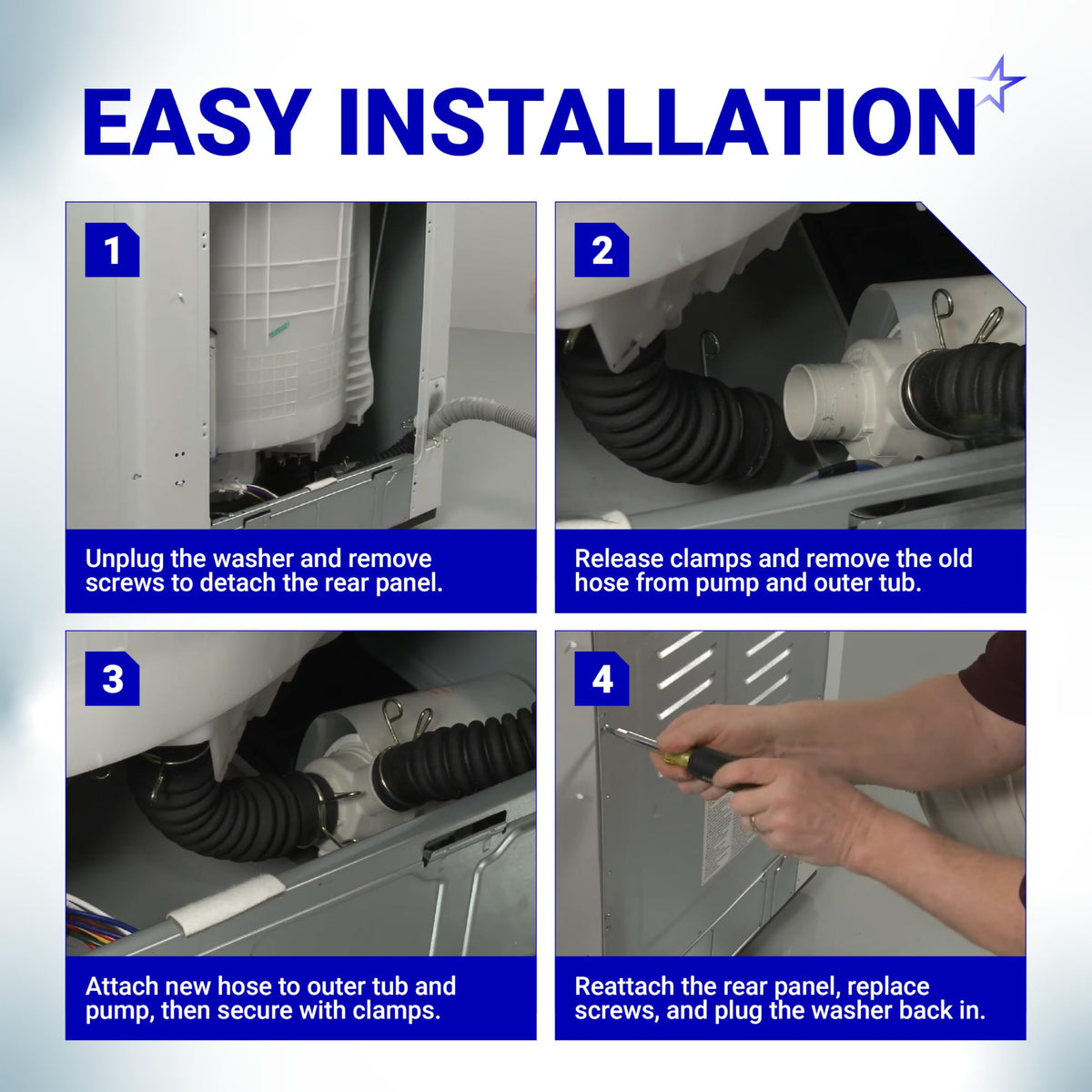

Installation Tips

• Safety First: CRITICAL: Unplug the washer from the electrical outlet and shut off both the hot and cold water valves before beginning.
• Accessing the Hose: PRO TIP: For most LG top-loaders, you will need to tip the washer back (securely) or remove the front/back panel to access the area between the outer tub and the drain pump.
• The Clamp Trick: Use a pair of pliers to squeeze the spring clamps and slide them up the hose before pulling the old hose off. This prevents damage to the plastic pump housing or the tub outlet.
• Clean the Ports: Before installing the new AEM73213001 hose, wipe down the tub outlet and the pump intake to remove any slimy residue or scale. This ensures the new rubber creates a perfect, airtight seal.
• Directional Check: Ensure the hose is not twisted or under tension. The bellows should have a natural "S" or slight curve to absorb the tub's movement without pulling on the pump.
