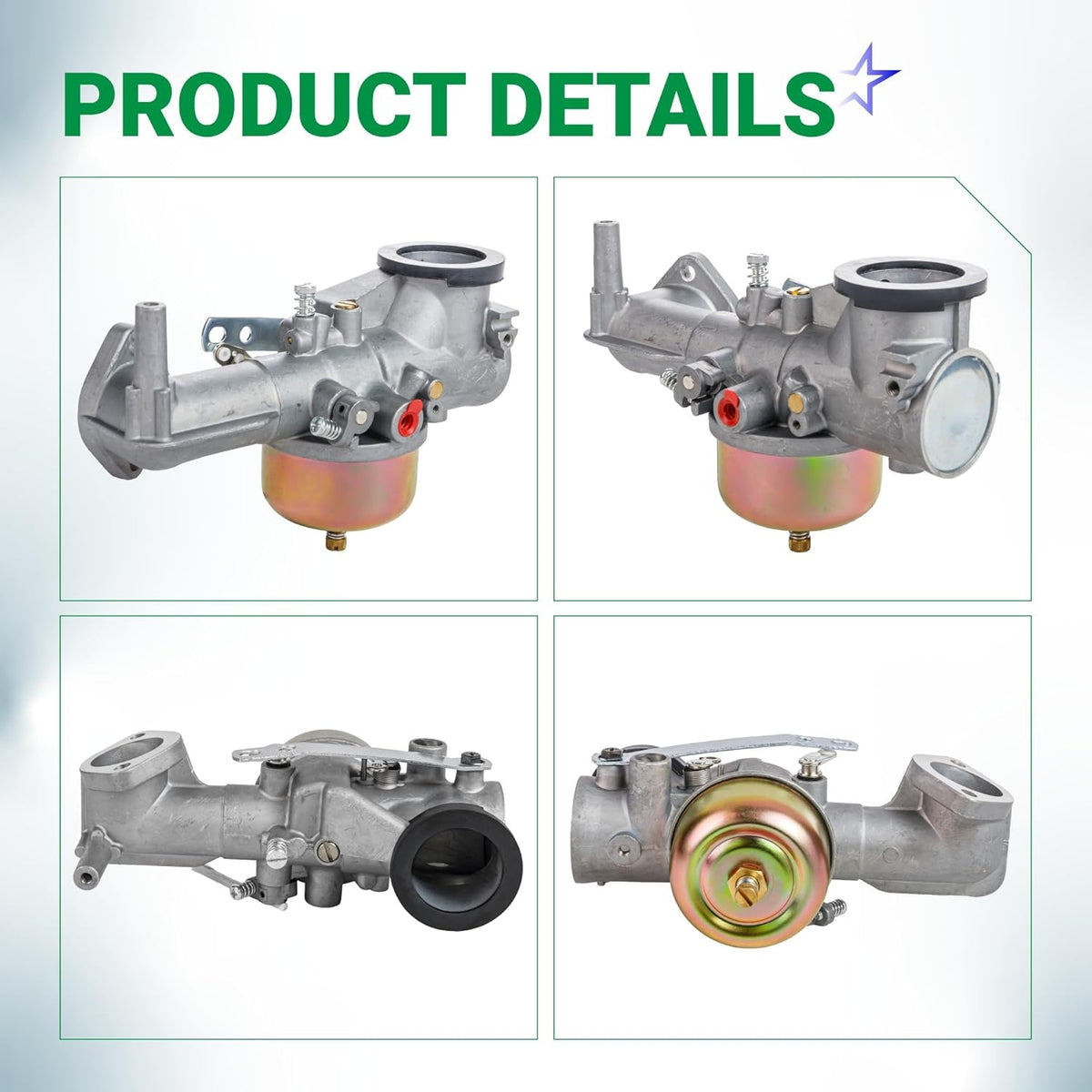

491590 Carburetor - Fits B&S 491590 390811 392152 Carb 191700 192700 193700 Engine Series Vertical Engine

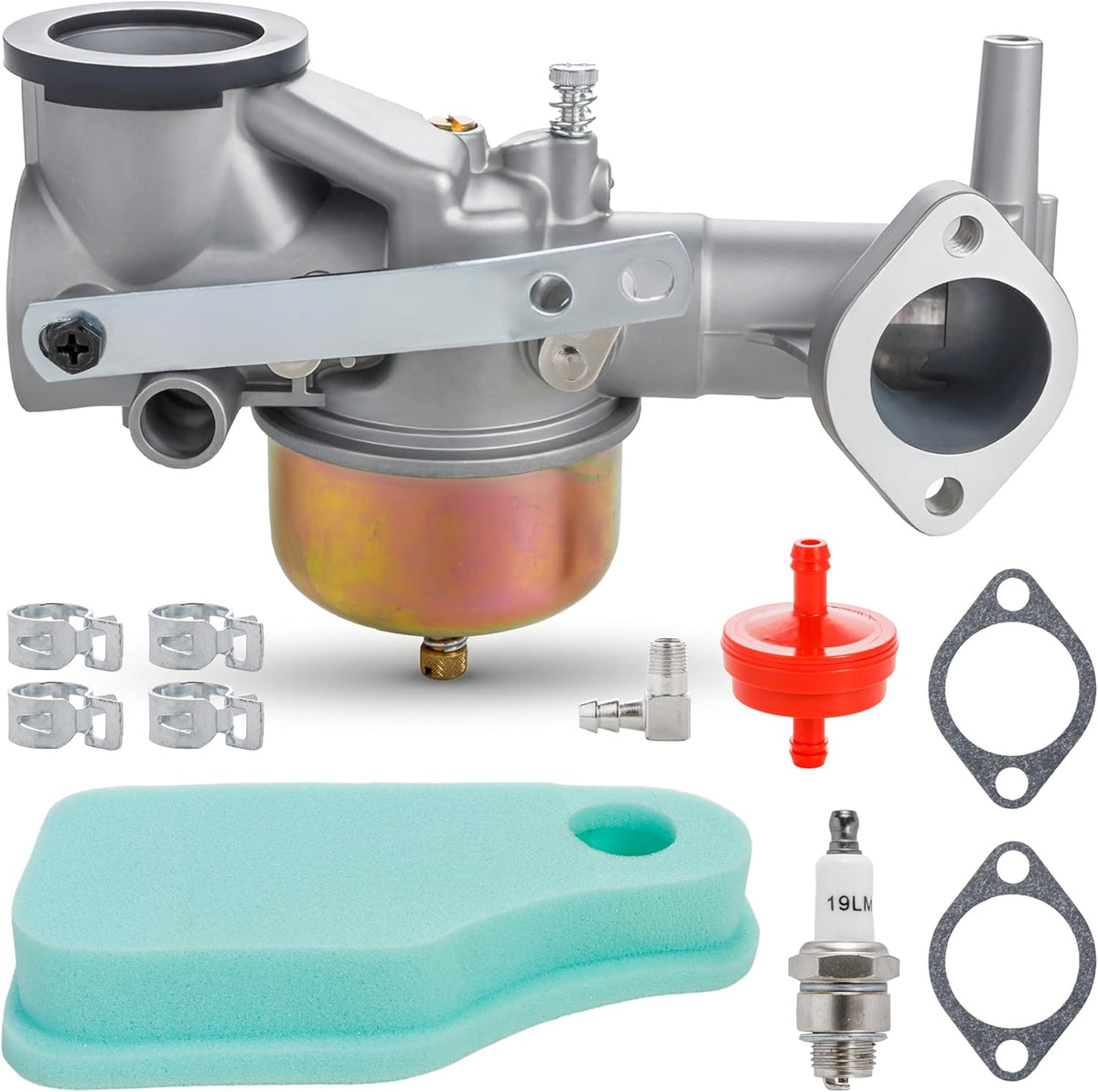

491590 Carburetor Tune-Up Kit

Key Features

• Optimized for 190000 Series: Precision-jetted for 191700, 192700, and 193700 series vertical shaft engines, providing the correct fuel-to-air ratio for high-torque lawn and garden applications.

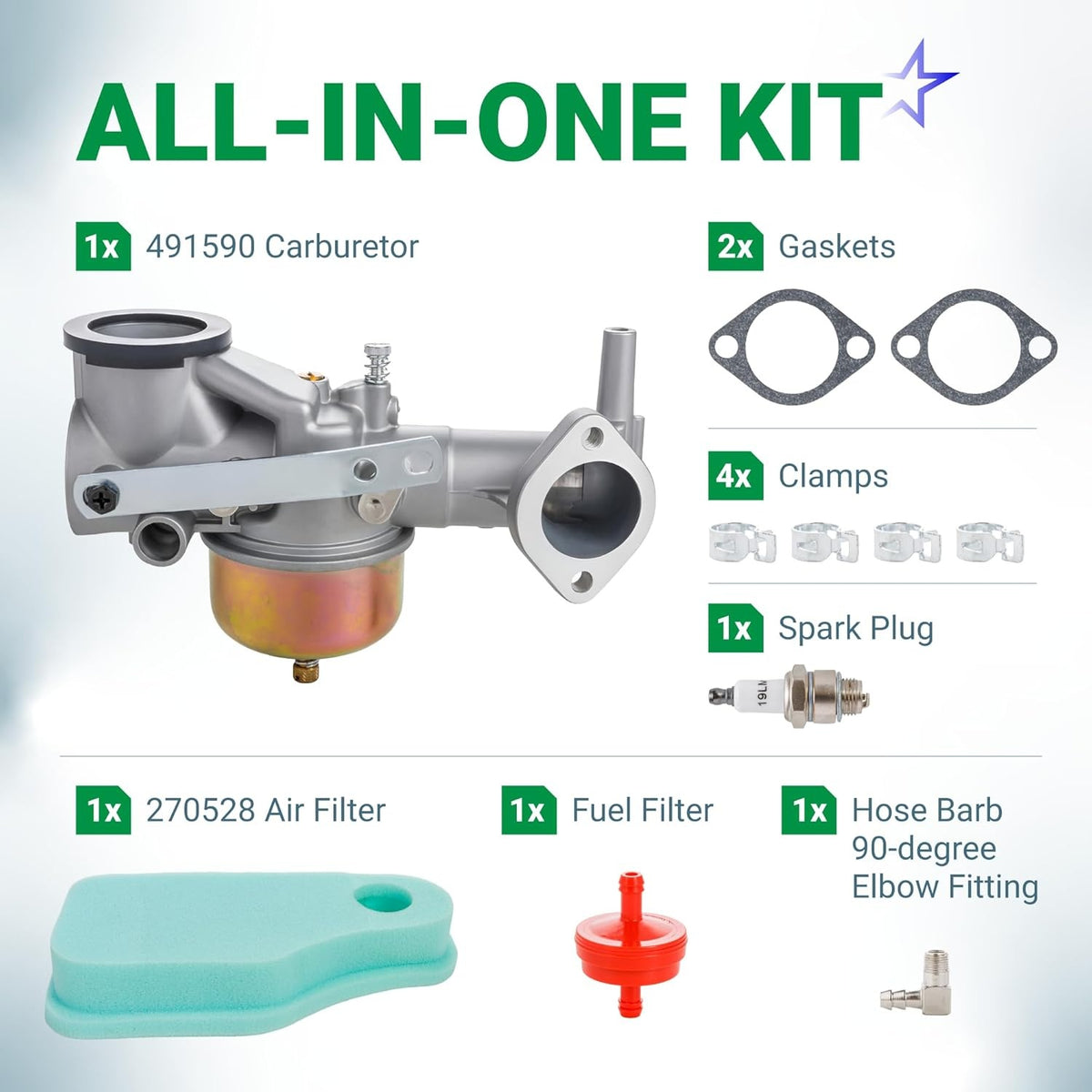

• All-In-One Restoration: A comprehensive kit featuring a pre-calibrated carburetor, high-micron fuel filter, premium spark plug, and a high-flow air filter for a total engine refresh.

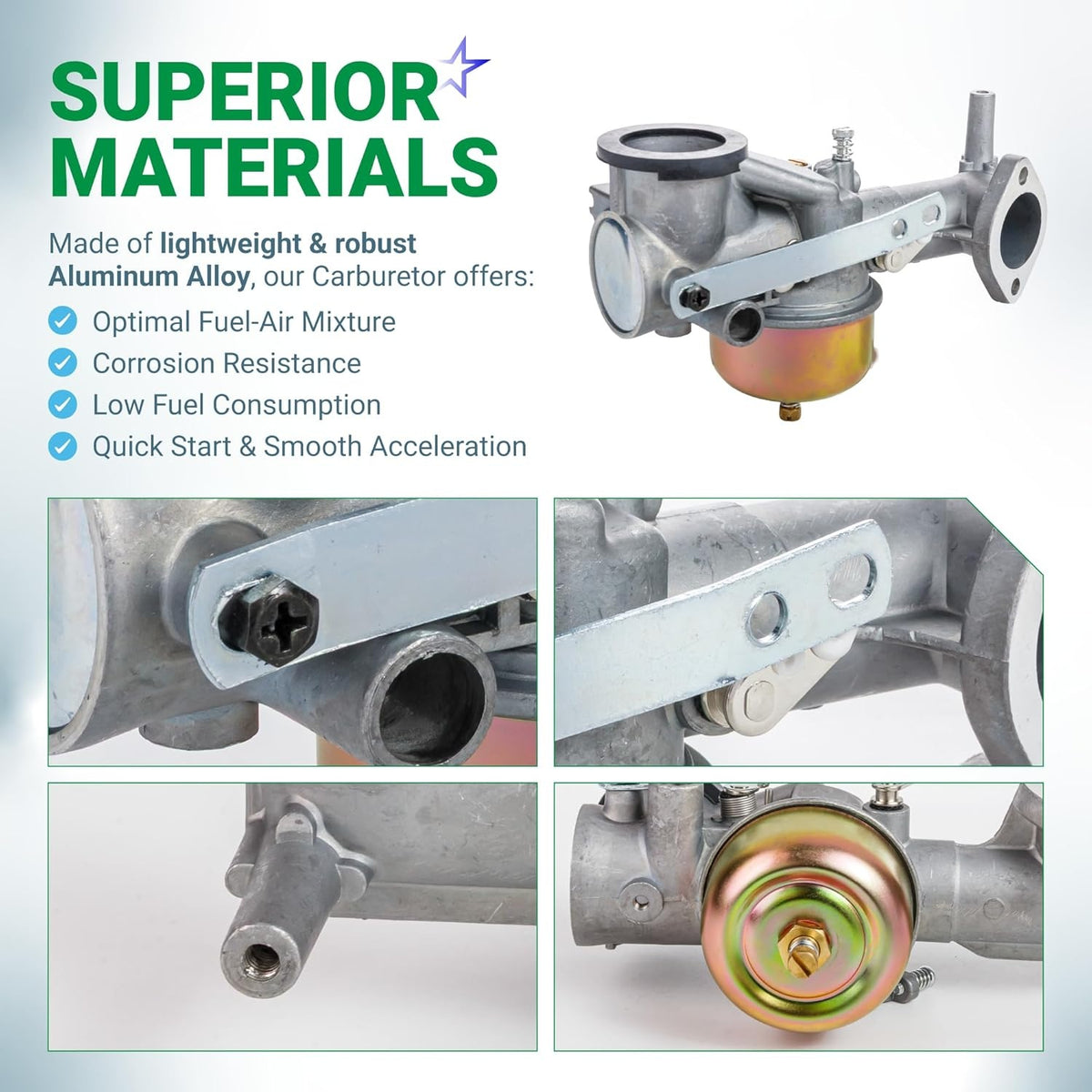

• Precision-Cast Alloy Body: Manufactured from a high-density alloy to resist thermal expansion and warping, ensuring a consistent vacuum seal and stable idle speeds.
• Manual Choke Integration: Designed for easy interface with factory choke and throttle linkages, allowing for smooth operation and reliable cold-weather starting.
• Sediment-Resistant Design: Features an improved fuel bowl and needle valve assembly designed to resist the "gumming" effects of ethanol-blended fuels.

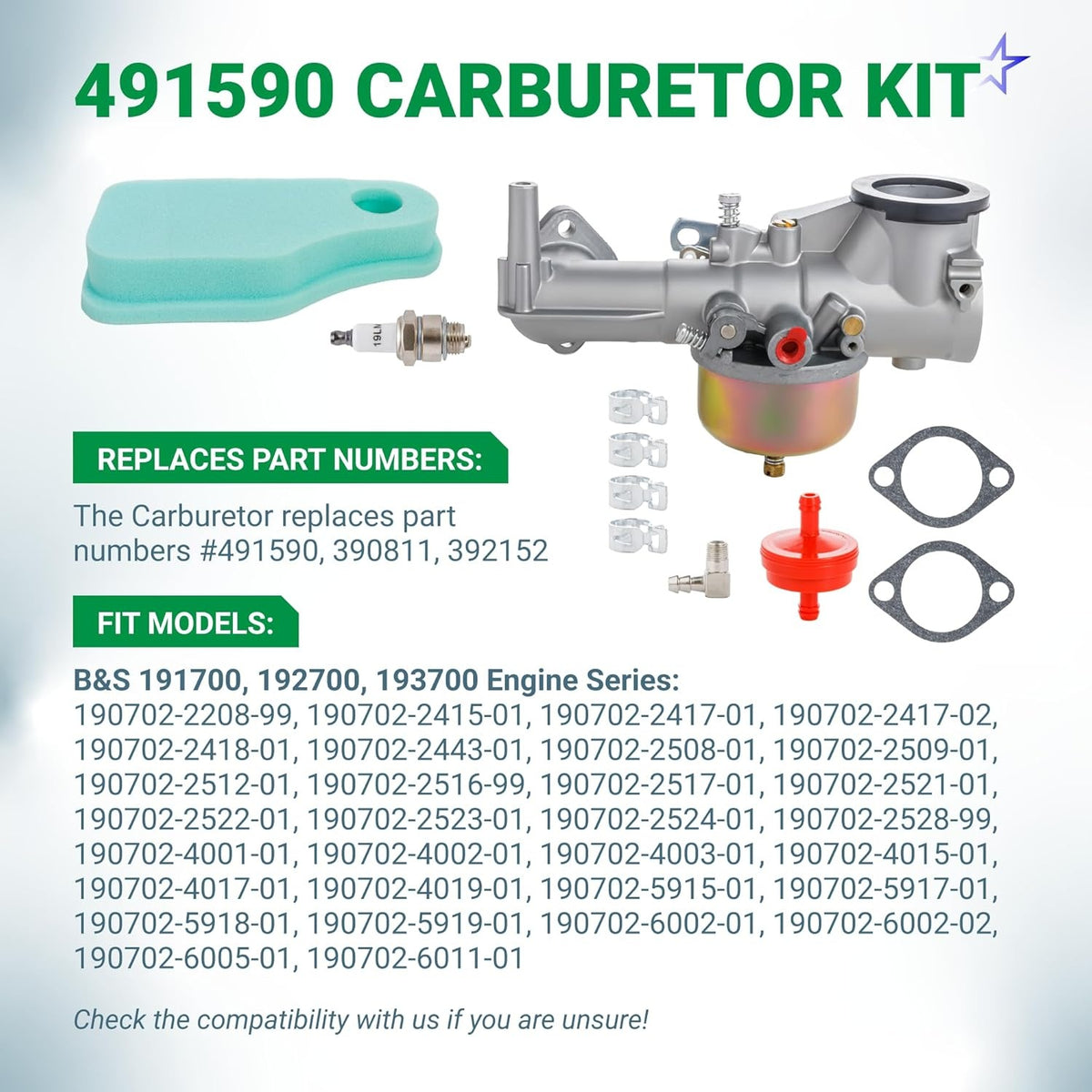

Replaces / Cross-Reference Part Numbers

• Briggs & Stratton: 491590, 390811, 392152
• Others: 491577, 391429, 390323

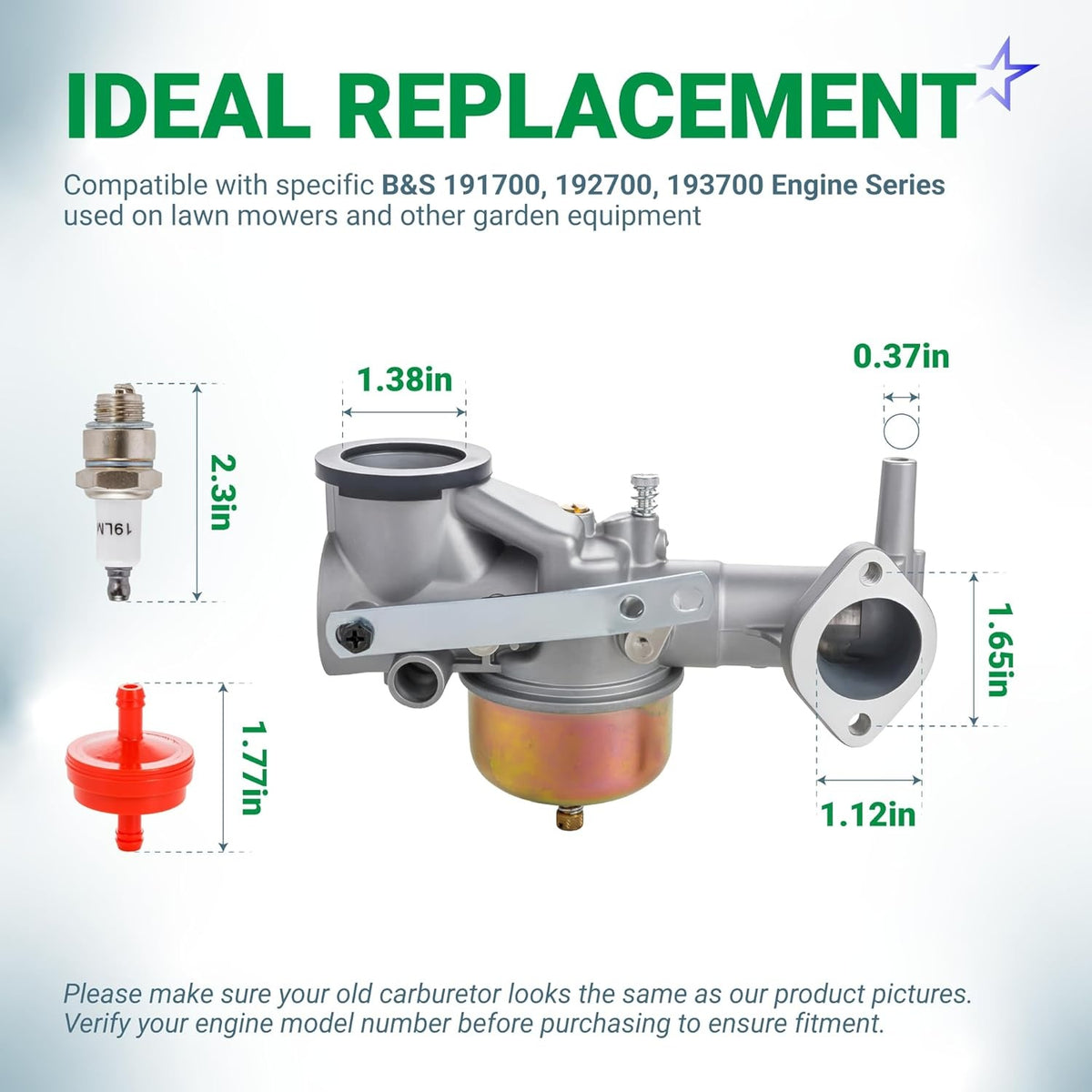

Compatibility & Fitment

This carburetor kit is a direct replacement for vintage and modern Briggs & Stratton vertical engines typically found on riding mowers and large walk-behinds. Key fitment includes:

• Engine Series: 191700, 191701, 191702, 191707, 192701, 192702, 192707, 193701, 193702, 193707.
• Equipment Types: Fits riding lawn tractors and heavy-duty walk-behind mowers from John Deere, Craftsman, Toro, and Murray utilizing the 190000 series engine platform.
• Note: Verify your original carburetor shape, as some "L-Head" engines in this series use a different intake manifold configuration.

When to Replace

• Engine "Hunts" or Surges: The engine RPM fluctuates wildly at a steady throttle position, indicating a clogged pilot jet or a vacuum leak at the gasket.
• Starting Only on Fluid: The engine will only fire if starting fluid is sprayed into the intake, confirming the carburetor is not drawing fuel from the bowl.
• Black Smoke / Fouled Plug: The engine runs "rich" and emits black smoke, suggesting the internal float is stuck or the main jet is restricted.
• Fuel Leaks: Gasoline drips from the air filter housing or the bottom of the carburetor while the engine is off.
• Backfiring: The engine pops or backfires through the intake when under load, often caused by a lean fuel mixture.

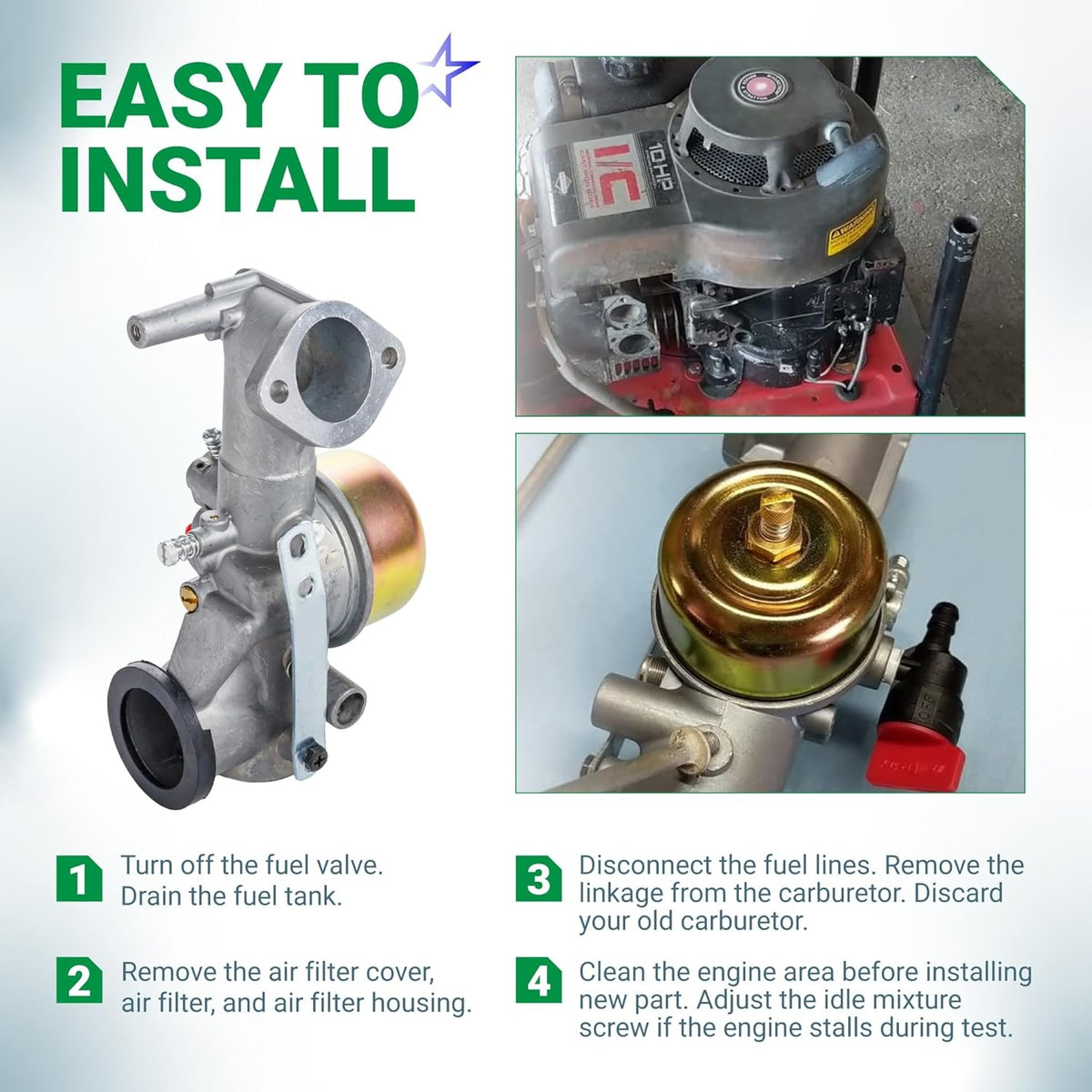

Installation Tips

• Linkage Geometry: Use your phone to take a clear photo of the governor spring and throttle linkage setup before disassembly. These small springs are critical for correct engine speed control.
• Gasket Surface Prep: Carefully scrape all old gasket material from the engine intake port. Even a tiny piece of leftover paper can cause an air leak that leads to surging.
• Flush the Tank: If the old carburetor was clogged with "green" varnish, you must drain the gas tank and replace the fuel line with the included filter to prevent immediate contamination of the new unit.
• Spark Plug Gap: Always check the gap on the included spark plug before installation (typically 0.030") to ensure optimal combustion.
• Avoid Over-tightening: The carburetor body is made of soft alloy. Tighten the mounting bolts evenly but avoid excessive force to prevent cracking the intake flange.
