[Grip120] 754-06134 Deck Belt for 42" Cub Cadet ZT1 42KH Craftsman Z510 Troy Bilt Mustang Z42 - Replaces 754P06134 CMXGZAM501081 490-501-C081 | 117”

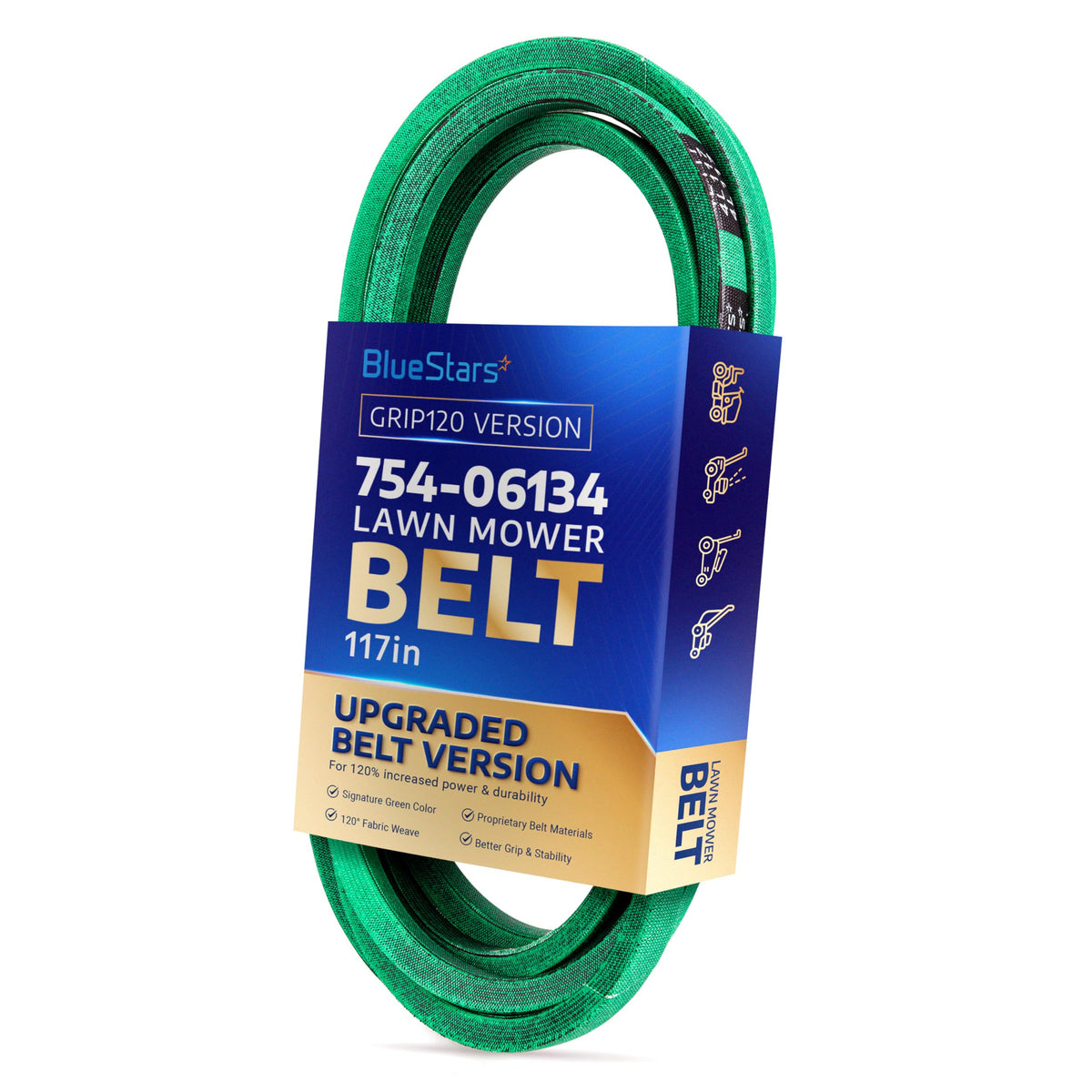

754-06134 Deck Belt (117”)

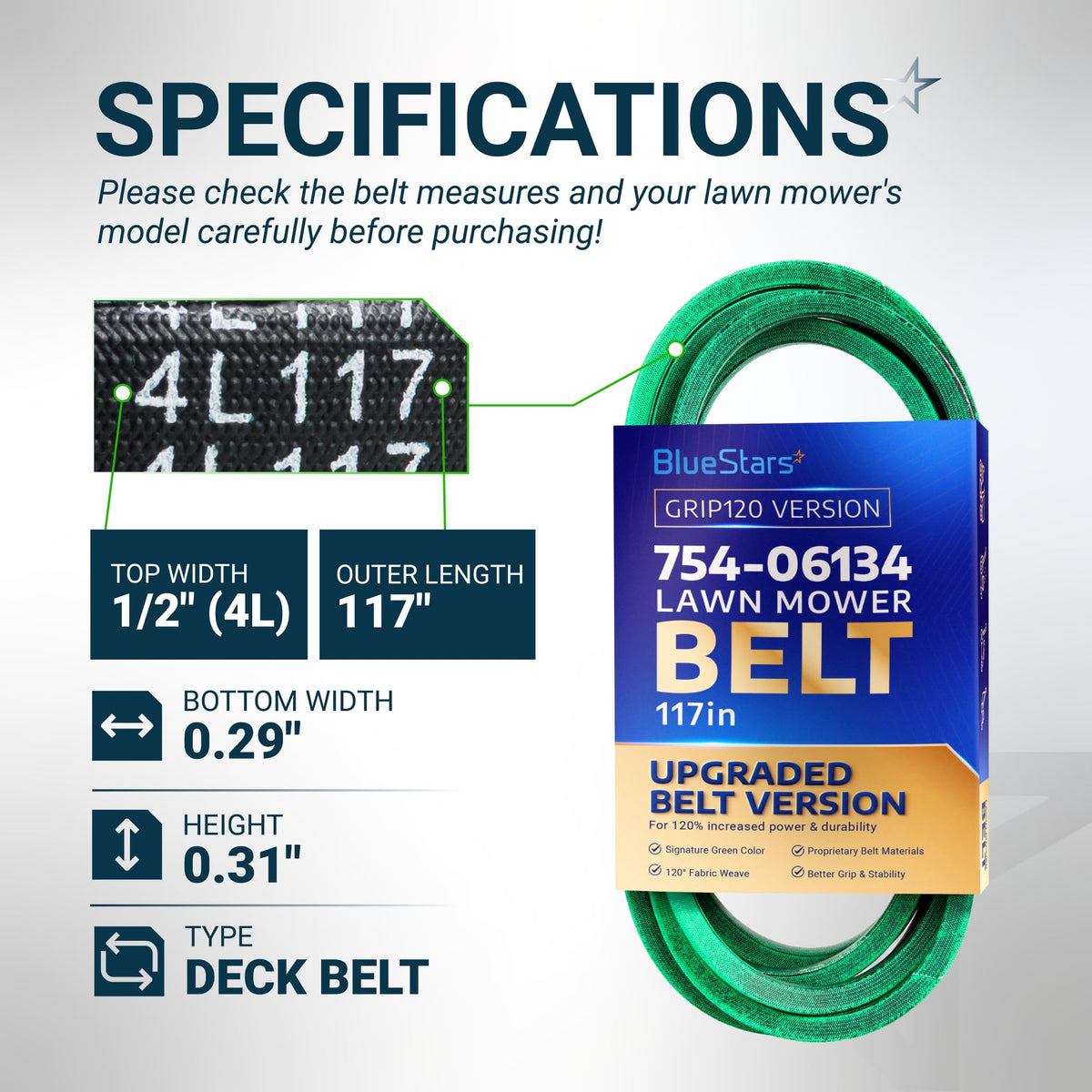

Key Features

• Type: Mower deck drive belt
• Length: 117 inches
• Width: 1/2 inch

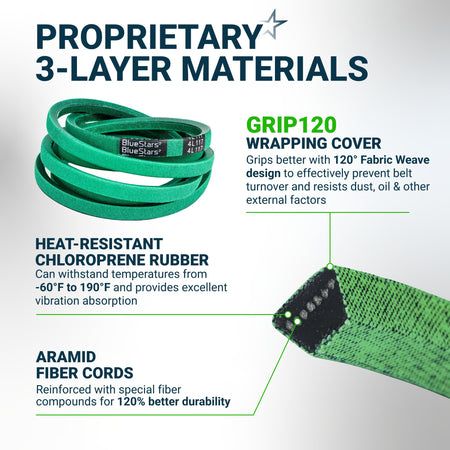

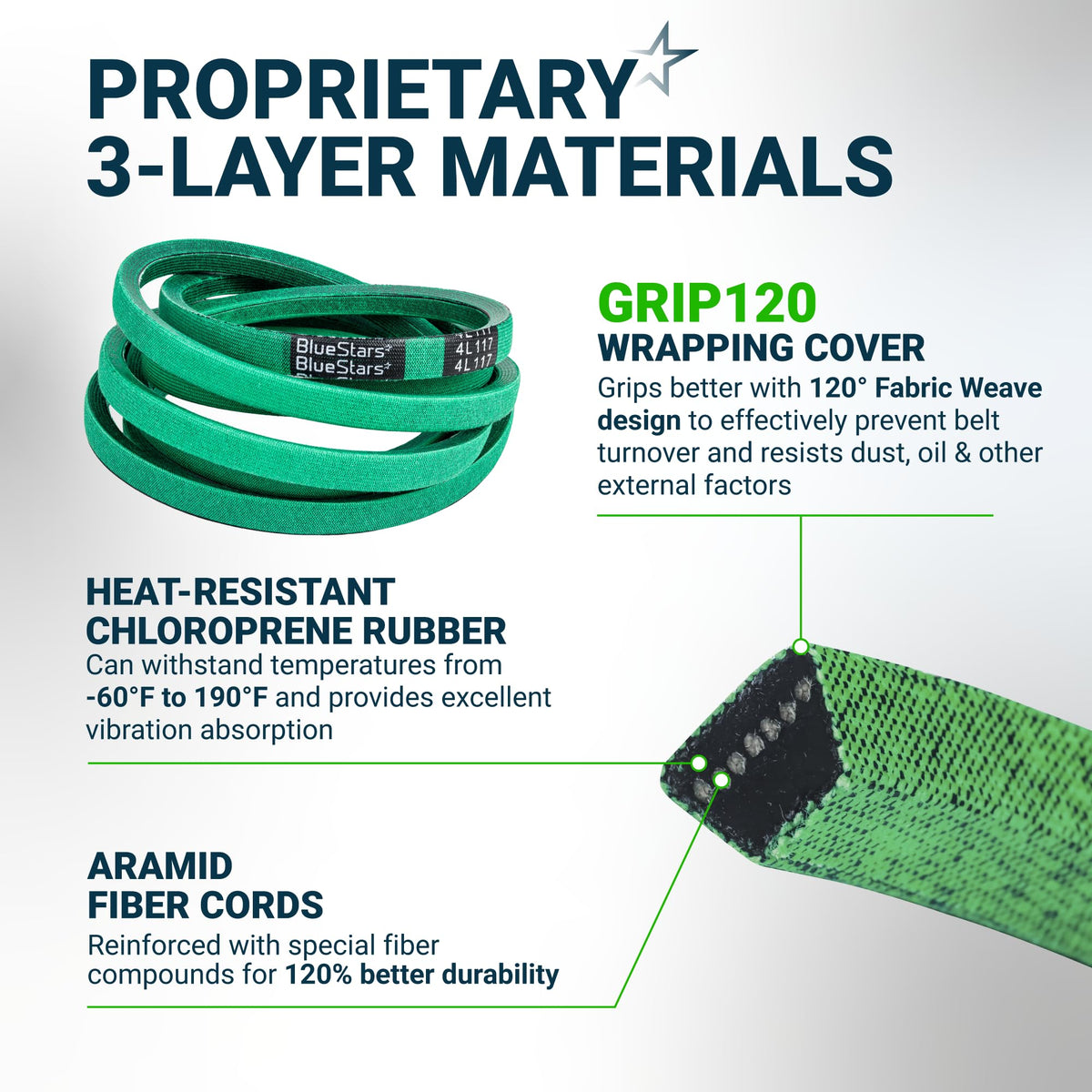

• Material: High-strength aramid cord construction for heat and wear resistance

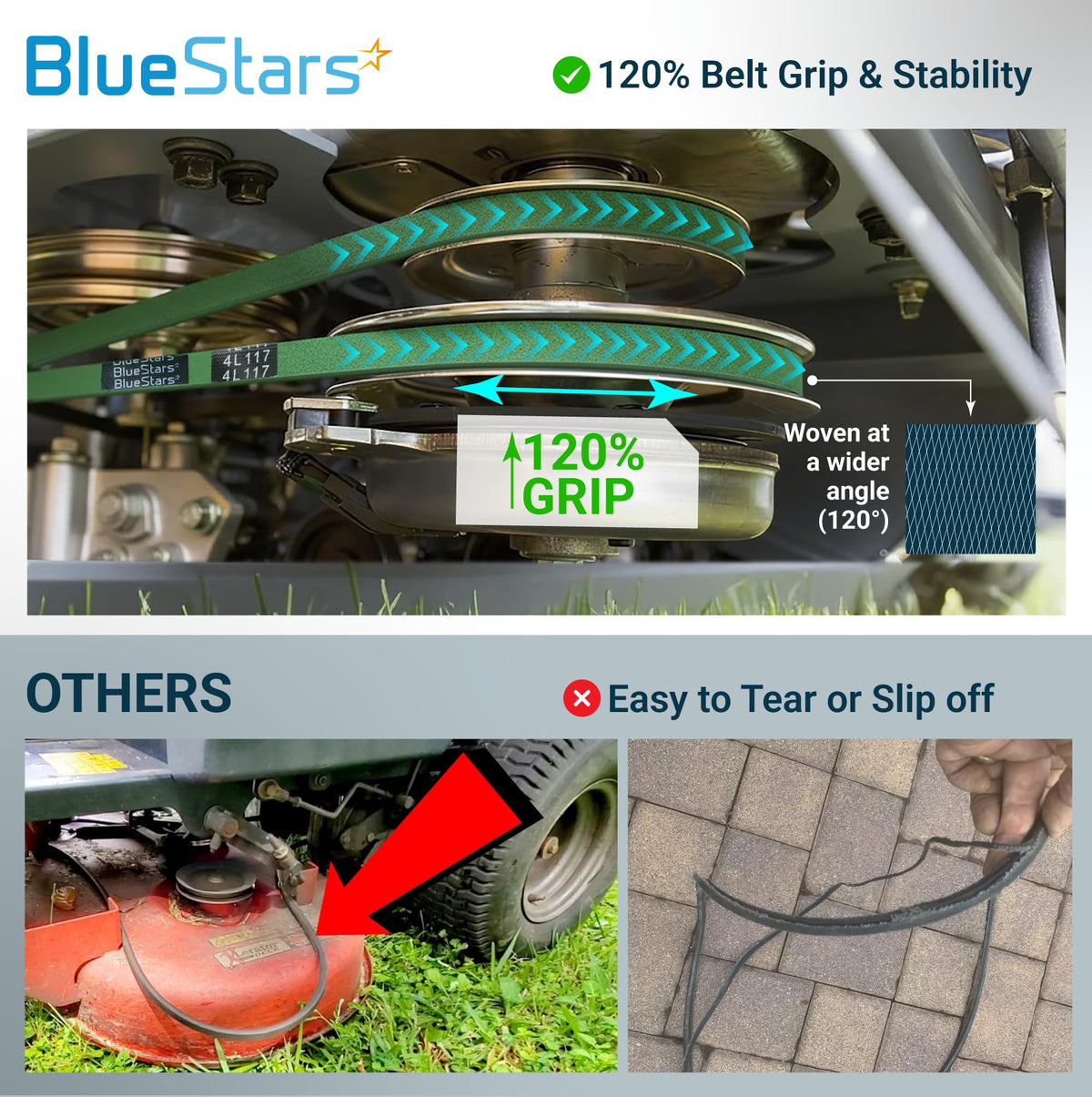

• Design: Wrapped belt profile designed for clutching applications

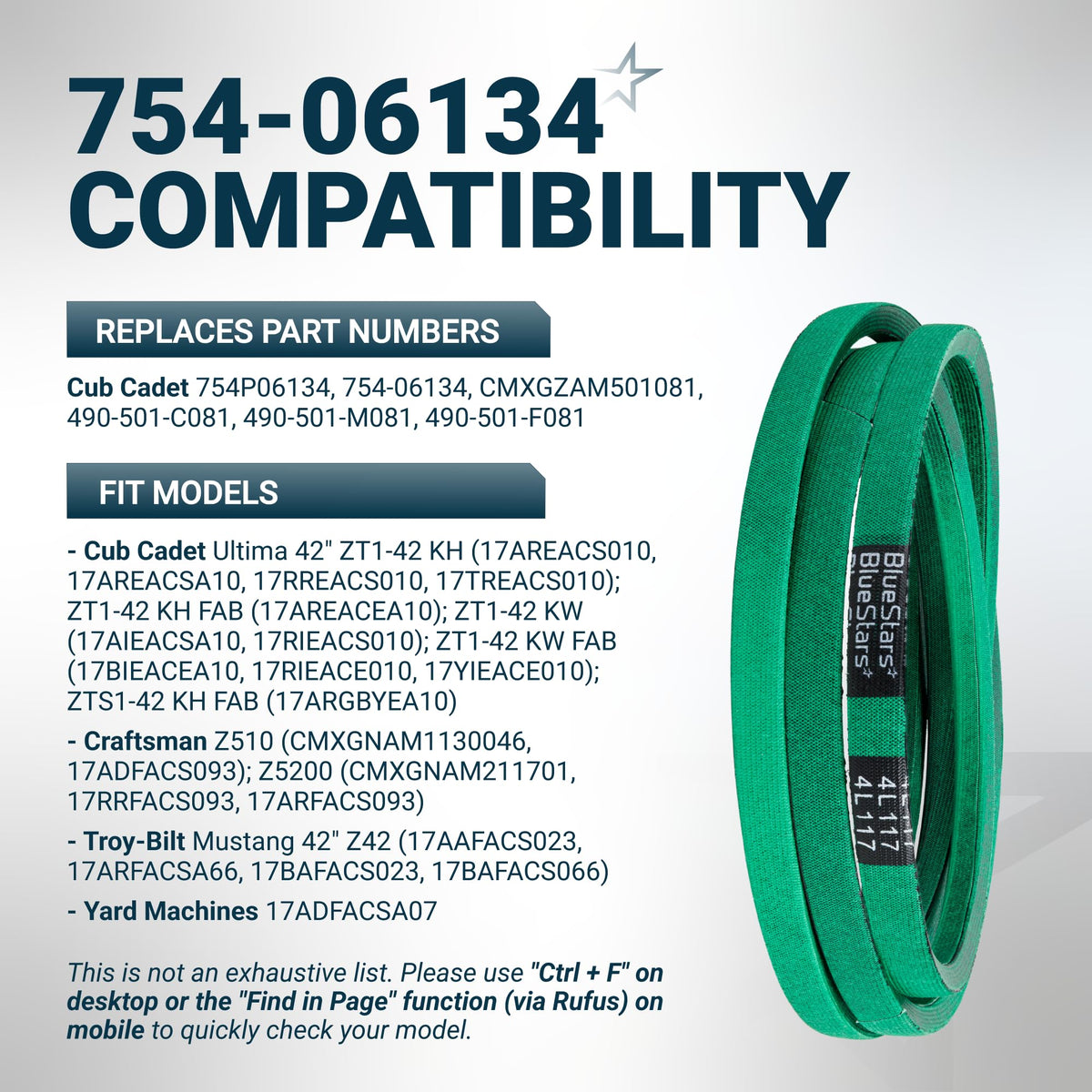

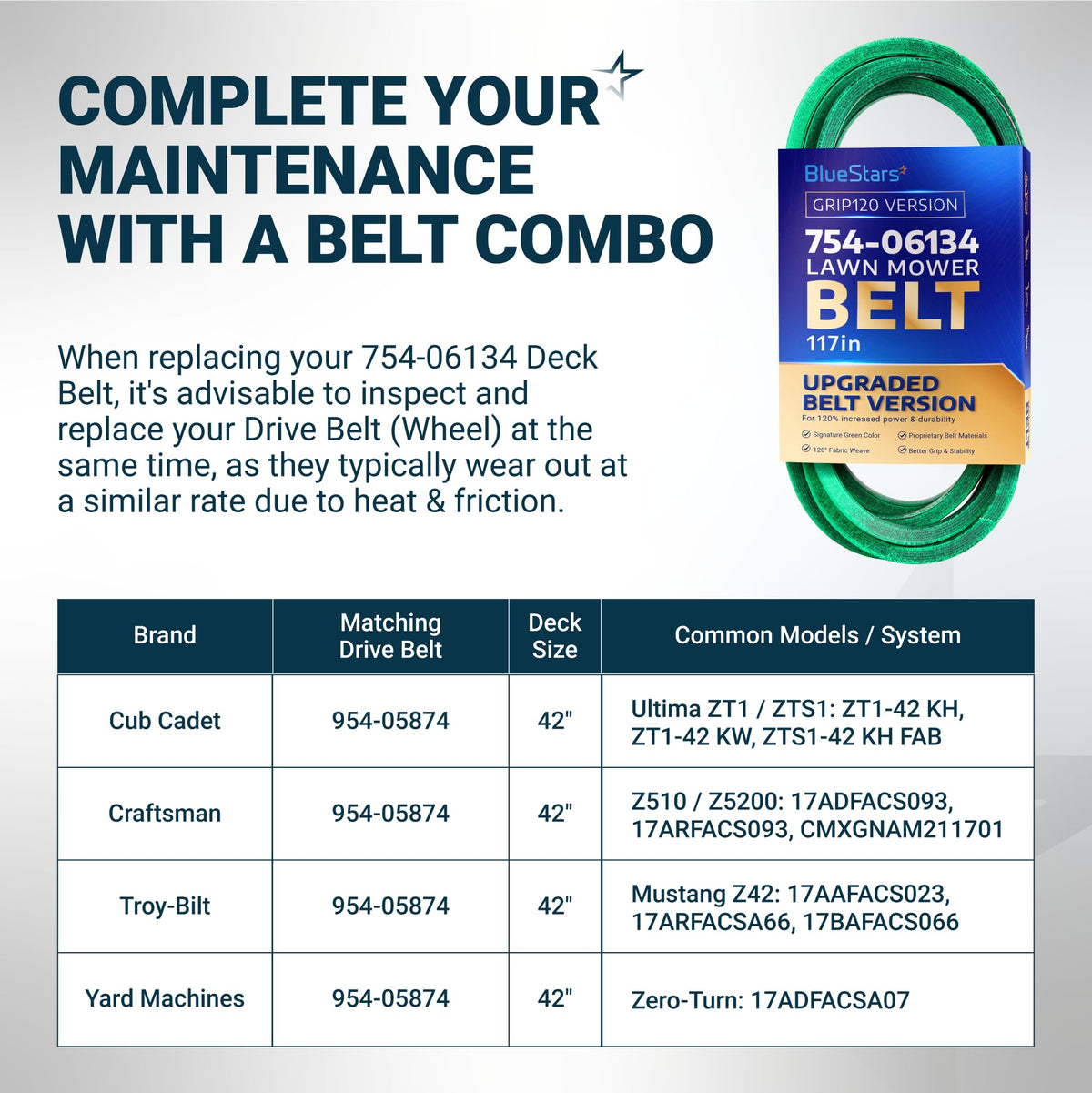

Replaces / Cross-Reference Part Numbers

• Cub Cadet: 754-06134, 754P06134, 954-06134
• Craftsman: CMXGZAM501081
• MTD: 754-06134
• Troy-Bilt: 754-06134
• Other: 490-501-C081

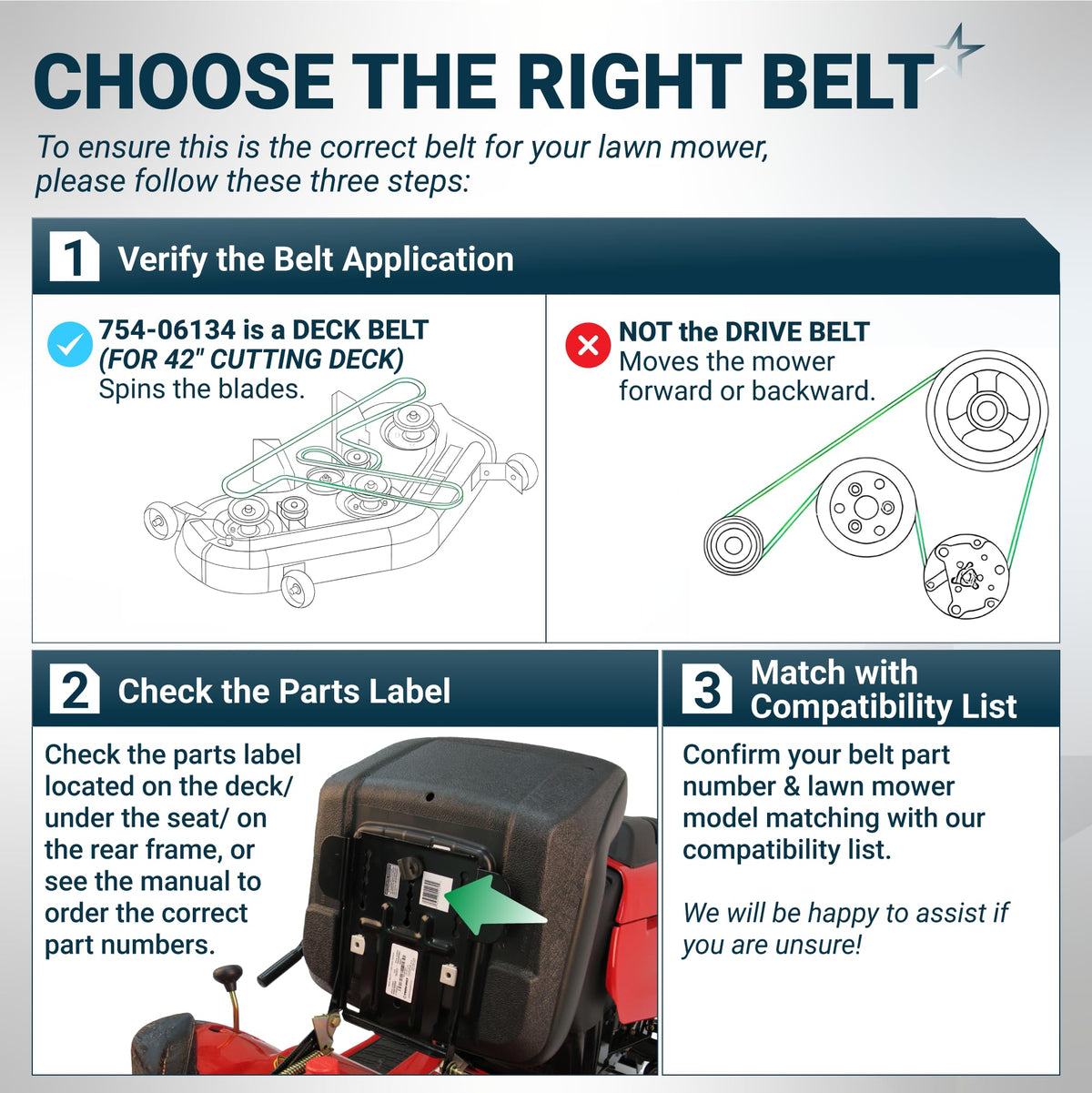

Compatibility & Fitment

• Cub Cadet: ZT1 42KH (42-inch deck models)
• Craftsman: Z510 (42-inch deck models)
• Troy-Bilt: Mustang Z42 (42-inch deck models)
• Fits various zero-turn mower units requiring a 117-inch belt length

When to Replace

• Visible fraying or shredding of the outer fabric
• Cracking or dry rot on the underside of the belt
• Belt stretching beyond the tensioner's adjustment range
• Loss of traction resulting in blade slippage or inconsistent cutting performance

Installation Tips

• Ensure the engine is off and the spark plug wire is disconnected before servicing.
• Lower the mower deck to its lowest position to provide clearance.
• Loosen or remove the belt guards as necessary to route the new belt through the pulleys.
• Verify the belt is properly seated in all pulley grooves before tensioning.
• Run the mower at low throttle for several minutes after installation to properly seat the belt.
