[Grip120] 539110411 Hydro Pump Drive Belt for Husqvarna Z246 Z248F Poulan AYP Craftsman Dixon Mowers - Replaces 110411 954-0230 AM108054 M45863 | 56.5" x 1/2"

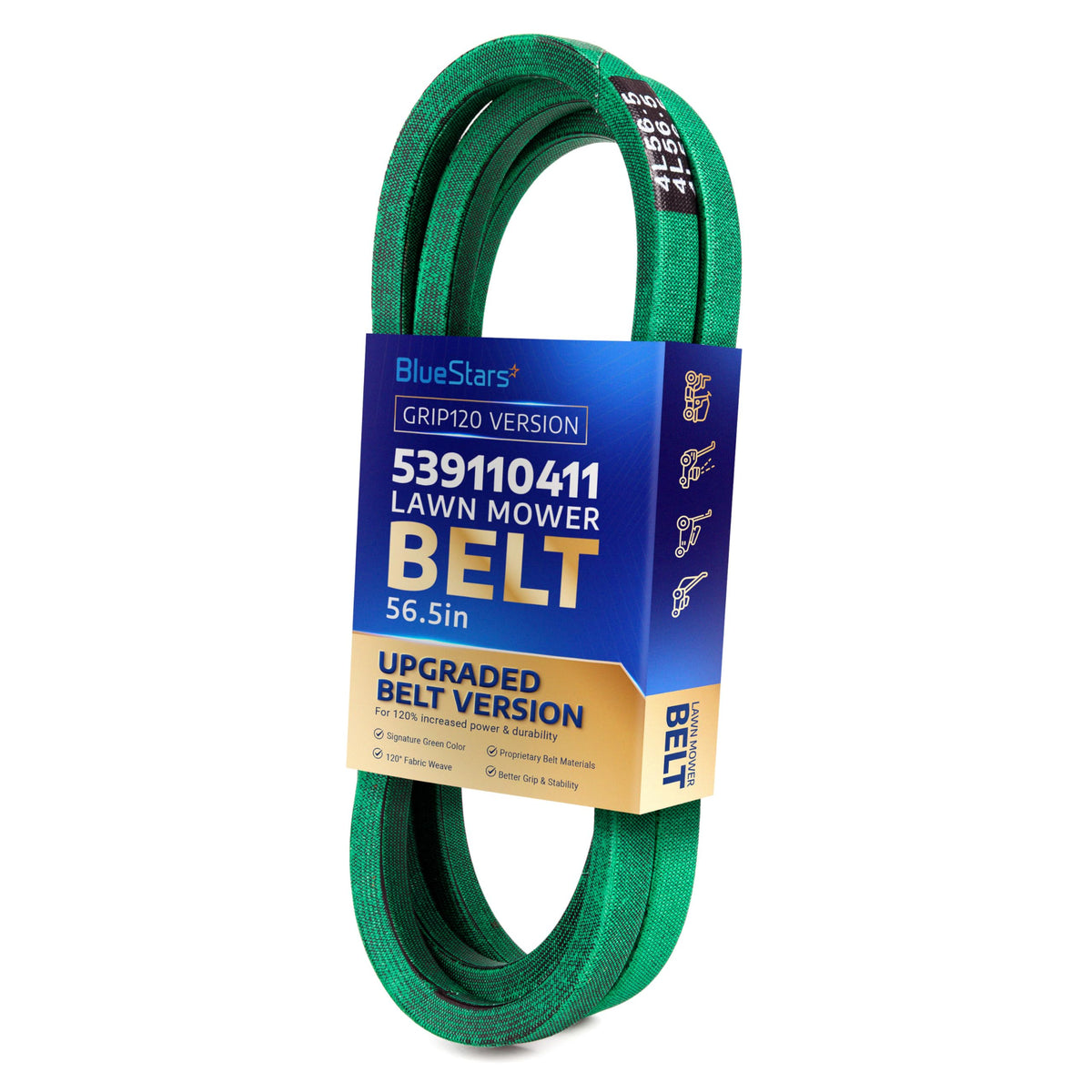

539110411 Hydro Pump Drive Belt (56.5" x 1/2")

Key Features

• Type: Hydro pump drive belt

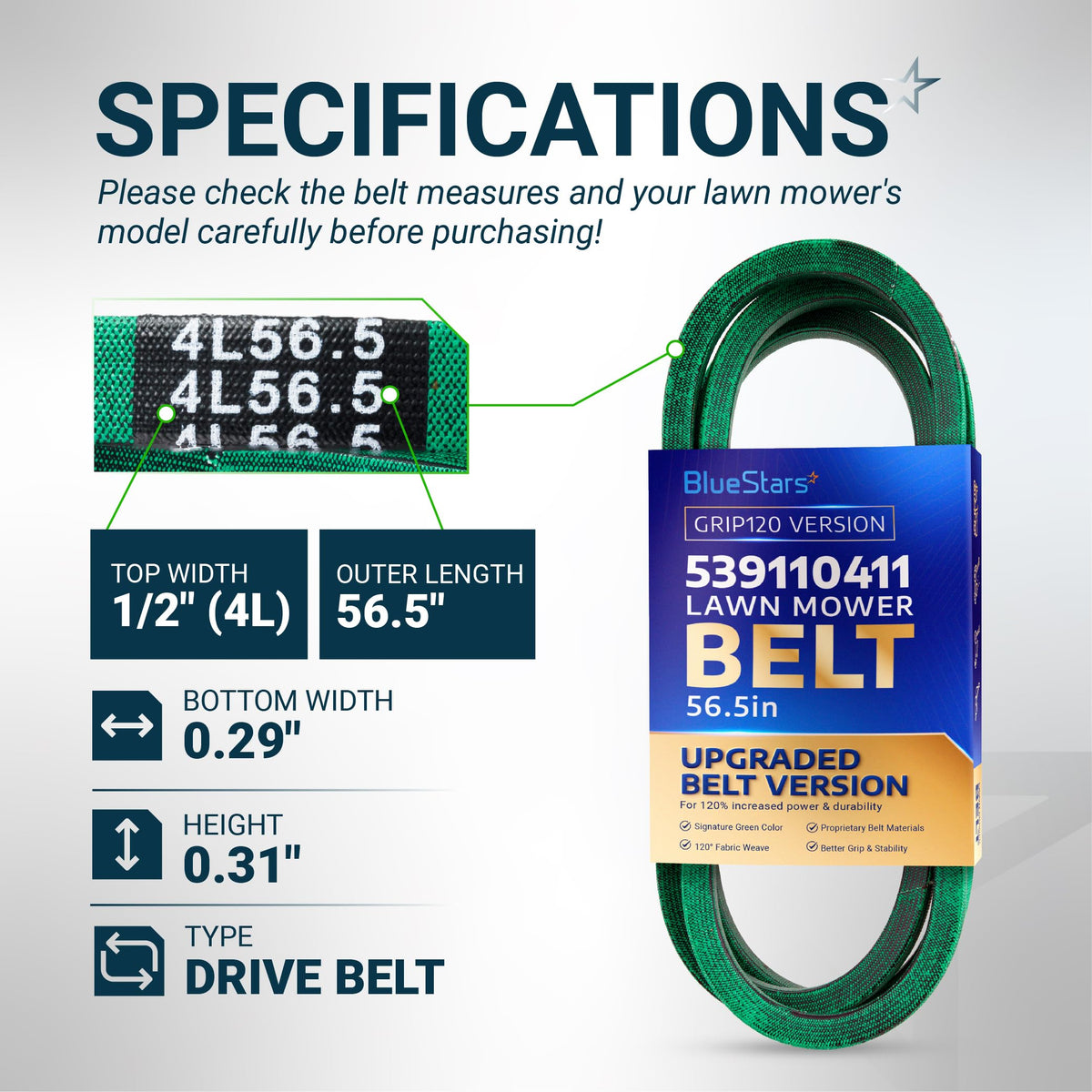

• Dimensions: 56.5 inches (length) x 0.5 inches (width)

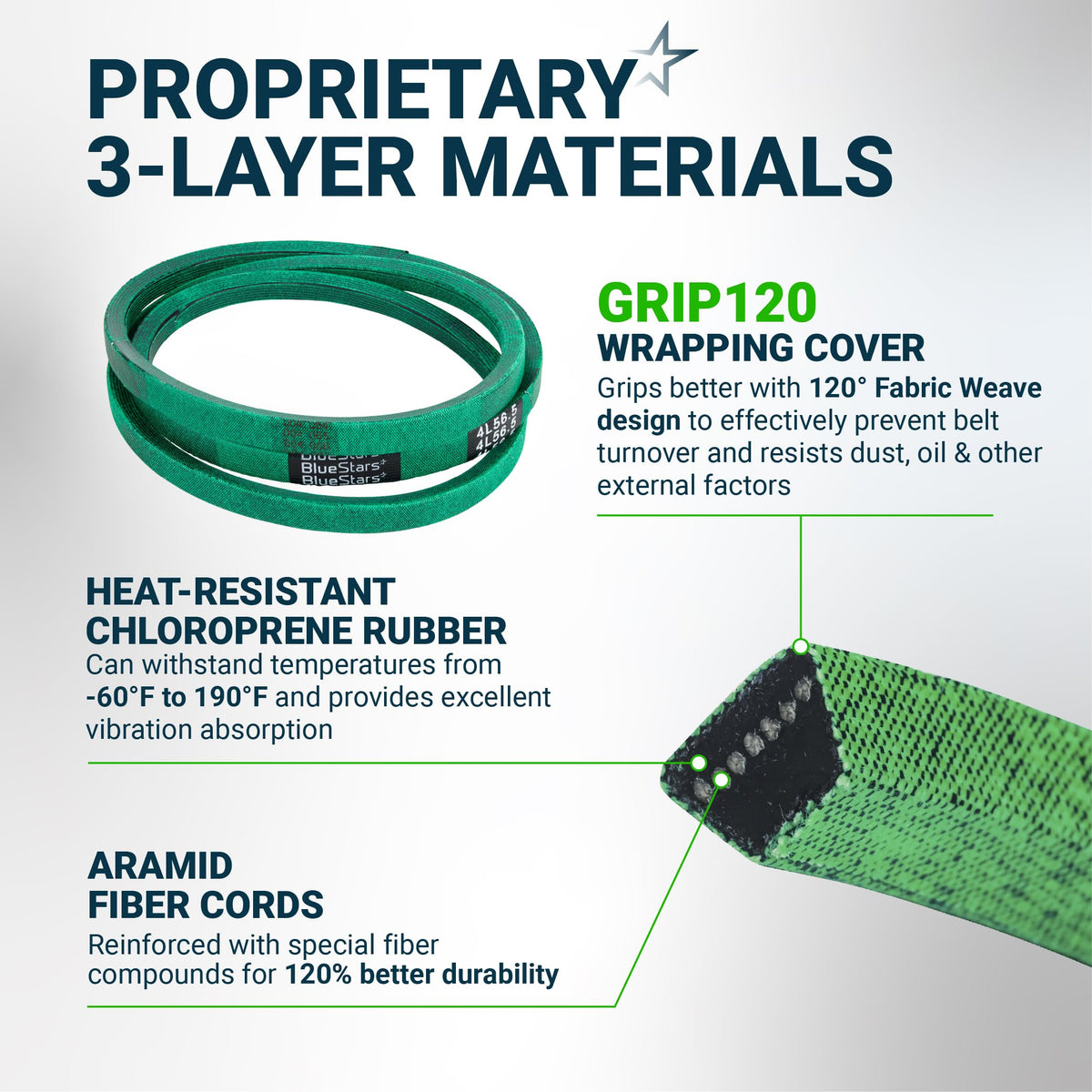

• High-strength internal cord construction for heat and wear resistance
• Oil and abrasion-resistant outer cover
• Designed for consistent power transmission to transmission pumps

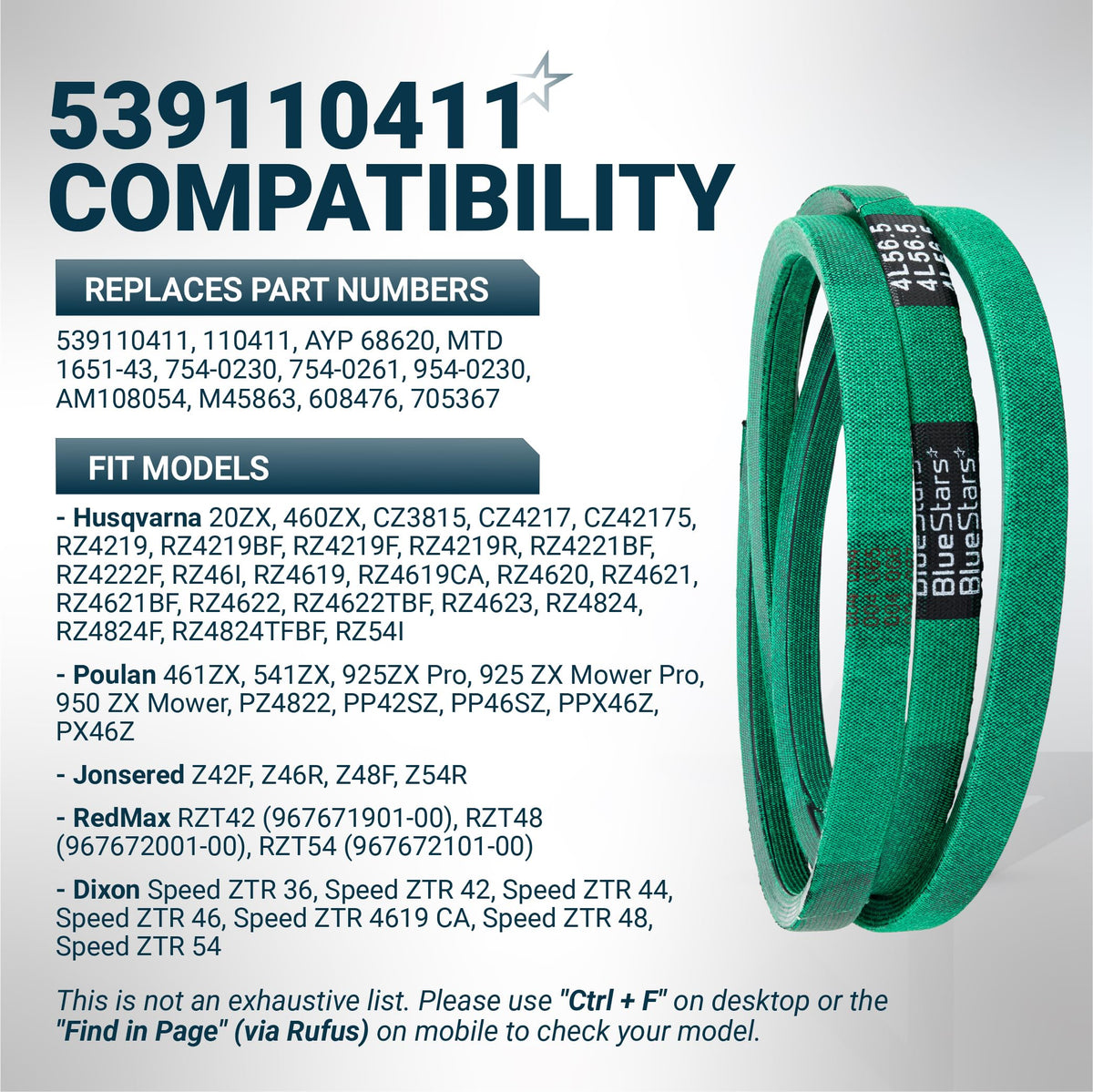

Replaces / Cross-Reference Part Numbers

• Husqvarna / Poulan / AYP: 539110411, 110411
• MTD / Cub Cadet / Troy-Bilt: 954-0230, 754-0230
• John Deere: AM108054, M45863
• Dixon: 539110411
• Additional cross-references: 15-230

Compatibility & Fitment

• Fits Husqvarna Z246 and Z248F zero-turn mower models
• Compatible with various Poulan, AYP, Craftsman, and Dixon riding mowers using the specified belt dimensions

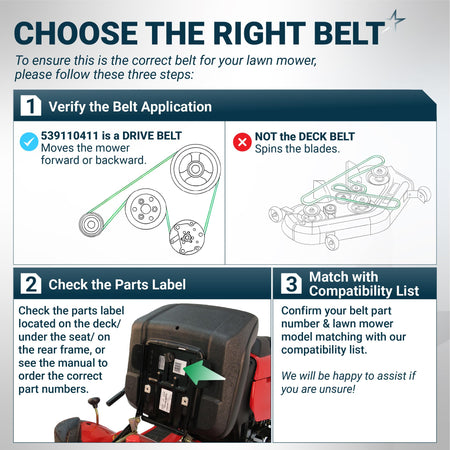

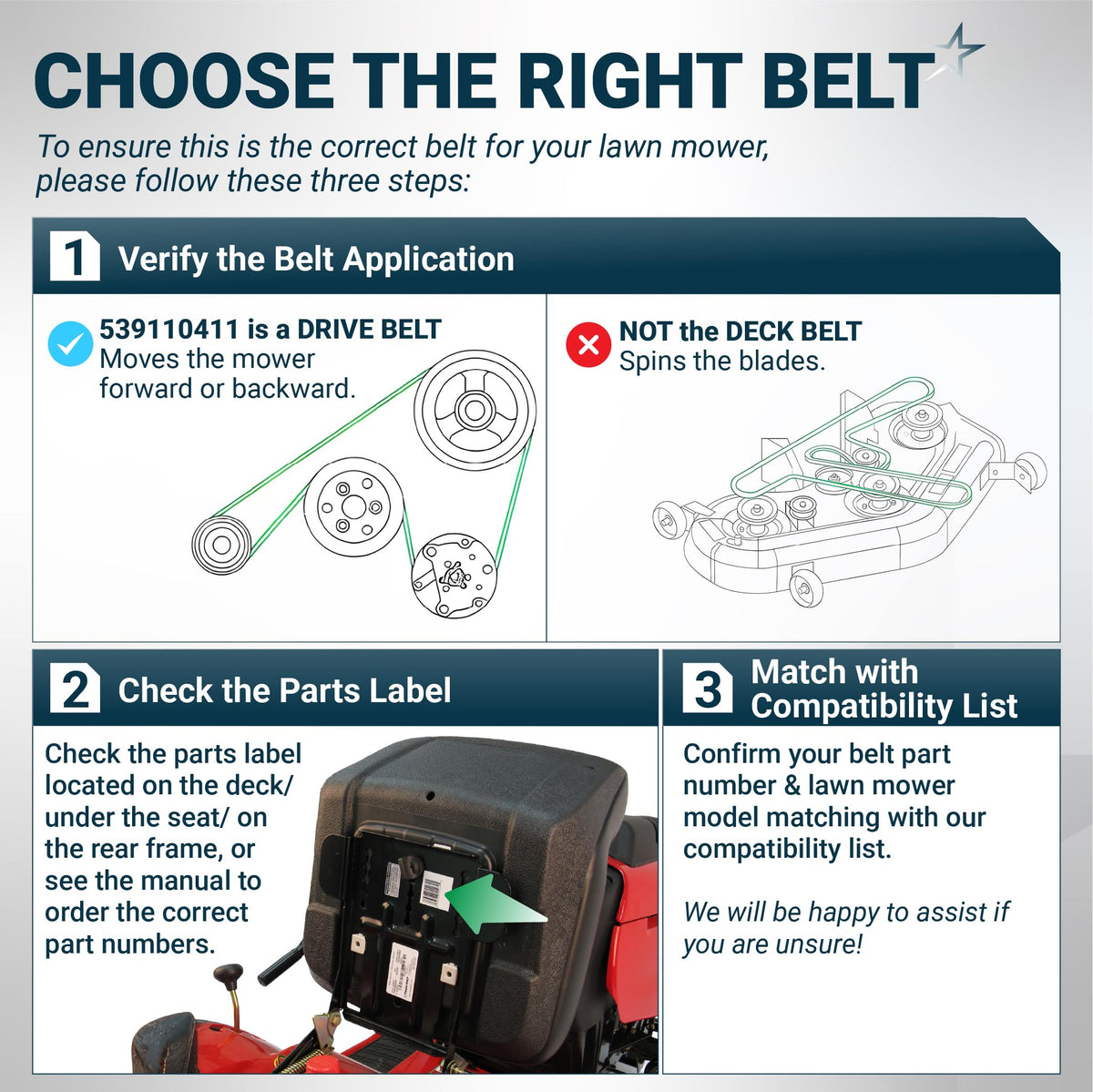

• Verify your mower’s belt routing diagram and part number against your owner's manual before purchase

When to Replace

• Surface cracks, dry rot, or fraying along the edges
• Belt stretching that causes slippage or loss of drive power
• Glazed or hardened underside from excessive heat/friction
• Visible cord separation or missing chunks of rubber
• Loss of tension that prevents the hydro pump from engaging properly

Installation Tips

• Disconnect the spark plug wire before servicing to prevent accidental starting
• Engage the parking brake and clear debris from the pulley housing
• Note the belt routing path or take a reference photo before removing the old belt
• Ensure the new belt is properly seated in all pulley grooves before tensioning
• Check the tensioner pulley spring for full range of motion to ensure the belt maintains proper tightness during operation
