[Grip120] 135-1873 Deck Belt for 60" Deck Toro Titan Max 76601 76602 74452 74467 Z Master 74492 74494 74496 74497 HD 1500 HD 2000 | 5/8" X 189.52"

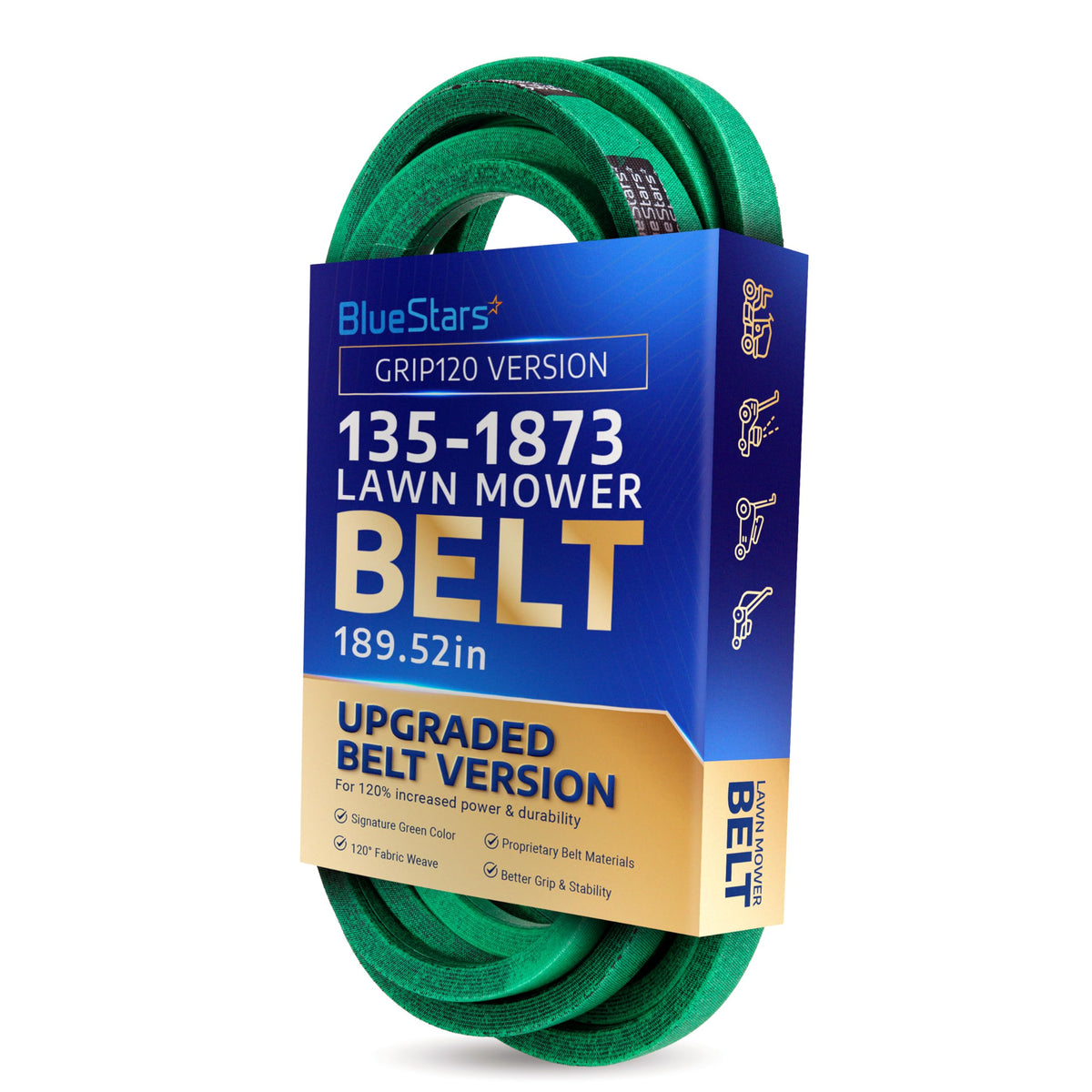

135-1873 Deck Belt (5/8" X 189.52")

Key Features

• Belt type: Deck drive belt

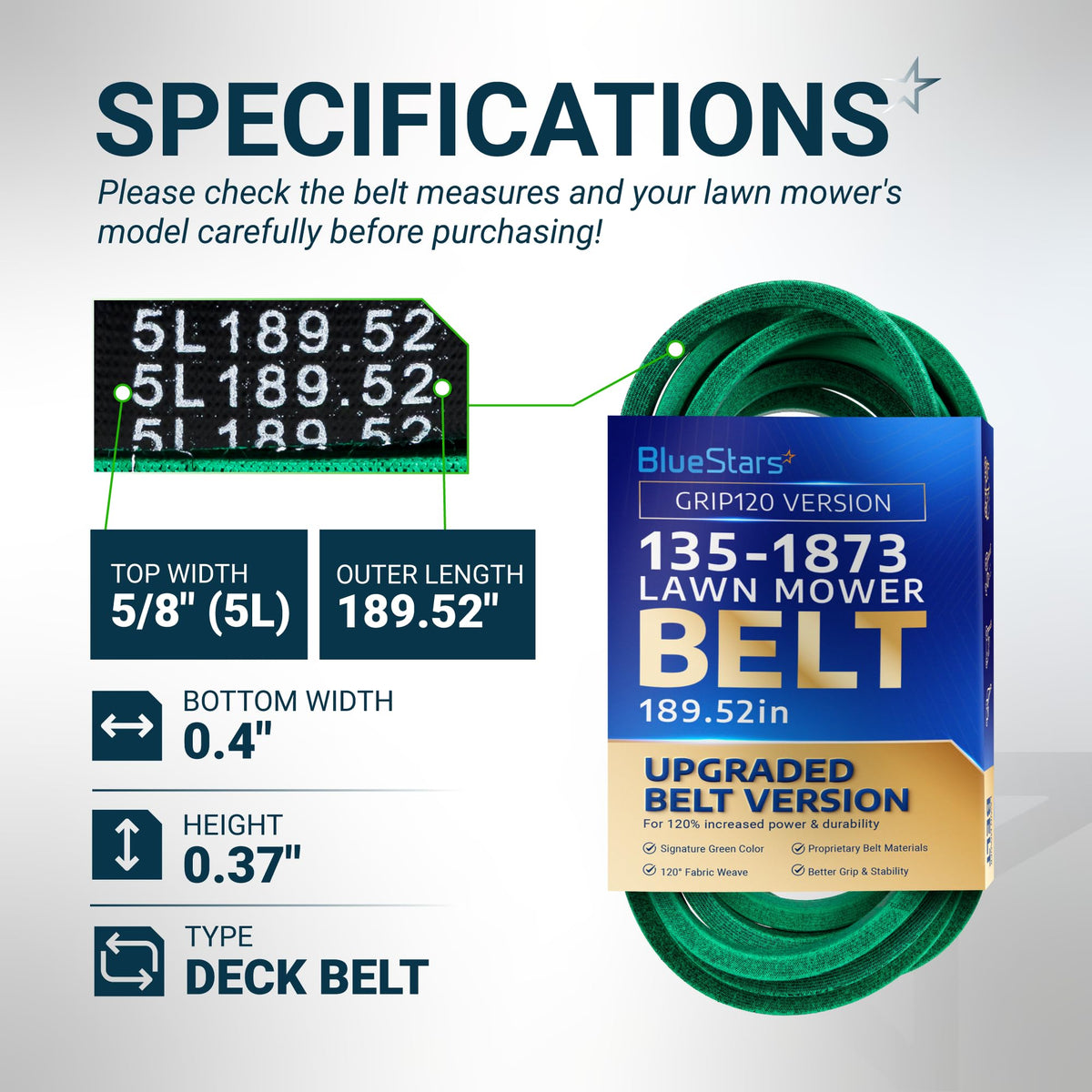

• Dimensions: 5/8" width x 189.52" effective length

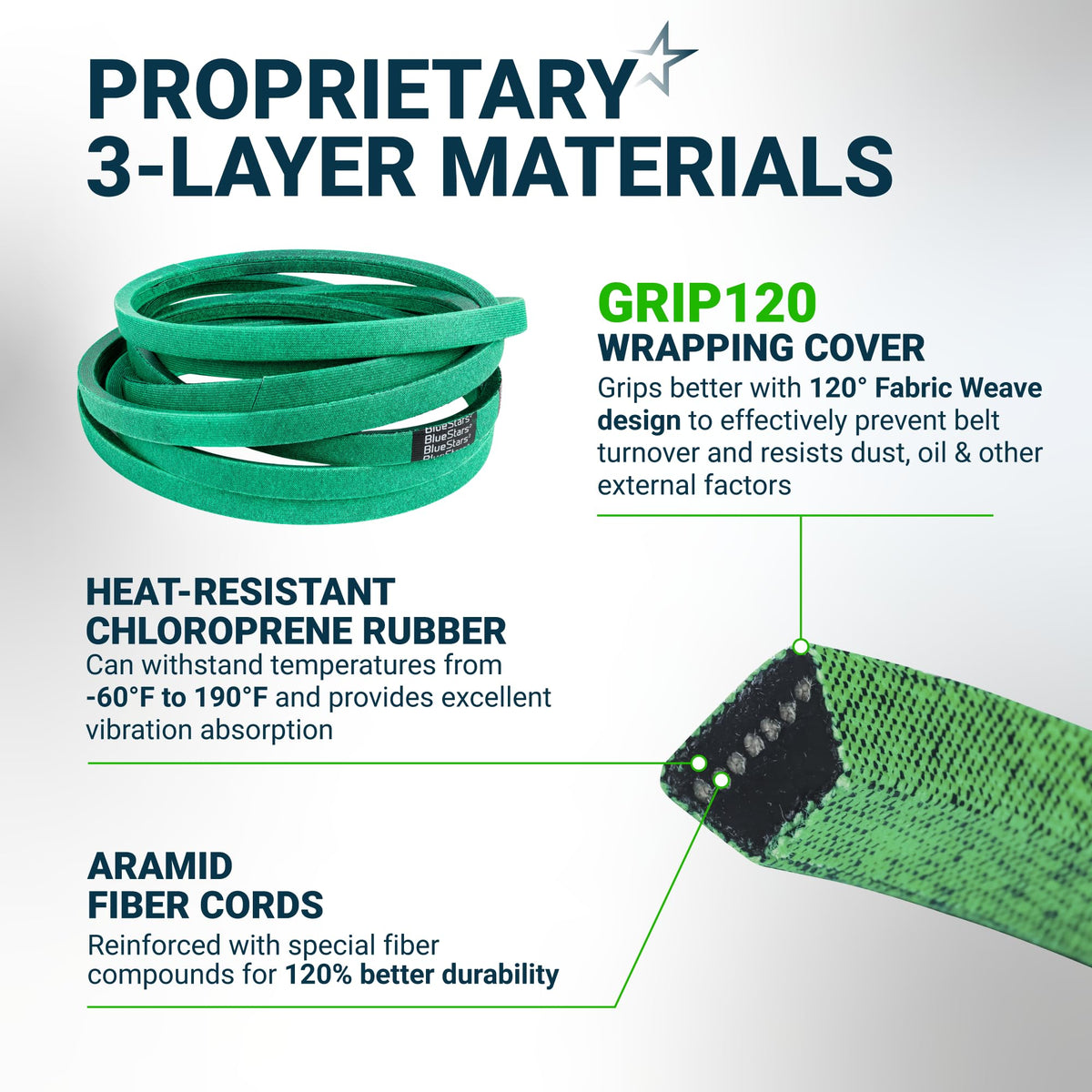

• High-strength aramid cord construction for durability and resistance to stretching
• Oil and heat-resistant outer cover
• Designed for high-torque applications on commercial-grade cutting decks

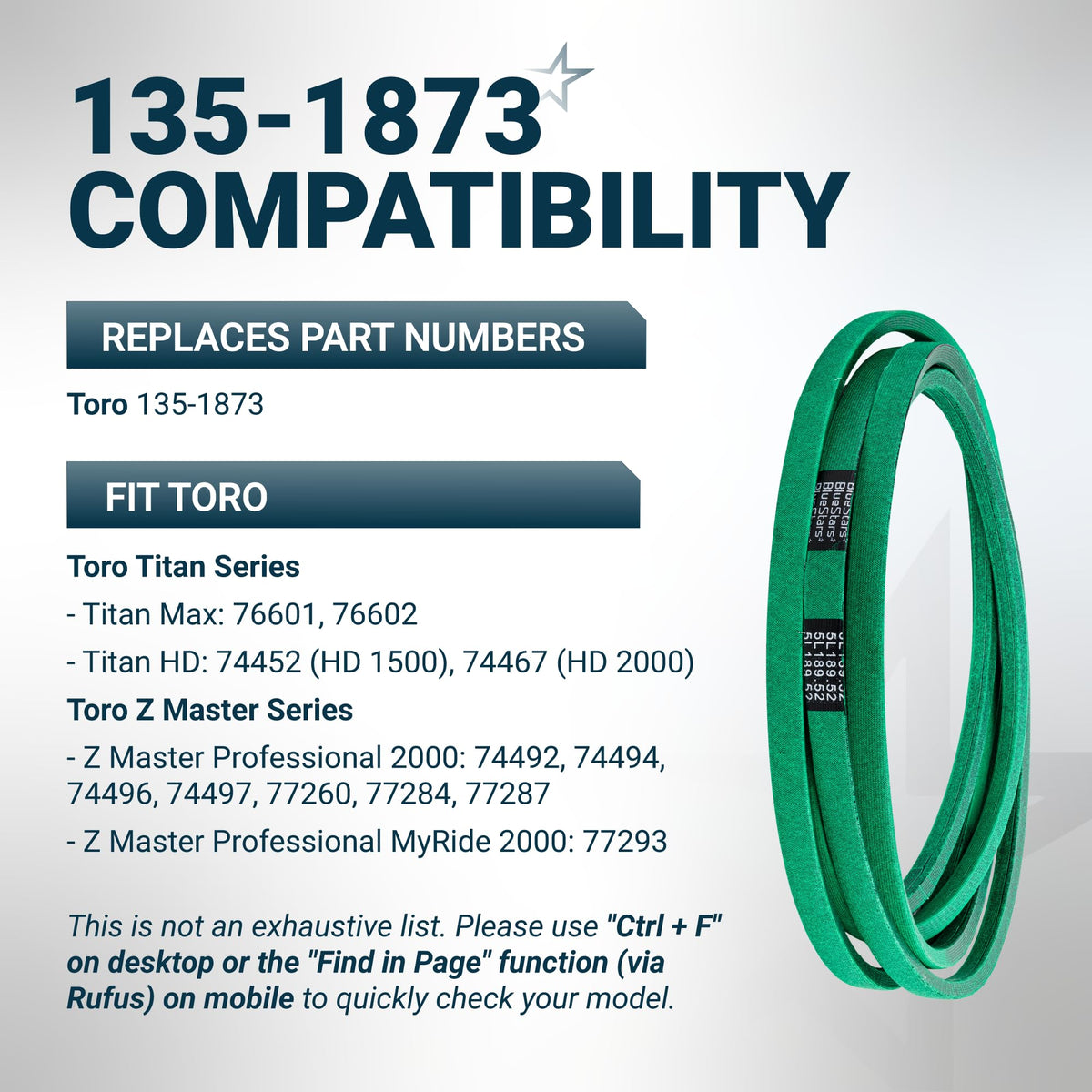

Replaces / Cross-Reference Part Numbers

• Toro: 135-1873

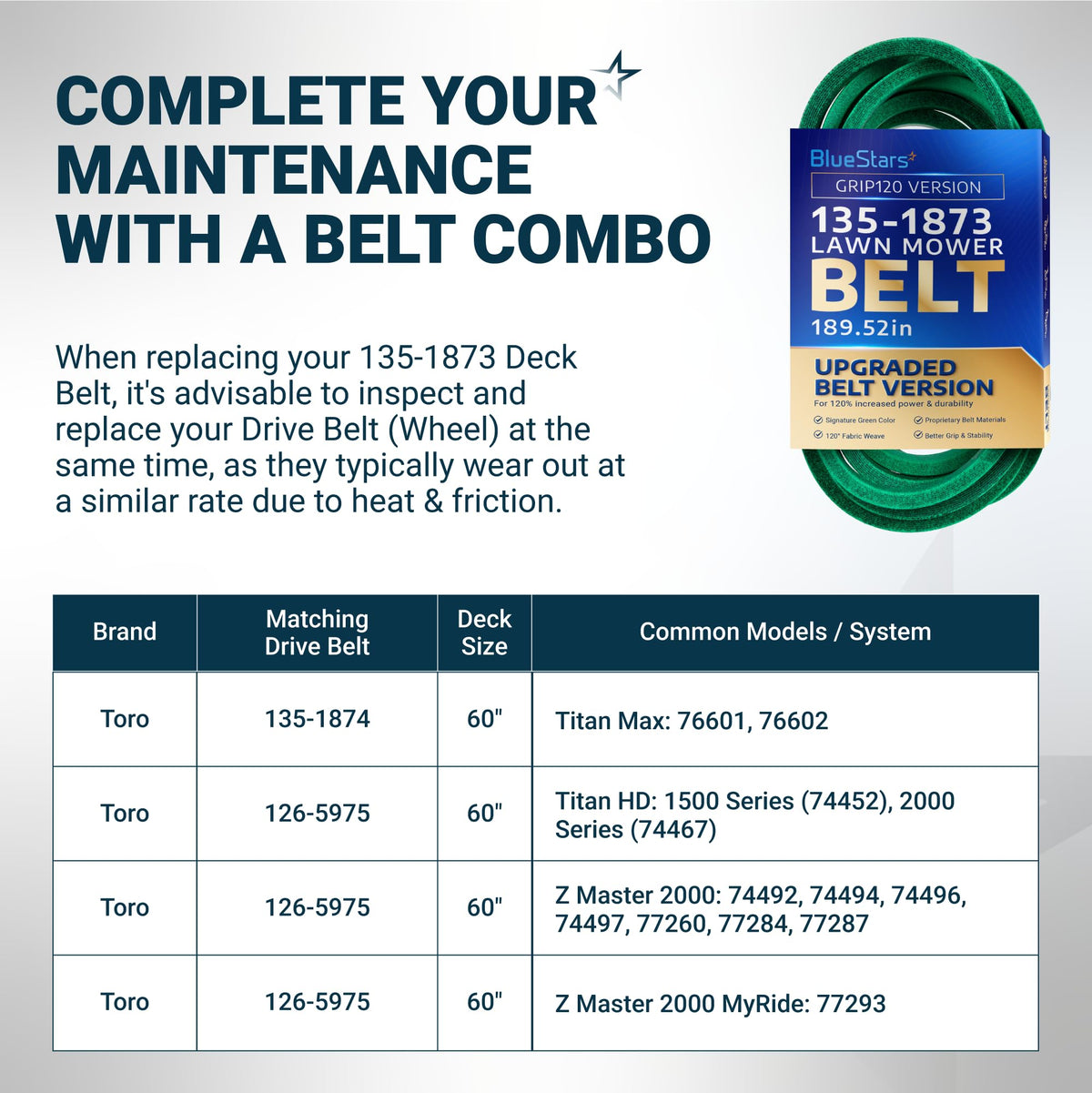

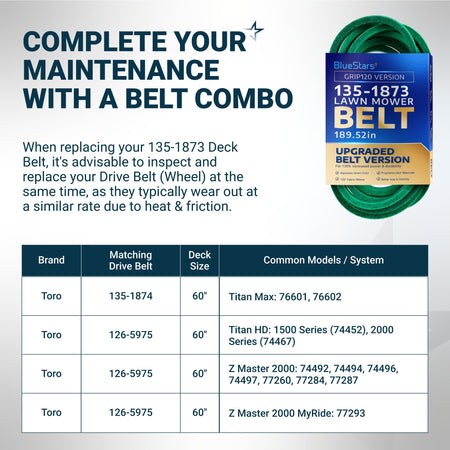

Compatibility & Fitment

• Toro Titan Max: 76601, 76602
• Toro Z Master HD 1500: 74452, 74467
• Toro Z Master HD 2000: 74492, 74494, 74496, 74497
• Fits Toro models equipped with a 60-inch cutting deck

When to Replace

• Visible signs of fraying, cracking, or dry rot on the belt surface
• Significant stretching causing frequent slippage or loss of blade speed
• Glazing on the sides of the belt resulting in burning odors during operation
• Missing chunks or separated belt segments

Installation Tips

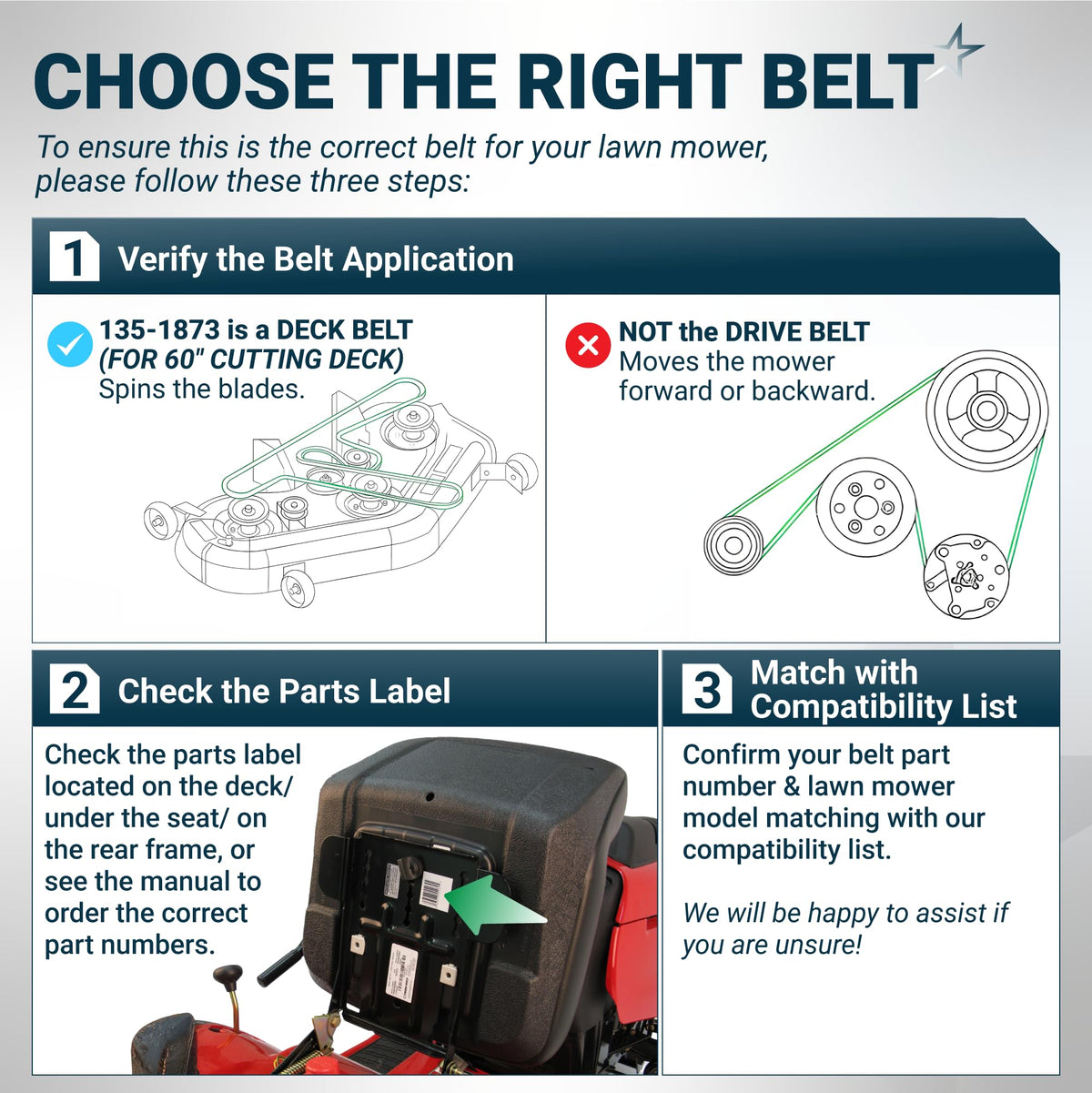

• Consult your owner's manual for the specific deck belt routing diagram.
• Ensure the engine is off, the spark plug wire is disconnected, and the parking brake is engaged before servicing.
• Release tension on the idler pulley assembly to remove the old belt.
• Verify that the new belt is properly seated in the grooves of all pulleys before reapplying tension.
• Run the mower at low throttle for several minutes after installation to allow the belt to seat correctly in the pulleys.
