Dump Trailer Solenoid 12V 4 Terminal 100A Intermittent Duty
0.00
Regular price
$45.51
Regular price
Save 13%
$52.34
Sale price
$45.51
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part

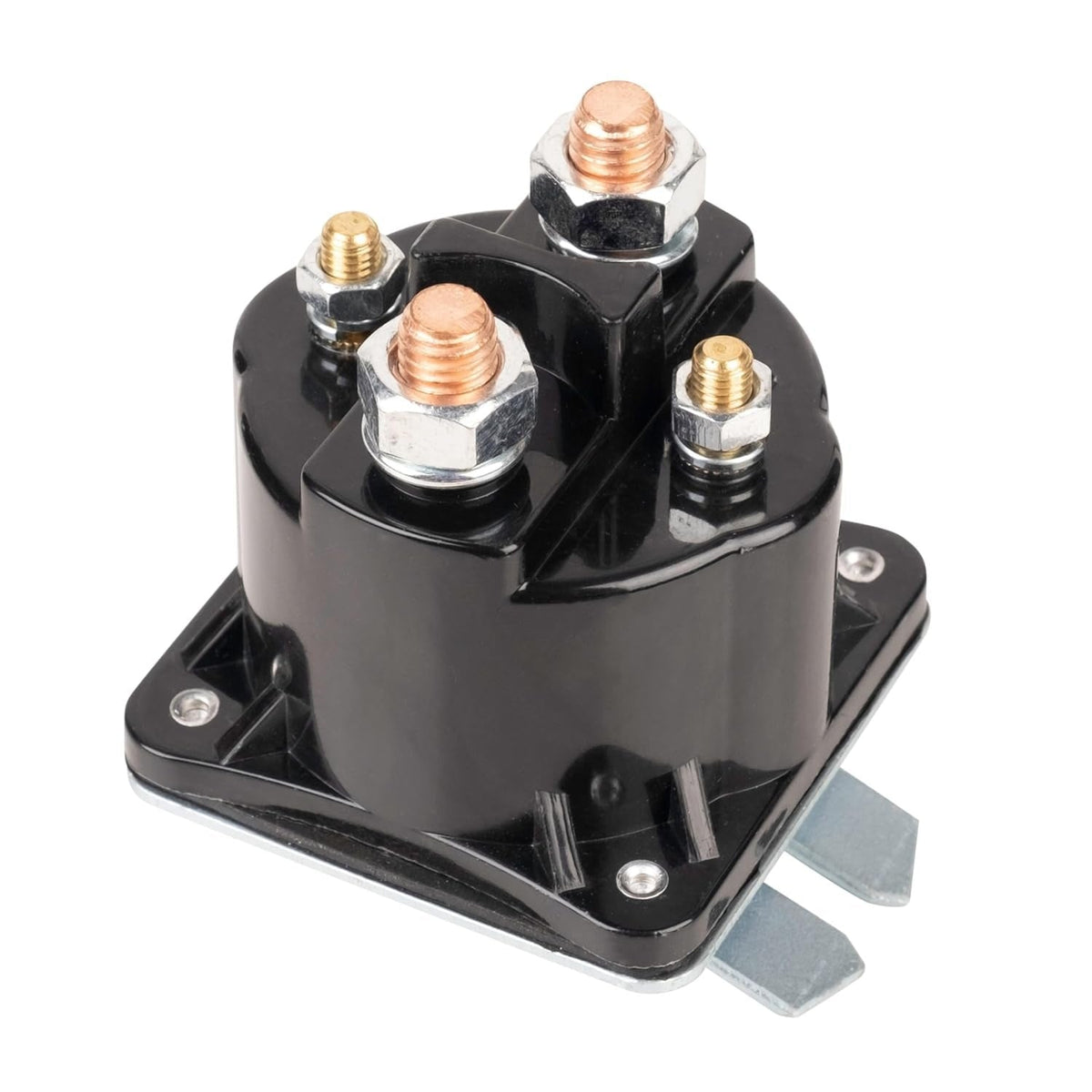

Dump Trailer Solenoid 12V 4 Terminal 100A Intermittent Duty
Key Features
- Voltage: 12V DC
- Duty Cycle: Intermittent
- Continuous Current Rating: 100A
- Surge Current Rating: 200A
- Terminal Count: 4
- Construction: Insulated steel case with copper terminals
- Includes mounting bracket and terminal hardware
Replaces / Cross-Reference Part Numbers
- Prestolite: 15-391, 15-438
- Monarch / Bucher: 070009
- SAZ4201GJ
- SAZ-4201ER
- 7522
- 190107
- 391-2
- 391-2-C
Compatibility & Fitment
- Designed for hydraulic pump motors on dump trailers
- Suitable for hydraulic leveling jacks and lift gates
- Applicable to various 12V high-amperage winch and motor control circuits
When to Replace
- Hydraulic pump motor fails to activate
- Solenoid produces a clicking sound but does not engage the motor
- Inconsistent or intermittent operation of the hydraulic system
- Visible corrosion or damage to the solenoid housing or terminals
Installation Tips
- Always disconnect the battery ground cable before starting work.
- Ensure all electrical connections are clean, dry, and tight to prevent overheating.
- Note the orientation of the original wiring to the large and small terminals before removal.
- Mount the solenoid in a location protected from direct water spray and physical damage.
-
Fixing Symptoms
Hard to start the engine | Clicking sound but no cranking | Slow or weak cranking of the starter motor | Intermittent operation, etc -
Premium Quality
Made of high-grade materials and fine craftsmanship to provide exceptional durability for long-time use -
Saving Solution
Enjoy our great-value package with all you need to optimize electrical systems - BlueStars brings DIY solutions to help you deal with any trouble -

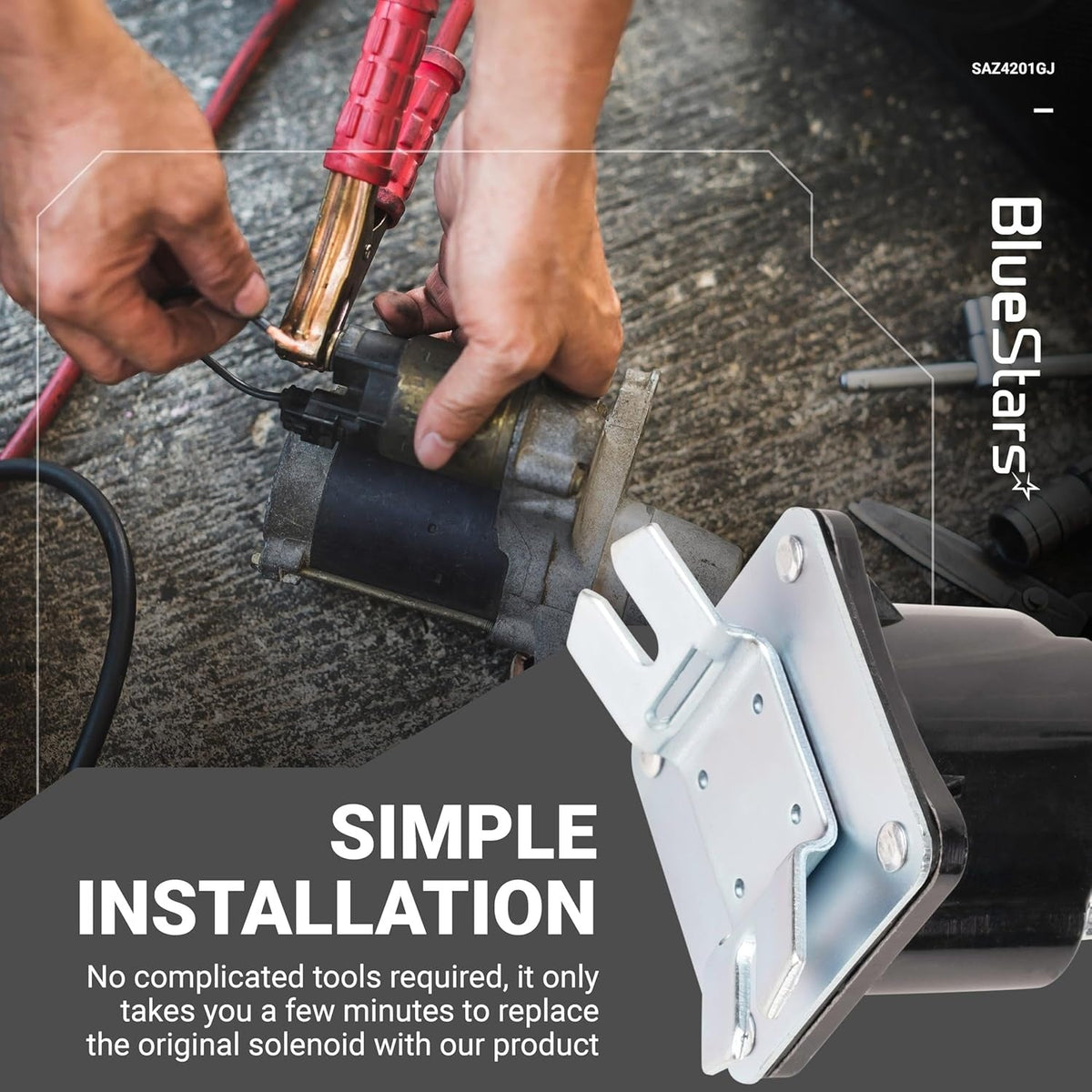

Simple Installation
Please prepare a nut driver set in advance and wear work gloves to ensure safety. Do not overtighten the nut/terminal during installation.
WIDE APPLICATION
- Widely used for hydraulic dump trailers: Load Trail, Parker Performance, power-up/ power-down dump trailer
WORK LIKE A CHARM

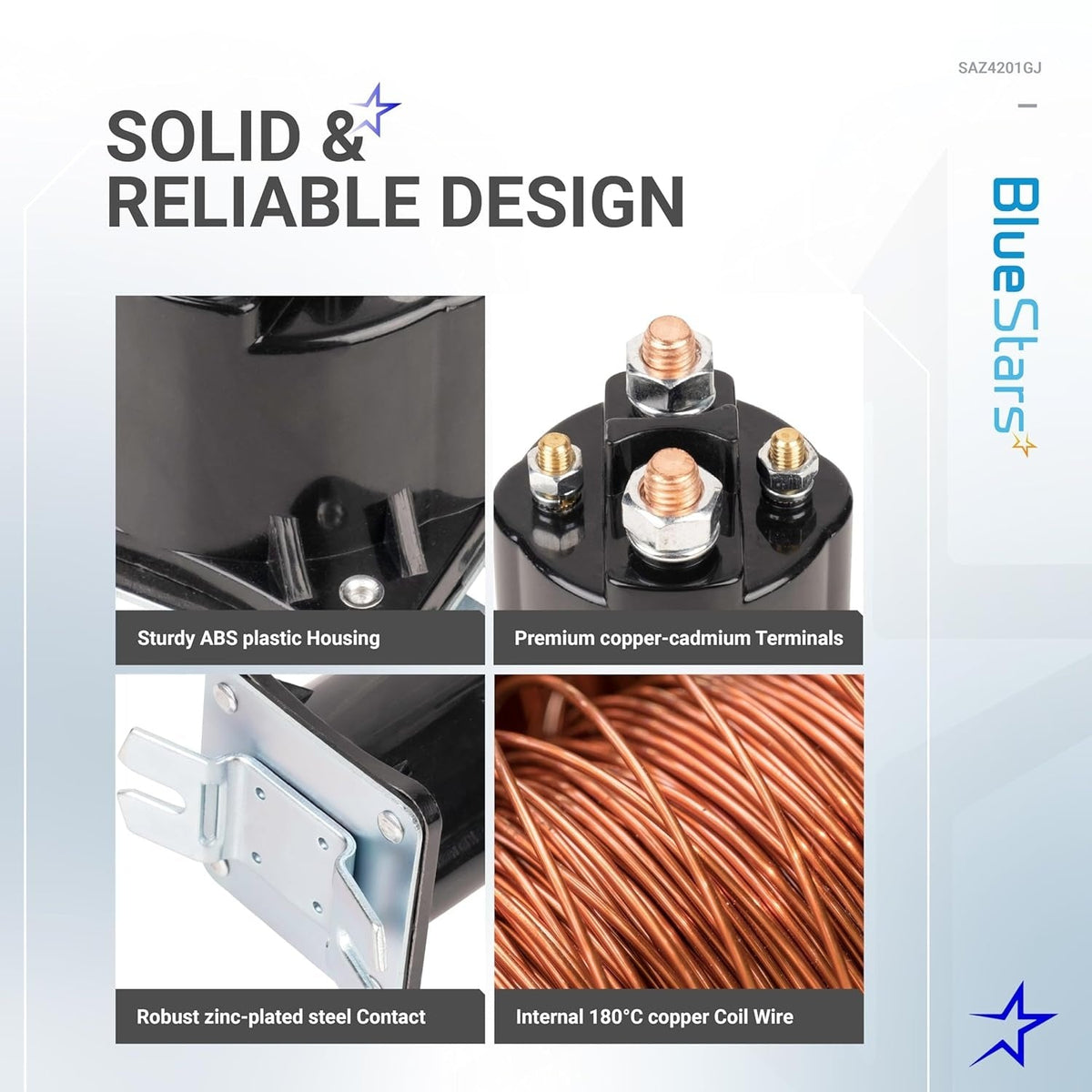

Well-crafted housing and strong Copper-Cadmium inner coil & contacts ensure your solenoid operates safely in any harsh environment and can withstand high current
EXCEPTIONAL PARTS, REMARKABLE JOURNEY
Enjoy your seamless journey with the support of our replacement parts.
