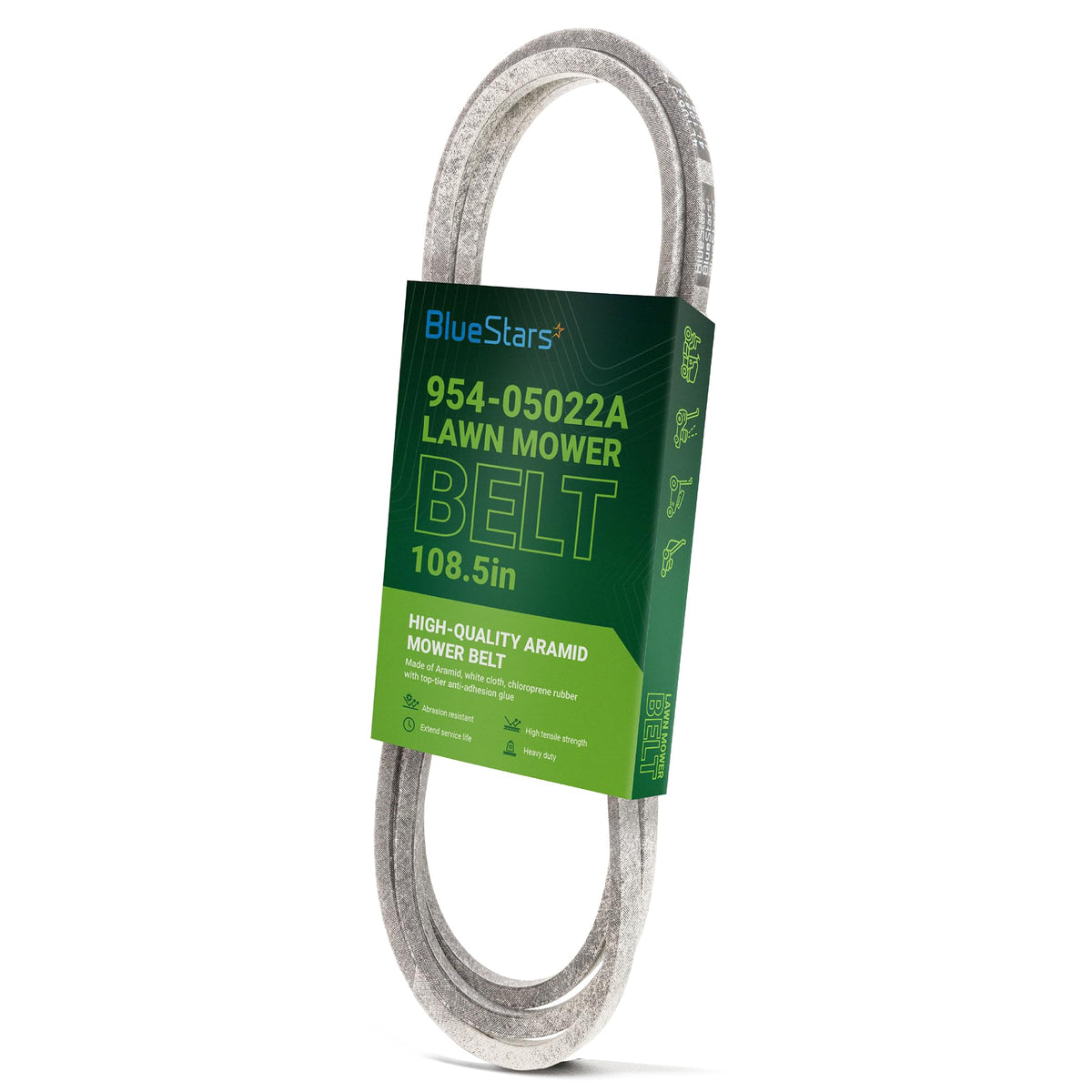

954-05022A replacement mower deck belt in BlueStars branded packaging for 46-inch lawn mower decks.
Specification chart for 954-05022A mower deck belt showing dimensions, material details, and size markings.

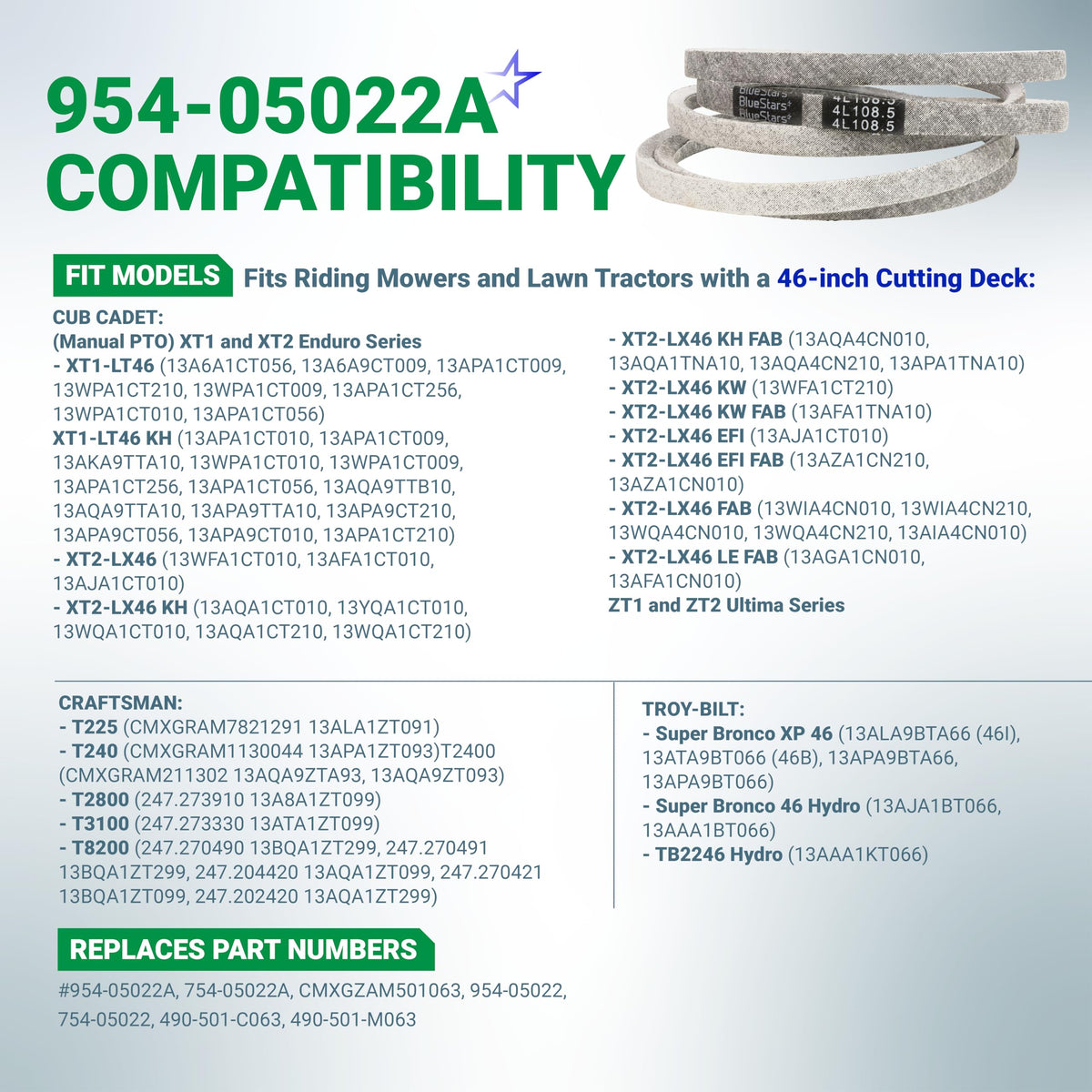

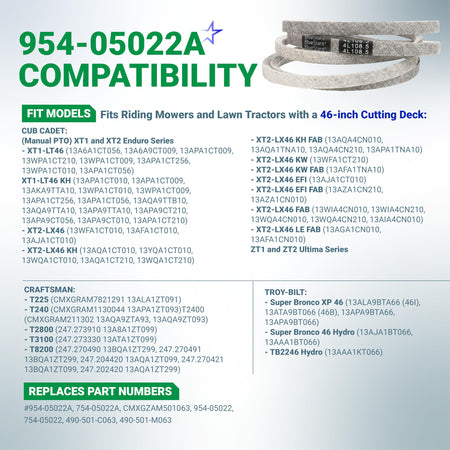

Compatibility chart for 954-05022A mower deck belt showing fitment for Cub Cadet, Craftsman, and Troy-Bilt tractors.

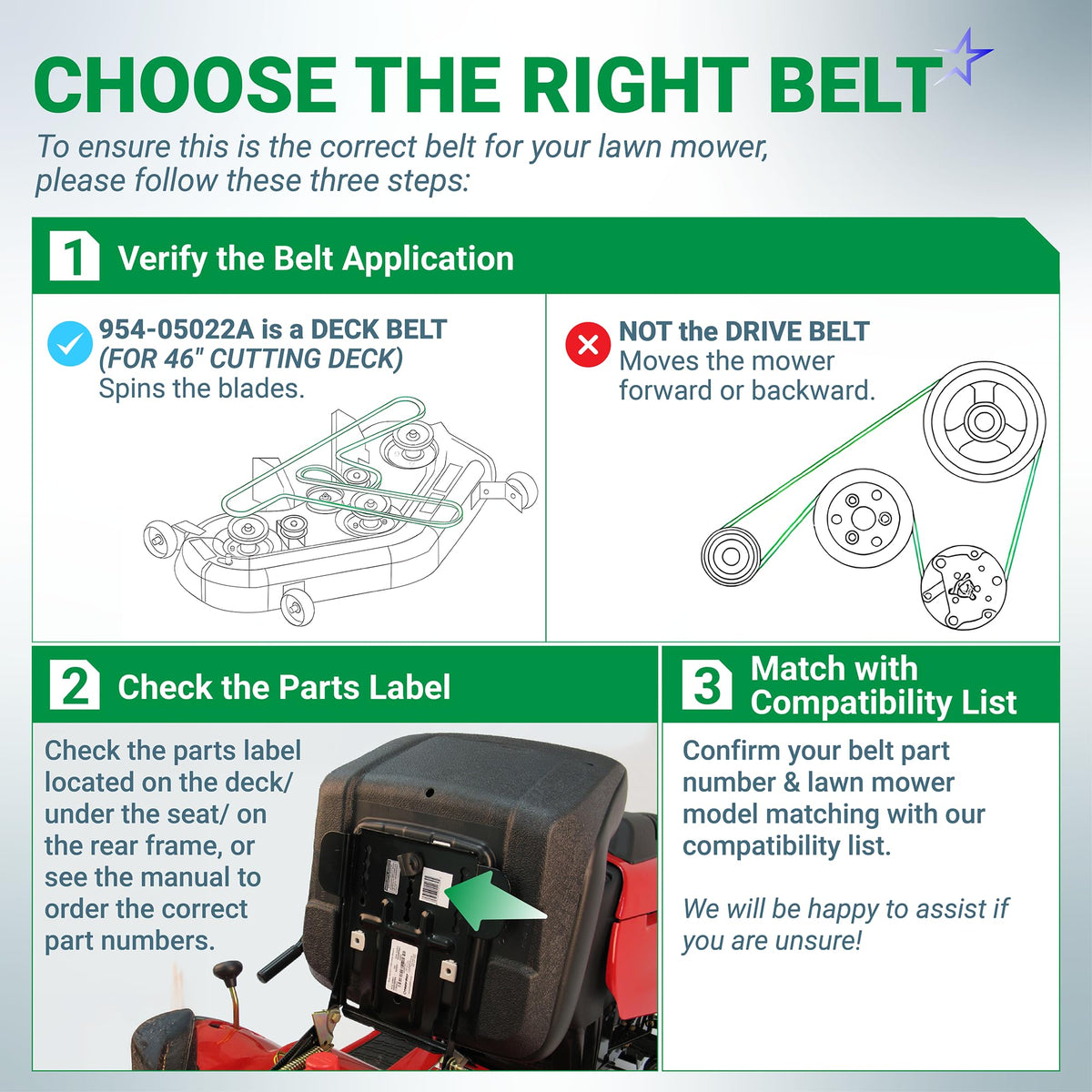

Infographic guide for selecting the correct 954-05022A mower deck belt by verifying application and part labels.

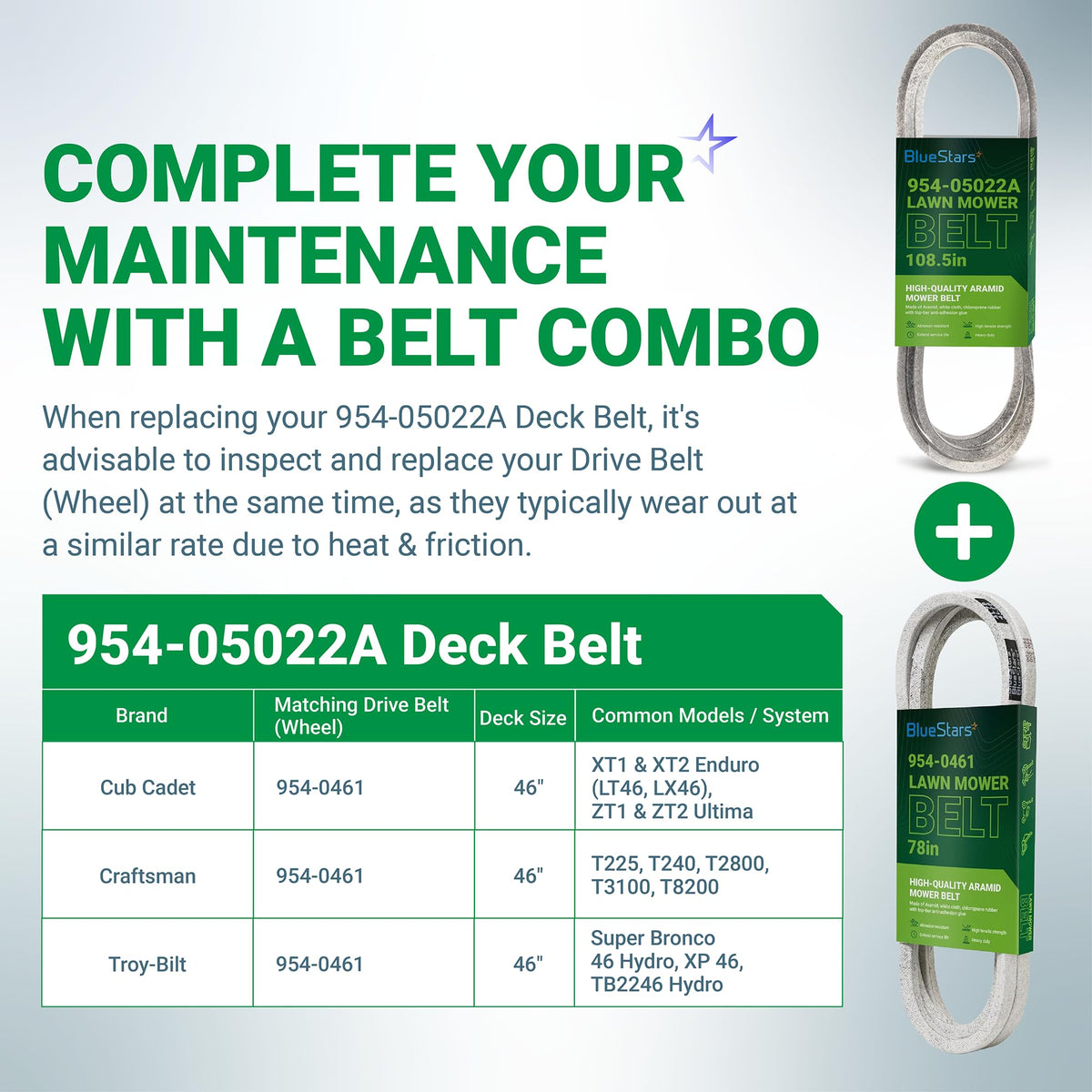

954-05022A deck belt and matching drive belt combo for 46-inch mower decks with compatibility chart.
Infographic showing 954-05022A mower deck belt construction with aramid fiber cords and chloroprene rubber details.
954-05022A replacement mower deck belt for 46-inch lawn tractors shown with troubleshooting guide.
BlueStars 954-05022A mower deck belt comparison infographic highlighting performance features and aramid cord durability.
Informational graphic for 954-05022A mower deck belt installation tips and pulley maintenance checklist.
Instructional graphic showing 954-05022A mower deck belt installation steps on a riding lawn mower.
954-05022A replacement mower deck belt in BlueStars branded packaging for 46-inch lawn mower decks.
Specification chart for 954-05022A mower deck belt showing dimensions, material details, and size markings.
Compatibility chart for 954-05022A mower deck belt showing fitment for Cub Cadet, Craftsman, and Troy-Bilt tractors.
Infographic guide for selecting the correct 954-05022A mower deck belt by verifying application and part labels.
954-05022A deck belt and matching drive belt combo for 46-inch mower decks with compatibility chart.
Infographic showing 954-05022A mower deck belt construction with aramid fiber cords and chloroprene rubber details.
954-05022A replacement mower deck belt for 46-inch lawn tractors shown with troubleshooting guide.
BlueStars 954-05022A mower deck belt comparison infographic highlighting performance features and aramid cord durability.
Informational graphic for 954-05022A mower deck belt installation tips and pulley maintenance checklist.
Instructional graphic showing 954-05022A mower deck belt installation steps on a riding lawn mower.
Lifetime Warranty

954-05022A Deck Belt - Fits 46" Mower Deck Cub Cadet XT1 LT46 XT2 LX46 - Replaces 954-05022 754-05022A | 1/2 x 108.5

Save 10%
0.00
$24.57
$27.29
$24.57
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

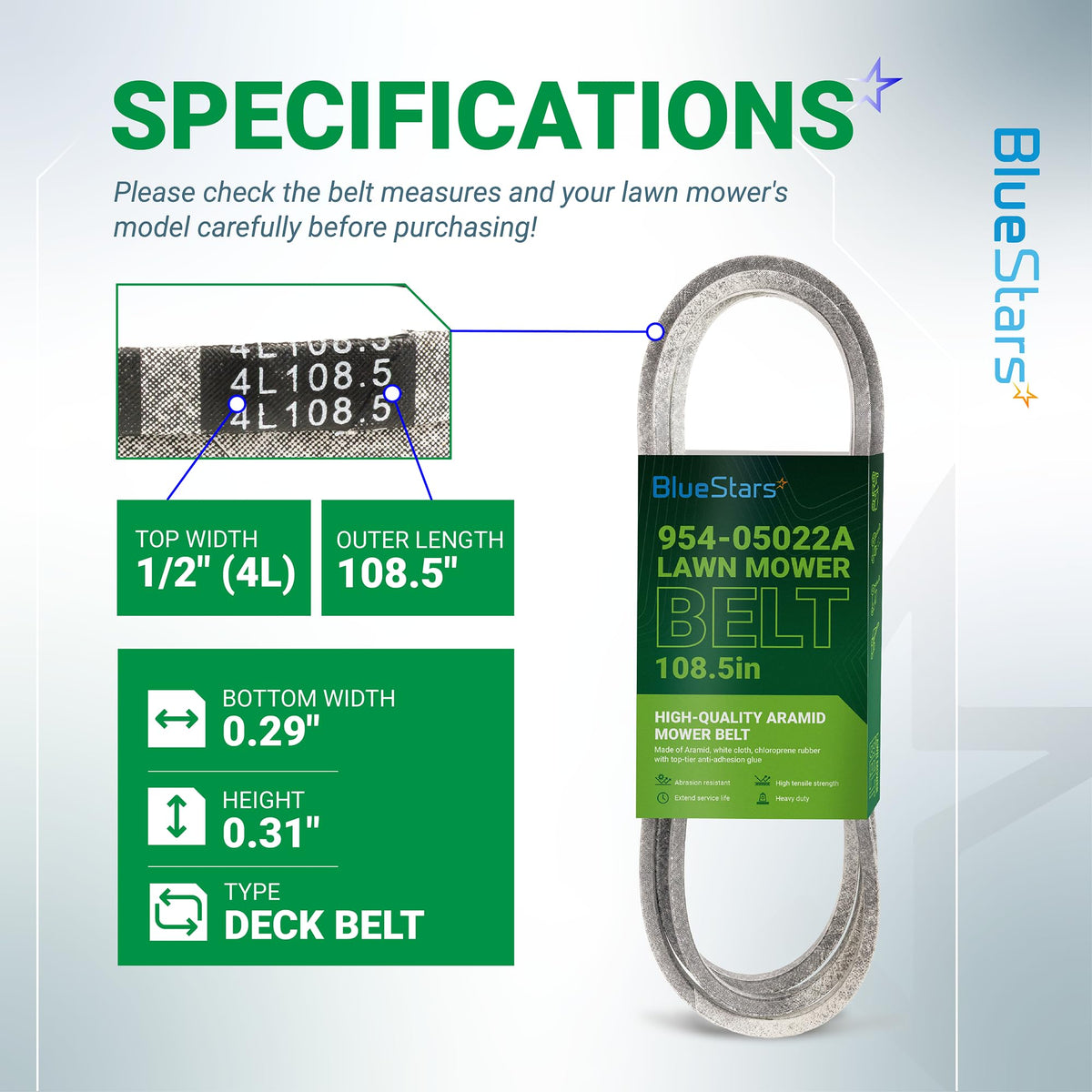

954-05022A Deck Belt (1/2" x 108.5")

Key Features

  • Type: Deck Drive Belt
  • Function: Transfers power from the engine pulley to the mower deck spindles
  • Width: 1/2 inch
  • Length: 108.5 inches

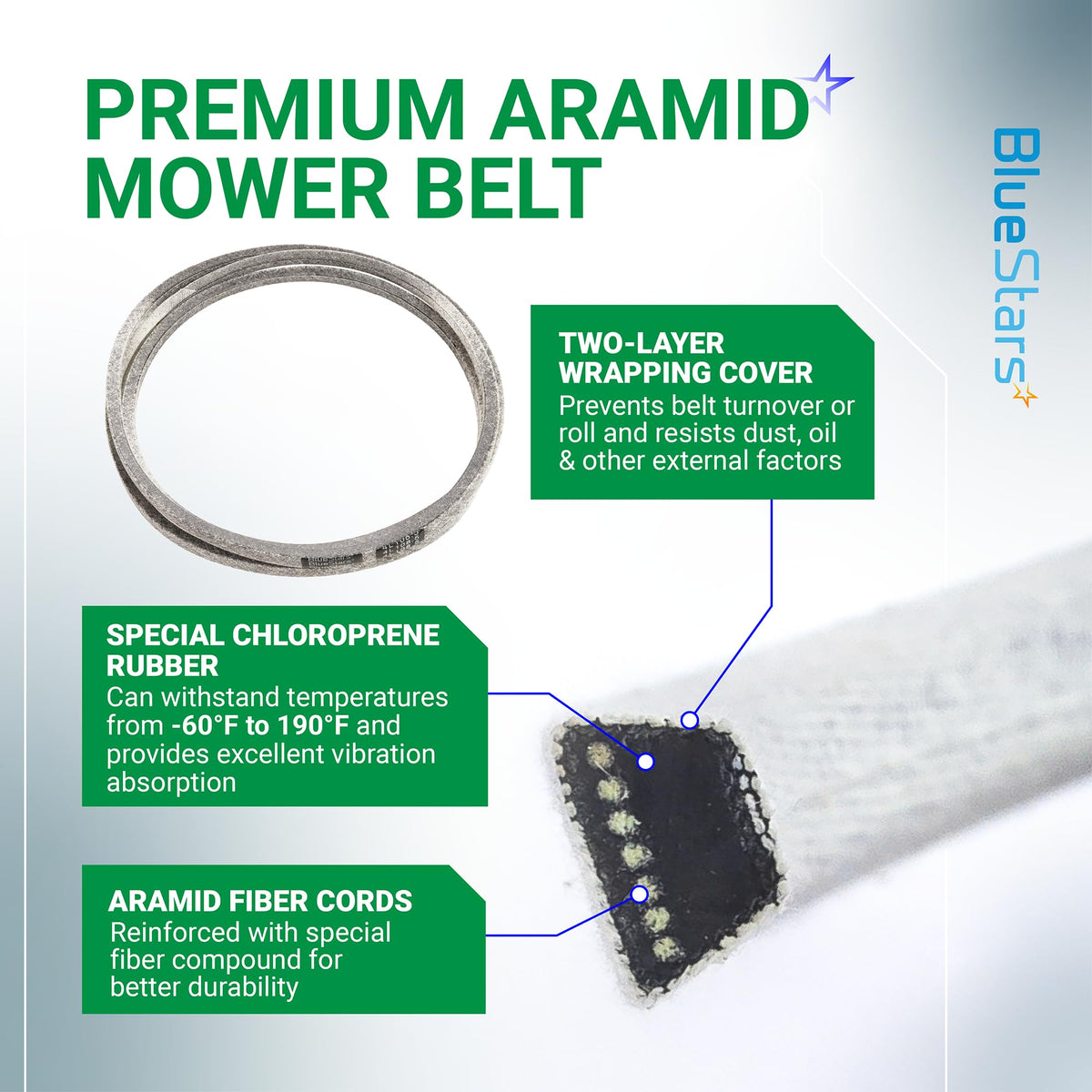

  • Material: Durable synthetic rubber compound construction for wear resistance

Replaces / Cross-Reference Part Numbers

  • 754-05022A
  • 954-05022
  • 754-05022
  • 490-501-C063
  • 490-501-F063
  • 490-501-M063
  • CMXGZAM501063
  • 75-714
  • 265-195
  • 810-CBL2344T

Compatibility & Fitment

  • Deck Size: Fits select lawn tractors and riding mowers with 46-inch cutting decks (2015 and newer)
  • Brands: Cub Cadet, Craftsman, MTD, Troy-Bilt
  • Cub Cadet Models: XT1-LT46, XT2-LX46, XT2-LX46 KW, Enduro Series, ZT1, ZT2
  • Craftsman Models: T240, T2400, T2800, T3100

When to Replace

  • Visible wear such as cracking, glazing, fraying, or splitting
  • Belt slipping, causing inconsistent blade speed or an uneven cut
  • Audible squealing or chirping from the deck area during operation
  • The belt has stretched and no longer maintains proper tension
  • Complete belt failure or breakage

Installation Tips

  • Before installation, disconnect the spark plug wire and engage the parking brake for safety.
  • Refer to your mower's operator manual for the correct belt routing diagram.
  • Ensure all pulleys are clean, free of debris, and spin freely.
  • Verify that all belt guides and keepers are in place and properly adjusted.
  • After installation, check for correct tension and alignment before starting the mower.
Product image
Product image
Product image
Product image
  • PART NUMBERS

    PART NUMBERS

    This Deck Belt replaces part numbers: #954-05022A, 754-05022A, CMXGZAM501063, 954-05022, 754-05022, 490-501-C063, 490-501-M063
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your mower is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble
  • FIX MOWER'S SYMPTOMS

    FIX MOWER'S SYMPTOMS

    Uneven Grass Cutting, Loud or Unusual Noises, Excessive Vibration, Burning Smell, Slipping or Stalling Blades
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

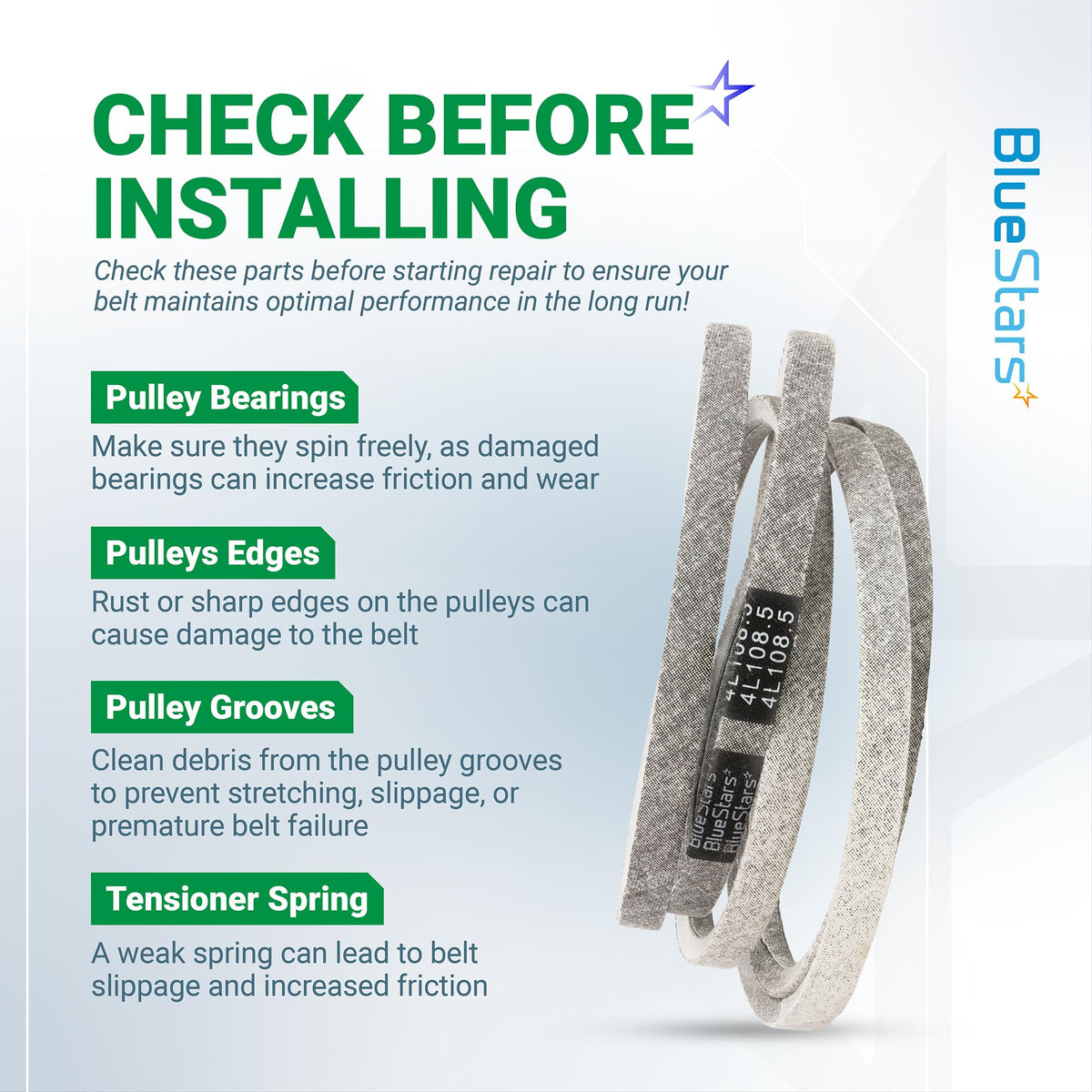

CHECK BEFORE INSTALLING

CHECK BEFORE INSTALLING

Pulley Bearings: Make sure they spin freely, as damaged bearings can increase friction and wear | Pulleys Edges: Rust or sharp edges can cause belt damage | Pulley Grooves: Clean debris from the pulley grooves | Tensioner Spring: A weak spring can lead to belt slippage and increased friction
4 SIMPLE STEPS

4 SIMPLE STEPS

1. Remove key & disconnect spark plug wire(s) to prevent start; let engine cool | 2. Raise & secure deck, remove belt covers | 3. Release tension, remove old belt (note/take photos of routing) | 4. Install new belt, rotate blades/spindle to check alignment & operation.
Brand Model Number
2015 Cub Cadet 46" Deck XT1-LT46 (13A6A1CT056, 13A6A9CT009, 13APA1CT009, 13WPA1CT210, 13WPA1CT009, 13APA1CT256, 13WPA1CT010, 13APA1CT056), XT1-LT46 KH (13APA1CT010, 13APA1CT009, 13AKA9TTA10, 13WPA1CT010, 13WPA1CT009, 13APA1CT256, 13APA1CT056, 13AQA9TTB10, 13AQA9TTA10, 13APA9TTA10, 13APA9CT210, 13APA9CT056, 13APA9CT010, 13APA1CT210), XT2-LX 46 (13WFA1CT010, 13AFA1CT010, 13AJA1CT010), XT2-LX 46 KH (13AQA1CT010, 13YQA1CT010, 13WQA1CT010, 13AQA1CT210, 13WQA1CT210), XT2-LX 46 KH FAB (13AQA4CN010, 13AQA1TNA10, 13AQA4CN210, 13APA1TNA10), XT2-LX 46 KW (13WFA1CT210), XT2-LX 46 KW FAB (13AFA1TNA10), XT2-LX 46 EFI (13AJA1CT010), XT2-LX 46 EFI FAB (13AZA1CN210, 13AZA1CN010), XT2-LX 46 FAB (13WIA4CN010, 13WIA4CN210, 13WQA4CN010, 13WQA4CN210, 13AIA4CN010), XT2-LX 46 LE FAB (13AGA1CN010, 13AFA1CN010), ZT1 and ZT2 Ultima Series
Craftsman T225 (CMXGRAM7821291 13ALA1ZT091), T240 (CMXGRAM1130044 13APA1ZT093), T2400 (CMXGRAM211302 13AQA9ZTA93, 13AQA9ZT093), T2800 (247.273910 13A8A1ZT099), T3100 (247.273330 13ATA1ZT099), T8200 (247.270490 13BQA1ZT299, 247.270491 13BQA1ZT299, 247.204420 13AQA1ZT099, 247.270421 13BQA1ZT099, 247.202420 13AQA1ZT299)
Troy Bilt Super Bronco XP 46 (13ALA9BTA66 (46I), 13ATA9BT066 (46B), 13APA9BTA66, 13APA9BT066), Super Bronco 46 Hydro (13AJA1BT066, 13AAA1BT066), TB2246 Hydro (13AAA1KT066)
Columbia CYT 4622 SE (13APA1KT897)

FAQ

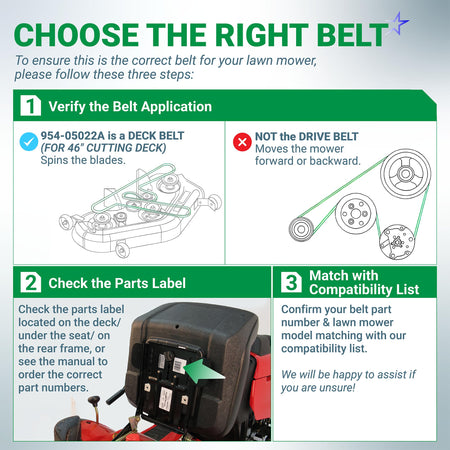

This belt fits many riding mowers and lawn tractors that use a 46-inch cutting deck in the MTD family. Compatible brands include Cub Cadet, Craftsman, Troy-Bilt, MTD, MTD Gold, Bolens, White Outdoor, Yard Machines, Yard-Man, and Huskee. Specific compatible models include the Cub Cadet XT1 LT46, XT2 LX46, XT2-LX46 KW, and the Craftsman T240, T2800, and T3100. We recommend confirming your specific model number and existing belt number, as 46-inch decks can utilize different belt routings depending on the exact tractor configuration.
This belt replaces OEM part numbers 954-05022A, 954-05022, 754-05022A, and 754-05022. It also cross-references with CMXGZAM501063 for certain Craftsman applications. Always verify the part number against your mower's parts list or the markings on your original belt.
Typical symptoms include the blades failing to engage, weak or uneven cutting, belt slippage when the PTO is activated, squealing noises from the deck, visible cracking or frayed edges, heat-induced glazing, or stretching that causes the belt to jump off the pulleys. On a 46-inch deck, a worn belt often manifests as poor blade speed when cutting through thicker grass.
For most homeowners, this is a moderate repair that typically takes 30 to 90 minutes, depending on deck access and whether you choose to remove the deck from the tractor. Essential tools include a socket or wrench set, pliers for deck pins or spring clips, and occasionally a breaker bar to release idler tension. Before routing the new belt, we recommend taking a photo of the original belt path or consulting the deck routing decal if it is still present on your mower.
Inspect the idler pulleys, tension spring, spindle pulleys, belt keepers, and mandrel bearings. A new belt can fail prematurely if an idler pulley is seized, a spindle bearing is rough, or a belt guide is bent and causing friction. Additionally, clear any packed grass from the deck and verify that all pulleys are properly aligned. If the previous belt came off repeatedly, ensure the deck hangers are level and that the keepers are positioned close enough to the belt to guide it without pinching.
Common causes include normal wear, heat buildup from slippage, seized or rough idler bearings, worn spindle bearings, debris accumulation around pulleys, and running the deck with improper tension. Belt damage can also occur if the deck is engaged at full engine speed repeatedly or if a pulley has been bent from an impact. If your previous belt shows signs of burning, glazing, or shredding, identify and resolve the root cause before installing the replacement.
