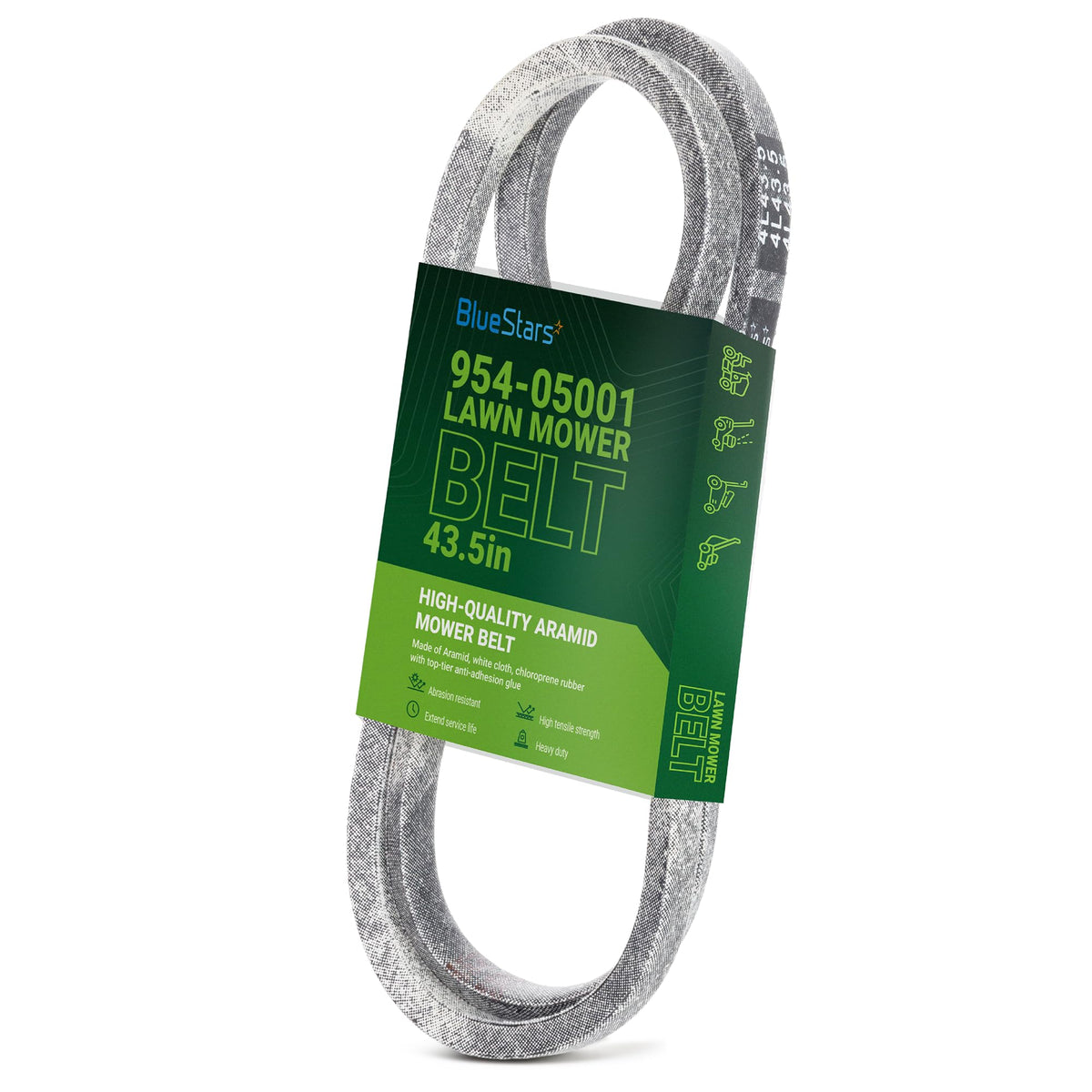

954-05001 replacement deck belt for Cub Cadet and Craftsman lawn mowers in BlueStars branded packaging.
954-05001 lawn mower deck belt specifications chart showing dimensions and 4L43.5 size markings.
Compatibility chart for 954-05001 lawn mower deck belt showing fit models for Cub Cadet, Craftsman, and Troy-Bilt.

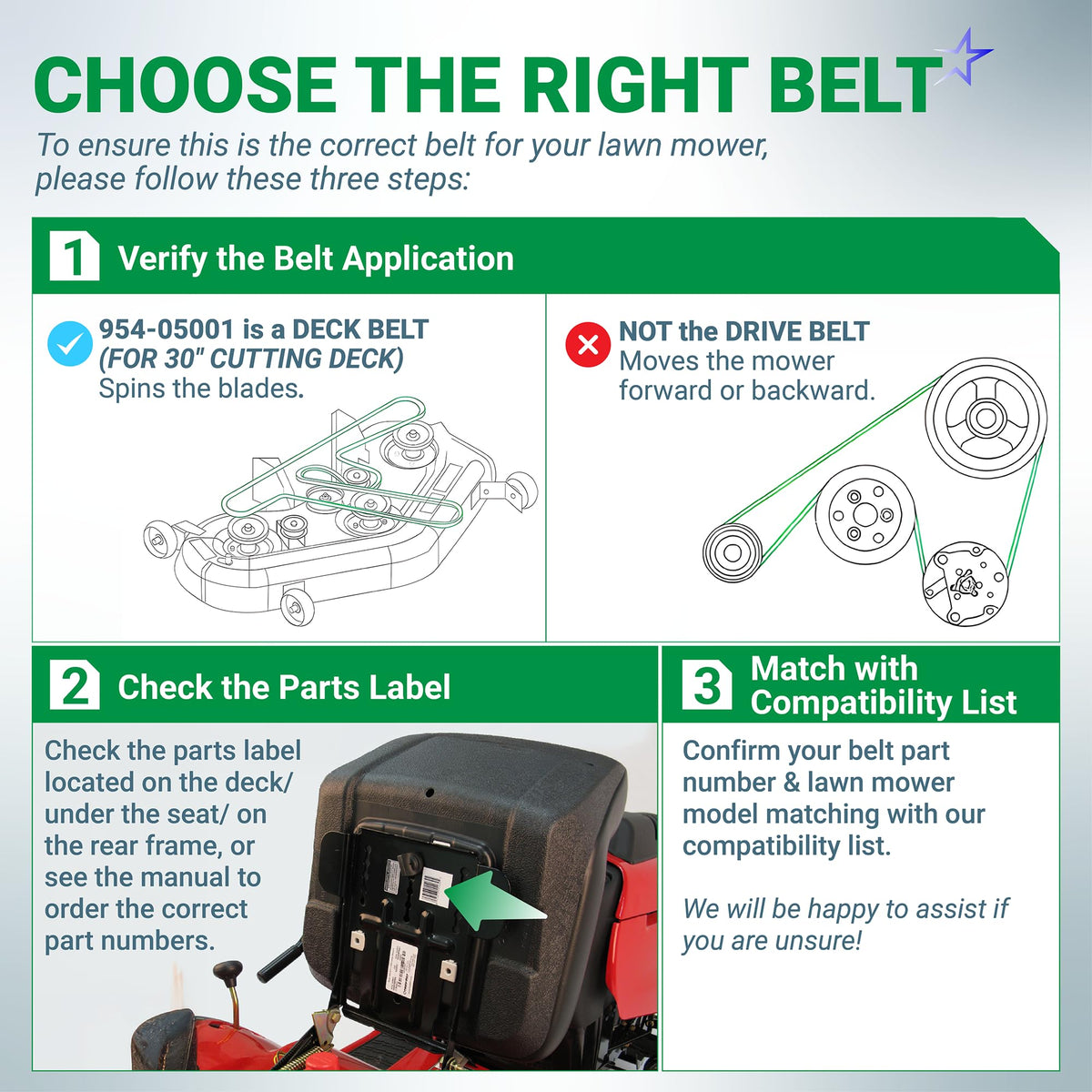

Instructional guide for identifying the correct 954-05001 deck belt for Cub Cadet and Craftsman lawn mowers.

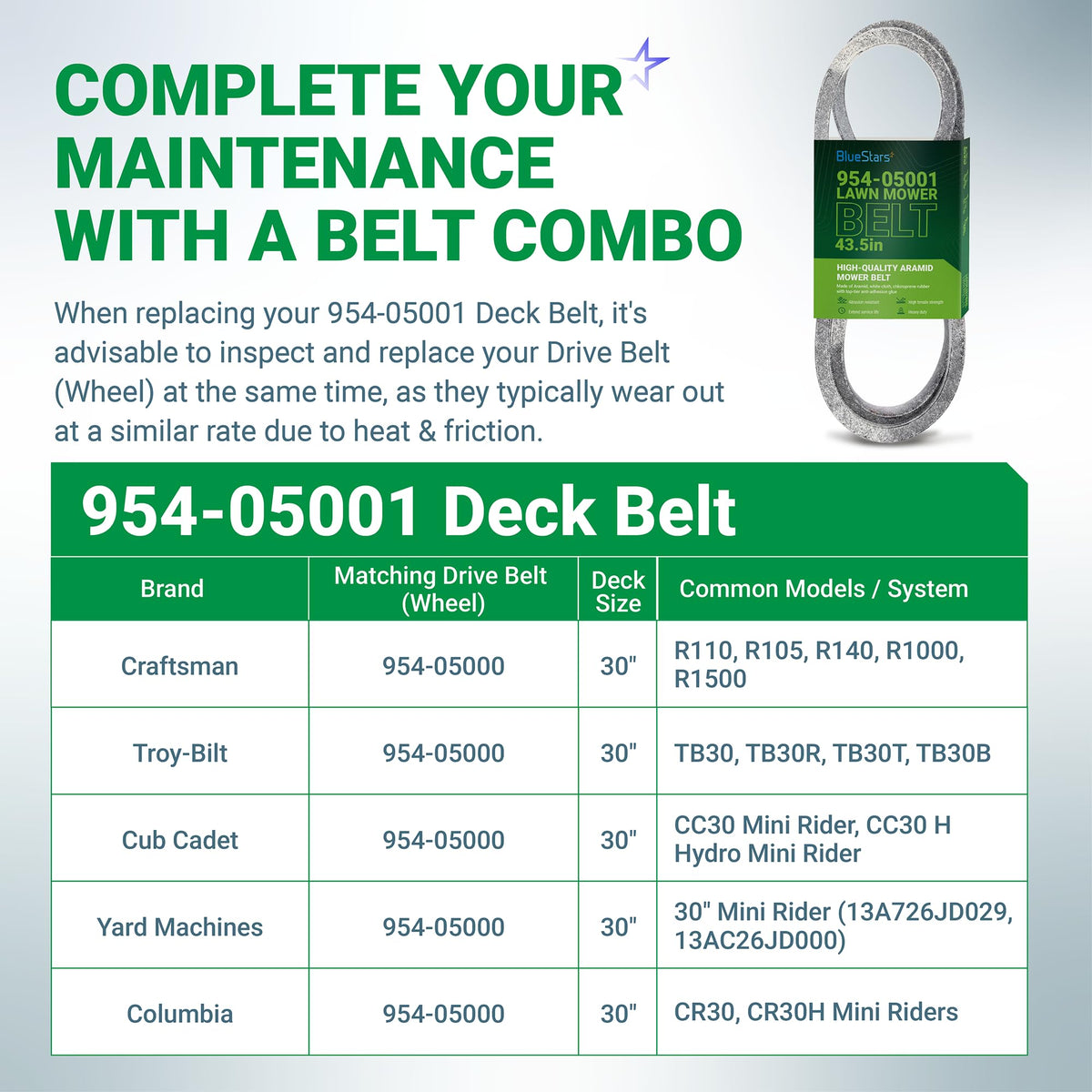

954-05001 deck belt compatibility chart for Cub Cadet and Craftsman 30-inch lawn mowers.

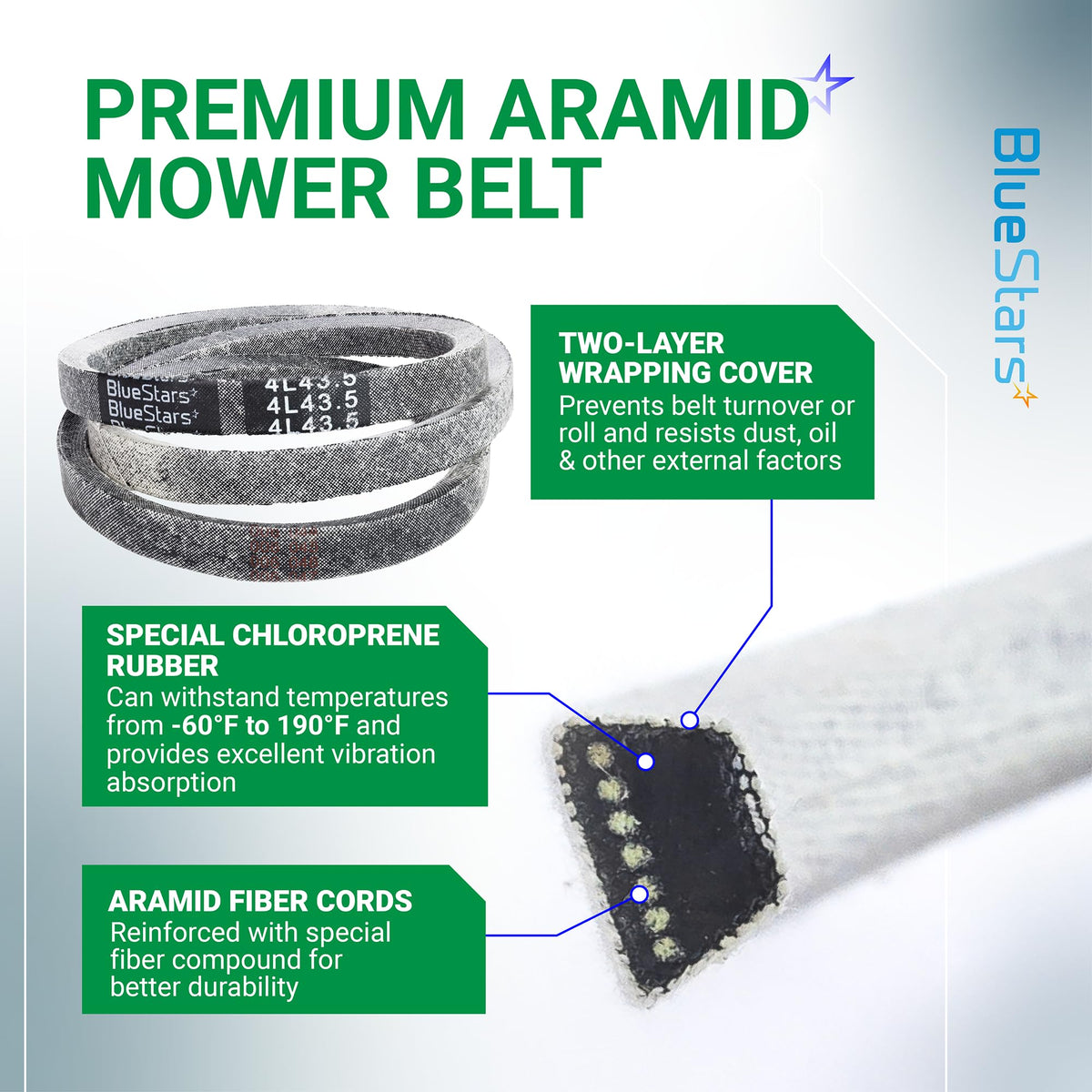

Infographic showing 954-05001 deck belt construction with aramid fiber cords and chloroprene rubber details.
Infographic showing 954-05001 lawn mower deck belt installation tips for pulleys and tensioner springs.
954-05001 replacement deck belt for Cub Cadet and Craftsman lawn mowers shown in a promotional graphic.
954-05001 replacement deck belt for Cub Cadet and Craftsman lawn mowers in BlueStars branded packaging.
954-05001 lawn mower deck belt specifications chart showing dimensions and 4L43.5 size markings.
Compatibility chart for 954-05001 lawn mower deck belt showing fit models for Cub Cadet, Craftsman, and Troy-Bilt.
Instructional guide for identifying the correct 954-05001 deck belt for Cub Cadet and Craftsman lawn mowers.
954-05001 deck belt compatibility chart for Cub Cadet and Craftsman 30-inch lawn mowers.
Infographic showing 954-05001 deck belt construction with aramid fiber cords and chloroprene rubber details.
Infographic showing 954-05001 lawn mower deck belt installation tips for pulleys and tensioner springs.
954-05001 replacement deck belt for Cub Cadet and Craftsman lawn mowers shown in a promotional graphic.
Lifetime Warranty

954-05001 Deck Belt - Fits 30" Deck Cub Cadet TB30R TB30 CC30 CR30 - Replaces CMXGZAM501065 490-501-C065 | 1/2" x 43.5"

Save 10%
0.00
$15.21
$16.89
$15.21
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

954-05001 Deck Belt (1/2" x 43.5")

Key Features

  • Type: Deck Belt
  • Application: Engages the mower blades by connecting the engine pulley to the deck pulley.

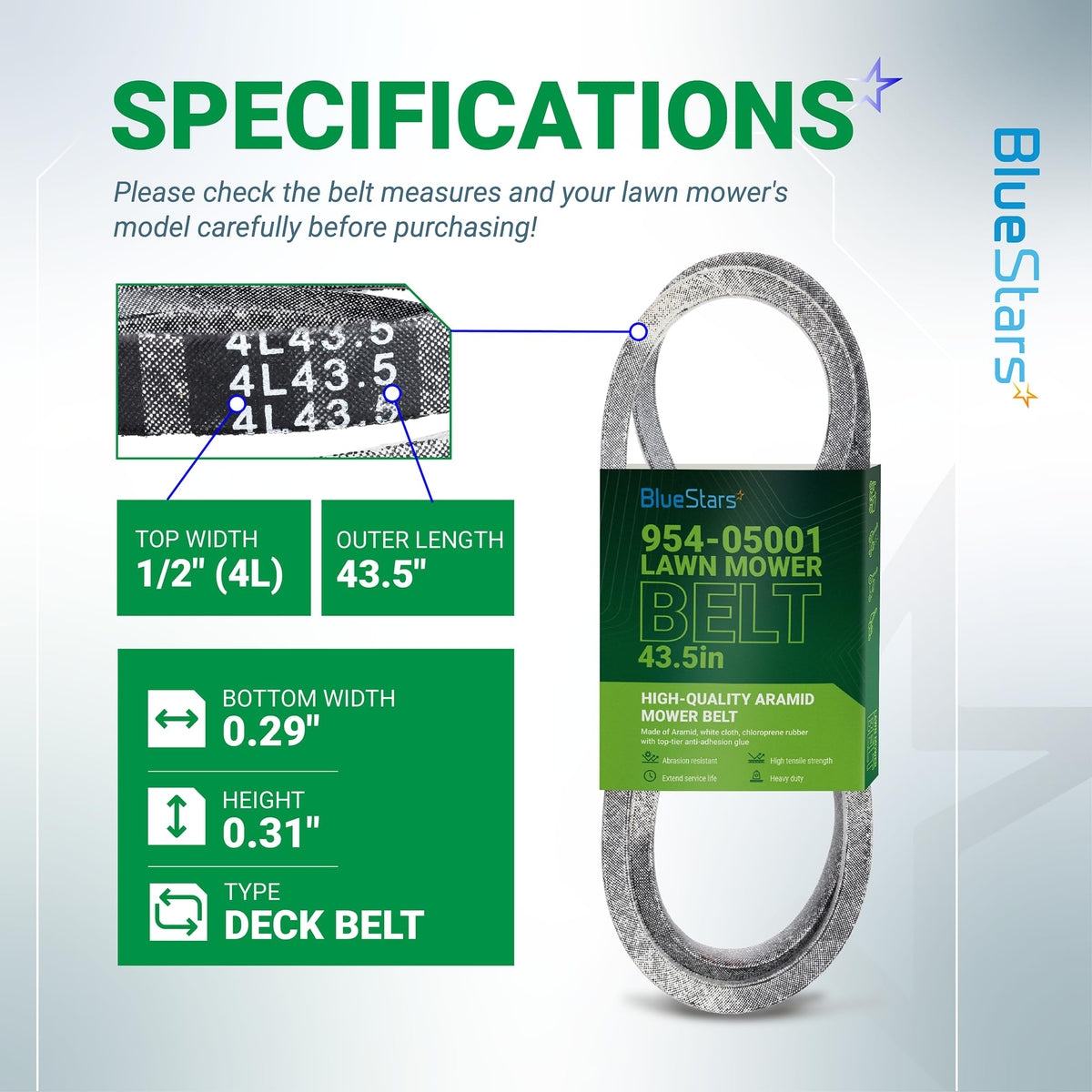

  • Dimensions: 1/2 inch width, 43.5 inch outer circumference.
  • Construction: Engineered for durability and resistance to wear, heat, and oil.

Replaces / Cross-Reference Part Numbers

  • 954-05001
  • 754-05001
  • 490-501-Y065
  • 490-501-M065
  • CMXGZAM501065
  • 266-252

Compatibility & Fitment

  • Deck Size: Designed for 30-inch cutting decks.
  • Cub Cadet Models: TB30R, TB30, CC30, CC30H, CR30
  • Craftsman Models: R110, R1000
  • Also fits select MTD and Troy-Bilt riding mowers with 30-inch decks.

When to Replace

  • Visible signs of wear such as cracking, fraying, glazing, or stretching.
  • Squealing or slipping noises during mower operation.
  • Inconsistent blade speed or failure of blades to engage.
  • Uneven or poor quality of cut.

Installation Tips

  • Before installation, disconnect the spark plug wire for safety.
  • Refer to your mower's operator manual for the specific belt routing diagram and replacement procedure.
  • Inspect pulleys for damage, debris, or excessive wear before installing the new belt.
  • Ensure the new belt is properly seated in all pulley grooves.
  • Verify correct tension after installation; the belt should not be too loose or too tight.
Product image
Product image
Product image
Product image
  • PART NUMBERS

    PART NUMBERS

    This Deck Belt replaces: Cub Cadet / MTD 954-05001, 754-05001, 490-501-C065, 490-501-M065; Troy-Bilt 954-05001; Craftsman CMXGZAM501065
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your mower is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble
  • FIX MOWER'S SYMPTOMS

    FIX MOWER'S SYMPTOMS

    Uneven Grass Cutting, Loud or Unusual Noises, Excessive Vibration, Burning Smell, Slipping or Stalling Blades
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

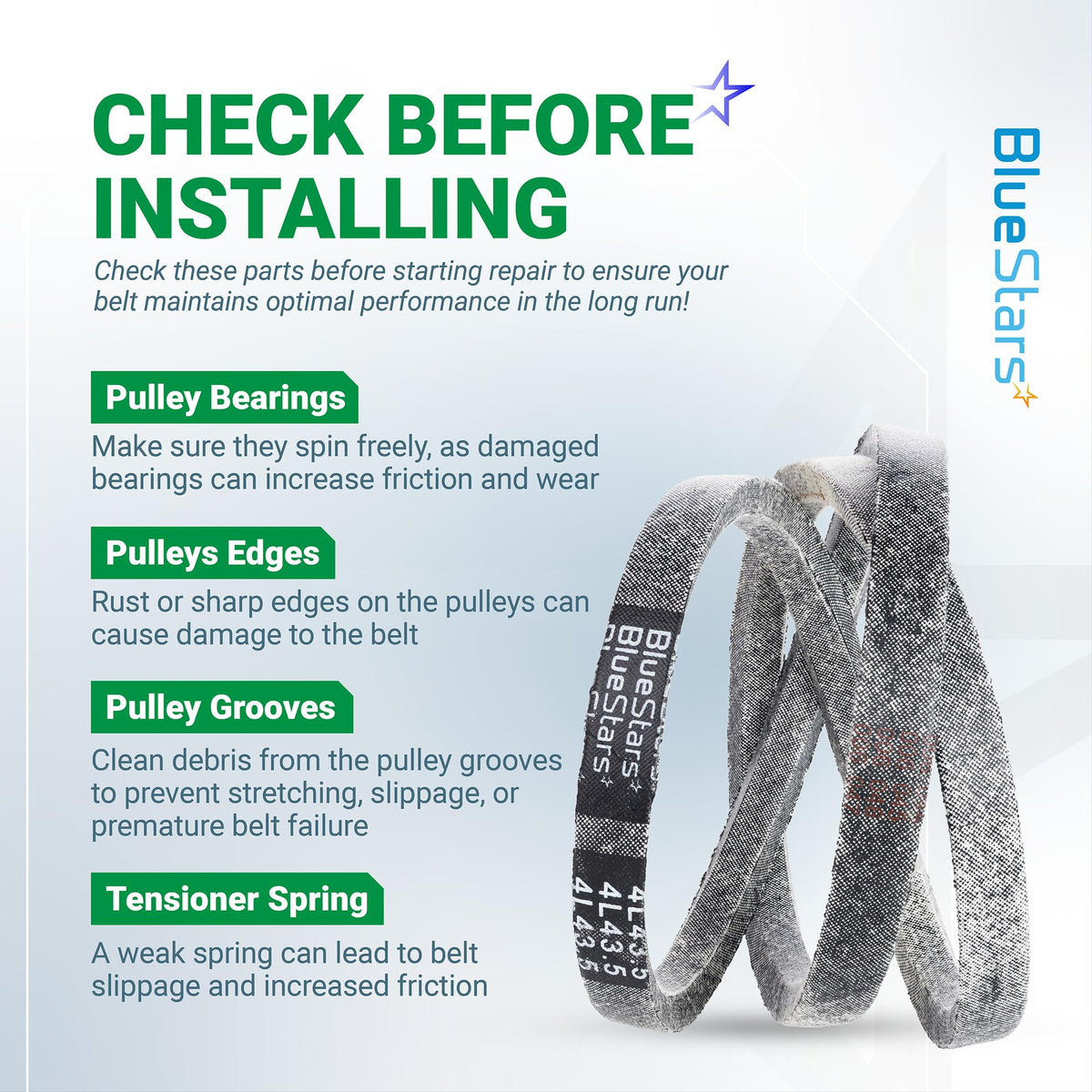

CHECK BEFORE INSTALLING

CHECK BEFORE INSTALLING

Pulley Bearings: Make sure they spin freely, as damaged bearings can increase friction and wear | Pulleys Edges: Rust or sharp edges can cause belt damage | Pulley Grooves: Clean debris from the pulley grooves | Tensioner Spring: A weak spring can lead to belt slippage and increased friction
4 SIMPLE STEPS

4 SIMPLE STEPS

1. Remove key & disconnect spark plug wire(s) to prevent start; let engine cool | 2. Raise & secure deck, remove belt covers | 3. Release tension, remove old belt (note/take photos of routing) | 4. Install new belt, rotate blades/spindle to check alignment & operation.

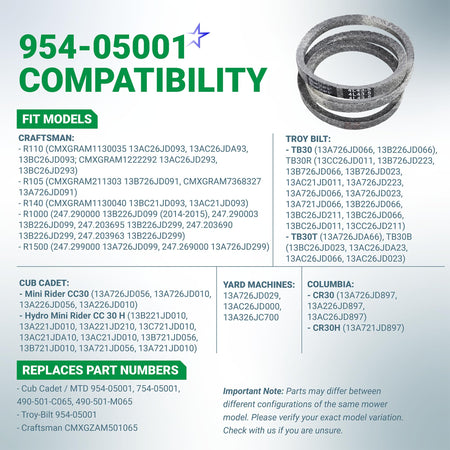

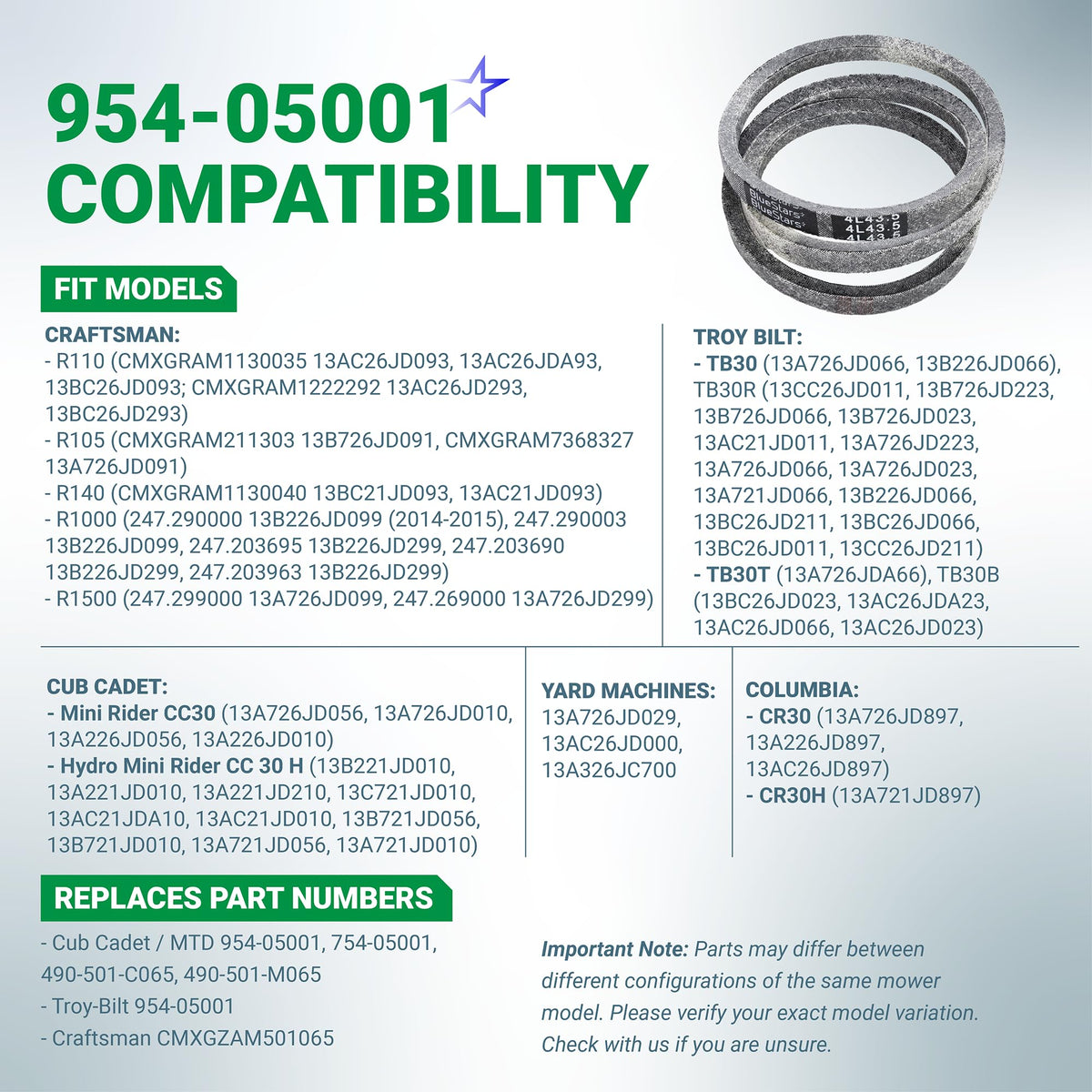

Brand Model Number
NOTE Please use "Ctrl + F" on desktop or the "Find in Page" function (via Rufus) on mobile to quickly check your compatible model. (This is not an exhaustive list. You can send us your appliance model and we will help you!)
Troy-Bilt TB30R (13CC26JD011, 13B726JD223, 13B726JD066, 13B726JD023, 13AC21JD011, 13A726JD223, 13A726JD066, 13A726JD023, 13A721JD066, 13B226JD066, 13BC26JD211, 13BC26JD066, 13BC26JD011, 13CC26JD211), TB30T (13A726JDA66), TB30 (13A726JD066, 13B226JD066), TB30B (13BC26JD023, 13AC26JDA23, 13AC26JD066, 13AC26JD023)
Craftsman (R Series & Block 1) R110 (CMXGRAM1130035 13AC26JD093, 13AC26JDA93, 13BC26JD093; CMXGRAM1222292 13AC26JD293, 13BC26JD293), R105 (CMXGRAM211303 13B726JD091, CMXGRAM7368327 13A726JD091), R140 (CMXGRAM1130040 13BC21JD093, 13AC21JD093)
Craftsman (R1000 & R1500 Series) R1000 (247.290000 13B226JD099 (2014-2015), 247.290003 13B226JD099, 247.203695 13B226JD299, 247.203690 13B226JD299, 247.203963 13B226JD299), R1500 (247.299000 13A726JD099, 247.269000 13A726JD299)
Cub Cadet (Mini Rider Series) Mini Rider CC30 (13A726JD056, 13A726JD010, 13A226JD056, 13A226JD010), Hydro Mini Rider CC 30 H (13B221JD010, 13A221JD010, 13A221JD210, 13C721JD010, 13AC21JDA10, 13AC21JD010, 13B721JD056, 13B721JD010, 13A721JD056, 13A721JD010)
Yard Machines 13A726JD029, 13AC26JD000, 13326JC700
Murray 13CC26JD058, 13DC26JD058, 13BC26JD058, 13B326JC758, 13AC26JD058, Mini-Rider 13A326JC058
Columbia CR30 (13A726JD897, 13A226JD897, 13AC26JD897), CR30H (13A721JD897)

FAQ

This belt is used on certain rear-engine riding mowers with 24-inch and 30-inch decks, including Cub Cadet CC30 and CC30 H, Troy-Bilt TB30 and TB30 R, and Craftsman R110, R140, R105, RER1000, R1000, and R1500. The product title also references CR30. Because fit can vary by exact model and serial range, the safest match is to confirm your mower’s original belt number is 954-05001, 754-05001, CMXGZAM501065, 490-501-C065, or 490-501-M065.
Known cross-reference numbers for this deck belt include 954-05001, 754-05001, CMXGZAM501065, 490-501-C065, and 490-501-M065.
Typical symptoms include the blades not engaging, weak or inconsistent cutting, a belt that squeals when the deck is turned on, visible cracking or fraying, glazing or a shiny burned surface, or a belt that has stretched enough to slip off the pulleys. If the mower runs normally but the deck does not cut properly, the deck belt is one of the first items to inspect.
On most CC30, TB30, and similar rear-engine riders, deck belt replacement is a moderate DIY job. Plan on about 30 to 60 minutes if the pulleys and guards come apart normally. Common tools include a socket set or nut driver, basic hand wrenches, work gloves, and possibly pliers for keeper rods or spring hardware. Taking a photo of the old belt routing before removal helps prevent installation errors.
The most common causes are normal wear, heat buildup from slipping, seized or rough pulley bearings, bent belt keepers, debris packed around the spindle area, and operating with the deck overloaded in heavy or wet grass. A new belt can wear out quickly if one pulley is misaligned or not spinning freely, so it is smart to check the idler and spindle pulleys before installing the replacement.
Inspect all deck pulleys for wobble, rough bearings, or sharp edges. Make sure belt guards and keeper rods are not bent into the belt path. Clean built-up grass from the deck housing, verify the tensioner moves freely, and check that the old belt did not fail because of a seized spindle or idler pulley. If the new belt is installed on damaged pulleys, it may slip, shred, or jump off.
