[Lifetime Warranty] 74004053 Range Top Burner Igniter - Compatible with Whirlpool & Maytag Ranges/Ovens/Stoves - Replaces 704111 AP4093621 PS2082000 7432P100-60 | Pack of 4
Save 13%
0.00
Regular price
$21.98
Regular price
$25.28
Sale price
$21.98
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

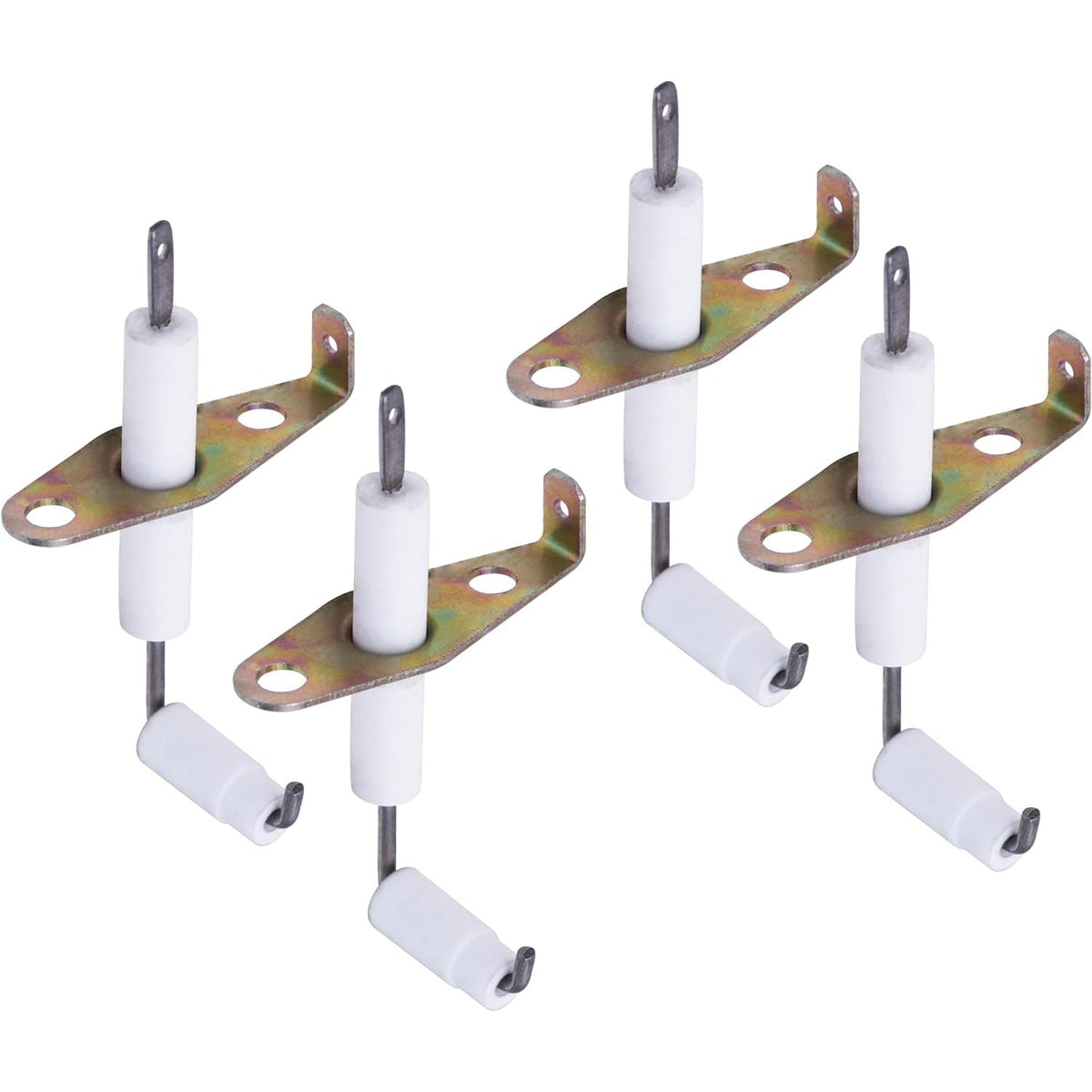

74004053 Range Top Burner Igniter
Key Features
- Generates the spark to ignite gas on a range cooktop.
- Also known as a stove top spark electrode.
- Constructed with a metal conductor and a ceramic insulator base.
- Direct replacement for specified original equipment parts.
Replaces / Cross-Reference Part Numbers
- AP4093621
- PS2082000
- 704111
- 7432P100-60
- AH2082000
- EA2082000
- EAP2082000
- 74004053VP
- AWP39932
- 74004053-4PK
Compatibility & Fitment
- Designed for use with select range, oven, and stove models from brands including Whirlpool and Maytag.
- Confirm fitment with your specific model number before ordering.
- Example compatible models include: 1003SAA, 31003SAW, 8351VD, 8351VQ.

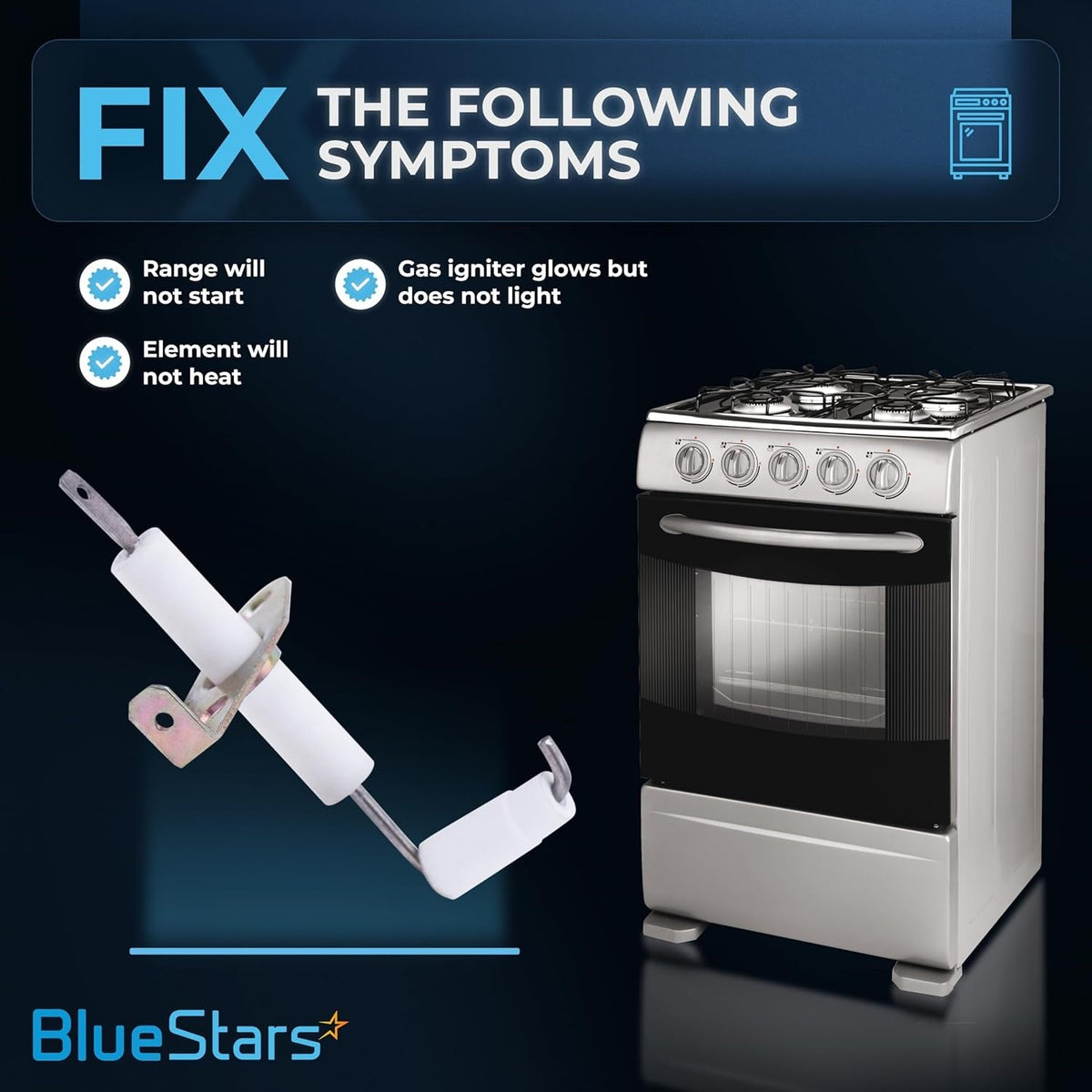

When to Replace
- The burner fails to light but gas can be smelled.
- No clicking sound or spark is visible when turning on the burner.
- The igniter sparks continuously even after the burner is lit.
- The ceramic insulator is cracked or the metal electrode is broken.
Installation Tips
- Disconnect the range from its power source and shut off the gas supply before beginning installation.
- Handle the ceramic insulator with care to avoid cracking it.
- Ensure the new igniter is clean and dry before installation.
- Position the electrode tip correctly in relation to the burner head for a consistent spark.
| Brand | Model Number |
|---|---|
| Replaces | 704111, 74004053VP, 7432P100-60, AH2082000, AP4093621, EA2082000, PS2082000 |
| Admiral | AGR4400ADW, AGR4412ADB, AGR4412ADQ, AGR4412ADS, AGR4412ADW |
| Amana | AGR5712ADB, AGR5712ADQ, AGR5712ADS, AGR5712ADW, AGR5712ADZ, AGR5712BDB, AGR5712BDQ, AGR5712BDW, AGR5712BDZ, ALR1450AJW, ALY1680ADB, ALY1680ADQ, ALY1680ADS, ALY1680ADW, ALY1680BDB, ALY1680BDS, ALY2280ADB, ALY2280ADQ, ALY2280ADS, ALY2280ADW, ALY2280BDB, ALY2280BDS, ALY2289ADB, ALY2289BDB, ALZ8580ADB, ALZ8580ADQ, ALZ8580ADS, ALZ8580ADW, ALZ8589ADB |
| Crosley | C31103SAT, C31113WAAP, C31113WAB, C31113WAT, C31113WATP, C31113WAVP, C31113XAT, C31315VBM, CG34300ADA, CG34300ADT, CG34300ADW, CG34700ADD, CG34700ADQ, CG34700ADV |
| Jenn-Air | CCG2421W, CCG2521A, CCG2521B, CCG2521W, JDS9860AAP, JDS9860BCP, JGR8750BDB, JGR8850BDB, JGR8850BDQ |
| Magic Chef | 31003SAA, 31003SAW, 31203KAW, 31203PAA, 31203PAQ, 31203PAV, 31203SAA, 31203SAW, 31203WAA, 31203WAW, 31213SAA, 31213SAW, 31213WAA, 31213WAM, 31213WAV, 31213WAW, 31213XAA, 31213XAW, 61S04PAA, 61S04PAW, 61S14WAA, 61S14WAW, 61S14XAA, 61S14XAB, 61S14XAW, 8241RA, 8241RB, 8241RS, 8241RT, 8241RV, 8241RW, 8261RB, 8341VB, 8341VD, 8341VV, 8351VB, 8351VD, 8351VQ, 8351VS, 8351VV, 8361RV, 8361RW, A31703SAAL, A31703SAWL, A31713XAAL, A31713XATL, A31713XAWL, A8241RT-L |
| Maytag | MGR4452ADQ, MGR5720ADH, MGS5870ADA, MGS5870ADW, PGR4405CDH, PGR5710BDW |
| Whirlpool | CG31400ADW, CG31600ADB, CG31600ADQ, CG31600ADV, CGR3725ADS, CGR3725ADW, CGR3742ADC, CGR3742ADW, CGR3742BDW, CGR3742CDC, CGR3760ADA, CGR3760BDW, CGR3765ADC, CGS1230ADT, CGS1740ADH, CGS1750ADL, CGS3760ADB, CGS3760ADQ, CGS3760ADW, CHG9800BAE, SCG20200B |
Igniter Type
Spark Electrode (DSI) — Surface Burner
Material
Metal Conductor / Ceramic Insulator
