[Lifetime Warranty] 5 PCS 12 Positions Terminal Strip Blocks 600V 15A with Cover and 10 PCS 400V 15A 12 Positions Pre-Insulated Terminals Barrier Strip
Save 13%
0.00
Regular price
$20.40
Regular price
$23.46
Sale price
$20.40
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number
12-Position Terminal Block and Barrier Strip Kit (15A)
Key Features
- Package Contents: 5 dual-row terminal blocks with covers and 10 pre-insulated barrier strips.
- Terminal Block Specifications: 12-position, dual-row screw terminals rated for 600V and 15A.
- Barrier Strip Specifications: 12-position, fork-type, pre-insulated terminals rated for 400V and 15A.
- Protective Cover: Includes a removable clear plastic cover for the terminal blocks to insulate connections and prevent accidental contact.
- Construction: Flame-retardant plastic base with nickel-plated brass terminals for conductivity.
Replaces / Cross-Reference Part Numbers
- This is a universal component set suitable for new installations or replacing similar-specification terminal blocks and barrier strips.
Compatibility & Fitment
- Designed for general-purpose electrical wiring applications up to 600V and 15A.
- Suitable for use in automotive, marine, industrial controls, power supplies, and household wiring projects.
- Accommodates a range of solid or stranded wire sizes appropriate for a 15A rating.
When to Replace
- During new electrical installations or circuit modifications.
- When existing terminal blocks show signs of physical damage such as cracks, melting, or charring.
- If terminal screws are stripped and can no longer secure wires effectively.
- If there is evidence of corrosion or oxidation on the terminals, causing poor electrical connections.
Installation Tips
- Always disconnect the power source before beginning installation.
- Mount the terminal block securely to a flat surface using the integrated mounting holes.
- Strip wires to the appropriate length to ensure full contact with the terminal without exposing excess bare wire.
- Tighten terminal screws firmly to create a secure mechanical and electrical connection. Do not overtighten.
- Install the clear protective cover after all wiring is completed and verified.
-

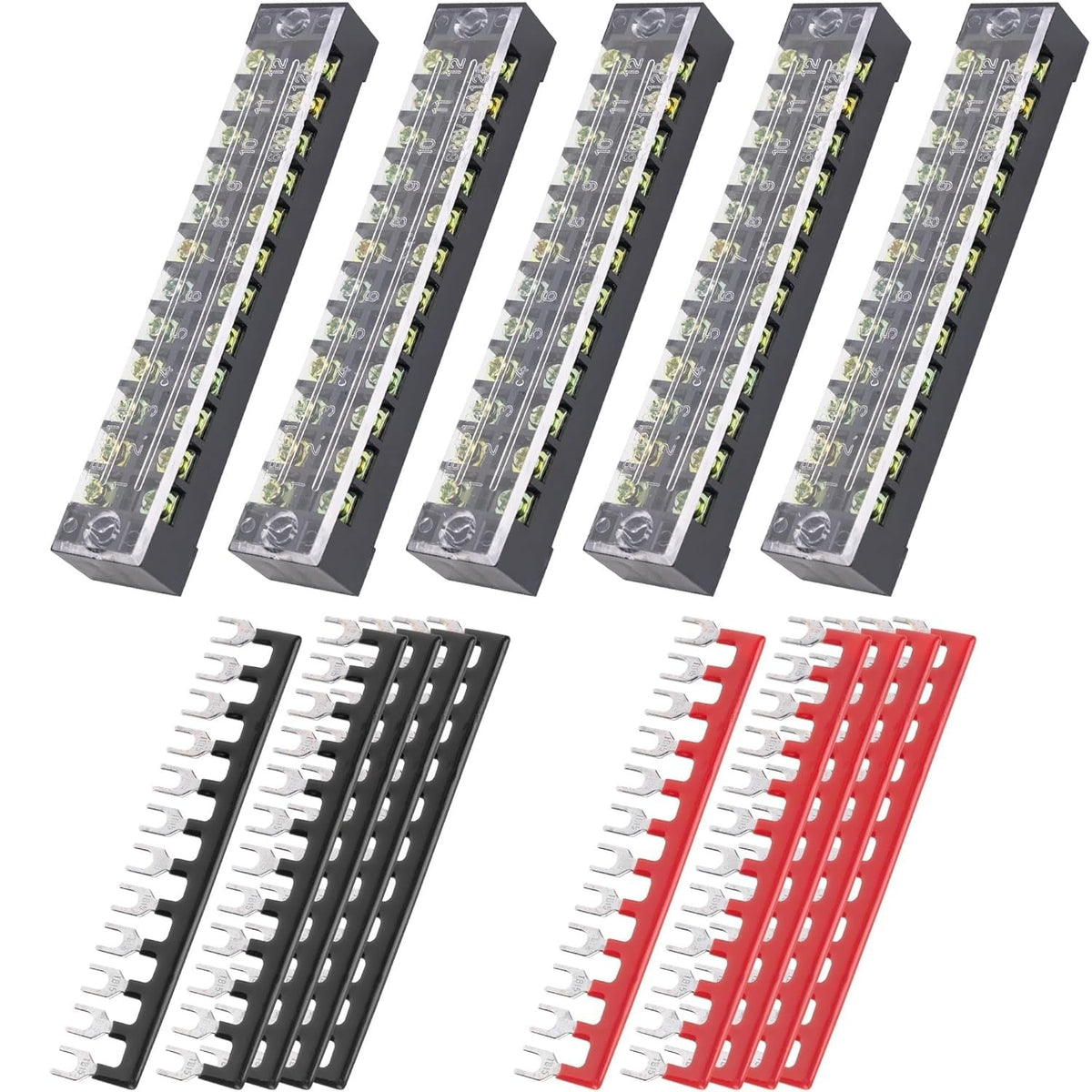

COMPLETE SET
Our set included 5 packs of 12 Positions Terminal Strip Blocks and 10 packs of 12 Positions pre-insulated Terminals Barrier Strip. -

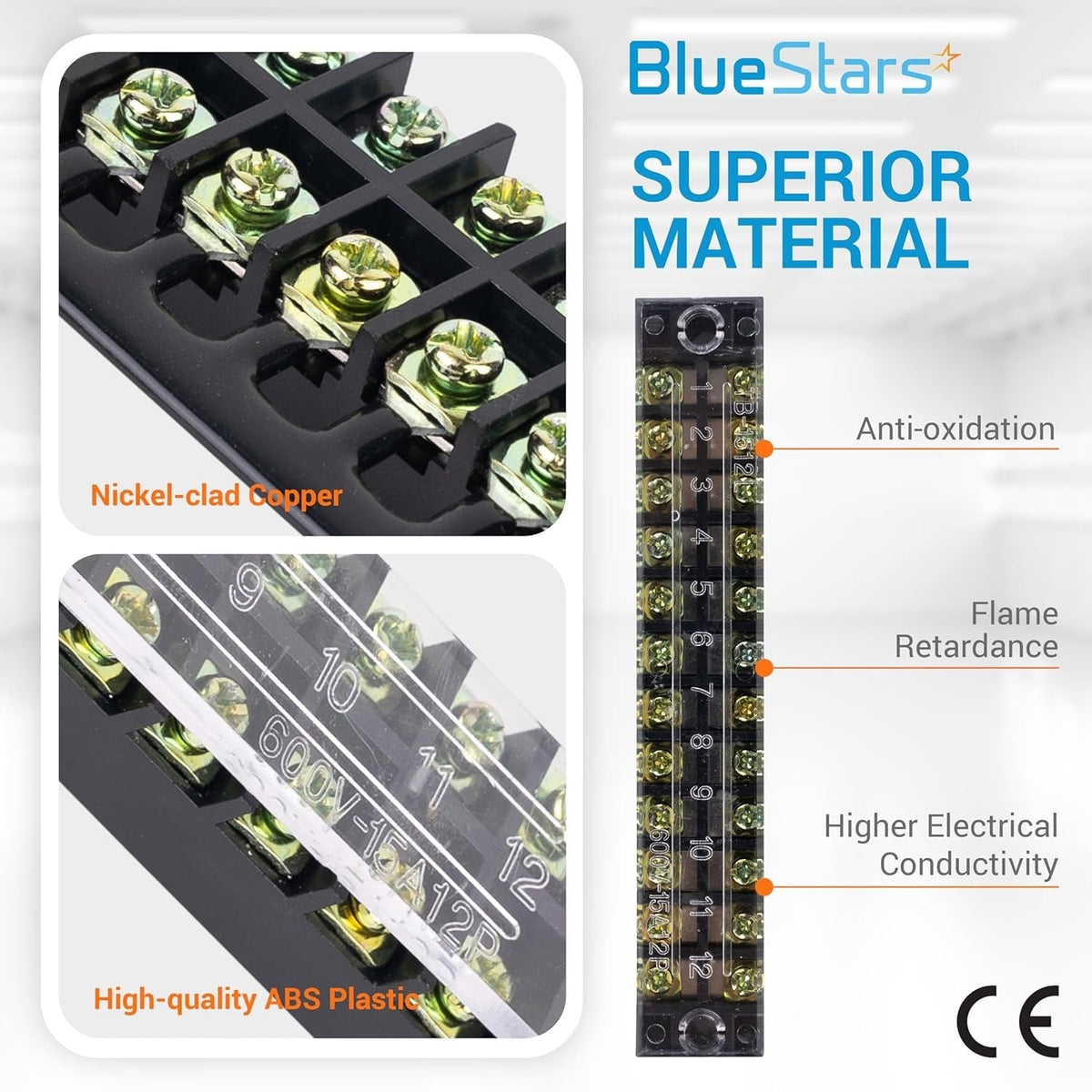

PREMIUM MATERIAL
The terminal blocks are crafted from ABS Plastic and Nickel-clad copper, enhancing durability. -
SAVING SOLUTION
Effortlessly organize your electrical system with our Terminal Strip Blocks - BlueStars brings DIY solutions to help you deal with any trouble -

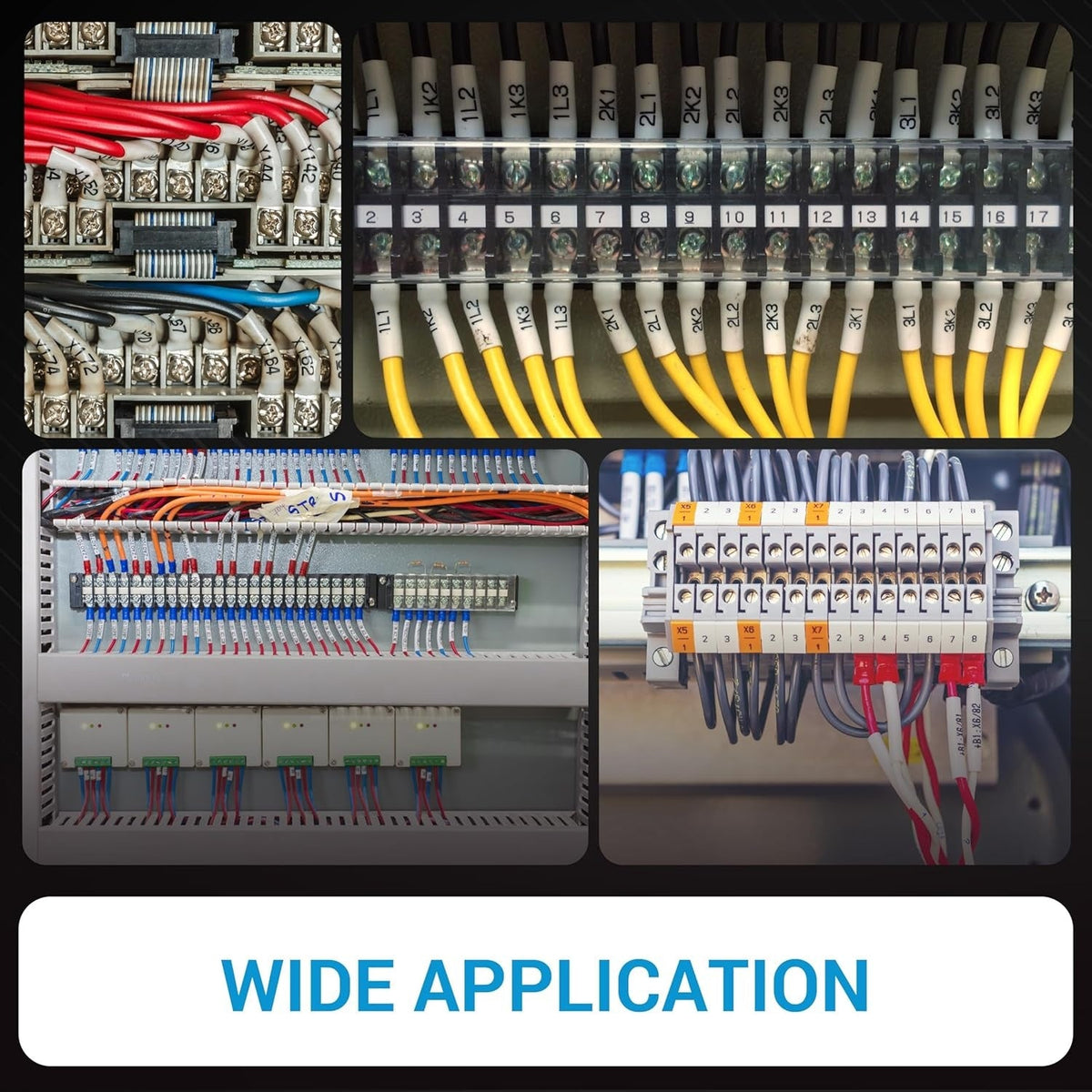

WIDE APLLICATION
Our product is used in power supplies, cables, optical fibers, communications and more.

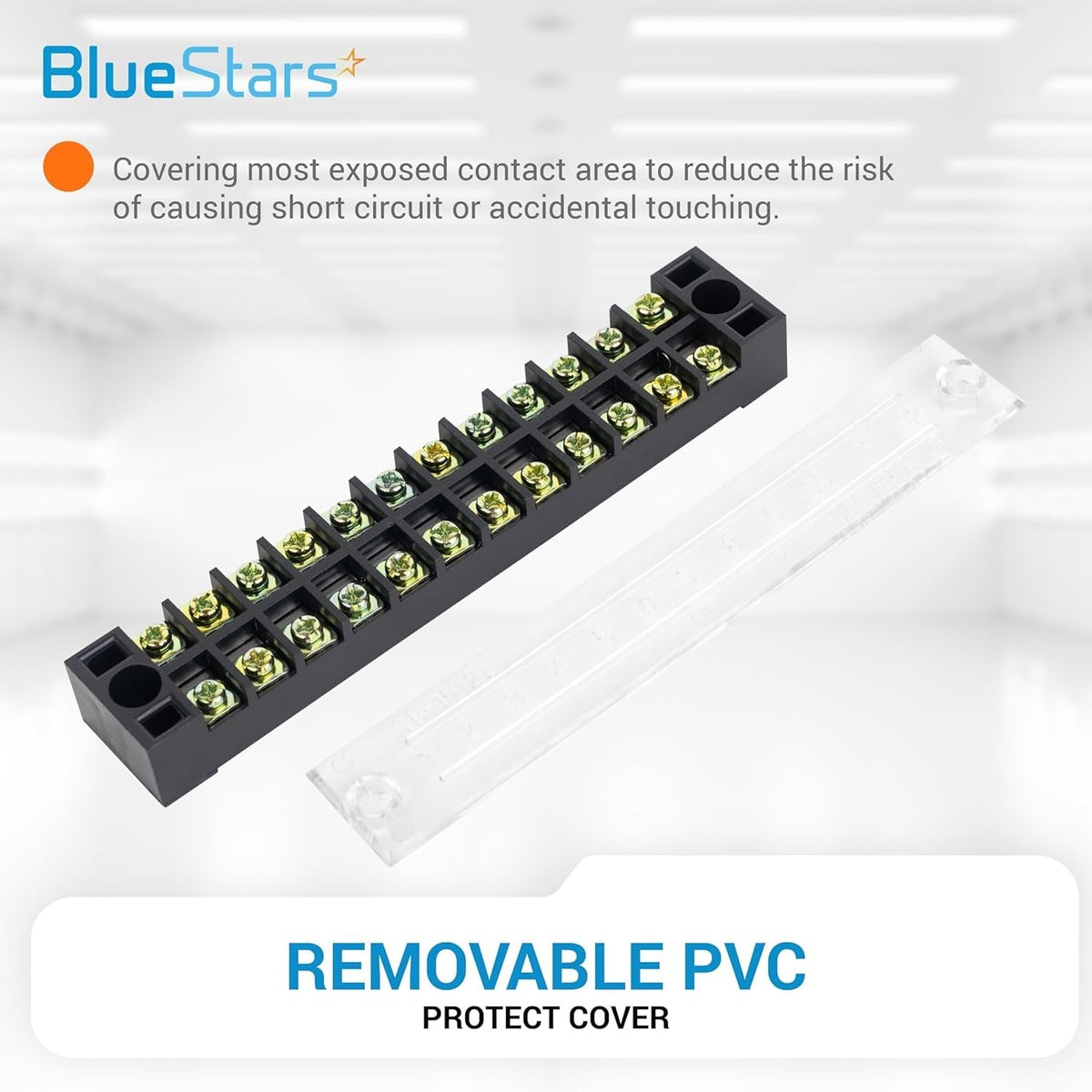

PROTECTIVE COVER
Designed with a user-friendly protect cover, reducing the risk of causing short circuit or accidental touching.

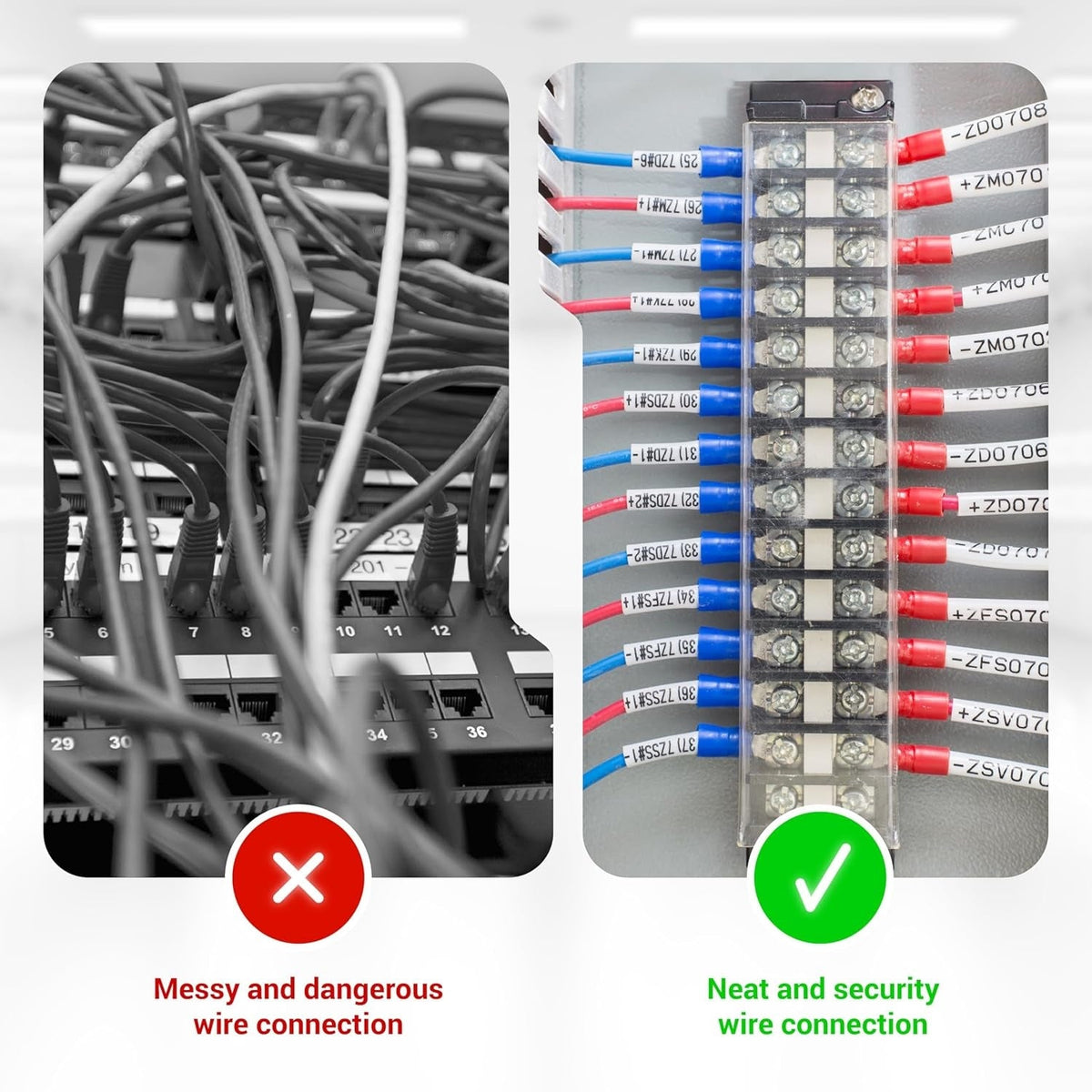

TIDY UP YOUR ELECTRICAL SYSTEM
No more messy electrical wires
EMPOWER CONNECTIONS, ENJOY THE MOMENT
600V 15A Terminal Strip Block (with Cover)
Color
Black (body) / Transparent (cover)
Material
Nickel-Plated Copper (conductor) / ABS Plastic (shell) / Zinc-Plated Iron (screw)
Rated Voltage
600V
Rated Current
15A
Positions
12 (Dual Row)
Cover
Removable transparent plastic snap-on cover
Wire Gauge
22–15 AWG

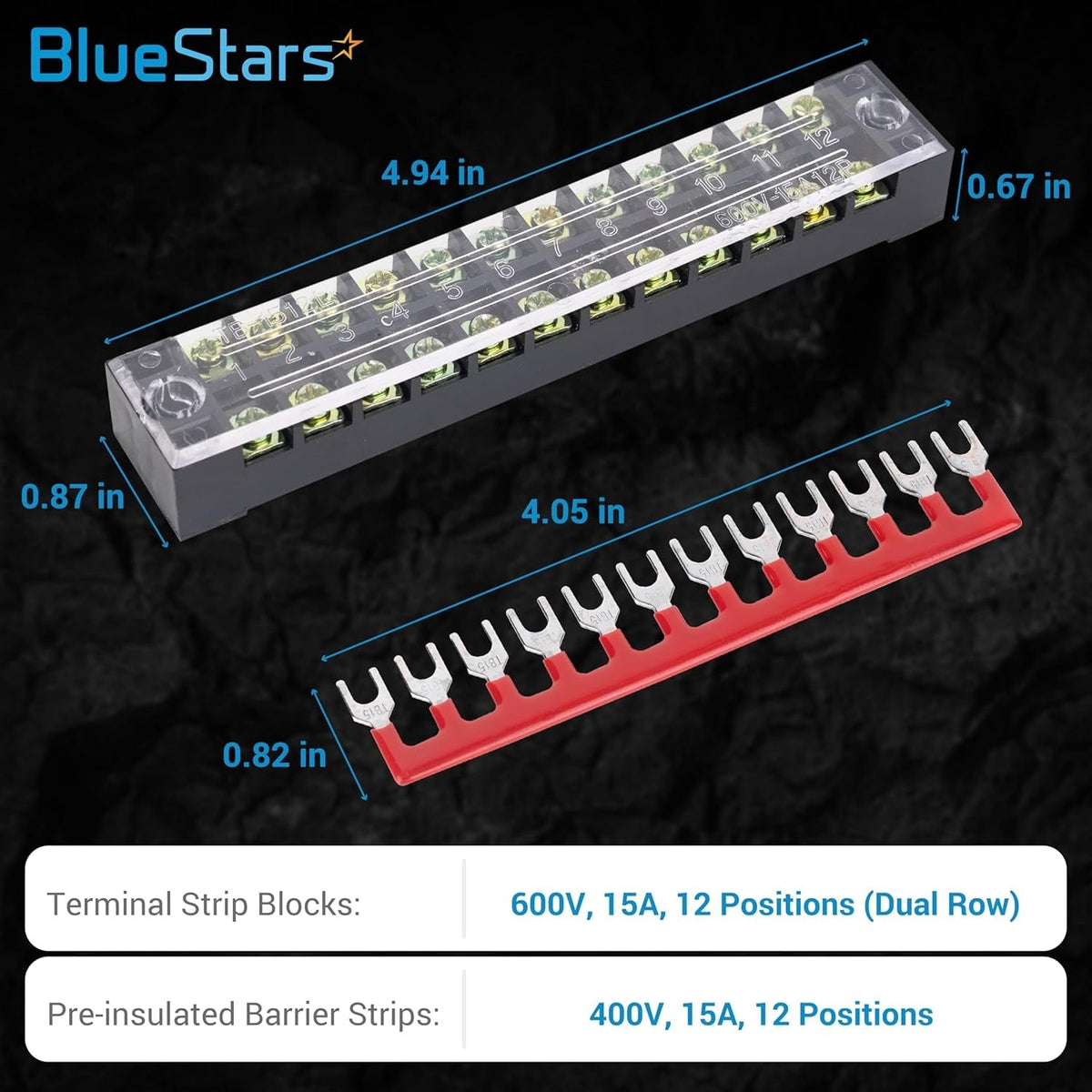

Dimensions (L x W x H)
~125 x 22 x 17mm (~4.9 x 0.87 x 0.67 inches)
400V 15A Pre-Insulated Barrier Strip
Color
Black + Red
Material
Copper / PVC
Rated Voltage
400V
Rated Current
15A
Positions
12
Type
Pre-Insulated Fork (Furcate) — cuttable to any length
