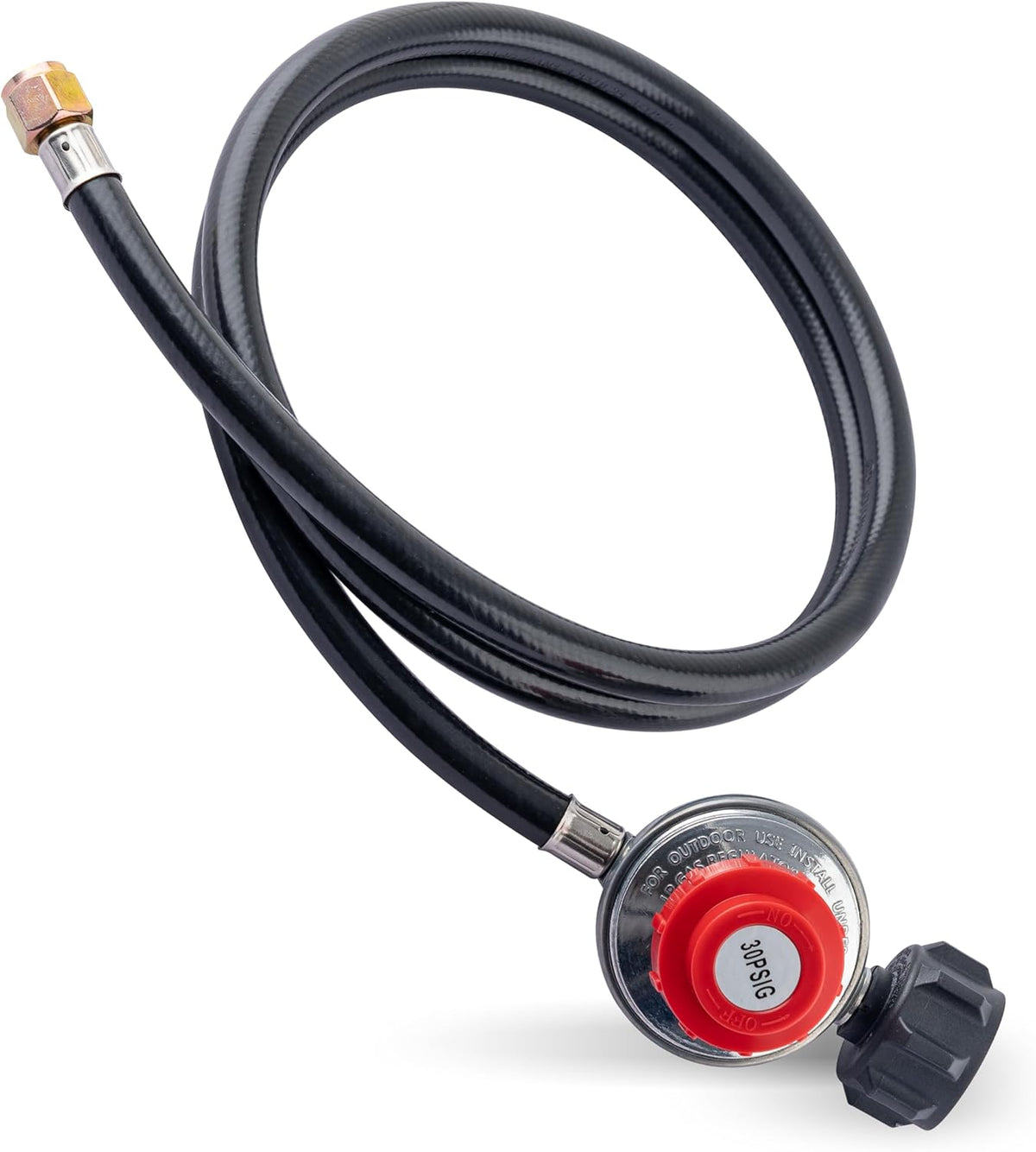

4FT 0-30 PSI Adjustable Propane Regulator with QCC1/Type1 x 3/8" Flare Hose
Key Features
- Hose Length: 4 feet (48 inches)
- Adjustable Output Pressure: 0-30 PSI
- Inlet Connection: QCC1 / Type 1 for standard propane tanks
- Outlet Connection: 3/8-inch female flare
- Provides a secure, high-pressure connection between tank and appliance
- Includes a 3/8-inch flare male NPT x 1/8-inch male NPT brass orifice connector
- Includes a roll of gas line sealant tape for NPT threads
Replaces / Cross-Reference Part Numbers
- Replaces existing 0-30 PSI adjustable regulator assemblies with a QCC1/Type1 inlet and a 3/8-inch female flare outlet.
- Suitable for upgrading fixed-pressure regulators on high-output appliances or for custom builds.
Compatibility & Fitment
- Propane Tank Connection: Fits standard propane tanks from 20 to 100 lbs with a QCC1 / Type 1 valve.
- Appliance Connection: Connects to any appliance with a 3/8-inch male flare inlet.
- Common Applications:
- High-pressure gas grills
- Turkey fryers
- Propane smokers
- High-output burners and cookers
- Camp stoves
- Portable heaters

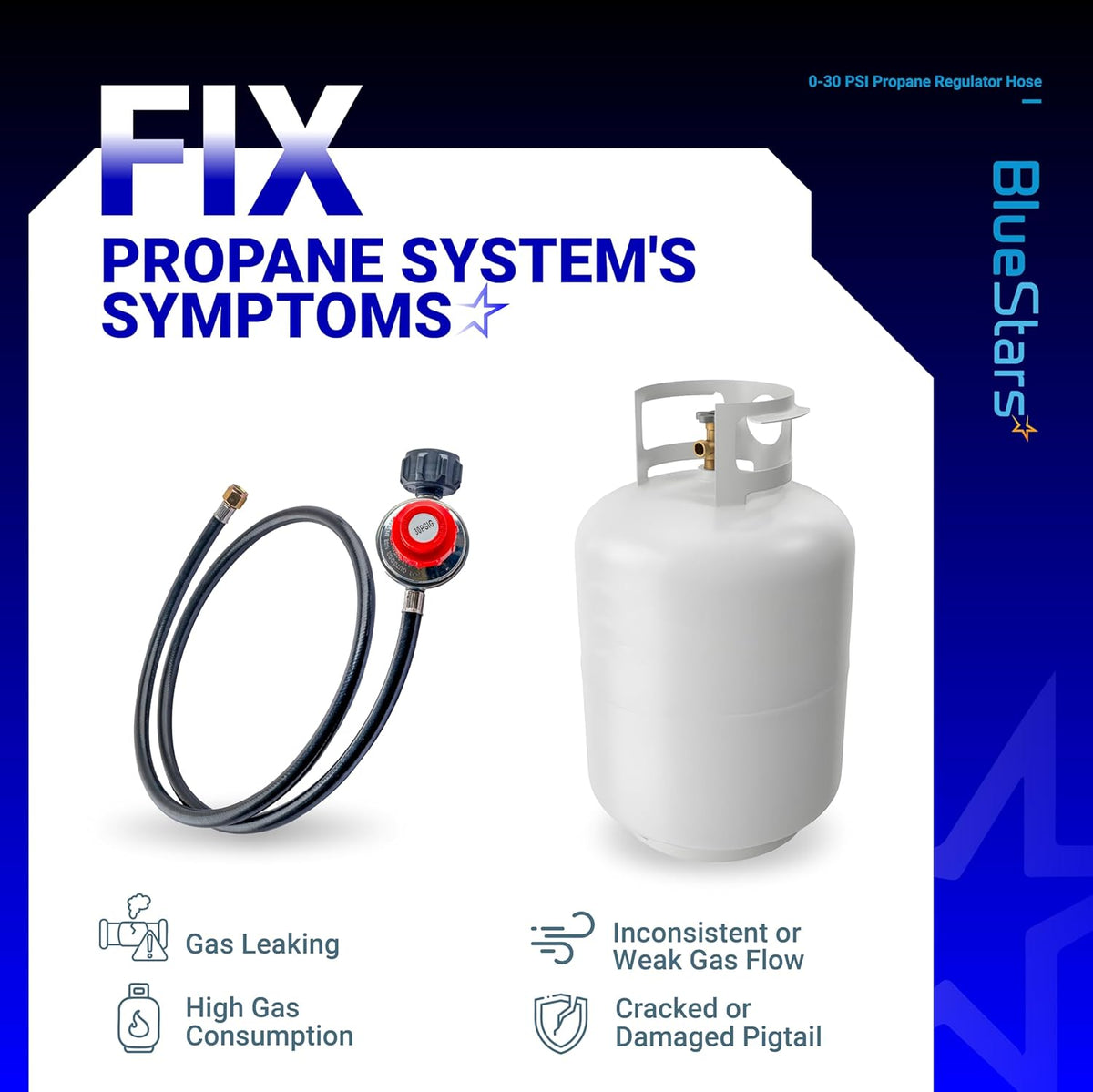

When to Replace
- Visible damage to the hose, such as cracks, abrasions, or brittleness.
- Gas leaks detected by smell or a soapy water test at connection points or along the hose.
- Inconsistent, low, or sputtering flame from the appliance.
- Yellow or sooty flames instead of a consistent blue flame.
- Regulator adjustment knob is damaged, stuck, or unresponsive.
Installation Tips
- Ensure the propane tank valve is completely closed before installation.
- Hand-tighten the QCC1 connector to the propane tank. Do not use tools on this connection.
- Use an appropriate wrench to secure the 3/8-inch flare fitting to the appliance's inlet for a tight seal.
- If using the NPT adapter, apply sealant tape to the male NPT threads only. Do not use tape on flare fittings.
- After all connections are made, open the tank valve slowly and check all joints for leaks using a soapy water solution before lighting the appliance.
-

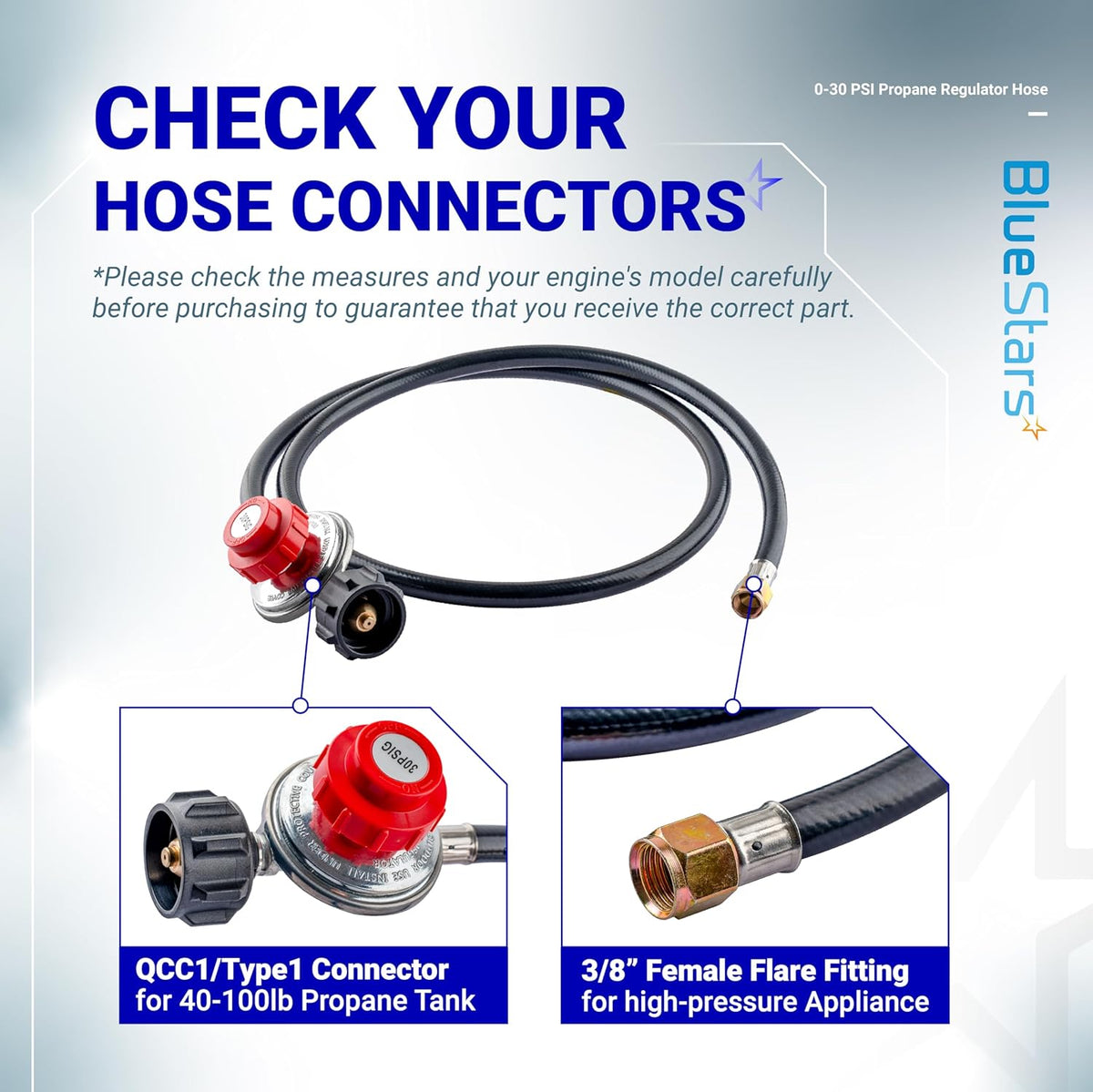

Propane Tank Adapter
QCC1/ Type 1 Connector -
Pressure Regulator

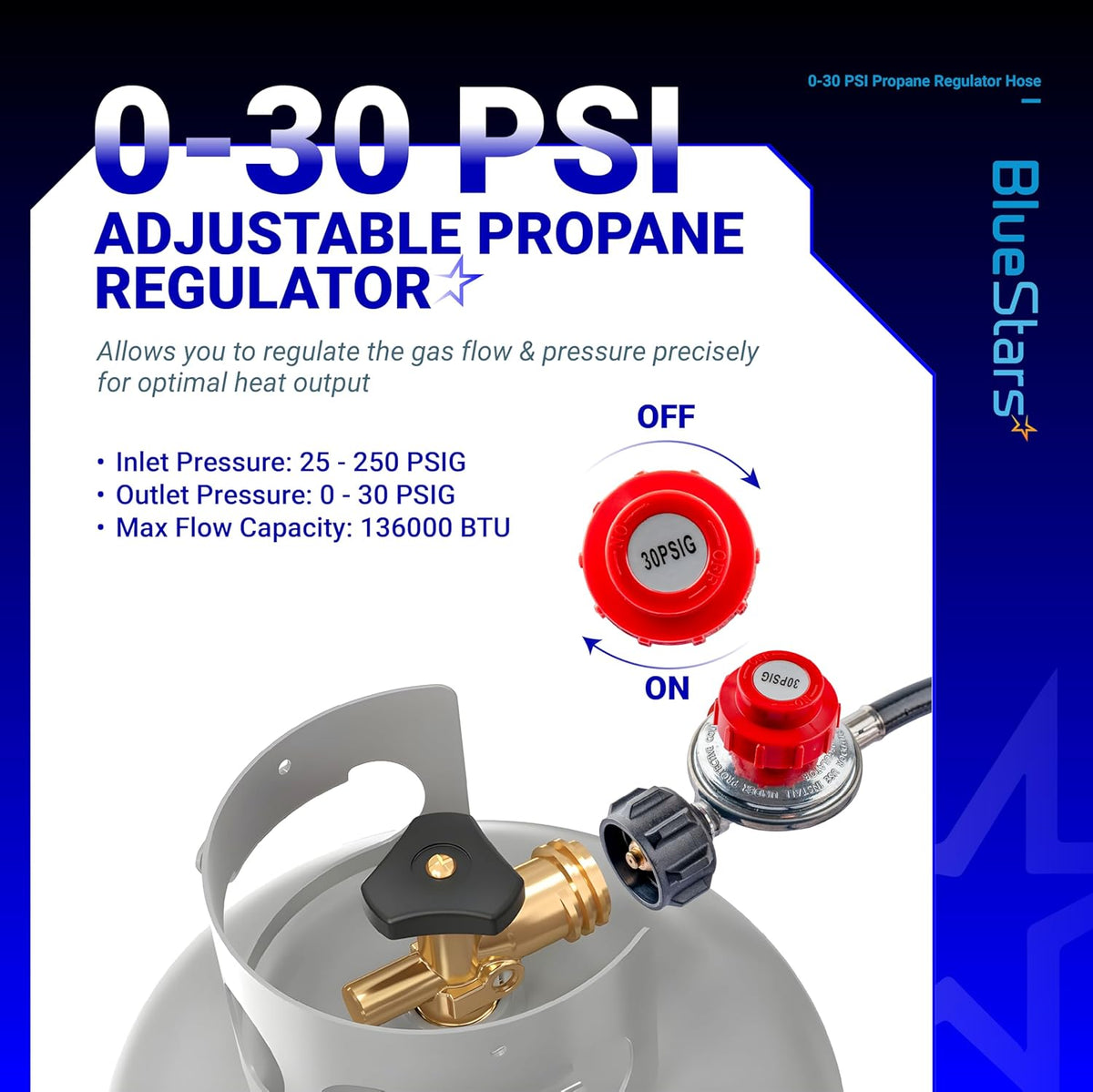

Adjustable 0-30 PSI Regulator -
Appliance Adapter
3/8” Female Flare Fitting -
4FT Length Hose
Superior 3-Layer Hose

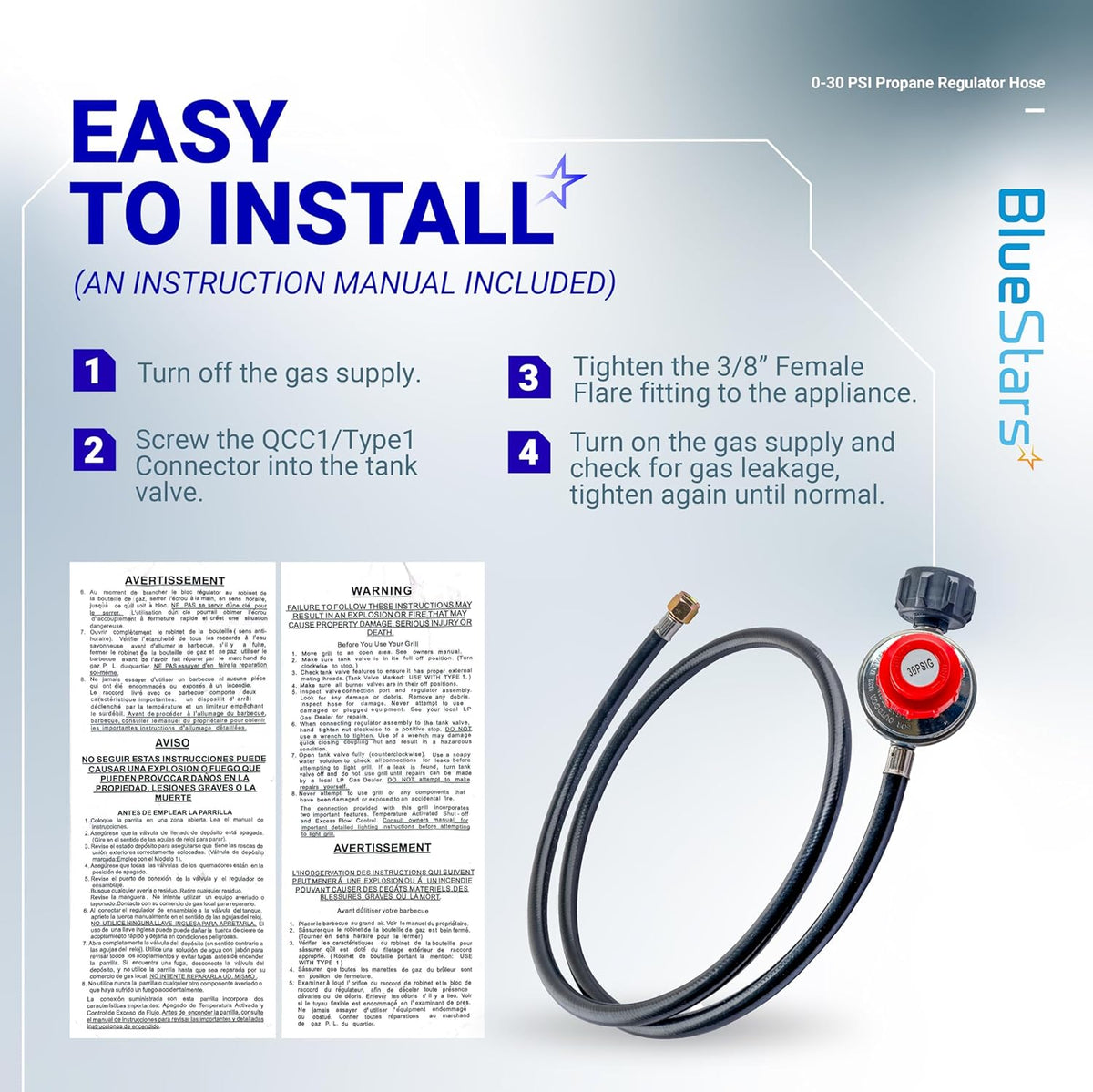

4 SIMPLE STEPS
A manual sheet with important notes and detailed instructions is already included in the package for you. Please follow it to ensure safety; Step 1: Turn off the gas supply; Step 2: Screw the QCC1/Type1 Connector into the tank valve; Step 3: Tighten the 3/8” Female Flare fitting to the appliance; Step 4: Turn on the gas supply and check for sealing bubbles with soapy water and if there is a leak, tighten again until normal.
