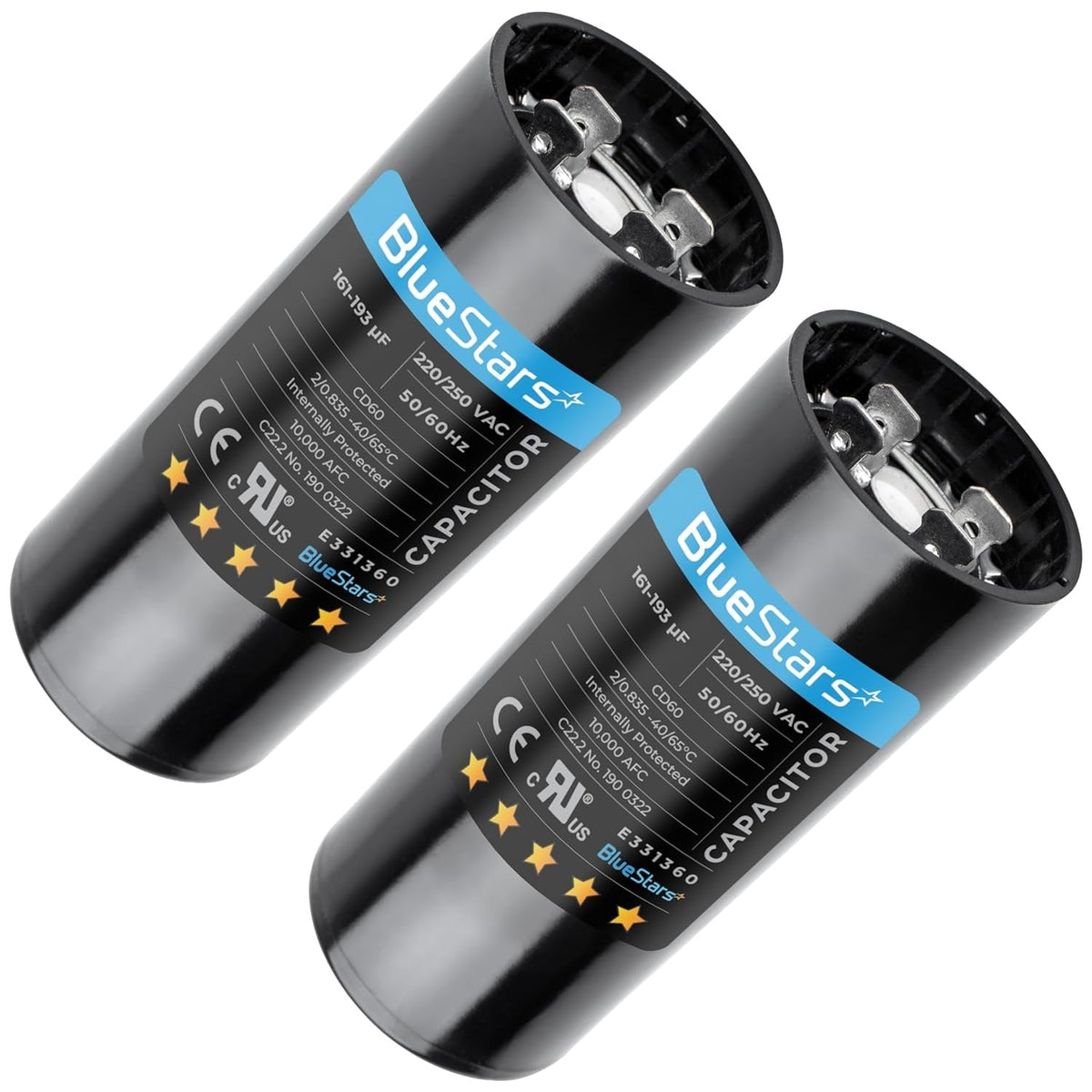

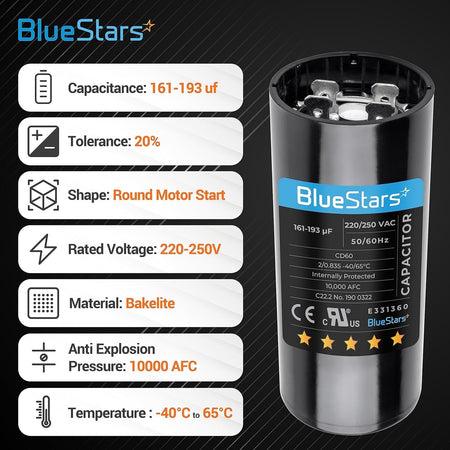

[Lifetime Warranty] 161-193 uF MFD 220-250 VAC 50/60 Hz Round Start Capacitor - Universal Fits Air Conditioners - Pack of 2

2 Packs 161-193 uf MFD 50/60 Hz 220-250 VAC Volts Round Start Capacitor

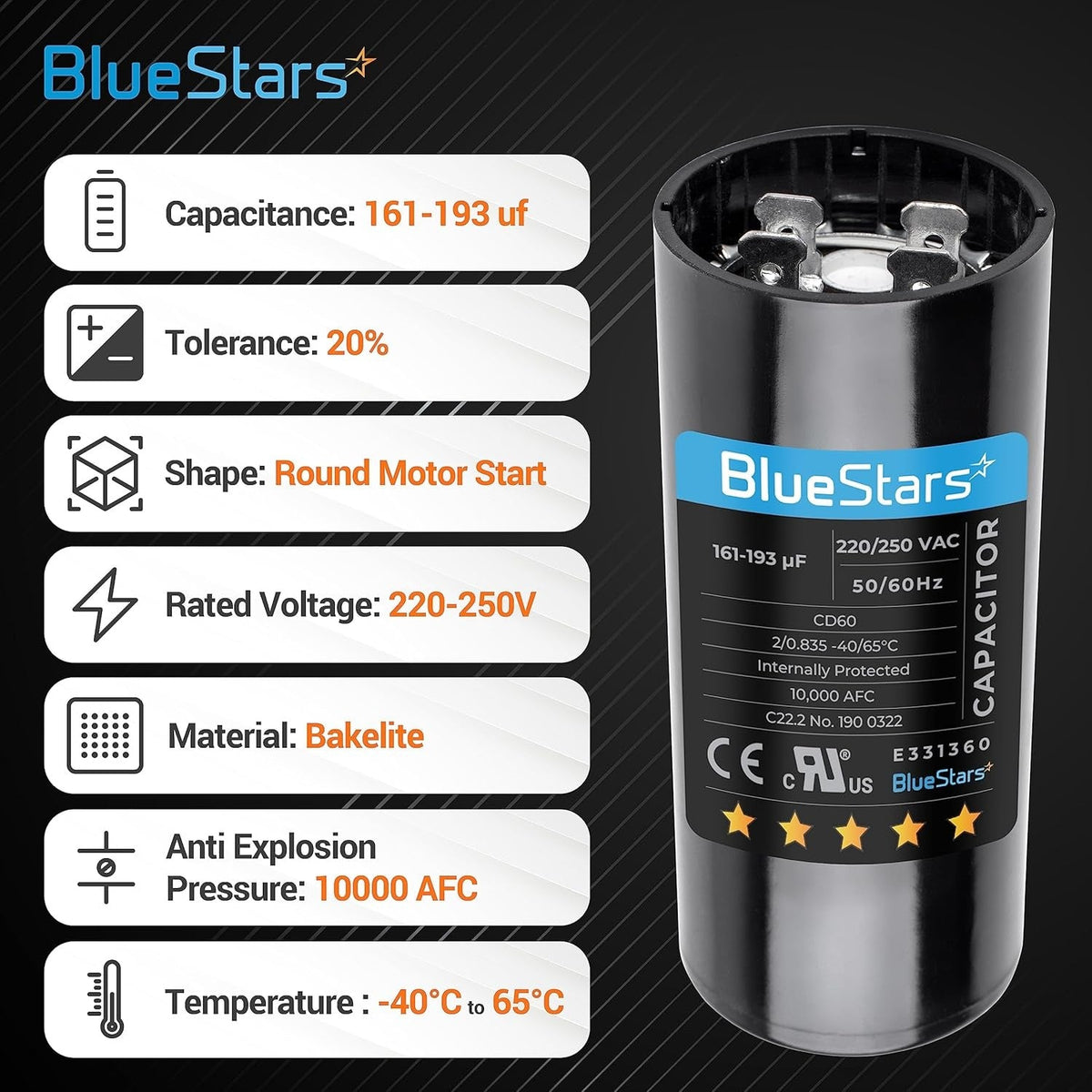

Key Features

• Quantity: 2 Capacitors
• Capacitance: 161-193 Microfarad (uF MFD)
• Voltage Rating: 220-250 VAC
• Frequency: 50/60 Hz
• Body Shape: Round
• Function: Provides initial torque for single-phase electric motors
• Certification: UL listed

Replaces / Cross-Reference Part Numbers

Replaces any round motor start capacitor with the same capacitance and voltage ratings. Compatible with CD60 type capacitors.

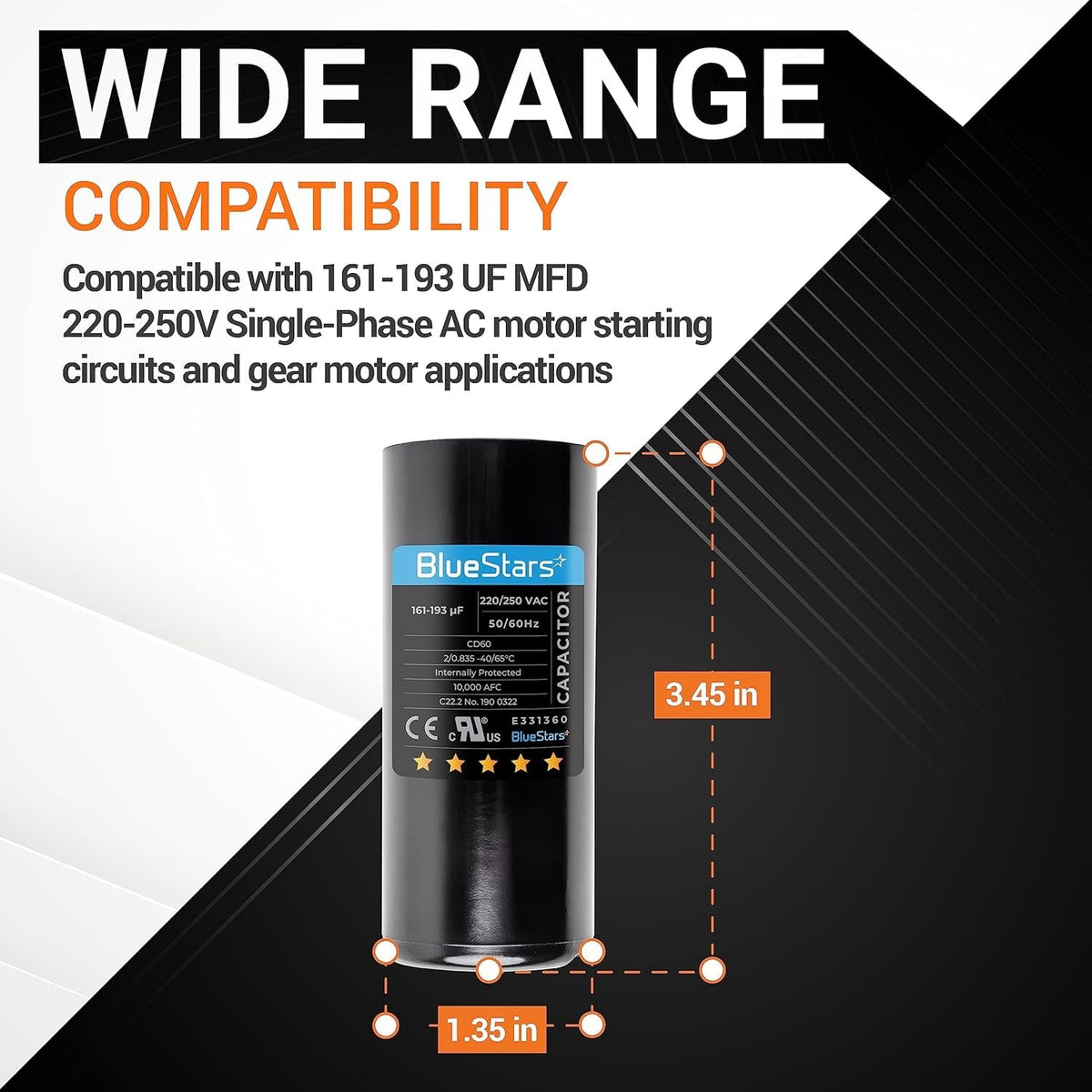

Compatibility & Fitment

• Designed for single-phase AC electric motor applications requiring a start capacitor within the specified electrical range.
• Common applications include HVAC systems, air conditioners, compressors, pool pumps, and well pumps.
• Verify your motor or original capacitor's specifications to ensure compatibility.

When to Replace

• Motor hums but fails to start or starts slowly.
• Circuit breaker trips when the motor attempts to start.
• The existing capacitor is visibly bulging, leaking fluid, or damaged.
• The motor requires manual assistance to start turning.

Installation Tips

• Disconnect all electrical power to the unit before servicing.

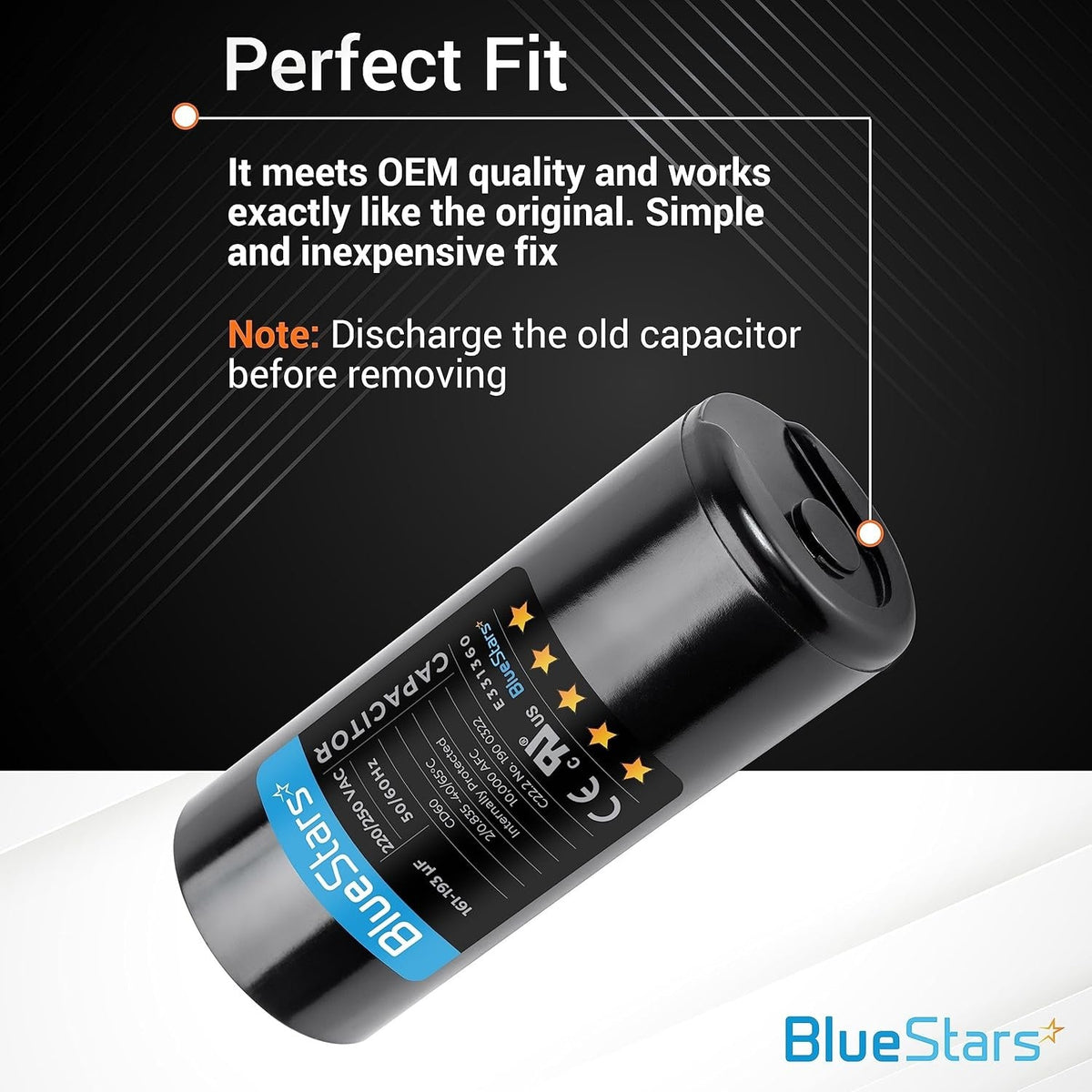

• Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver.
• Confirm the microfarad (uF/MFD) and voltage (VAC) ratings of the replacement match the original part.
• These capacitors are non-polarized and can be connected without regard to terminal polarity.
• Ensure all electrical connections are clean and secure.
