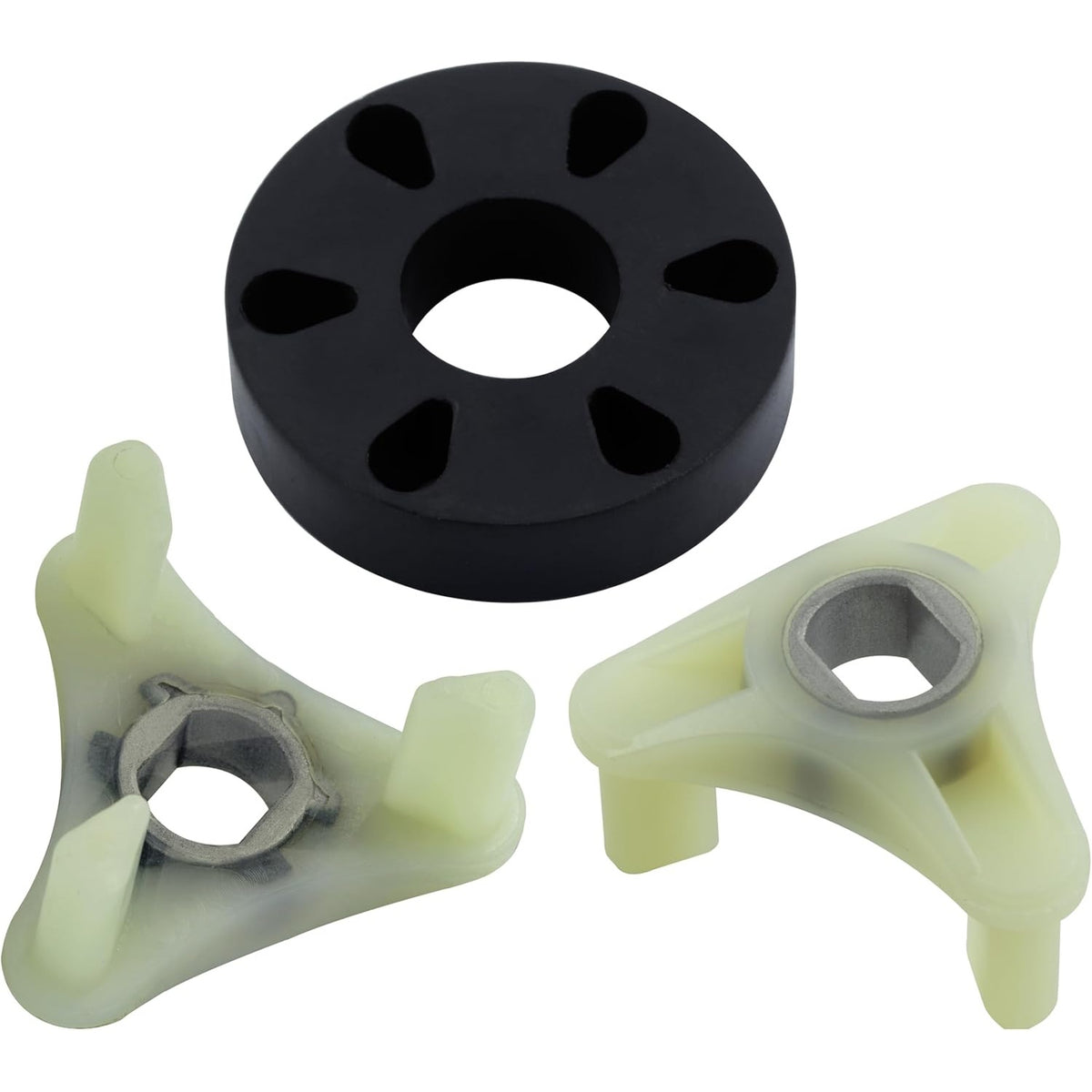

Metal core motor coupling kit with black rubber drive block and two white plastic drive forks for washer repair.

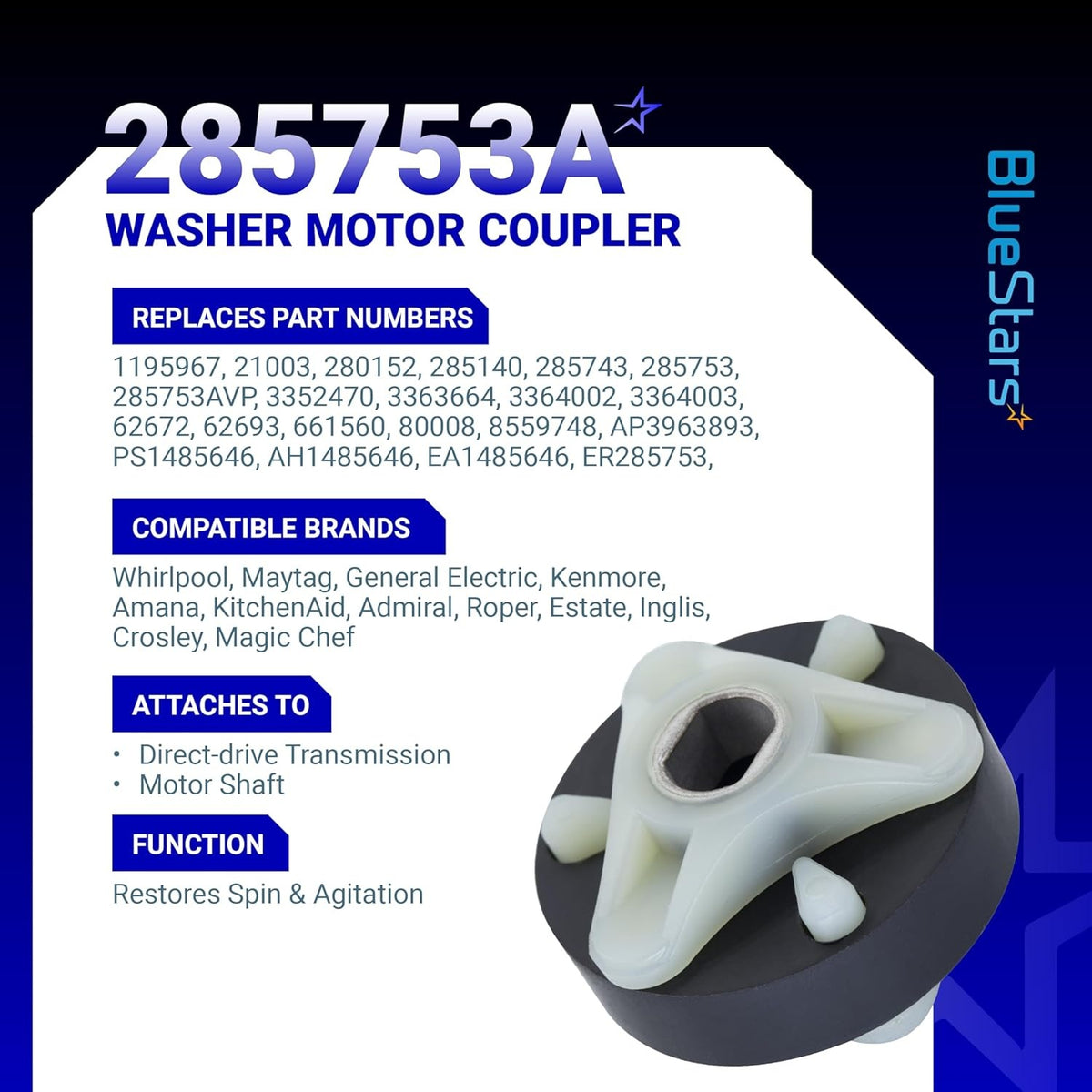

285753A metal core motor coupling for Kenmore and Whirlpool washers shown on an informational product specification card.

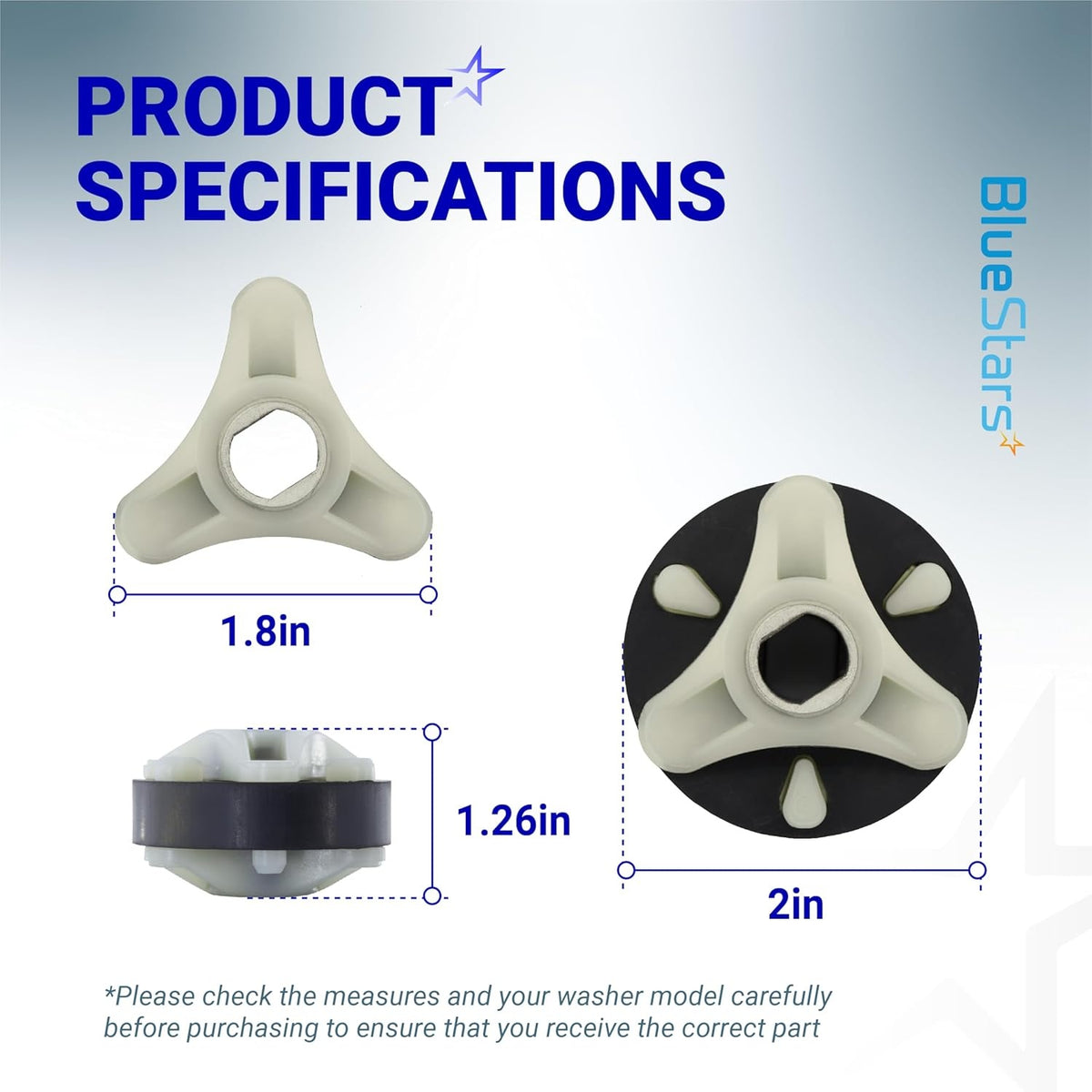

Dimensional diagram of 285753A metal core motor coupling for Kenmore and Whirlpool washers showing 1.8in and 2in widths.
285753A metal core motor coupling kit for Kenmore and Whirlpool washers shown in an informational product graphic.

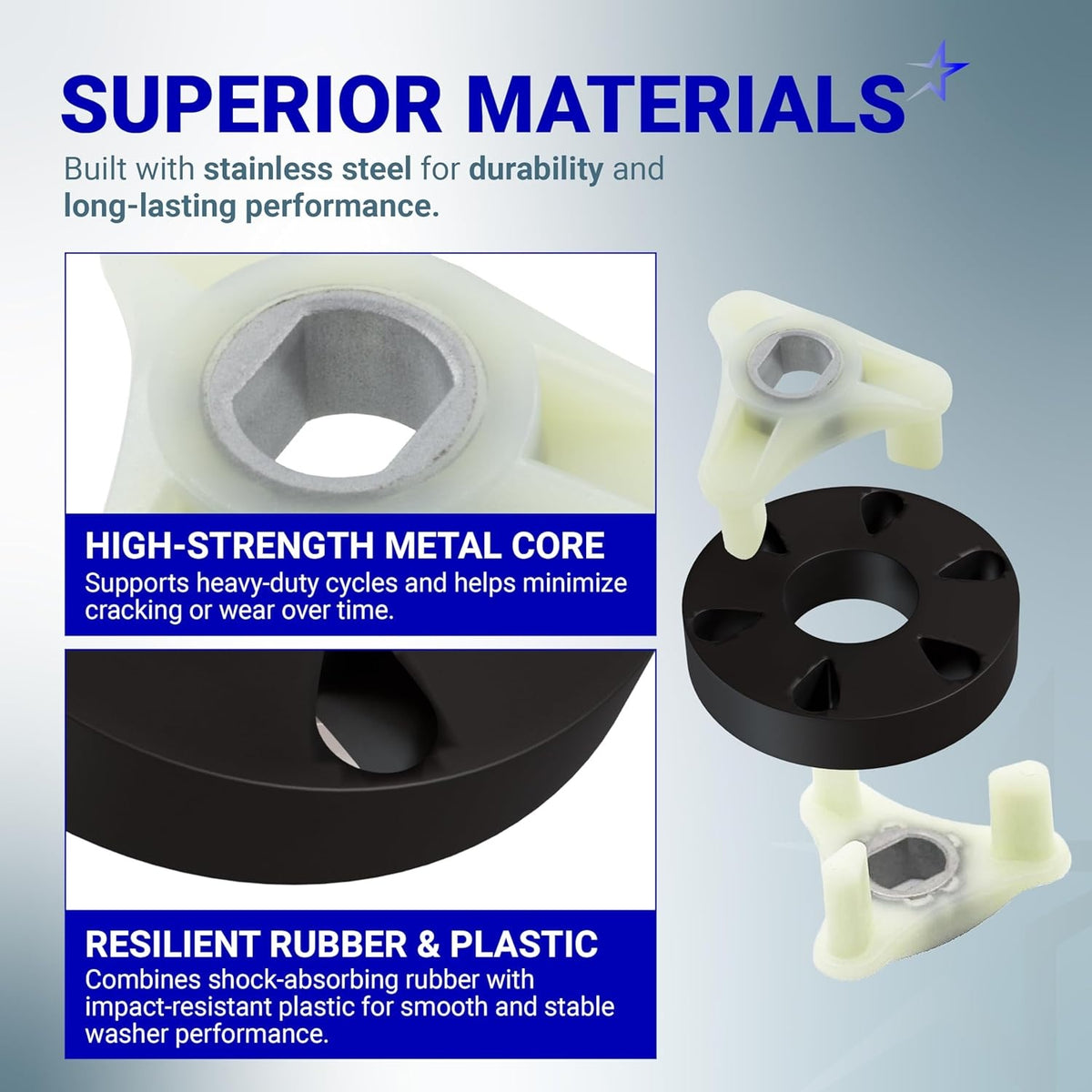

Infographic showing metal core motor coupling components for Kenmore and Whirlpool washers with material details.

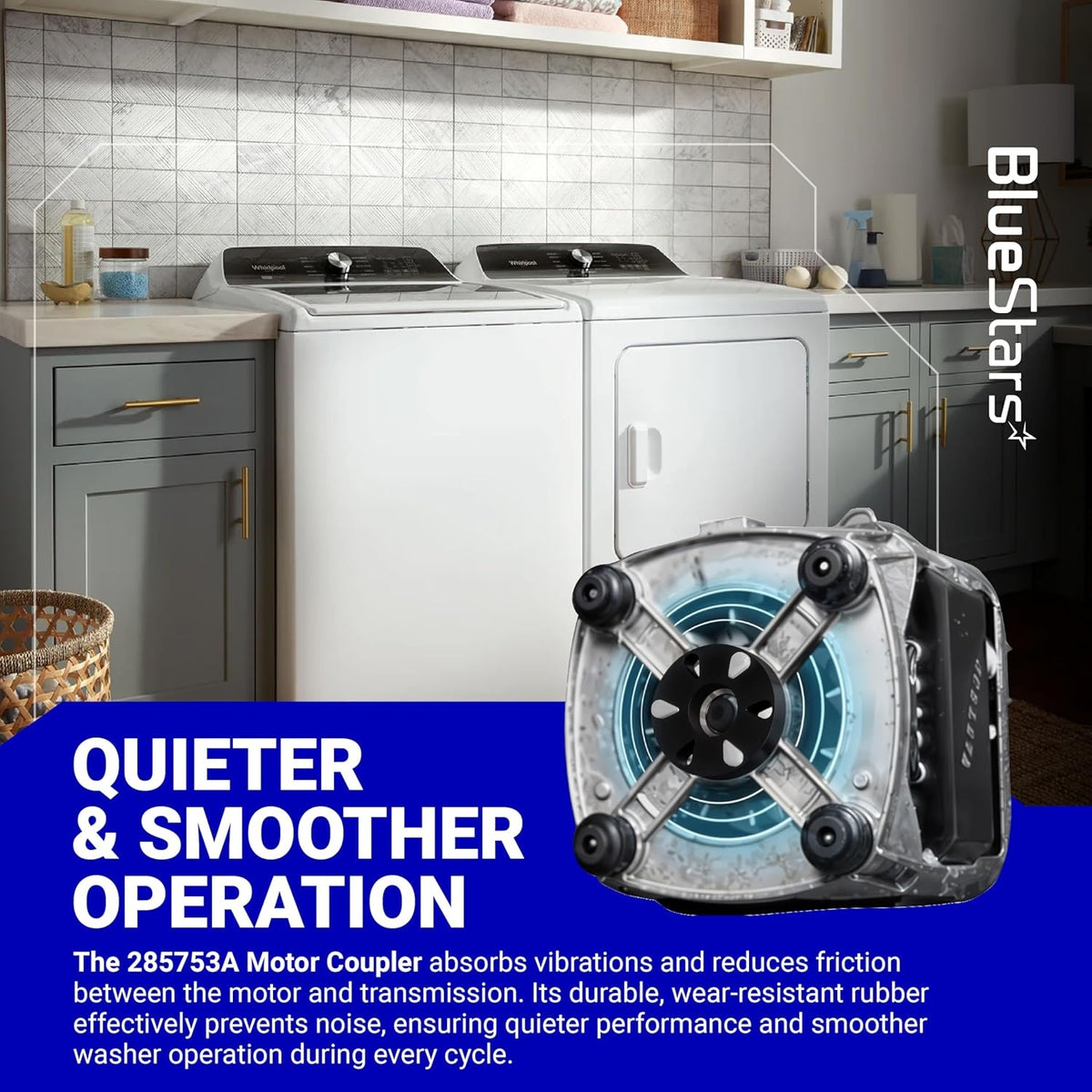

Infographic showing 285753A metal core motor coupling for Kenmore and Whirlpool washers to fix common spin issues.

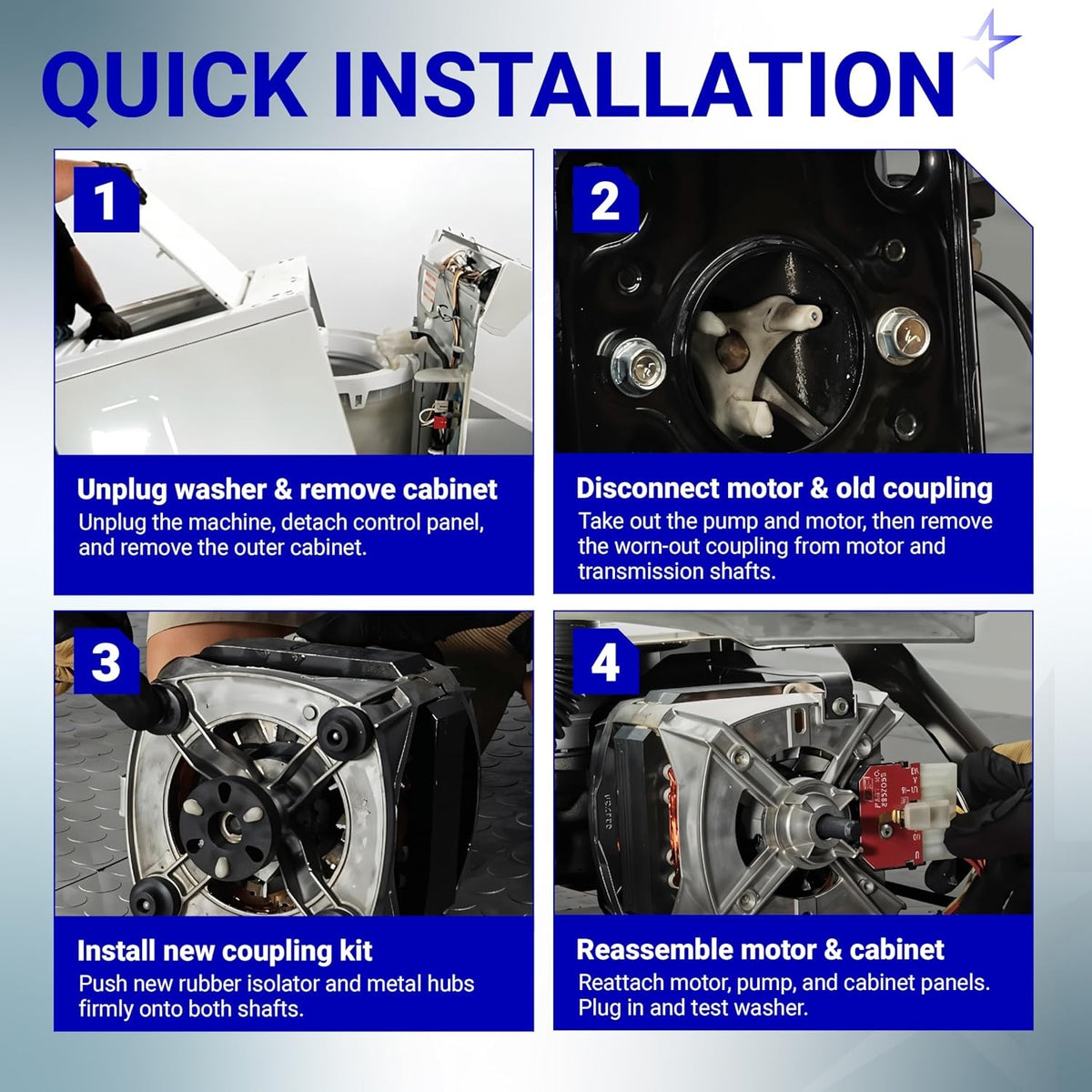

Four-step installation guide for 285753A metal core motor coupling kit on Kenmore and Whirlpool washing machines.

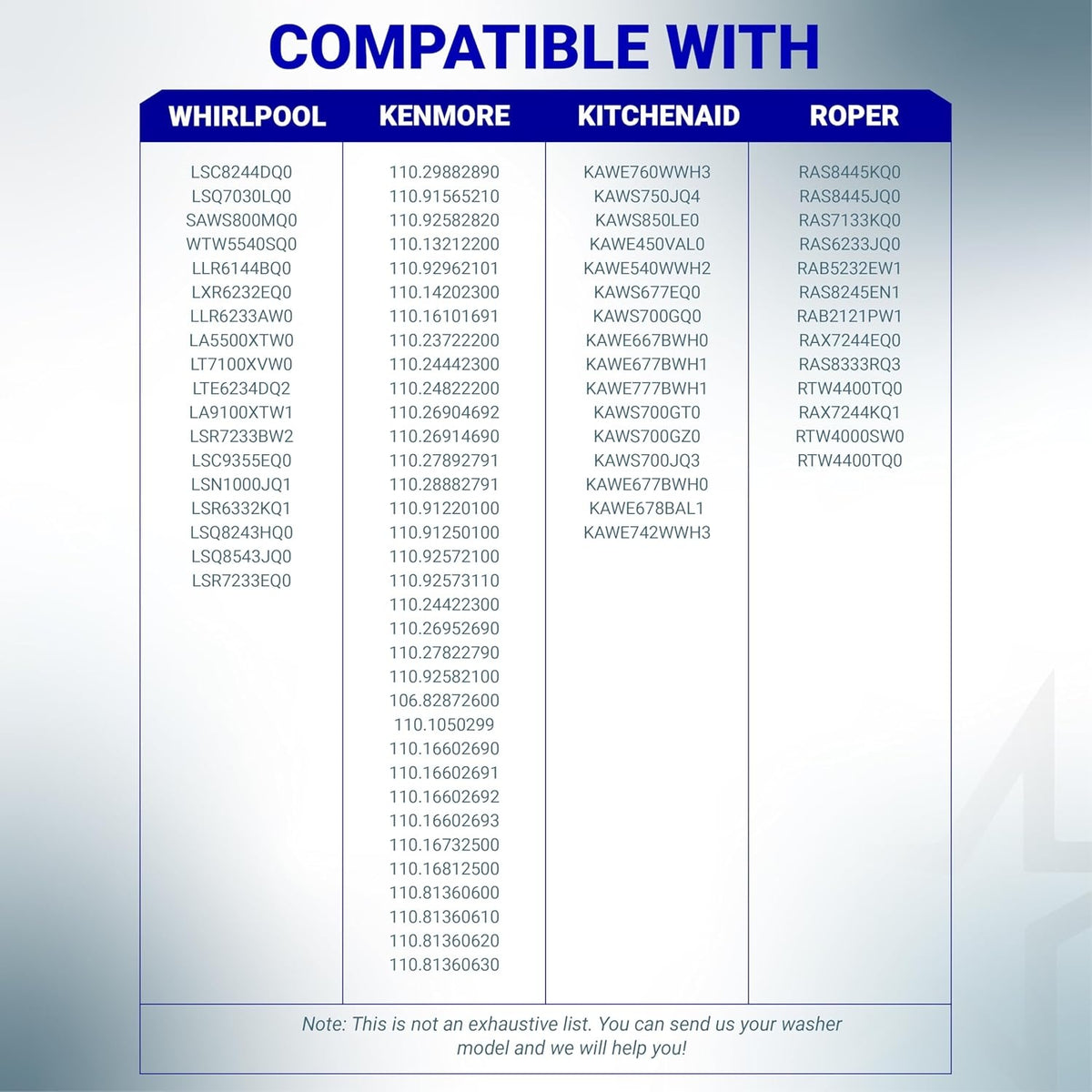

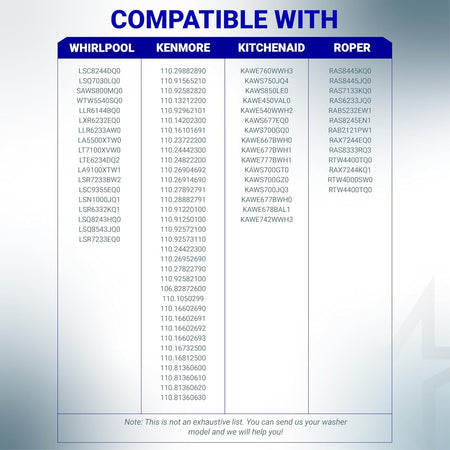

Compatibility chart for 285753A motor coupling kit listing Whirlpool, Kenmore, KitchenAid, and Roper washer models.
Metal core motor coupling kit with black rubber drive block and two white plastic drive forks for washer repair.
285753A metal core motor coupling for Kenmore and Whirlpool washers shown on an informational product specification card.
Dimensional diagram of 285753A metal core motor coupling for Kenmore and Whirlpool washers showing 1.8in and 2in widths.
285753A metal core motor coupling kit for Kenmore and Whirlpool washers shown in an informational product graphic.
Infographic showing metal core motor coupling components for Kenmore and Whirlpool washers with material details.
Infographic showing 285753A metal core motor coupling for Kenmore and Whirlpool washers to fix common spin issues.
Four-step installation guide for 285753A metal core motor coupling kit on Kenmore and Whirlpool washing machines.
Compatibility chart for 285753A motor coupling kit listing Whirlpool, Kenmore, KitchenAid, and Roper washer models.
Lifetime Warranty

[Lifetime Warranty] 285753A Metal Core Motor Coupling Kit for Kenmore Whirlpool Washers - Replaces AP3963893, PS1485646, 1195967, 285753AVP, 21003, 280152, 85140, 285743

Save 13%
0.00
$15.70
$18.06
$15.70
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

285753A Direct Drive Motor Coupling Kit

Key Features

  • Directly connects the washing machine motor to the gearcase.
  • Features a reinforced metal insert for increased strength and durability.
  • Engineered to act as a fail-safe, protecting the motor and transmission from overload.
  • Package includes two complete kits; each kit contains two plastic coupling halves and one rubber isolator.
  • Material composition: Plastic, rubber, and metal.
  • Approximate diameter: 2 inches.

Replaces / Cross-Reference Part Numbers

  • 285753A
  • 285753
  • 1195967
  • 280152
  • 285140
  • 285743
  • 3352470
  • 3363664
  • 3364002
  • 3364003
  • 62672
  • 62693
  • AP3093719
  • PS334613
  • AH334613
  • EA334613
  • ER285753

Compatibility & Fitment

  • Designed specifically for direct-drive washing machines without a belt.
  • Compatible with numerous models from brands including Whirlpool, Kenmore, KitchenAid, Roper, and Estate.
  • Confirm fitment by cross-referencing your appliance's model number with the part number.

When to Replace

  • The washer motor runs, but the tub or agitator does not spin or agitate.
  • Loud humming, grinding, or buzzing noises are heard during a cycle.
  • Visible signs of damage, such as cracks, stripping, or complete breakage of the old coupling.

Installation Tips

  • Before starting the repair, disconnect the washer from its power and water supply.
  • Accessing the coupling typically requires removing the washer cabinet.
  • The motor is usually secured by two clips; remove them to unmount the motor and expose the coupling.
  • Ensure the new coupling is fully seated on both the motor and transmission shafts before reassembly.
Product image
Product image
Product image
  • FIX WASHER'S SYMPTOMS

    FIX WASHER'S SYMPTOMS

    Will not spin or agitate | Burning smell | Unusual noises | Clothes still wet
  • RELIABLE QUALITY

    RELIABLE QUALITY

    285753A Coupling Kit is made from high-quality, durable plastic & metal materials for long-lasting reliability and consistent washer performance
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
4 SIMPLE STEPS

4 SIMPLE STEPS

1. Unplug washer & remove cabinet: Unplug the machine, detach control panel, and remove the outer cabinet; 2. Disconnect motor & old coupling: Take out the pump and motor, then remove the worn-out coupling from motor and transmission shafts; 3. Install new coupling kit: Push new rubber isolator and metal hubs firmly onto both shafts; 4. Reassemble motor & cabinet: Reattach motor, pump, and cabinet panels. Plug in and test washer.
Brand Model Number
Replaces 21003, 80008, 280152, 285140, 285743, 285753, 285753AVP, 661560, 1195967, 3352470, 3363664, 3364002, 3364003, 62672, 62693, 8559748, AH1485646, AP3963893, EA1485646, EAP1485646, ER285753, PD00002353, PS1485646, TJ285753
Admiral LAT1000AAE, LAT2000AAE
Amana AAV1000AWW, AAV2000AWW, NAV2020AWW, NAW3030AWW
Crosley CAWS833RQ0, CAWS953RB0, CAWS966RQ0, CAWS9234VQ0
Estate ETW4300SQ0, ETW4400TQ0, ETW4400VQ0, TAWS700EQ0, TAWS700EQ1, TAWS800JQ0, TAWS800JQ1, TAWS800MQ0, TAWS800PQ0
Inglis ITW4300SQ0, ITW4400TQ0, ITW4400VQ0
Kenmore 11019802800, 11020802990, 11020902990, 11021202010, 11022802991, 11022812990, 11023812100, 11024612300, 11024802300, 11024812300, 11024992201, 11025132410, 11025912200, 11026004010, 11026014010, 11026014011, 11026604010, 11026604011, 11026664011, 11026814690, 11026814691, 11026852691, 11026952690, 11027002012, 11027014010, 11027862600, 11028002011, 11028012011, 11028802010, 11029802890, 11029862890, 11029882890, 11082980110, 11092273100, 11092562100, 11092572100, 11092573110, 11092582100, 11092583100, 11092962101
KitchenAid KAWE450VAL0, KAWE540WWH2, KAWE660WWH1, KAWE667BWH0, KAWE677BWH0, KAWE677BWH1, KAWE678BAL1, KAWE742VWH0, KAWE742VWH3, KAWE742WWH3, KAWE760WWH3, KAWE777BWH1, KAWS677EQ0, KAWS700GQ0, KAWS700GT0, KAWS700GZ0, KAWS700JQ3, KAWS750JQ4, KAWS850JQ4, KAWS850LE0
Maytag MAT20CSAGW0, MAT20MNAGW0, MAT20PDAGW0
Roper RAS7133KQ0, RAS8245EN1, RAS8333RQ3, RAS8445JQ0, RAS8445KQ0, RAX7244EN0, RAX7244EQ0, RAX7244KQ1, RTW4000SW0, RTW4400TQ0, RTW4516FW0
Whirlpool LA4800XTN0, LA4800XTW0, LA5300XSW0, LA5300XTW0, LA5330XTF0, LA5400XSW0, LA5430XTW0, LA5460XSW1, LA5500XPW2, LA5500XTF0, LA5500XTG0, LA5530XTF0, LA5578XTW0, LA5580XSW3, LA5600XSW2, LA5600XTF0, LA5705XTW1, LA6055XTG0, LA6150XSW0, LA6150XSW1, LA6300XSW1, LA6300XTN0, LA6800XSN1, LA6800XSW0, LA6800XTF0, LA7000XTF0, LA7800XTN0, LA7801XTF0, LA7900XTN0, LA9100XTW1, LA9320XTW0, LA9500XTG0, LA9500XTM0, LC4900XTM0, LT4900XSW2, LT7000XTW0
Whirlpool LBR5432PQ0, LBR5432PT0, LBR6133DQ0, LBR6233AN0, LBR6233DQ0, LBR6233EQ0, LBR6233JQ0, LBR6432LQ0, LBR6432PQ0, LBR6432PT0, LBT6233AN0, LBT6233DQ0, LBT6233DQ1, LBT6233JQ0, LBT6233JQ1, LLR6144BQ0, LLR6233AW0, LLR7144EQ0, LER3622PQ0, LER4634EQ1, LER5636PQ0
Whirlpool LSB6300LW2, LSB6300PW0, LSB6300PW3, LSB6400LW0, LSB6500PW0, LSC5000PQ2, LSC8244DQ0, LSC9355EQ0, LSN1000JQ1, LSQ7030LQ0, LSQ8000JQ0, LSQ8020HQ0, LSQ8243HQ0, LSQ8543JQ0, LSQ8543JQ1, LSQ9010PW0, LSQ9110PW0, LSQ9549LW0, LSQ9659LW0, LSR5132HQ0, LSR5233AW0, LSR6232EQ0, LSR6233AN0, LSR6233BW2, LSR6332KQ1, LSR6334LQ0, LSR7233BW2, LSR7233EQ0, LSR7233EQ1, LSR8233EQ1, LSR8433KQ0, LSW9750PQ3
Whirlpool LTE5243DQA, LTE5243DQB, LXR6232EQ0, LXR7244JT1, LXR7244PT0, SAWS800MQ0, WTW5540SQ0

FAQ

This coupling kit is designed for direct-drive washing machines, including Whirlpool and Kenmore models such as the 70 Series, 80 Series, 90 Series, and units with the 110 model prefix. It is also compatible with direct-drive washers from Maytag, Amana, KitchenAid, Admiral, Magic Chef, Roper, Estate, Inglis, and Crosley. To confirm compatibility, verify that your washer uses motor coupling part 285753A or one of its direct replacements.
This kit replaces part number 285753A and is compatible with the following cross-reference numbers: AP3963893, PS1485646, 1195967, 285753AVP, 21003, 280152, 85140, 285743, 285140, and EAP1485646.
The motor coupling connects the drive motor to the transmission in direct-drive washers. It serves as a cushioned link that allows the motor to transfer power to the transmission during agitation and spin cycles. If the coupling fails, the motor may run, but the washer will fail to agitate or spin.
Common symptoms include the washer filling and draining normally but failing to agitate or spin, a motor that runs without moving the basket, or a burning rubber or plastic smell. If the coupling has broken, the motor will operate, but the tub will remain stationary because power is no longer being transferred to the transmission.
Replacing this part is a moderate repair for direct-drive top-load washers. You will typically need a screwdriver, 1/4-inch and 5/16-inch nut drivers or sockets, slip-joint pliers, and a small hammer or deep socket to press the coupling hubs onto the shafts. Accessing the coupling usually requires removing the cabinet, pump, and motor. A first-time repair typically takes between 45 and 90 minutes.
Couplings fail due to normal wear, repeated heavy loads, off-balance loads, or consistent overloading of the washer. They can also break if the transmission or basket binds, putting excessive stress on the drive system. When replacing the coupling, we recommend checking for drag in the basket, resistance in the transmission, and any leaks that may have impacted nearby components.
