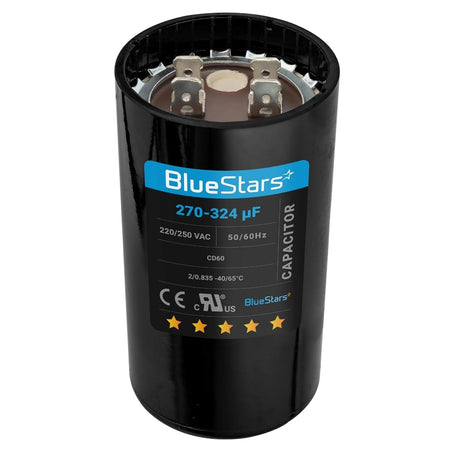

Round 270-324 uF 220-250 VAC start capacitor for electric motors with top terminal view.

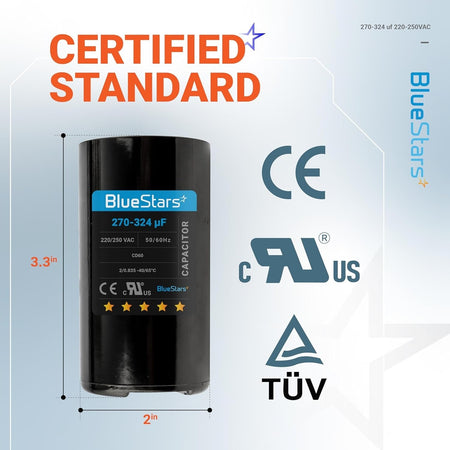

BlueStars 270-324 uF 220-250 VAC round start capacitor with 3.3-inch height and 2-inch diameter dimensions.

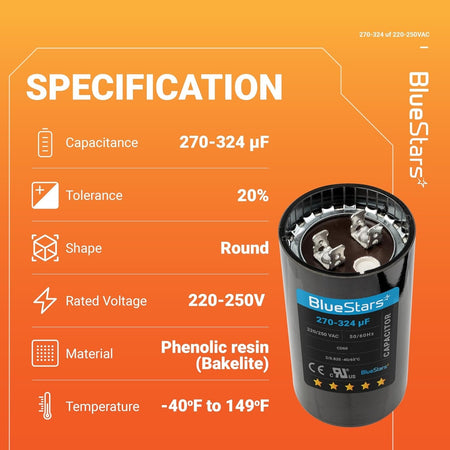

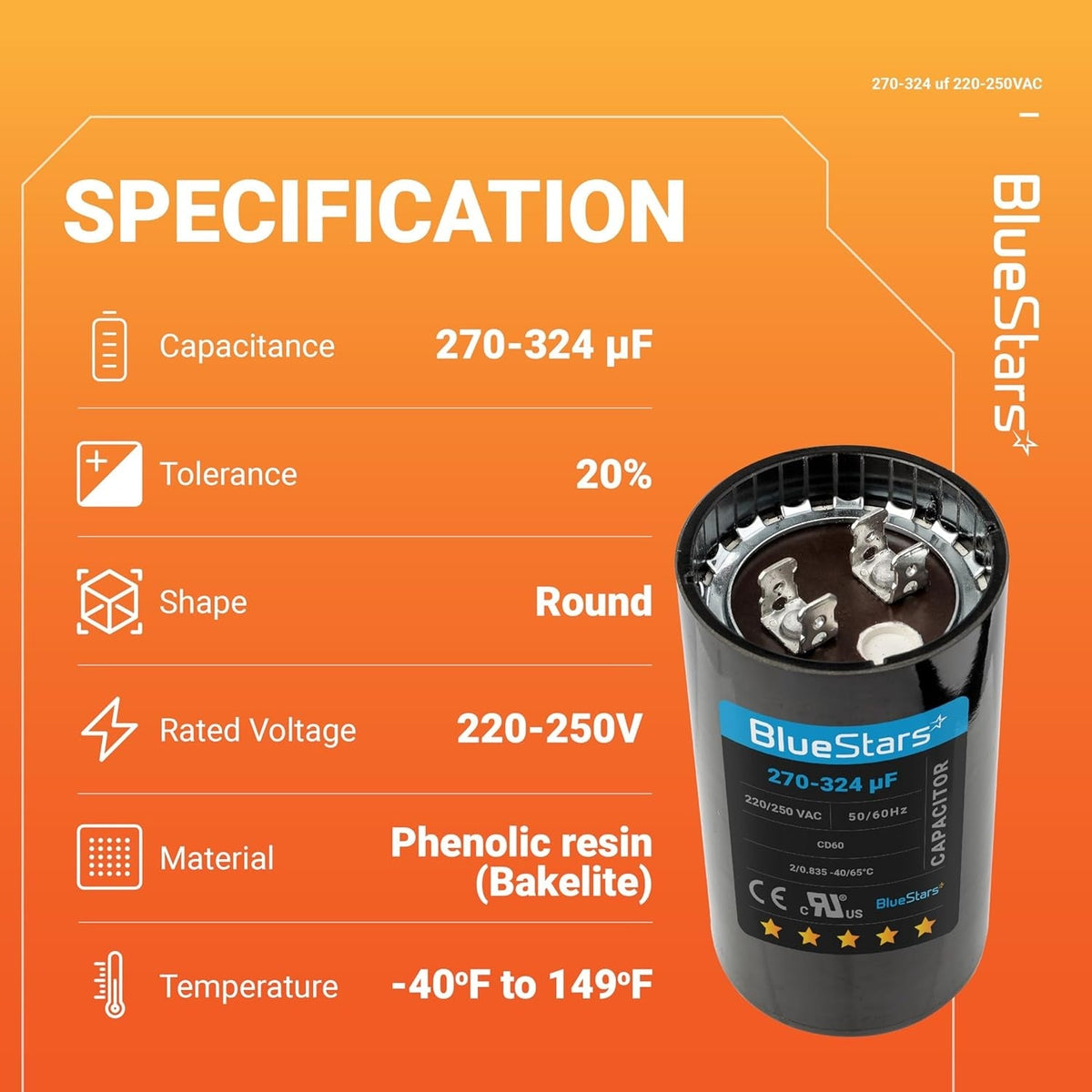

Specification chart for 270-324 uF 220-250 VAC round start capacitor for electric motors.

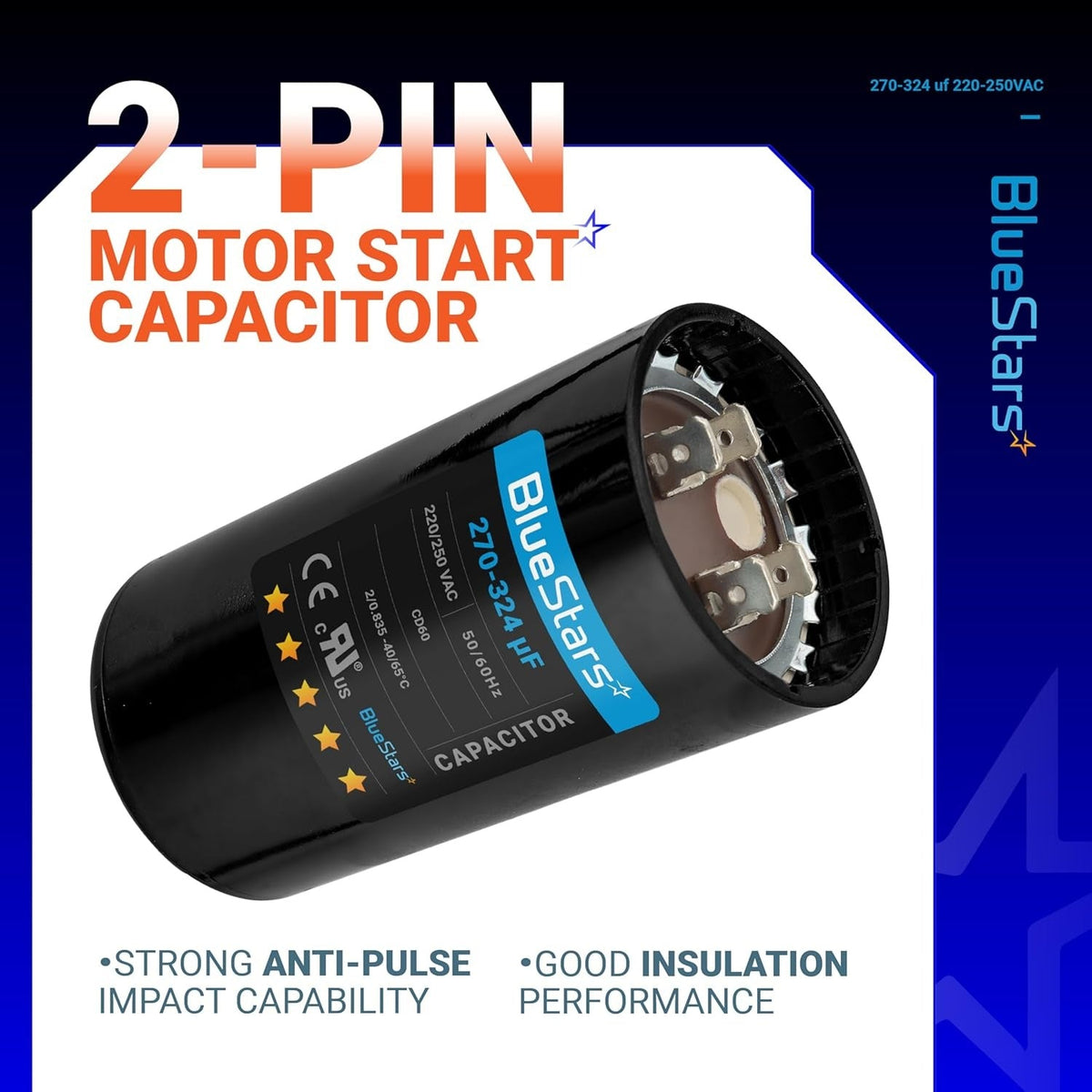

2-pin round motor start capacitor, 270-324 uF, 220-250 VAC, for single phase electric motors.
Infographic showing 270-324 uF 220-250 VAC round start capacitor features and construction materials.

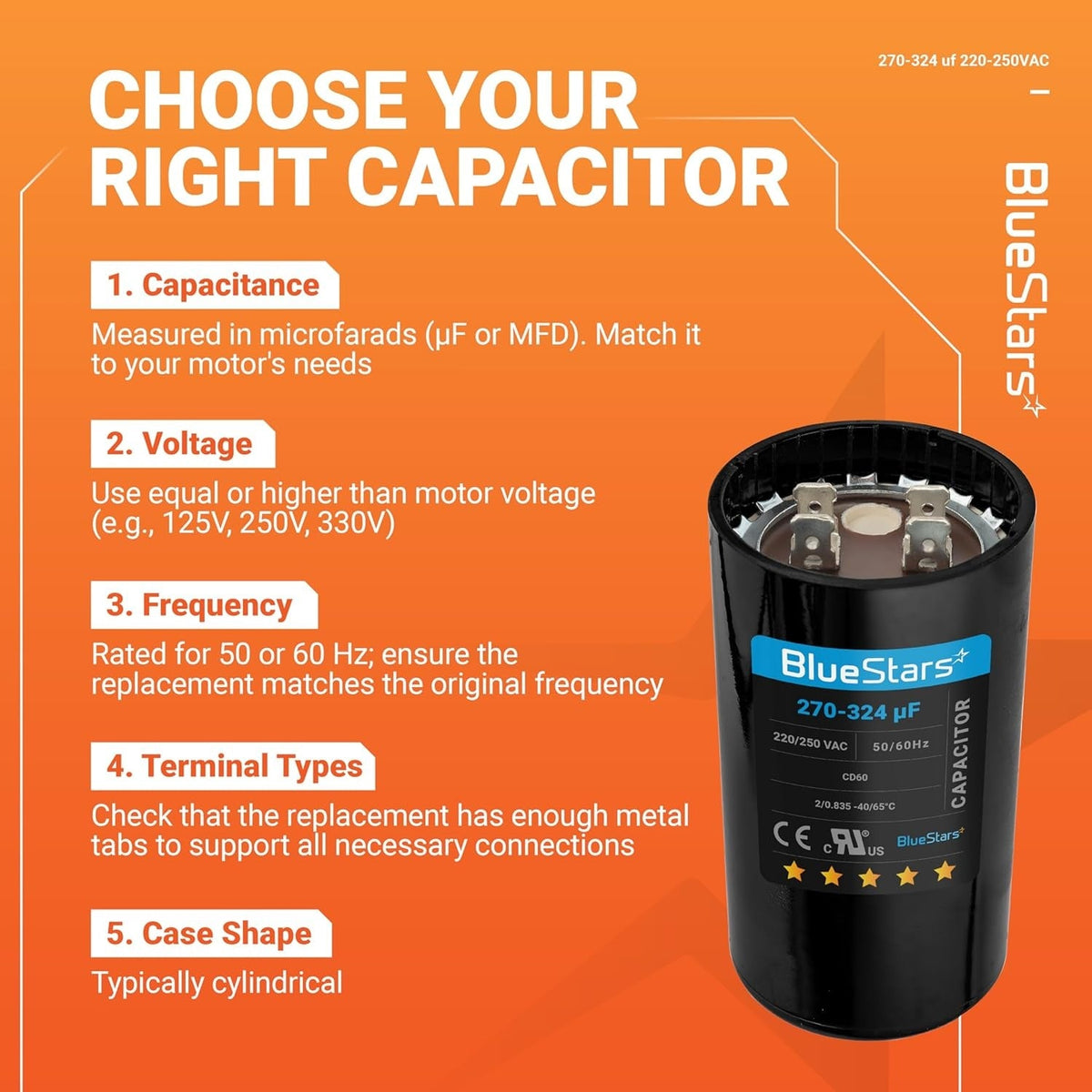

Infographic showing 270-324 uF 220-250 VAC round start capacitor specifications for electric motors.
BlueStars 270-324 uF 220-250 VAC round start capacitor being installed into an electric motor.
270-324 uF 220-250 VAC round start capacitor for electric motors shown with a cross-section of a submersible pump.
Infographic showing wide application of 270-324 uF start capacitor for electric motors, pumps, and machinery.

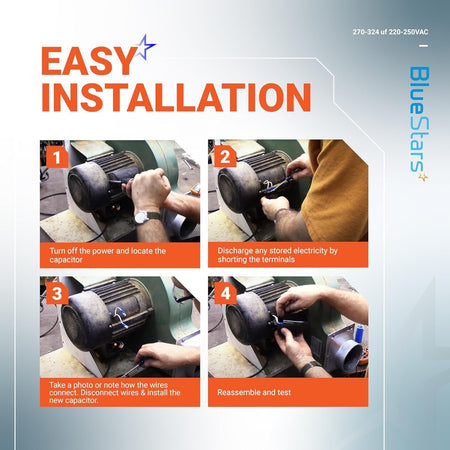

Four-step installation guide for replacing a 270-324 uF start capacitor on an electric motor.
Round 270-324 uF 220-250 VAC start capacitor for electric motors with top terminal view.
BlueStars 270-324 uF 220-250 VAC round start capacitor with 3.3-inch height and 2-inch diameter dimensions.
Specification chart for 270-324 uF 220-250 VAC round start capacitor for electric motors.
2-pin round motor start capacitor, 270-324 uF, 220-250 VAC, for single phase electric motors.
Infographic showing 270-324 uF 220-250 VAC round start capacitor features and construction materials.
Infographic showing 270-324 uF 220-250 VAC round start capacitor specifications for electric motors.
BlueStars 270-324 uF 220-250 VAC round start capacitor being installed into an electric motor.
270-324 uF 220-250 VAC round start capacitor for electric motors shown with a cross-section of a submersible pump.
Infographic showing wide application of 270-324 uF start capacitor for electric motors, pumps, and machinery.
Four-step installation guide for replacing a 270-324 uF start capacitor on an electric motor.
Lifetime Warranty

[Lifetime Warranty] 270-324 uF MFD 220-250 VAC Round Start Capacitor 50/60 Hz - Fits Electric Motor, OEM Single Phase Motor

Save 13%
0.00
$25.96
$29.85
$25.96
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

270-324 Mfd uF 250VAC Round Motor Start Capacitor 50/60 Hz AC Electric

Key Features

  • Capacitance: 270-324 Microfarad (Mfd/uF)
  • Rated Voltage: 250 VAC (Volts AC)
  • Frequency: 50/60 Hz
  • Operating Temperature: -40°F to 149°F (-40°C to +65°C)
  • Case Style: Round, dry electrolytic type
  • Terminals: Standard 1/4 inch male quick-connects
  • Model Type: CD60 / CD60B

Replaces / Cross-Reference Part Numbers

  • Replaces any start capacitor with matching capacitance and voltage specifications.
  • Model: 6913890
  • Internet: 620581
  • SKU: 84082160899

Compatibility & Fitment

  • Universal design for single-phase AC electric motors requiring a start capacitor.
  • Common applications include HVAC units, air conditioners, compressors, pool pumps, and other motorized equipment.
  • Fits a wide range of OEM and aftermarket systems that specify a 270-324 Mfd, 250V start capacitor.

When to Replace

  • Motor hums but struggles or fails to start.
  • Motor starts slowly or requires manual assistance to turn.
  • Circuit breaker trips repeatedly upon motor startup.
  • Visible signs of failure on the existing capacitor, such as bulging, leaking oil, or burn marks.

Installation Tips

  • Disconnect all electrical power to the equipment before beginning work.
  • Safely discharge the old capacitor by shorting the terminals with an insulated screwdriver.
  • Verify the replacement capacitor's Mfd/uF and VAC ratings match the original component. The voltage rating can be equal to or greater than the original, but never lower.
  • Note the wire connections before removal to ensure correct installation.

FAQ

This round start capacitor is used on many single-phase electric motors that require a 270-324 uF capacitor rated for 220-250 VAC at 50/60 Hz. Compatibility is determined by matching the microfarad range, voltage rating, capacitor type, and terminal style to your original part. Always verify the label on the old capacitor or the motor's parts diagram before ordering.
The microfarad rating should match the original capacitor's specified range as closely as possible. The voltage rating must meet or exceed the original requirement. For example, if your old start capacitor is 220-250 VAC, this is a direct electrical match for that rating. Do not substitute a lower voltage capacitor, and do not replace a start capacitor with a run capacitor.
A failing start capacitor often causes a motor to hum but not start, start slowly, trip the breaker, overheat, or need a manual spin to get moving. On equipment such as pumps, compressors, fans, or shop machinery, you may also notice intermittent starting or a burnt electrical smell near the motor housing.
Replacement is usually a moderate repair that takes about 15 to 30 minutes if the capacitor is easy to access. Typical tools include a screwdriver, nut driver, needle-nose pliers, and a phone or marker to record wire locations. Disconnect power completely before service, and safely discharge the old capacitor before touching the terminals.
Confirm the old capacitor's uF range, voltage, shape, and terminal layout. Inspect the motor for other issues such as damaged wiring, a stuck centrifugal switch, seized bearings, overheating, or a load that is preventing startup. If the old capacitor failed due to heat or repeated hard starts, correcting the underlying motor or equipment problem can help prevent another failure.
Start capacitors commonly fail from age, heat, frequent start-stop cycles, overvoltage, vibration, or a motor that is drawing excessive current during startup. In some cases, a bad start switch or a motor that stays in the start circuit too long will overheat the capacitor and shorten its life.
This is a start capacitor. Start capacitors provide a high burst of capacitance to help a single-phase motor begin turning, then they are taken out of the circuit by a switch or relay. They are not interchangeable with run capacitors, which stay energized continuously during normal operation.
