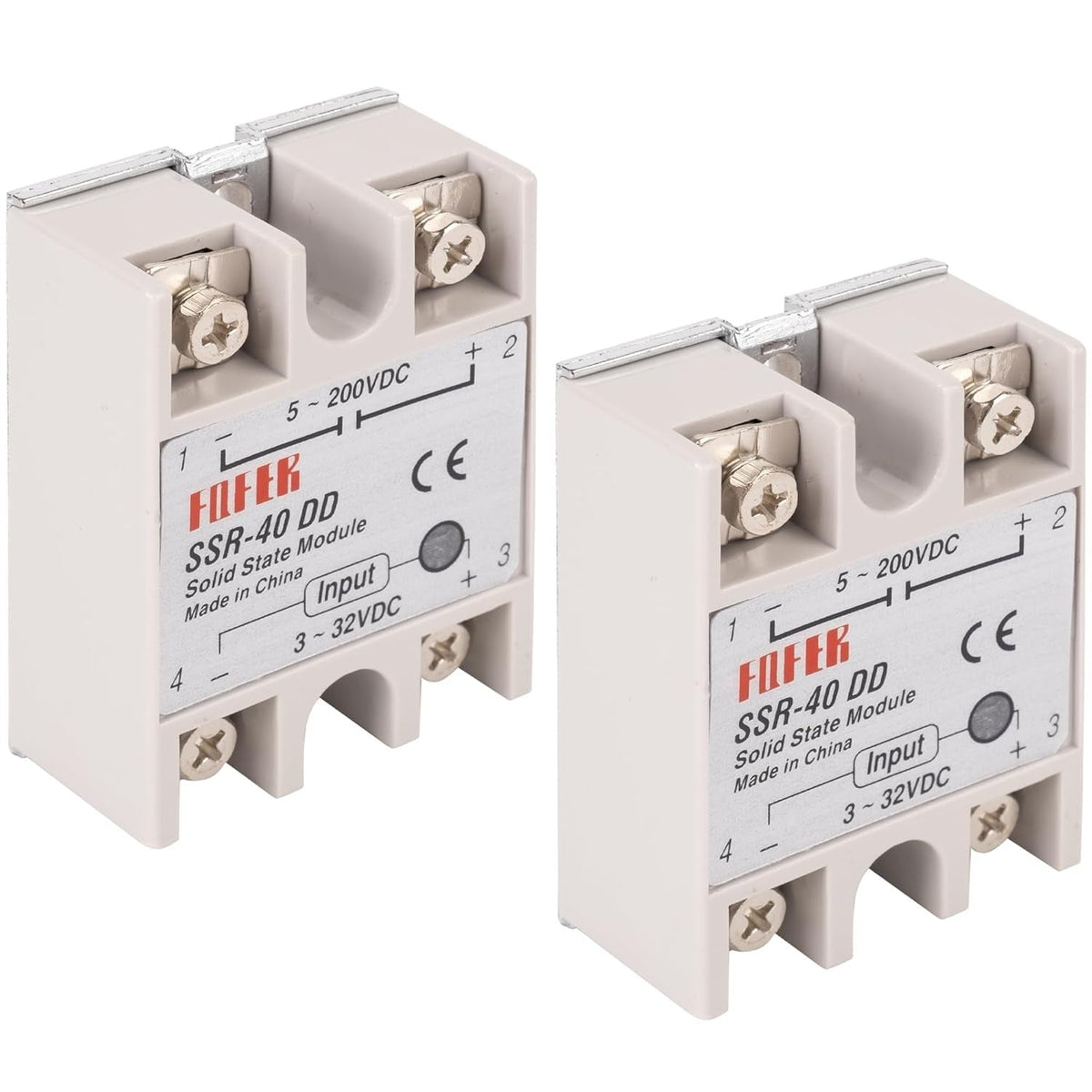

SSR-40DD DC to DC Solid State Relay - 2 Pack
0.00
Regular price
$19.62
Regular price
Save 11%
$21.97
Sale price
$19.62
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
SSR-40DD Solid State Relay
Key Features
- Completely Silent Operation: Unlike traditional mechanical relays, this Solid State Relay (SSR) uses internal semiconductors to switch the load. This means zero clicking noises, zero mechanical wear, and zero electrical arcing.
- Opto-Isolated Safety: Features internal optical isolation between the low-voltage control circuit and the high-voltage load circuit, completely protecting your sensitive microcontrollers or PLCs from high-voltage spikes and feedback.
- High-Speed Switching: Capable of turning on and off infinitely faster than a mechanical switch, making it highly suitable for precise PID temperature control and PWM (Pulse Width Modulation) applications.

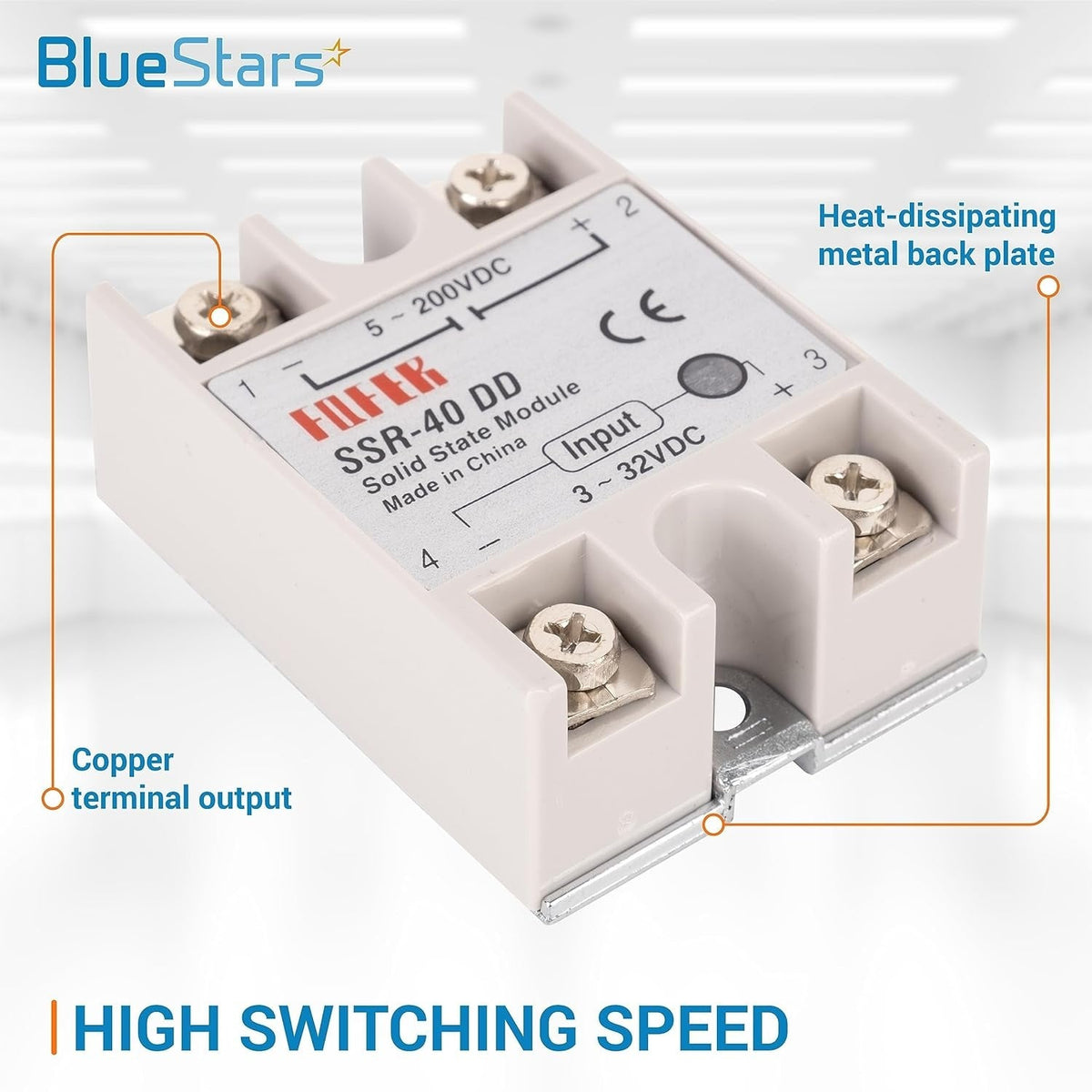

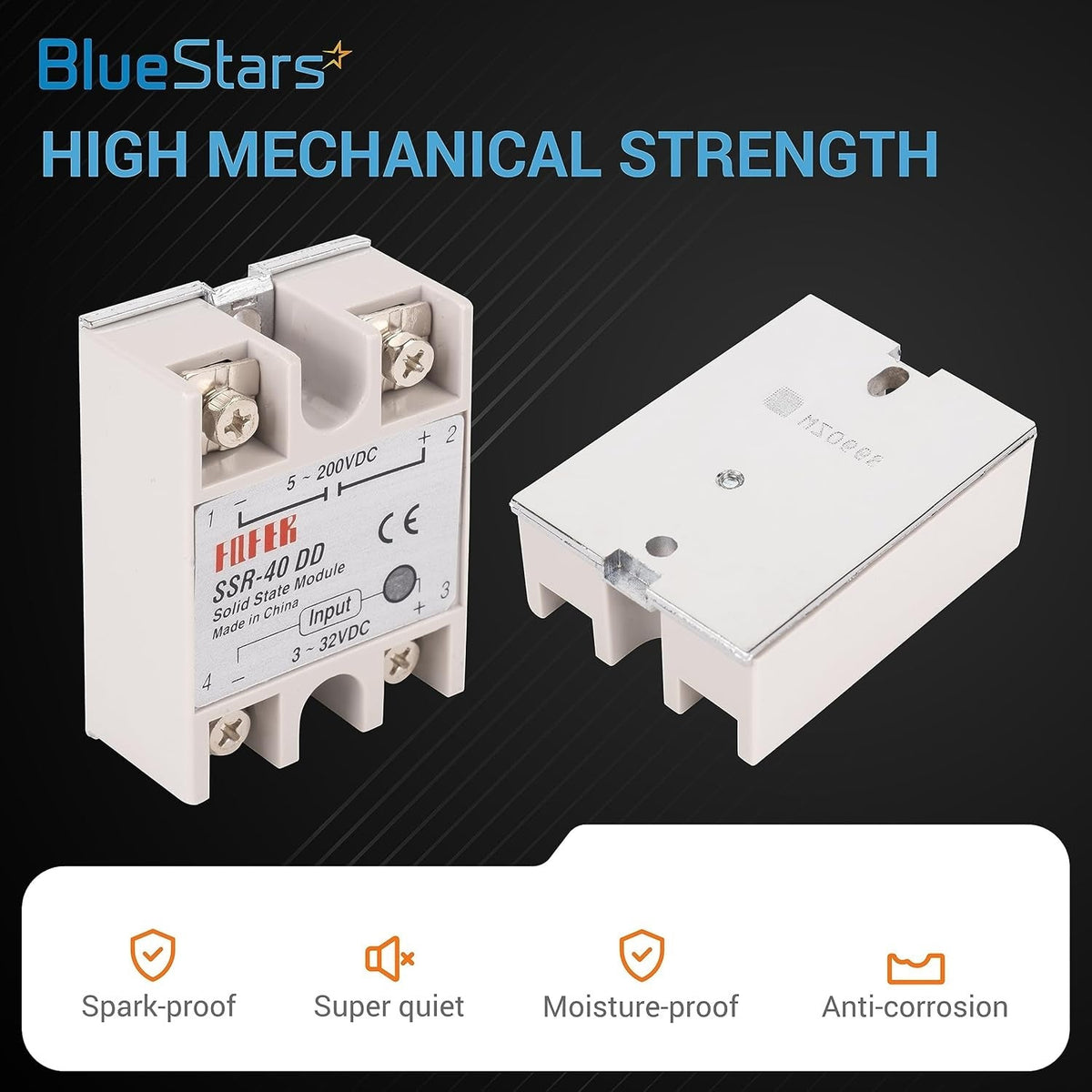

- Durable Epoxy Housing: The internal components are heavily potted in a flame-retardant industrial epoxy resin, making the relay highly resistant to severe vibration, moisture, and dust.
- Protective Safety Cover: Includes a clear, flip-up polycarbonate safety shield over the screw terminals to prevent accidental short circuits or dangerous physical contact with live DC wires.
Product Specifications
- Relay Type: DC-to-DC (DC Input controls a DC Load).
- Model Number: SSR-40DD.
- Control Input Voltage: 3V to 32V DC.
- Load Output Voltage: 5V to 200V DC.
- Maximum Load Current: 40 Amps (Requires adequate heatsink).
- On-State Voltage Drop: ≤ 1.5V.
Universal Compatibility & Applications
This heavy-duty DC solid state relay is a staple for custom power control and industrial automation:
- Heated Beds (3D Printing): Frequently used to safely route heavy DC current from a power supply to a 3D printer's heated bed, bypassing the fragile motherboard MOSFETs.
- Solar & Battery Systems: Excellent for custom charge controllers, battery disconnects, or switching heavy DC solar panel arrays.
- DC Motor Control: Used to switch high-torque brushed DC motors in robotics, CNC machines, or industrial actuators.
- High-Power LED Arrays: Perfect for PWM dimming of large 12V or 24V LED lighting banks.
When to Use or Upgrade
- Mechanical Relay Failure: If your standard mechanical relay has welded its contacts shut from high-current arcing, upgrading to an SSR completely eliminates this failure point.
- Relay Stuck "On": When an SSR fails, it almost always fails in the "closed" (always on) position. If your heated bed or motor refuses to shut off even when the control signal is removed, the internal triac has burned out.
- Switching Speeds: If your project requires a switch to toggle multiple times per second (like a PID temperature loop), a mechanical relay will physically break in a few days. An SSR is required.

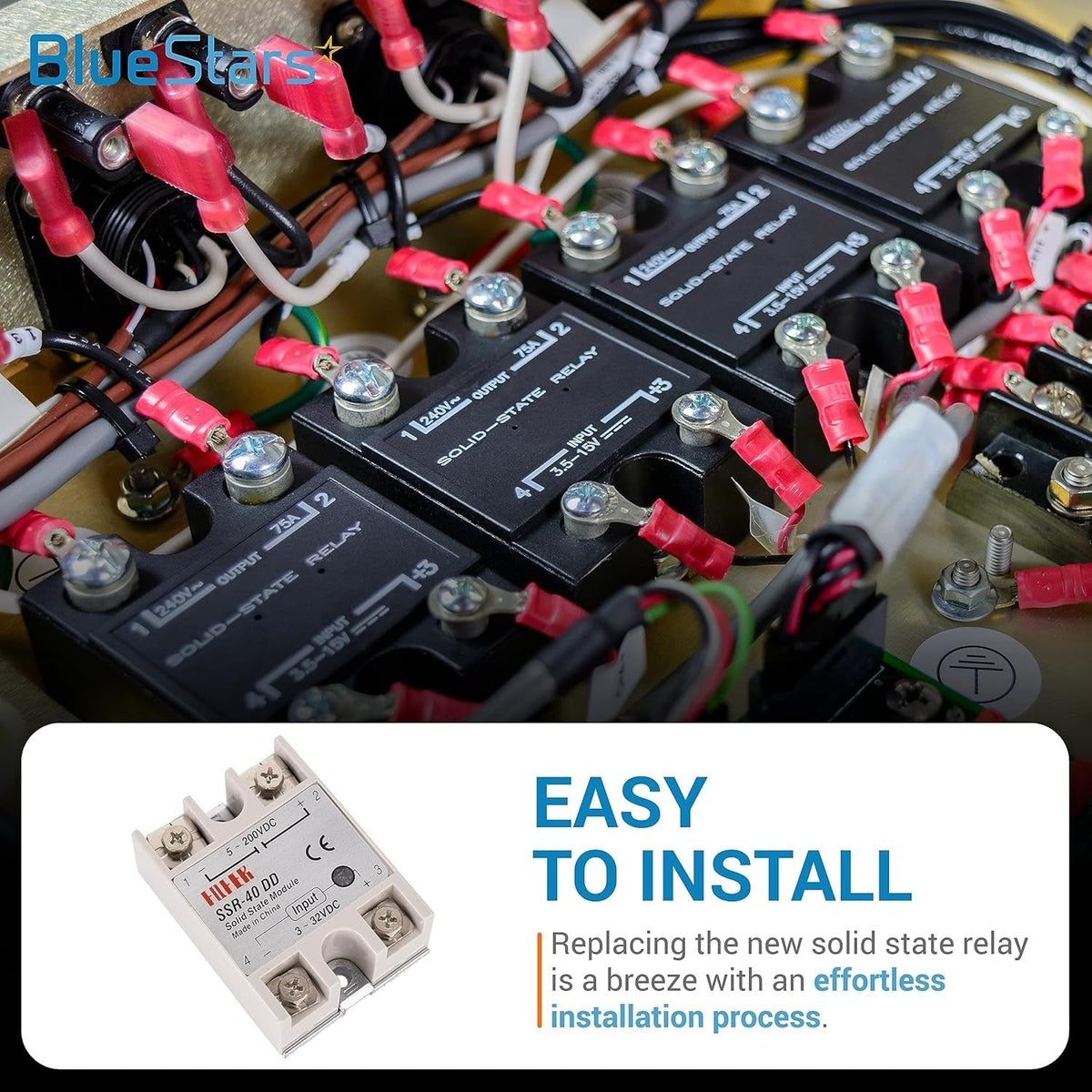

Installation & Wiring Tips
- Heatsink is MANDATORY (CRITICAL): SSRs generate significant heat. If you are drawing more than 10 Amps continuously, you must mount this relay to an aluminum heatsink. Pushing 40A without a heatsink will literally melt the relay and cause a fire.
- Thermal Paste: Always apply a thin, even layer of thermal compound (PC processor paste) between the metal bottom of the relay and the aluminum heatsink for proper heat transfer.

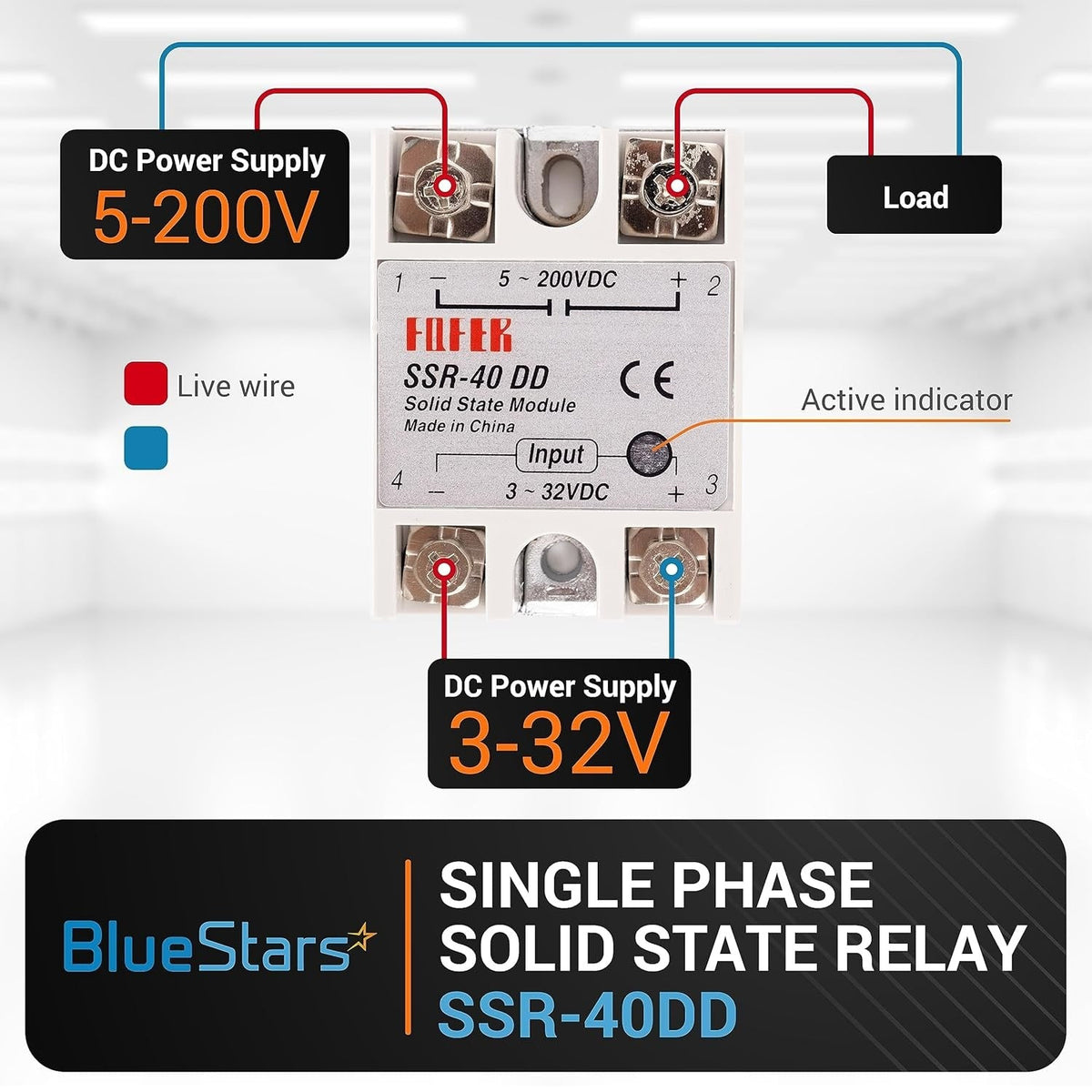

- Strict DC Polarity: Unlike AC relays, DC relays are strictly polarized. You must carefully observe the Positive (+) and Negative (-) markings on both the Input (control) and Output (load) sides. Wiring the load backward will destroy the relay instantly.
- Load Derating (PRO TIP): For inductive loads (like heavy DC motors with magnetic coils), the starting current spikes massively. It is highly recommended to derate the relay and only run inductive loads at 50% of the maximum rating (i.e., keep continuous motor loads under 20A for a 40A relay).
