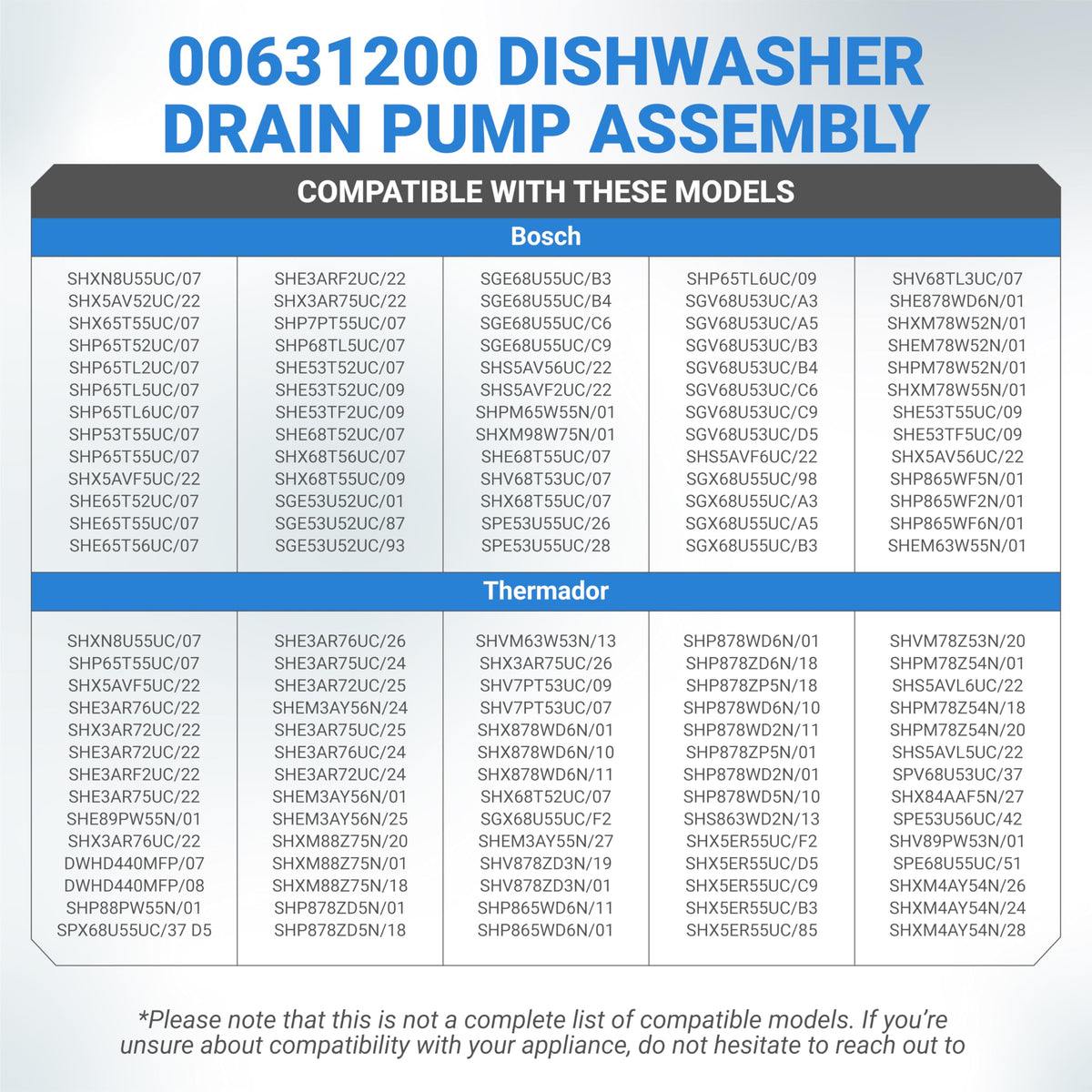

Compatibility chart for 00631200 dishwasher drain pump motor assembly for Bosch and Thermador models.
00631200 dishwasher drain pump motor assembly replacement part for Bosch and Thermador dishwashers.
Replacement dishwasher drain pump motor assembly for Bosch and Thermador appliances.
Dimensional diagram of 00631200 dishwasher drain pump motor assembly for Bosch and Thermador appliances.
Dishwasher drain pump motor assembly for Bosch and Thermador, shown with water splash effect and efficiency shield icon.
Infographic showing sturdy material features of Bosch dishwasher drain pump motor assembly 00631200.
Dishwasher drain pump motor assembly for Bosch and Thermador with compatibility and part number information.
00631200 dishwasher drain pump motor assembly shown with infographic illustrating common dishwasher repair symptoms.
Four-step installation guide for Bosch and Thermador dishwasher drain pump motor assembly 00631200.
Compatibility chart for 00631200 dishwasher drain pump motor assembly for Bosch and Thermador models.
00631200 dishwasher drain pump motor assembly replacement part for Bosch and Thermador dishwashers.
Lifetime Warranty

[Lifetime Warranty] 00631200 Dishwasher Drain Pump Motor Assembly Compatible with Bosch Thermador Dishwasher - 631200 Dishwasher Replacement Part PS11704799 AP5972147 1208028 4578287

Save 13%
0.00
$29.60
$34.04
$29.60
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

00631200 Dishwasher Drain Pump Motor Assembly

Key Features

  • Direct replacement drain pump and motor assembly.
  • Expels water from the dishwasher tub during the drain cycle.
  • Engineered to meet original equipment manufacturer specifications.
  • Can resolve common draining issues and fault codes (e.g., E24, E25).

Replaces / Cross-Reference Part Numbers

  • 00631200
  • 631200
  • AP5972147
  • PS11704799
  • 1208028
  • 4578287

Compatibility & Fitment

  • Designed to fit specific Bosch dishwasher models.
  • Designed to fit specific Thermador dishwasher models.
  • Also compatible with select Gaggenau dishwasher models.

When to Replace

  • Dishwasher fails to drain water at the end of a cycle.
  • Loud humming or grinding noises occur during the drain phase.
  • Water pools at the bottom of the dishwasher tub.
  • Visible leaks are present around the pump assembly.
  • The dishwasher displays a drain-related error code.

Installation Tips

  • Disconnect the dishwasher from both power and water supplies before installation.
  • Access the pump from the bottom of the unit; it may require tipping the dishwasher.
  • Place towels underneath the dishwasher to catch residual water.
  • Inspect and clear any debris from drain lines and the pump filter housing.
  • Ensure hose clamps are tightened securely to prevent leaks after installation.
Product image
Product image
Product image

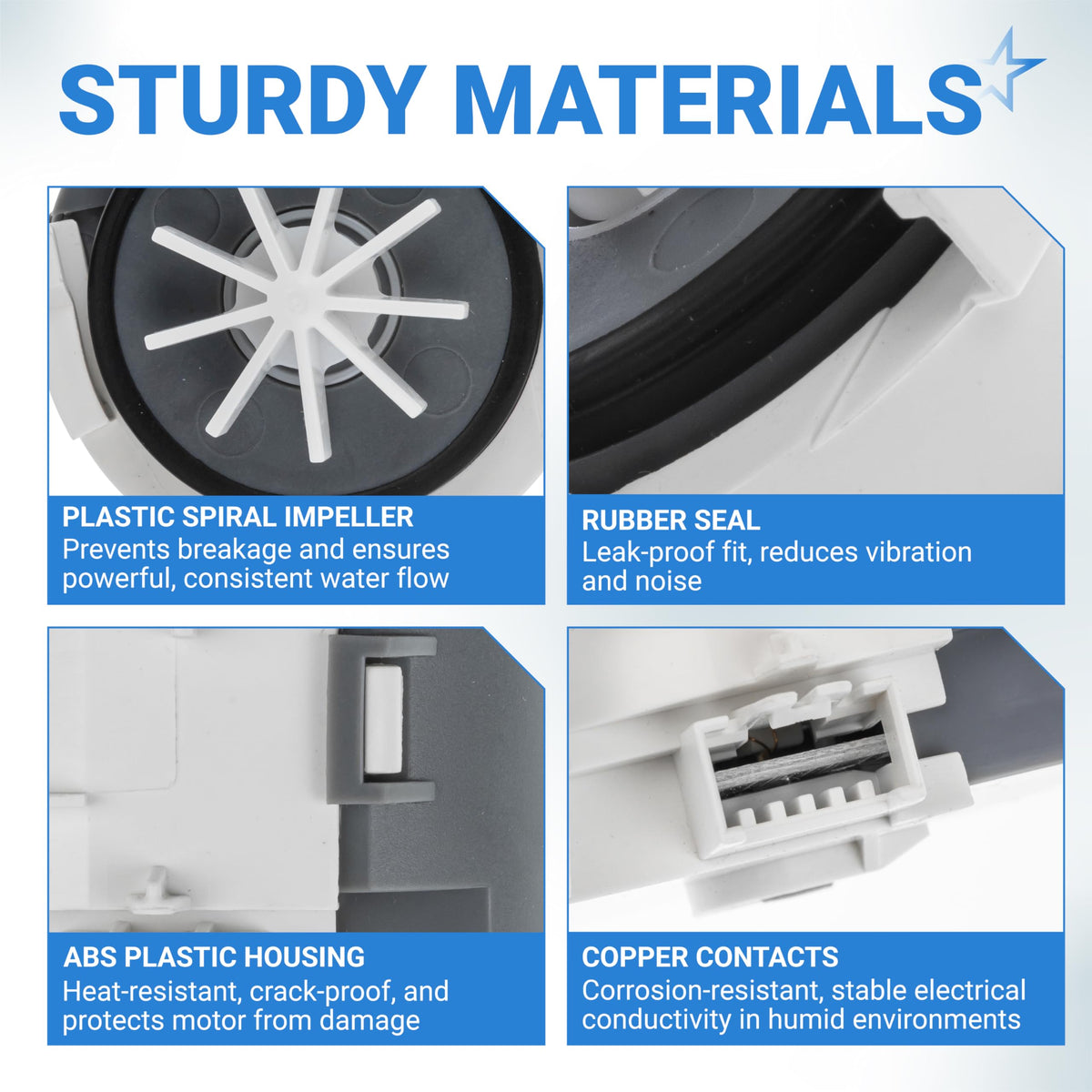

  • PLASTIC SPIRAL IMPELLER

    PLASTIC SPIRAL IMPELLER

    Designed to prevent breakage while ensuring strong and consistent water flow.
  • ABS PLASTIC HOUSING

    ABS PLASTIC HOUSING

    Heat-resistant and crack-proof construction that protects internal components from damage.
  • RUBBER SEAL

    RUBBER SEAL

    Provides a leak-proof fit while reducing vibration and operational noise.
  • COPPER CONTACTS

    COPPER CONTACTS

    Corrosion-resistant design ensures stable electrical conductivity even in humid environments.

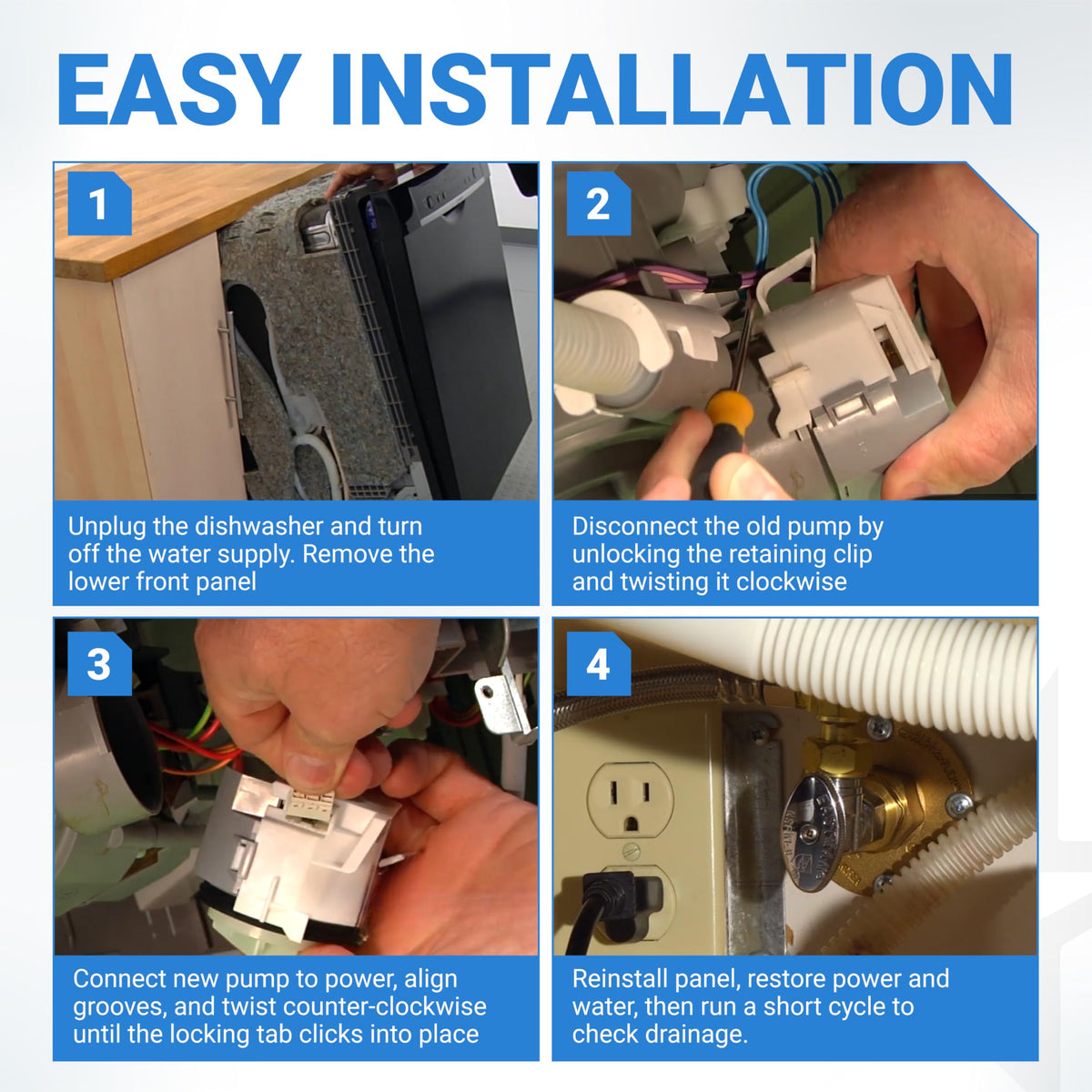

4 SIMPLE STEPS

4 SIMPLE STEPS

1. Unplug dishwasher, shut off water, remove lower panel | 2. Unlock retaining clip and twist old pump clockwise to remove | 3. Connect new pump, align grooves, twist counterclockwise until tab clicks | 4. Reinstall panel, restore power/water, run a short cycle to check drainage.
IMPORTANT NOTE

IMPORTANT NOTE

The 00631200 dishwasher drain pump CANNOT replace 00611332, 00620774, or DD31-00016A. These pumps may look similar, but the housing, plug, and dimensions differ slightly. Please verify measurements and your appliance model before purchasing to ensure you receive the correct part.
Brand Model Number
Bosch SHXN8U55UC/07, SHX5AV52UC/22, SHX65T55UC/07, SHP65T52UC/07, SHP65TL2UC/07, SHP65TL5UC/07, SHP65TL6UC/07, SHP53T55UC/07, SHP65T55UC/07, SHX5AVF5UC/22, SHE65T52UC/07, SHE65T55UC/07, SHE65T56UC/07, SHE53T55UC/07, SHE53T56UC/07, SHE53TF2UC/07, SHE53TF5UC/07, SHE53TF6UC/07, SHS5AV55UC/22, SGE53U55UC/A3, SGE53U55UC/A5, SGE53U55UC/B3, SGE53U55UC/B4, SHP68T55UC/07, SHV53T53UC/07, SHX5AV55UC/22, SHE3AR76UC/22, SHX3AR72UC/22, SHP65T55UC/09, SHE3AR72UC/22
Bosch SHE3ARF2UC/22, SHX3AR75UC/22, SHP7PT55UC/07, SHP68TL5UC/07, SHE53T52UC/07, SHE53T52UC/09, SHE53TF2UC/09, SHE68T52UC/07, SHX68T56UC/07, SHX68T55UC/09, SGE53U52UC/01, SGE53U52UC/87, SGE53U52UC/93, SGE53U52UC/98, SGE53U52UC/A3, SGE53U52UC/A5, SGE53U52UC/B3, SGE53U52UC/B4, SGE53U52UC/C6, SGE53U52UC/C9, SGE53U56UC/A3, SGE53U56UC/A5, SGE53U56UC/B3, SGE53U56UC/B4, SGE53U56UC/C6, SGE53U56UC/C9, SGE68U55UC/93, SGE68U55UC/98, SGE68U55UC/A3, SGE68U55UC/A5
Bosch SGE68U55UC/B3, SGE68U55UC/B4, SGE68U55UC/C6, SGE68U55UC/C9, SHS5AV56UC/22, SHS5AVF2UC/22, SHPM65W55N/01, SHXM98W75N/01, SHE68T55UC/07, SHV68T53UC/07, SHX68T55UC/07, SPE53U55UC/26, SPE53U55UC/28, SPE53U55UC/29, SPE53U55UC/30, SPE53U55UC/33, SHPM65W56N/01, SHP65T56UC/09, SHP68TL5UC/09, SHVM63W53N/01, SHXN8U55UC/09, SHE53T56UC/09, SHE53TF6UC/09, SHX53T55UC/07, SHP68T55UC/09, SHE68T55UC/09, SHPM65W52N/01, SHP65T52UC/09, SHP65TL2UC/09, SHP65TL5UC/09
Bosch SHP65TL6UC/09, SGV68U53UC/A3, SGV68U53UC/A5, SGV68U53UC/B3, SGV68U53UC/B4, SGV68U53UC/C6, SGV68U53UC/C9, SGV68U53UC/D5, SHS5AVF6UC/22, SGX68U55UC/98, SGX68U55UC/A3, SGX68U55UC/A5, SGX68U55UC/B3, SGX68U55UC/B4, SGX68U55UC/C6, SGX68U55UC/C9, SHE878WD5N/01, SHXM78W56N/01, SHPM98W75N/01, SHE7PT52UC/07, SHPM78W55N/01, SHE3AR75UC/22, SHE3ARF6UC/22, SHS5AVF5UC/22, SHE89PW55N/01, SHP53T55UC/09, SHE7PT56UC/07, SHE863WF5N/01, SHE863WF2N/01, SHE863WF6N/01
Bosch SHV68TL3UC/07, SHE878WD6N/01, SHXM78W52N/01, SHEM78W52N/01, SHPM78W52N/01, SHXM78W55N/01, SHE53T55UC/09, SHE53TF5UC/09, SHX5AV56UC/22, SHP865WF5N/01, SHP865WF2N/01, SHP865WF6N/01, SHEM63W55N/01, SHEM63W52N/01, SHEM63W56N/01, SHSM63W55N/01, SHXM63W55N/01, SPV68U53UC/30, SPV68U53UC/23, SPV68U53UC/28, SHE65T52UC/09, SHE65T55UC/09, SHE65T56UC/09, SHE68T52UC/09, SHE68T56UC/07, SHSM63W56N/01, SHX7PT55UC/07, SHE3ARF5UC/22, SHVM78W53N/01, SHVM98W73N/01
Bosch SHE7PT55UC/07, SHEM78WH5N/21, SHEM78WH5N/29, SHEM78WH5N/30, SHEM78WH5N/32, SHX3AR76UC/22, SHEM78W55N/01, SHP65T56UC/07, SHE878WD2N/01, SHEM78W56N/01, SHP88PW55N/01, SHPM78W54N/01, SHPM78W56N/01, SHS5AV52UC/22, SHS863WD2N/01, SHSM63W52N/01, SHX65T55UC/09, SHX68T56UC/09, SHX863WD5N/01, SHX863WD5N/10, SHX88PW55N/01, SHX89PW55N/01, SHXM63WS5N/01, SHXM65W55N/01, SPE53U52UC/26, SPE53U52UC/28, SPE53U52UC/29, SPE53U52UC/30, SPE53U52UC/33, SPE53U56UC/26
Bosch SPE53U56UC/28, SPE53U56UC/30, SPE68U55UC/23, SPE68U55UC/28, SPE68U55UC/30, SPE68U55UC/32, SPE68U55UC/33, SPE68U55UC/37, SPX68U55UC/23, SPX68U55UC/28, SPX68U55UC/29, SPX68U55UC/30, SPX68U55UC/32, SPX68U55UC/33, SPX68U55UC/37, SPX68U55UC/42, SHS863WD2N/10, SPE68U55UC/42, SHS863WD6N/01, SHS863WD6N/10, SHV863WD3N/01, SHV863WD3N/10, SHX863WB5N/01, SHX863WB5N/10, SHPM65W55N/10, SHPM78W52N/10, SHXM78W55N/10, SHE3AR75UC/23, SHEM3AY52N/01, SHEM3AY52N/24
Bosch SHEM3AY52N/25, SHEM3AY55N/24, SHEM3AY55N/25, SHE3AR76UC/25, SGE68X55UC/51, SGE68X55UC/52, SGE68X55UC/01, SHV878WD3N/11, SHV878WD3N/10, SHV878WD3N/01, SGX68U55UC/D5, SHE3AR76UC/26, SHE3AR75UC/24, SHE3AR72UC/25, SHEM3AY56N/24, SHE3AR75UC/25, SHE3AR76UC/24, SHE3AR72UC/24, SHEM3AY56N/01, SHEM3AY56N/25, SHXM65Z55N/01, SHX878WD5N/11, SHX878WD5N/01, SHPM78Z55N/01, SHE53TL2UC/07, SHE53TL2UC/09, SHP865WD5N/01, SHE863WF5N/10, SHXM88Z75N/20, SHPM78W55N/11
Bosch SHXM4AY55N/25, SHXM4AY55N/24, SHXM4AY55N/26, SHXM4AY55N/28, SHXM4AY55N/27, SHXM88Z75N/01, SHXM78Z55N/01, SHXM88Z75N/18, SHP878ZD5N/01, SHP878ZD5N/18, SHPM65W55N/11, SHXM78W55N/11, SHS843AF5N/01, SHP865ZD5N/01, SHPM88Z75N/01, SHP865WF5N/11, SHP865WD5N/11, SHPM78W55N/10, SHX68T52UC/07, SHVM78Z53N/01, SHPM78Z54N/01, SHP865WD5N/10, SHS863WD5N/10, SHS863WD5N/01, SHXM98W75N/10, SHPM65Z55N/01, SHXM4AY55N/01, SHEM3AY55N/01, SHP865WF5N/10, SHEM3AY55N/30
Thermador SHXN8U55UC/07, SHP65T55UC/07, SHX5AVF5UC/22, SHE3AR76UC/22, SHX3AR72UC/22, SHE3AR72UC/22, SHE3ARF2UC/22, SHE3AR75UC/22, SHE89PW55N/01, SHX3AR76UC/22, DWHD440MFP/07, DWHD440MFP/08, SHP88PW55N/01, SPX68U55UC/37, DWHD640JFP/A5, DWHD640JFP/B3, DWHD640JFP/B4, DWHD640JFP/C6, DWHD640JFP/C9, DWHD640JFP/D5, DWHD640JFP/D7, SHXM78W55N/10, SHE3AR75UC/23, SHEM3AY52N/01, SHEM3AY52N/24, SHEM3AY52N/25, SHEM3AY55N/24, SHEM3AY55N/25, SHE3AR76UC/25, SGX68U55UC/D5
Thermador SHE3AR76UC/26, SHE3AR75UC/24, SHE3AR72UC/25, SHEM3AY56N/24, SHE3AR75UC/25, SHE3AR76UC/24, SHE3AR72UC/24, SHEM3AY56N/01, SHEM3AY56N/25, SHXM88Z75N/20, SHXM88Z75N/01, SHXM88Z75N/18, SHP878ZD5N/01, SHP878ZD5N/18, SHPM65W55N/11, SHS843AF5N/01, SHP865ZD5N/01, SHPM88Z75N/01, SHP865WF5N/11, SHX84AAF5N/01, SHXM63WS5N/11, SHPM78Z55N/20, SHP865WD5N/11, SHPM65Z52N/01, SHPM65Z52N/20, SHXM78Z56N/01, SHVM88Z73N/19, SHVM88Z73N/01, SHVM88Z73N/18, SHVM88Z73N/20
Thermador SHVM63W53N/13, SHX3AR75UC/26, SHV7PT53UC/09, SHV7PT53UC/07, SHX878WD6N/01, SHX878WD6N/10, SHX878WD6N/11, SHX68T52UC/07, SGX68U55UC/F2, SHEM3AY55N/27, SHV878ZD3N/19, SHV878ZD3N/01, SHP865WD6N/11, SHP865WD6N/01, SHP865WD6N/10, SHPM98W75N/20, SHE878WD5N/11, SHPM65Z55N/20, SPX68B55UC/02, SPX68B55UC/04, SPX68B55UC/01, SPX68B55UC/07, SPV68U53UC/51, SHXM78Z55N/20, SHP865WD2N/10, SHP878WD5N/01, SHP878WD6N/11, SHP878WD2N/10, SHP878ZD2N/18, SHP878WD5N/11
Thermador SHP878WD6N/01, SHP878ZD6N/18, SHP878ZP5N/18, SHP878WD6N/10, SHP878WD2N/11, SHP878ZP5N/01, SHP878WD2N/01, SHP878WD5N/10, SHS863WD2N/13, SHX5ER55UC/F2, SHX5ER55UC/D5, SHX5ER55UC/C9, SHX5ER55UC/B3, SHX5ER55UC/85, SHX5ER55UC/F1, SHX5ER55UC/B4, SHX5ER55UC/F7, SHX5ER55UC/C6, SHX5ER55UC/A5, SHV88PW53N/11, SHV88PW53N/10, SHV88PW53N/12, SHV88PW53N/01, SHP865WD2N/11, SHS63VL5UC/07, SHSM63W55N/20, SHVM63W53N/11, SHVM78Z53N/19, SHVM78Z53N/01, SHVM78Z53N/18
Thermador SHVM78Z53N/20, SHPM78Z54N/01, SHS5AVL6UC/22, SHPM78Z54N/18, SHPM78Z54N/20, SHS5AVL5UC/22, SPV68U53UC/37, SHX84AAF5N/27, SPE53U56UC/42, SHV89PW53N/01, SPE68U55UC/51, SHXM4AY54N/26, SHXM4AY54N/24, SHXM4AY54N/28, SHXM4AY54N/01, SHXM4AY54N/27, SHXM4AY54N/25, SHE3AR75UC/27, SHS63VL2UC/09, SHP865WD5N/10, SHEM63W55N/20, SHXM65W55N/10, SHXM63WS5N/13, SHE3AR75UC/26, SHE3AR76UC/27, SHE3AR75UC/28, SHE3AR72UC/27, SHE3AR72UC/28, SHEM3AY55N/28, SHE3AR76UC/28
Thermador SHE3AR72UC/26, SHX3AR72UC/25, SHX3AR72UC/27, SHX3AR76UC/25, SHX3AR76UC/27, SHS863WD5N/10, SHS863WD5N/13, SHS863WD5N/11, SHS863WD5N/01, SHEM3AY52N/26, SHX3AR72UC/28, SHX3AR72UC/24, SHEM3AY52N/28, SHX3AR72UC/26, SHX3AR76UC/24, SHX3AR76UC/26, SHX3AR76UC/28, SHEM3AY52N/27, SHE53TL6UC/07, SHSM63W56N/11, SHS63VL5UC/09, SHS63VL5UC/10, SHS63VL5UC/11, SHV863WD3N/13, SHPM65W52N/11, SHEM63W55N/10, SHPM78W54N/10, SHP865YP5N/01, SHX3AR75UC/23, SHXM78Z54N/20
Thermador SHXM78Z54N/18, SHXM78Z54N/01, SHX5AVF2UC/22, SHX5AVF6UC/22, SHX87PW55N/11, SHX878ZD5N/01, SHSM63W52N/13, SHE878WD5N/10, SHEM78W52N/10, SHX863WD5N/13, SHE878WD2N/11, SPE53U52UC/42, SHE89PW55N/10, SHE863WF5N/11, SHS63VL2UC/10, SPX68U55UC/45, SHE33T56UC/07, SHE33T56UC/09, SHX84AYD5N/25, SHX84AYD5N/01, SHX84AYD5N/27, SHX84AYD5N/28, SHX84AYD5N/26, SHX84AYD5N/24, SHEM78W52N/11, SHPM65Z56N/20, SHPM65Z56N/01, SHX84AAF5N/28, SHEM3AY56N/27, SHX88PW55N/11
Thermador SHPM88Z75N/20, SHX68TL5UC/07, SHP865WD2N/01, SHEM78Z52N/20, SHEM78Z52N/18, SHX3AR75UC/24, SHPM78Z55N/18, SHXM63WS5N/10, SHS63VL2UC/07, SHXM63W55N/20, SHP865WF2N/10, SHP87PW55N/12, SHP87PW55N/10, SHP87PW55N/01, SHP87PW55N/11, SHPM78Z56N/01, SHEM78ZH5N/21, SHX3AR75UC/27, SHXM4AY56N/01, SHXM4AY56N/25, SHXM4AY56N/27, SHXM4AY56N/28, SHXM4AY56N/24, SHXM4AY56N/26, SHS63VL2UC/11, SHVM98W73N/10, SHE89PW55N/11, SHPM78W56N/11, SPE68B55UC/07, SPE68B55UC/04
Thermador SHSM63W55N/11, SHXM63W55N/13, SGE68X55UC/63, SHX5AVL5UC/22, SHPM78Z52N/20, SHPM78Z52N/18, SHPM78Z52N/01, SGX68U55UC/F7, SHEM63W52N/11, SHX68TL5UC/09, SPV68U53UC/45, SHX88PZ55N/01, SHX88PZ55N/18, SHPM78W52N/11, SHV68T53UC/09, SPE53U55UC/51, SHPM98W75N/11, SHV89PW73N/52, SHX53TL5UC/07, SHVM98W73N/13, SHEM63W56N/11, SHE878ZD6N/18, SHE878ZD5N/18, SHE878ZD2N/18, SHXM4AY55N/01, SHX89PW55N/11, SHP88PZ55N/01, SHX89PW55N/10, SHV89PW73N/61, SHX89PW75N/61
Thermador SHV88PZ53N/19, SHXM78W54N/01, SPE53U55UC/32, SPX68U55UC/58, SPE53B55UC/04, SPE53B55UC/07, SHXM78Z55N/18, SHVM4AYB3N/27, SHVM4AYB3N/24, SHXM98W75N/11, SPV68B53UC/07, SPV68B53UC/01, SPV68B53UC/04, SPV68B53UC/02, SPE53U55UC/37, SHP865ZP5N/01, SHVM98W73N/11, SHEM3AY55N/26, SPV68U53UC/42, SHEM78Z55N/18, SHEM78Z55N/20, SHSM63W55N/13, SHE863WF6N/10, SHEM3AY55N/01, SHV863WD3N/11, SHPM65W55N/13
Thermador SHX89PW75N/38, SHVM78W53N/11, SHV89PW73N/66, SHSM63W55N/10, SHP865WF5N/10
Note This is not an exhaustive list. You can send us your appliance model, and we will help you!

FAQ

This drain pump assembly is used on select Bosch and Thermador dishwashers. Example model references seen for this part family include Bosch models such as SHXN8U55UC/07, SHP65T55UC/07, SHX5AVF5UC/22, SHE3AR76UC/22, SHX3AR72UC/22, SHE3AR72UC/22, SHE3ARF2UC/22, SHE3AR75UC/22, SHE89PW55N/01, and SHX3AR76UC/22, as well as Thermador models such as DWHD440MFP/07. Because dishwasher fitment can vary by full model and revision number, match your original part number and complete model number before ordering.
This replacement corresponds to part numbers 00631200 and 631200, and cross-references 1208028, AP5972147, PS11704799, and 4578287.
A failing drain pump commonly causes water to remain in the tub at the end of the cycle, slow draining, unusual humming or grinding during the drain phase, or complete drain failure. On some Bosch and Thermador dishwashers, drain problems tied to this pump may also show E24 or E25 errors.
For many Bosch and Thermador dishwashers, this is a moderate repair. Typical tools may include a Torx driver, screwdriver, pliers, towels, and a shallow pan or container for residual water. Many repairs can be completed in about 30 to 90 minutes depending on whether the dishwasher must be pulled from the cabinet and how easy it is to access the pump area.
Before replacing the pump, unplug the dishwasher or switch off power at the breaker and shut off the water supply if needed. Check for a blocked filter, debris in the sump, a clogged drain hose, a blocked air gap if your installation has one, or a jammed pump impeller area. Drain issues are not always caused by the motor itself, so clearing obstructions first can help confirm whether the pump is actually faulty.
Drain pumps often fail because of broken glass, food particles, labels, or other debris reaching the impeller and causing it to jam or wear out. Repeated overheating from running while obstructed, moisture intrusion into the motor, or normal long-term wear can also lead to failure.
This part number is commonly associated with select Bosch dishwashers in the 300, 500, and 800 Series, but not every dishwasher in those series uses the same drain pump. The safest way to confirm fit is to match your complete model number and one of these part numbers: 00631200, 631200, 1208028, AP5972147, PS11704799, or 4578287.
