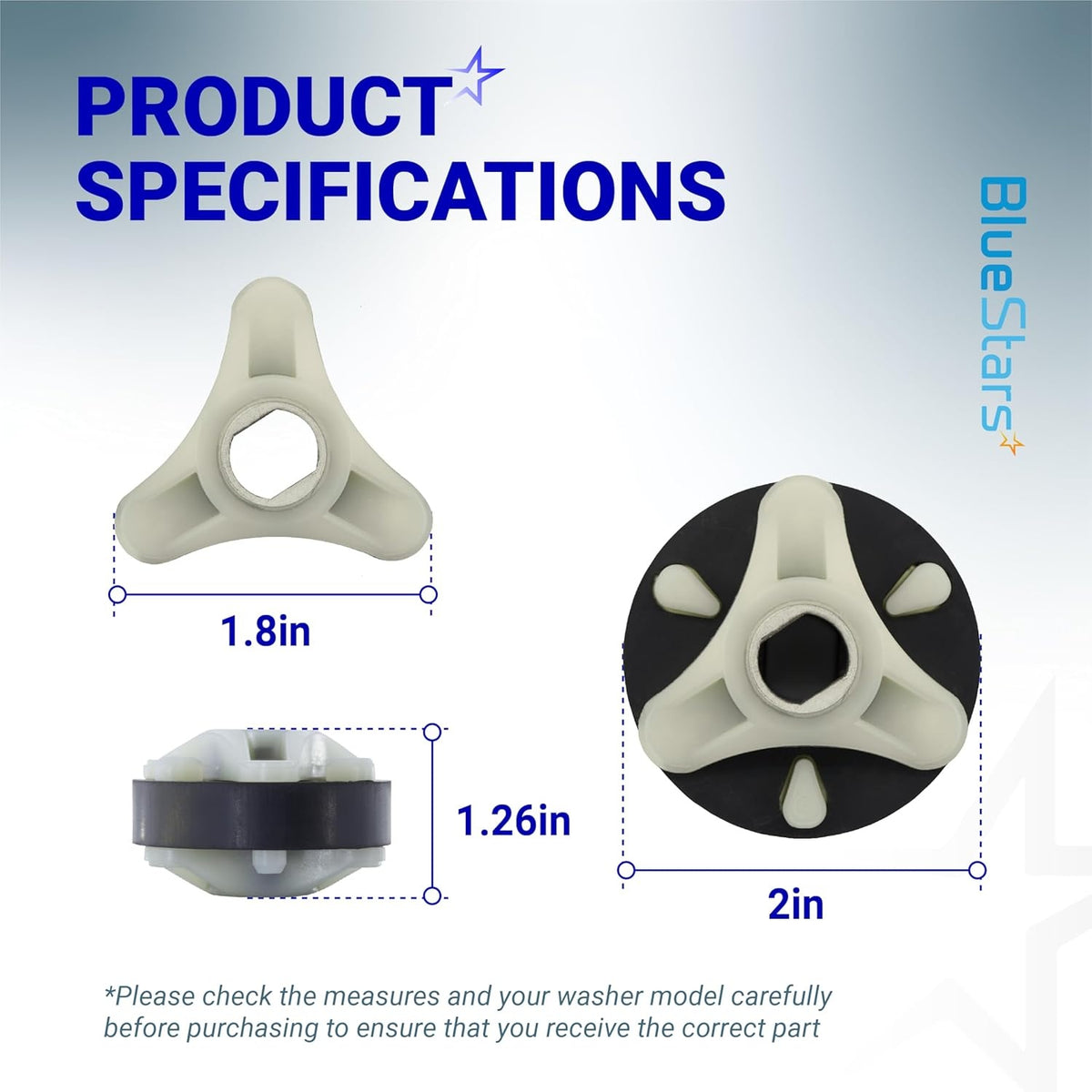

Dimensional diagram of 285753A direct drive motor coupling showing 1.8-inch and 2-inch width and 1.26-inch height.
Informational graphic showing 285753A direct drive motor coupling for Whirlpool and Kenmore washers with compatibility list.

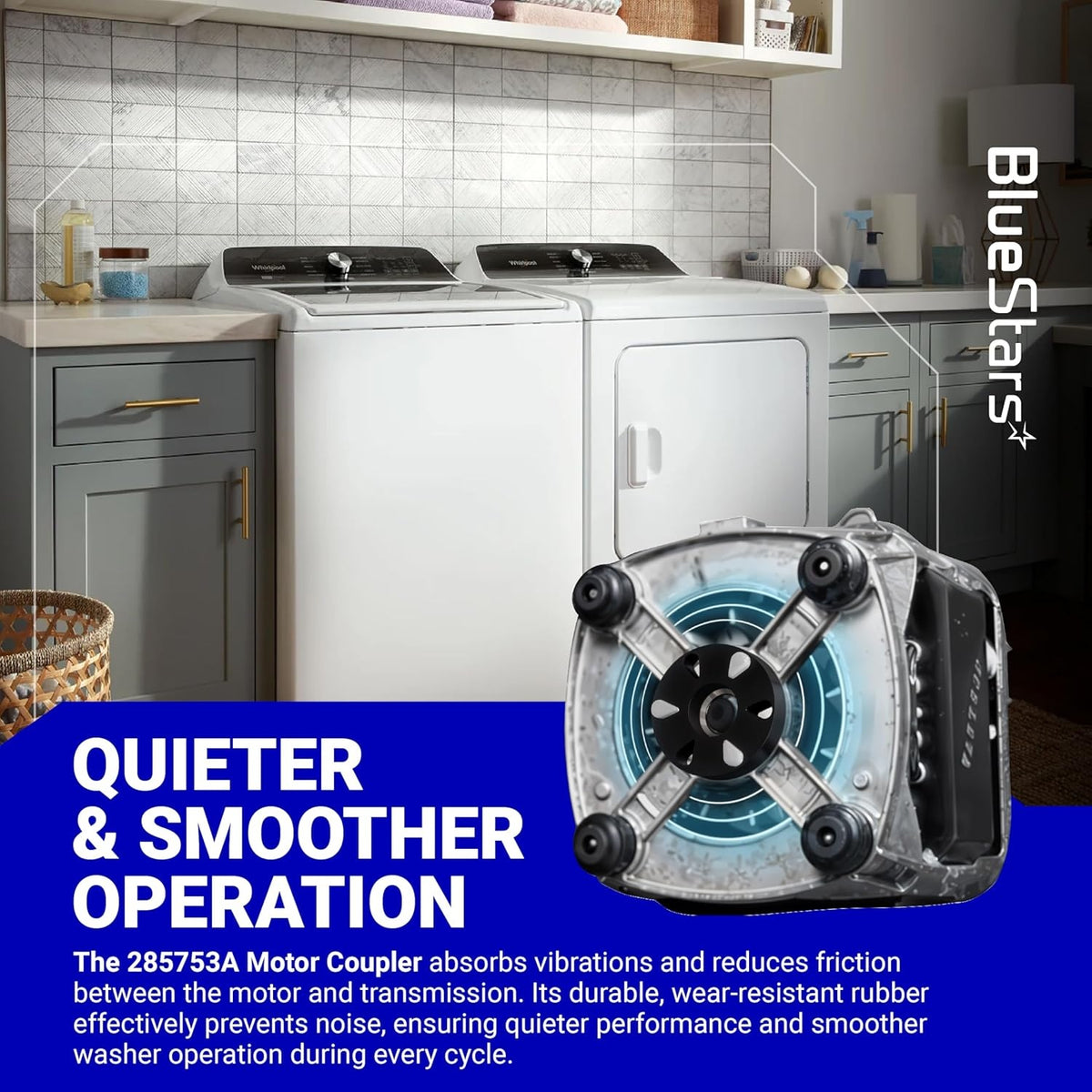

285753A direct drive motor coupling for Whirlpool and Kenmore washers showing vibration-reducing design.
Infographic showing direct drive motor coupling components with metal core and rubber construction for Whirlpool washers.
Direct drive motor coupling for Whirlpool and Kenmore washers showing symptoms fixed by replacement.
Four-step installation guide for Whirlpool and Kenmore washer direct drive motor coupling kit.
Compatibility chart for 285753A direct drive motor coupling kit listing Whirlpool, Kenmore, KitchenAid, and Roper models.
Pack of 12 direct drive motor couplings with metal cores for Whirlpool and Kenmore washing machines.
Dimensional diagram of 285753A direct drive motor coupling showing 1.8-inch and 2-inch width and 1.26-inch height.
Informational graphic showing 285753A direct drive motor coupling for Whirlpool and Kenmore washers with compatibility list.
285753A direct drive motor coupling for Whirlpool and Kenmore washers showing vibration-reducing design.
Infographic showing direct drive motor coupling components with metal core and rubber construction for Whirlpool washers.
Direct drive motor coupling for Whirlpool and Kenmore washers showing symptoms fixed by replacement.
Four-step installation guide for Whirlpool and Kenmore washer direct drive motor coupling kit.
Compatibility chart for 285753A direct drive motor coupling kit listing Whirlpool, Kenmore, KitchenAid, and Roper models.
Lifetime Warranty

[Lifetime Warranty] 285753A Direct Drive Motor Coupling Kit with Metal Core - Compatible with Whirlpool & Kenmore Washers - Replaces AP3963893 PS1485646 285753AVP 1195967 21003 | Pack of 12

Save 13%
0.00
$45.66
$52.51
$45.66
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

285753A Direct Drive Motor Coupling Kit

Key Features

  • Each kit contains two plastic couplings and one rubber motor isolator.
  • Reinforced with a metal core for increased durability and longevity.
  • Connects the motor directly to the washer transmission.
  • Engineered to separate under heavy load to protect the motor and gearcase from damage.

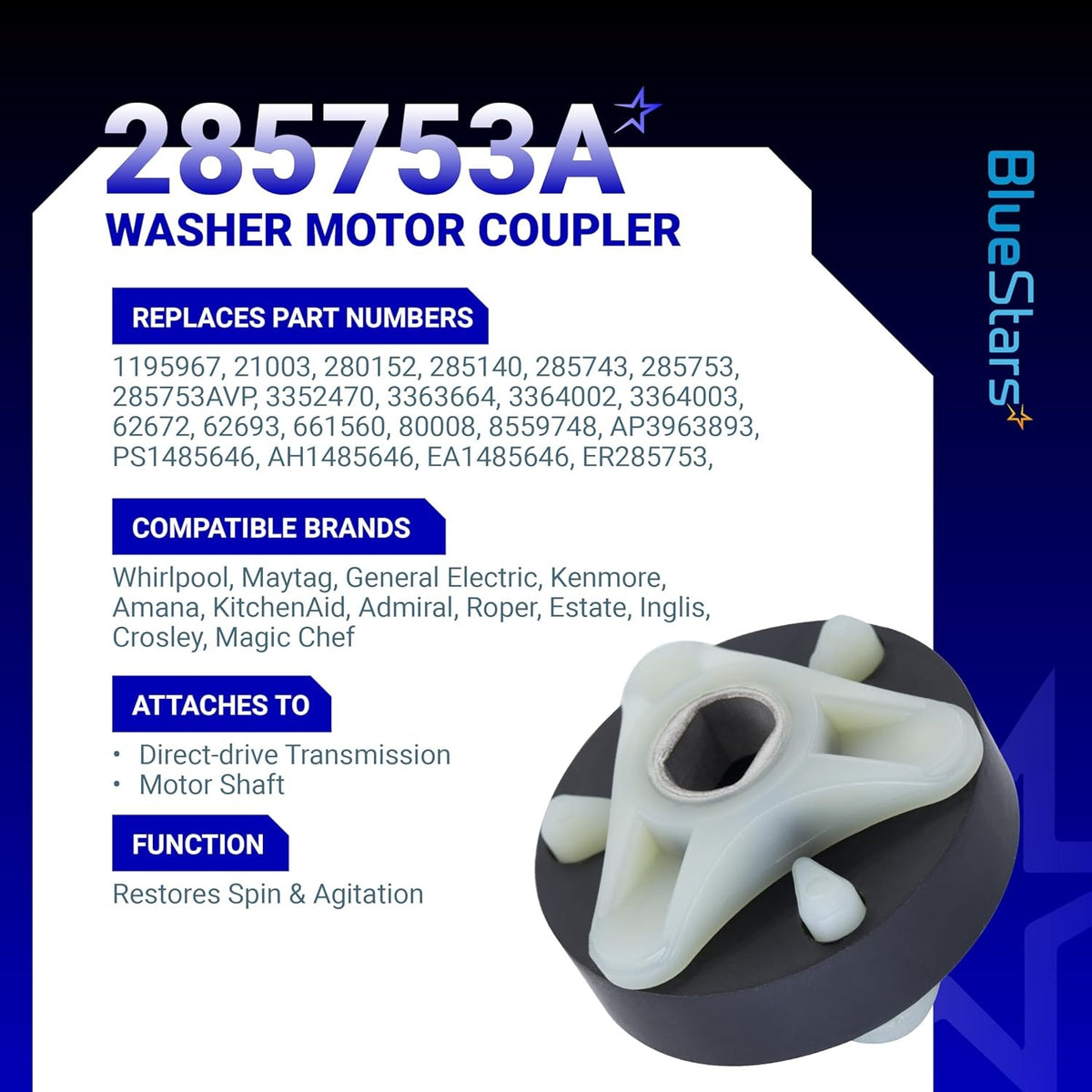

Replaces / Cross-Reference Part Numbers

  • AP3963893
  • PS1485646
  • 285753AVP
  • 1195967
  • 285753
  • 3352470
  • 3363664
  • 280152
  • 285743
  • ER285753

Compatibility & Fitment

  • For use in direct-drive washing machines (no belt).
  • Fits models from brands including Whirlpool, Kenmore, Roper, KitchenAid, Estate, and Inglis.

When to Replace

  • Washer fills with water but does not agitate or spin.
  • Loud grinding or whirring noises are present during operation.
  • Washer agitates but fails to enter the spin cycle.
  • A burning smell is noticeable during a wash cycle.

Installation Tips

  • Disconnect the appliance from all power and water supplies before installation.
  • The coupling is located on the motor shaft, connecting it to the transmission.
  • Ensure the new coupling is properly seated on both the motor and transmission shafts to prevent premature failure.
Product image
Product image
Product image

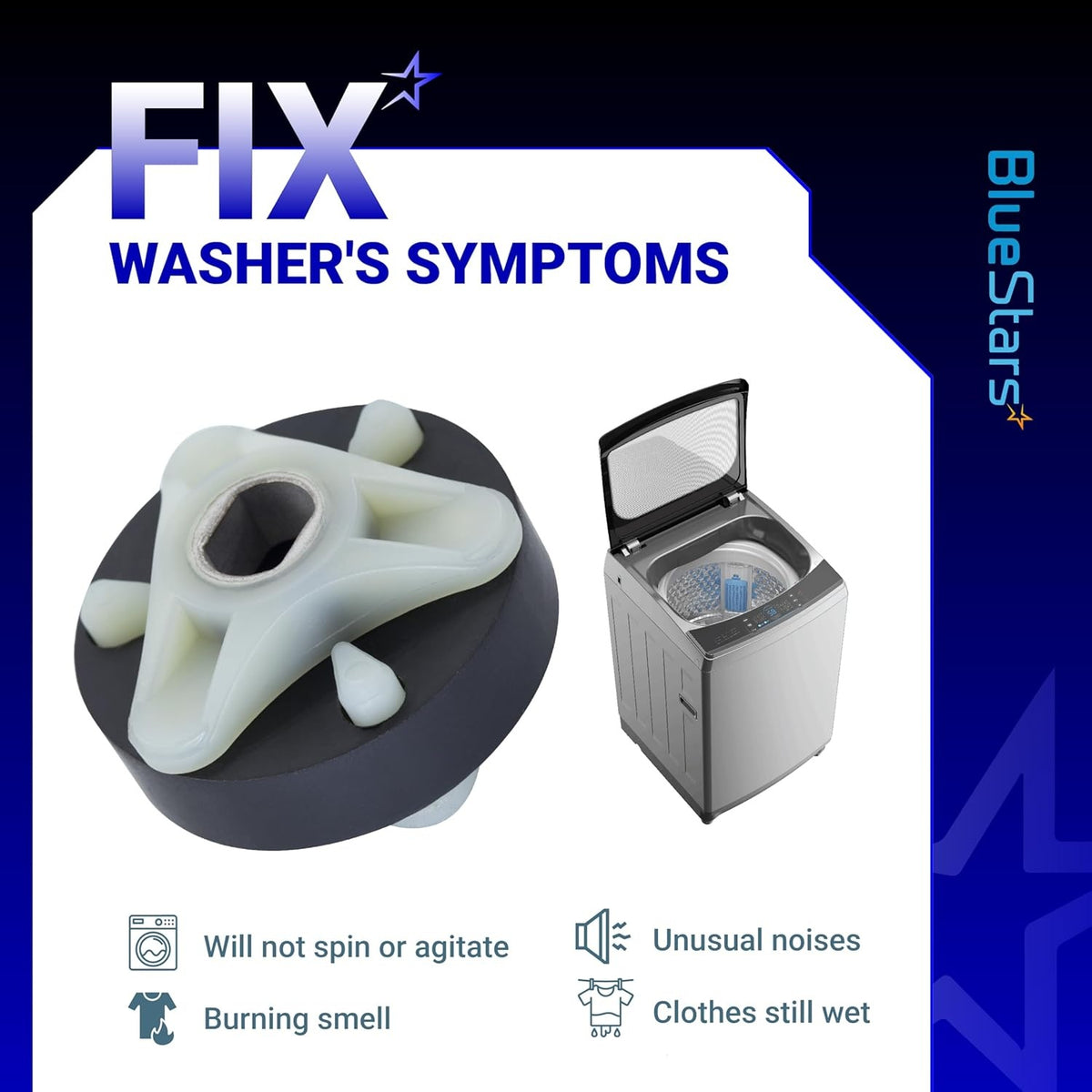

  • FIX WASHER'S SYMPTOMS

    FIX WASHER'S SYMPTOMS

    Will not spin or agitate | Burning smell | Unusual noises | Clothes still wet

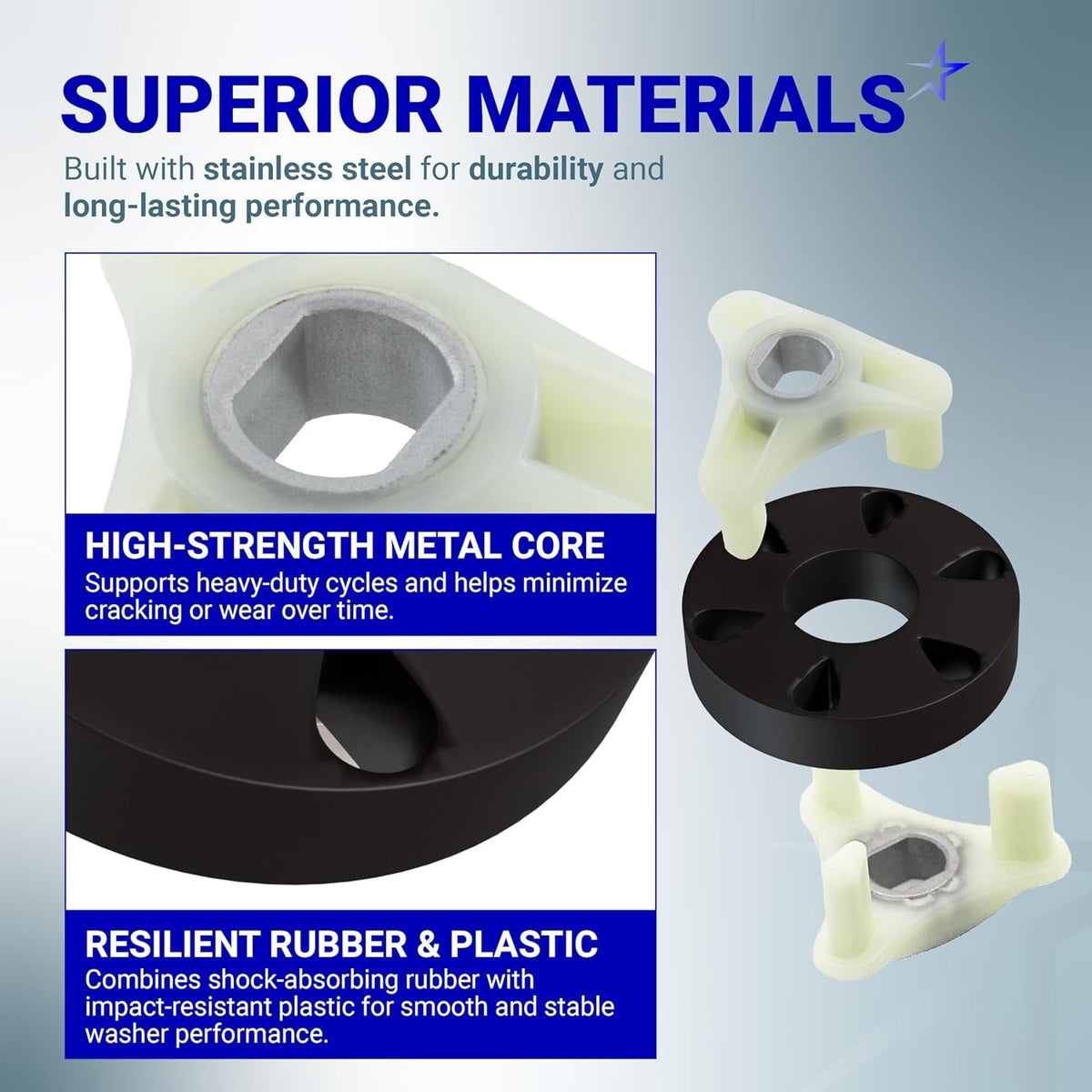

  • RELIABLE QUALITY

    RELIABLE QUALITY

    285753A Coupling Kit is made from high-quality, durable plastic & metal materials for long-lasting reliability and consistent washer performance
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your dryer is repaired and works properly like before - BlueStars brings DIY solutions to help you deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

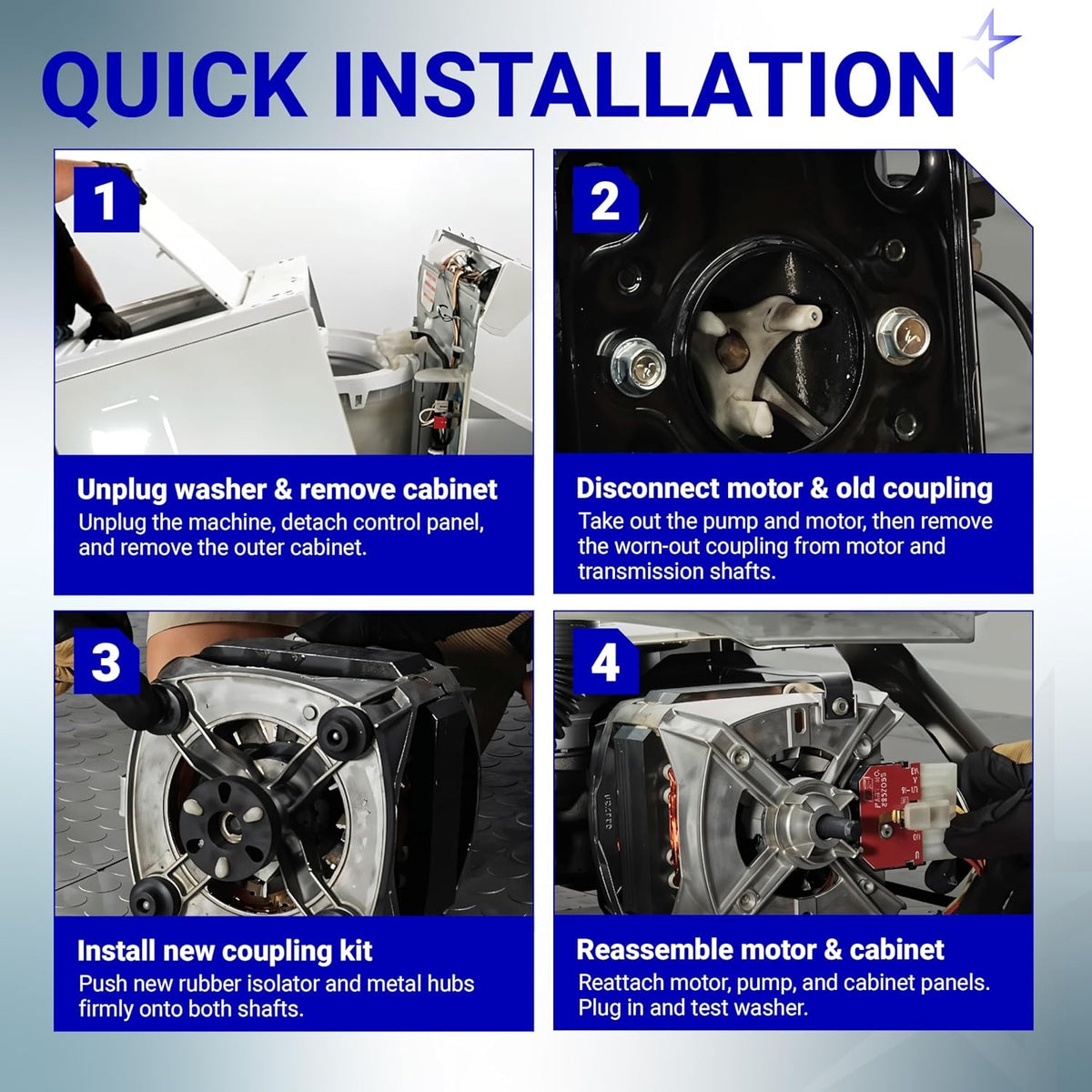

4 SIMPLE STEPS

4 SIMPLE STEPS

1. Unplug washer & remove cabinet: Unplug the machine, detach control panel, and remove the outer cabinet; 2. Disconnect motor & old coupling: Take out the pump and motor, then remove the worn-out coupling from motor and transmission shafts; 3. Install new coupling kit: Push new rubber isolator and metal hubs firmly onto both shafts; 4. Reassemble motor & cabinet: Reattach motor, pump, and cabinet panels. Plug in and test washer.

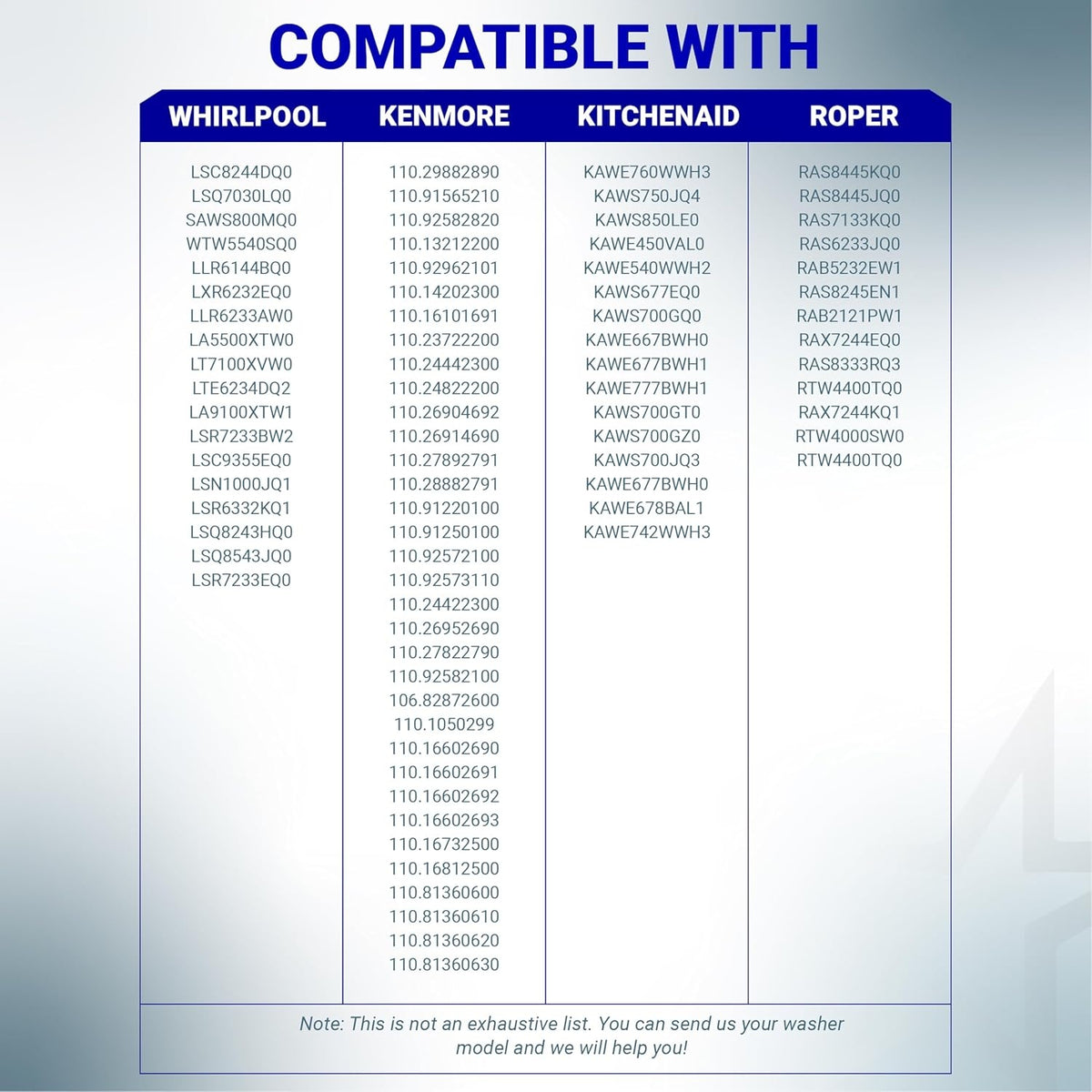

Brand Model Number
Whirlpool LSC8244DQ0, LSQ7030LQ0, SAWS800MQ0, WTW5540SQ0, LLR6144BQ0, LXR6232EQ0, LLR6233AW0, LA5500XTW0, LT7100XVW0, LTE6234DQ2, LA9100XTW1, LSR7233BW2, LSC9355EQ0, LSN1000JQ1, LSR6332KQ1, LSQ8243HQ0, LSQ8543JQ0, LSR7233EQ0, ...
Kenmore 110.29882890, 110.91565210, 110.92582820, 110.13212200, 110.92962101, 110.14202300, 110.16101691, 110.23722200, 110.24442300, 110.24822200, 110.26904692, 110.26914690, 110.27892791, 110.28882791, 110.91220100, 110.91250100, 110.92572100, 110.92573110, 110.24422300, 110.26952690, 110.27822790, 110.92582100, 106.82872600, 110.1050299, 110.16602690, 110.16602691, 110.16602692, 110.16602693, 110.16732500, 110.16812500, 110.81360600, 110.81360610, 110.81360620, 110.81360630, ...
KitchenAid KAWE760WWH3, KAWS750JQ4, KAWS850LE0, KAWE450VAL0, KAWE540WWH2, KAWS677EQ0, KAWS700GQ0, KAWE667BWH0, KAWE677BWH1, KAWE777BWH1, KAWS700GT0, KAWS700GZ0, KAWS700JQ3, KAWE677BWH0, KAWE678BAL1, KAWE742WWH3, ...
Roper RAS8445KQ0, RAS8445JQ0, RAS7133KQ0, RAS6233JQ0, RAB5232EW1, RAS8245EN1, RAB2121PW1, RAX7244EQ0, RAS8333RQ3, RTW4400TQ0, RAX7244KQ1, RTW4000SW0, RTW4400TQ0, ...

FAQ

This coupling is commonly used on direct-drive top-load washers made under several brands, including Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Admiral, Magic Chef, Roper, Estate, Inglis, and Crosley. Some listings also reference fitment for certain model families such as Kenmore 70 Series, 80 Series, 90 Series, and many Kenmore model 110 washers. Because compatibility depends on the exact model and drive design, match your washer's model number and existing part number before ordering.
This kit matches/replaces part numbers 285753A, AP3963893, PS1485646, 285753AVP, 1195967, and 21003. Additional cross-reference numbers found for this part family include 280152, 285140, 285743, 285753, 85140, and EAP1485646.
The direct-drive motor coupling connects the motor shaft to the transmission and acts as a cushioned drive link between them. On these washers, it replaces the function a drive belt would serve in other designs. When the coupling fails, the motor may still run, but the washer may stop agitating or spinning properly.
Typical symptoms include the washer filling and draining but not agitating or spinning, a humming or running motor with no basket movement, intermittent agitation, or finding broken black rubber or plastic coupling pieces under the machine. In many cases the pump will still drain because it is mounted separately from the transmission drive path.
Installation is usually a moderate repair for someone comfortable opening a top-load washer cabinet. Typical tools include a screwdriver, 1/4-inch and 5/16-inch nut drivers or sockets, pliers, and possibly a small hammer or deep socket to help press the coupling hubs onto the shafts evenly. Plan on about 30 to 90 minutes depending on your washer layout and experience. Always unplug the washer and shut off the water supply before starting.
Motor couplings commonly wear out from normal age, repeated heavy loads, out-of-balance loads, or a transmission/basket condition that puts extra shock on the drive system. The rubber isolator can crack over time, and the plastic hub ears can shear off if the washer is overloaded or the drive system binds. If the old coupling failed suddenly, also check that the transmission input, motor shaft, and basket drive turn freely and are not causing repeat stress.
Before installation, compare the old and new parts carefully and remove all broken coupling fragments from the motor and transmission shafts. Inspect the motor mounting plate, rubber isolator, shaft ends, and pump area for damage or misalignment. It is also smart to check for signs of a seized transmission, dragging basket, or worn motor mounts, because those issues can cause a new coupling to fail early.
