[Lifetime Warranty] SRM 2620 Carburetor - Compatible with Echo SRM-2620T SRM-2620Trimmer A021004601 26X Shindaiwa T262X

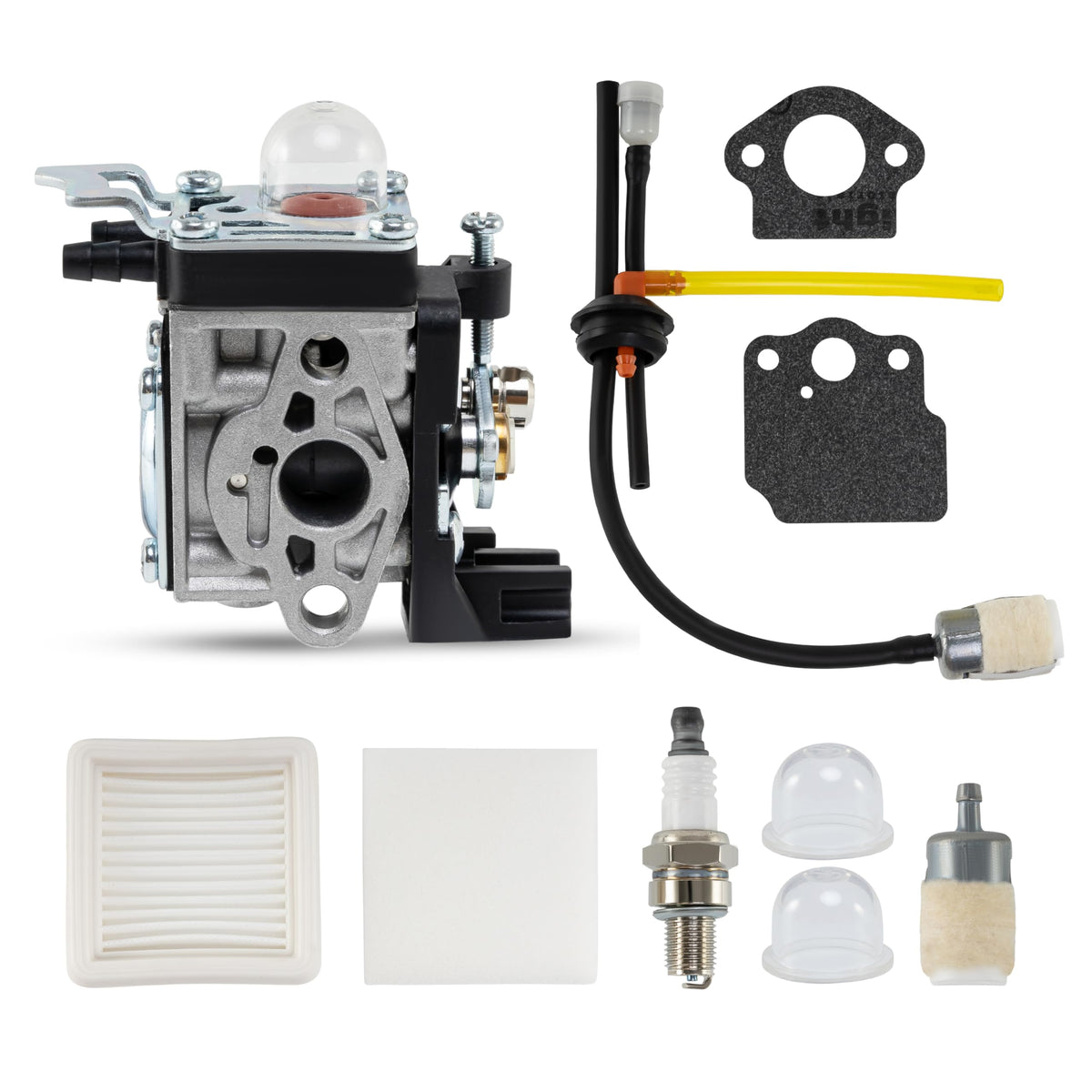

SRM 2620 Carburetor & Air Filter Tune-Up Kit

Key Features

• High-Precision Fuel Metering: Specifically calibrated for the 25.4cc professional-grade 2-stroke engines to ensure a stable idle and rapid throttle response under heavy trimming loads.
• Optimized Airflow Filtration: The included A226002030 pleated air filter provides superior surface area compared to foam, trapping fine dust while maintaining the high-velocity intake required for peak RPM.

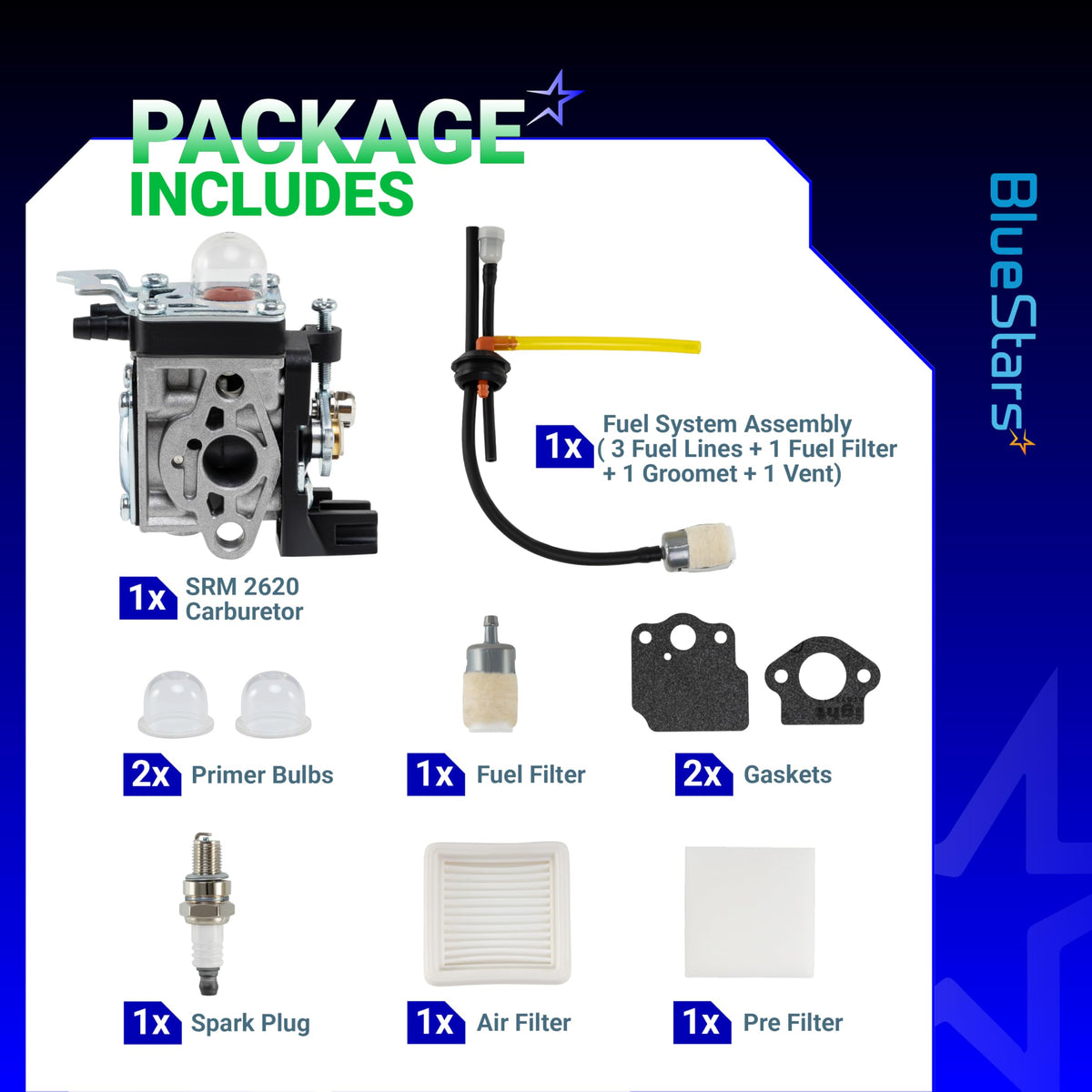

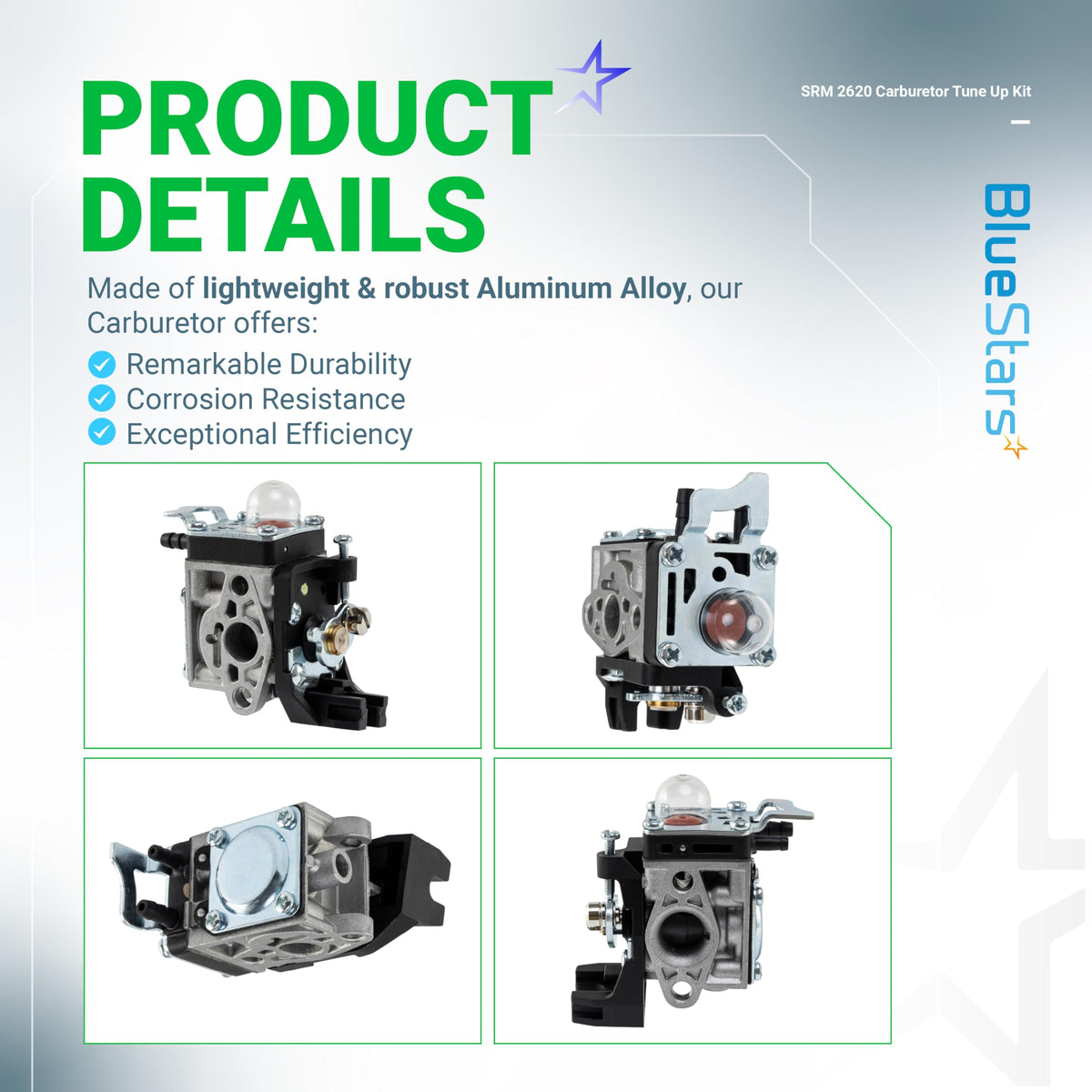

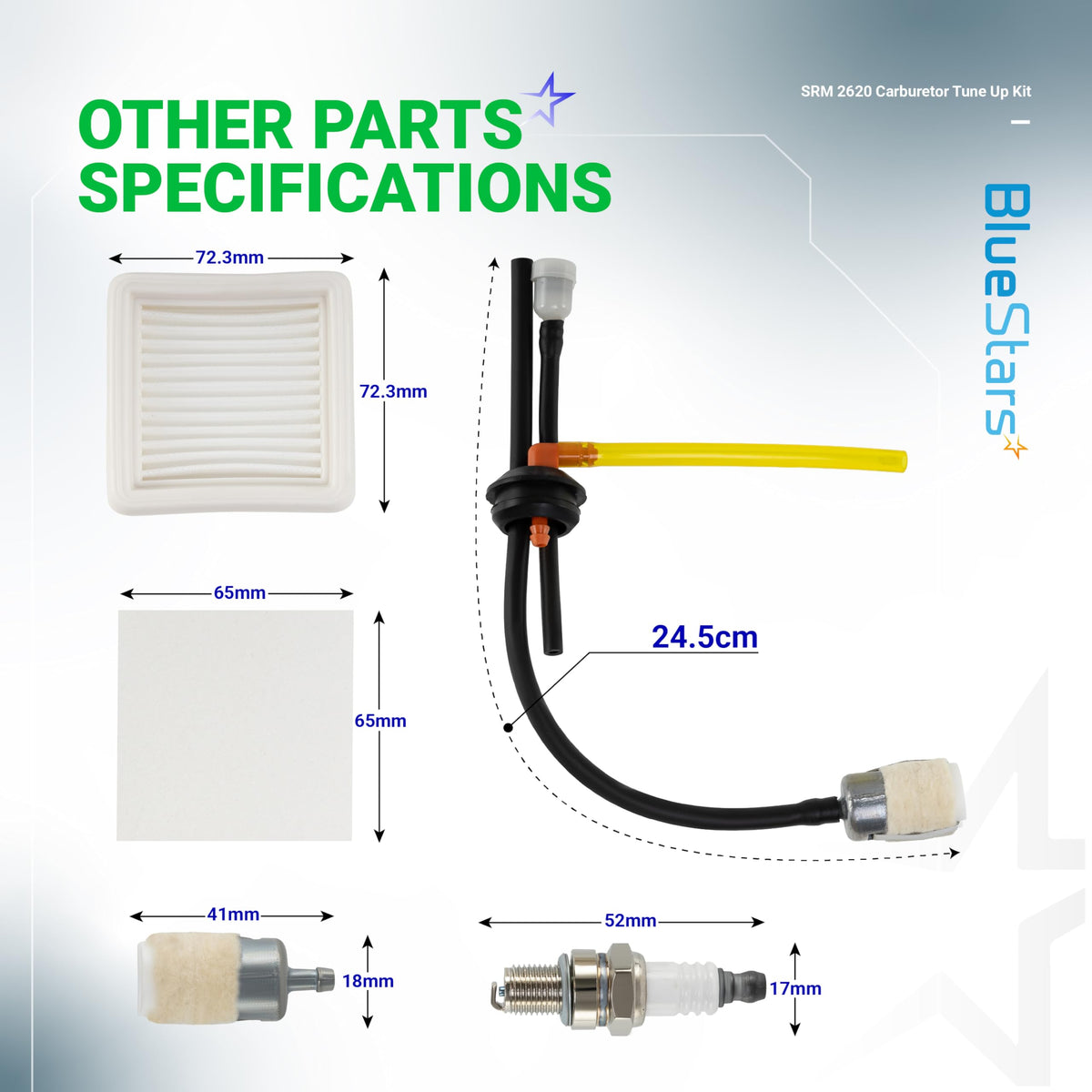

• All-In-One Restoration: A comprehensive maintenance set including a pre-calibrated carburetor, premium spark plug, weighted fuel filter, and chemical-resistant fuel lines.
• Ethanol-Resistant Diaphragms: Equipped with high-grade internal components designed to resist the stiffening and cracking caused by modern ethanol-blended fuels.

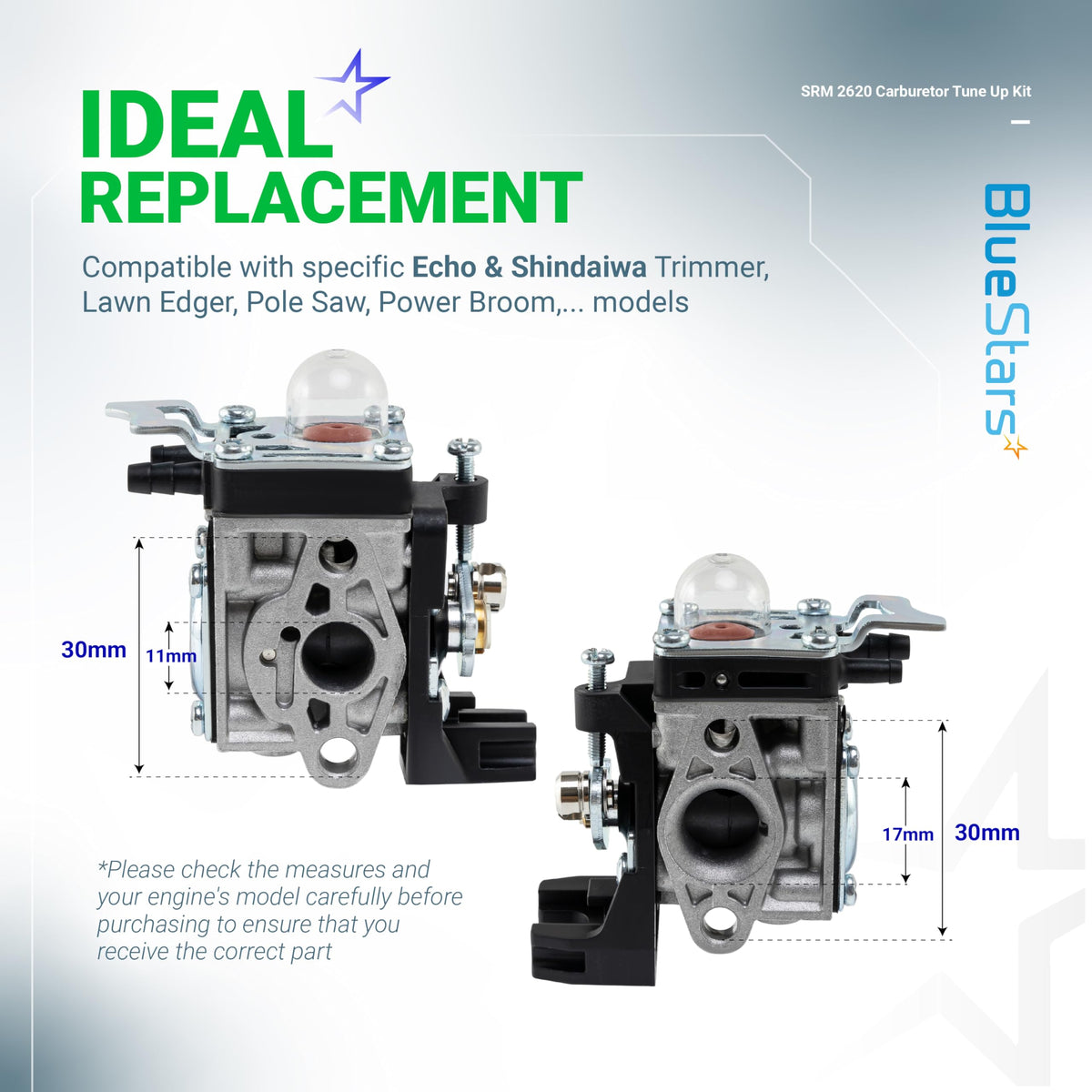

• Direct OEM Integration: Designed as a "drop-in" replacement for the 2620 series, ensuring a perfect fit for factory throttle cables and air box mounting points.

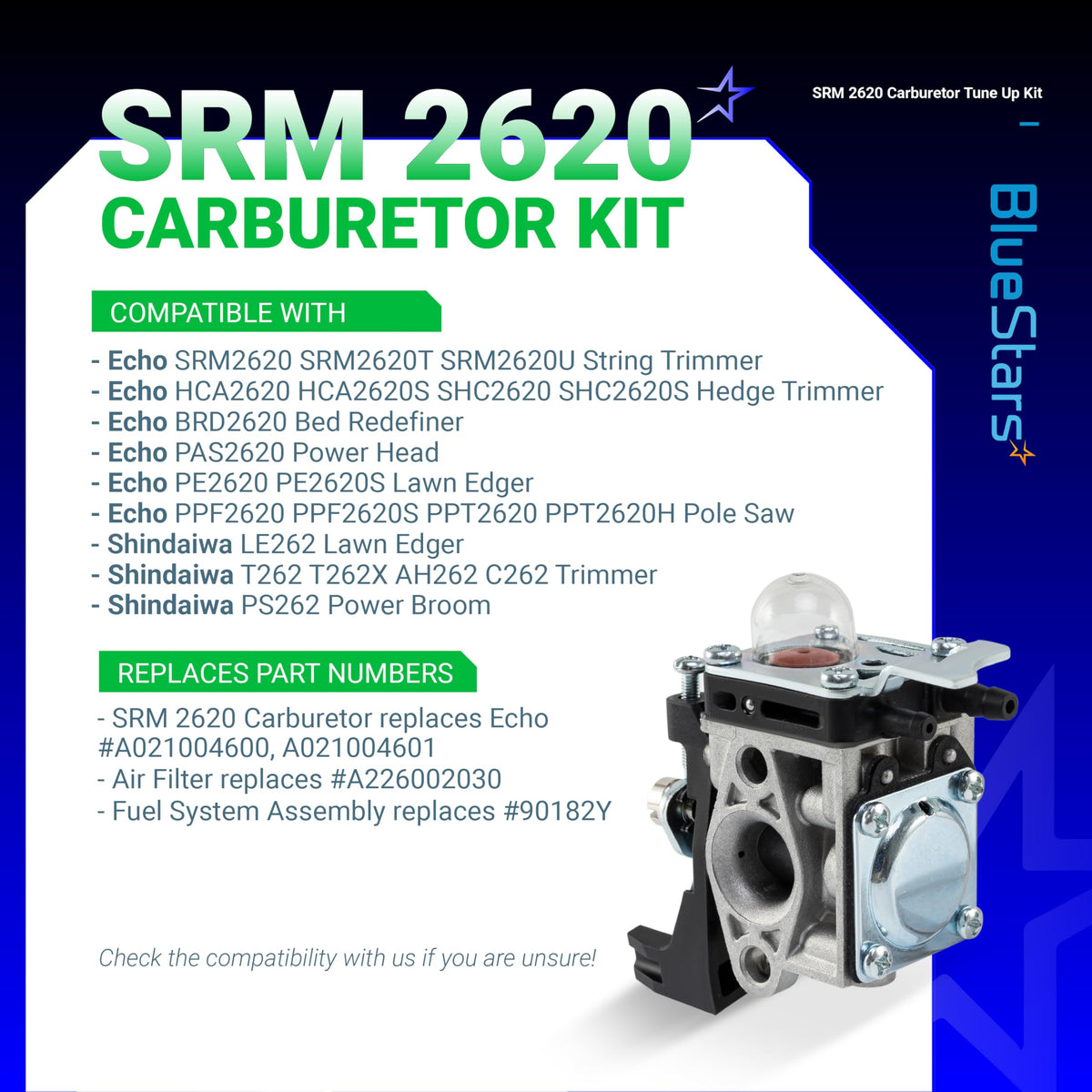

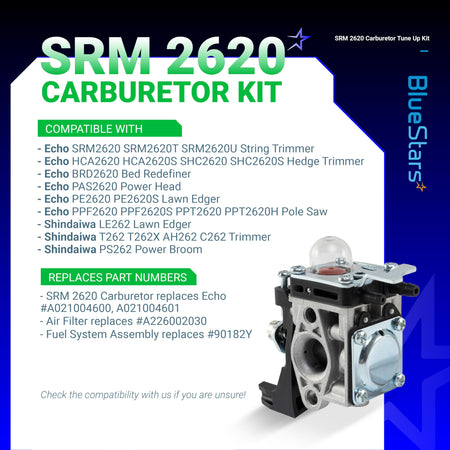

Replaces / Cross-Reference Part Numbers

• Carburetor: A021004601, A021004600
• Air Filter: A226002030, A226002040
• Fuel System: V186000510

Compatibility & Fitment

This kit is designed for the high-performance "2620" engine platform used in Echo and Shindaiwa professional handheld equipment:

• Echo Trimmers & Brushcutters: SRM-2620, SRM-2620T (High Torque), SRM-2620U.
• Echo Speciality Tools: PE-2620 (Edger), PAS-2620 (Pro Attachment Series), BRD-2620 (Bed Redefiner), HCA-2620 (Hedge Trimmer), PPT-2620 (Pole Pruner).
• Shindaiwa Models: T262, T262X, C262, LE262 (Edger), EB262 (Handheld Blower).

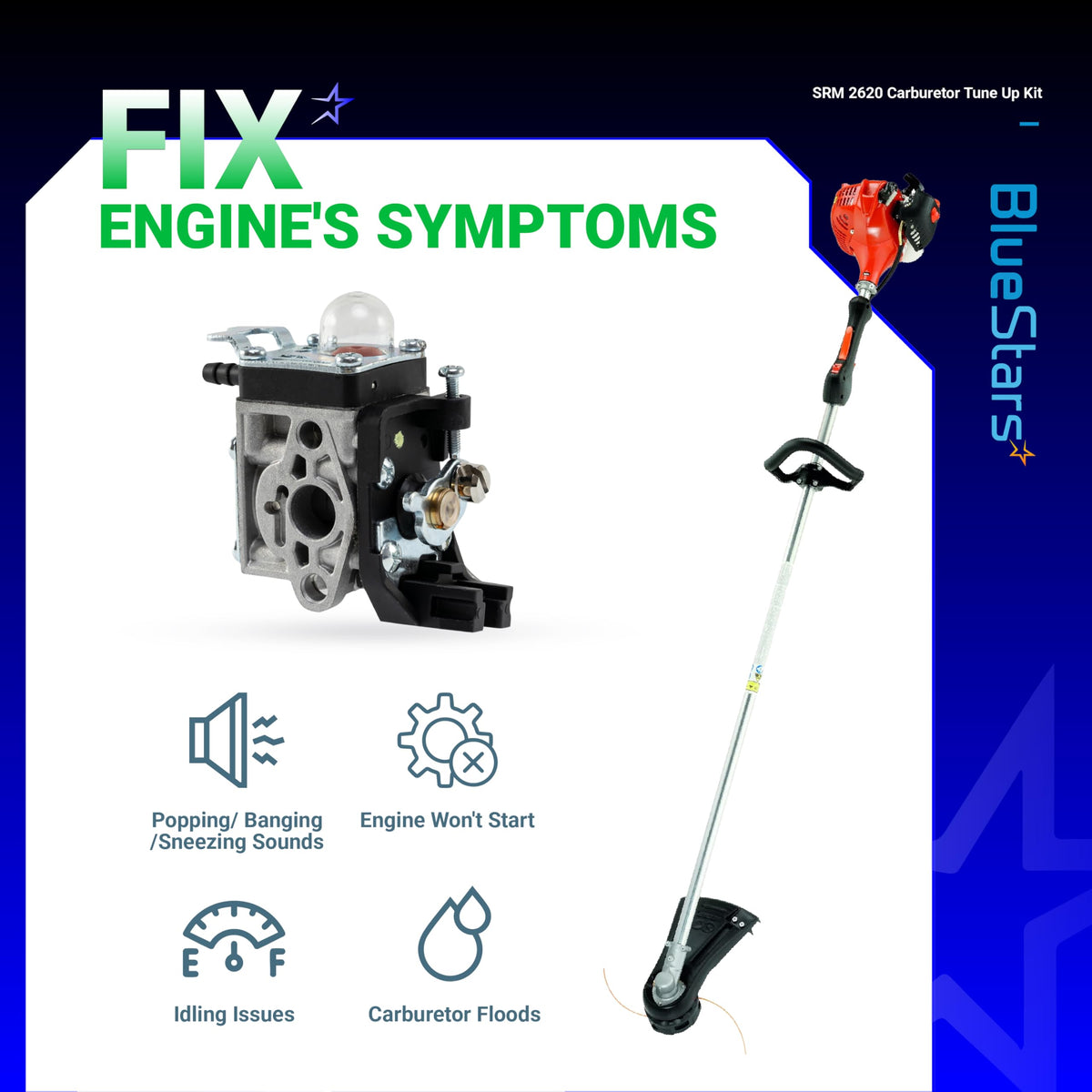

When to Replace

• Engine "Bogs" at Full Throttle: The engine idles fine but dies or loses power as soon as you pull the trigger, indicating a restriction in the high-speed circuit.
• Hard Starting / Excessive Priming: The trimmer requires 10+ pulls or multiple primer presses to fire, confirming the carburetor's internal fuel pump is failing.
• Visible Air Filter Clogging: The pleated paper filter is dark, oily, or caked with dried mud, which starves the engine of air and causes "rich" running (black smoke).
• Fuel Leaks at the Primer Bulb: Gasoline is weeping from the bulb or the fuel line grommet, posing a fire hazard and causing air to enter the fuel system.
• Stiff or Yellowed Fuel Lines: The lines have become brittle or gummy, which can lead to air leaks or "collapsing" lines that starve the engine of fuel.

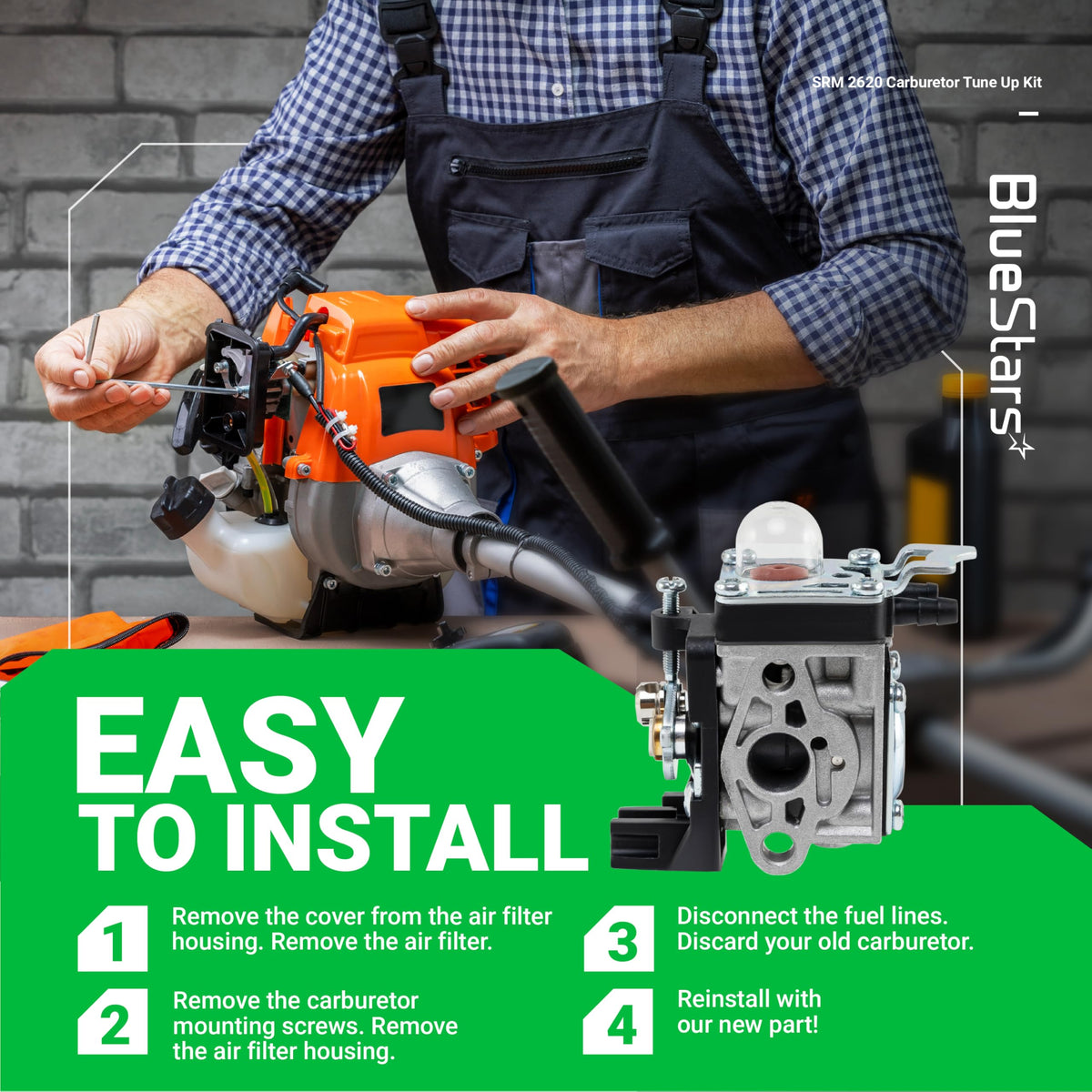

Installation Tips

• Check the Grommet: When replacing the fuel lines, ensure the rubber grommet in the gas tank is seated perfectly. If it's twisted, the tank will leak fuel when the trimmer is held at an angle.
• The Pulse Hole: When installing the new gasket, ensure the tiny hole on the gasket aligns with the pulse hole on the engine block. If this is blocked, the carburetor will not pump fuel.
• Prime Until Clear: After installation, press the primer bulb until you see fuel moving through the clear return line without air bubbles. This ensures the system is fully bled.
• Air Box Seal: Ensure the A226002030 filter is seated flush in the air box channel before snapping the cover shut. Any gap will allow abrasive dust to enter the cylinder and cause premature engine wear.
• Spark Plug Gap: Verify the spark plug gap (0.024" to 0.026") before installation to ensure the strongest possible ignition.
