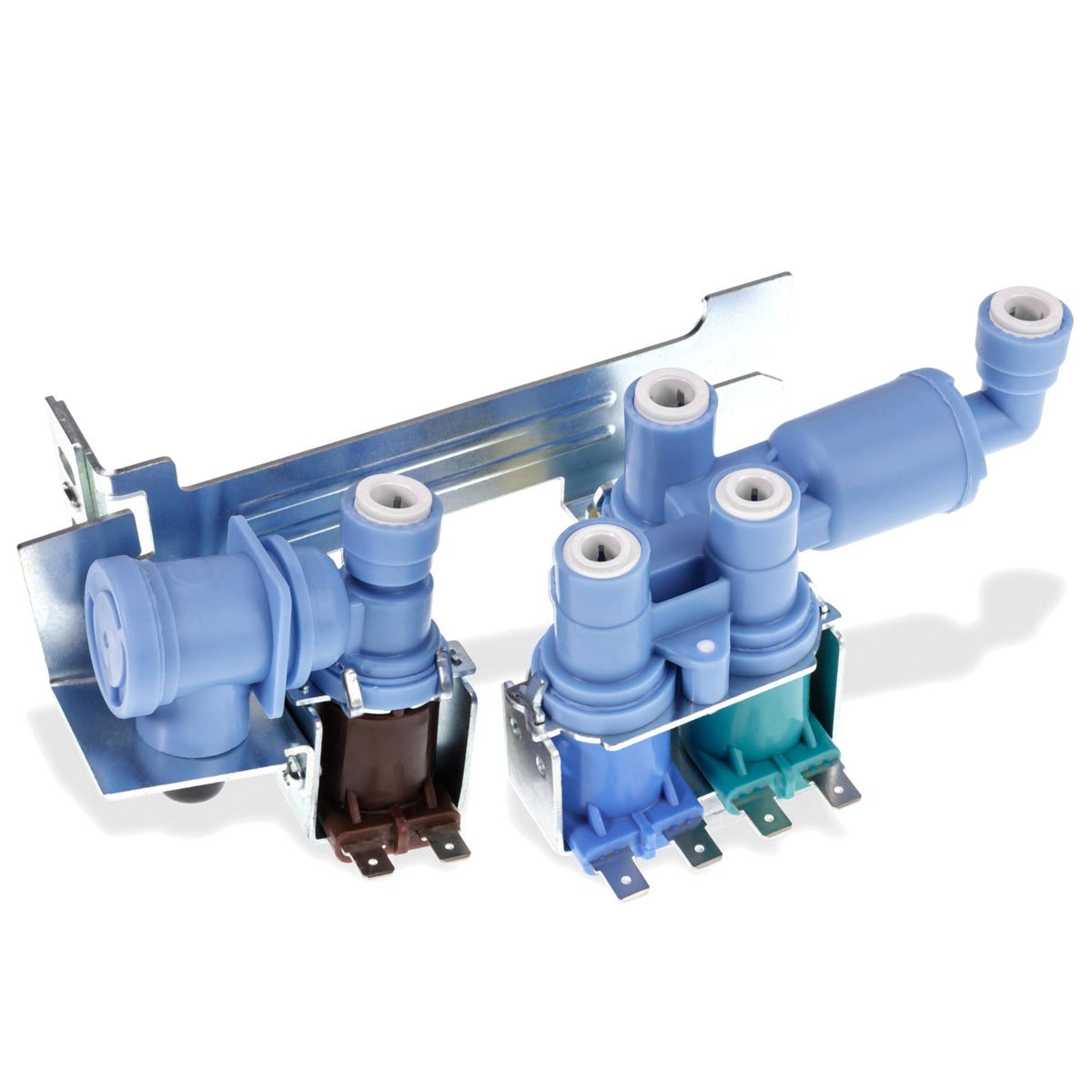

242253002 refrigerator water inlet valve assembly with mounting bracket for Frigidaire, Electrolux, and Kenmore units.

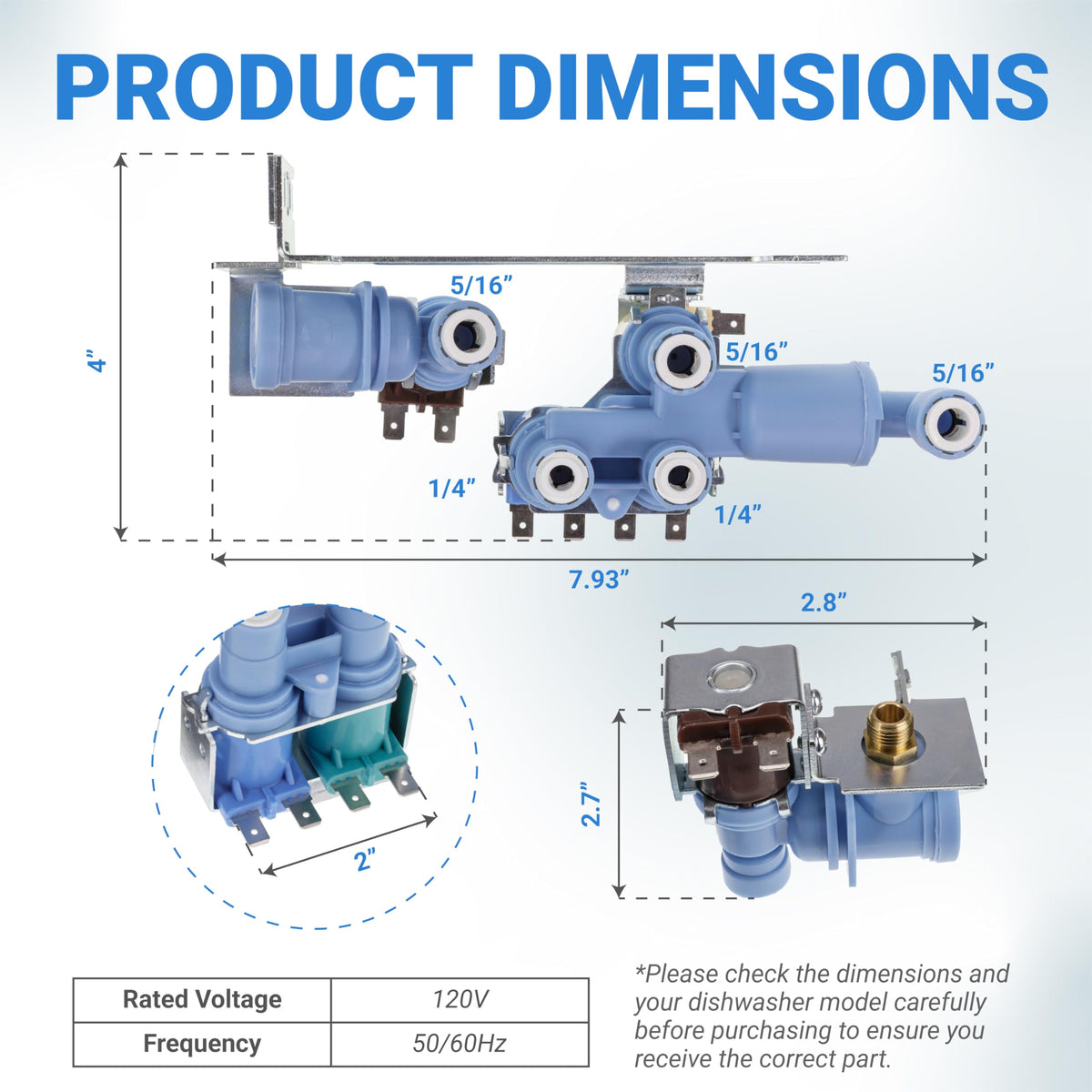

Dimensional diagram showing measurements for the 242253002 refrigerator water inlet valve.

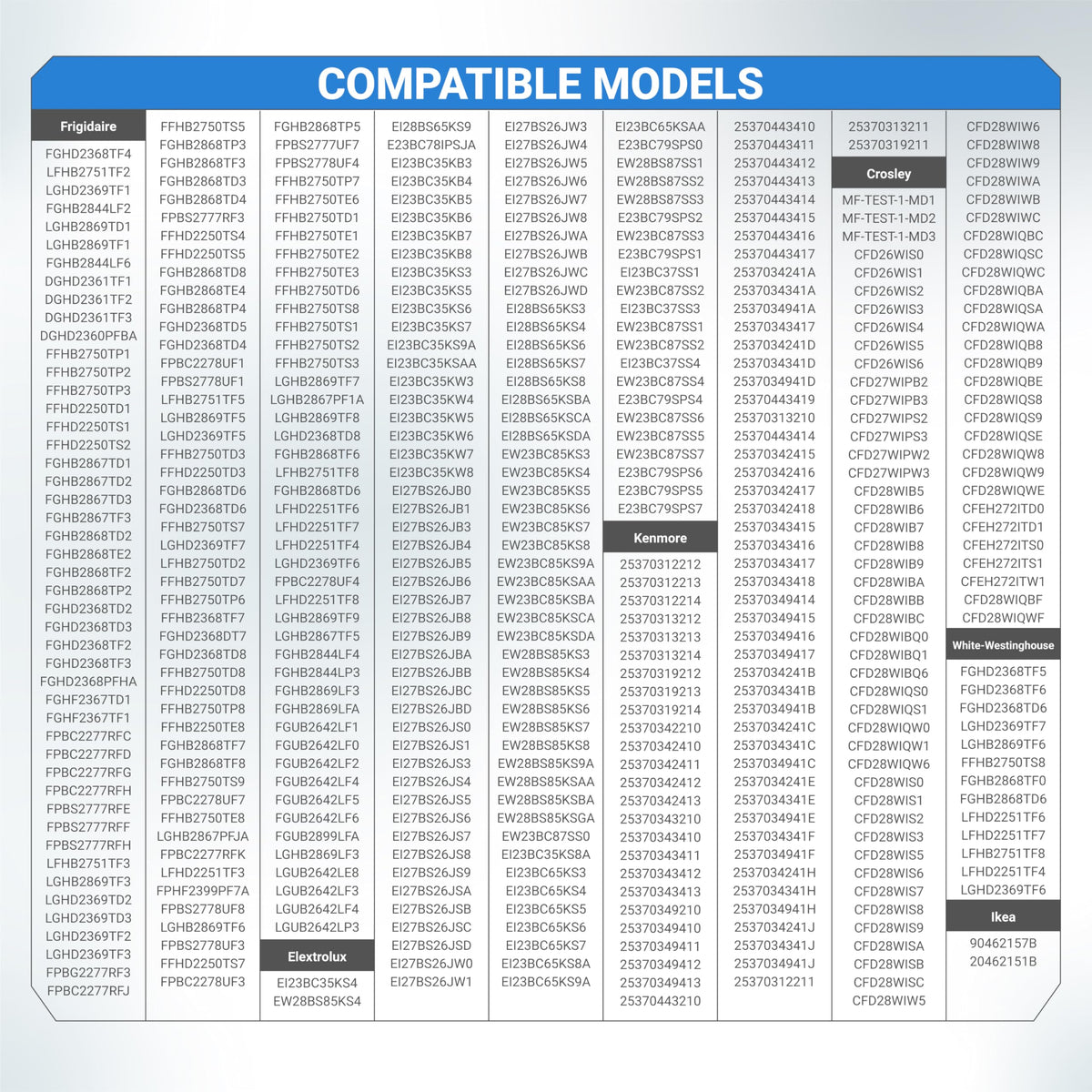

List of compatible refrigerator model numbers for the 242253002 water inlet valve.

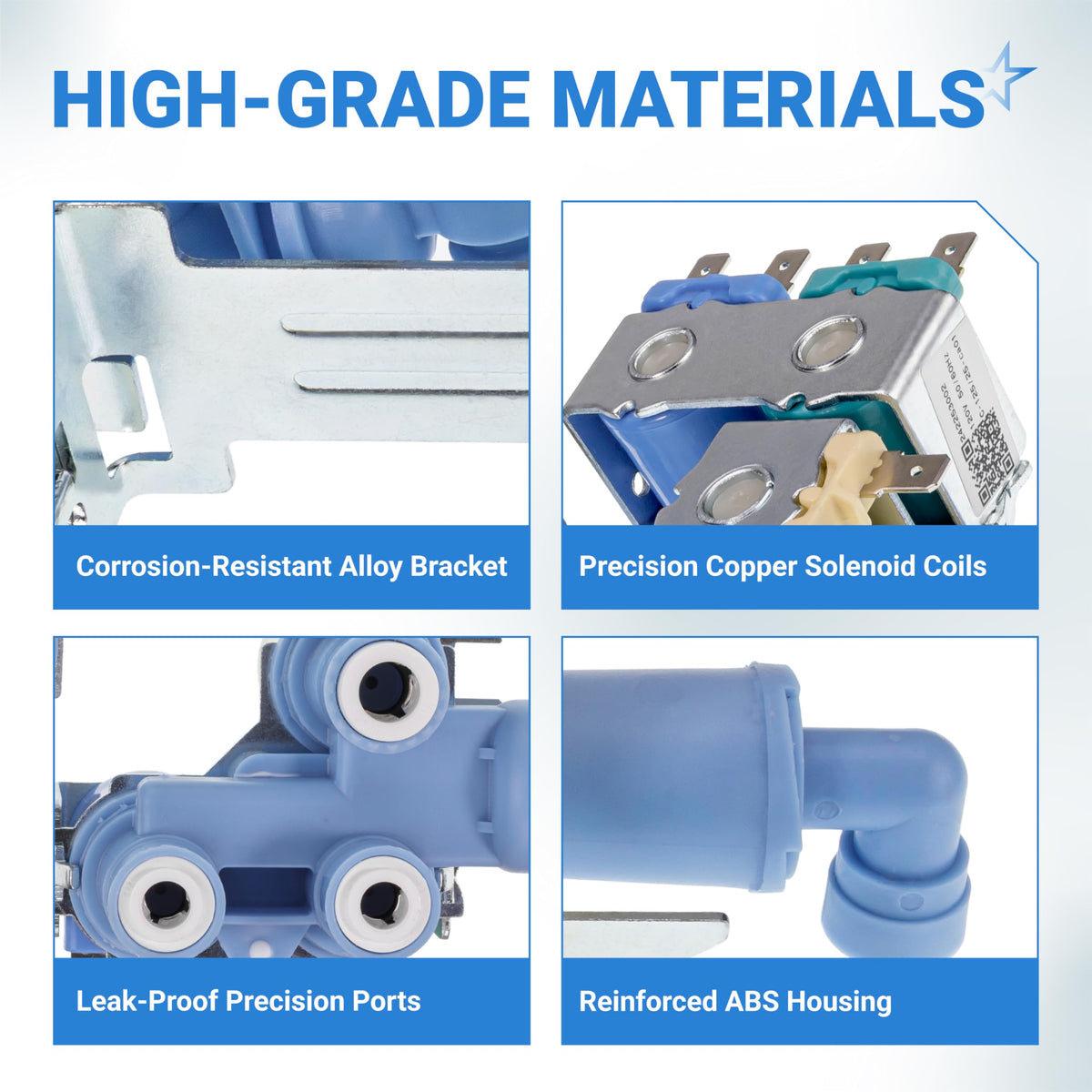

Infographic showing high-grade materials of 242253002 refrigerator water inlet valve components.
Woman holding an apple in front of an open refrigerator to illustrate common refrigerator repair symptoms.

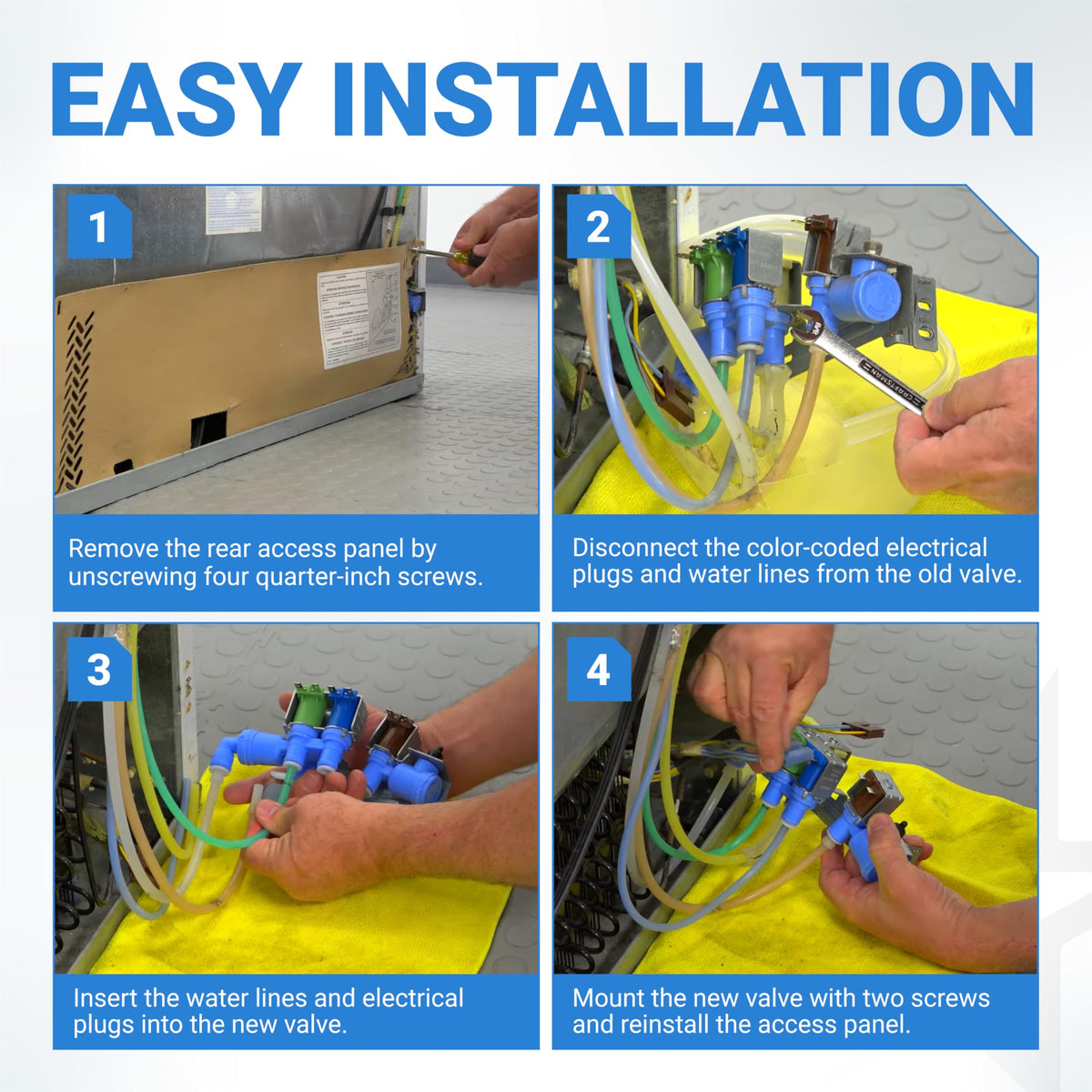

Four-step installation guide for replacing a refrigerator water inlet valve with color-coded lines and electrical plugs.
Person filling a glass from a refrigerator water dispenser, illustrating controlled water flow for the inlet valve.
242253002 refrigerator water inlet valve with compatibility list and stainless steel refrigerator graphic.
242253002 refrigerator water inlet valve assembly with mounting bracket and service icons.
242253002 refrigerator water inlet valve assembly with mounting bracket for Frigidaire, Electrolux, and Kenmore units.
Dimensional diagram showing measurements for the 242253002 refrigerator water inlet valve.
List of compatible refrigerator model numbers for the 242253002 water inlet valve.
Infographic showing high-grade materials of 242253002 refrigerator water inlet valve components.
Woman holding an apple in front of an open refrigerator to illustrate common refrigerator repair symptoms.
Four-step installation guide for replacing a refrigerator water inlet valve with color-coded lines and electrical plugs.
Person filling a glass from a refrigerator water dispenser, illustrating controlled water flow for the inlet valve.
242253002 refrigerator water inlet valve with compatibility list and stainless steel refrigerator graphic.
242253002 refrigerator water inlet valve assembly with mounting bracket and service icons.
Lifetime Warranty

[Lifetime Warranty] 242253002 Refrigerator Water Inlet Valve - Compatible with Frigidaire Electrolux Kenmore Crosley Refrigerators - Replaces 242102201 2689640 AP5669874 PS7321353 EAP7321353

Save 13%
0.00
$56.24
$64.68
$56.24
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

242253002 Refrigerator Water Inlet Valve

Key Features

  • Dual Solenoid Configuration: Features two independent electrical coils to separately control the flow of water to both the ice maker and the chilled water dispenser.
  • High-Pressure Quick-Connects: Equipped with 1/4" and 5/16" push-to-connect fittings for a secure, tool-free installation of the internal plastic water lines.
  • Internal Filtration Screen: Includes a fine mesh stainless steel screen at the main inlet port to prevent sediment and scale from clogging the valve or entering the ice maker.
  • Precision Flow Rate: Engineered to deliver a specific volume of water during each timed fill cycle, ensuring perfectly sized ice cubes and consistent dispenser flow.
  • Moisture-Resistant Housing: Constructed from durable, impact-resistant polymer designed to withstand the cold, damp environment at the rear of the refrigerator.

Replaces / Cross-Reference Part Numbers

  • AP5669874
  • PS7321353
  • 242102201
  • 2689640
  • EAP7321353
  • PD00007279
  • WV3002
  • OEM22679498

Compatibility & Fitment

This water valve is a direct replacement for many side-by-side and French-door refrigerators manufactured by Electrolux. Key compatible brands include:

  • Frigidaire: Fits models in the Gallery, Professional, and standard series (e.g., FGHS2631PF, FGHB2844LF, FFHS2311PF).
  • Electrolux: Compatible with various high-end IQ-Touch and Wave-Touch models.
  • Kenmore / Sears: Fits 253-series models (e.g., 253.70313211, 253.70343411).
  • Crosley & Westinghouse: Compatible with select refrigerators utilizing the 24225-series dual valve.

When to Replace

  • Ice Maker Not Filling: The ice maker goes through the harvest cycle, but no water enters the tray to freeze.
  • Water Dispenser Not Working: You hear a "humming" or "buzzing" sound when the paddle is pressed, but no water comes out of the door.
  • Continuous Leaking: Water constantly drips from the dispenser or into the ice tray, indicating the internal valve seal is stuck open.
  • Leaking at the Valve Body: Visible water pooling on the floor behind the refrigerator, often caused by a cracked valve housing due to freezing or age.
  • Small or Hollow Ice Cubes: Restricted water flow due to sediment buildup in the valve's inlet screen.

Installation Tips

  • Safety First: Unplug the refrigerator and shut off the main house water supply line before removing the old valve.
  • Drain the Lines: Have a bucket and towel ready. Even with the water off, the internal lines will contain residual water that will drain when the tubes are disconnected.
  • Quick-Connect Removal: To release the water lines, push the small plastic collar (ring) toward the valve body while simultaneously pulling the tube away.
  • Tube Depth: When installing the new valve, push the water lines into the quick-connect ports until they "bottom out." Pull back gently to ensure the locking teeth have engaged the tube.
  • Flush the System: After installation, run 2–3 gallons of water through the door dispenser to clear any air pockets or debris from the new valve.
Brand Model Number
Replaces 242102201, 2689640, AP5669874, EAP7321353, PD00007279, PS7321353, WV3002
Crosley CFD27WIPB2, CFD27WIPB3, CFD27WIPS2, CFD27WIPS3, CFD27WIPW2, CFD27WIPW3, CFD28WIBB, CFD28WIBC, CFD28WIQB0, CFD28WIQB1, CFD28WIQB6, CFD28WIQS0, CFD28WIQS1, CFD28WIQS6, CFD28WIQW0, CFD28WIQW1, CFD28WIQW6, CFD28WISB, CFD28WISC, CFD28WIWB, CFD28WIWC
Electrolux E23BC78IPSJA, EI23BC35KB5, EI23BC35KB6, EI23BC35KB7, EI23BC35KB8, EI23BC35KS5, EI23BC35KS6, EI23BC35KS7, EI23BC35KS8, EI23BC35KS8A, EI23BC35KS9A, EI23BC35KSAA, EI23BC35KW5, EI23BC35KW6, EI23BC35KW7, EI23BC35KW8, EI23BC65KS5, EI23BC65KS6, EI23BC65KS7, EI23BC65KS8A, EI23BC65KS9A, EI23BC65KSAA, EI27BS26JBA, EI27BS26JBB, EI27BS26JBC, EI27BS26JBD, EI27BS26JSA, EI27BS26JSB, EI27BS26JSC, EI27BS26JSD, EI27BS26JWA, EI27BS26JWB, EI27BS26JWC, EI27BS26JWD, EI28BS65KS6, EI28BS65KS7, EI28BS65KS8, EI28BS65KS9, EI28BS65KSBA, EI28BS65KSCA, EI28BS65KSDA, EW23BC85KS5, EW23BC85KS6, EW23BC85KS7, EW23BC85KS8, EW23BC85KSAA, EW23BC85KSBA, EW23BC85KSCA, EW28BS85KS5, EW28BS85KS6, EW28BS85KS7, EW28BS85KS8, EW28BS85KSBA, EW28BS85KSCA, EW28BS85KSDA
Frigidaire DGHF2360PF0, DGHF2360PF1, DGHF2360PF2A, DGHF2360PF3A, DGHF2360PF4A, DGHF2360PF5A, DGHF2360PF6A, DGHF2360PF7A, FGEB28D7QF0, FGEB28D7RF0, FFHB2740PE0, FFHB2740PE1, FFHB2740PE2, FFHB2740PE3, FFHB2740PE4, FFHB2740PE5A, FFHB2740PE6A, FFHB2740PE7A, FFHB2740PE8A, FFHB2740PE9A, FFHB2740PEAA, FFHB2740PP0, FFHB2740PP1, FFHB2740PP2, FFHB2740PP3, FFHB2740PP4, FFHB2740PP5A, FFHB2740PP6A, FFHB2740PP7A, FFHB2740PP8A, FFHB2740PP9A, FFHB2740PPAA, FFHB2740PS0, FFHB2740PS1, FFHB2740PS2, FFHB2740PS3, FFHB2740PS4, FFHB2740PS5, FFHB2740PS6A, FFHB2740PS7A, FFHB2740PS8A, FFHB2740PS9A, FFHB2740PSAA, FFHB2740PSBA
Frigidaire FGHB2735NE2, FGHB2735NE3, FGHB2735NF2, FGHB2735NF3, FGHB2735NP2, FGHB2735NP3, FGHB2844LEH, FGHB2844LEJ, FGHB2844LFG, FGHB2844LPF, FGHB2844LPG, FGHB2866PE0, FGHB2866PE1, FGHB2866PE3, FGHB2866PE4, FGHB2866PE5A, FGHB2866PE6A, FGHB2866PE7A, FGHB2866PE9A, FGHB2866PEAA, FGHB2866PEBA, FGHB2866PF0, FGHB2866PF1, FGHB2866PF2, FGHB2866PF3, FGHB2866PF4, FGHB2866PF6, FGHB2866PF7A, FGHB2866PF9A, FGHB2866PFAA, FGHB2866PFBA, FGHB2866PFCA, FGHB2866PFDA, FGHB2866PFEA, FGHB2866PFFA, FGHB2866PFGA, FGHB2866PP0, FGHB2866PP1, FGHB2866PP3, FGHB2866PP4, FGHB2866PP5A, FGHB2866PP6A, FGHB2866PP7A, FGHB2866PP9A, FGHB2866PPAA, FGHB2866PPBA, FGHB2869LFC, FGHF2344MF7, FGHF2366PF0, FGHF2366PF1, FGHF2366PF2, FGHF2366PF3, FGHF2366PF5A, FGHF2366PF6A, FGHF2366PF7A, FGHF2366PF8A, FGHF2366PF9A, FGHF2369MF7, FGUB2642LE9, FGUB2642LF9, FGUB2642LP9
Frigidaire FPBC2277RF0, FPBC2277RF1, FPBC2277RF2, FPBS2777RF0, FPBS2777RF1, FPBS2777RF2, FPHB2899LFC, FPHB2899LFD, FPHB2899PF0, FPHB2899PF1, FPHB2899PF2, FPHB2899PF3, FPHB2899PF4, FPHB2899PF5, FPHB2899PF6A, FPHB2899PF7A, FPHB2899PF8A, FPHF2399MF7, FPHF2399PF0, FPHF2399PF1, FPHF2399PF2, FPHF2399PF3, FPHF2399PF4, FPHF2399PF5, FPHF2399PF6, LFHB2741PE0, LFHB2741PE1, LFHB2741PF0, LFHB2741PF1, LFHB2741PF2, LFHB2741PF3, LFHB2741PF4, LFHB2741PF5A, LFHB2741PF6A, LFHB2741PF7A, LFHB2741PF8A, LFHB2741PF9A, LFHB2741PFAA, LFHB2741PP0, LFHB2741PP1, LGHB2867PF0, LGHB2867PF2, LGHB2867PF3, LGHB2867PF4, LGHB2867PF5, LGHB2867PF6A, LGHB2867PF7A, LGHB2867PF8A, LGHB2867PFAA, LGHB2867PFBA, LGHB2867PFCA, LGHB2867PFDA
Kenmore 25370312212, 25370312213, 25370312214, 25370313212

FAQ

This water inlet valve is used on select refrigerator models from Frigidaire, Electrolux, Kenmore, and Crosley. Compatibility is model-specific, so the safest match is to confirm your refrigerator's model number and make sure it calls for part 242253002 or one of its replacement numbers.
Known replacement and cross-reference numbers for this valve include 242253002, 242102201, WV3002, 2689640, AP5669874, PS7321353, EAP7321353, and PD00007279.
A failing inlet valve can cause no water to the ice maker, slow ice production, very small or hollow ice cubes, water dispenser problems on applicable models, or leaking/dripping into the fill tube that can freeze up around the ice maker. In some cases the valve may hum but not open properly, usually from internal wear or sediment buildup.
On most refrigerators, this is a moderate repair that takes about 20 to 45 minutes. Typical tools are a screwdriver, adjustable wrench or open-end wrench for the water line, pliers, and a towel to catch any residual water. Always unplug the refrigerator and shut off the household water supply before starting.
Before replacing the valve, check that the home water supply is turned on, the inlet line is not kinked, and the fill tube to the ice maker is not frozen. It is also smart to inspect the water line fittings for leaks and verify that the old valve is actually receiving power when the ice maker or dispenser calls for water. If sediment is present in the supply line, flushing the line before installation can help protect the new valve.
Common causes include mineral or sediment buildup from the water supply, internal solenoid wear, freezing from slow drips, and stress or cracking around the valve body or fittings. Hard water and poor water quality can shorten valve life, especially if the refrigerator's water system has gone a long time without maintenance.
