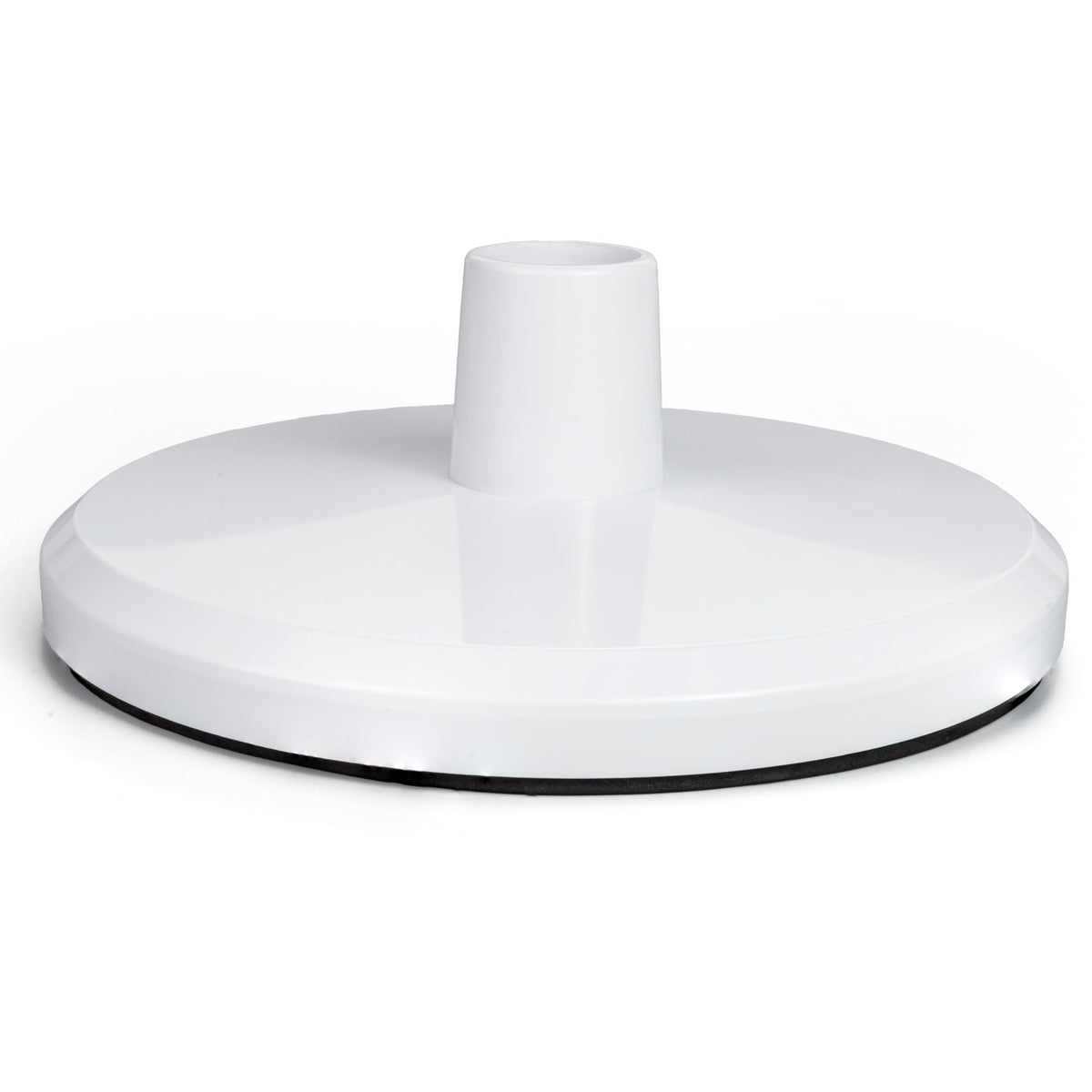

White SP1106 pool skimmer vacuum plate with hose adapter for Hayward in-ground skimmers.

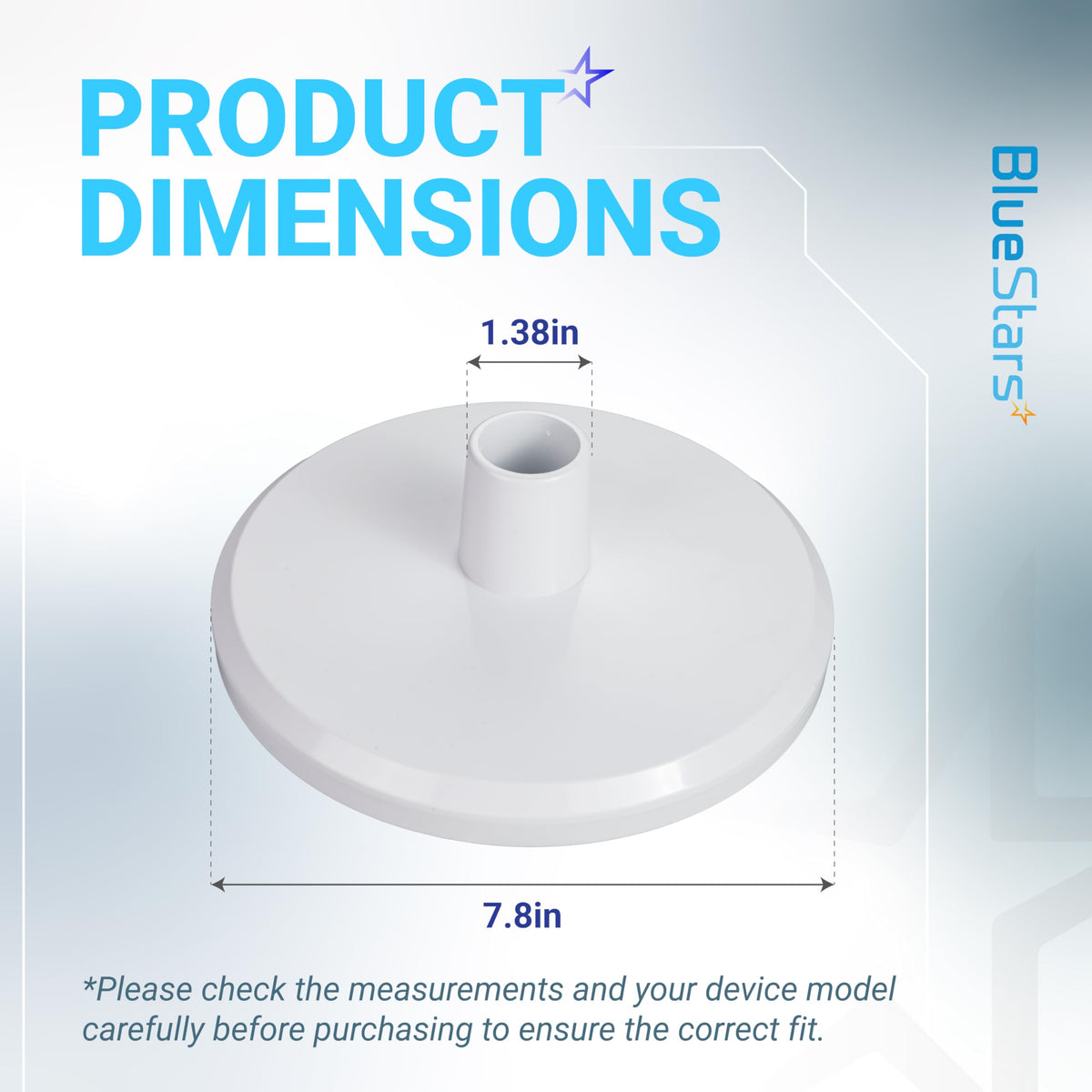

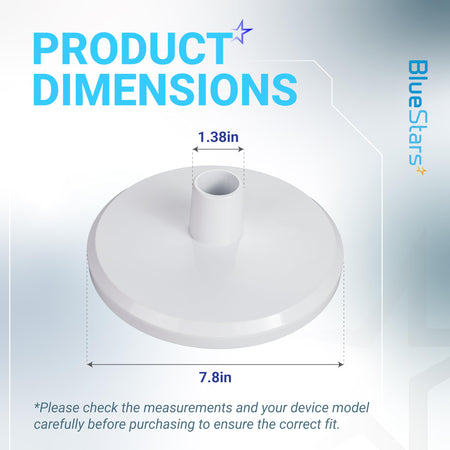

SP1106 pool skimmer vacuum plate dimensions diagram showing 7.8-inch diameter and 1.38-inch hose adapter opening.

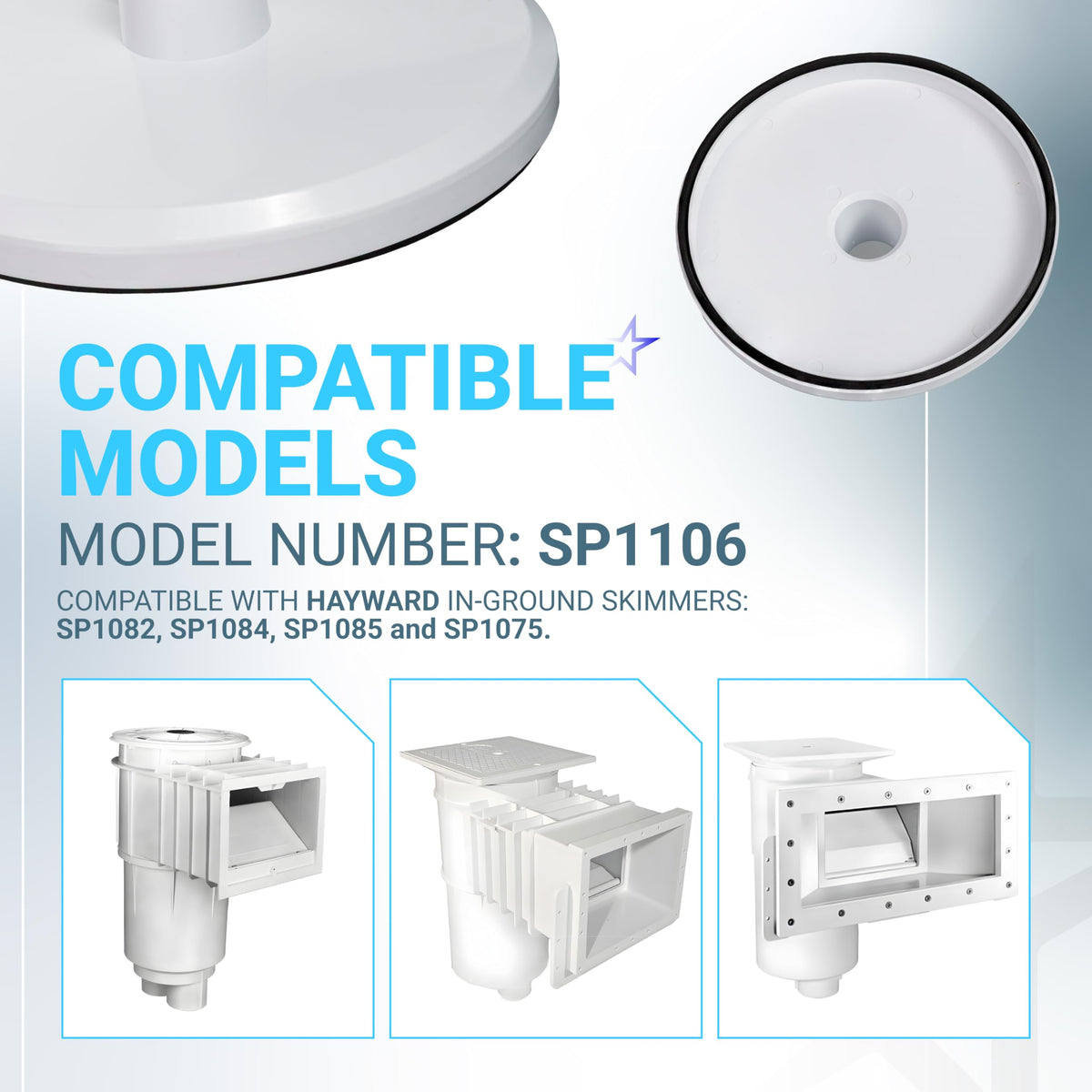

SP1106 pool skimmer vacuum plate compatibility chart for Hayward SP1082, SP1084, SP1085, and SP1075 in-ground skimmers.

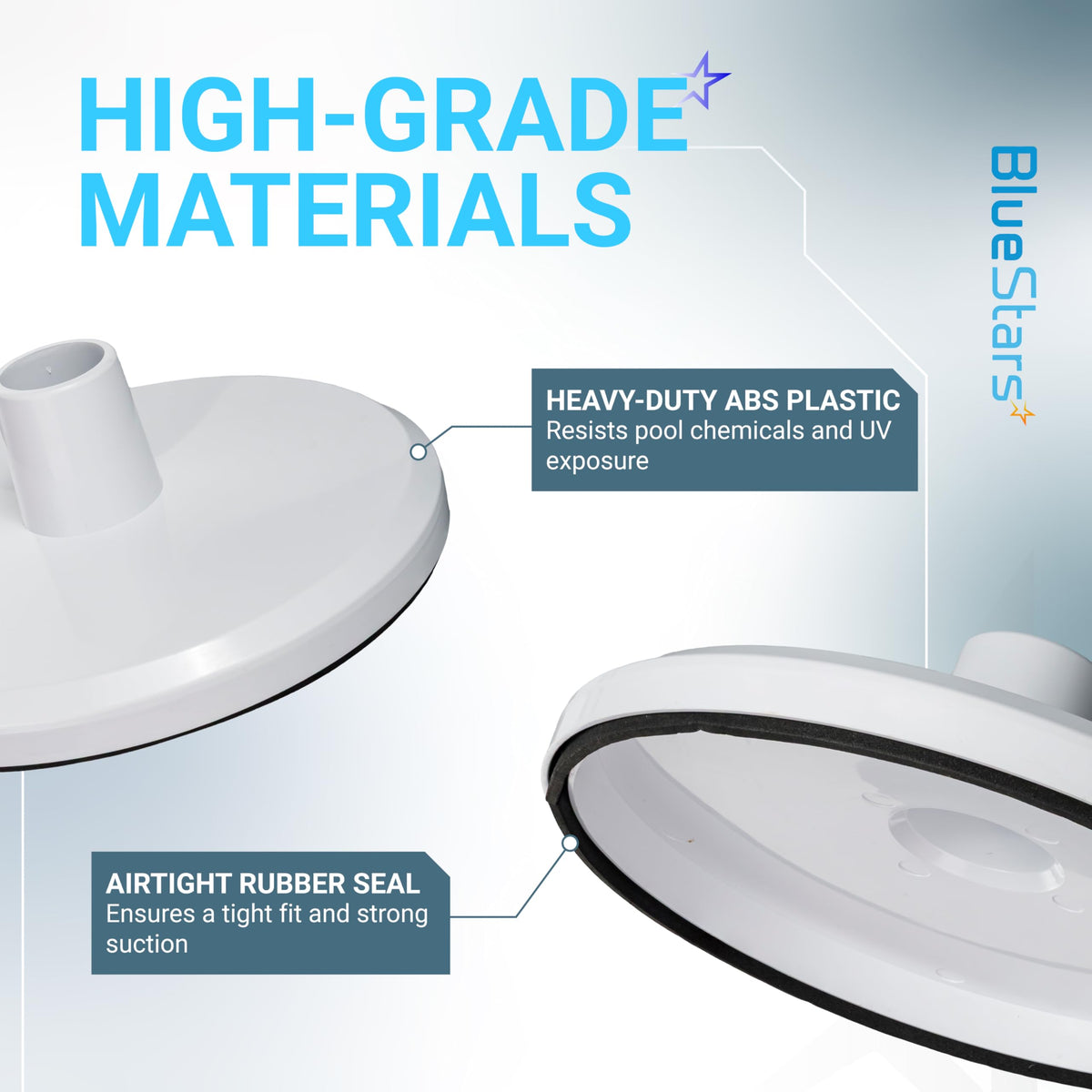

SP1106 pool skimmer vacuum plate showing heavy-duty ABS plastic construction and airtight rubber seal for suction.
SP1106 pool skimmer vacuum plate shown with before and after comparison of pool water clarity.

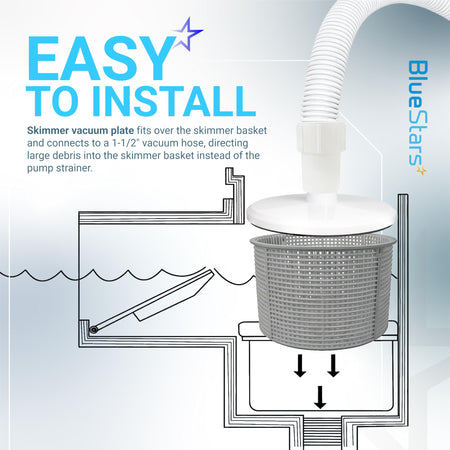

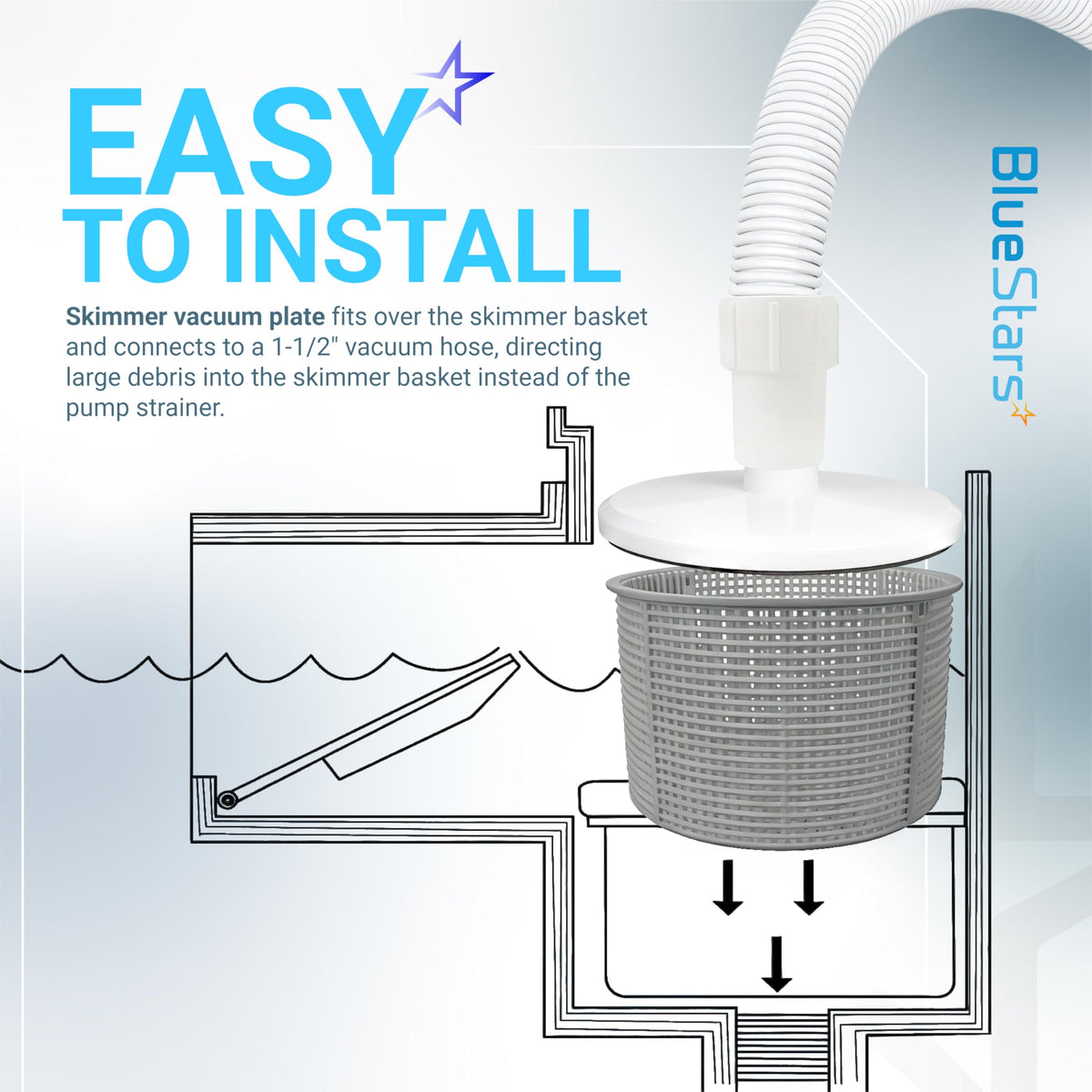

Diagram showing SP1106 pool skimmer vacuum plate installation over a skimmer basket with a 1-1/2 inch vacuum hose.
SP1106 pool skimmer vacuum plate replacement with black gasket for Hayward in-ground skimmers.
Comparison graphic showing durable SP1106 pool skimmer vacuum plate features versus inferior alternatives.
SP1106 pool skimmer vacuum plate replacement for Hayward in-ground skimmers on branded BlueStars promotional background.
White SP1106 pool skimmer vacuum plate with hose adapter for Hayward in-ground skimmers.
SP1106 pool skimmer vacuum plate dimensions diagram showing 7.8-inch diameter and 1.38-inch hose adapter opening.
SP1106 pool skimmer vacuum plate compatibility chart for Hayward SP1082, SP1084, SP1085, and SP1075 in-ground skimmers.
SP1106 pool skimmer vacuum plate showing heavy-duty ABS plastic construction and airtight rubber seal for suction.
SP1106 pool skimmer vacuum plate shown with before and after comparison of pool water clarity.
Diagram showing SP1106 pool skimmer vacuum plate installation over a skimmer basket with a 1-1/2 inch vacuum hose.
SP1106 pool skimmer vacuum plate replacement with black gasket for Hayward in-ground skimmers.
Comparison graphic showing durable SP1106 pool skimmer vacuum plate features versus inferior alternatives.
SP1106 pool skimmer vacuum plate replacement for Hayward in-ground skimmers on branded BlueStars promotional background.
Lifetime Warranty

[Lifetime Warranty] SP1106 Pool Skimmer Vacuum Plate - Compatible with Hayward SP1082 1084 1085 1075 Skim Vac In-Ground Pool Skimmer Basket Cover, Hose Adapter Replacement

Save 13%
0.00
$20.18
$23.21
$20.18
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

SP1106 Pool Skimmer Vacuum Plate

Key Features

  • Connects a standard 1.5-inch vacuum hose to the skimmer inlet.
  • Measures 7 29/32 inches in diameter to fit over the skimmer basket.
  • Includes an integrated rubber gasket for a secure, airtight seal.
  • Constructed from durable plastic for long service life.

Replaces / Cross-Reference Part Numbers

  • SP1106
  • SP1106A

Compatibility & Fitment

  • Fits Hayward in-ground pool skimmer models: SP1070, SP1075, SP1081, SP1082, SP1084, SP1085.
  • Designed for skimmers with a top basket diameter of approximately 7 inches.
  • For use with 1.5-inch straight vacuum hose connectors.

When to Replace

  • Visible cracks, warping, or damage to the plate.
  • Worn, compressed, or missing gasket causing suction loss.
  • Inability to form a secure connection with the vacuum hose.

Installation Tips

  • Turn off the pool pump before starting.
  • Remove the skimmer lid and basket.
  • Submerge the vacuum hose in the pool to fill it with water and remove all air.
  • While keeping the hose submerged, connect its swivel cuff to the vacuum plate.
  • Place the plate and hose assembly directly over the skimmer's suction port, ensuring the gasket seals tightly.
  • Turn the pump on to begin vacuuming.

FAQ

This vacuum plate is commonly matched to Hayward in-ground skimmers including SP1082, SP1084, SP1085, and SP1075, as listed in the product title and supporting references. Some references also mention SP1070. A key fit point is that the plate is designed to fit over a 7-inch skimmer basket, so if you are unsure, verify your skimmer model and basket opening before ordering.
The main part number is SP1106. You may also see SP1107 mentioned as a closely related vacuum plate; references indicate the difference is that SP1106 includes a rubber seal on the bottom plate. Always match the exact part number and skimmer model before purchase.
A skimmer vacuum plate lets you connect a pool vacuum hose through the skimmer without removing the skimmer basket from service. It helps route suction from the pump to the vacuum hose while still allowing the basket area to catch debris before it reaches the pump strainer.
Typical signs include the plate not sealing properly to the skimmer basket, loss of suction while vacuuming, cracks in the plastic, a worn or damaged bottom gasket/seal, or a hose connection that no longer fits securely. If the plate lifts easily during vacuuming or allows air to enter the system, replacement is often needed.
Installation is usually simple and takes only a few minutes. Make sure the skimmer basket is seated correctly, then place the vacuum plate over the basket and connect your vacuum hose to the adapter opening. Many users fill the vacuum hose with water first to reduce air entering the system, then place the plate onto the skimmer while the pump is running. No special tools are normally required.
Before replacing the plate, inspect the skimmer basket for damage, make sure the basket size matches a 7-inch application, and check the vacuum hose cuff for wear or looseness. Also inspect the plate gasket or sealing surface, because suction problems can be caused by an air leak, a clogged pump basket, or a dirty filter rather than the vacuum plate itself.
